Category
Turning Machine
Type
Center
Made
Model

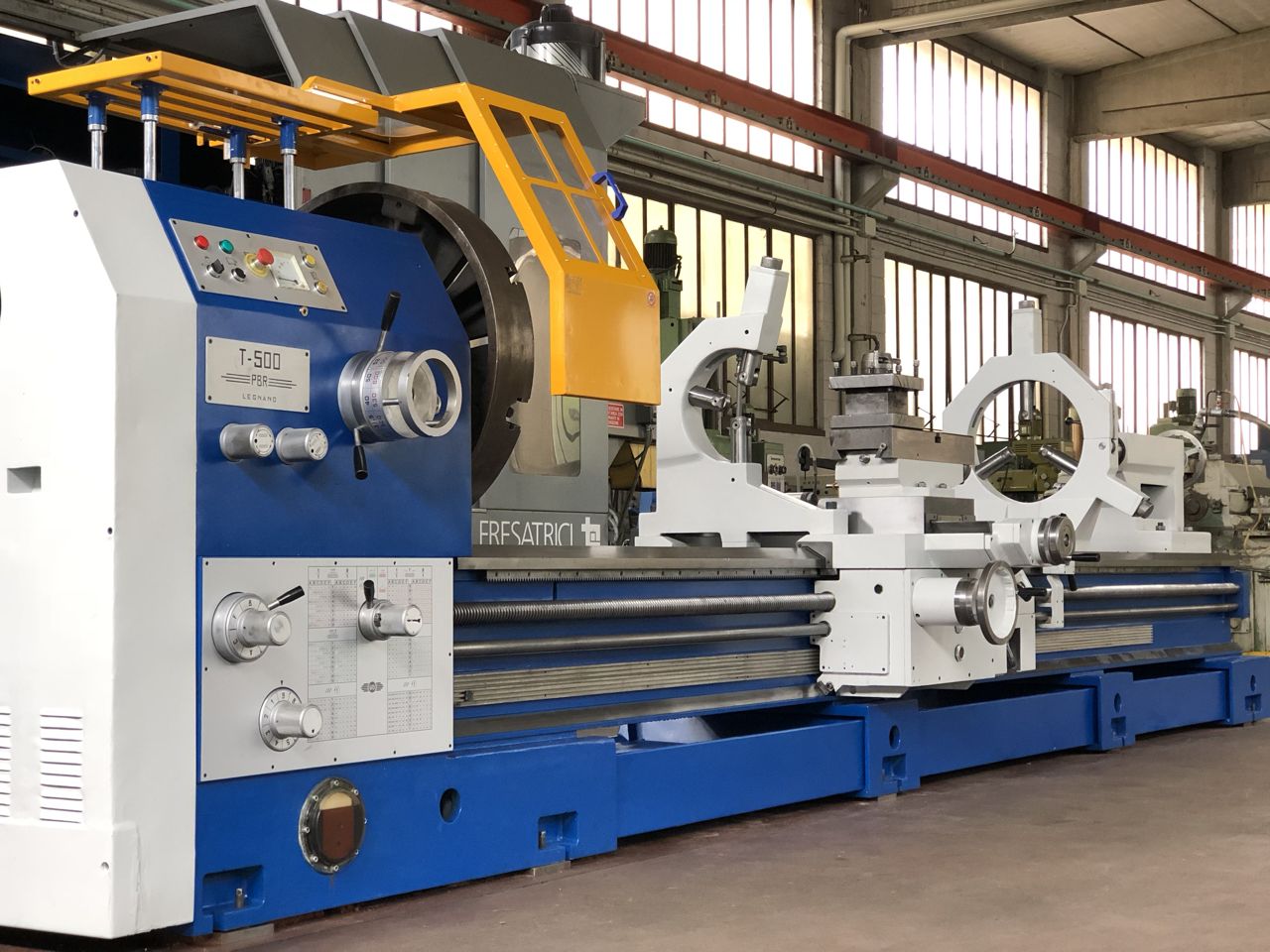

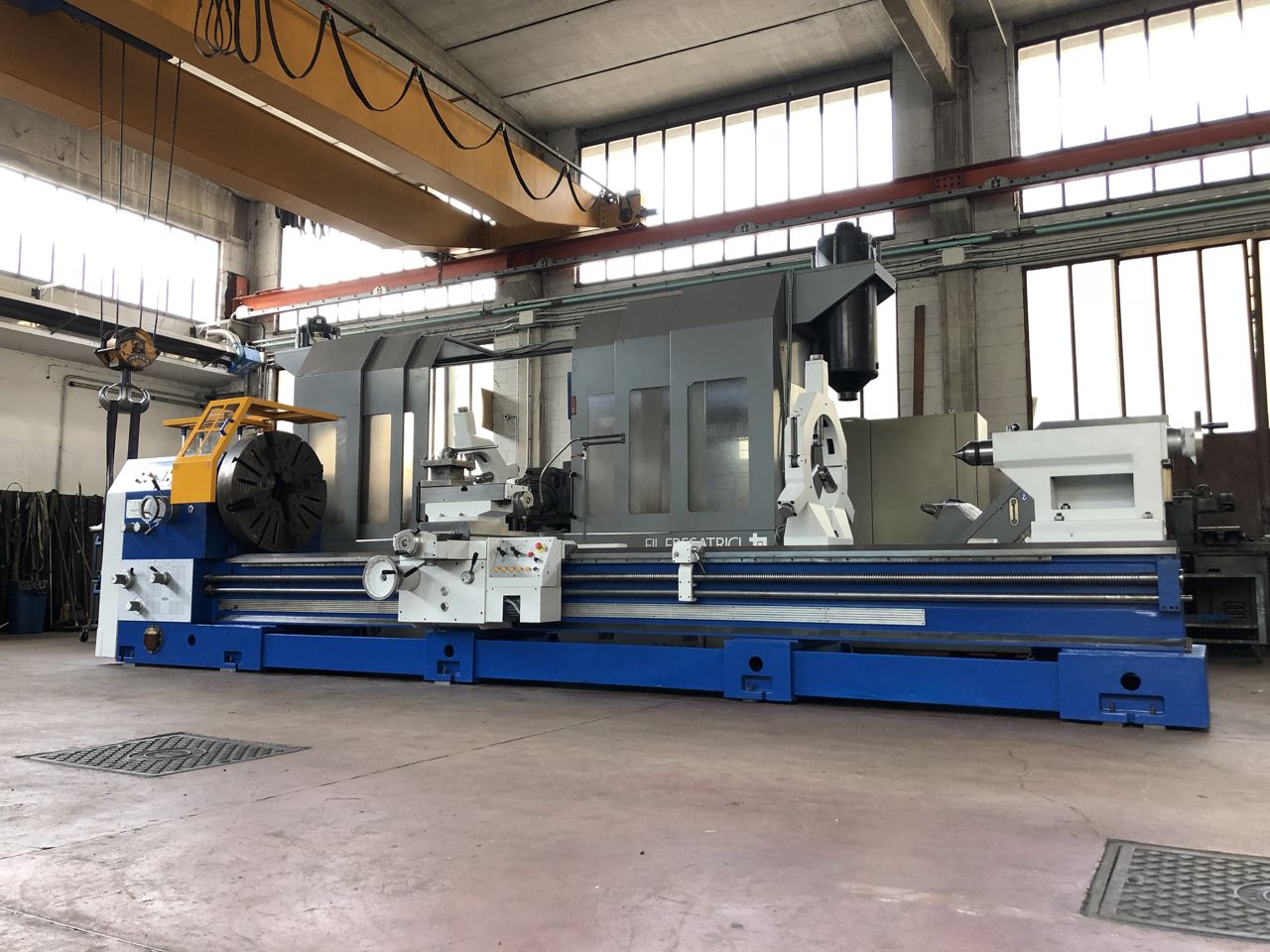

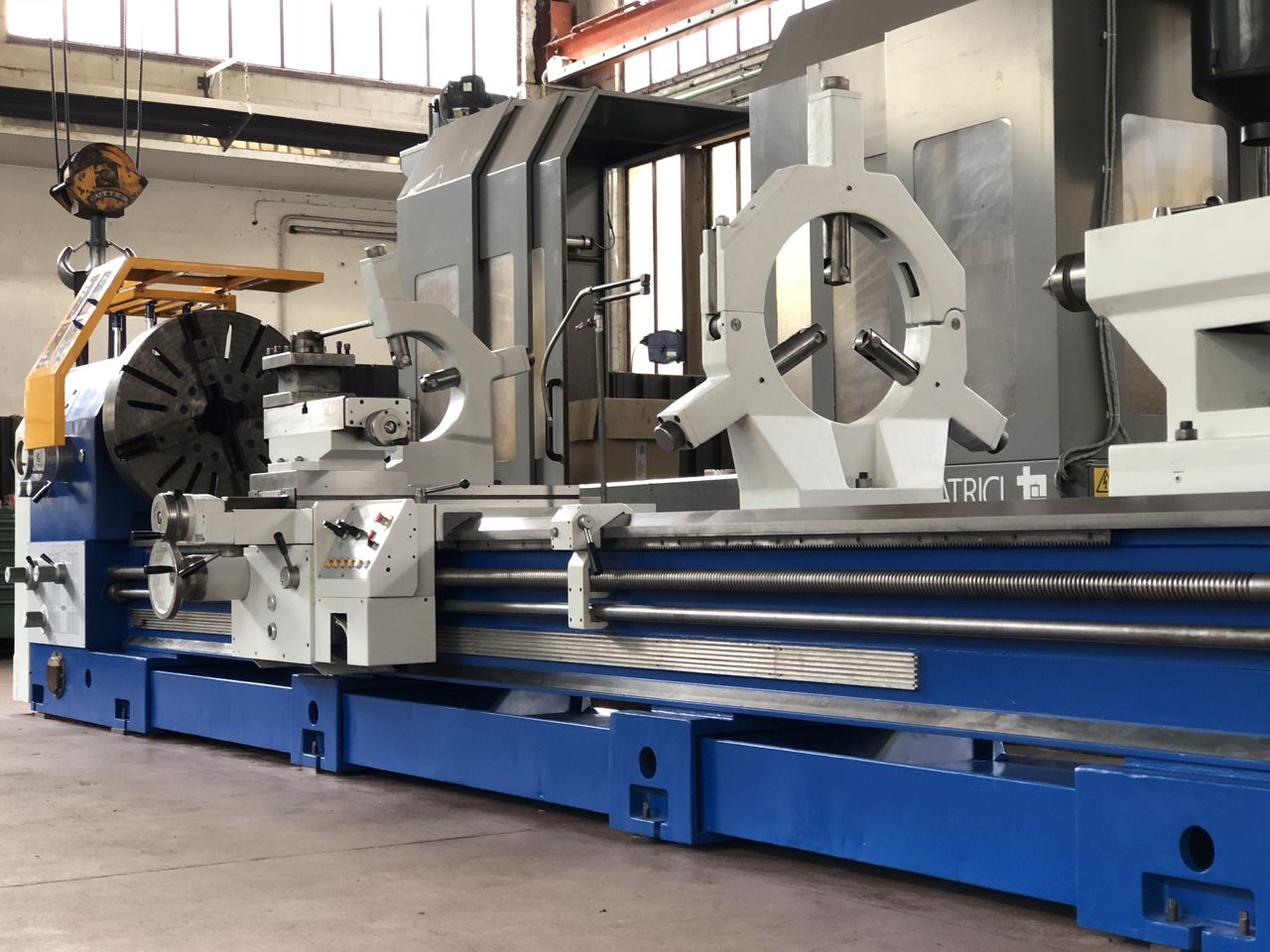

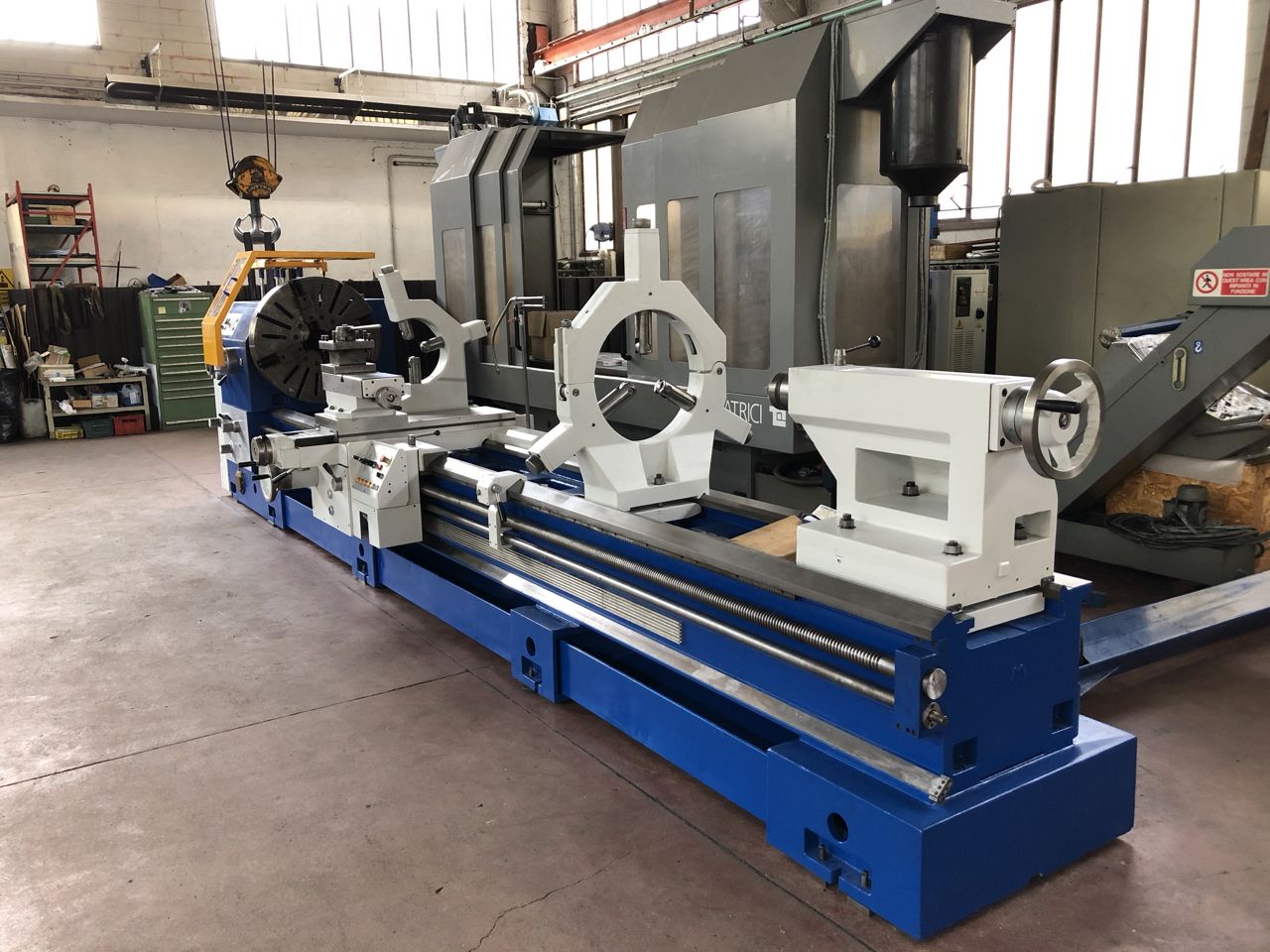

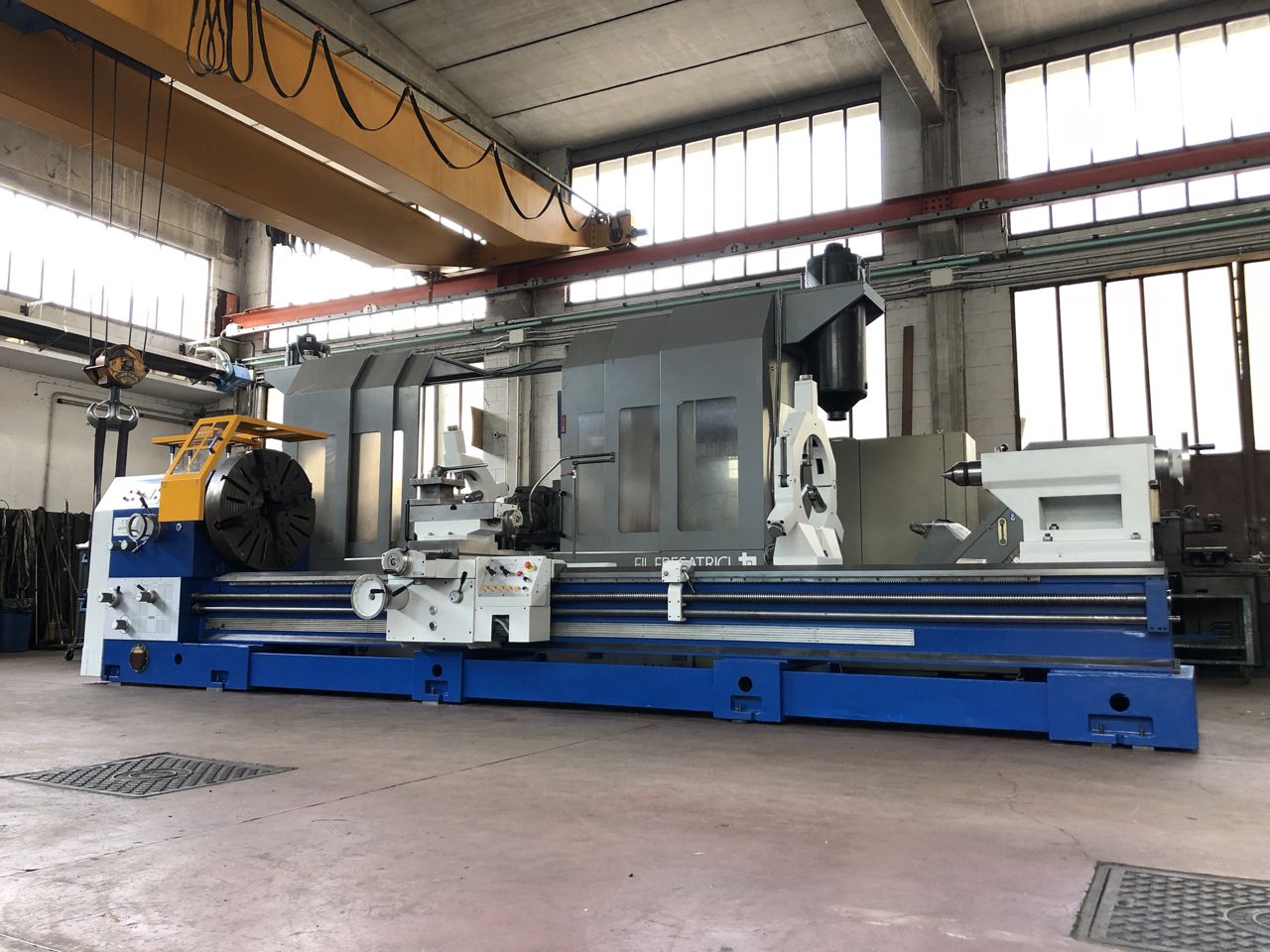

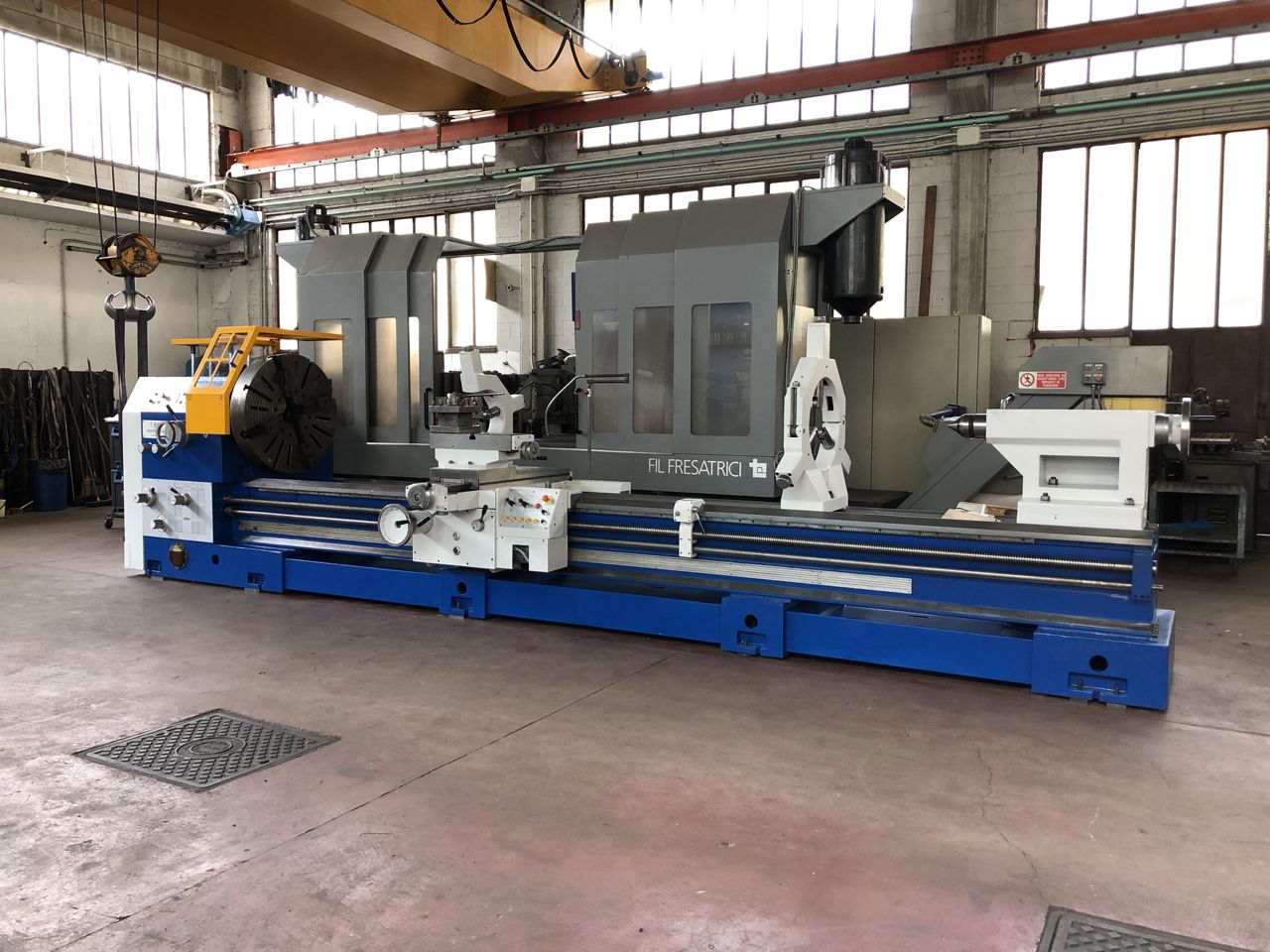

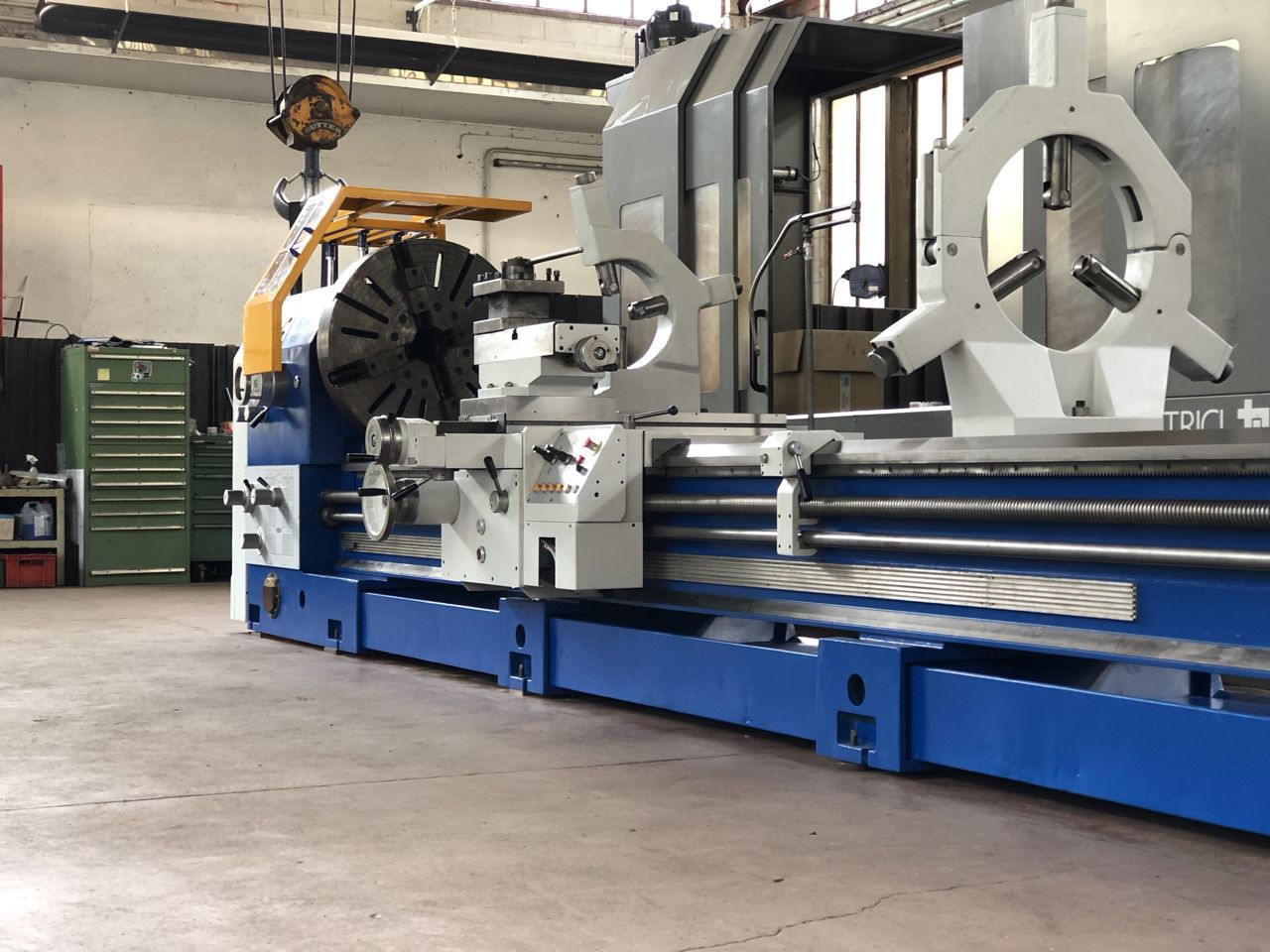

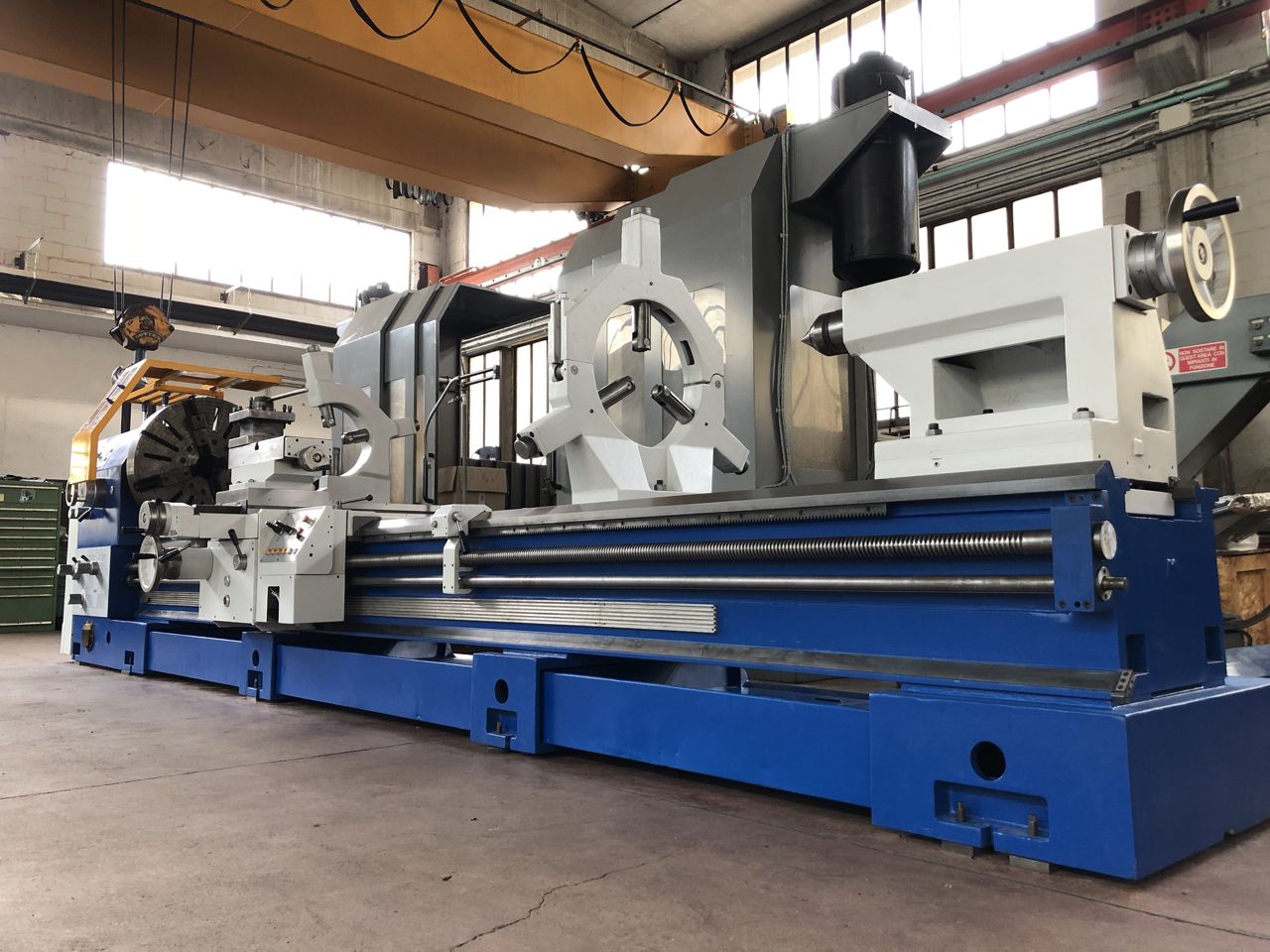

T500 500x5000mm
Capacity
ø1050x5000x150 mmø41,34x196,85x5,91 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Centres distance
5030 mm198,03 in
Centres height
500 mm19,69 in
Longitudinal (Z)
5000 mm196,85 in
Max turning lenght
5000 mm196,85 in
Max diameter on the bed
1050 mm41,34 in
Bar passage
150 mm5,91 in
Max swing on saddle
690 mm27,17 in
Max swing in the gap
1300 mm51,18 in
Notes
rapidi
BED
Max weight between centres
6000 Kg
HEAD
Spindle speed
4-800 Rpm
Spindle power
22 Kw
Spindle torque
8000 Nm
Spindle taper
ASA15”

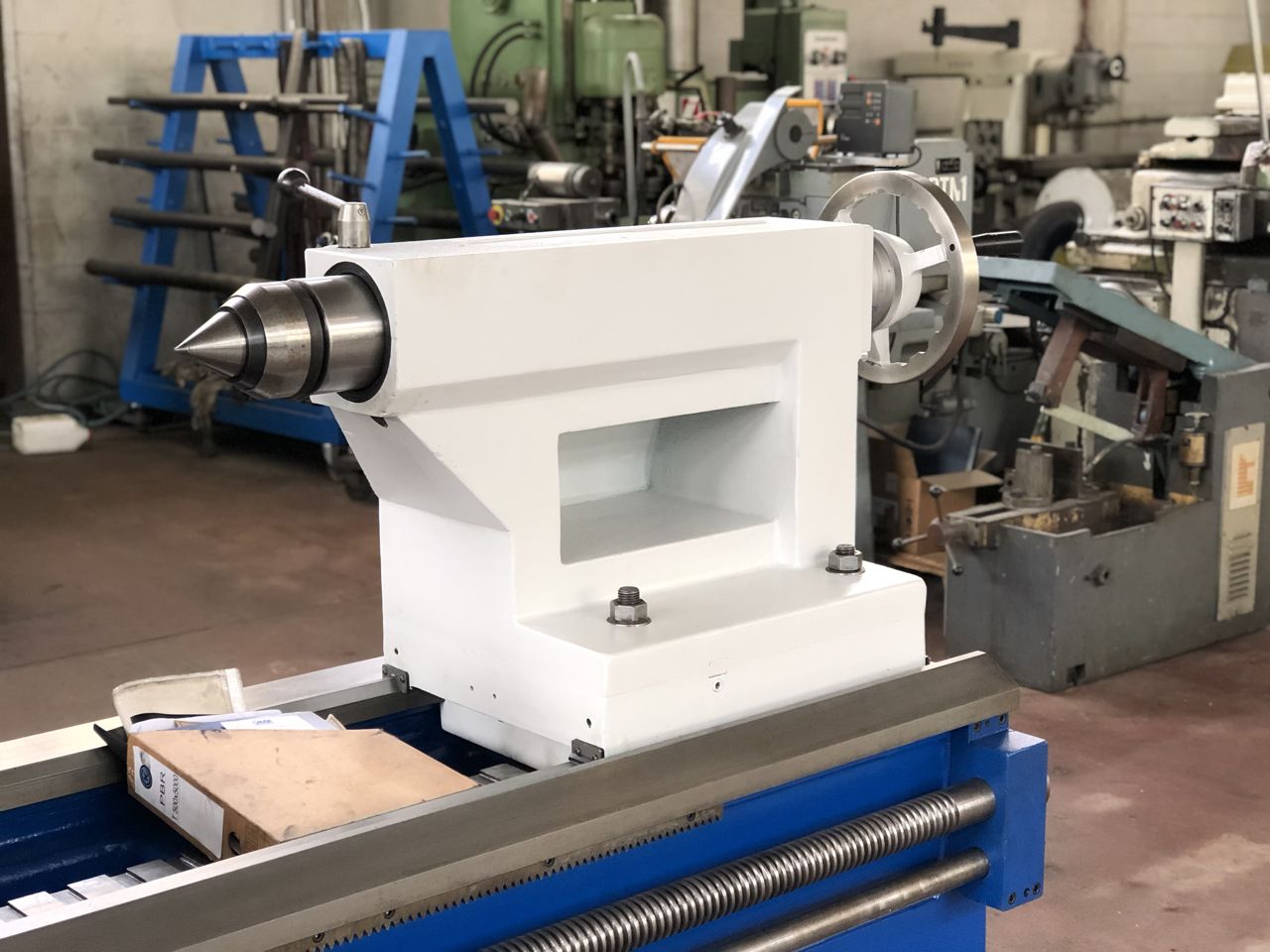

TAILSTOCK
Taper
M.K.6

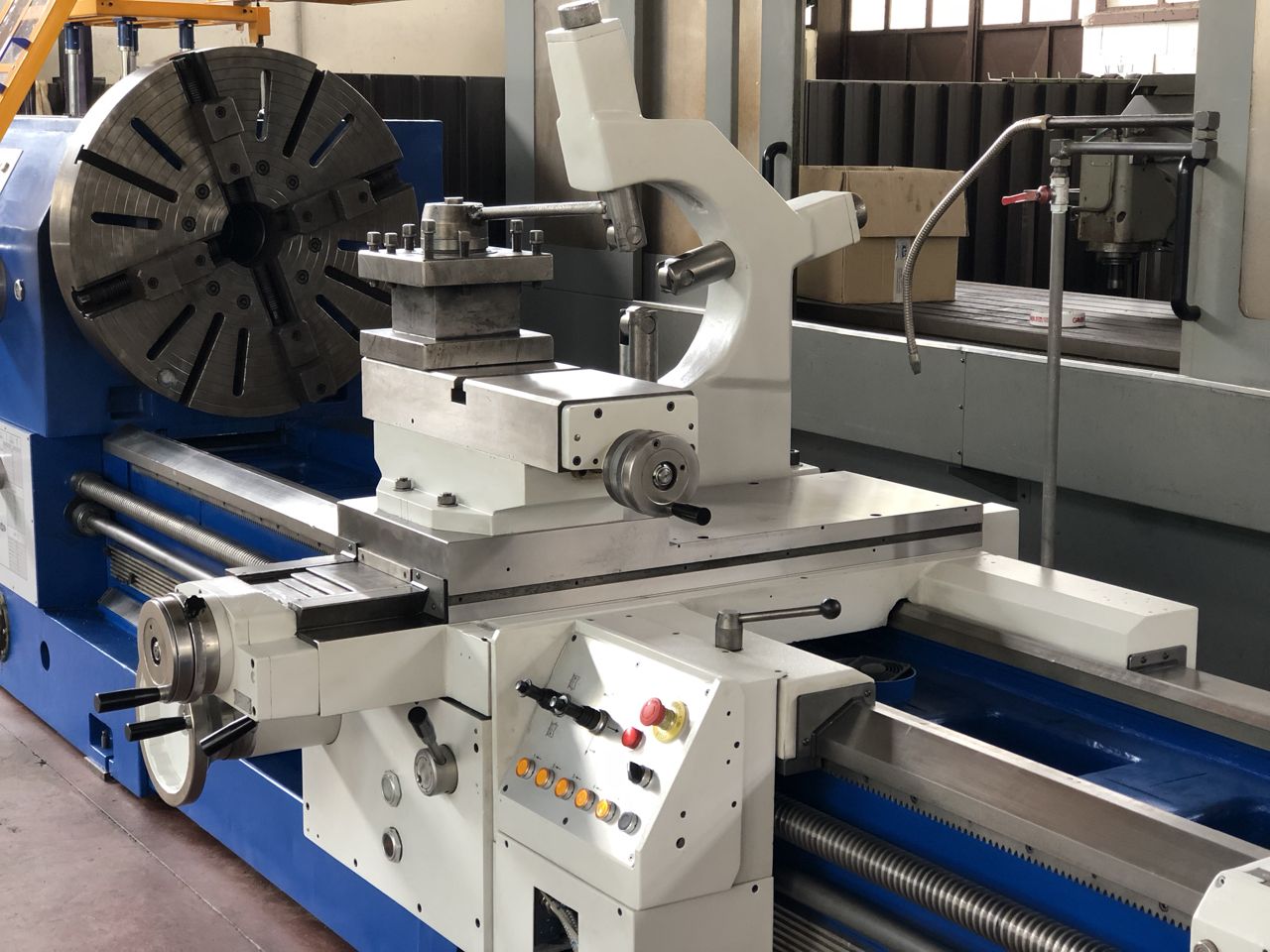

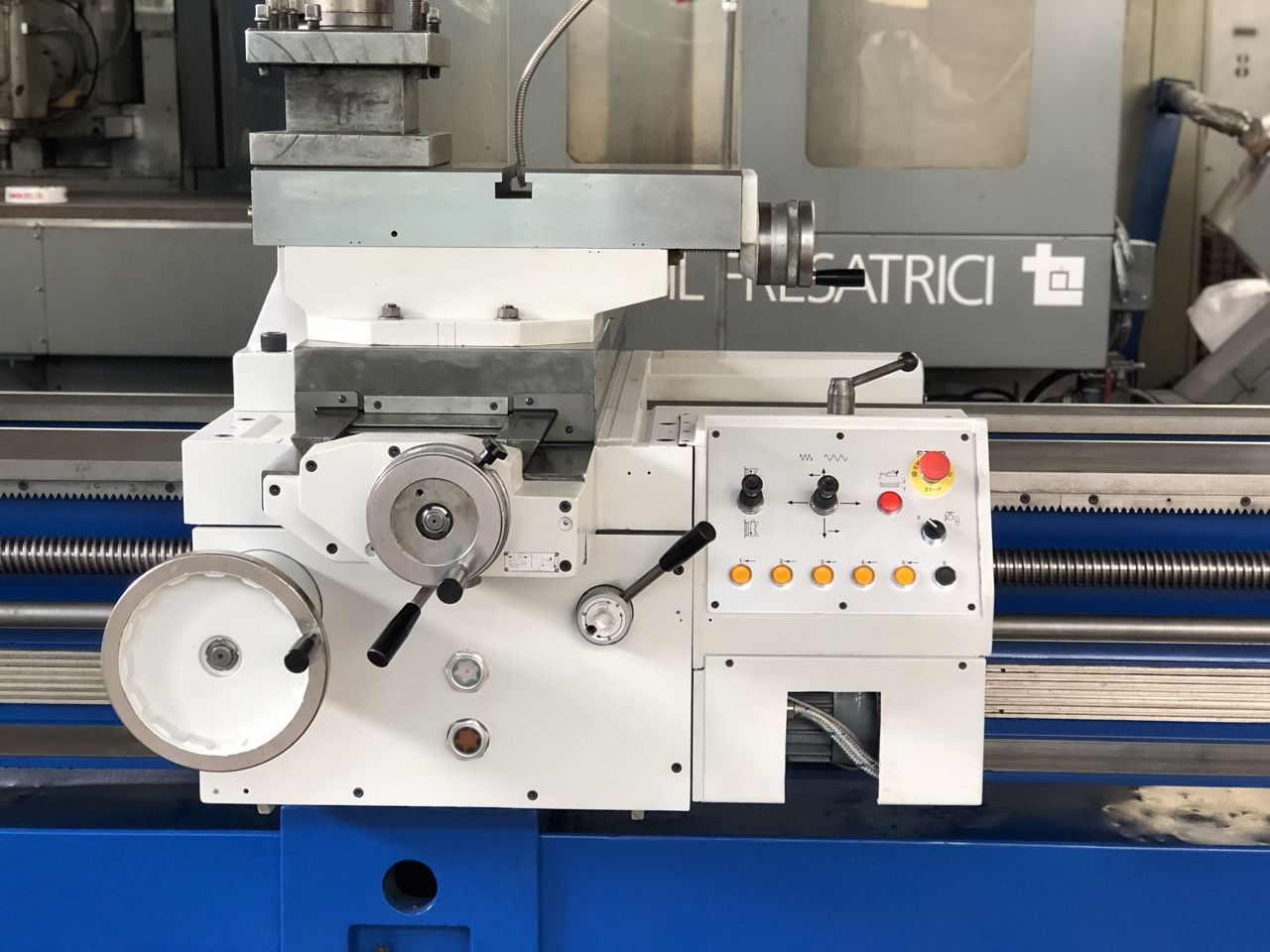

SADDLE
Saddle Width
1020 mm40,16 in
X stroke
640 mm25,20 in
Max swing diam on saddle
1070 mm42,13 in
Z rapid feed
5000 mm/min196,8500 ipm
X rapid feed
2500 mm/min98,4250 ipm
EXTRA
Machine total weight
10000 Kg

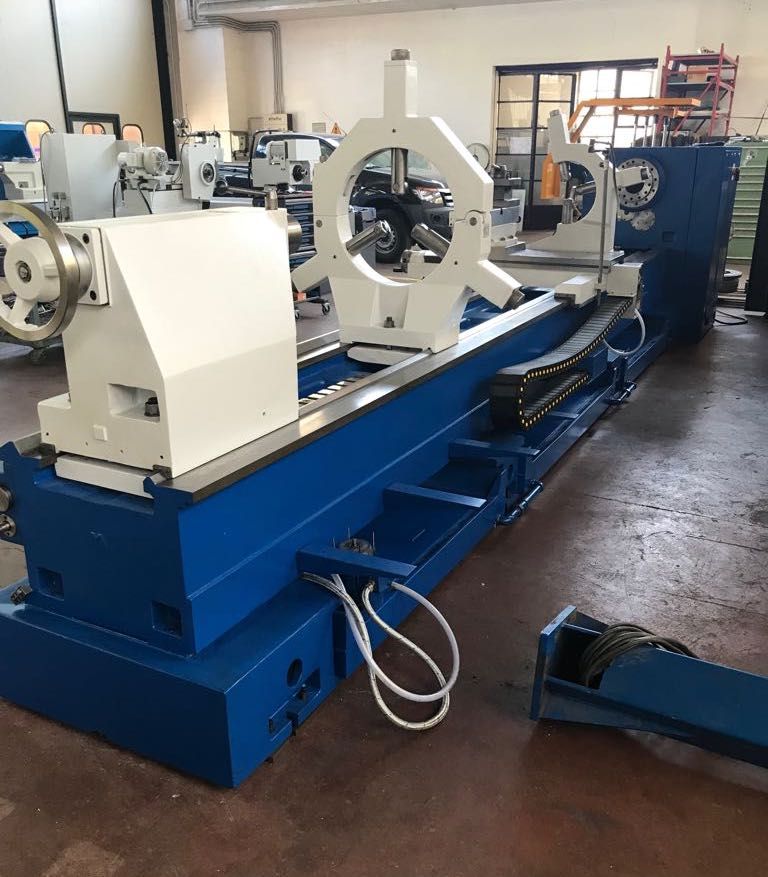

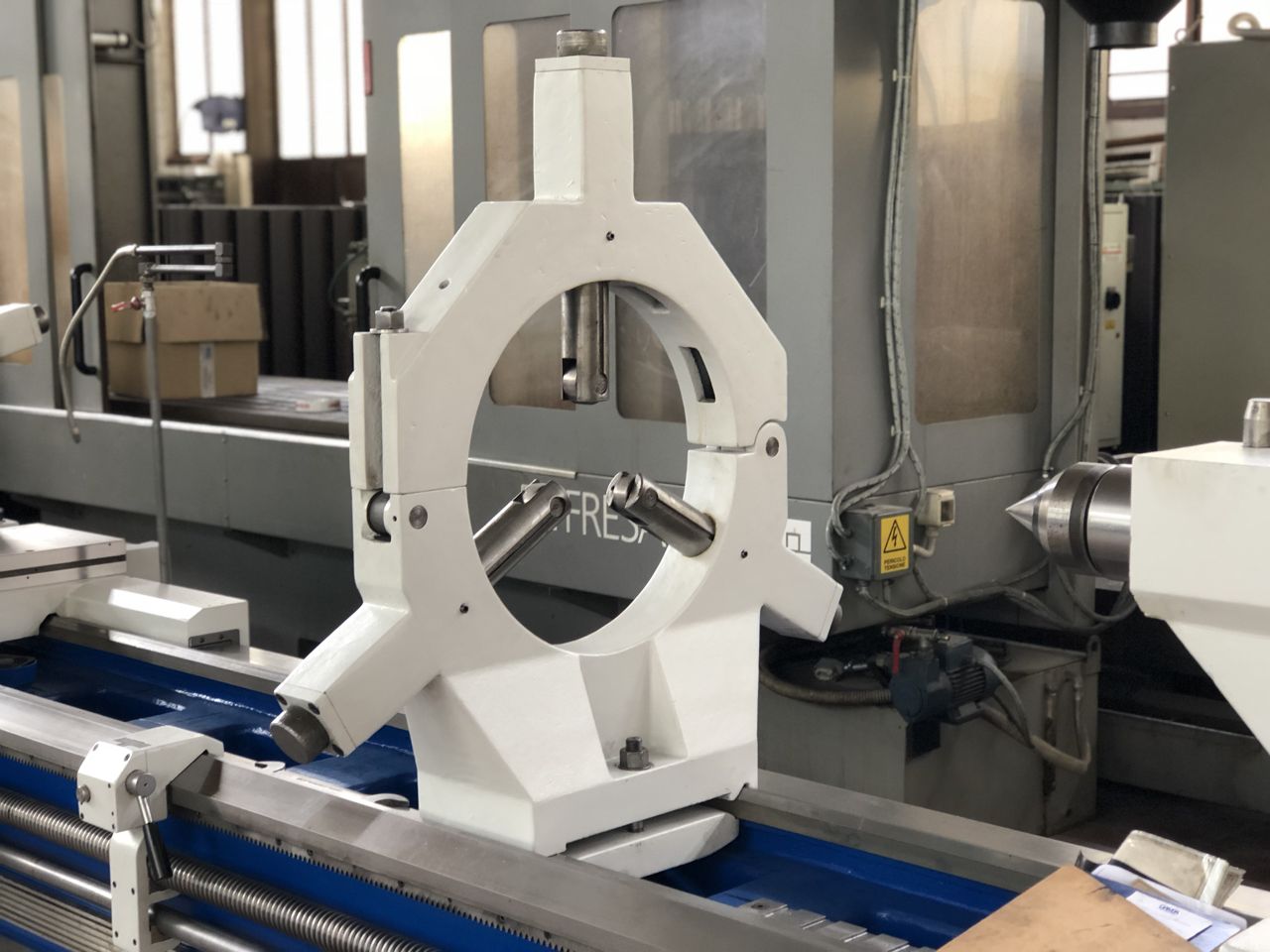

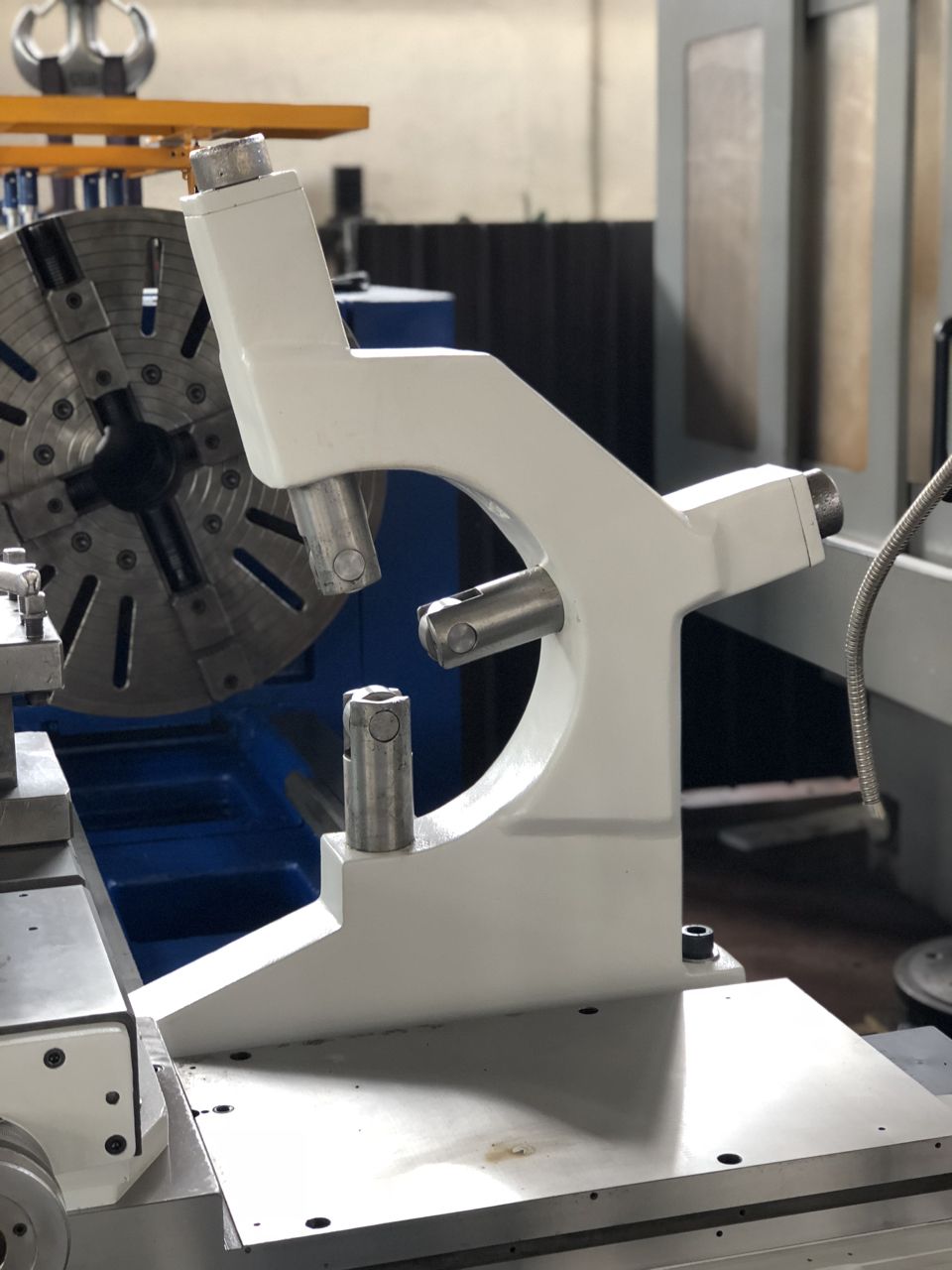

Open steadies
SI
Closed steadies
SI
Autocentering chuck
SI-500 mm
Platform
SI - 900mm
Maintenance & Use books
Yes
Electrical drawings
Yes
Availability
PRONTA
Floor space
7470x1720x1560 mm294,09x67,72x61,42 in
The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy cannot be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
