Category
Turning Machine
Type
Center
Made
Model
T400
Capacity
400 x 2000 x 130 mm15,75 x 78,74 x 5,12 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Centres distance
2000 mm78,74 in
Centres height
400 mm15,75 in
Max diameter on the bed
800 mm31,50 in
Max swing on saddle
520 mm20,47 in
Max swing in the gap
1100 mm43,31 in
Bar passage
130 mm5,12 in
Notes
corsa carrino 340 mm
BED
Max weight between centres
3500 Kg
Max weight on steadies
4500 Kg
Bed width
520 mm20,47 in

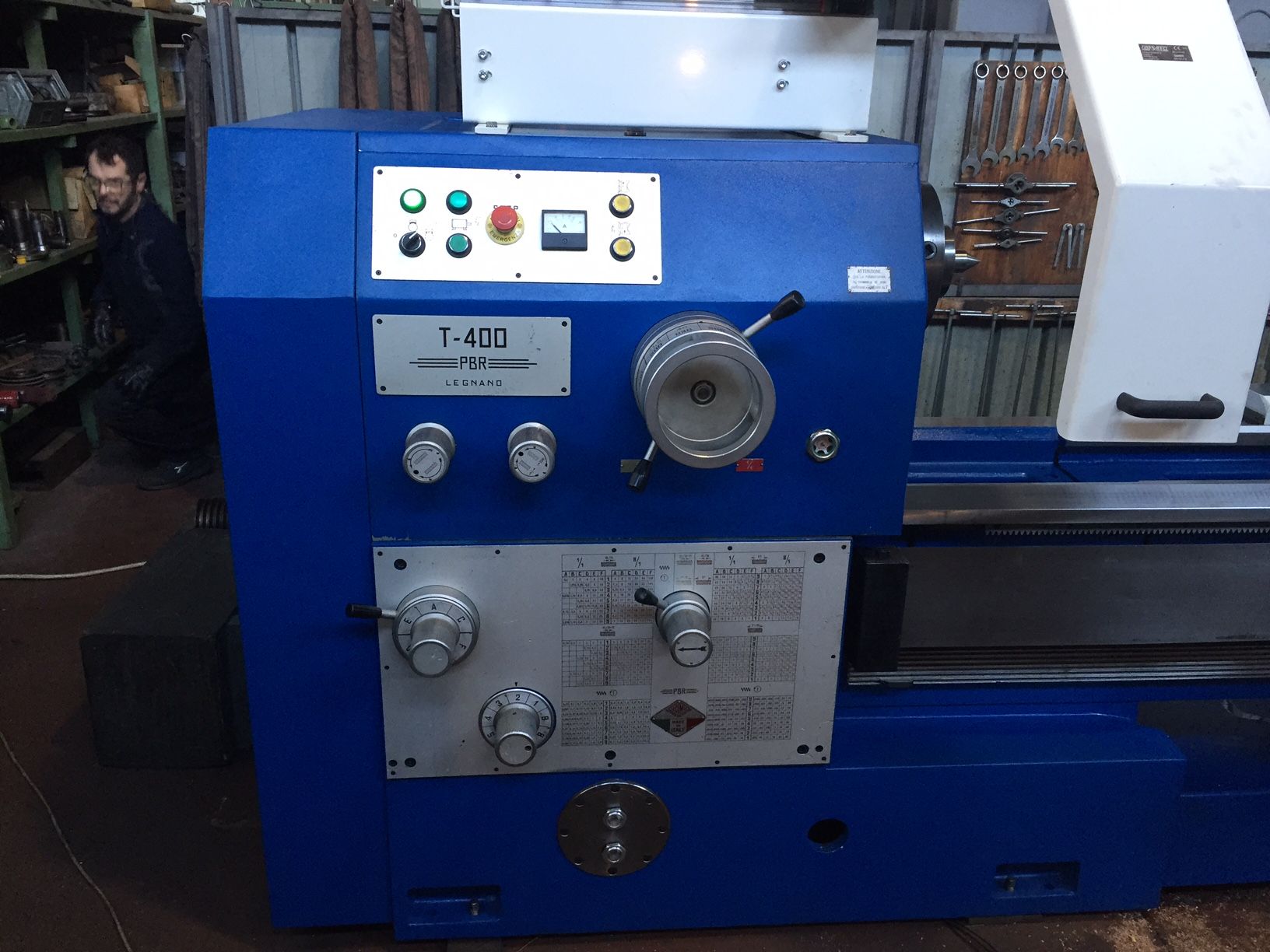

HEAD
Spindle power
25 Kw
Spindle speed
5/1000 Rpm
Spindle taper
cam-lock 11”
Spindle torque
560 Nm
TURRET
Notes
Multifix

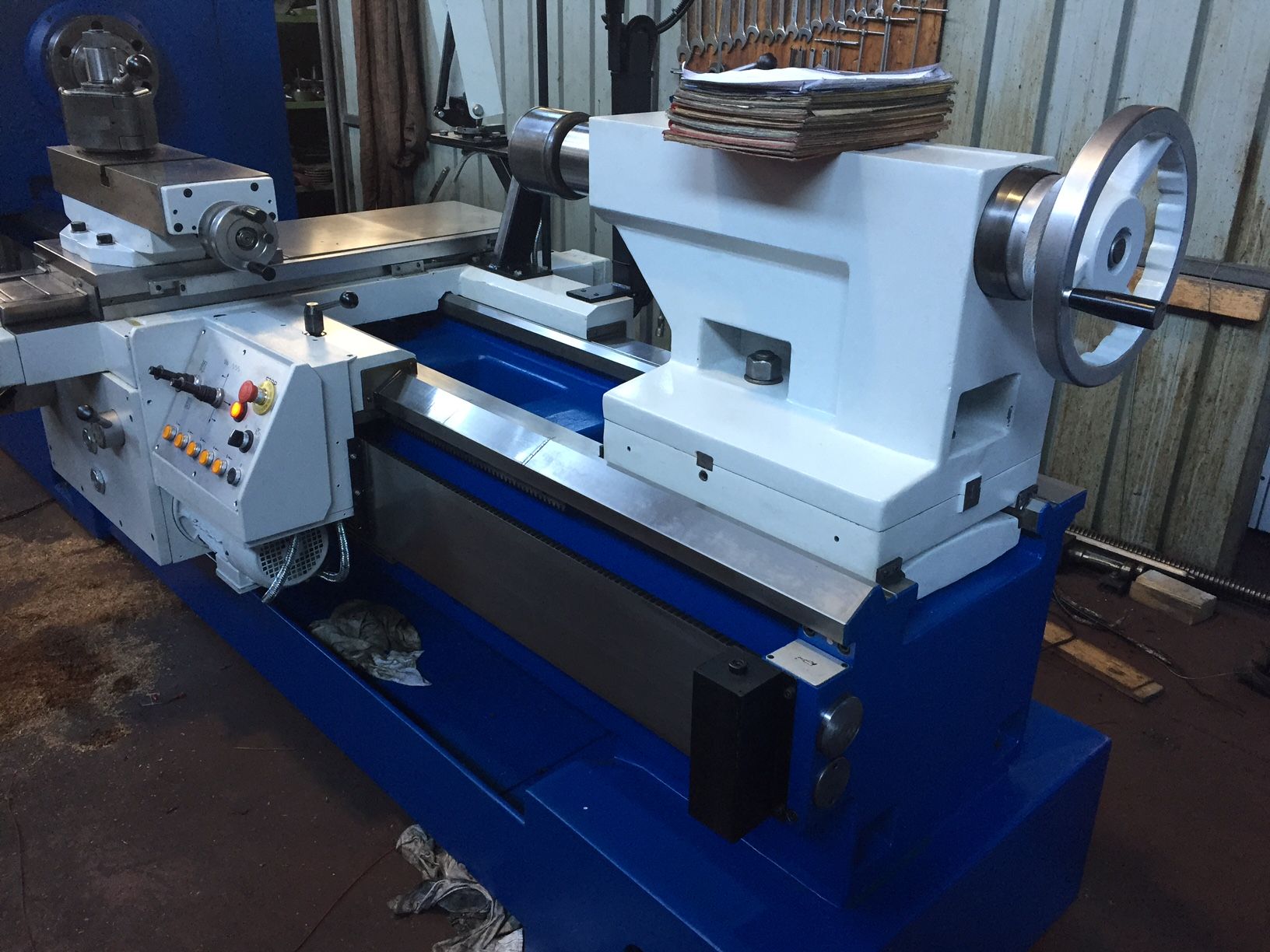

TAILSTOCK
Quill diameter
115 mm4,53 in
Quill stroke
380 mm14,96 in
Taper
cm6
EXTRA

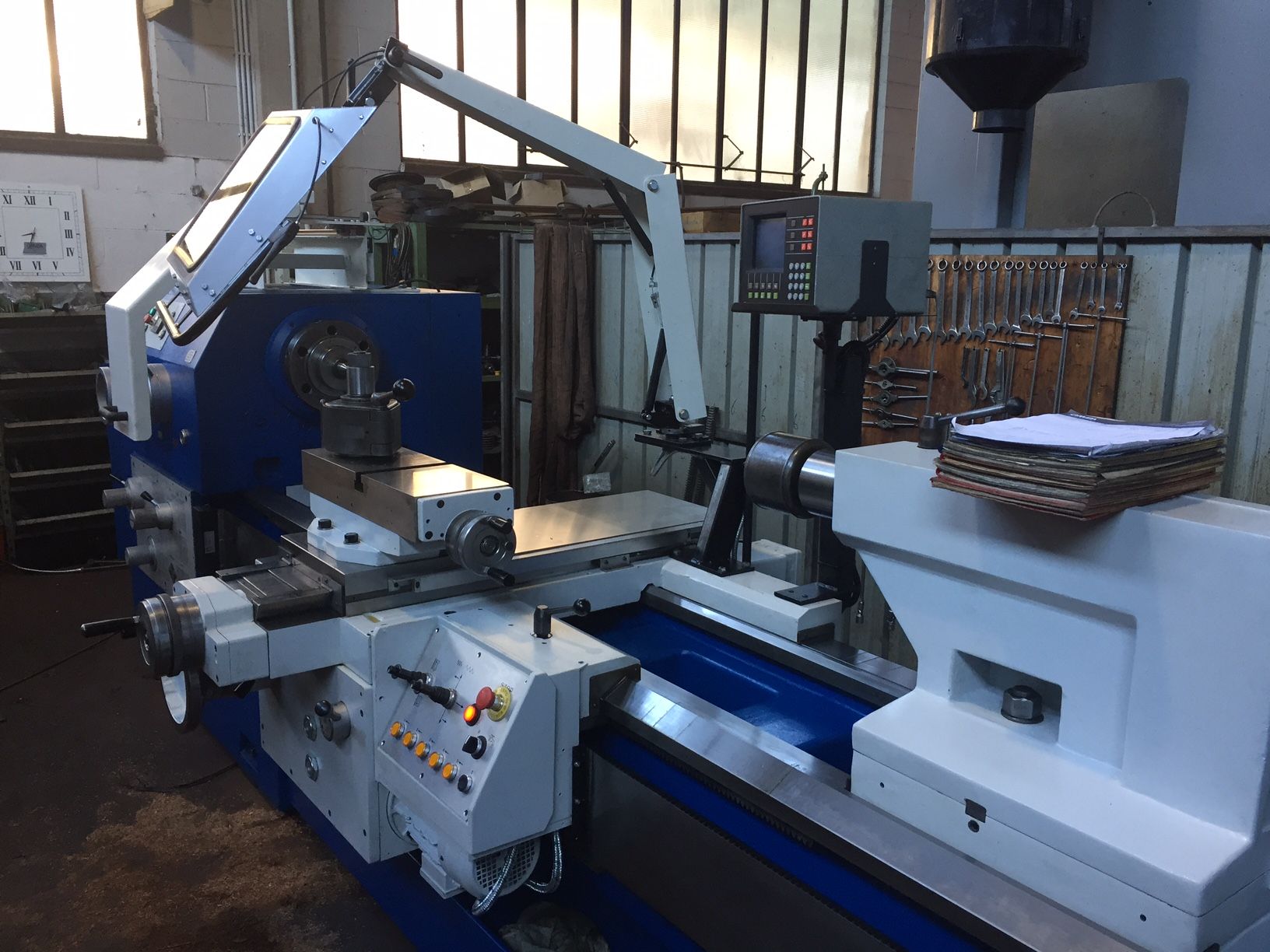

Digital read out (DRO)
e assi elesta
Autocentering chuck
500
Maintenance & Use books
Yes
Electrical drawings
Yes
Protections
si
Availability
pronta
Available in stock
si
Available under power
si
