Category
Turning Machine
Type
Center
Made

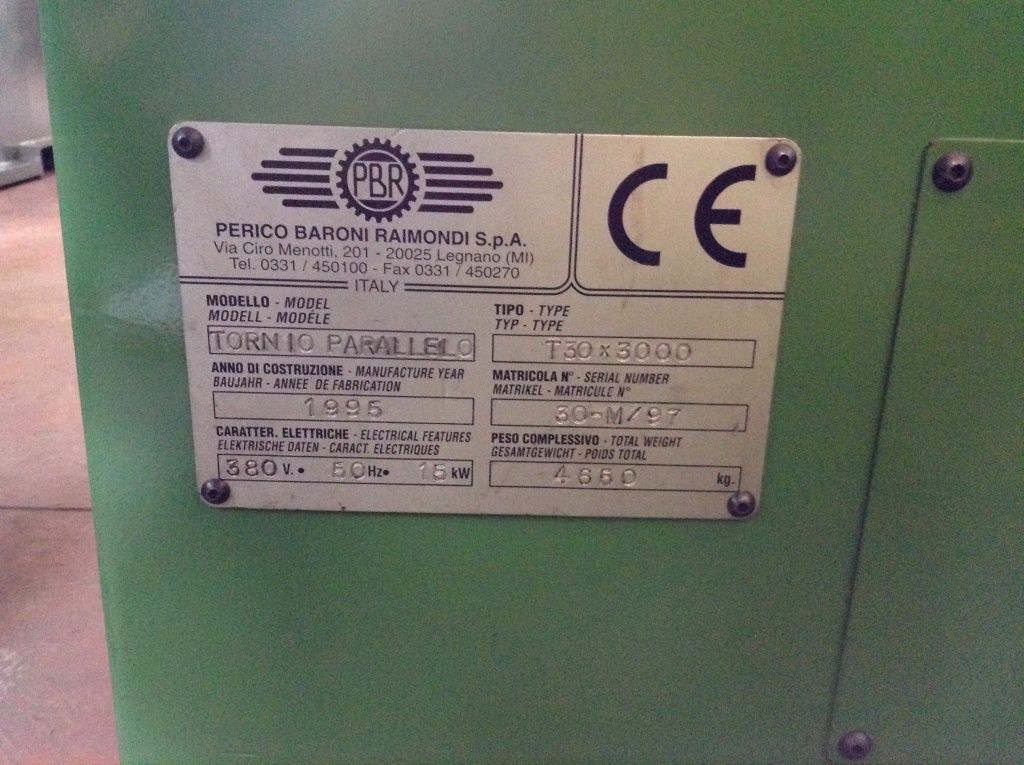

Model
T30 300x3000mm
Capacity
300x3000 mm11,81x118,11 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Centres distance
3000 mm118,11 in
Centres height
300 mm11,81 in
Bar passage
105 mm4,13 in
Longitudinal (Z)
3000 mm118,11 in
Max diameter on the bed
625 mm24,61 in
Max swing on saddle
378 mm14,88 in

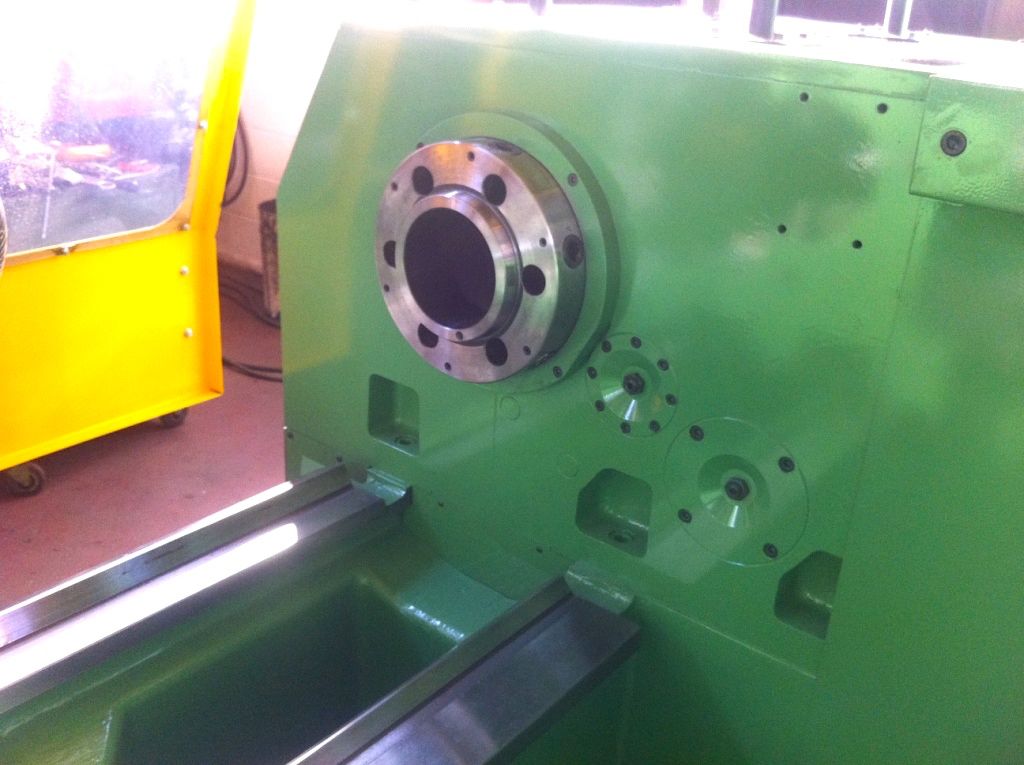

HEAD
Spindle power
17 Kw
Spindle speed
4 gamme, 0-2000 Rpm
Spindle taper
CL 8”
Spindle torque
2440 Nm
Notes
Diametro mandrino: 105mm
BED
Bed width
450 mm17,72 in
Guide-ways number
2
Max weight between centres
3000 Kg
Max weight on steadies
5000 Kg

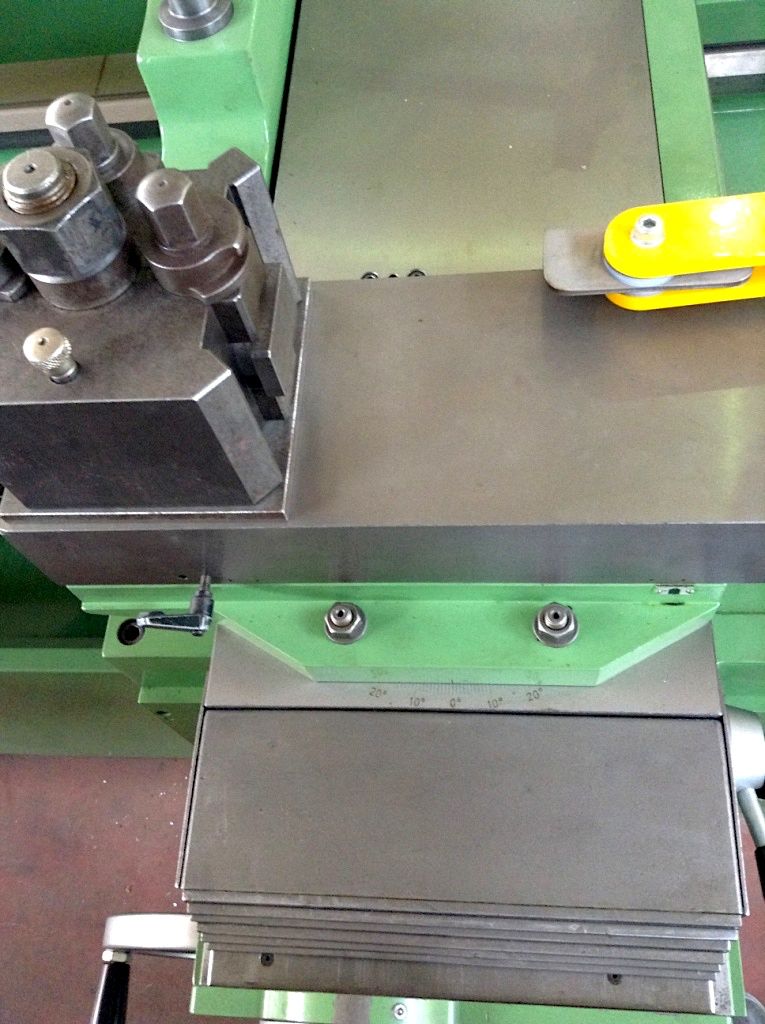

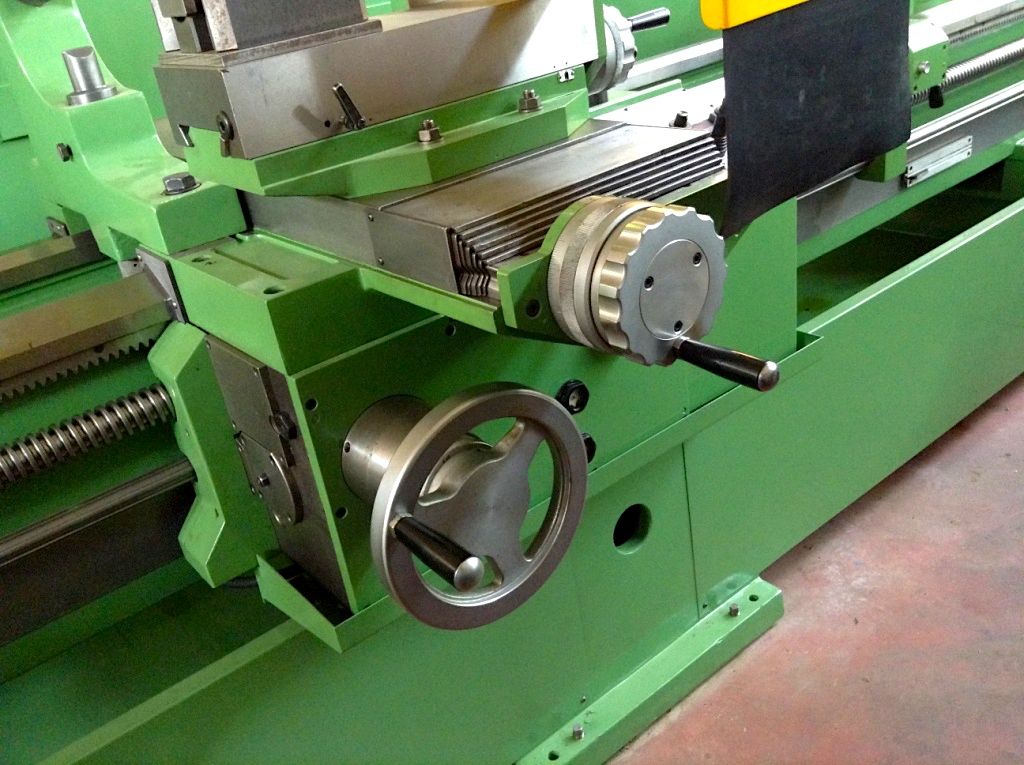

SADDLE
Saddle Width
750 mm29,53 in
Z stroke
3000 mm118,11 in
X stroke
450 mm17,72 in
Max swing diam on saddle
625 mm24,61 in
Z feeds
1-6000 mm/min0,0394-236,2200 ipm
X feeds
1-6000 mm/min0,0394-236,2200 ipm
Z rapid feed
6500 mm/min255,9050 ipm
X rapid feed
6500 mm/min255,9050 ipm
TAILSTOCK
Quill diameter
115 mm4,53 in
Quill stroke
250 mm9,84 in
Taper
CM 5
EXTRA
Machine total weight
4650 Kg
CE Certification
Yes
Total power supply
15 Kw
Floor space
5400x1520x1500 mm212,60x59,84x59,06 in

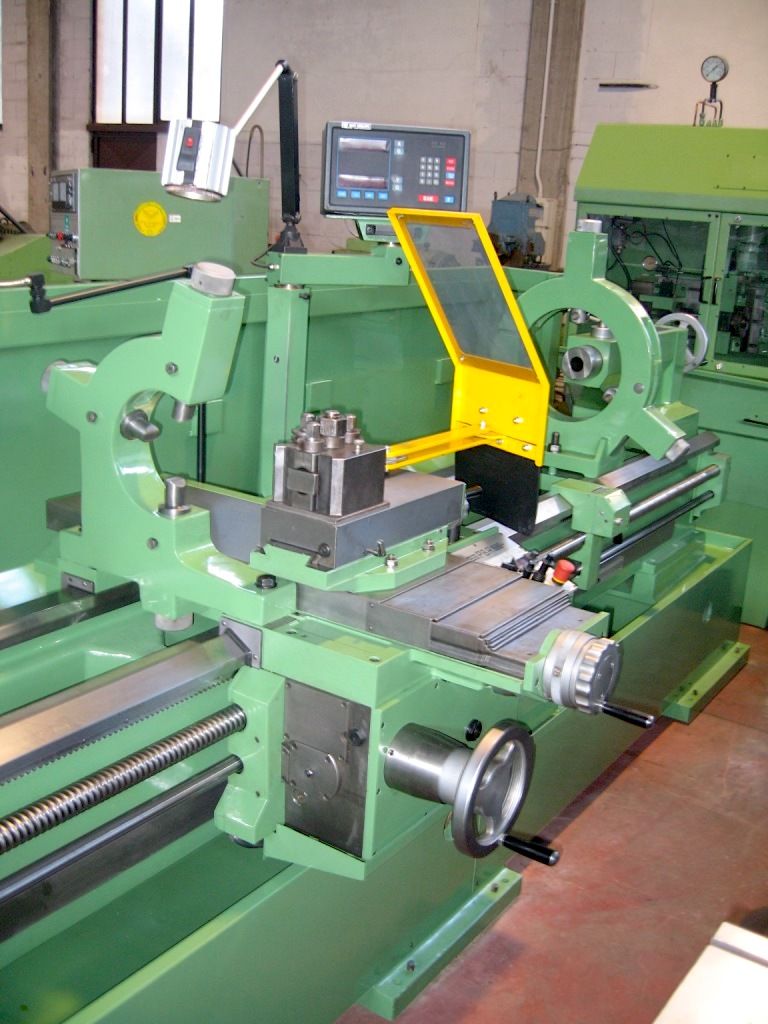

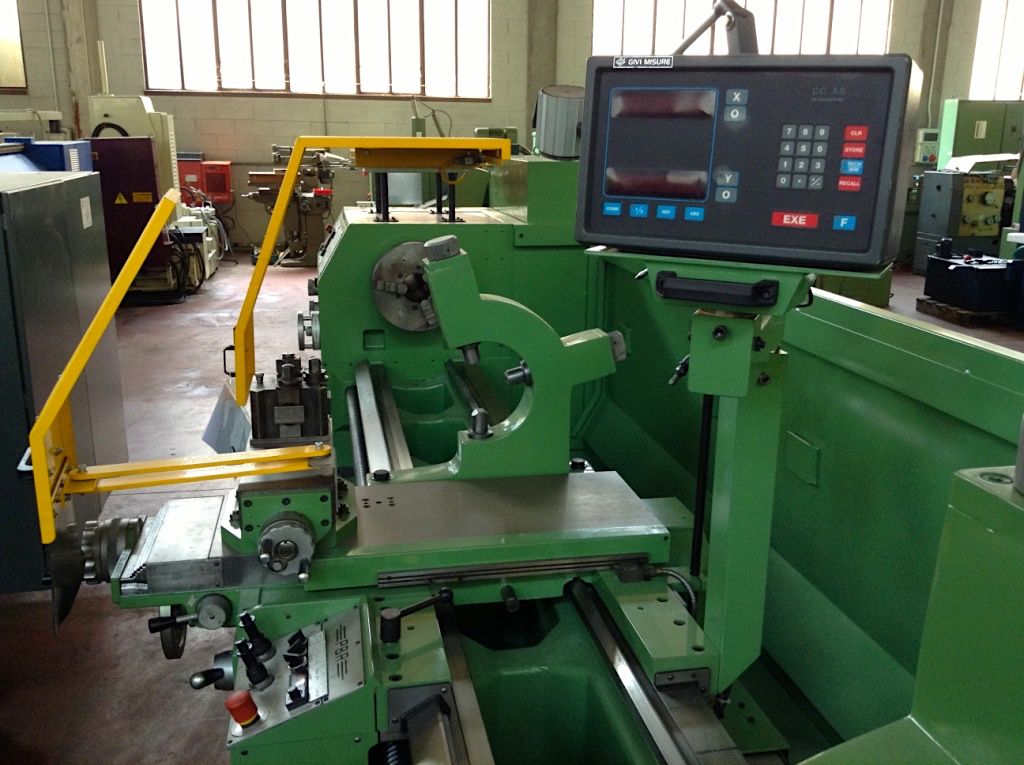

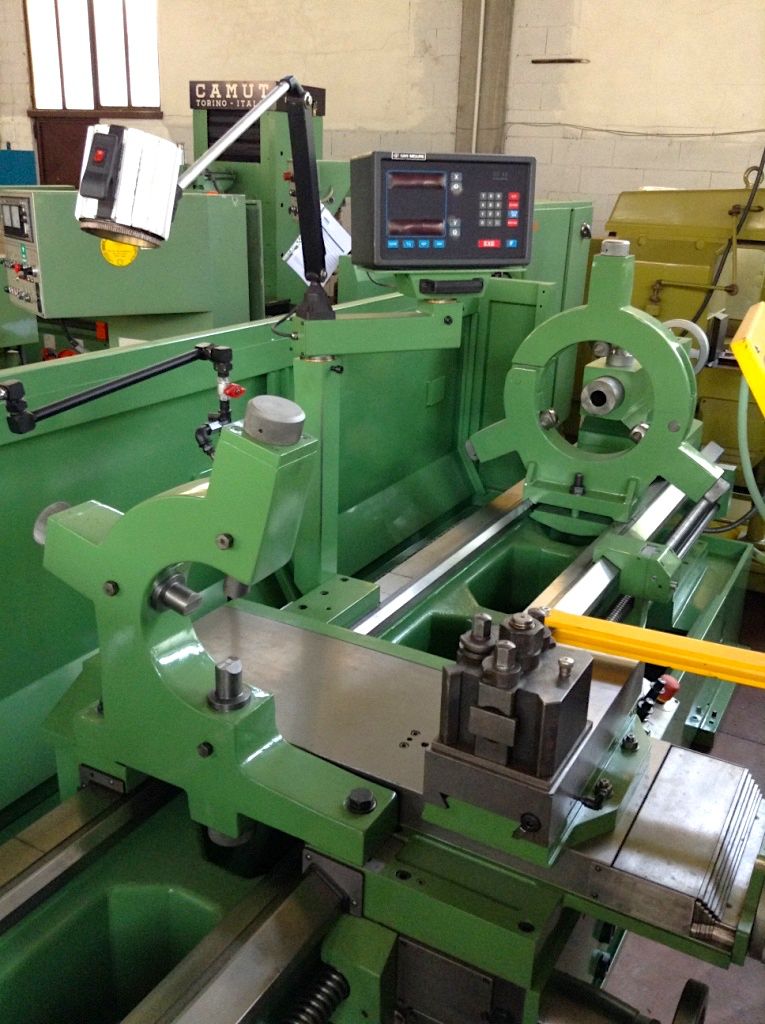

Digital read out (DRO)
DRO

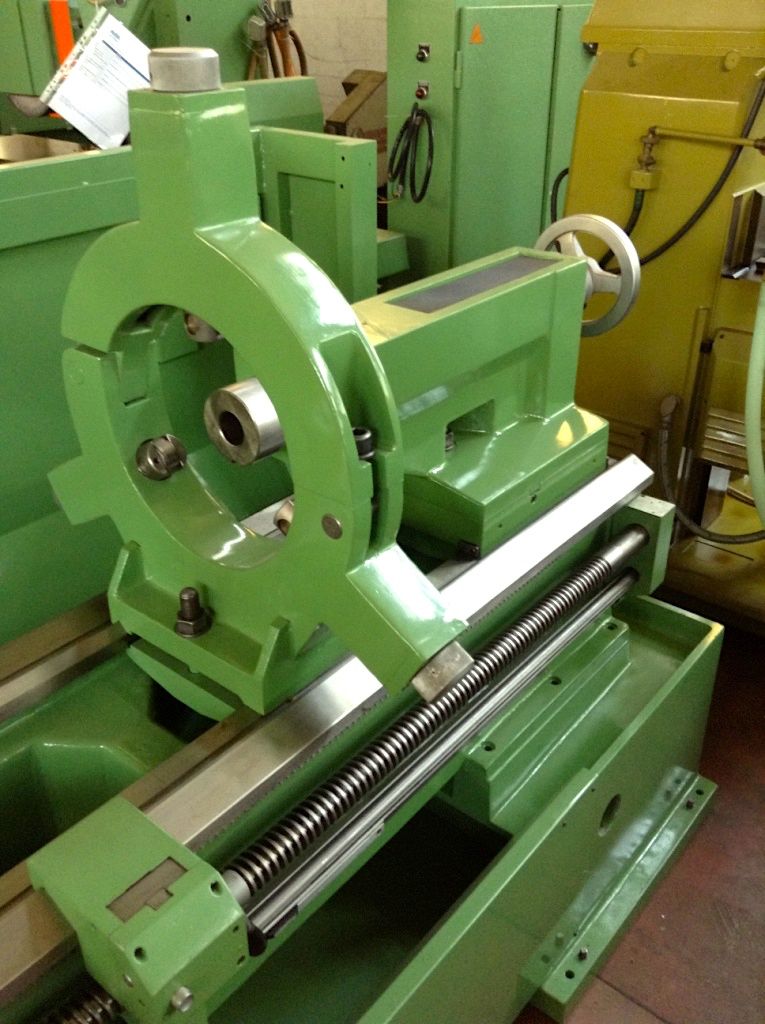

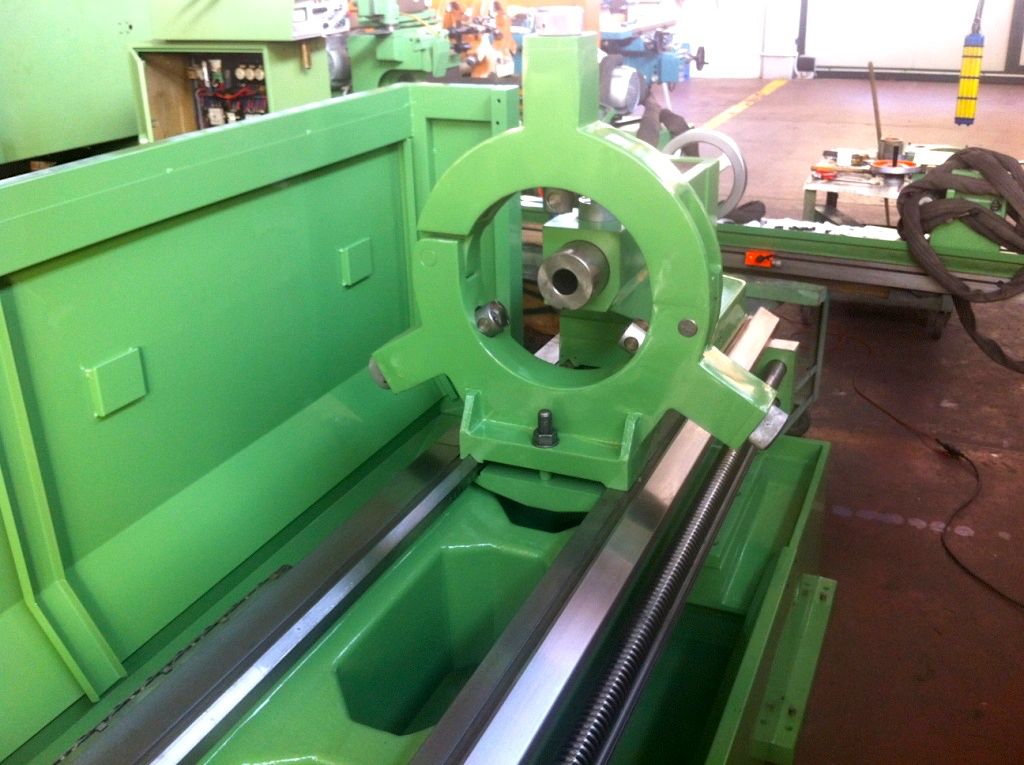

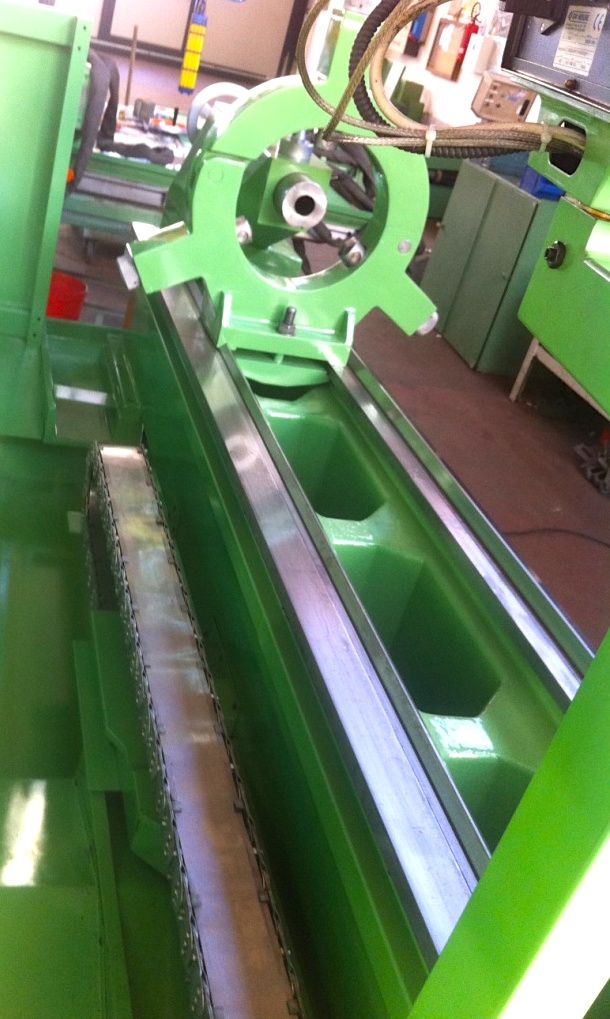

Open steadies
1
Closed steadies
1
Protections
Sì
Availability
Pronta
Available in stock
Sì
Available under power
Sì, previo appuntamento
Autocentering chuck
3 griffe 315mm

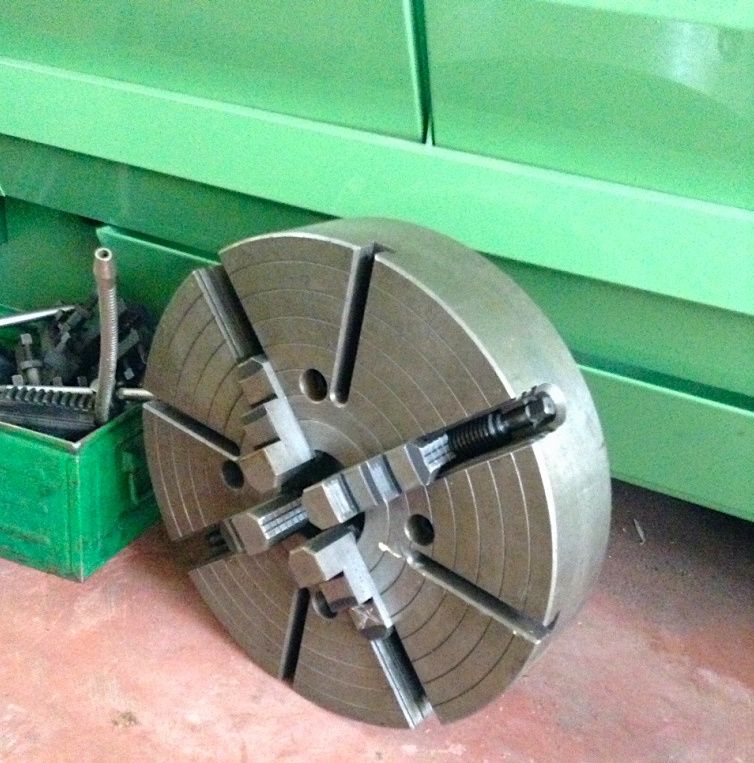

Platform
4 griffe 500mm
