Category
Turning Machine
Type
Center
Made
Model

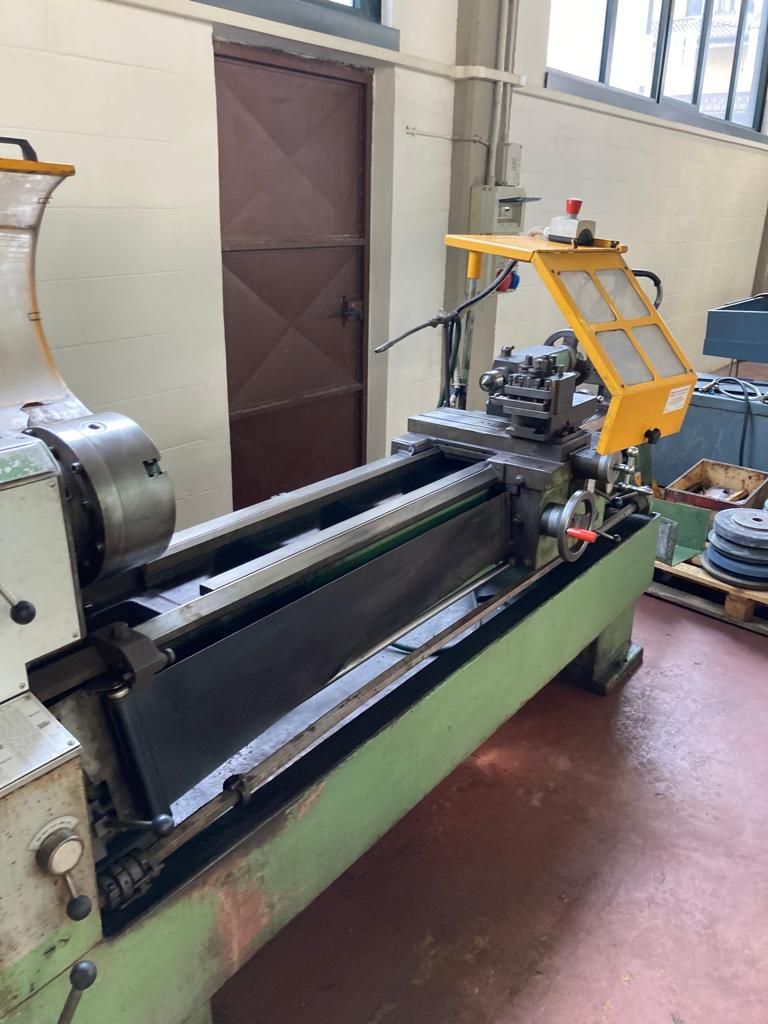

DANIA 180
Capacity
180 X 1500 mm7,09 X 59,06 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Centres distance
1500 mm59,06 in
Centres height
180 mm7,09 in
Bar passage
52 mm2,05 in
Max diameter on the bed
360 mm14,17 in
Max swing on saddle
214 mm8,43 in
Max swing in the gap
550 mm21,65 in
Max turning lenght
1500 mm59,06 in
HEAD
Spindle speed
20-2000 Rpm
Spindle taper
CAMLOCK 6”
Spindle power
5,5 Kw
TAILSTOCK
Quill stroke
160 mm6,30 in
Taper
CM4
Quill diameter
60 mm2,36 in
BED
Bed width
300 mm11,81 in
SADDLE
Z feeds
0,025-0,57 mm/min0,0010-0,0224 ipm
X feeds
0,05-1,15 mm/min0,0020-0,0453 ipm
TURRET
Positions
4
EXTRA
Total power supply
5,5 Kw
Closed steadies
SI
Autocentering chuck
SI
Maintenance & Use books
Yes
Electrical drawings
Yes
Protections
SI
Availability
PRONTA
Available in stock
SI
Machine total weight
1600 Kg
