Technical specifications
Metric
Imperial
WORKING CAPACITY
Centres distance
4000 mm157,48 in
Centres height
410 mm16,14 in
Bar passage
150 mm5,91 in
Longitudinal (Z)
4000 mm157,48 in
Cross (X)
470 mm18,50 in
Max turning lenght
4000 mm157,48 in
Max diameter on the bed
820 mm32,28 in
Max swing on saddle
580 mm22,83 in
BED
Bed width
450 mm17,72 in

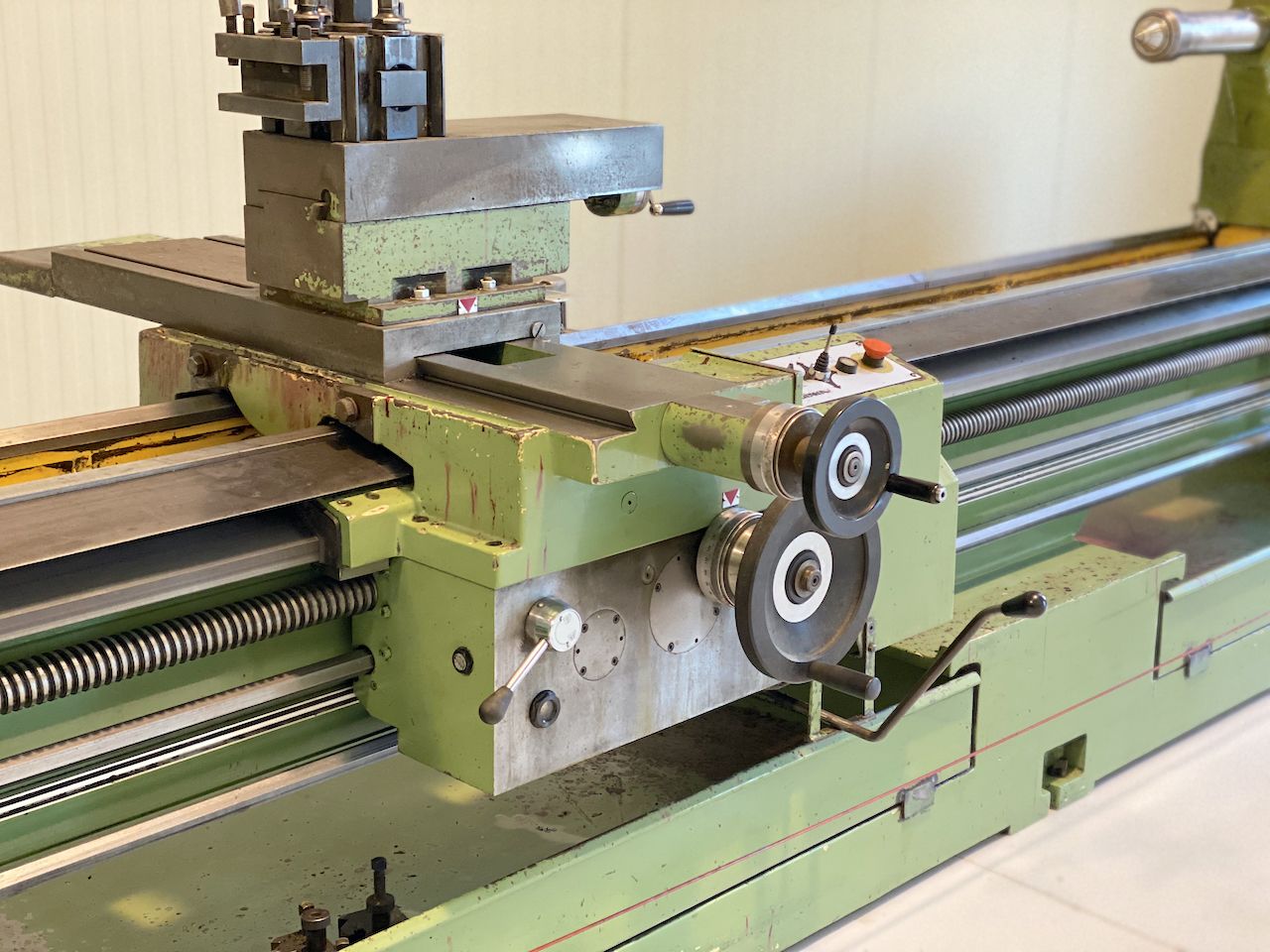

SADDLE
X stroke
470 mm18,50 in
Max swing diam on saddle
580 mm22,83 in

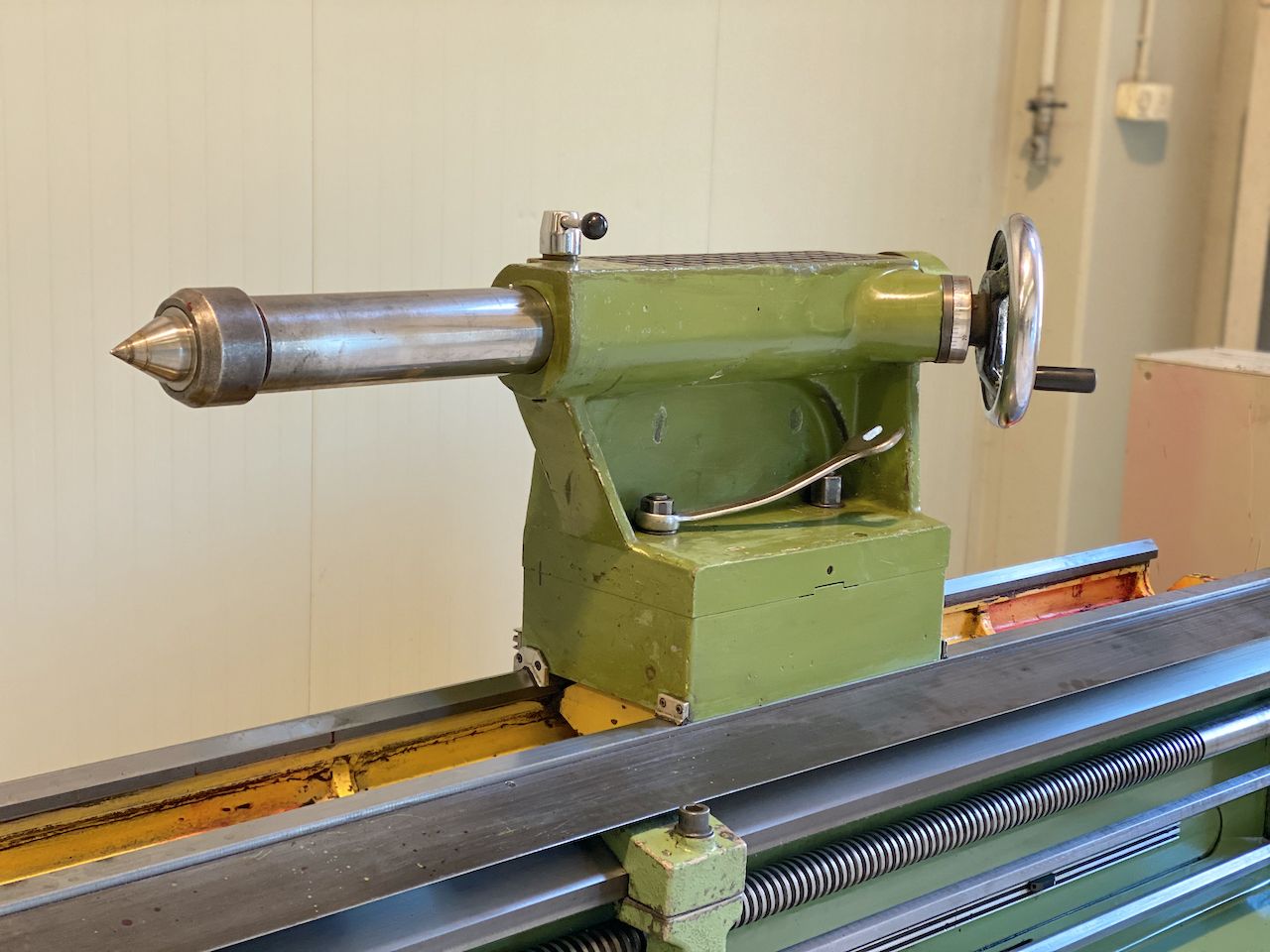

TAILSTOCK
Quill diameter
90 mm3,54 in
Quill stroke
260 mm10,24 in
HEAD
Spindle speed
9-1030 Rpm
EXTRA
CE Certification
Yes
Electrical drawings
Yes
Maintenance & Use books
Yes
Digital read out (DRO)
Visualizzatore 2 assi
Autocentering chuck
3 griffe, 315mm
