Category
Turning Machine
Type
Center
Made
Model

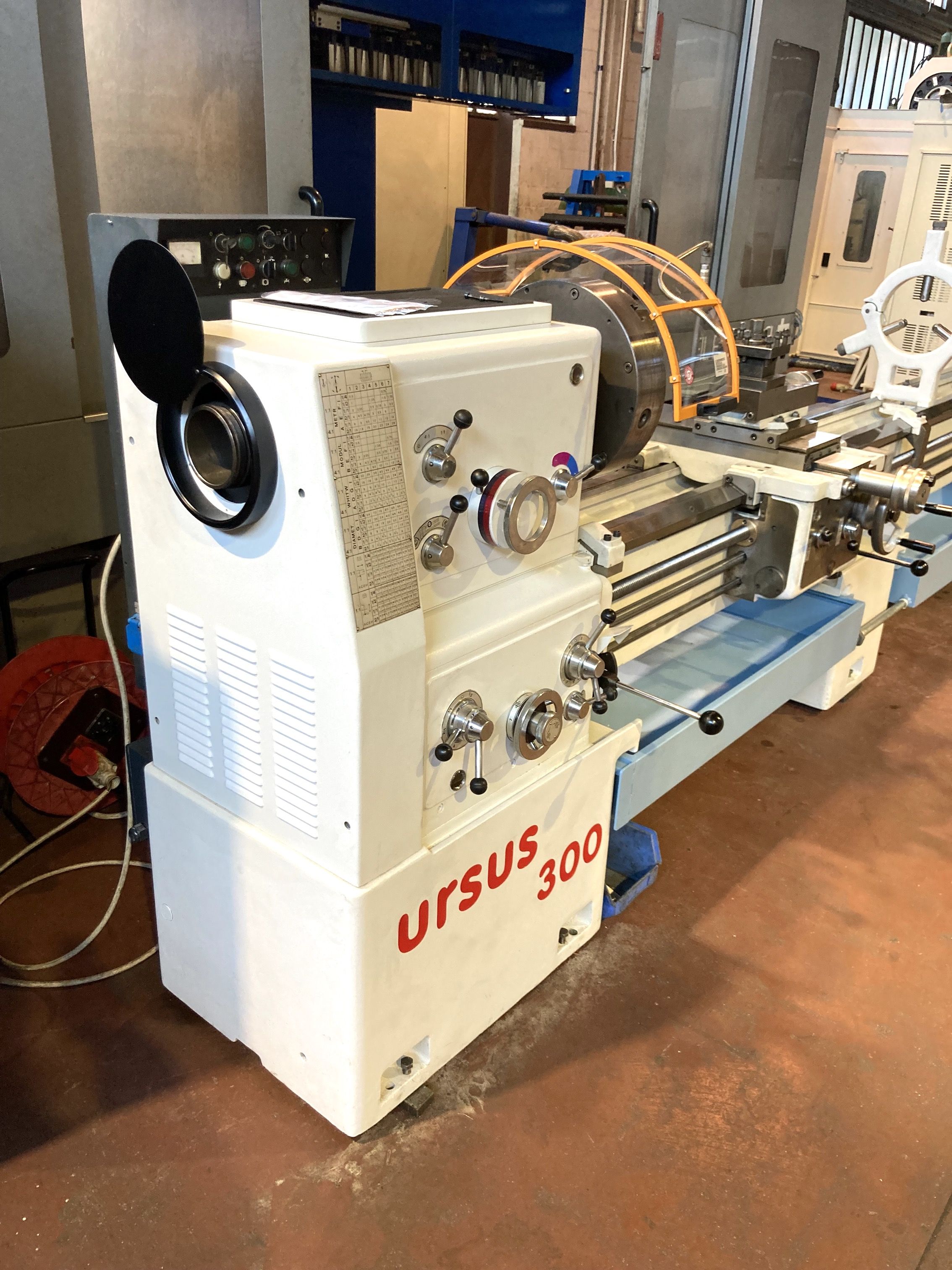

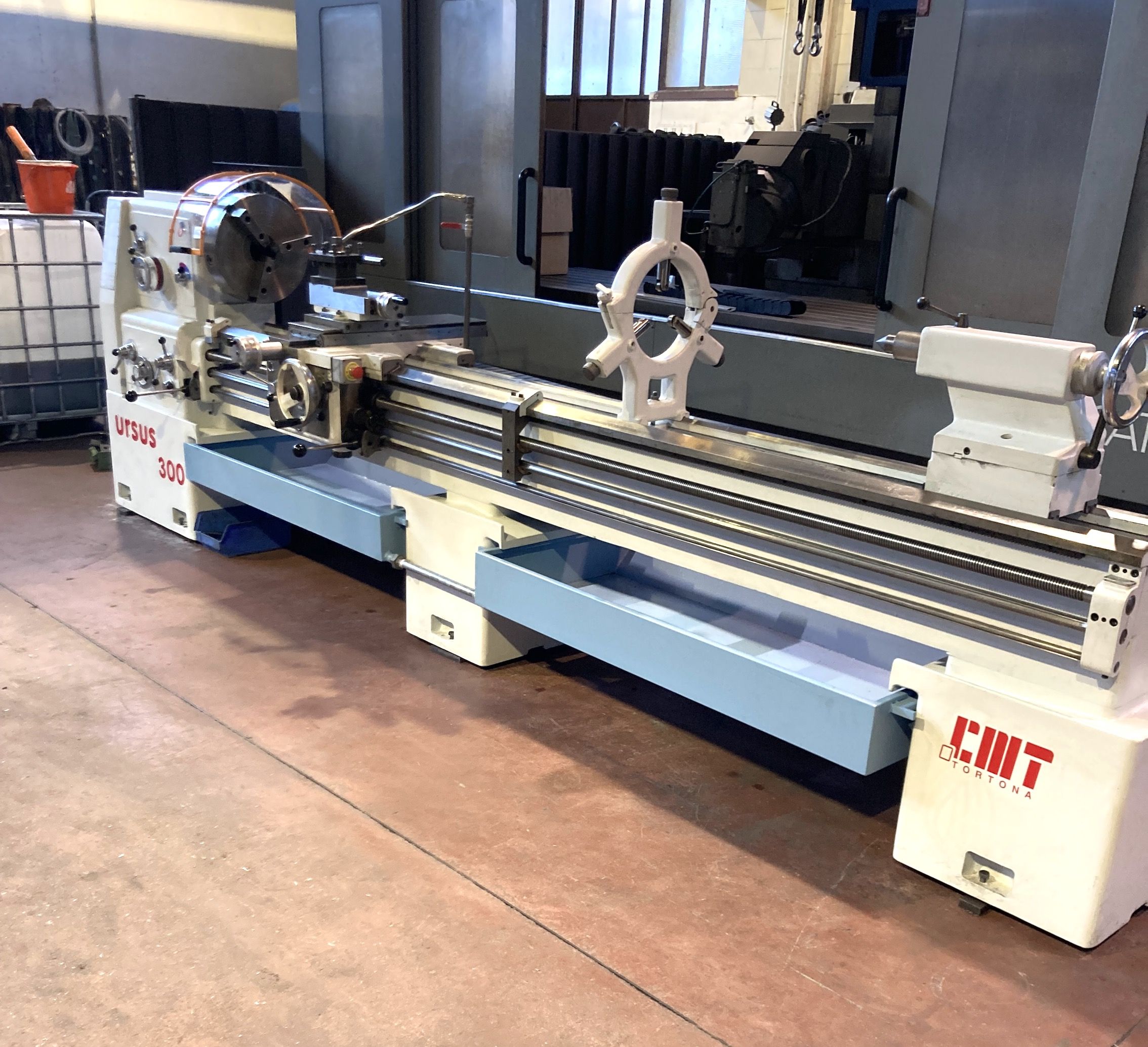

URSUS 300
Capacity
ø600x3000x105 mmø23,62x118,11x4,13 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Centres distance
3000 mm118,11 in
Centres height
300 mm11,81 in
Bar passage
105 mm4,13 in
Max diameter on the bed
600 mm23,62 in
Max swing on saddle
375 mm14,76 in
Longitudinal (Z)
3000 mm118,11 in
Cross (X)
380 mm14,96 in

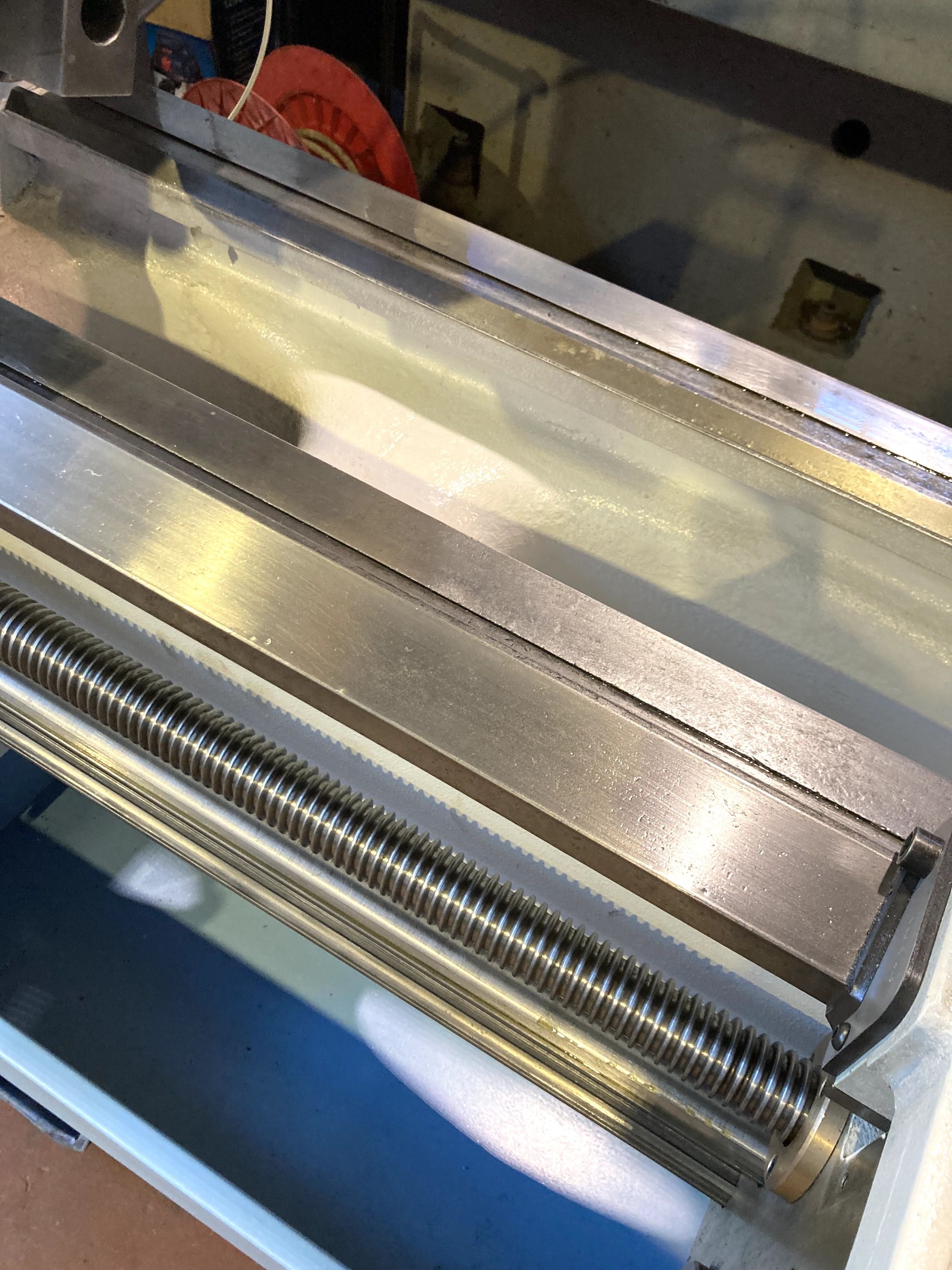

BED
Bed width
330 mm12,99 in
Guide-ways number
2

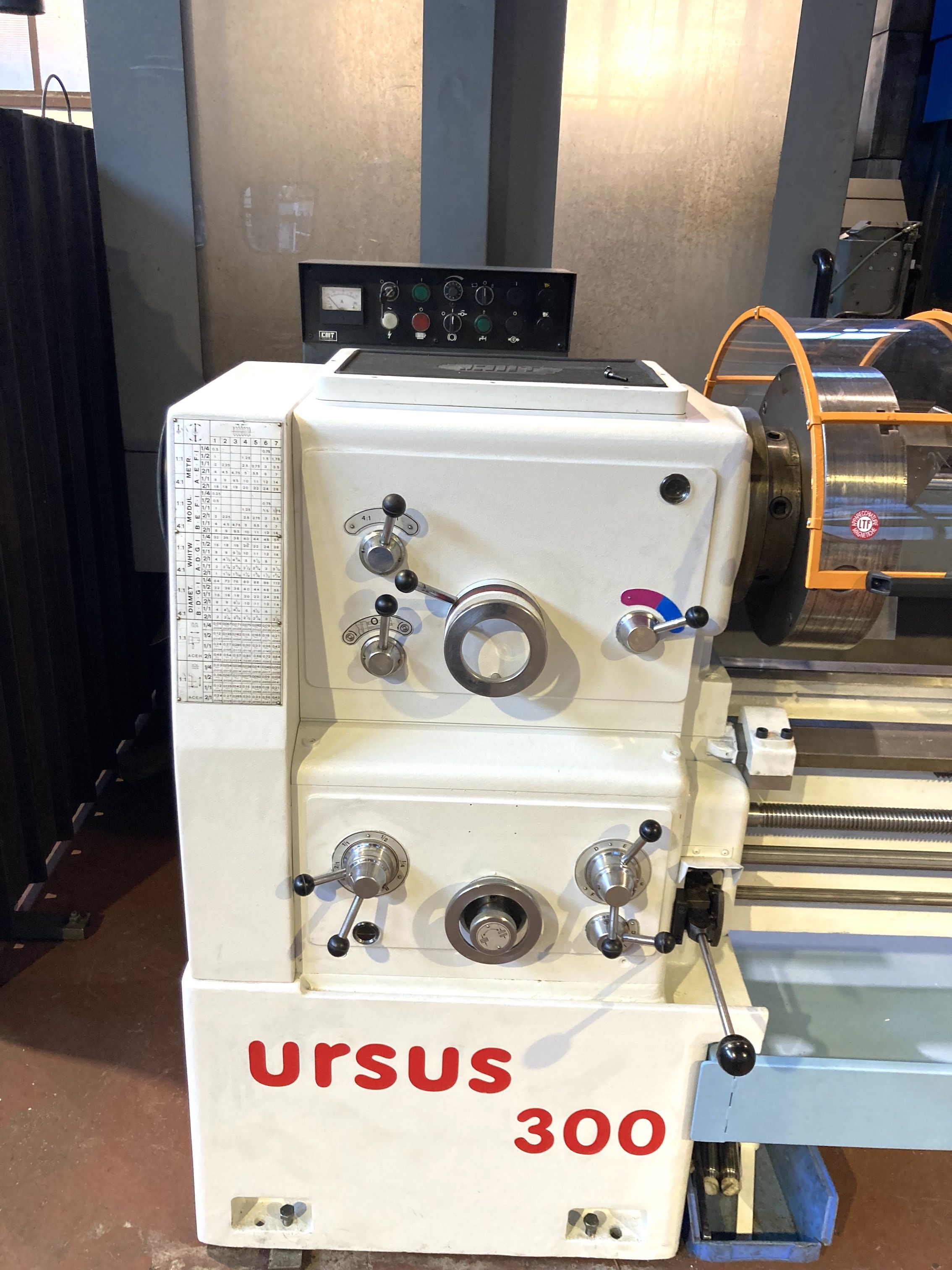

HEAD
Spindle power
10 Kw
Spindle speed
1500 Rpm
Spindle taper
C.L.8

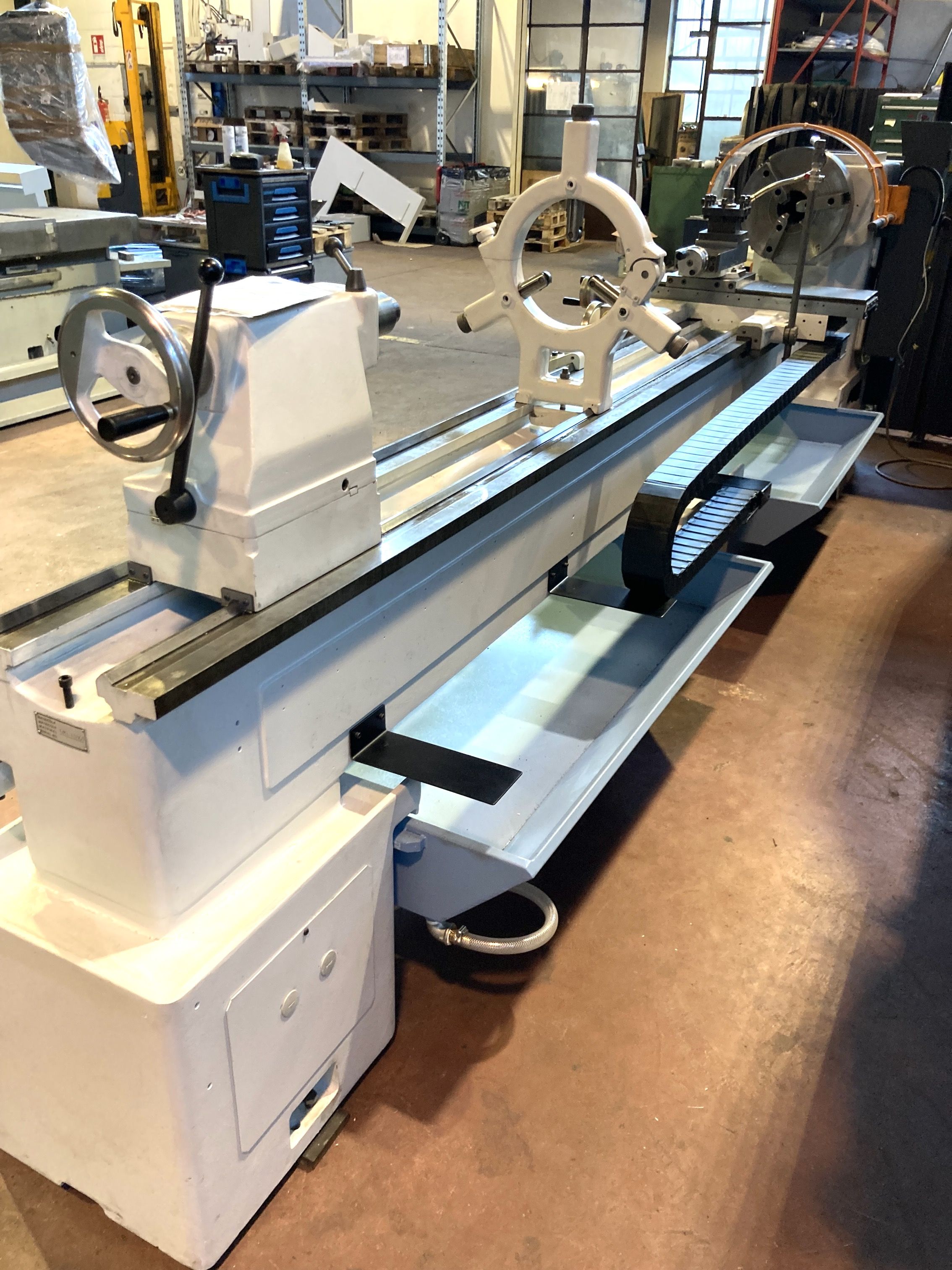

TAILSTOCK
Taper
C.M.5
Quill diameter
68 mm2,68 in
Quill stroke
195 mm7,68 in
EXTRA

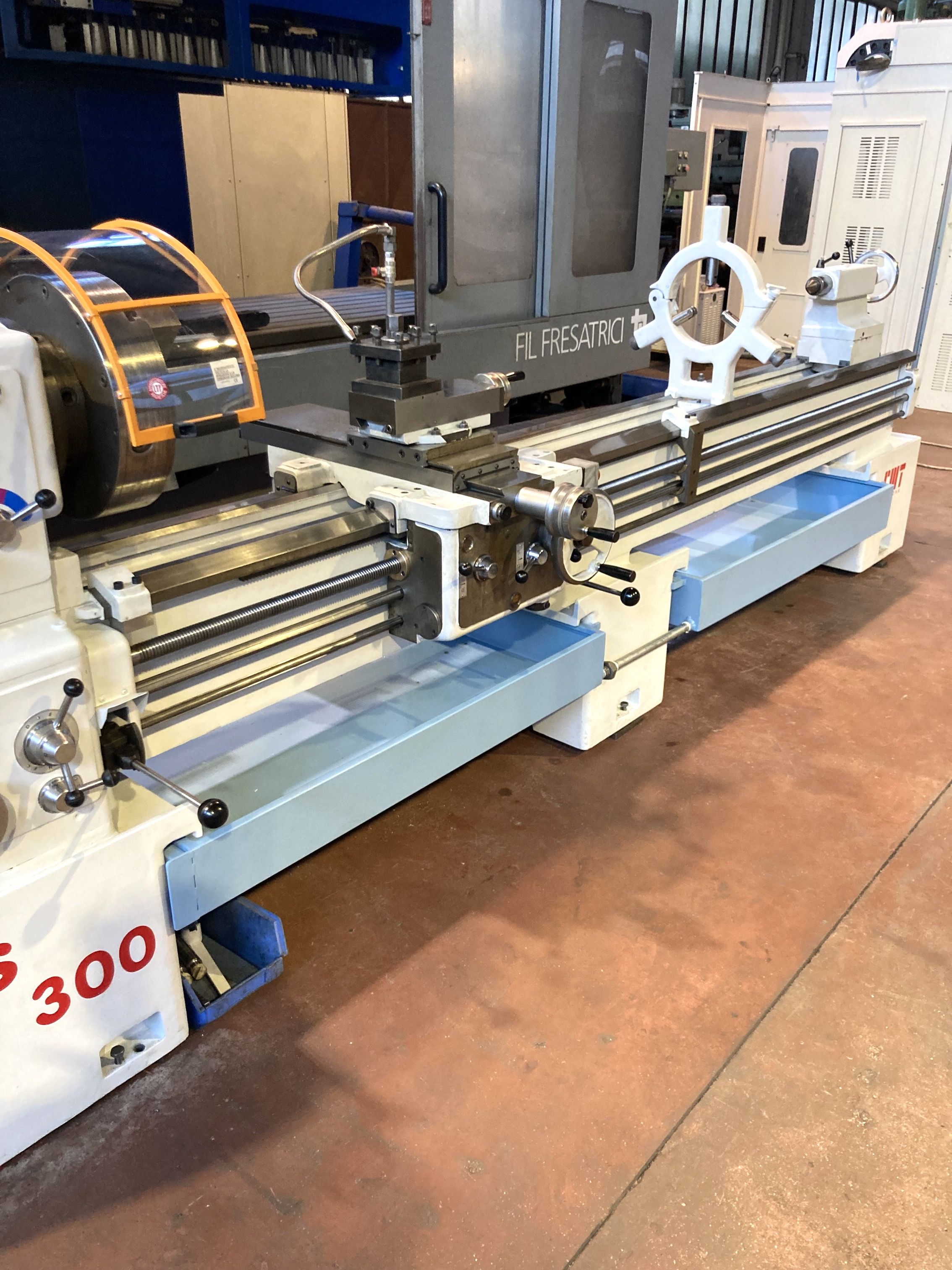

Closed steadies
SI

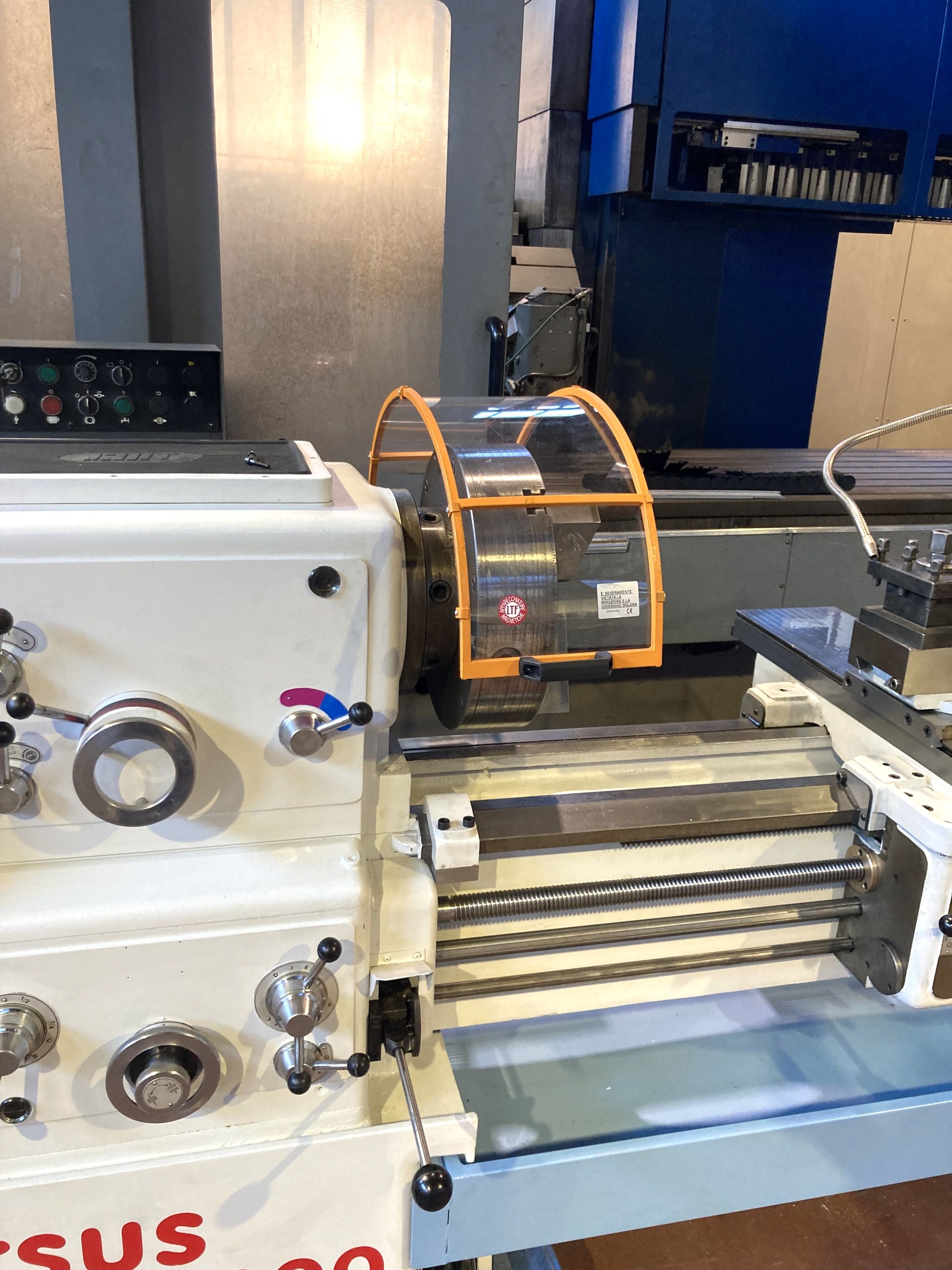

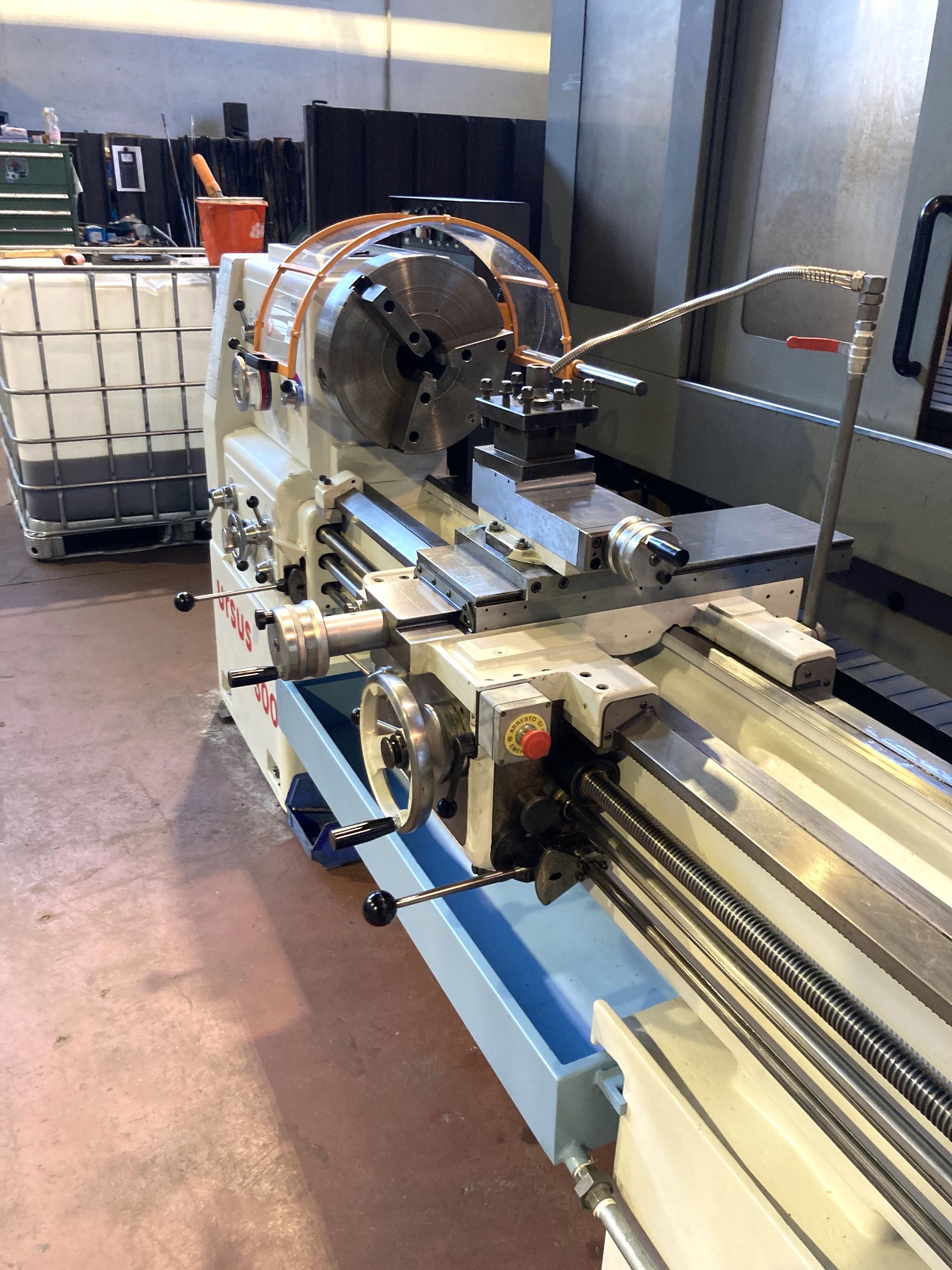

Autocentering chuck
SI
Electrical drawings
Yes
Availability
PRONTA
Available in stock
SI
Available under power
SI
Protections
si
Floor space
4650x1100 mm183,07x43,31 in
