Technical specifications
Metric
Imperial
WORKING CAPACITY
Floorplates size (LxWxH)
2500x2000 mm98,43x78,74 in
Max weight on lower plate
45000 Kg
Max weight on upper plate
20000 Kg
Max closing strenght
2000 kN
Max opening strenght
550 kN
Column distance
2730x2130 mm107,48x83,86 in
Max distance beween plates
2400 mm94,49 in
Min discance between plates
300 mm11,81 in

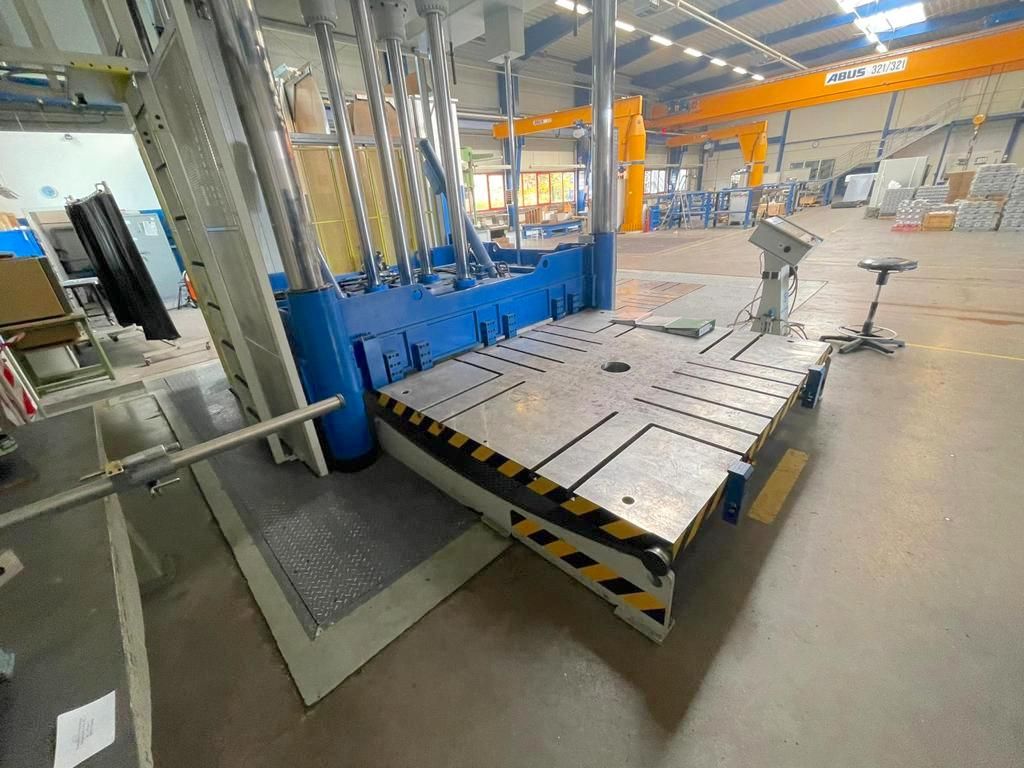

Upper table overturning
100/180 °
Lower table overturning
70 °
FEEDS
Approach speed
65-80 mm/sec
Working speed
8 mm/sec
Return speed
35-50 mm/sec
CNC
CNC

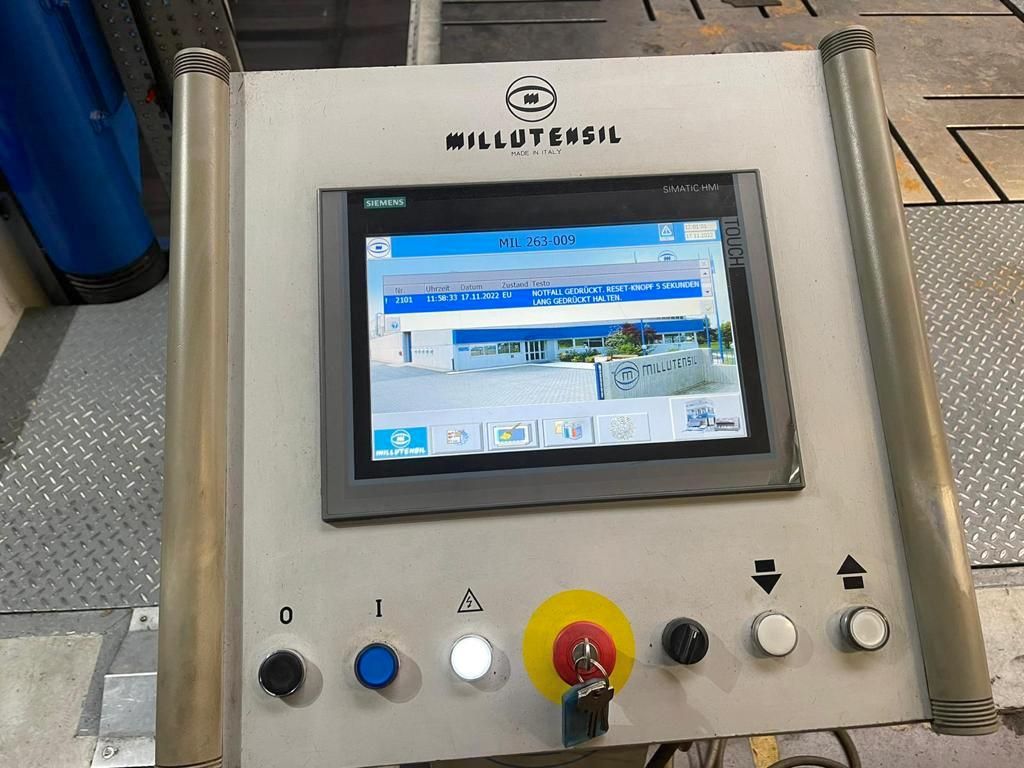

Millutensil TOUCH PANEL
EXTRA
Machine weight
56000 kg
Total power supply
22 Kw
Floor space
4200x7500x5580 mm165,35x295,28x219,68 in
