Category
Milling machine
Type
Bed type
Made
Model
FSQ100 OR/A3
Capacity
3000x1400x1000 mm118,11x55,12x39,37 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
3000 mm118,11 in
Vertical (Y)
1400 mm55,12 in
Cross RAM (Z)
1000 mm39,37 in

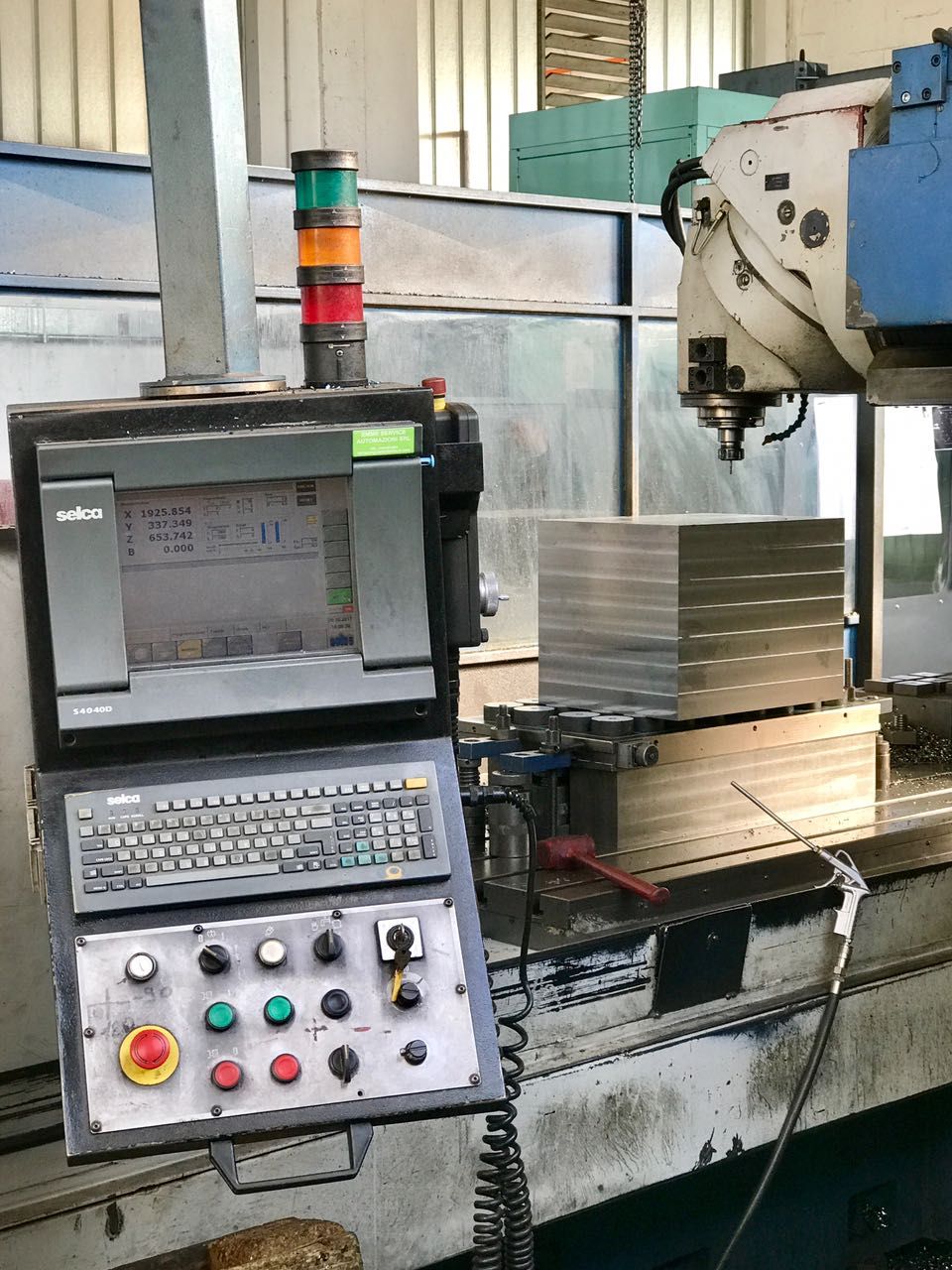

CNC
CNC

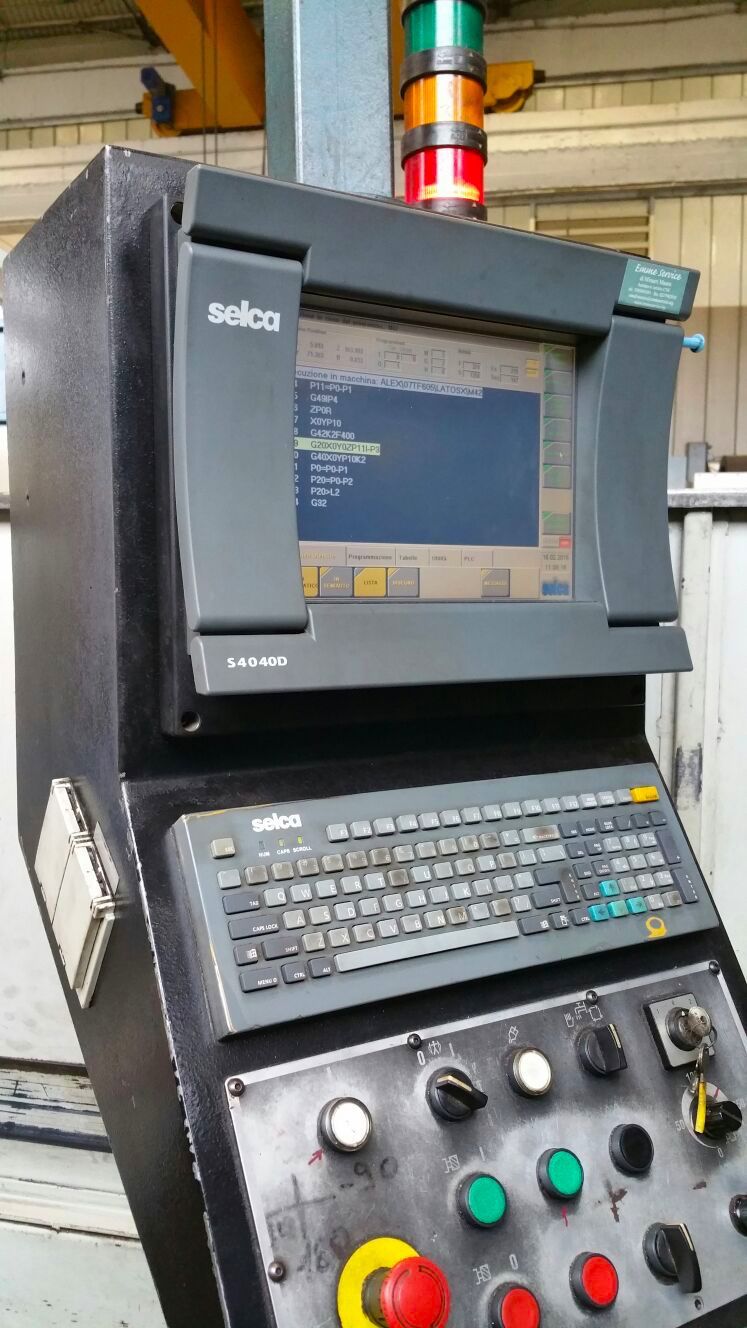

SELCA 4040D
Measuring system
Righe ottiche
SPINDLE
Spindle power
22/27,5 Kw
Rotating speed
11-4000 Rpm
Taper
ISO50 DIN69871
Gearbox
2 gamme meccaniche
Torque
1200 Nm
FEEDS
Rapid X
15 m/min590,55 ipm
Rapid Y
10 m/min393,70 ipm
Rapid Z
10 m/min393,70 ipm
X
5 m/min196,85 ipm
Y
5 m/min196,85 ipm
Z
5 m/min196,85 ipm
ATC
Positions
40
Tool taper
ISO50 DIN69871
FIXING TABLE
Floorspace (LxWxH)
3000x1000 mm118,11x39,37 in

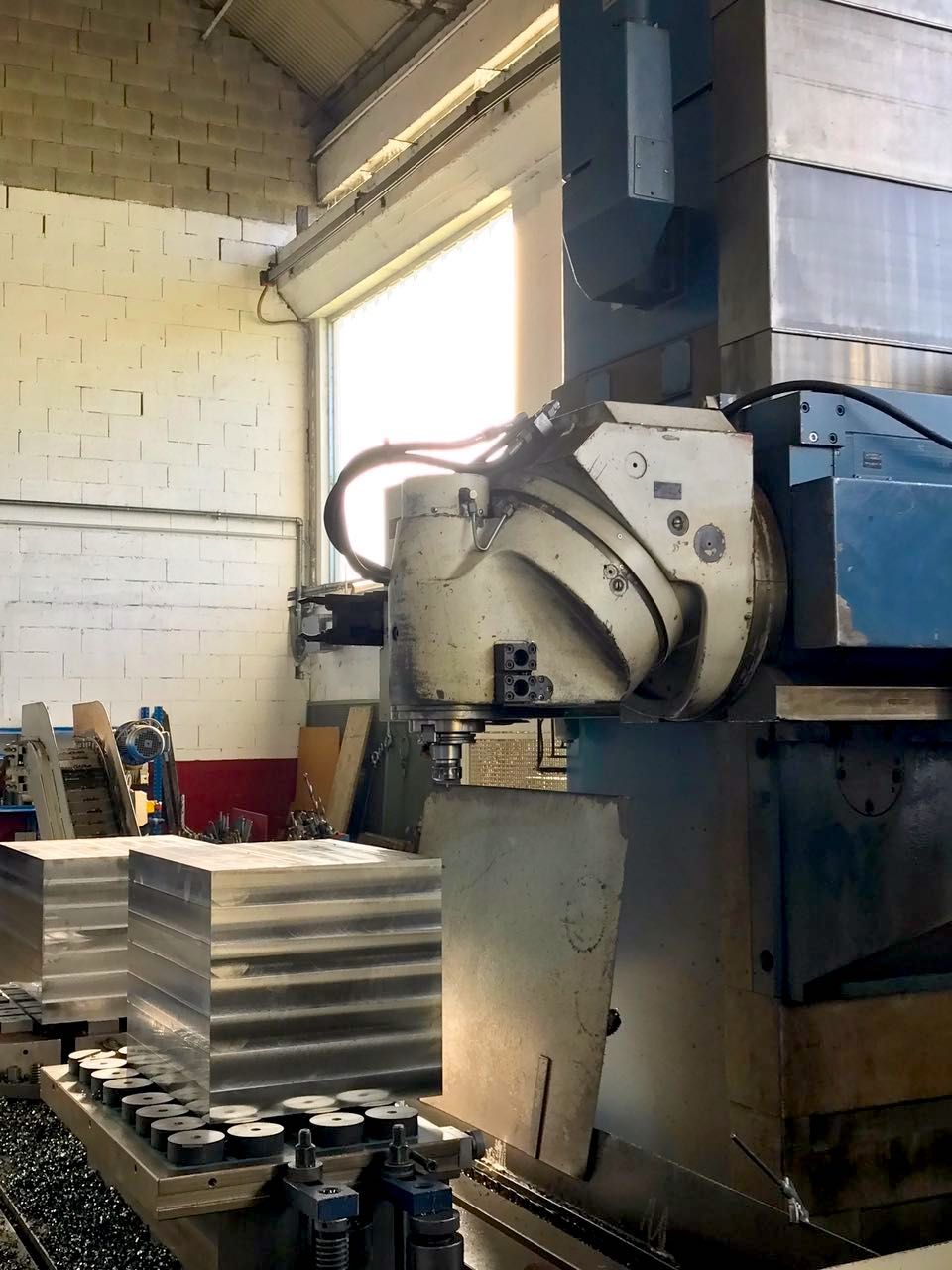

HEAD 1
Type
Universale Birotaitva Automatica tipo ”O”
Spindle taper
ISO50 DIN69871
A axis
2x180 °
C axis
144x2,5 °
Max speed
11-4000 Rpm
Max power
22/27,5 Kw
Coolant
esterno
Max torque
1200 Nm
EXTRA
Machine total weight
23000 Kg
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes

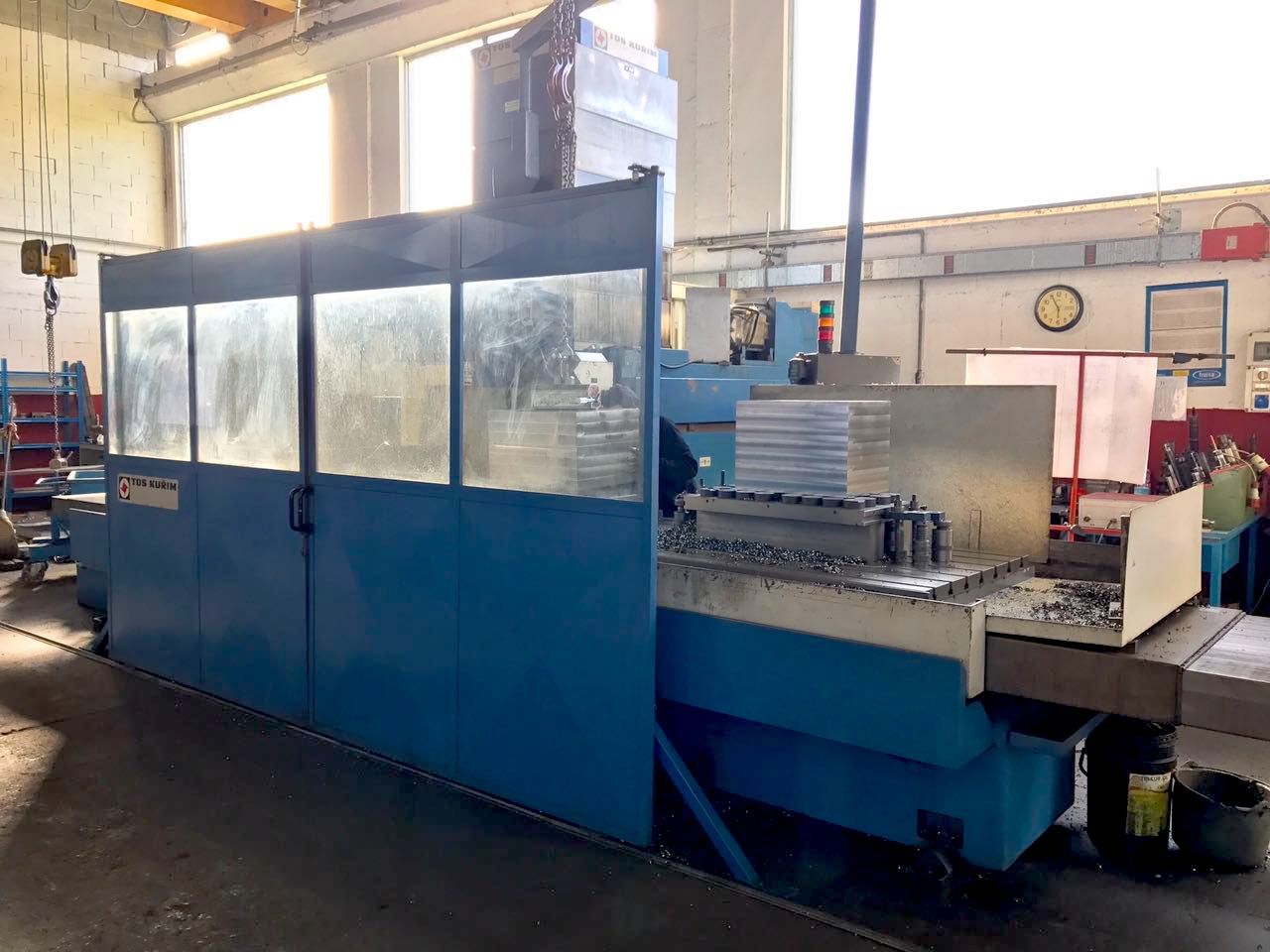

Housing
Protezioni frontali CE
Availability
Pronta
Available under power
Si
Chip conveyor
si
