Category
Milling machine
Type
Bed type
Made
Model
PERFORMA
Capacity
2000x1200x1000 mm78,74x47,24x39,37 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
2000 mm78,74 in
Vertical (Y)
1000 mm39,37 in
Cross RAM (Z)
1200 mm47,24 in

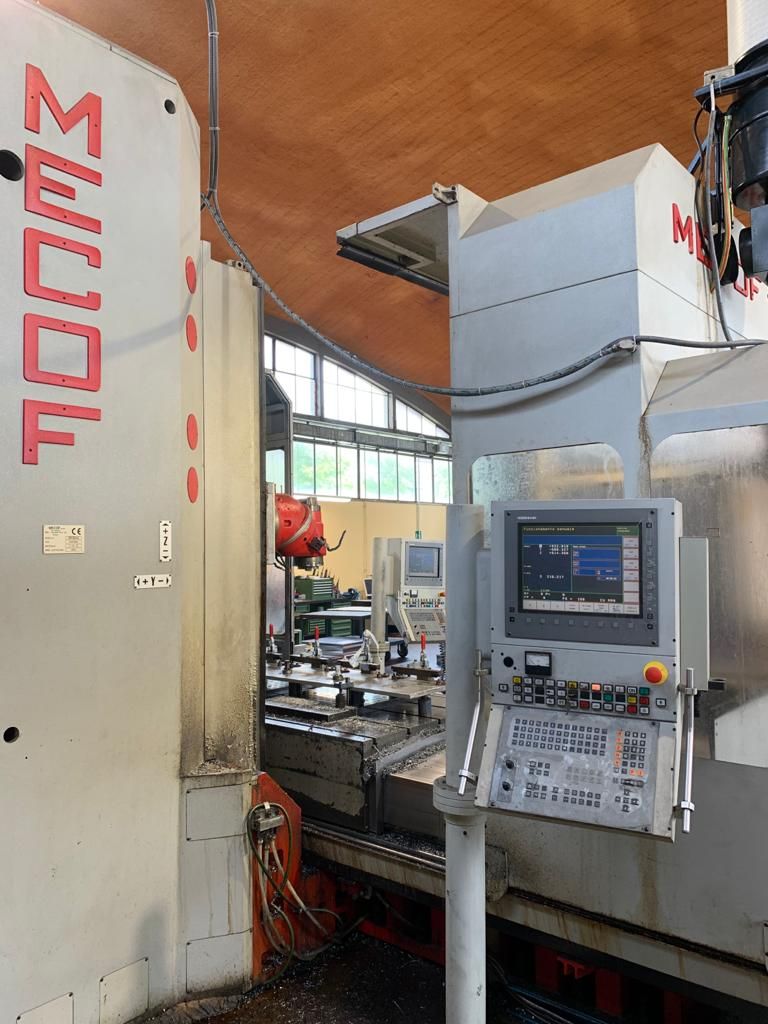

CNC
CNC
Heidenhain TNC530M (2 postazioni)
Notes
HR410, RS323C, RS422
SPINDLE
Rotating speed
4000 Rpm
Taper
ISO50
RAM section
450x450 mm17,72x17,72 in
Spindle power
30 Kw
Gearbox
15-370 / 370-4000 rpm
Torque
780 Nm
ATC
Positions
25 x ISO50 + 13 x HSK50E
Max tool diameter
120 mm4,72 in
Max tool lenght
400 mm15,75 in
Max tool weight
15 Kg
Tool taper
ISO 50
TABLE 1
Capacity
5000 Kg
Surface
2200x1150 mm86,61x45,28 in
Notes
cave a T 5 x 22mm H7

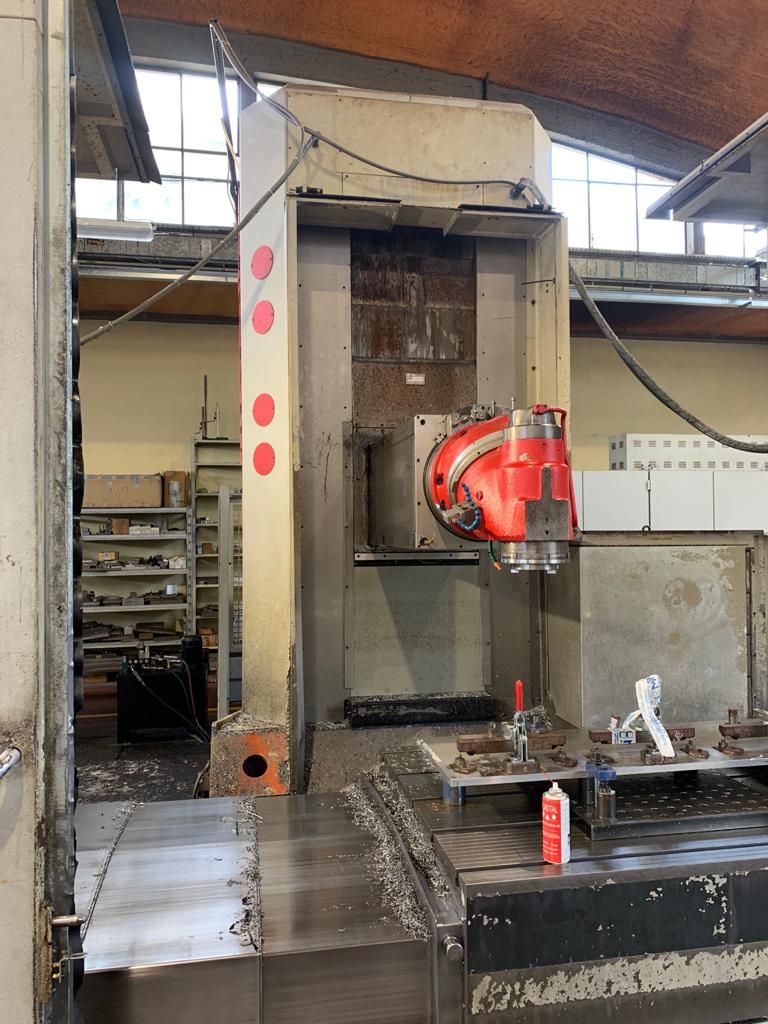

HEAD 1
A axis
3 °
C axis
1 °
Max speed
4000 Rpm
Max power
30 Kw
Max torque
780 Nm
Notes
sistema aria olio nebulizzato
FEEDS
Rapid X
28 m/min1.102,36 ipm
Rapid Y
29 m/min1.141,73 ipm
Rapid Z
28 m/min1.102,36 ipm
EXTRA

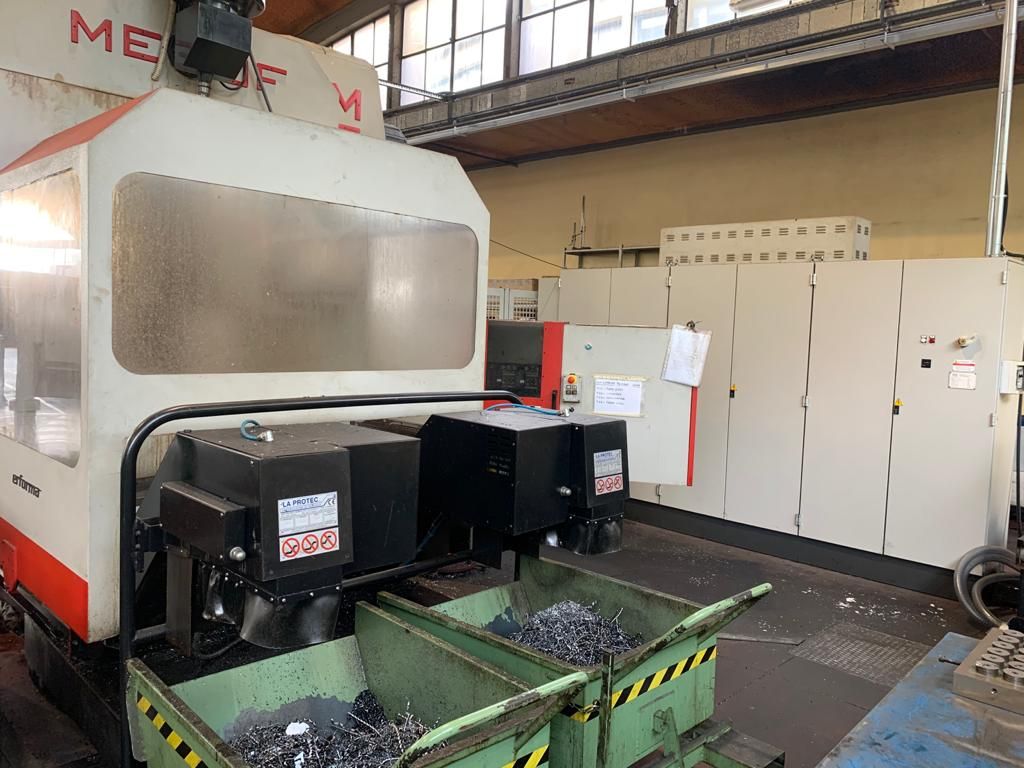

Chip conveyor
DOPPIO EVAQUATORE
Housing
COMPLETA
CE Certification
Yes
Electrical drawings
Yes
Maintenance & Use books
Yes
High Pressure
SI
Machine total weight
25000 Kg
Total power supply
45 Kw
Filtration unit
vasca filtro 500lt.
Tooling included
Doppio aspiratore, doppio CNC, doppio evacuatore truciolo, armadio elettrico condizionato,
Mist extractor
doppio
Availability
Pronta
