Category

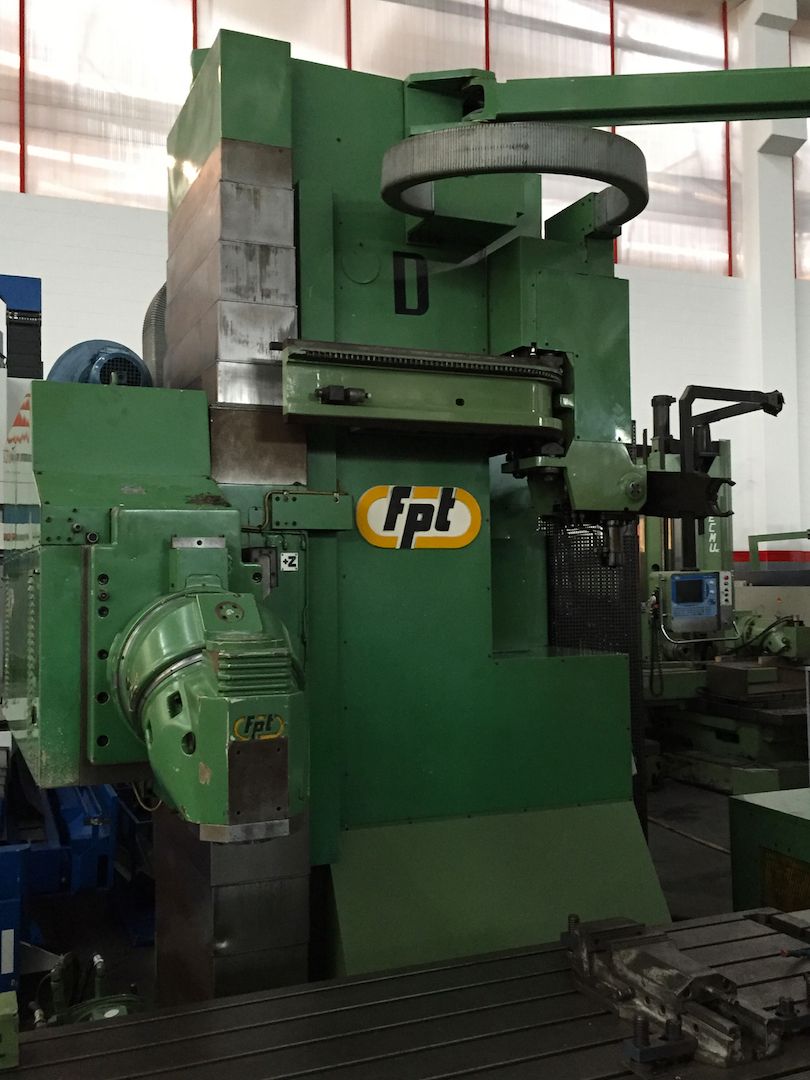

Milling machine
Type
Bed type
Made
Model
LEM5/SL
Capacity
2500x900x1500 mm98,43x35,43x59,06 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
2500 mm98,43 in
Vertical (Y)
1500 mm59,06 in
Cross RAM (Z)
900 mm35,43 in

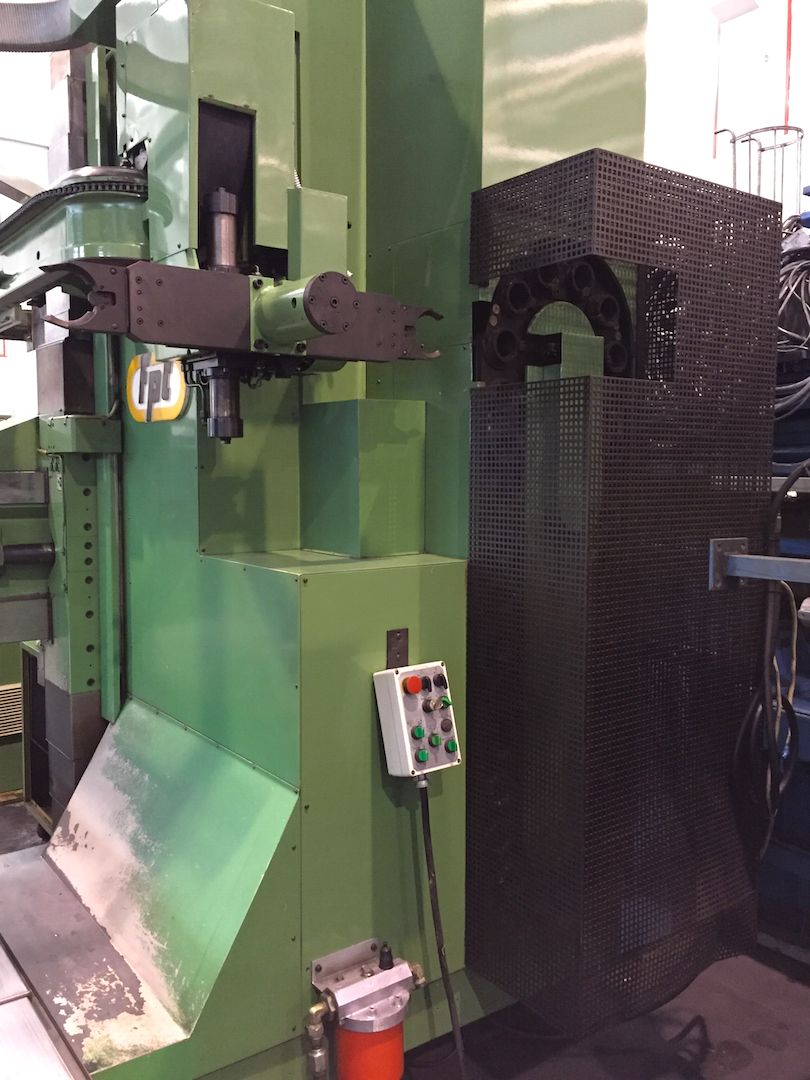

ATC
Tool taper
ISO50
Positions
30
Max tool weight
20 Kg
CNC
Notes
retrofit 2016

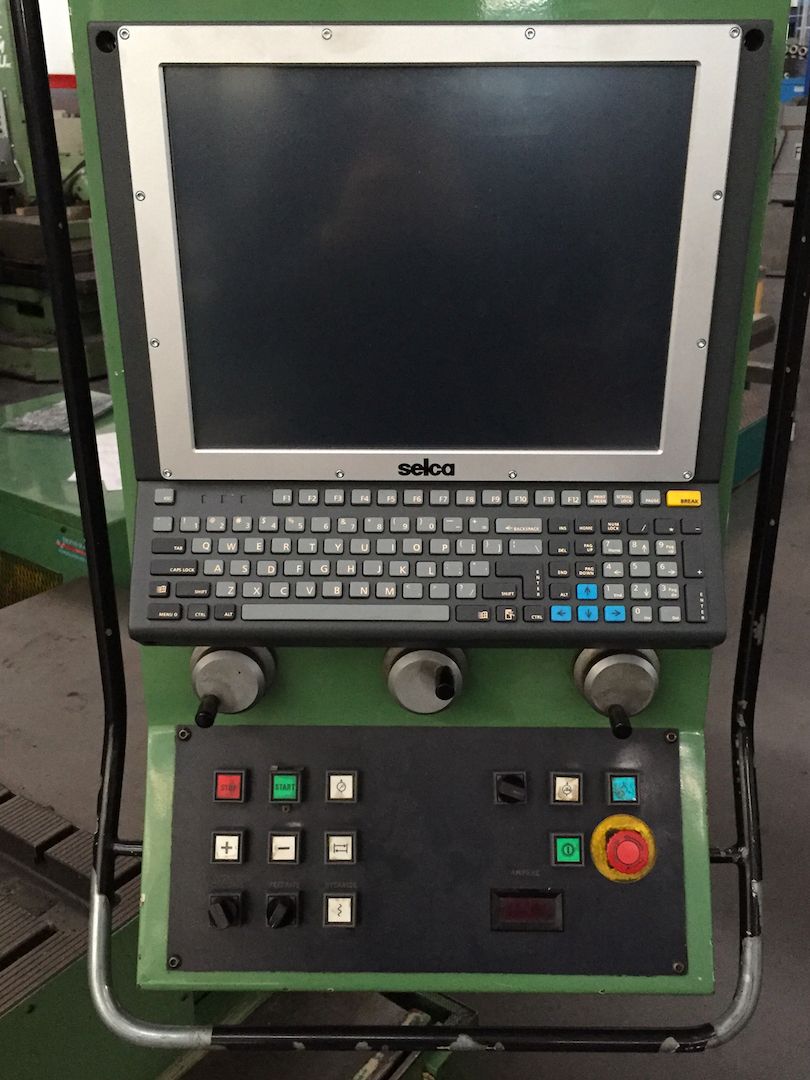

CNC
SELCA 1200
SPINDLE
Spindle power
23 Kw
Rotating speed
10-2500 Rpm
Taper
ISO50
FEEDS
Rapid X
10 m/min393,70 ipm
Rapid Y
10 m/min393,70 ipm
Rapid Z
10 m/min393,70 ipm
X
4 m/min157,48 ipm
Y
4 m/min157,48 ipm
Z
4 m/min157,48 ipm
FIXING TABLE
Floorspace (LxWxH)
3000x920 mm118,11x36,22 in
Capacity
6500 Kg/mq
T slots number
7

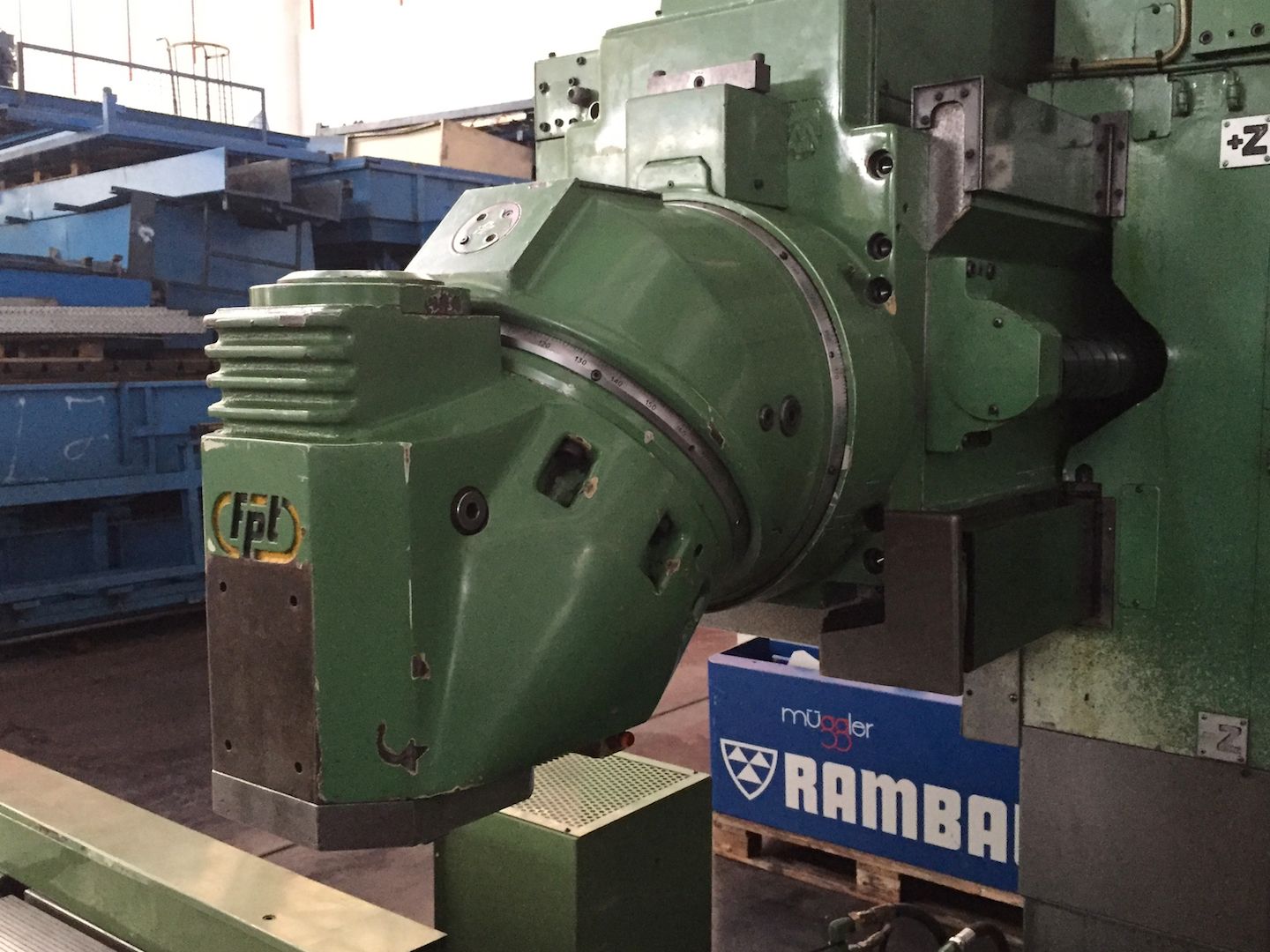

HEAD 1
Type
TUPC
Spindle taper
ISO50
A axis
2,5 °
C axis
2,5 °
Max speed
2200 Rpm
EXTRA
Relevant updates made on the machine
Retrofitting completo macchina con SELCA S4045R, ricablaggio completo macchina, revisione testa automatica
Total power supply
29 Kw
Machine total weight
18200 Kg
Floor space
6680x5355x3020 mm262,99x210,83x118,90 in
Housing
frontale
Availability
pronta
Available in stock
si
