Category
Milling machine
Type
Bed type
Made

FIL

Model
FA250
Capacity
2500x1200x850 mm98,43x47,24x33,46 in

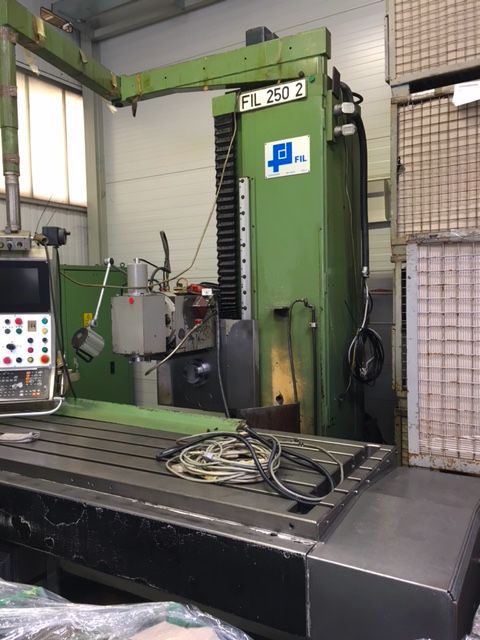

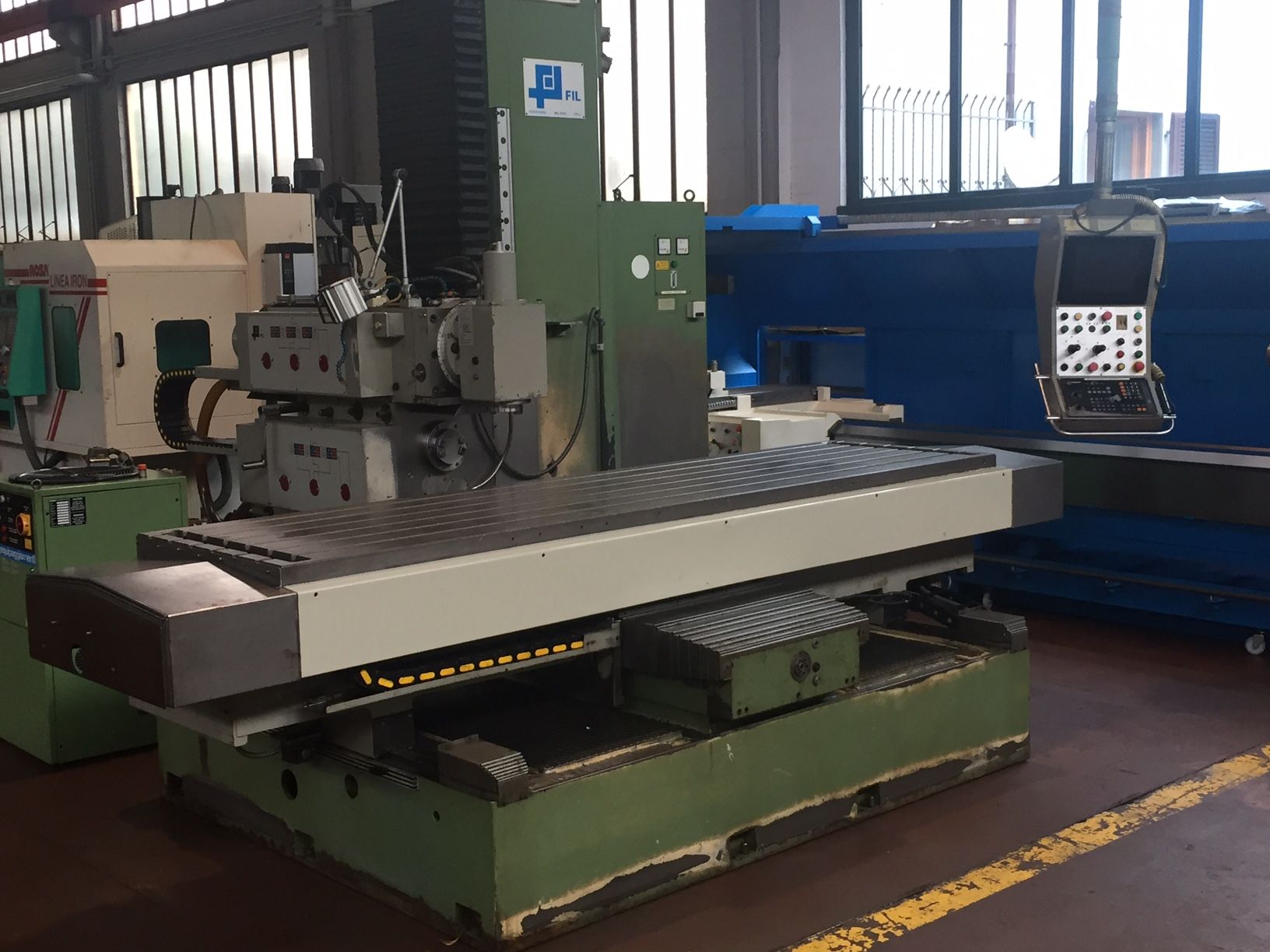

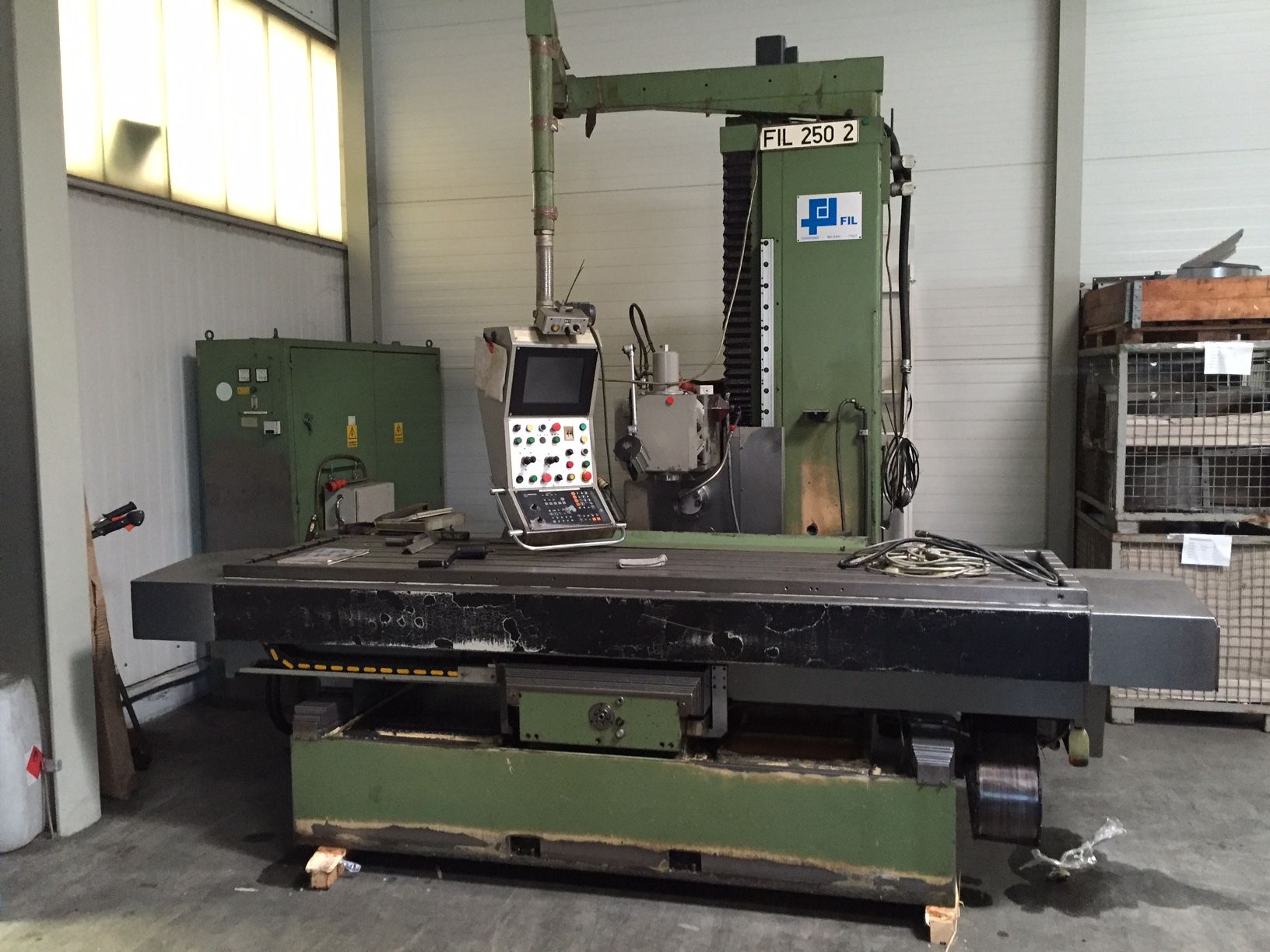

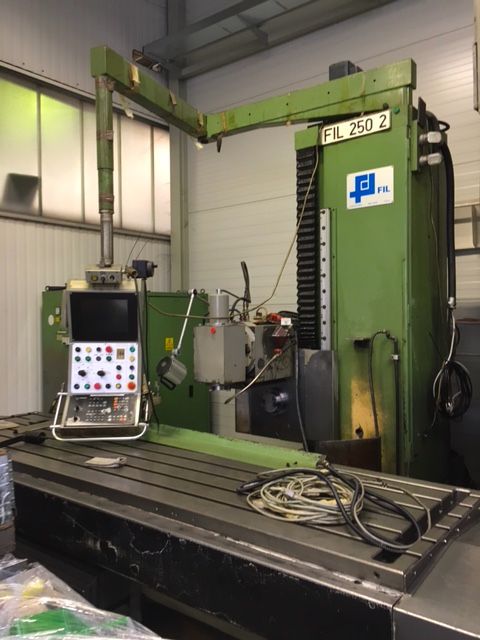

FIL FA250
All the machines are available subject to prior sale
Gallery - 7 photos
Gallery - 7 photos
Gallery - 7 photos
Gallery - 7 photos
Gallery - 7 photos
Gallery - 7 photos
Gallery - 7 photos
Data sheet

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
2500 mm98,43 in
Vertical (Y)
1200 mm47,24 in
Table (V)
850 mm33,46 in
Cross RAM (Z)
900 mm35,43 in
CNC
CNC

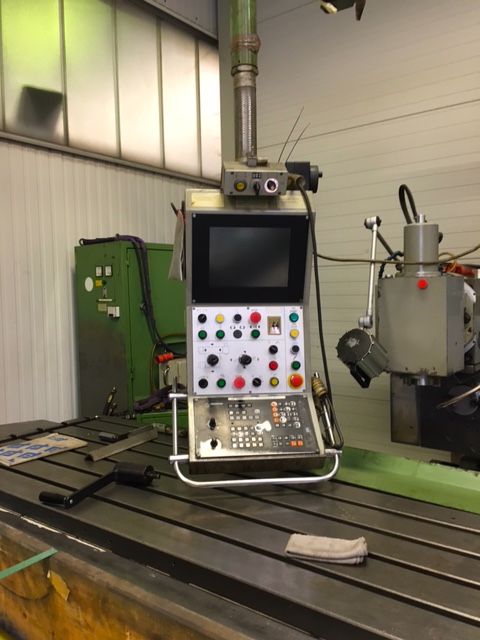

Heidenhain TNC355
TABLE 1
Surface
3000x800 mm118,11x31,50 in
Translation
850 mm33,46 in
Capacity
4000 Kg
FEEDS
Rapid X
6 m/min236,22 ipm
Rapid Y
6 m/min236,22 ipm
Rapid V
6 m/min236,22 ipm
Rapid Z
6 m/min236,22 ipm
X
1 m/min39,37 ipm
Y
1 m/min39,37 ipm
Z
1 m/min39,37 ipm
V
1 m/min39,37 ipm
SPINDLE
Spindle power
16 Kw
Gearbox
22
Rotating speed
10-2000 Rpm
Taper
ISO50
HORIZONTAL SPINDLE
Spindle power
20 Kw
Rotating speed
40-2000 Rpm
EXTRA
Machine total weight
13000 Kg
Floor space
3600x3750x3350 mm141,73x147,64x131,89 in
Chiller
si
Maintenance & Use books
Yes

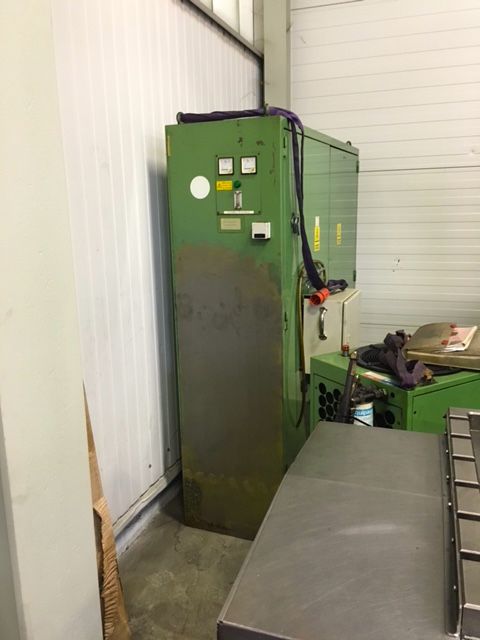

Electrical drawings
Yes
Availability
pronta
Total power supply
18 Kw
