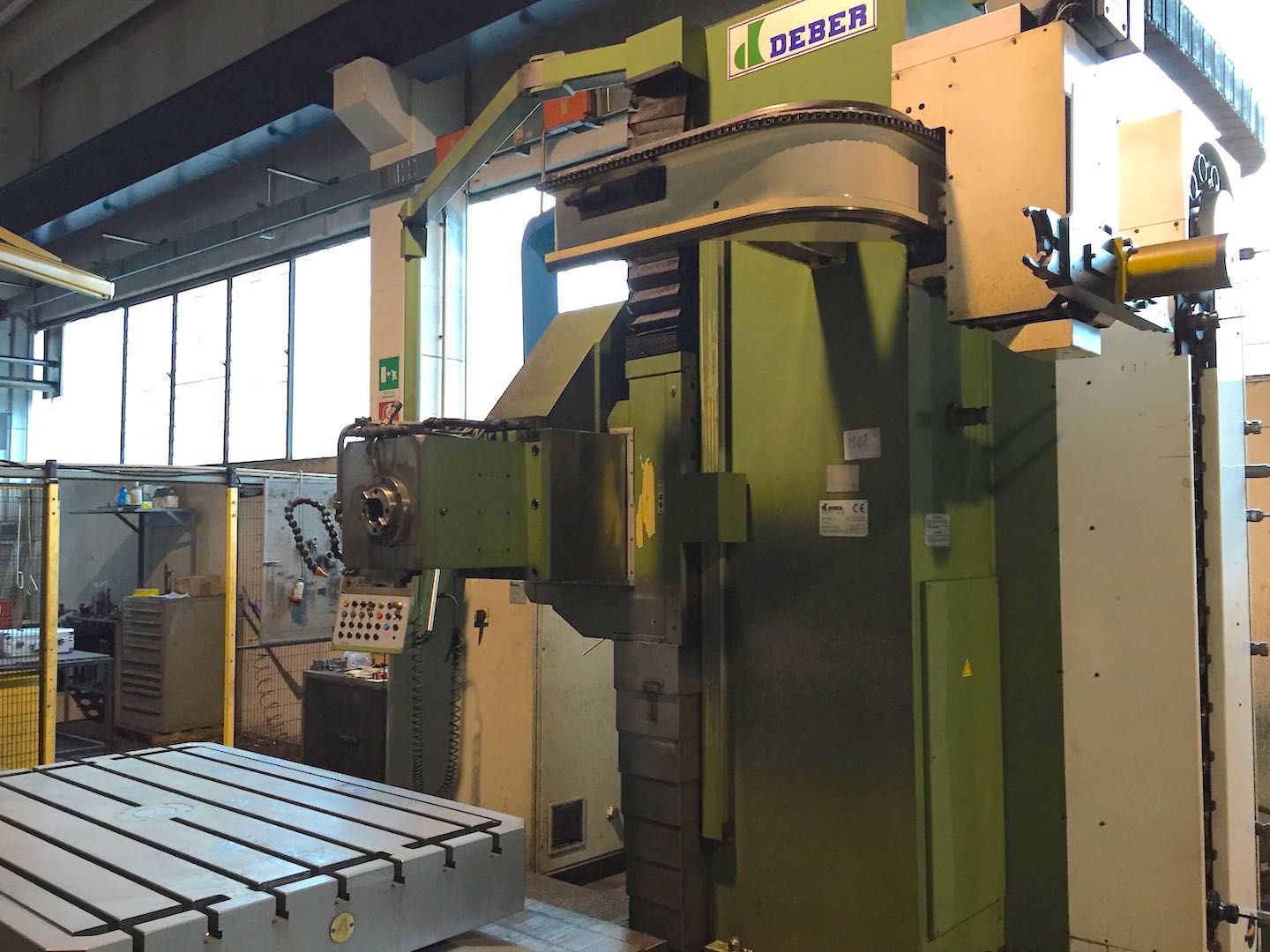

Category
Milling machine
Type
Bed type
Made
Model
BTM5A CENTER 3G
Capacity
3000x1550x1200+600 mm118,11x61,02x47,24+23,62 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
3000 mm118,11 in
Vertical (Y)
1550 mm61,02 in
Cross RAM (Z)
600 mm23,62 in
Table (V)
1200 mm47,24 in

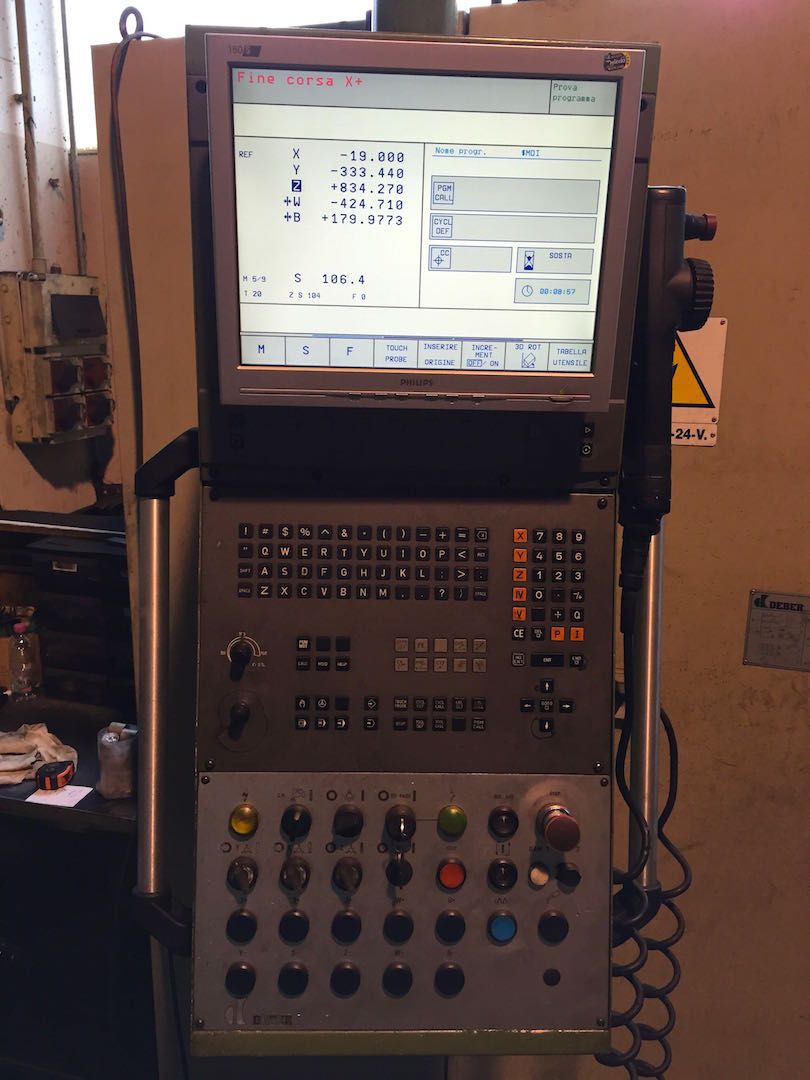

CNC
CNC
Heidenhain TNC430
Notes
volantino remotato HR410
SPINDLE
Spindle power
25 Kw
Gearbox
2 gamme automatiche
Rotating speed
0-3000 Rpm
Taper
ISO50
FEEDS
Rapid X
8 m/min314,96 ipm
Rapid Y
8 m/min314,96 ipm
Rapid Z
8 m/min314,96 ipm
Rapid V
8 m/min314,96 ipm
X
2 m/min78,74 ipm
Y
2 m/min78,74 ipm
Z
2 m/min78,74 ipm
V
2 m/min78,74 ipm

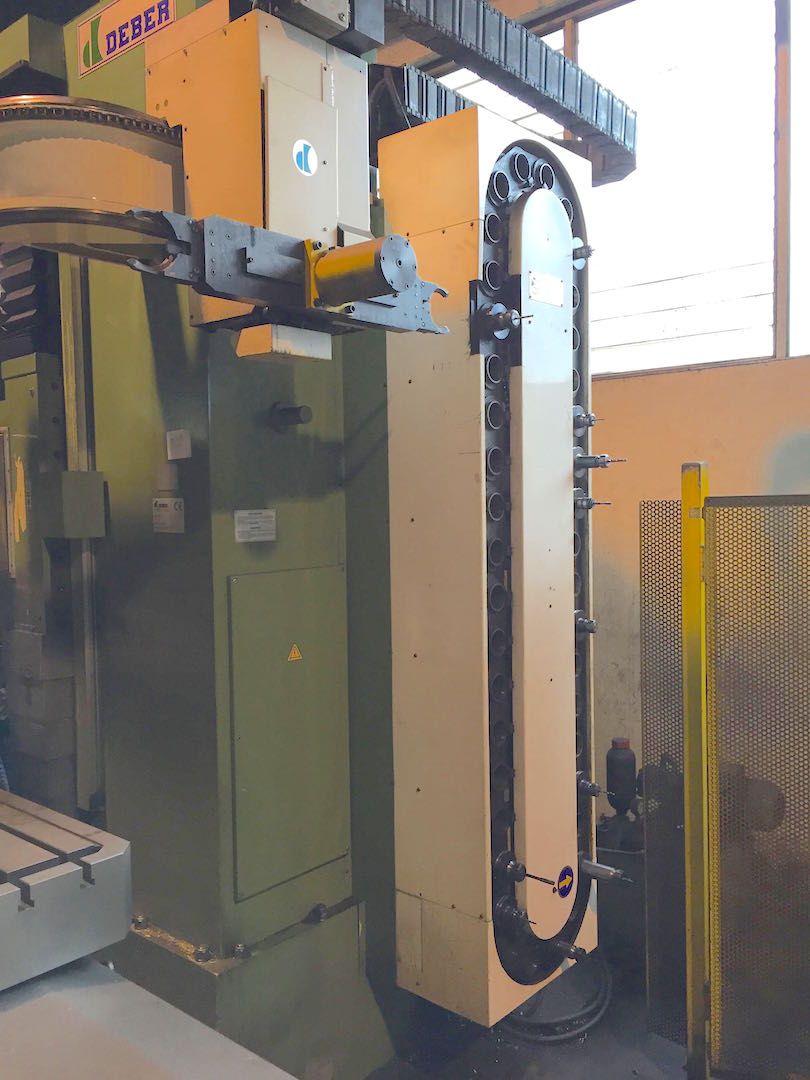

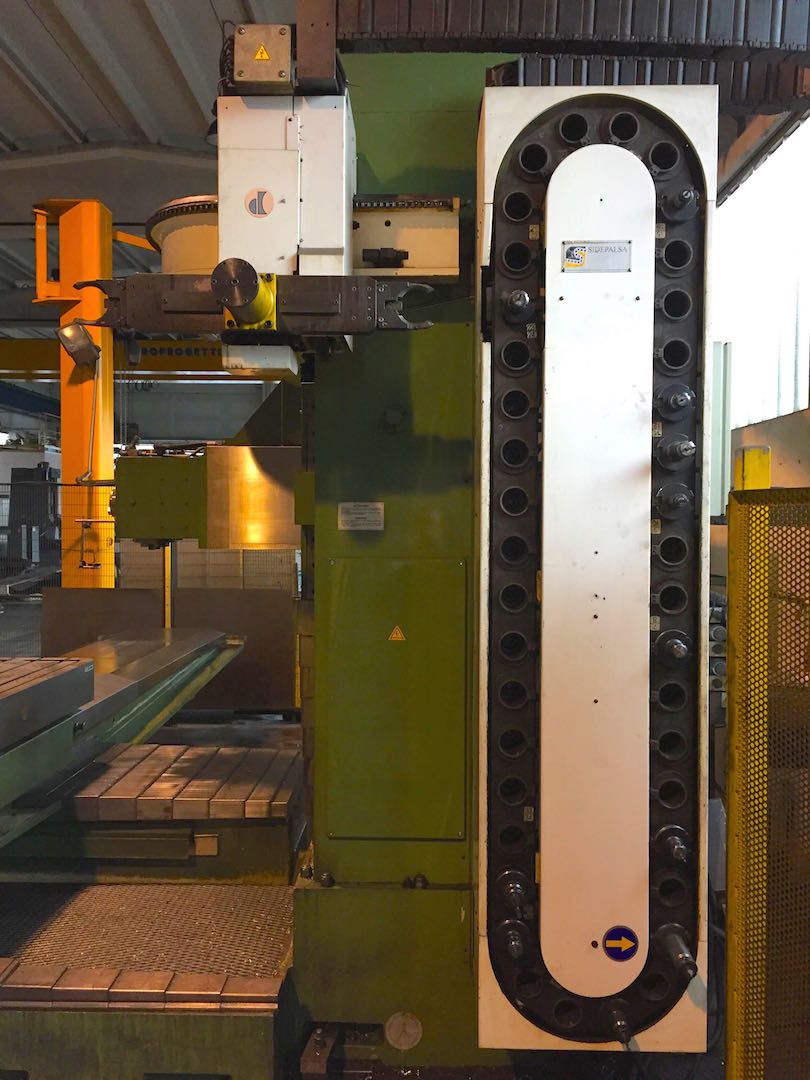

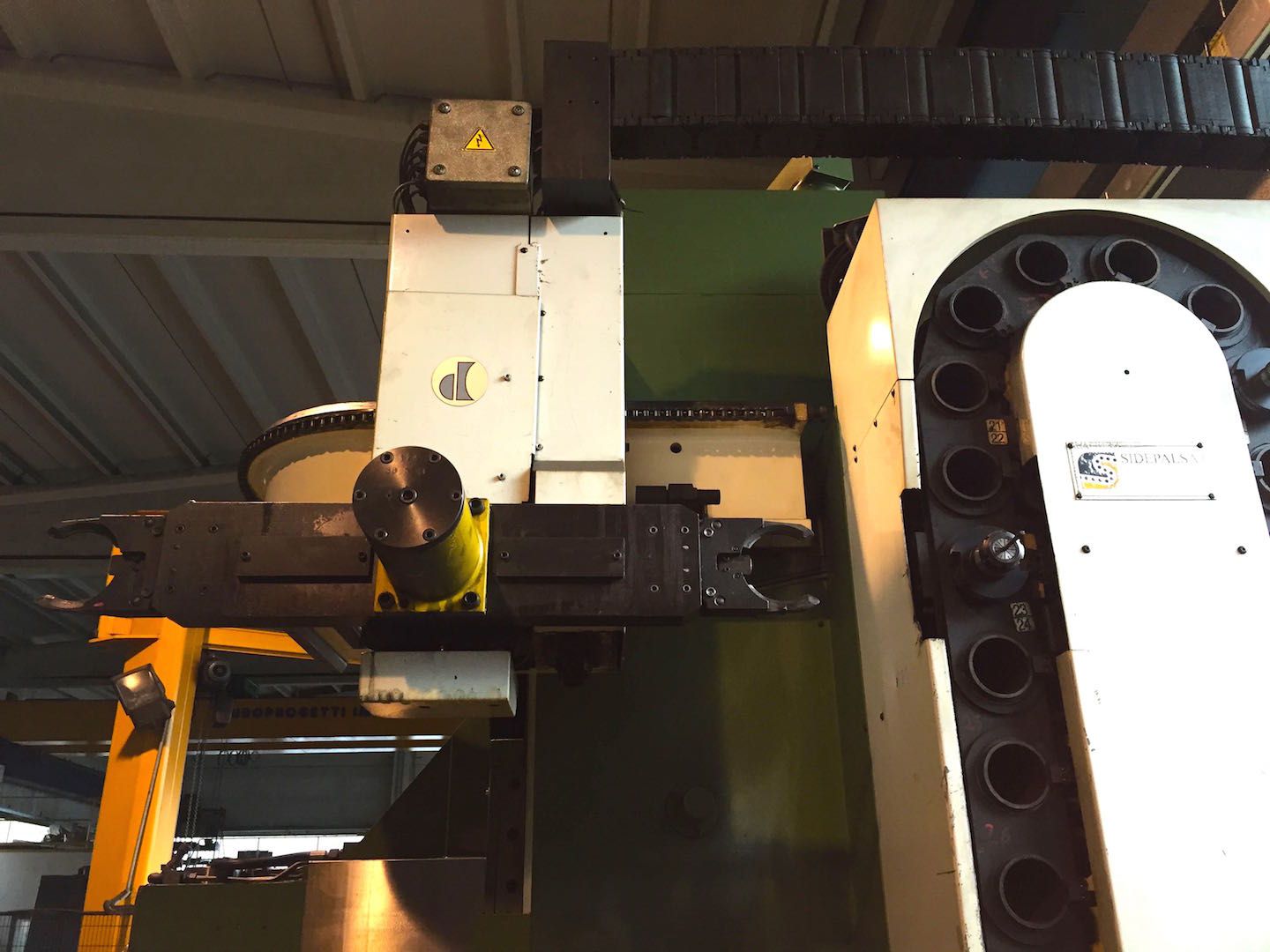

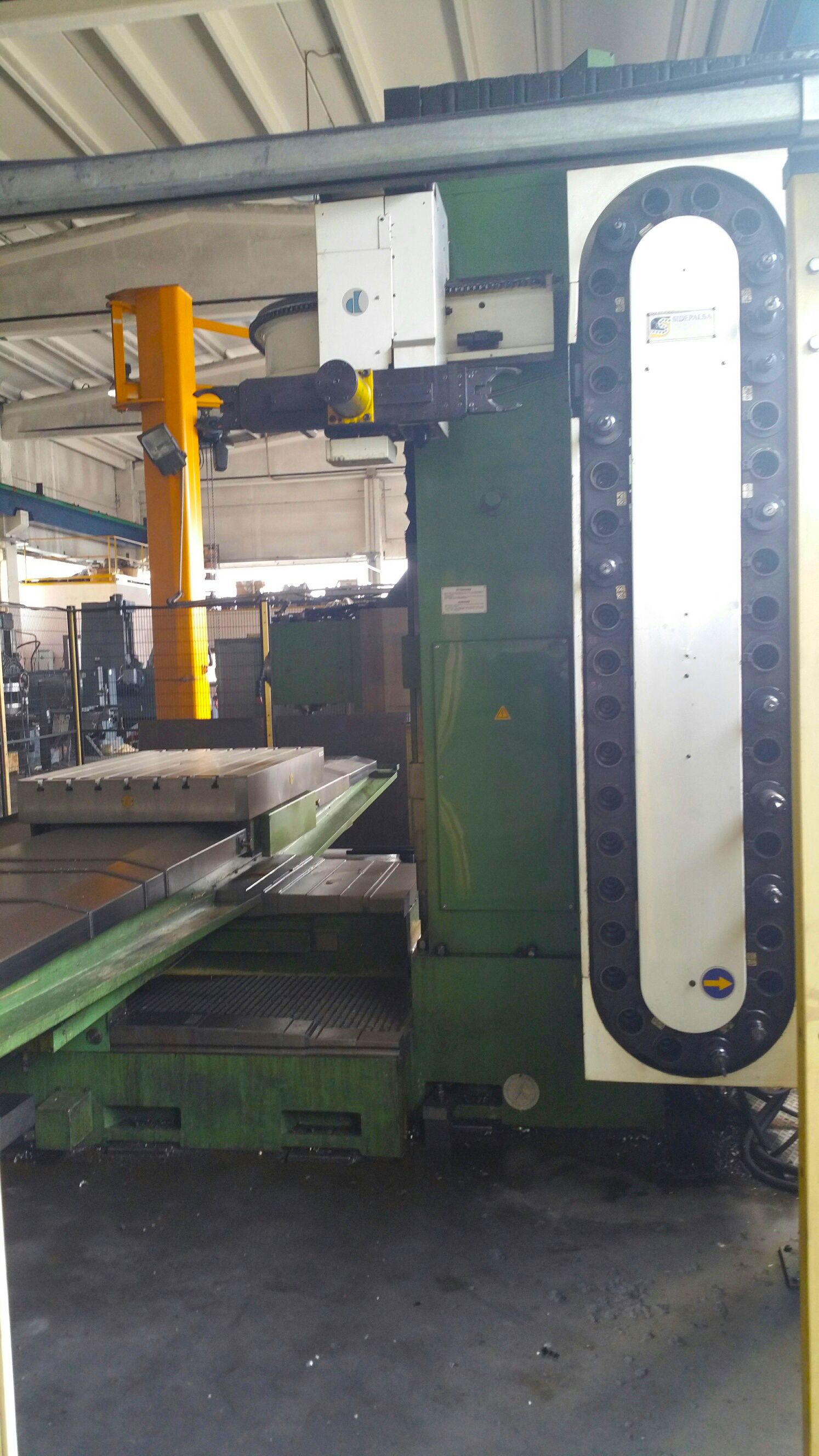

ATC
Positions
40
Position
scambio in orrizzontale / verticale

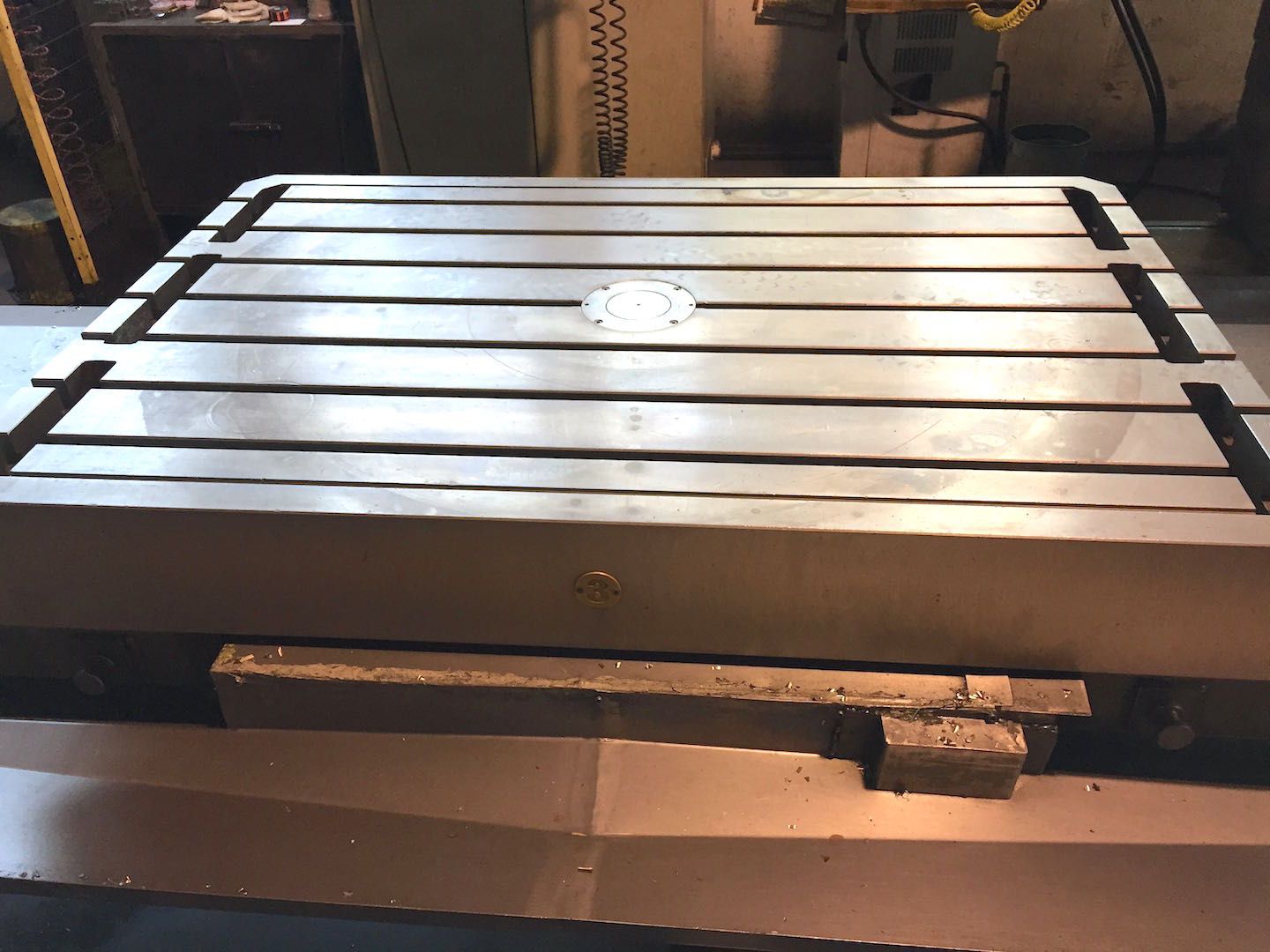

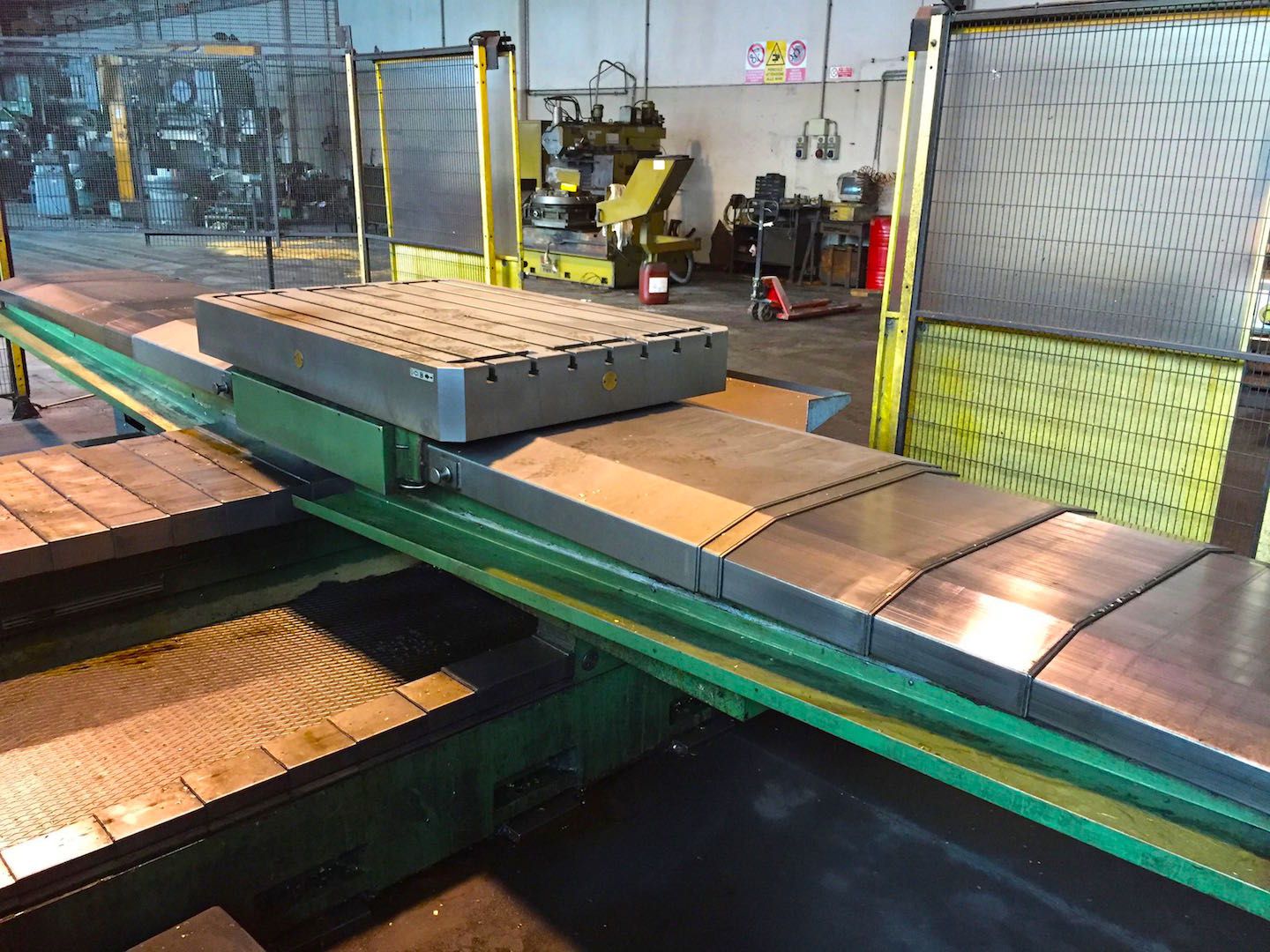

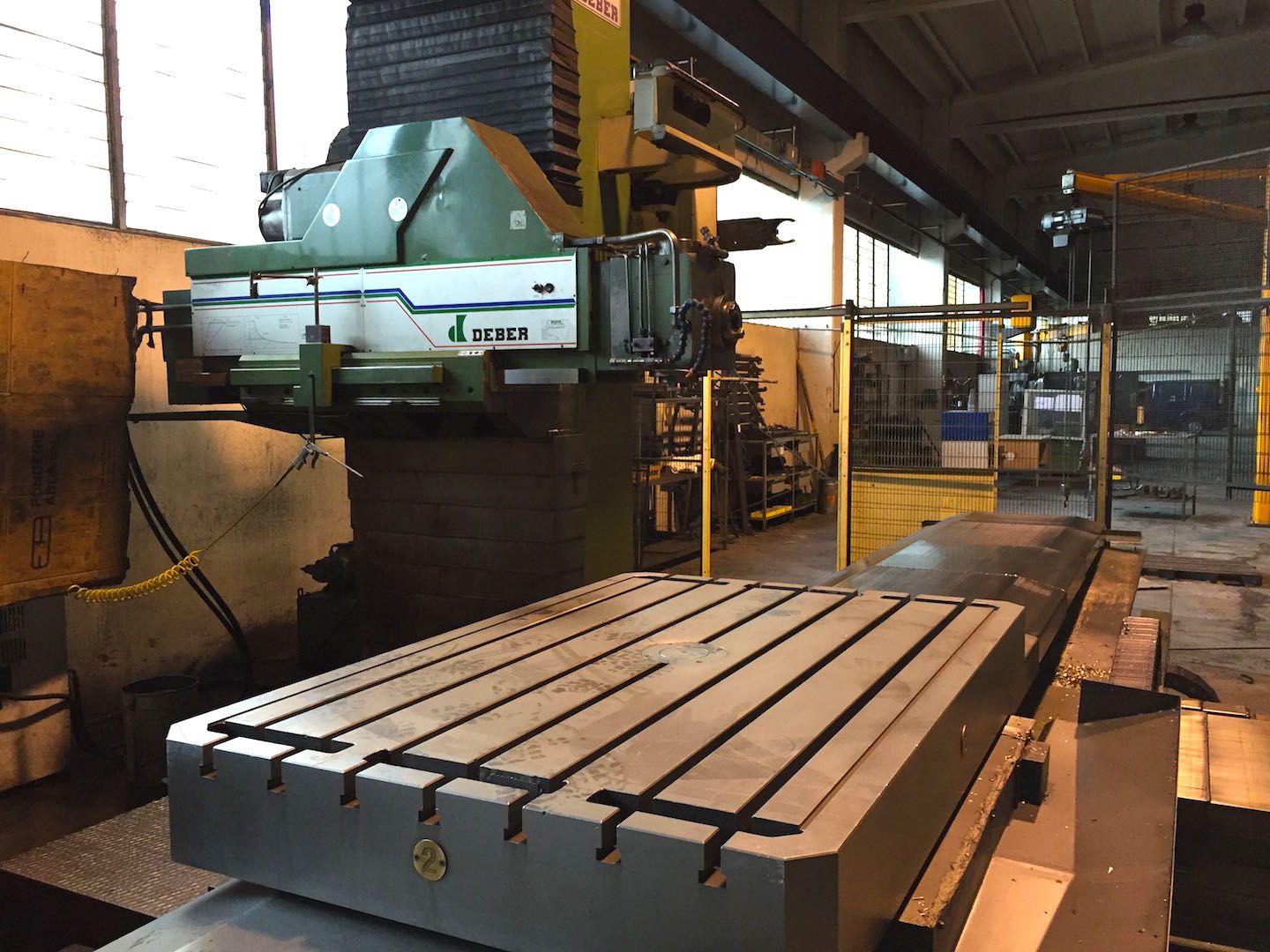

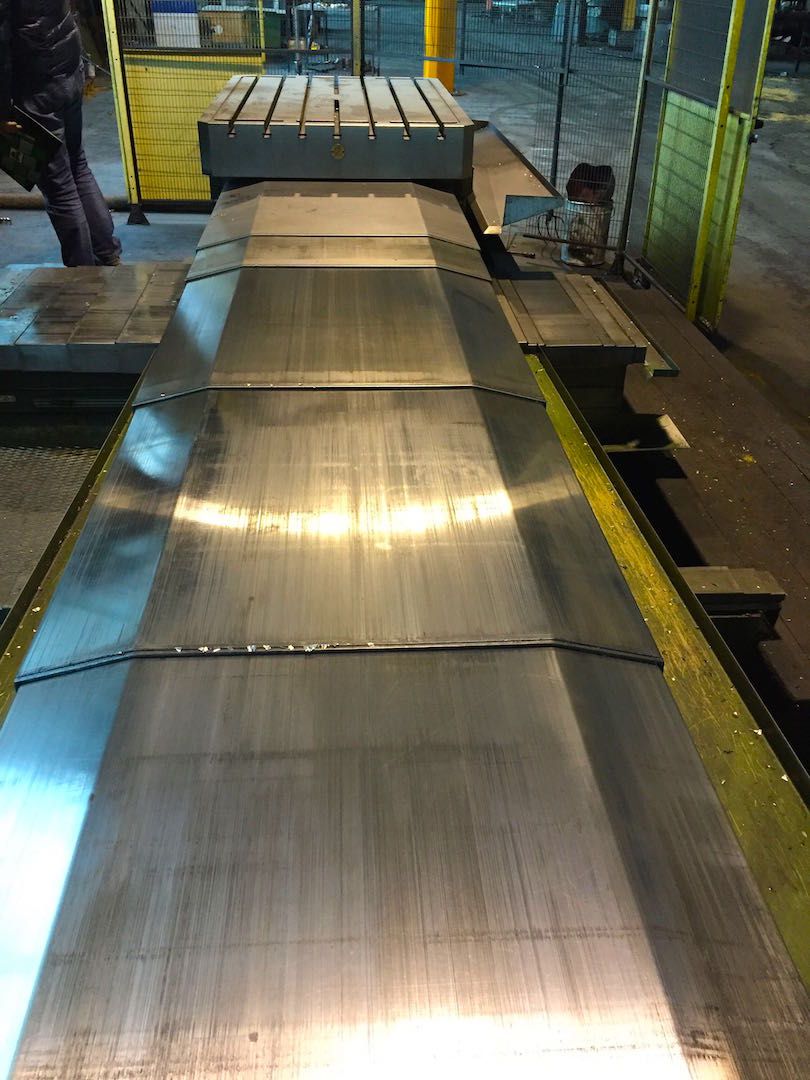

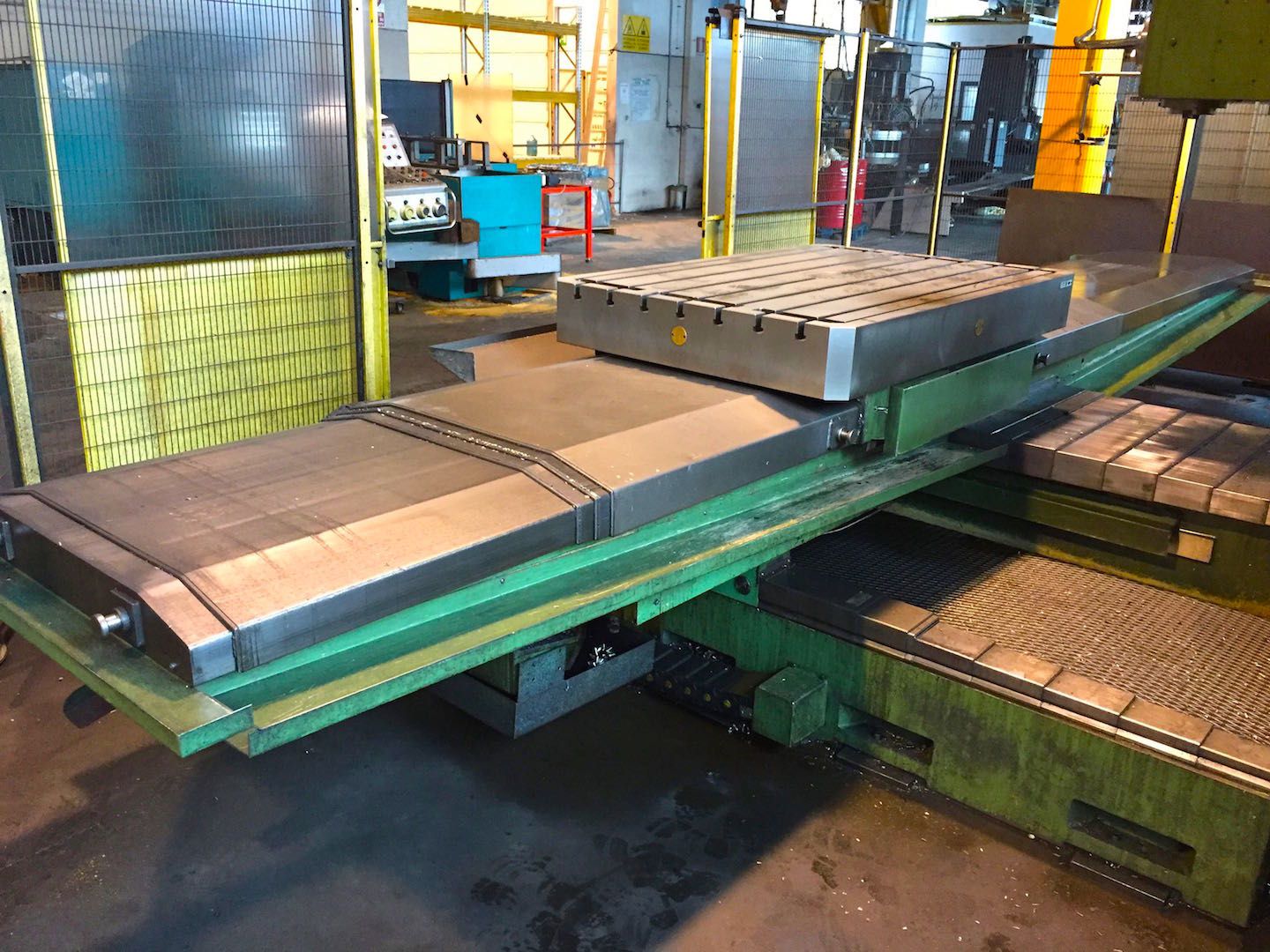

TABLE 1
Surface
1500x1000 mm59,06x39,37 in
Accuracy (B axis)
0,001 °
Capacity
5000 Kg

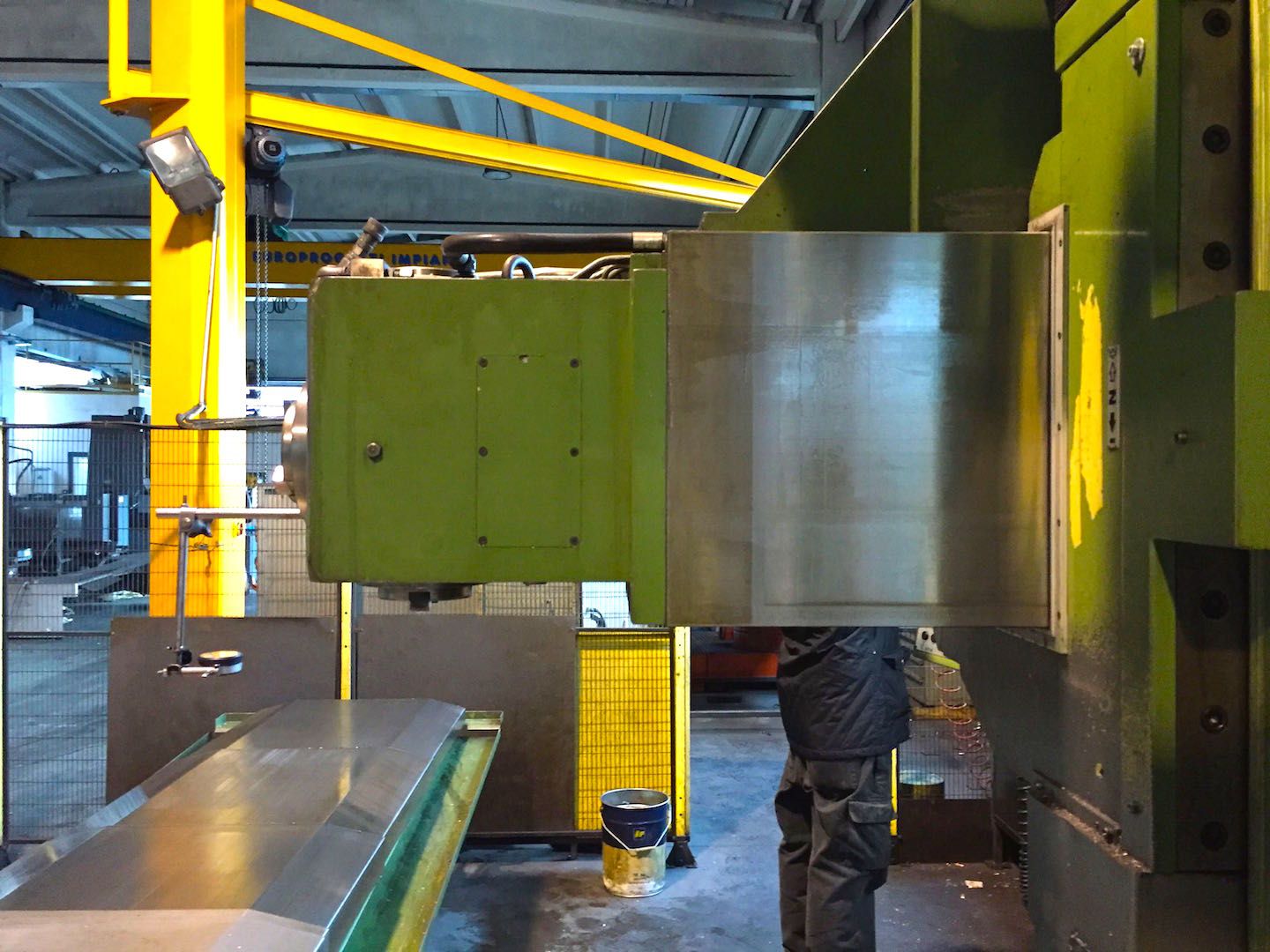

HEAD 1
Type
Ortogonale bimandrino
Spindle taper
ISO50
Max speed
2000 Rpm
Notes
rotazione manuale su asse orizzontale
FIXING TABLE
Capacity
5000 Kg/mq
Notes
tavola in continua
Floorspace (LxWxH)
1500x1000 mm59,06x39,37 in
T slots number
7x18mm
EXTRA
Machine total weight
24000 Kg
Chiller
si
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes
Housing
cabinatura perimetrale
Available under power
si
Availability
pronta
