Category

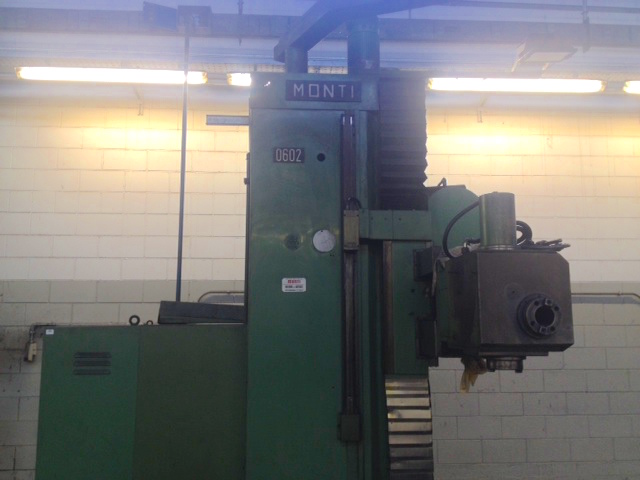

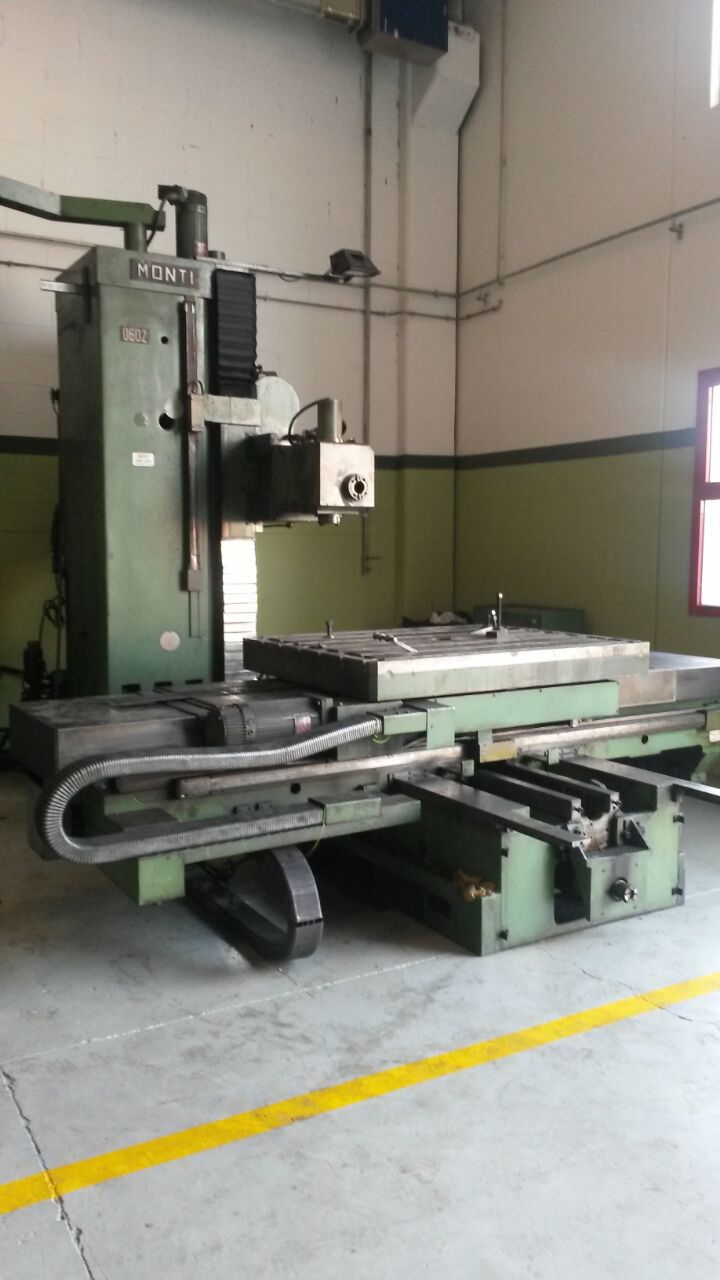

Milling machine
Type
Bed type
Made
Model
MAF50 TG
Capacity
2500x1250x1250+500 mm98,43x49,21x49,21+19,69 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
2500 mm98,43 in
Vertical (Y)
1250 mm49,21 in
Cross RAM (Z)
500 mm19,69 in
Table (V)
1250 mm49,21 in
CNC
CNC
ECS 2100
SPINDLE
Spindle power
24 Kw
Rotating speed
0-2000 Rpm
Taper
ISO50
FEEDS
Rapid X
10 m/min393,70 ipm
Rapid Y
10 m/min393,70 ipm
Rapid Z
10 m/min393,70 ipm
Rapid V
10 m/min393,70 ipm
X
10 m/min393,70 ipm
Y
10 m/min393,70 ipm
Z
10 m/min393,70 ipm
V
10 m/min393,70 ipm
TABLE 1
Surface
1500x1250 mm59,06x49,21 in
Translation
1250 mm49,21 in
Accuracy (B axis)
1 °
Capacity
5000 Kg
HEAD 1
Type
Ortogonale bimandrino
Spindle taper
ISO50
EXTRA
Total power supply
30 Kw
Machine total weight
16000 Kg
Available in stock
si
Availability
pronta consegna
