Category
Machining Centre
Type
5-Axis or more
Made

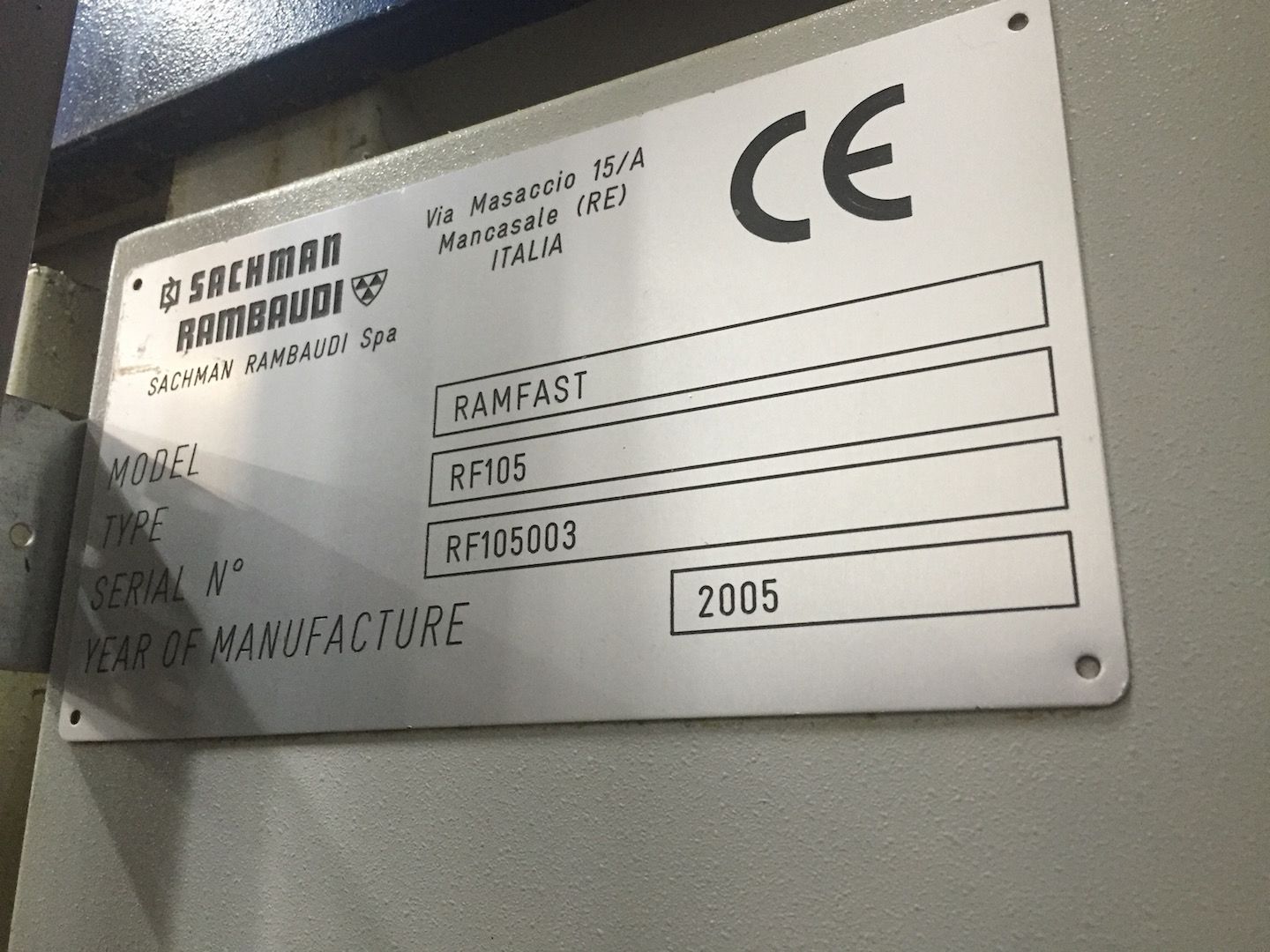

Model

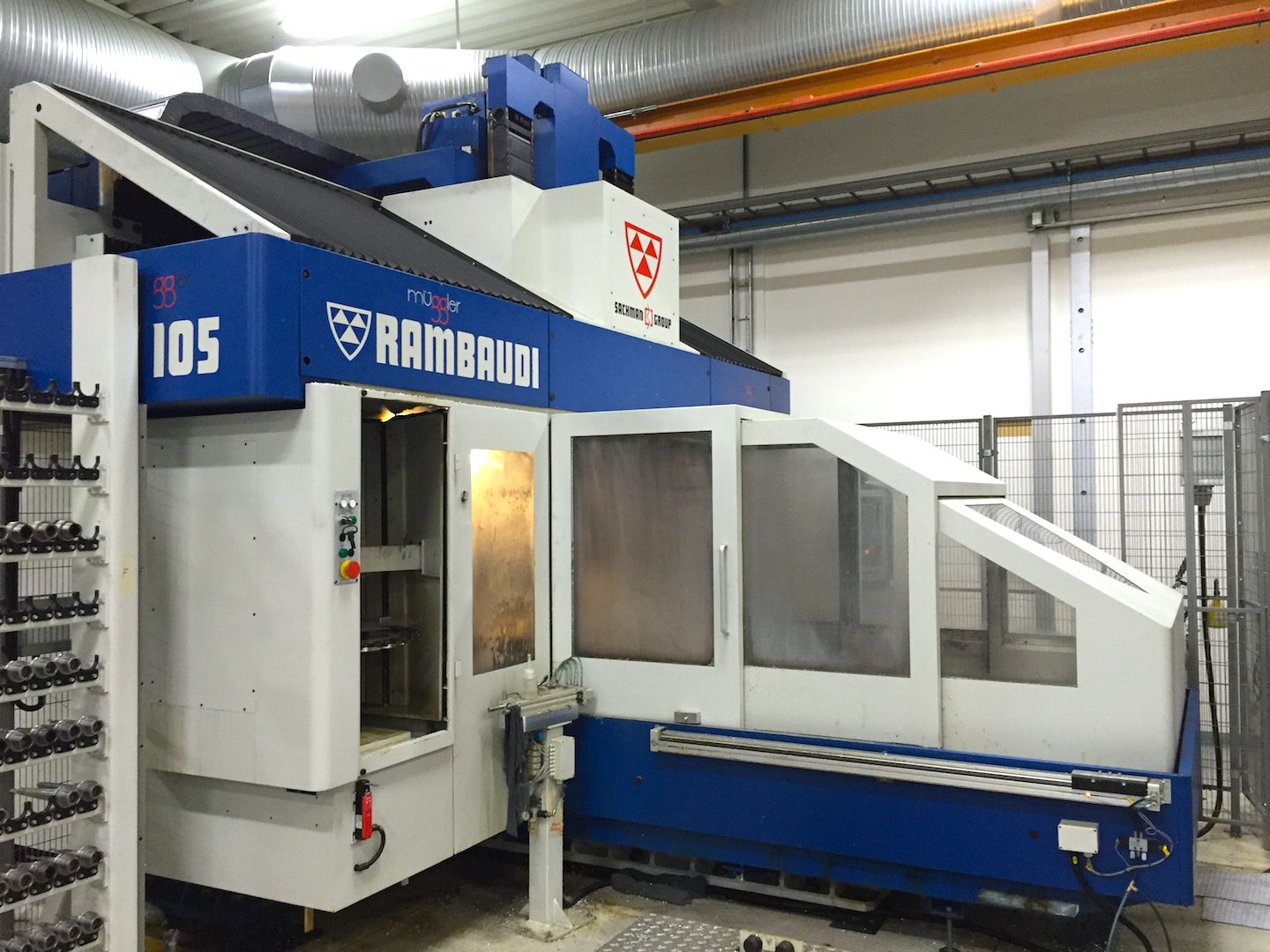

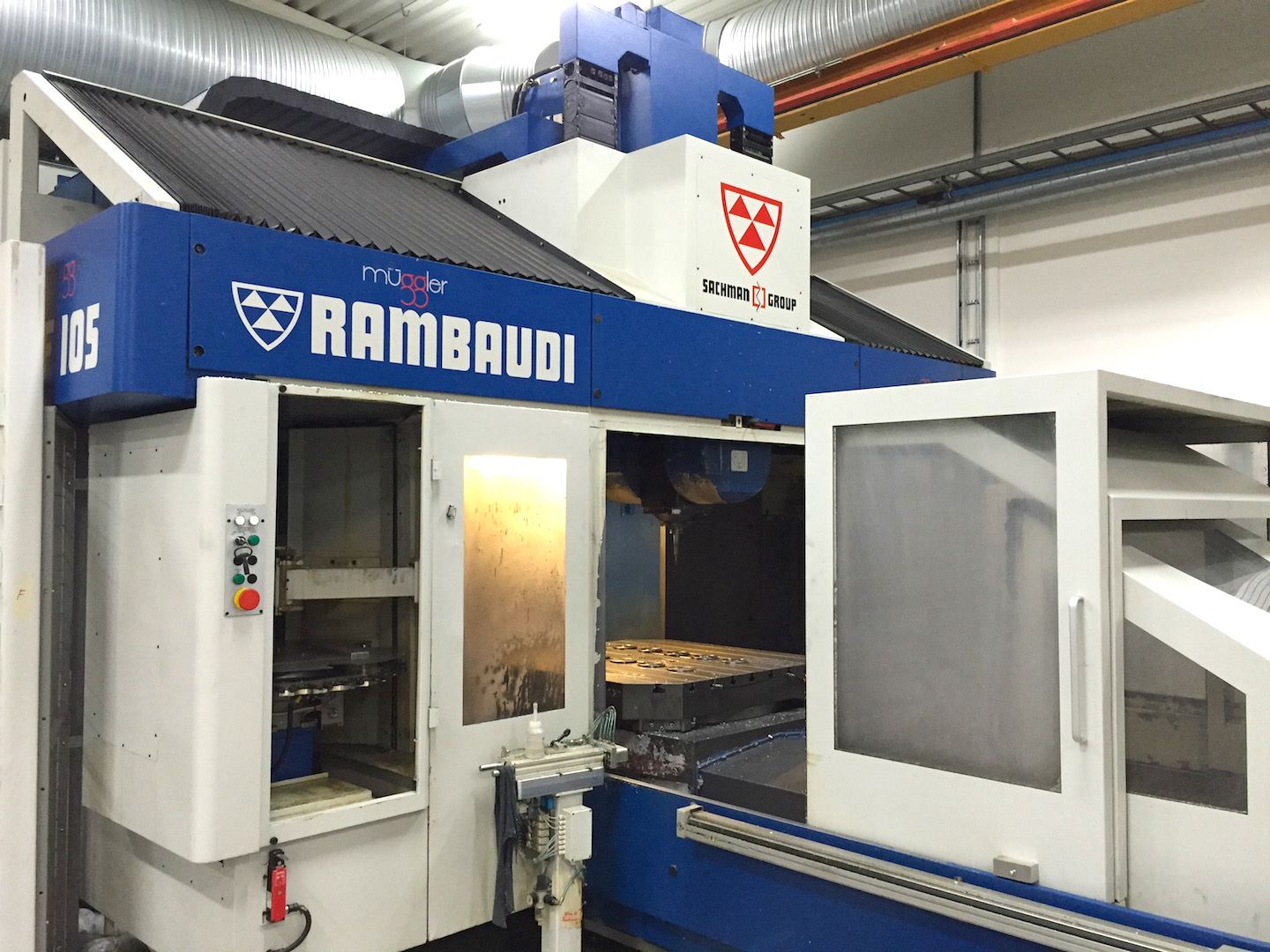

RAMFAST 105
Capacity
1600x2000+500x900 mm62,99x78,74+19,69x35,43 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Vertical (Z)
900 mm35,43 in
Longitudinal (X)
1600 mm62,99 in
Cross (Y)
2000+500ATC mm78,74+19,69ATC in
Table rotation (B)
360000 °
Head tilting (A)
+/- 105 °
Swing capacity
1200 mm47,24 in

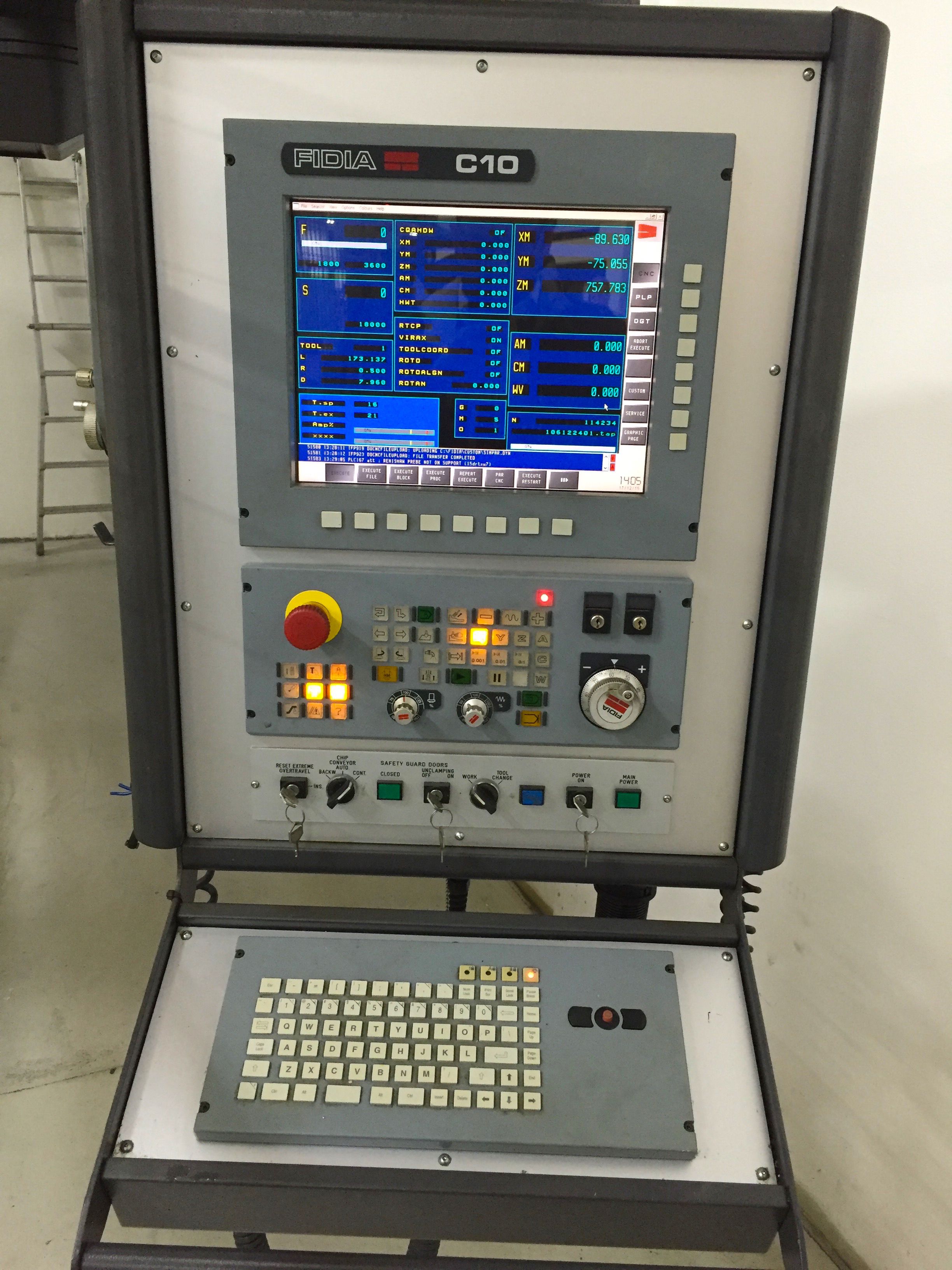

CNC
CNC

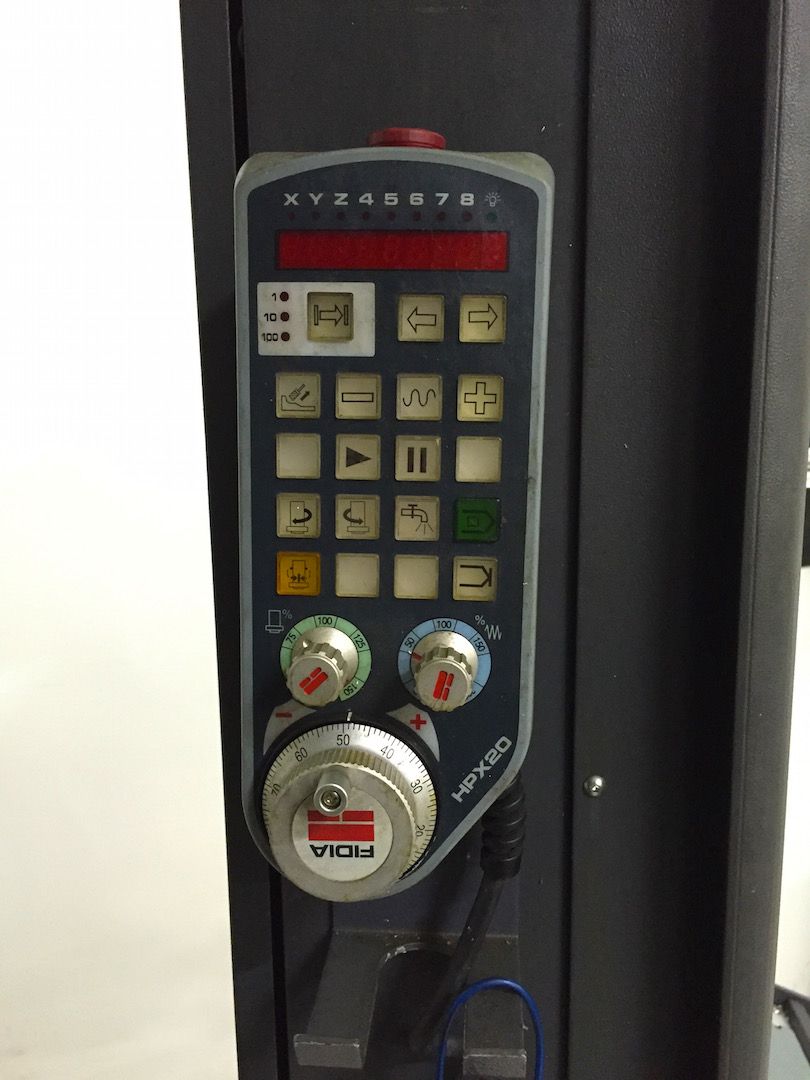

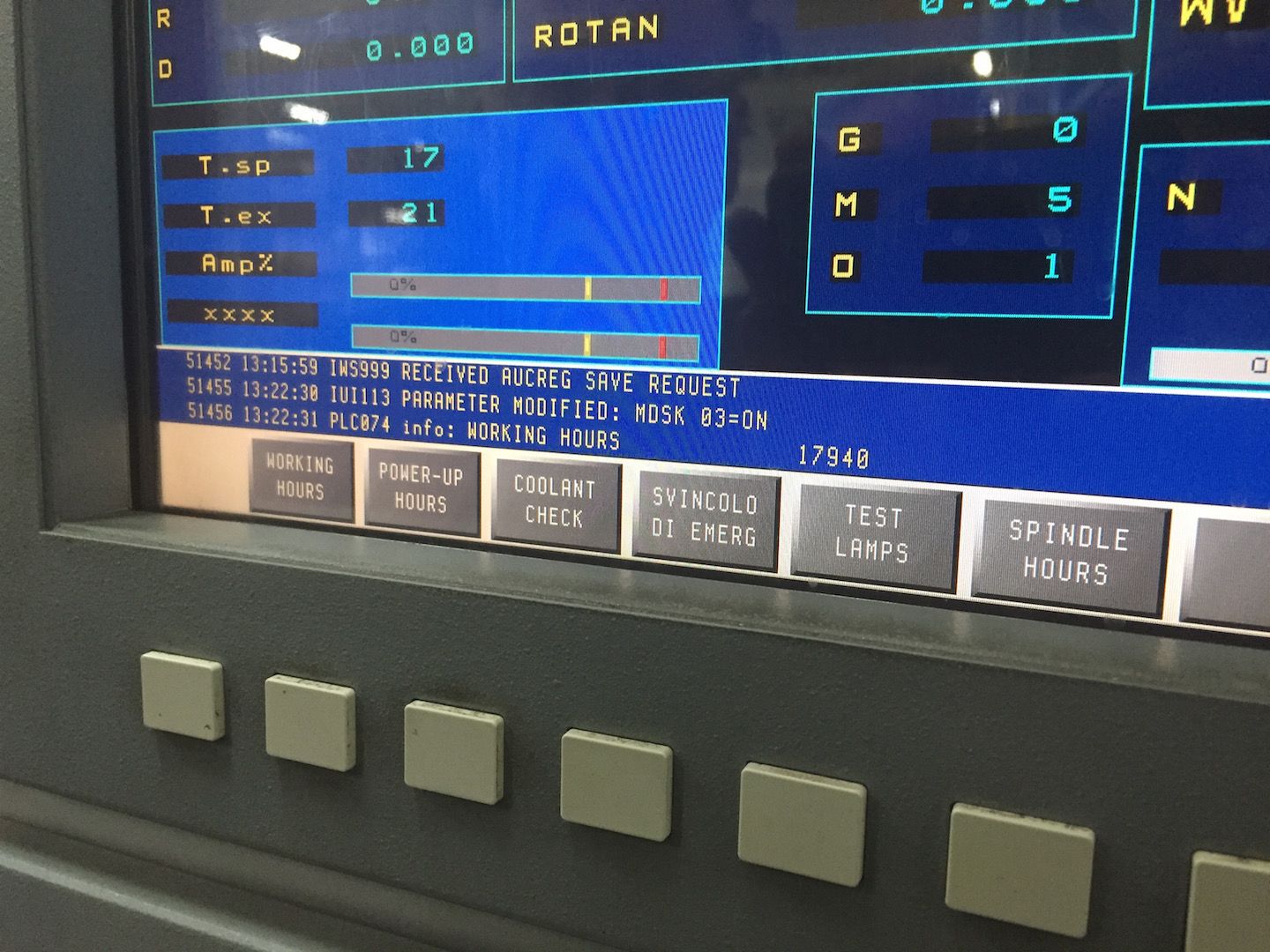

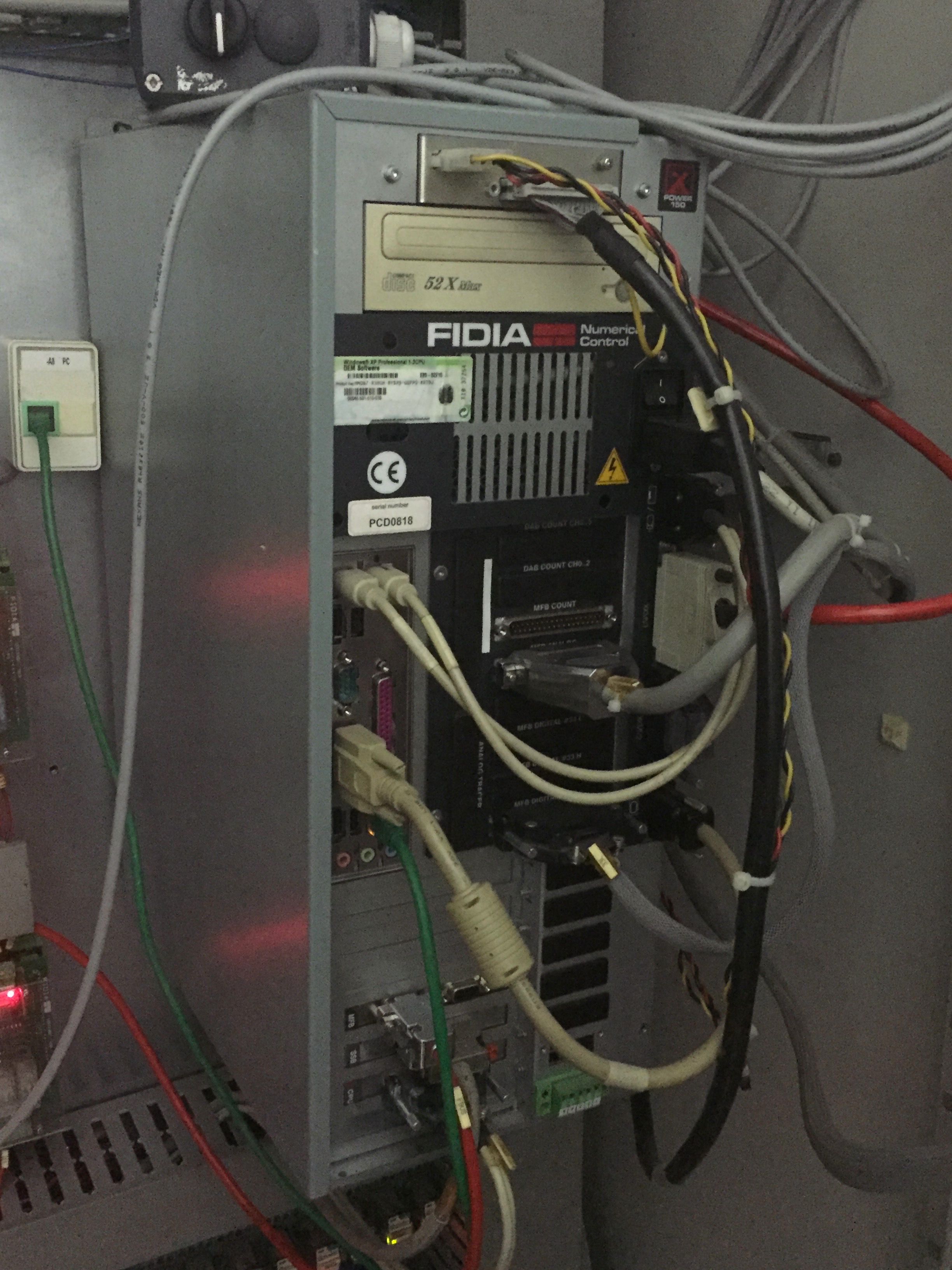

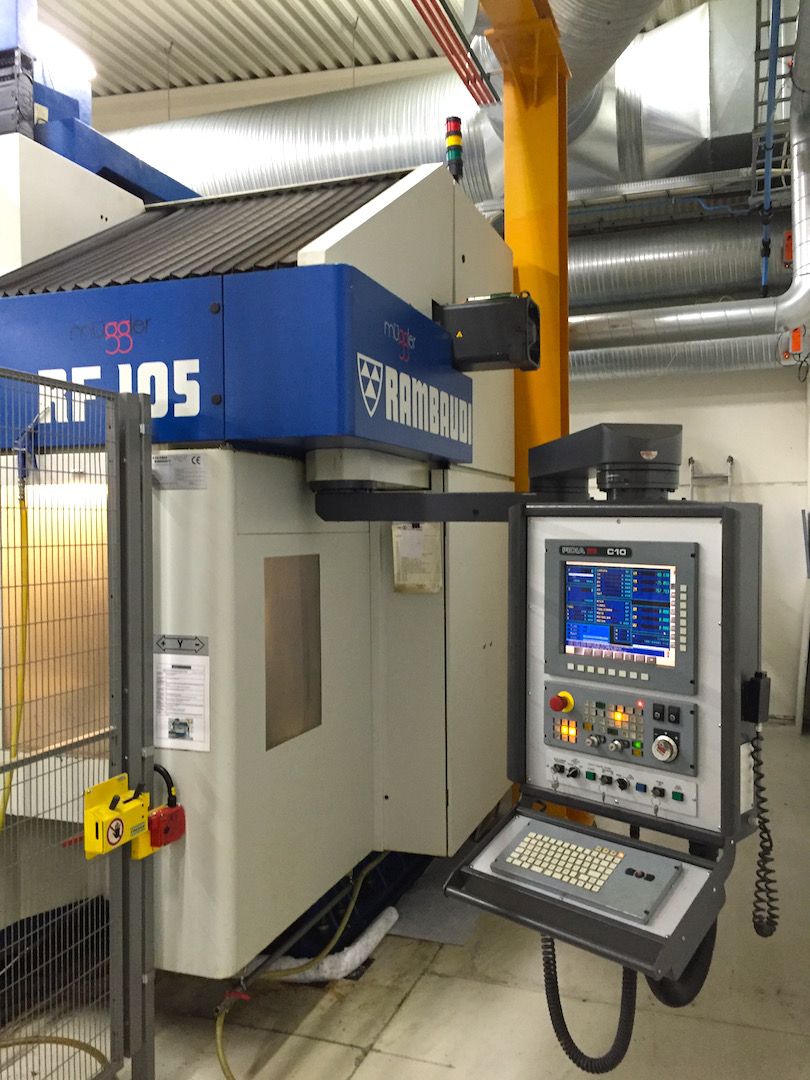

FIDIA C10
Drives

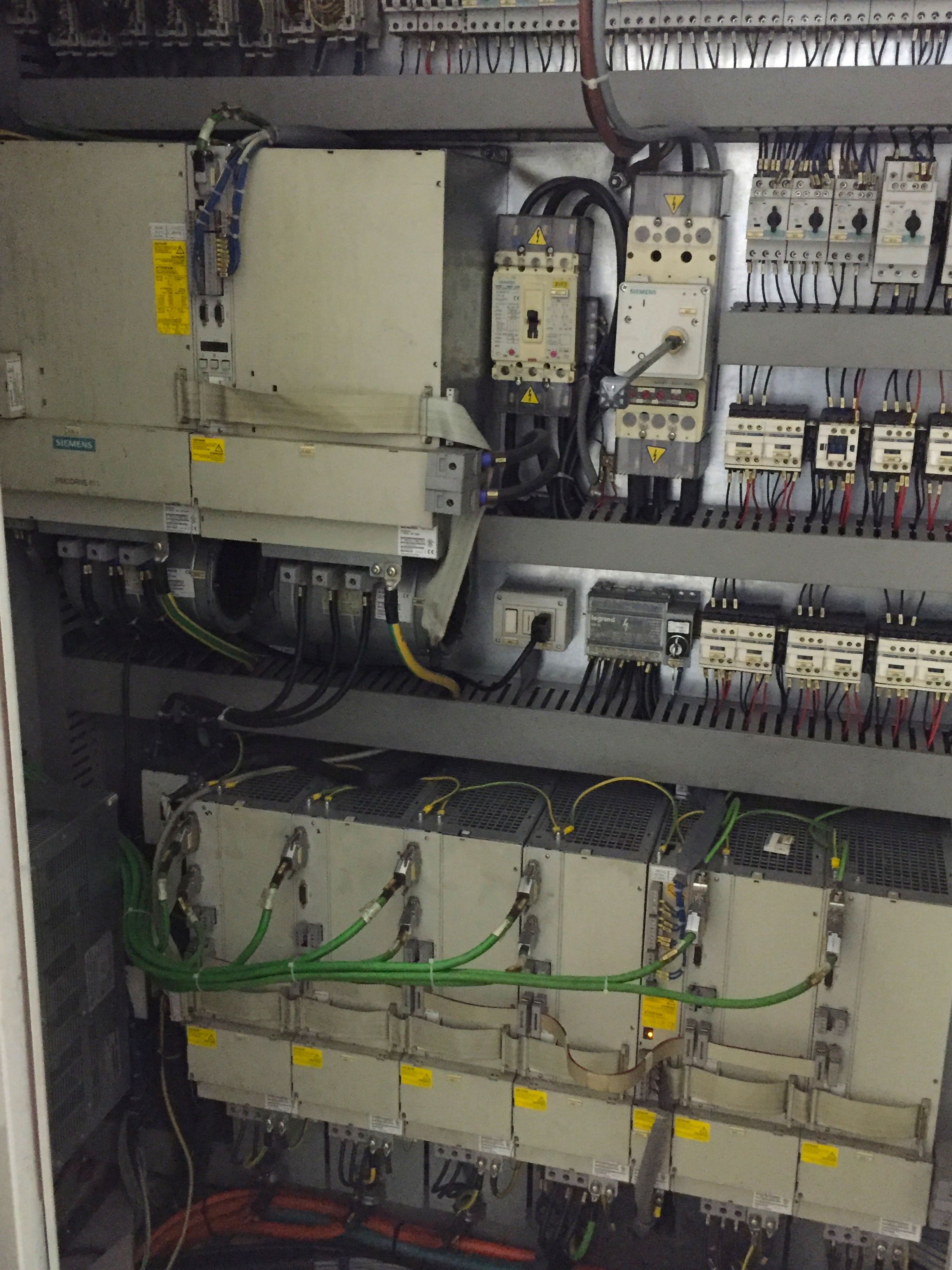

SIEMENS
SPINDLE
Spindle power
28 Kw
Rotating speed
28-24000 Rpm
Taper
HSK63A
Spindle transmission

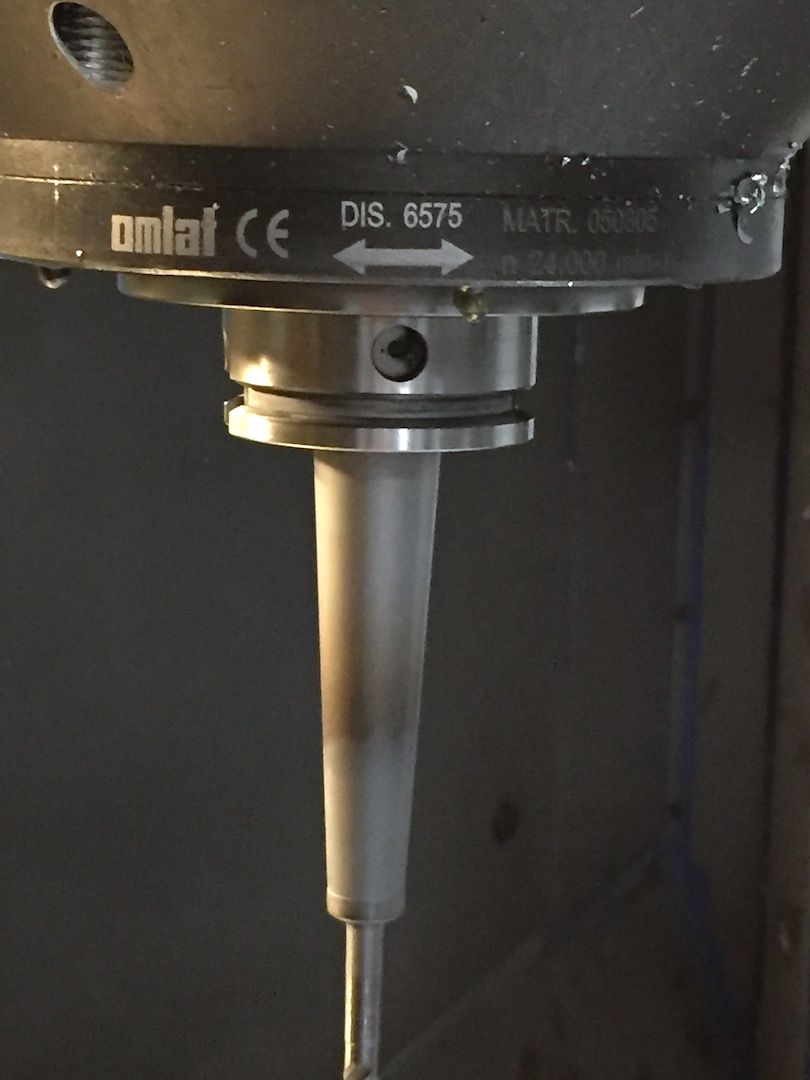

Elettromandrino
Notes
elettromantrino 24.000Rpm revisionato di scorta
Internal coolant
si Bar
Torque
(S1) 90 Nm
FEEDS
Rapid X
45 m/min1.771,65 ipm
Rapid Y
45 m/min1.771,65 ipm
Rapid Z
45 m/min1.771,65 ipm
X
45 m/min1.771,65 ipm
Y
45 m/min1.771,65 ipm
Z
45 m/min1.771,65 ipm
Notes
accelerazione assi 4,5m/s2

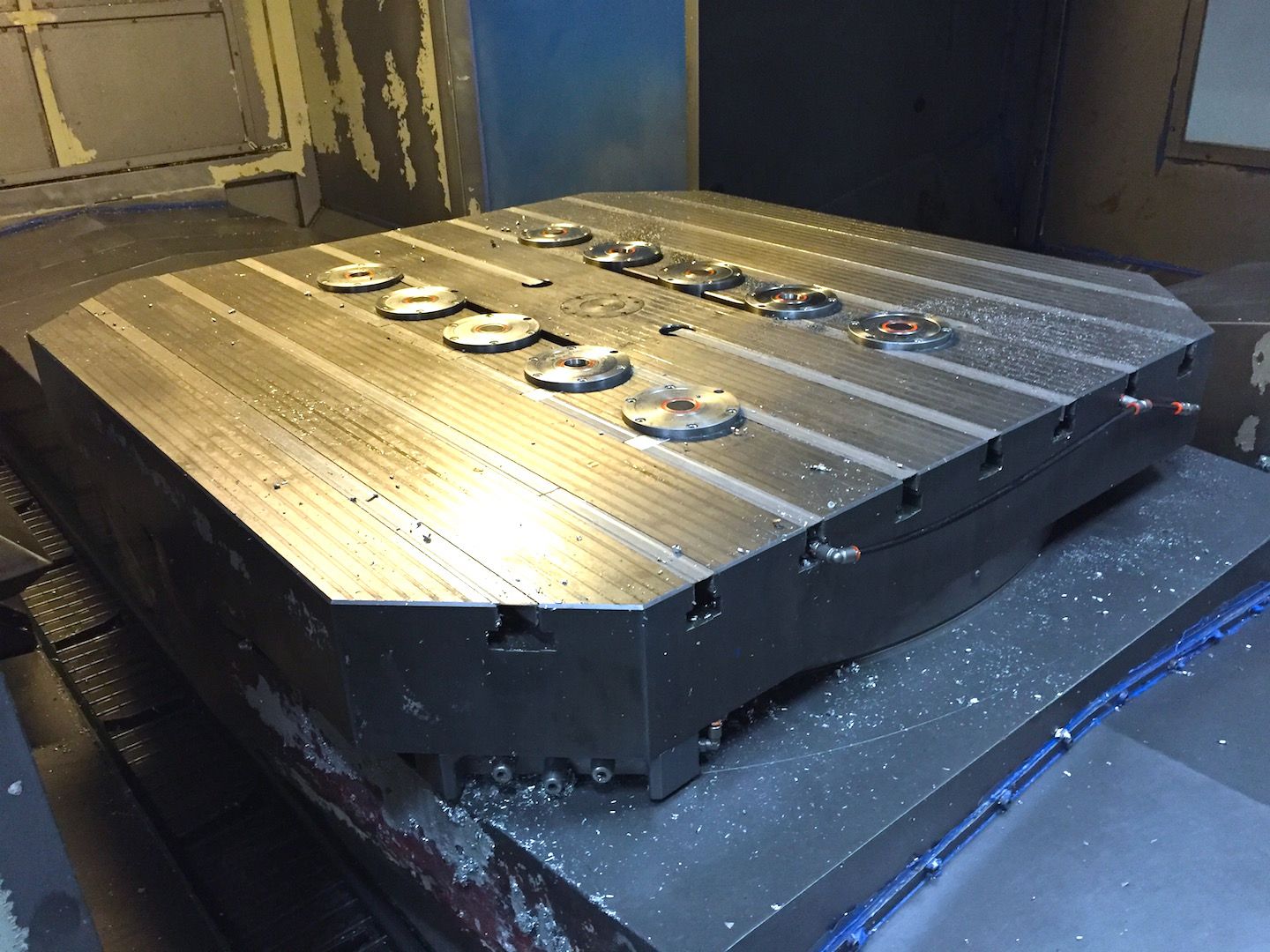

TABLE
Floorspace (LxWxH)
1200x1200 mm47,24x47,24 in
Capacity
approx. 3000 Kg
Accuracy (B axis)
0,001 °

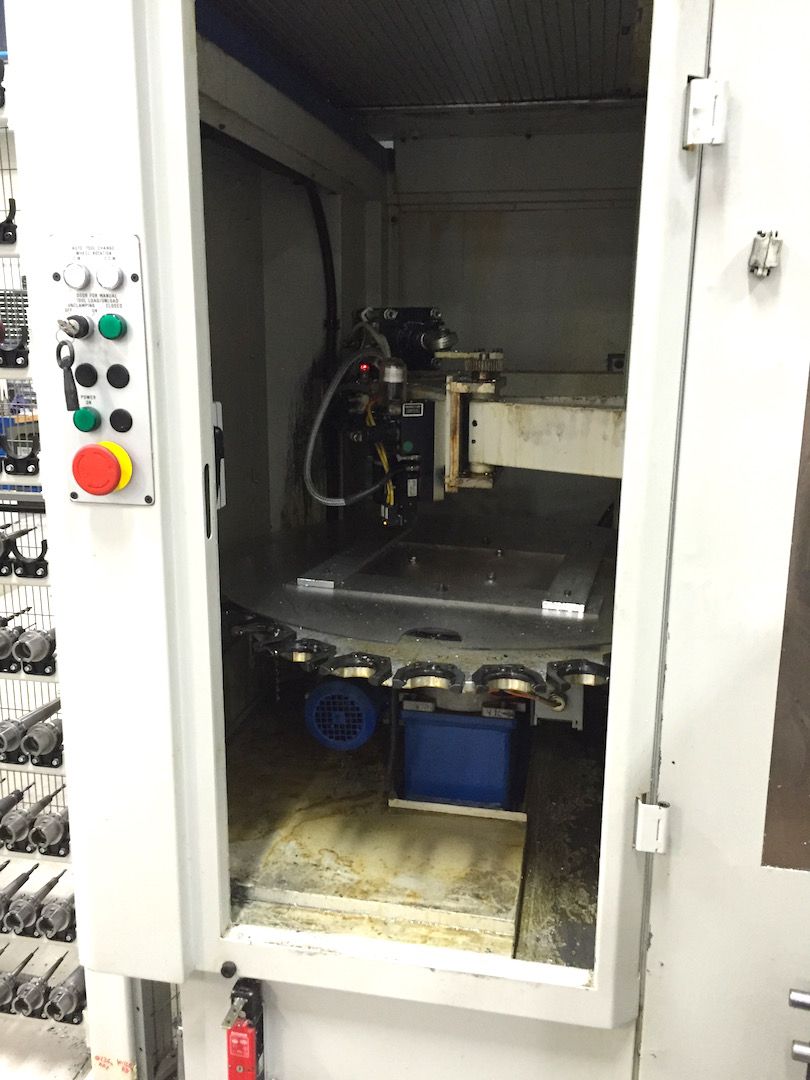

ATC
Positions
60
Max tool diameter
105 mm4,13 in
Max tool lenght
250 mm9,84 in
Max tool weight
10 Kg
Tool taper
HSK63 A
EXTRA
Tooling included

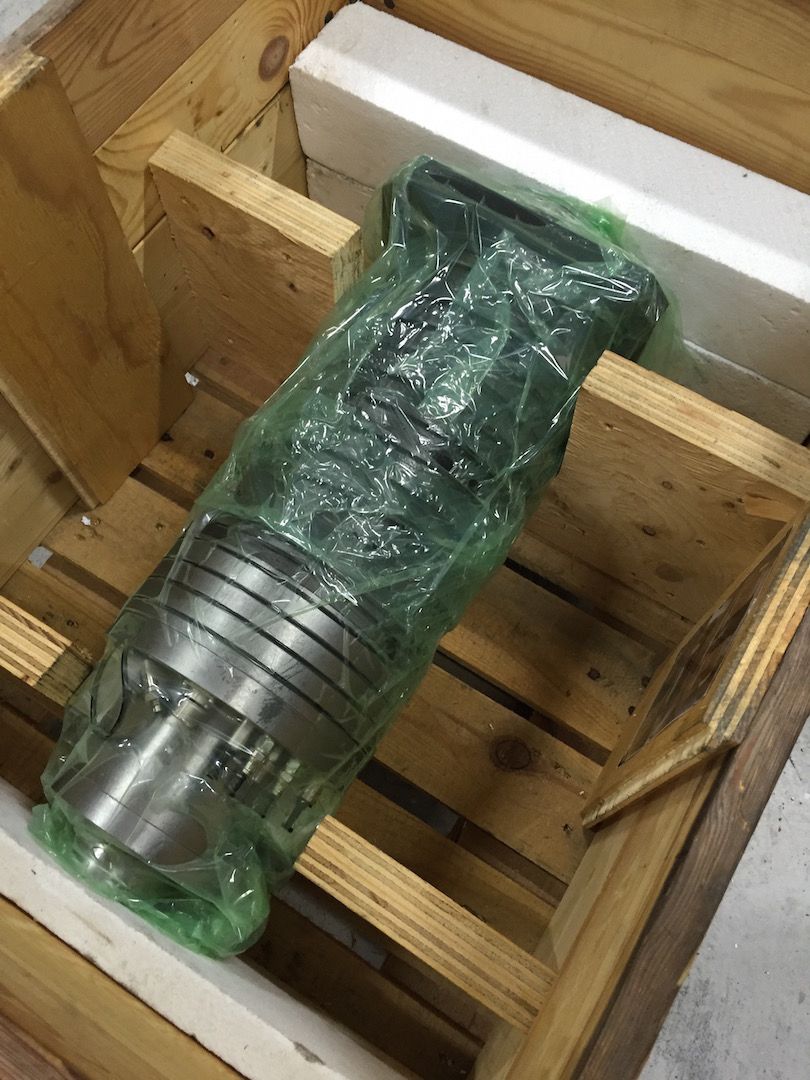

secondo elettromandrino 24.000 Rpm revisionato
High Pressure
20 Bar
Maintenance & Use books
Yes

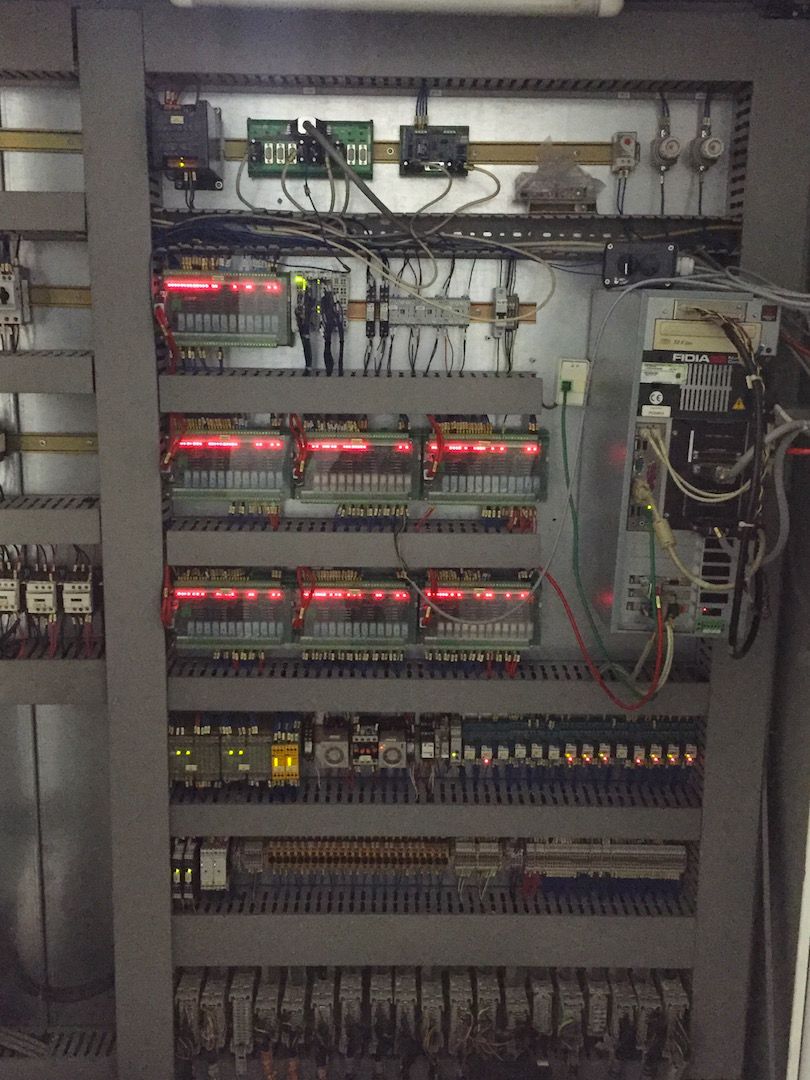

Electrical drawings
Yes
CE Certification
Yes
Housing
integrale
Availability
Febbraio 2016
Available under power
si
Machine total weight
26000 Kg
Total power supply
90 Kw
Floor space
5300x7000x4300 mm208,66x275,59x169,29 in
Tool presetter
BLUM

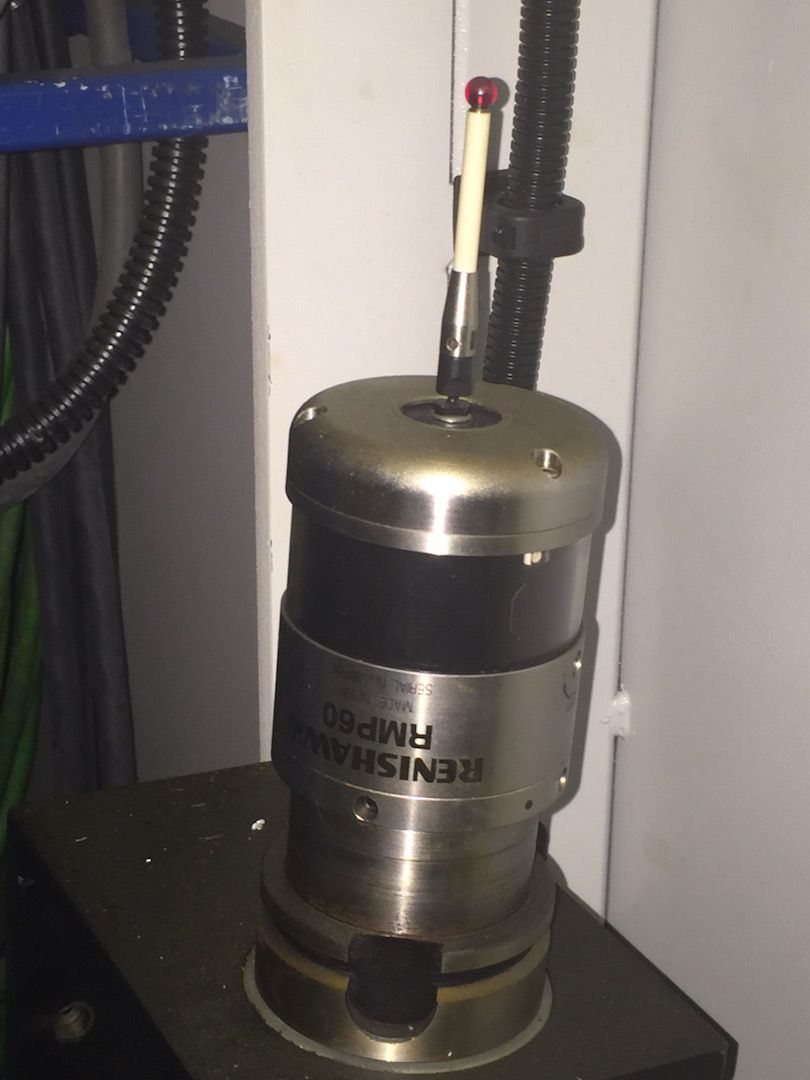

Workpiece touch probe
RENISHAW RMP60
Mist extractor
si
Relevant updates made on the machine
sostituzione elettromandrino a 07/2015 (ad ora circa 800 ore di lavoro), revisione completa su elettromandrino di scorta

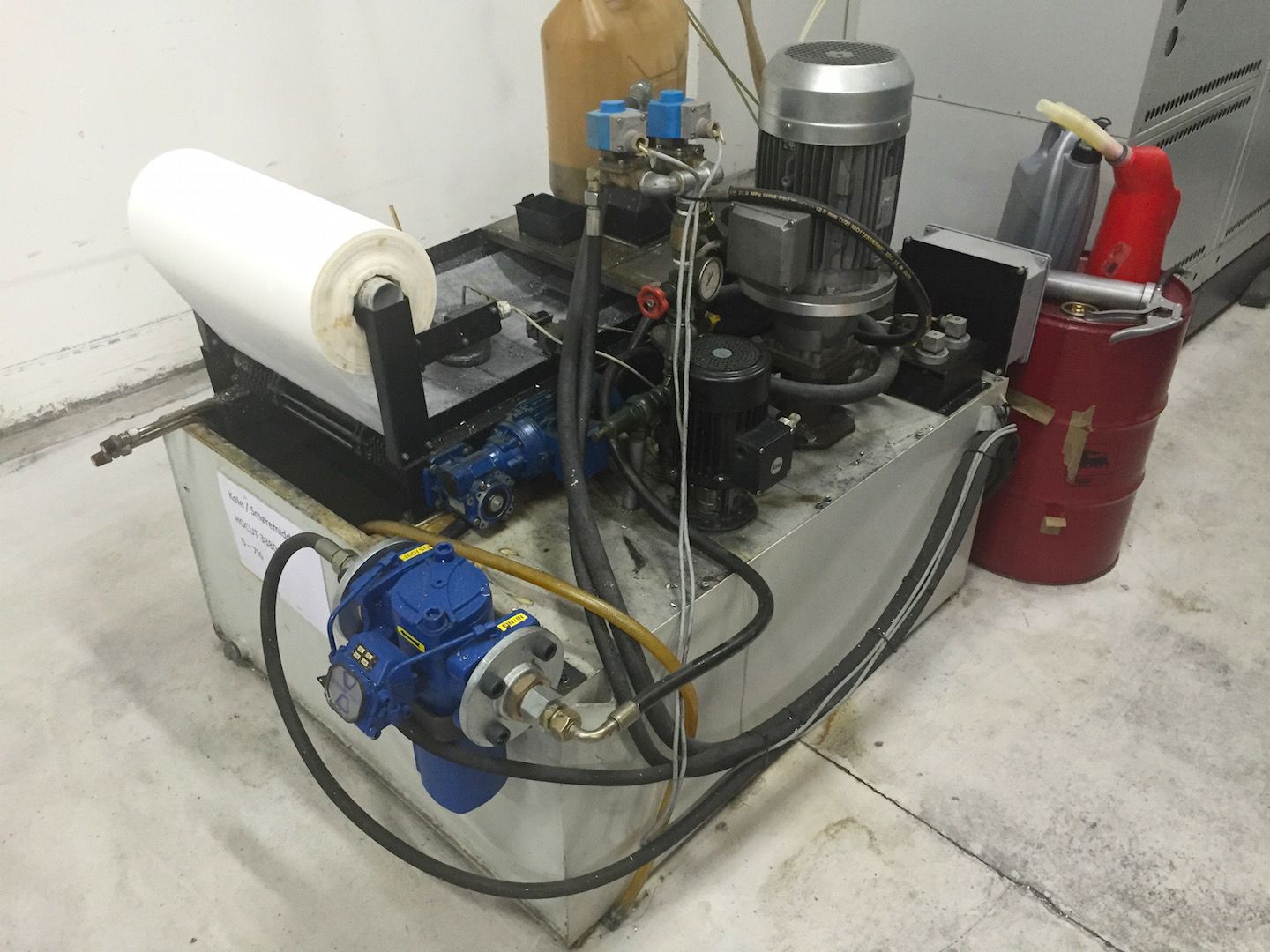

Filtration unit
filtra a carta con pompa alta pressione
Available in stock
da 02/2016
