Category
Machining Centre
Type
5-Axis or more
Made
Model
DINO
Capacity
2800x2200x800 mm110,24x86,61x31,50 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
2200 mm86,61 in
Vertical (Z)
800 mm31,50 in
Cross (Y)
2200 mm86,61 in
HEAD 1
Type
Birotativa 5 assi
Spindle taper
HSKA63
A axis
360.000 x 0,001 °
C axis
360.000 x 0,001 °
Max speed
18000 Rpm
Max power
20 Kw
Coolant
Mezzo mandrino 20 Bar
Notes
Pickup teste automatico

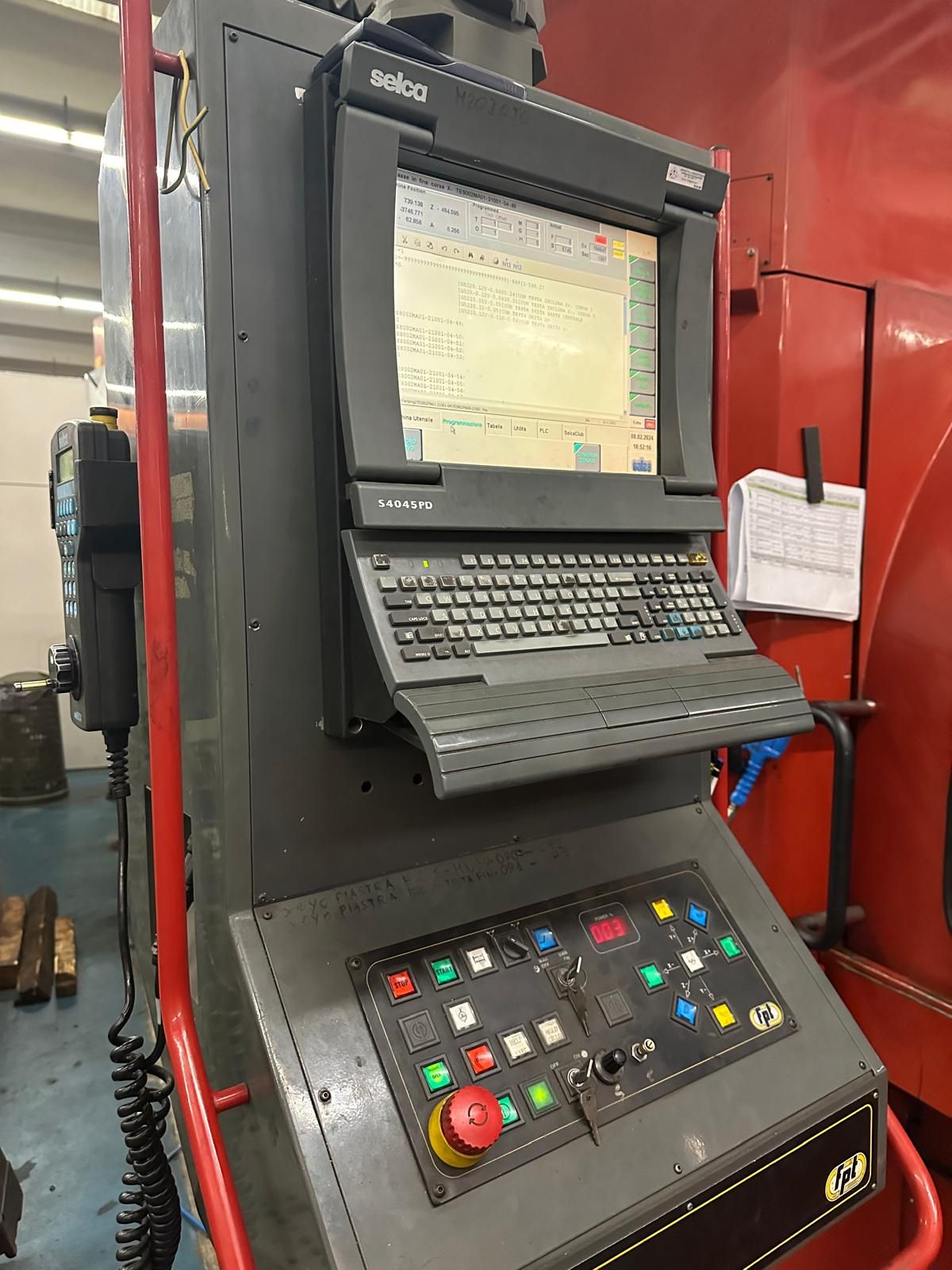

CNC
CNC
SELCA 4045PD
TABLE
Floorspace (LxWxH)
3000x1200 mm118,11x47,24 in
Capacity
8000 Kg

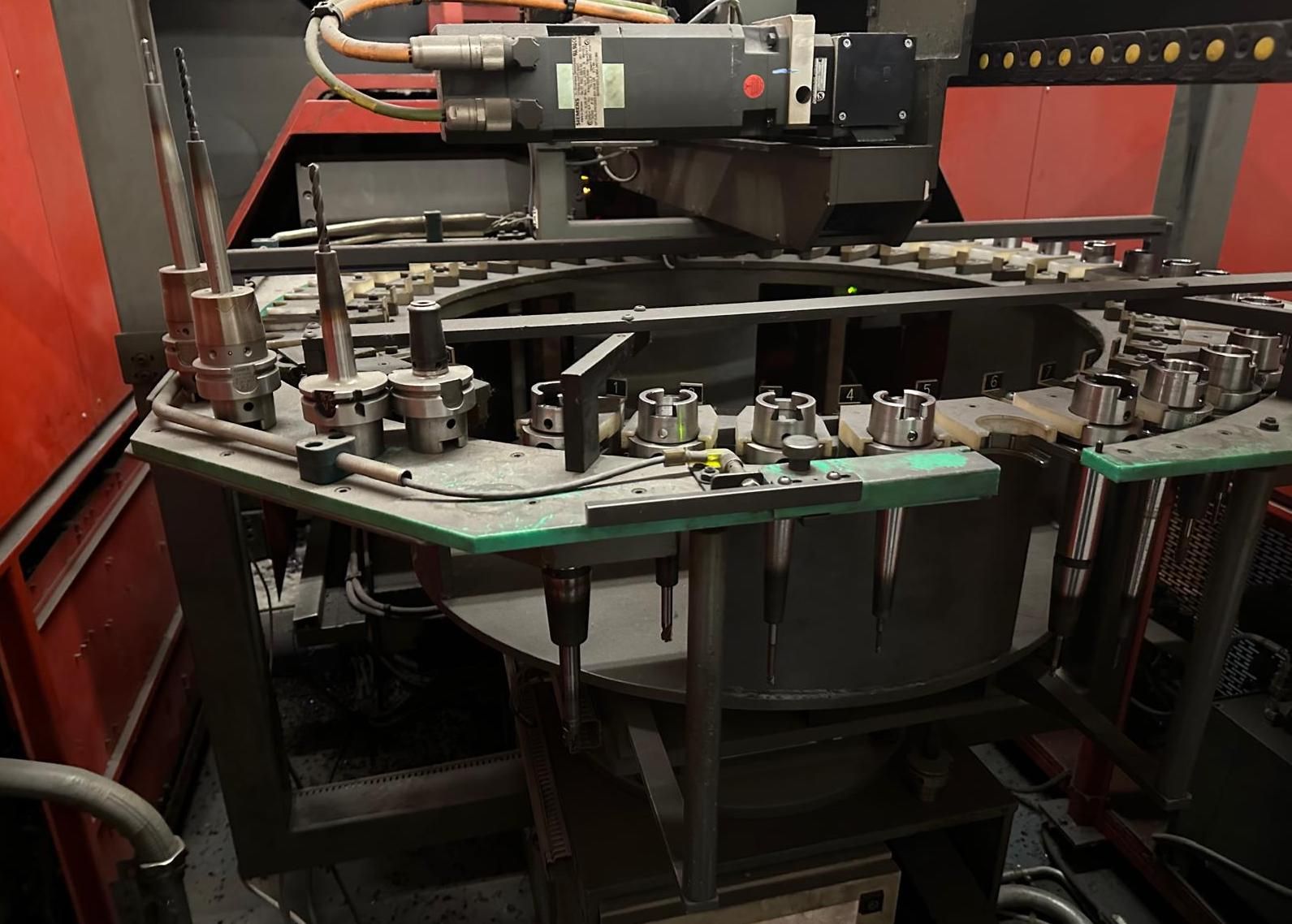

ATC
Positions
40
FEEDS
Rapid X
40 m/min1.574,80 ipm
Rapid Y
40 m/min1.574,80 ipm
Rapid Z
40 m/min1.574,80 ipm
HEAD 1
Available upon request
No
Max speed
18000 Rpm
EXTRA
Housing
Integrale
Available in stock
Si
Availability
Immediata
Machine total weight
41000 Kg
