Category
Machining Centre
Type
5-Axis or more
Made
Model

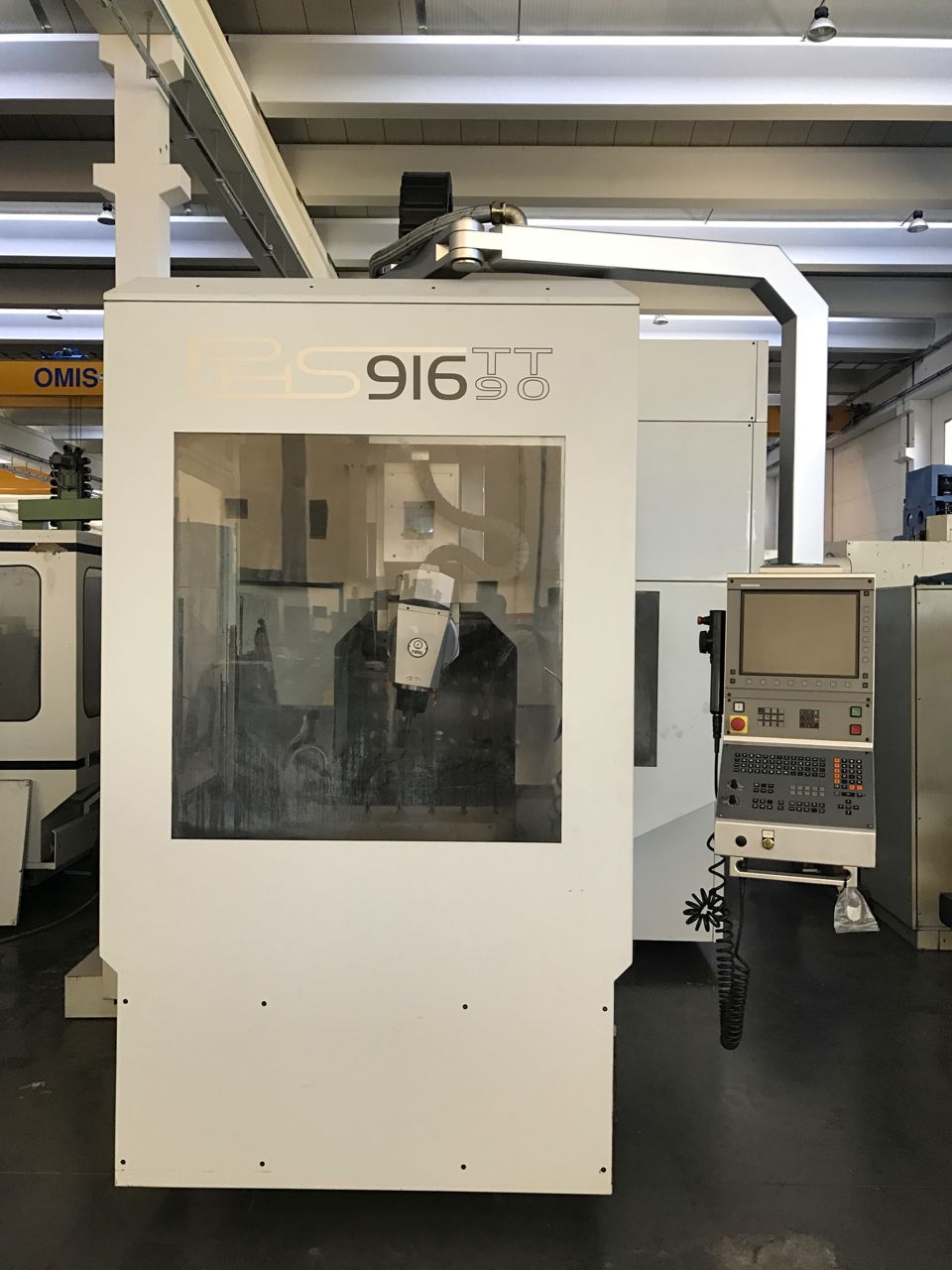

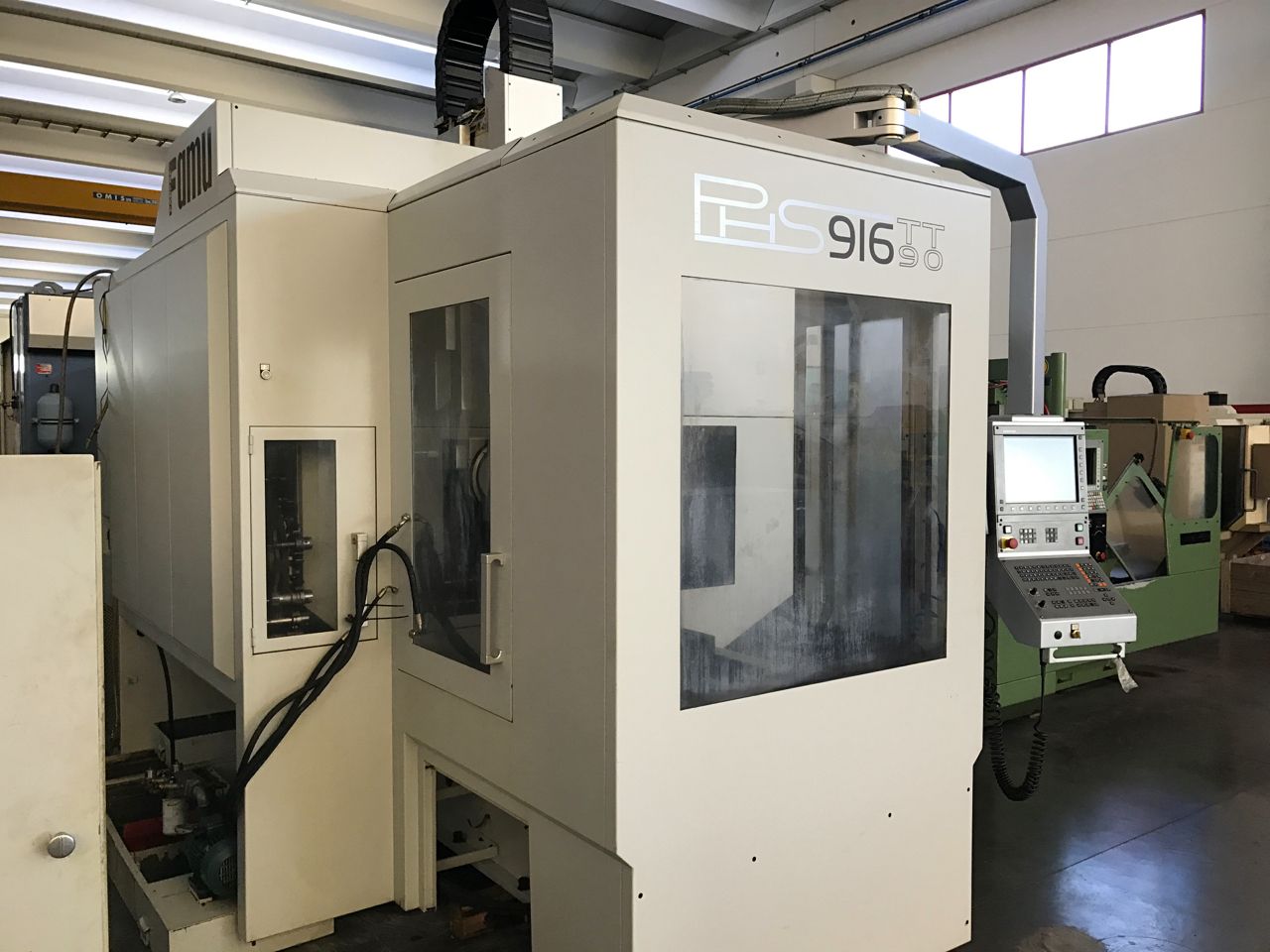

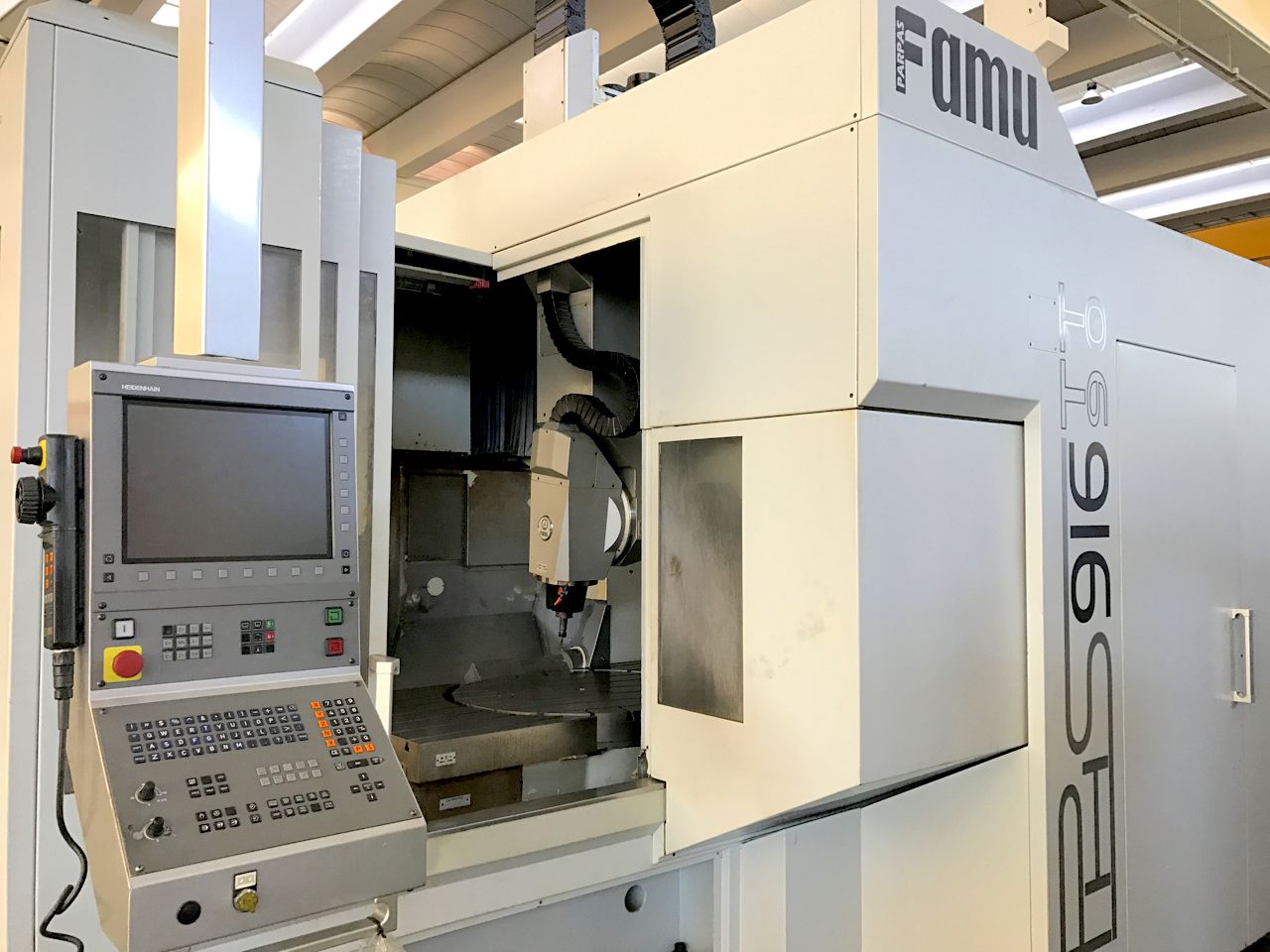

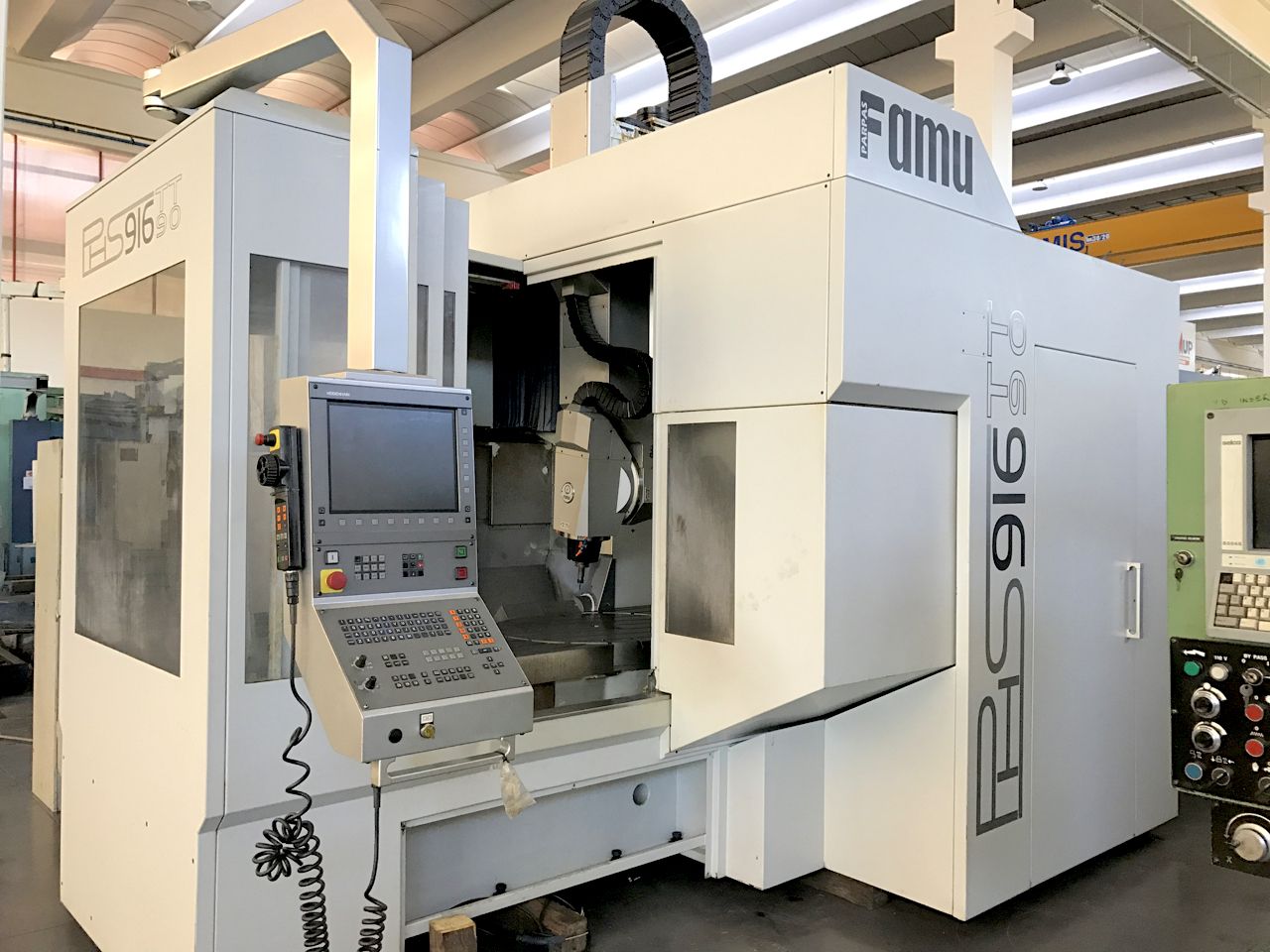

PHS916 TT90
Capacity
1600x1600x800 mm62,99x62,99x31,50 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
1600 mm62,99 in
Vertical (Z)
800 (-156/+645) mm31,50 (-6,14/+25,39) in
Cross (Y)
1600 mm62,99 in
Head tilting (A)
+95/-45 °
Table rotation (B)
(continua) 0,001 °
Swing capacity
900 mm35,43 in
Notes
920mm between columns, table to spindle nose -156/645
CNC
CNC

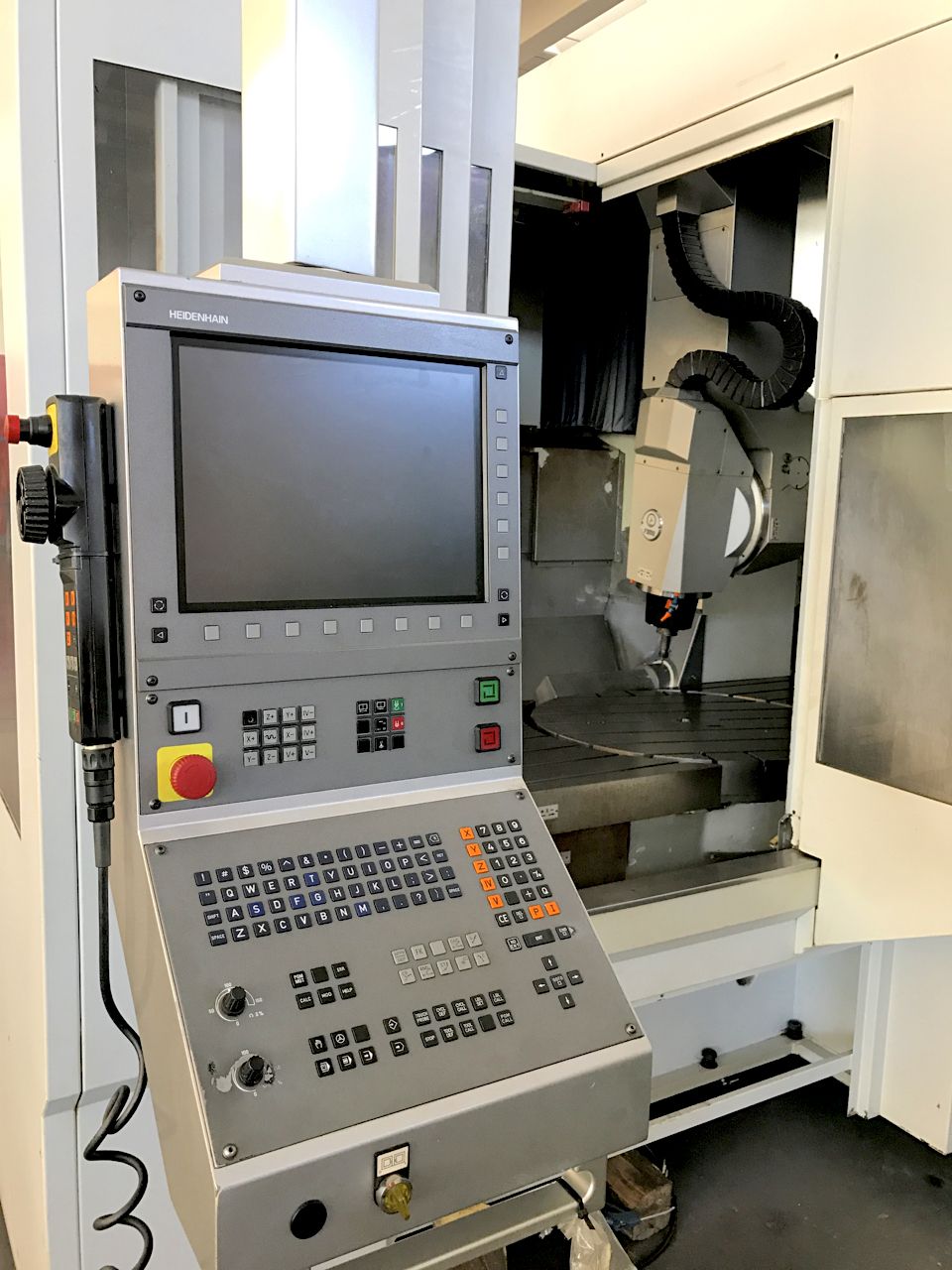

Heidenhain TNC530i
SPINDLE
Spindle power
30 Kw
Rotating speed
22000 Rpm
Taper
HSK63 DIN69893
Spindle transmission
Elettromandrino
Torque
42 Nm
FEEDS
Rapid X
30 m/min1.181,10 ipm
Rapid Y
30 m/min1.181,10 ipm
Rapid Z
30 m/min1.181,10 ipm
B
80 Rpm
Notes
accelerazione 10 m/s^2
TABLE
Floorspace (LxWxH)
1720x850 mm67,72x33,46 in
Capacity
2000 Kg
Accuracy (B axis)
0,001 °
Notes

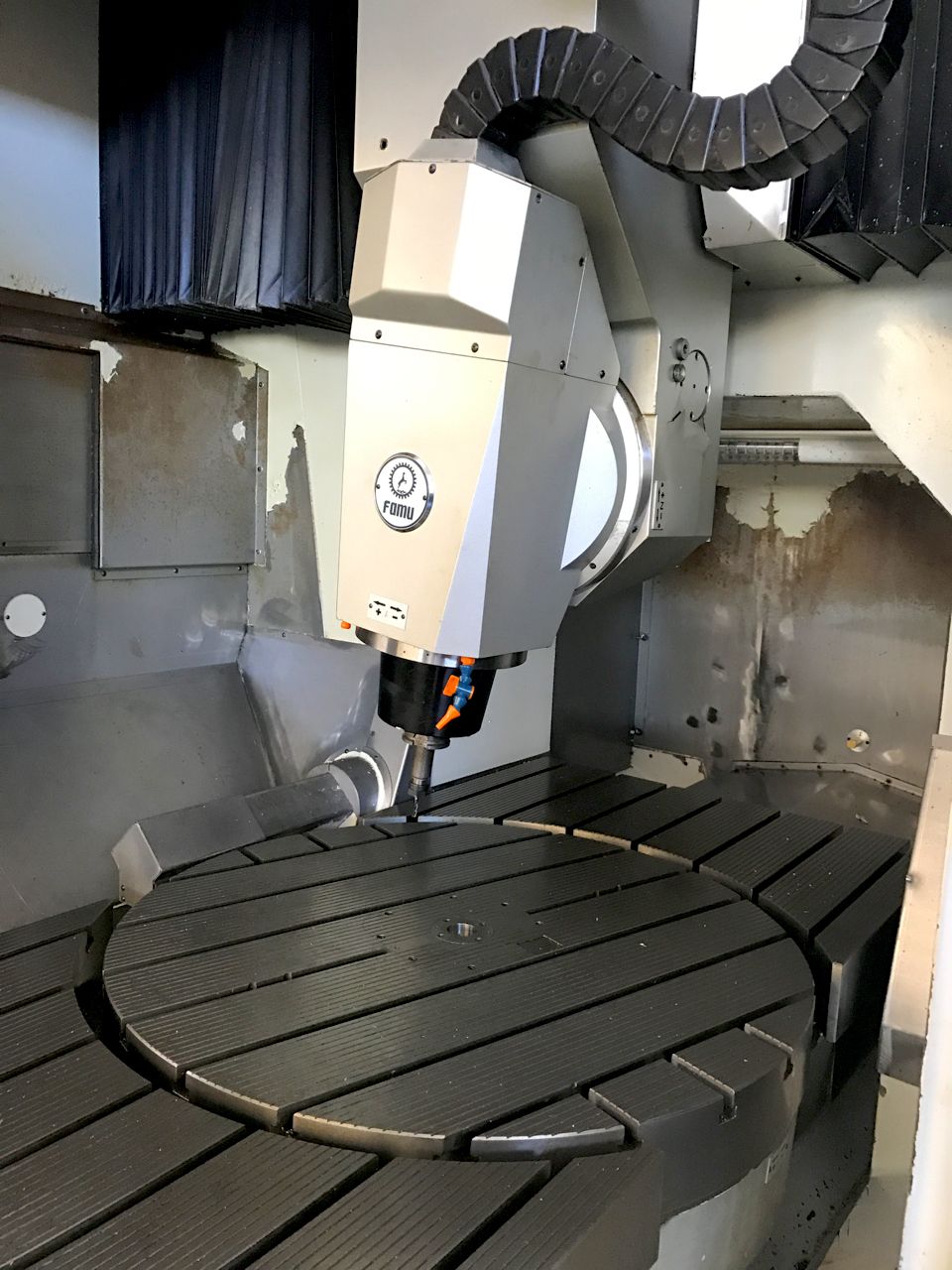

tavola girevole annegata ø900mm portata 1000 Kg
Support
guide lineari
ATC
Positions
24
Max tool diameter
63 mm2,48 in
Max tool lenght
180 mm7,09 in
Max tool weight
3 Kg
Tool taper
HSK63 DIN69893
Tool changing time
T/T 11 sec.
EXTRA
CE Certification
Yes
Electrical drawings
Yes
Maintenance & Use books
Yes
Availability
pronta
Available in stock
si
Machine total weight
11000 Kg
Floor space

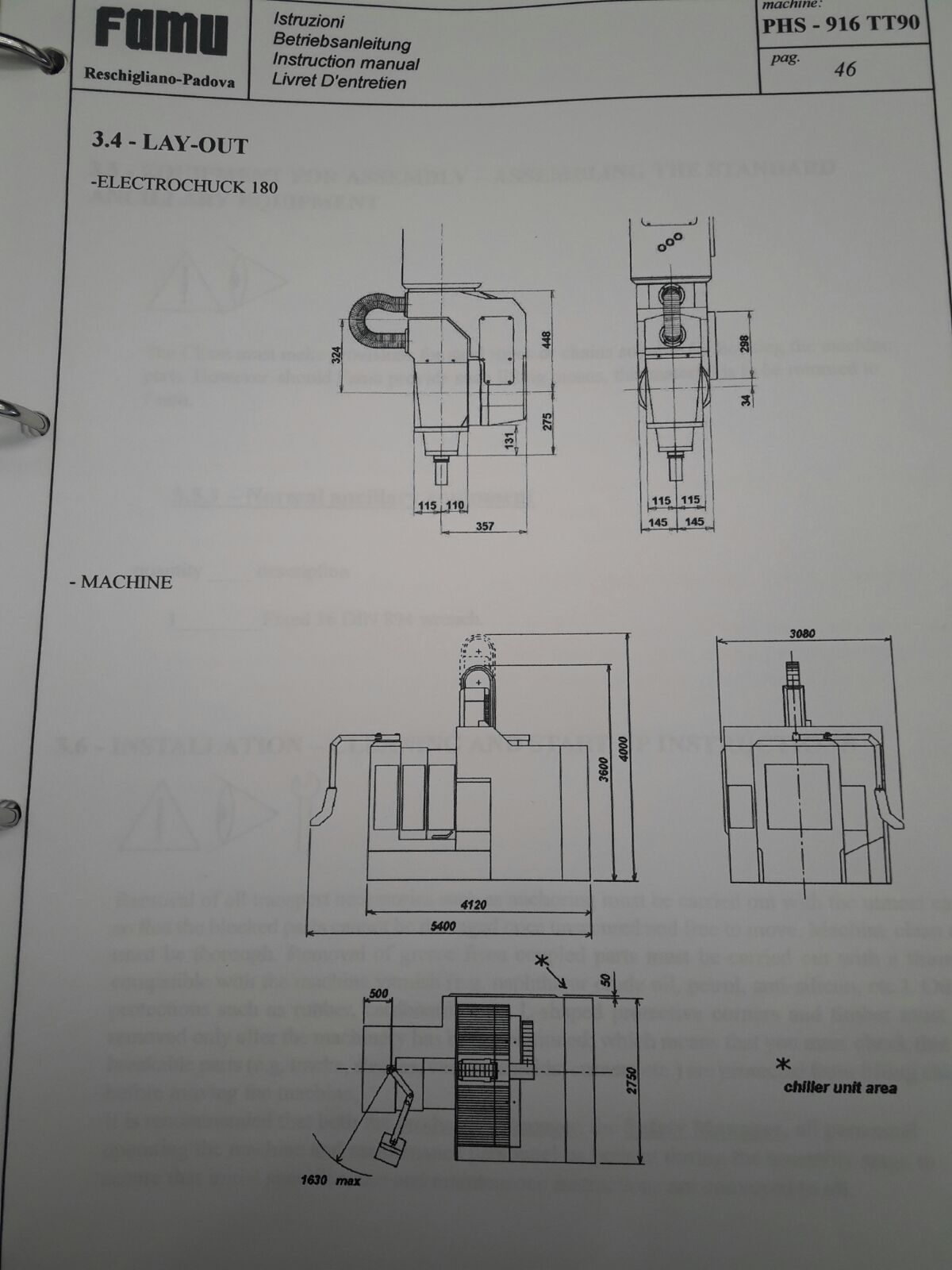

4120x2770x2810 mm162,20x109,05x110,63 in
Tool presetter
Blum
Housing
integrale
High Pressure
20Bar
Tooling included
tool balancing, tool collision, antivibrations, minimal lubrification oil-air
