Category
Machining Centre
Type
5-Axis or more
Made

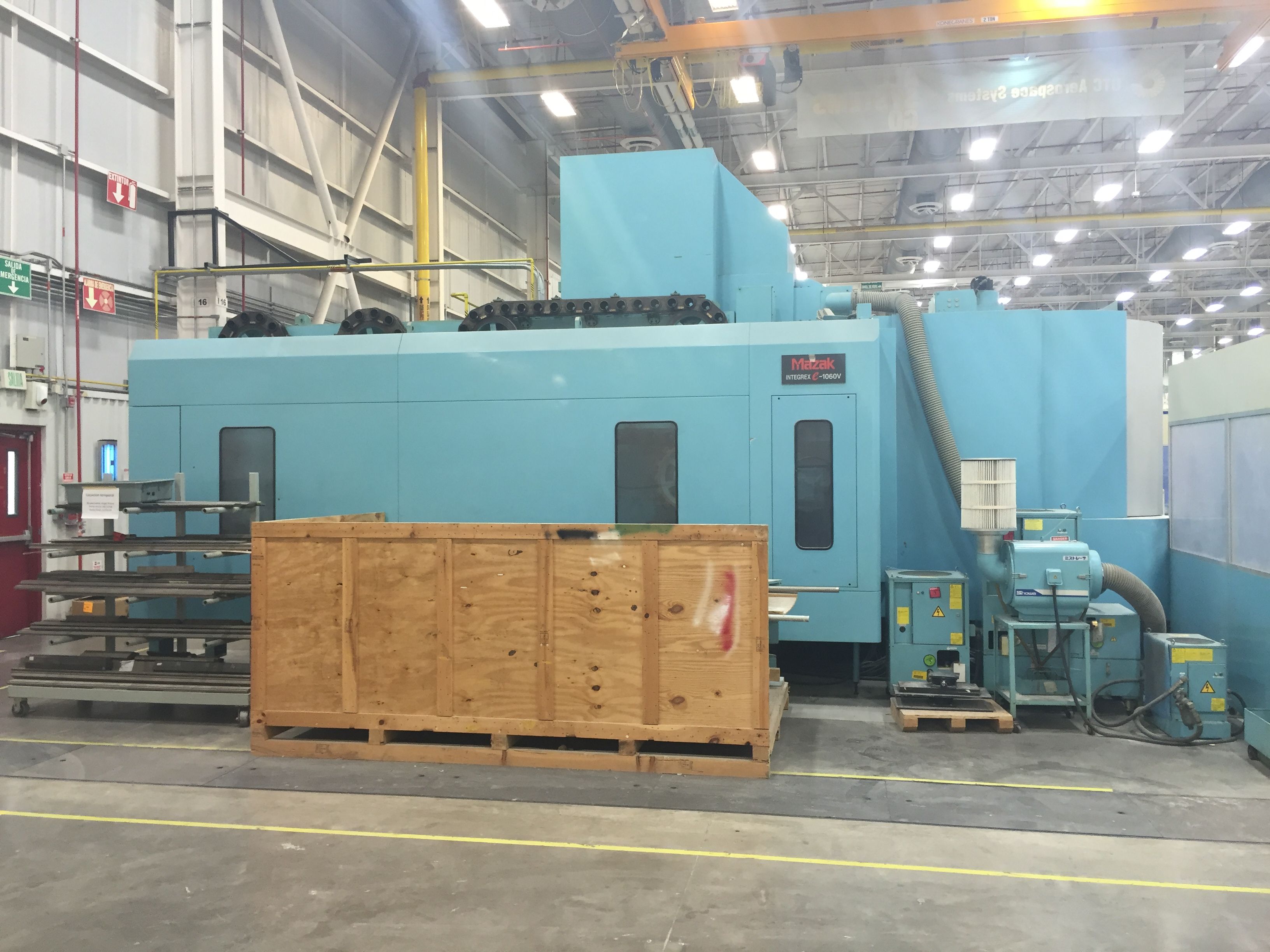

Model

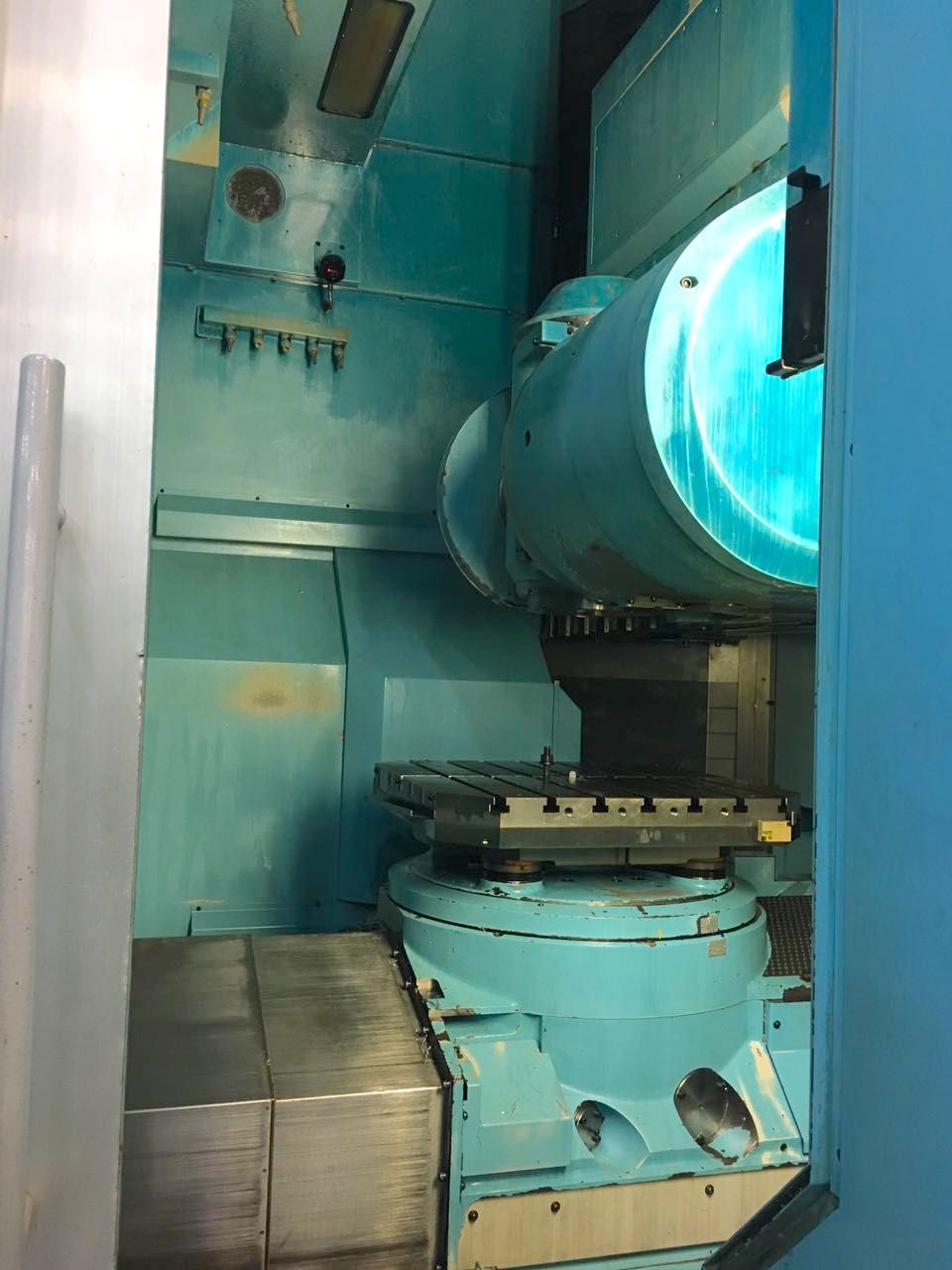

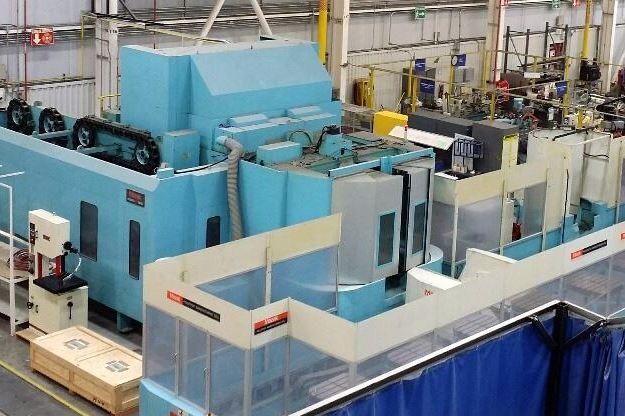

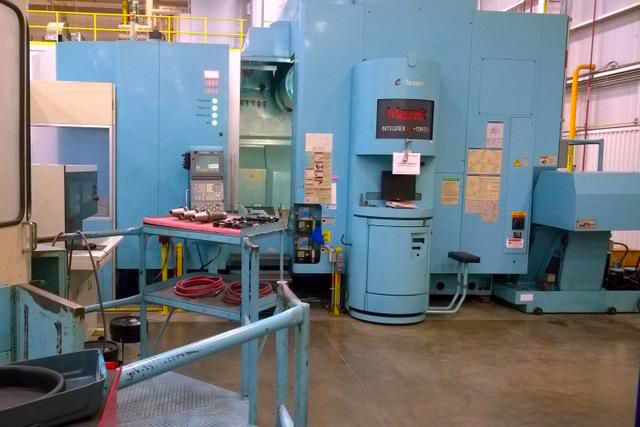

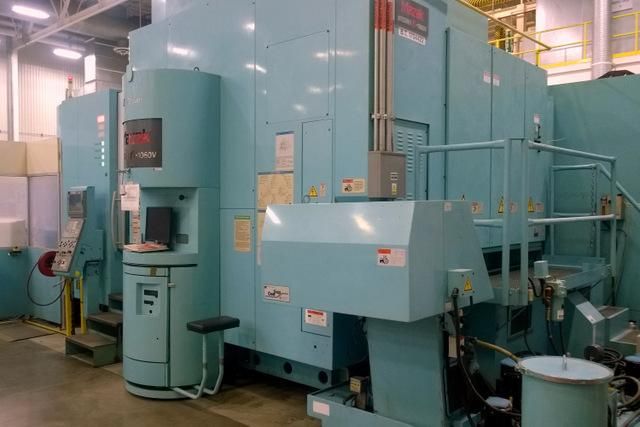

INTEGREX e-1060V/8
Capacity
ø1250x1250 mmø49,21x49,21 in
Technical specifications
Metric
Imperial

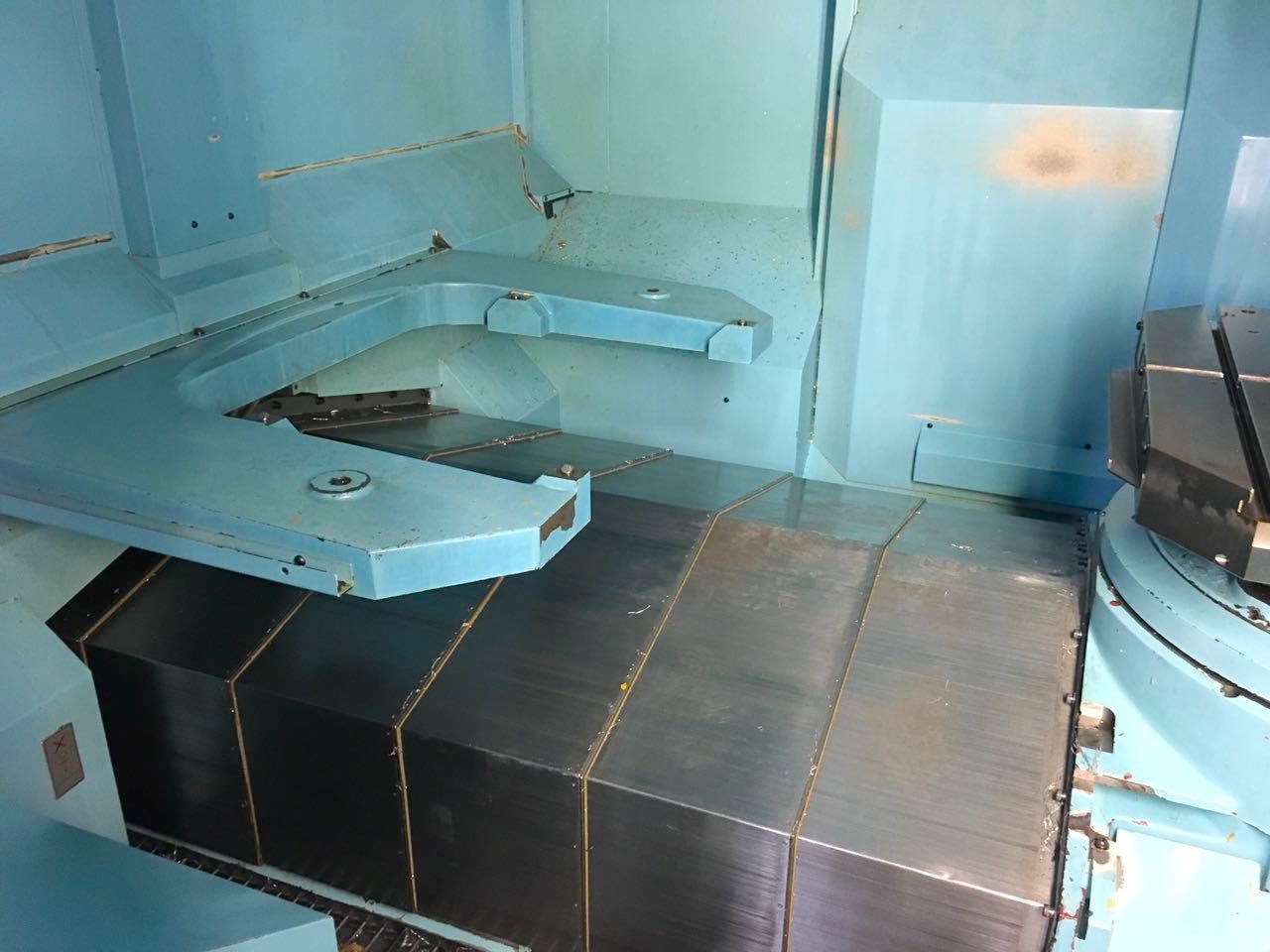

WORKING CAPACITY
Longitudinal (X)
1875 mm73,82 in
Vertical (Z)
1345 mm52,95 in
Cross (Y)
1060 mm41,73 in

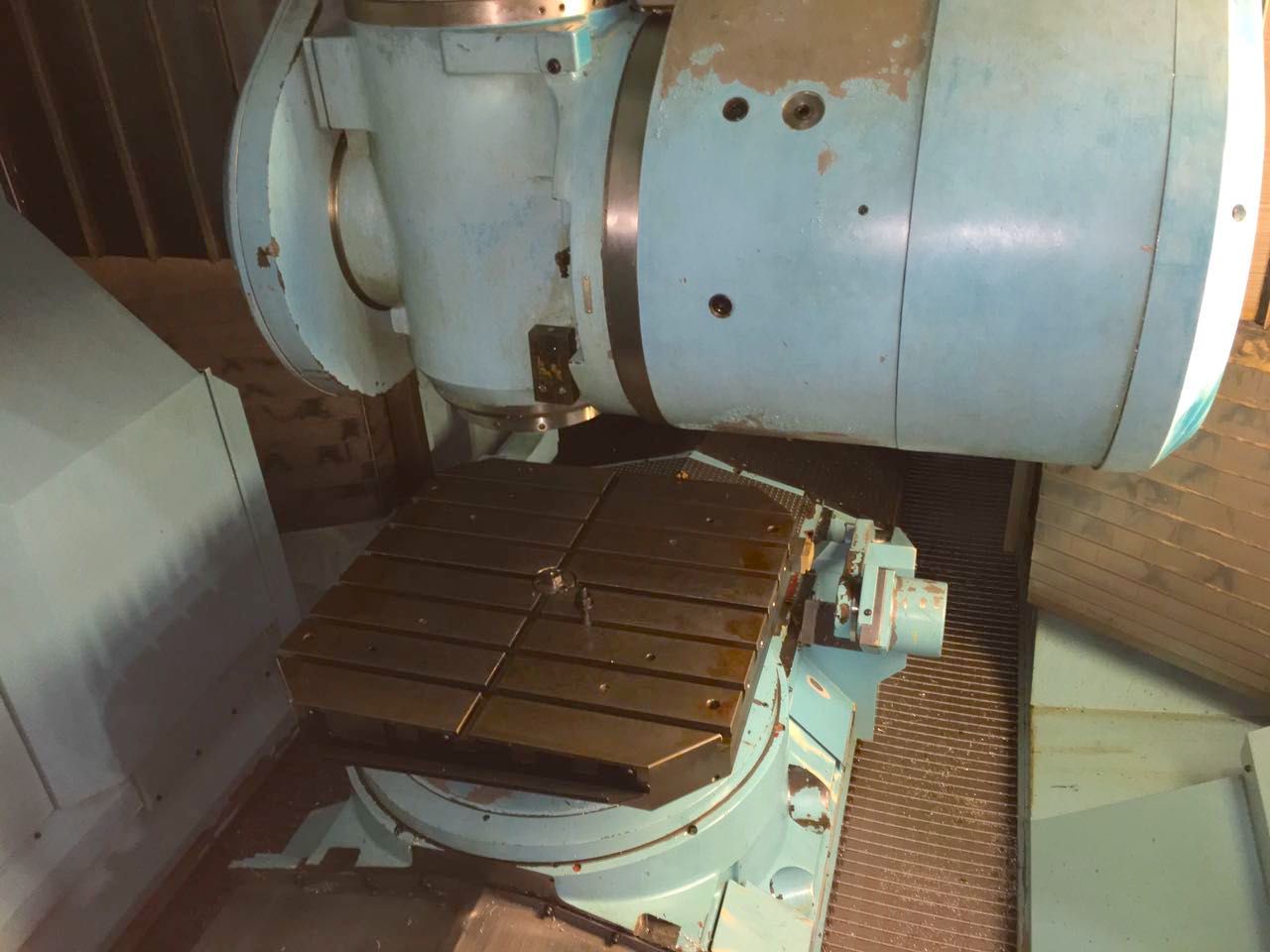

Table rotation (B)
continuos positioning with resolution 0,001 °

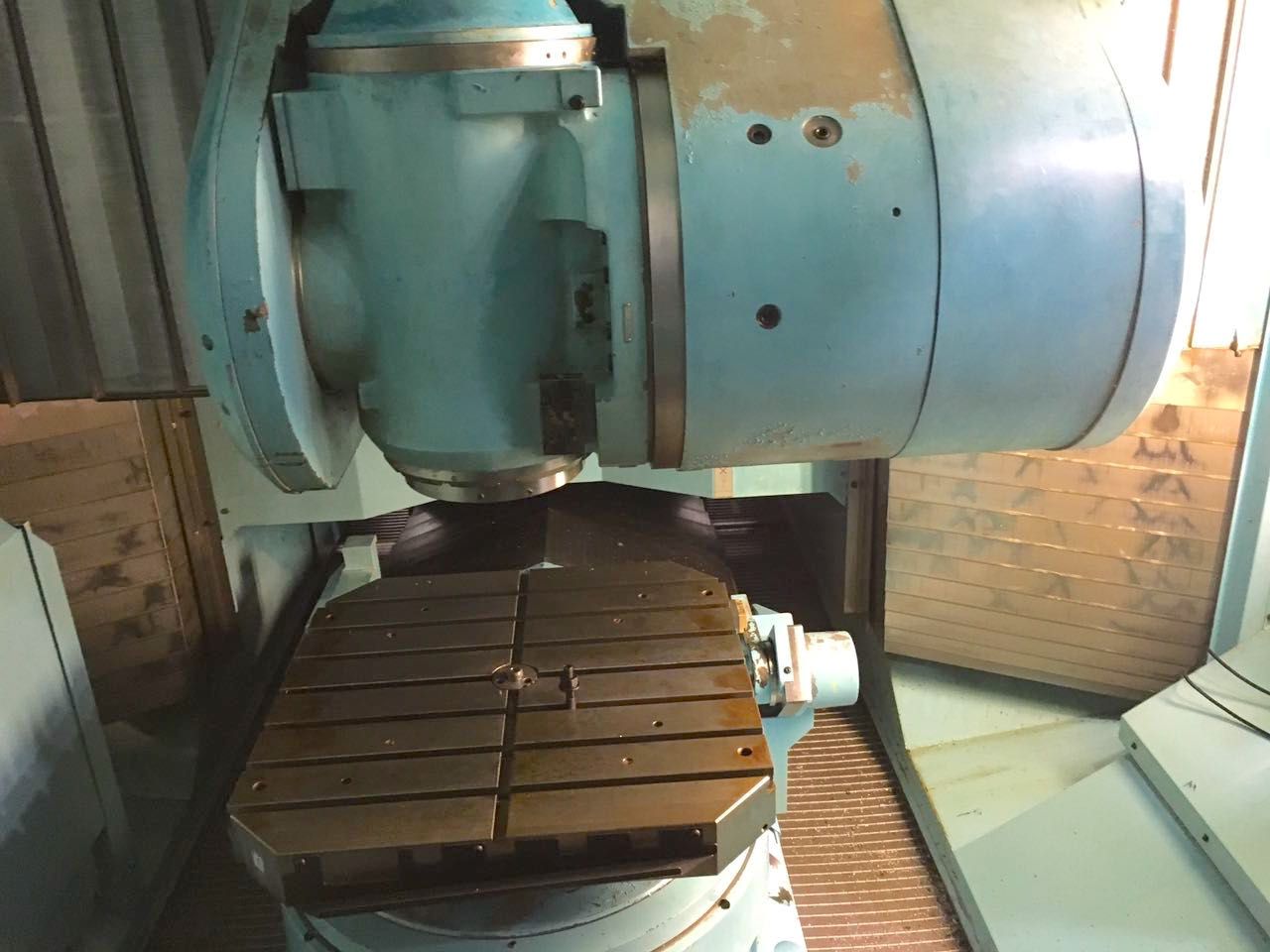

Head tilting (A)
150 [-30/+120° res. 0,0001°] °
Swing capacity
ø1250x1250 mmø49,21x49,21 in

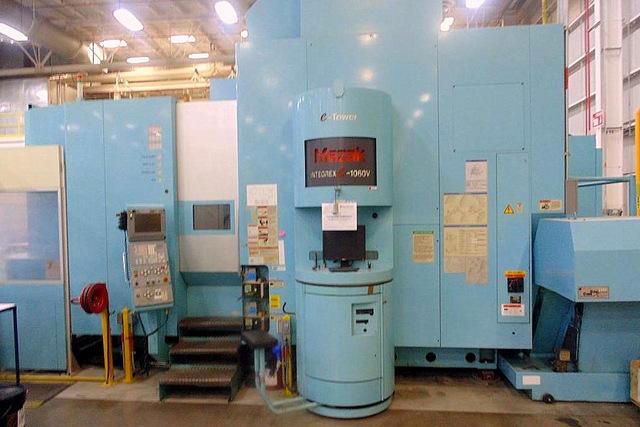

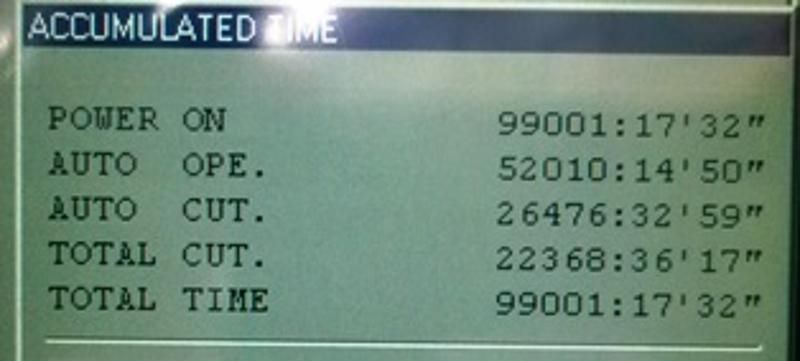

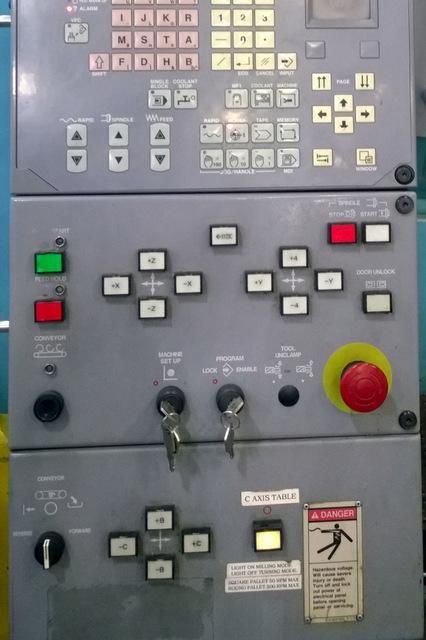

CNC
CNC
Mazatrol PC-FUSION 640M 5X E-Tower
Notes
PERFORMANCE CNC OPTIONAL 1 *STD PACKAGE THIS PACKAGE INCLUDES THE FOLLOWING: Mazak Tapping/Boring Tornado (EIA/ISO) EIA/ISO Code Input Mill-Spindle Synchronized Tapping (W/O Tool) Additional EIA/ISO Functions -Spiral Interpolation (EIA) -Pattern Rotation (EIA) -3D Cutter Compensation (EIA) -Geometric Command (EIA) -Scaling (EIA) -External Data Input/Output (EIA) Mazacc 2D High Speed Software Additional Variables (Total 600 Pairs) Inverse Time Feed G37. Automatic Tool Length Measurement x (Software for EIA use of Tool Measurement does not include tool length measurer) Sequence Number Comparison Stop Function Thread Cutting Function (G33) Additional Workpiece Coordinate System (G54.1) G00 Slope Constant
SPINDLE
Spindle power
(1 Min/30 Min/Cont) 45/37/30 Kw
Gearbox
2 gamme
Rotating speed
35-10.000 Rpm
Torque
460 Nm
Taper
ISO50 BIG PLUS
Internal coolant
si Bar
FEEDS
B
0-500 Rpm
Rapid X
40 m/min1.574,80 ipm
Rapid Y
40 m/min1.574,80 ipm
Rapid Z
40 m/min1.574,80 ipm
Rapid B
18 m/min708,66 ipm
Rapid C
30 m/min1.181,10 ipm

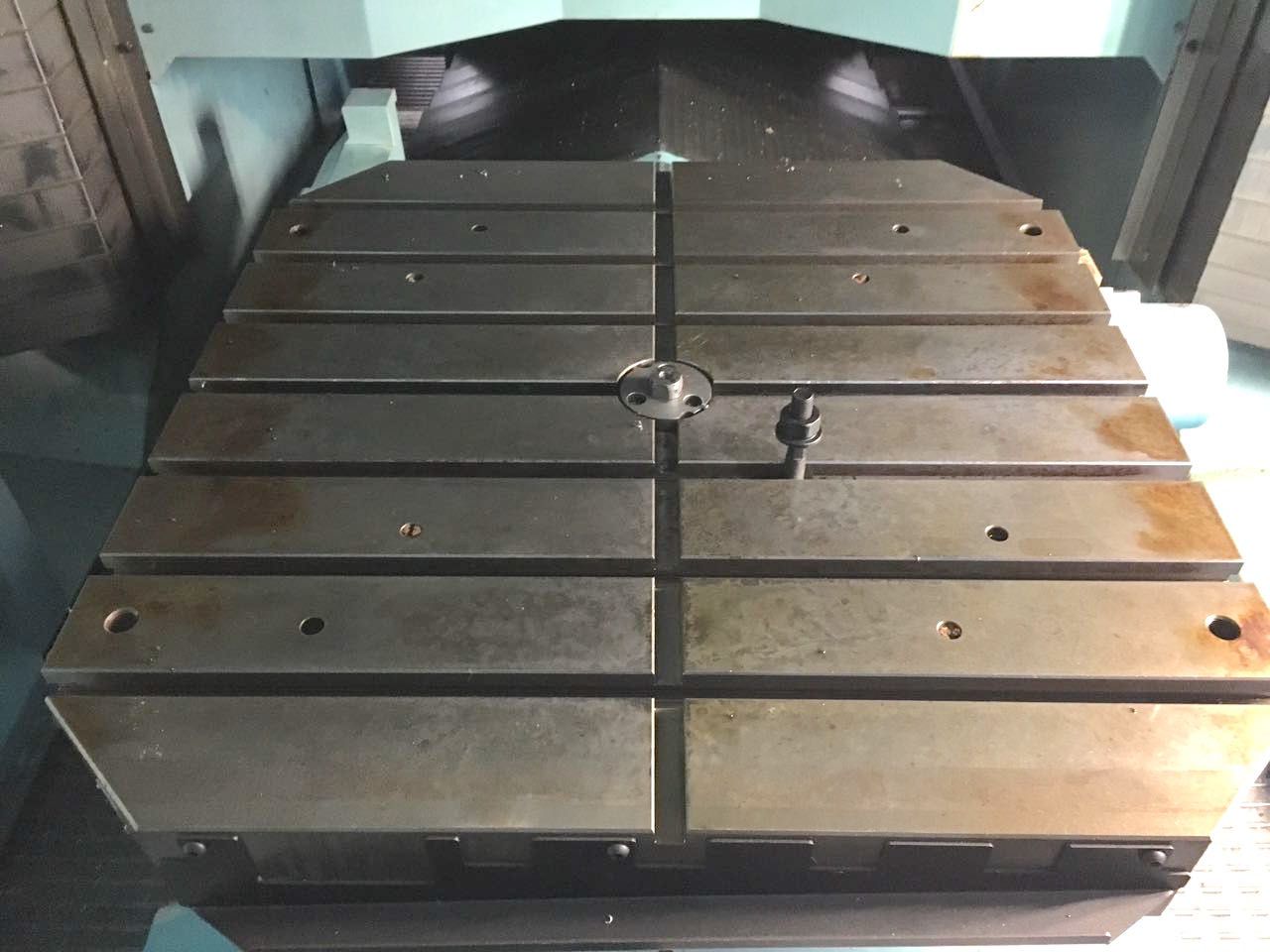

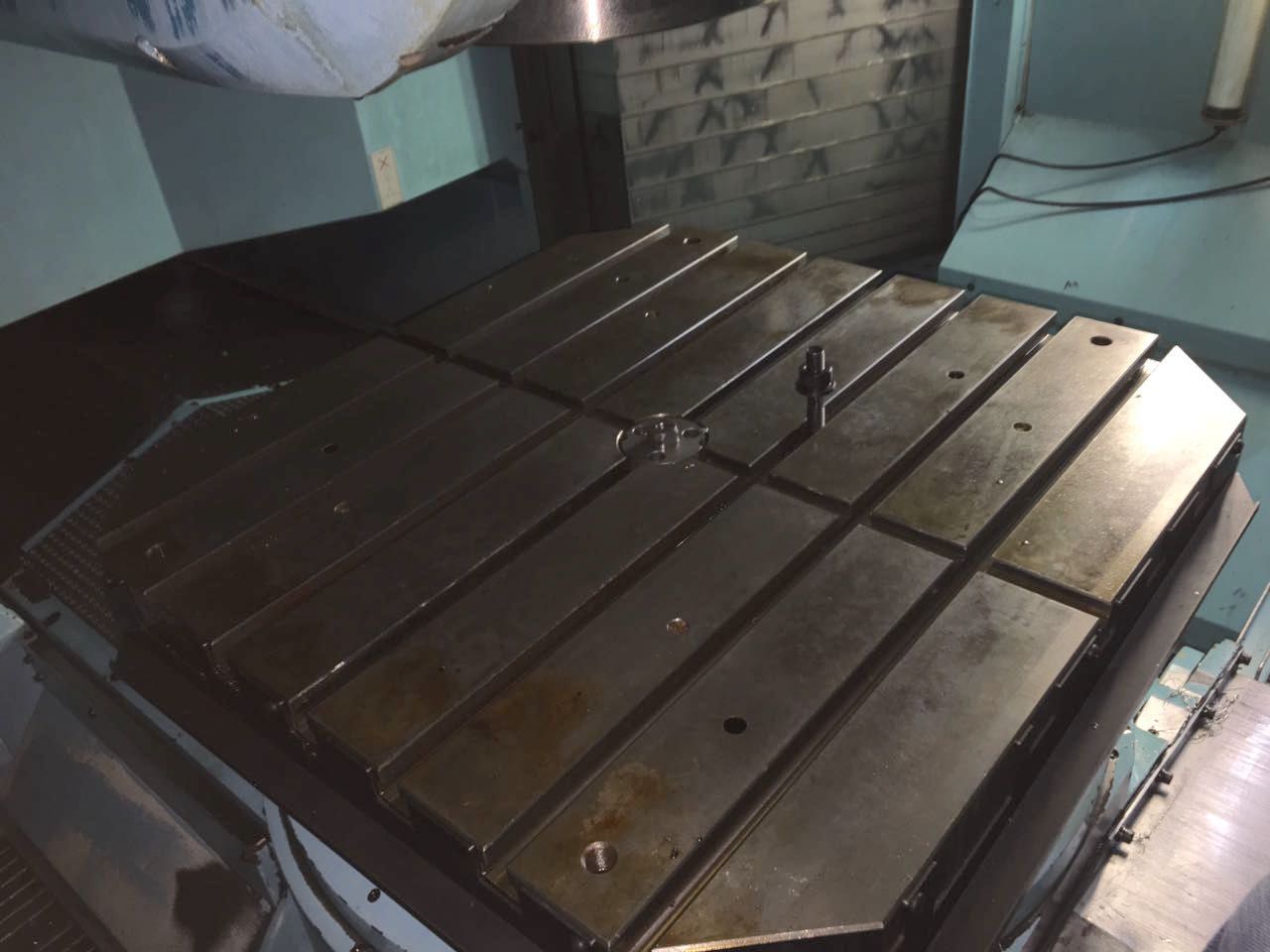

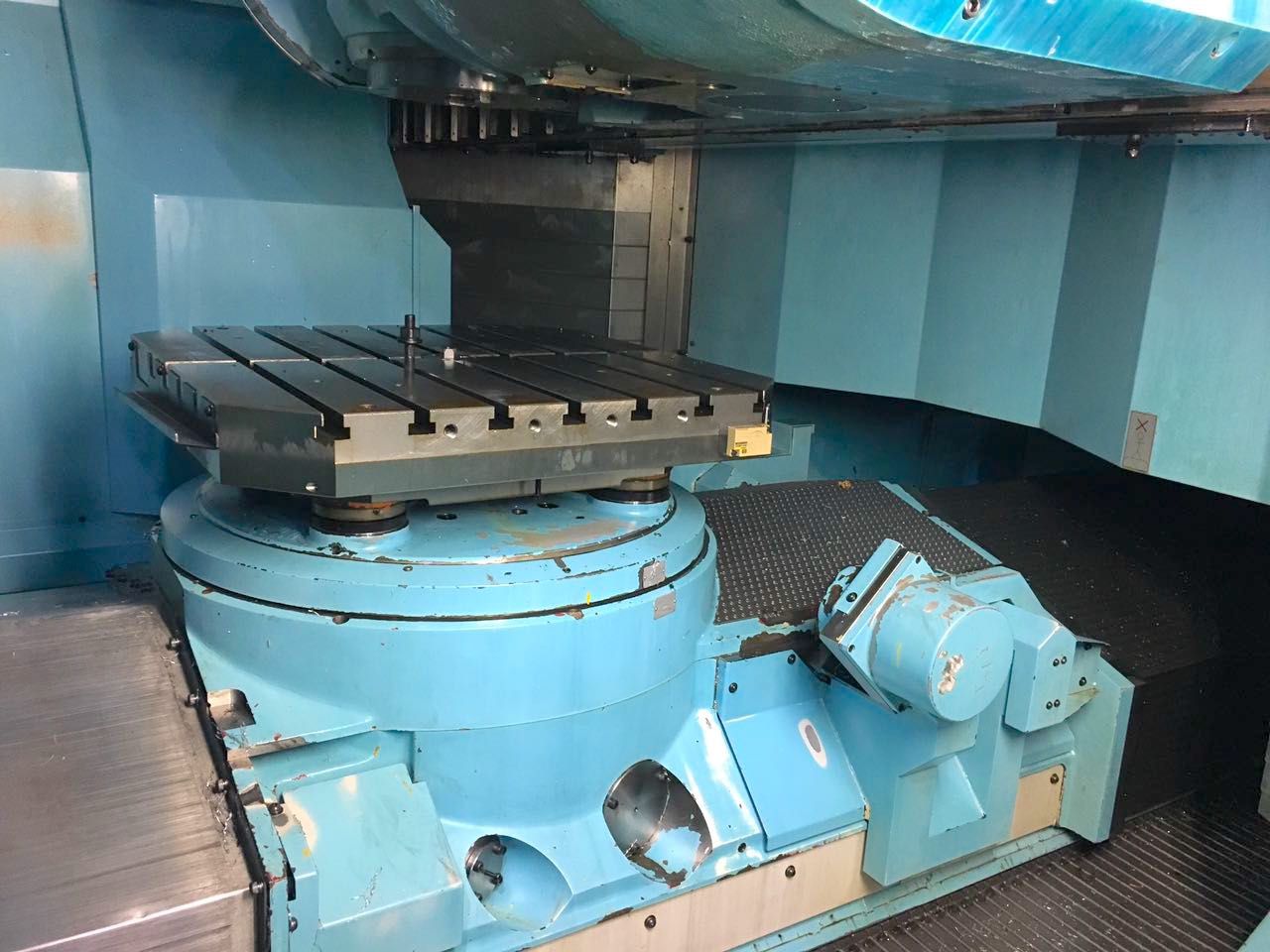

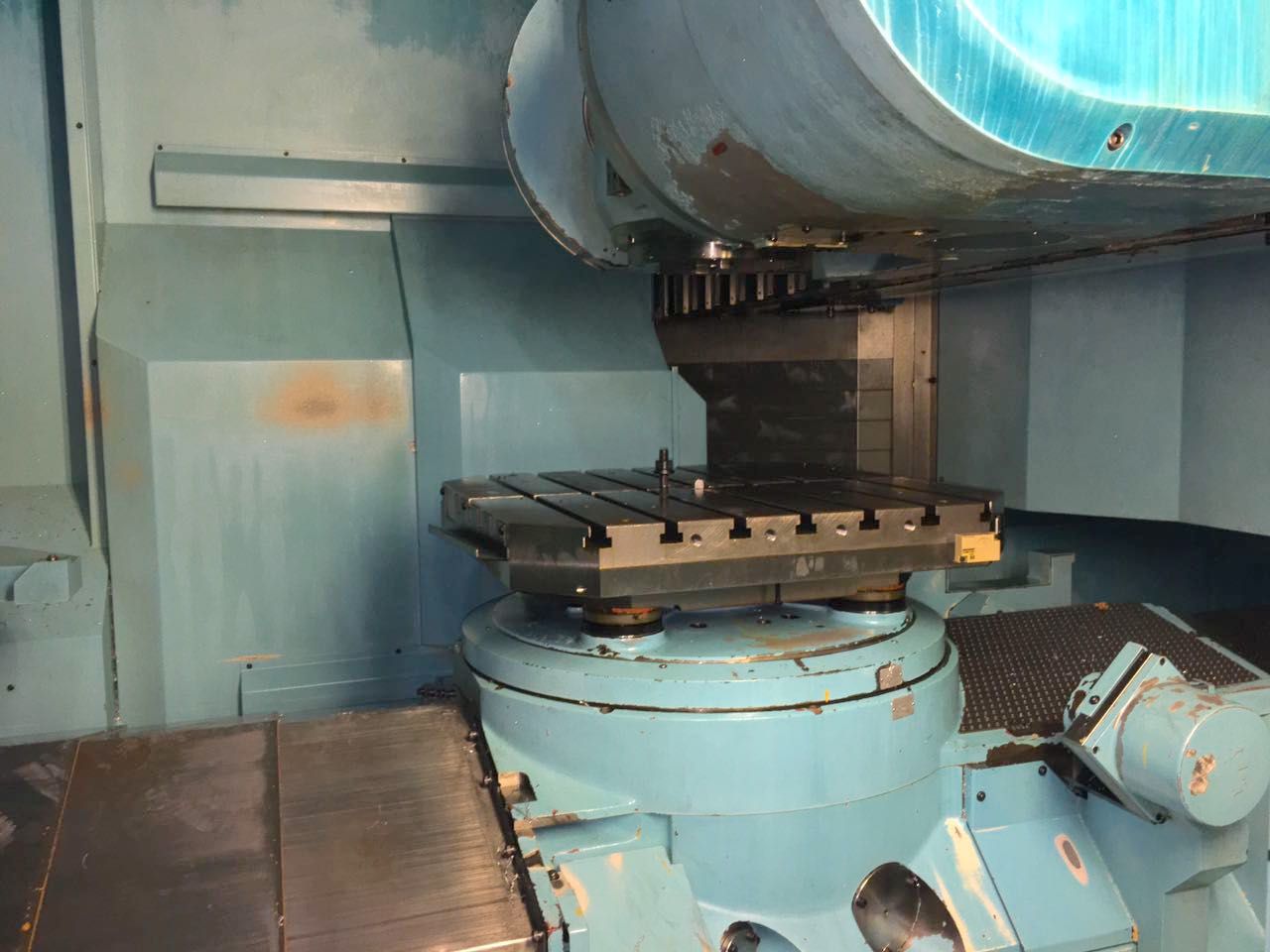

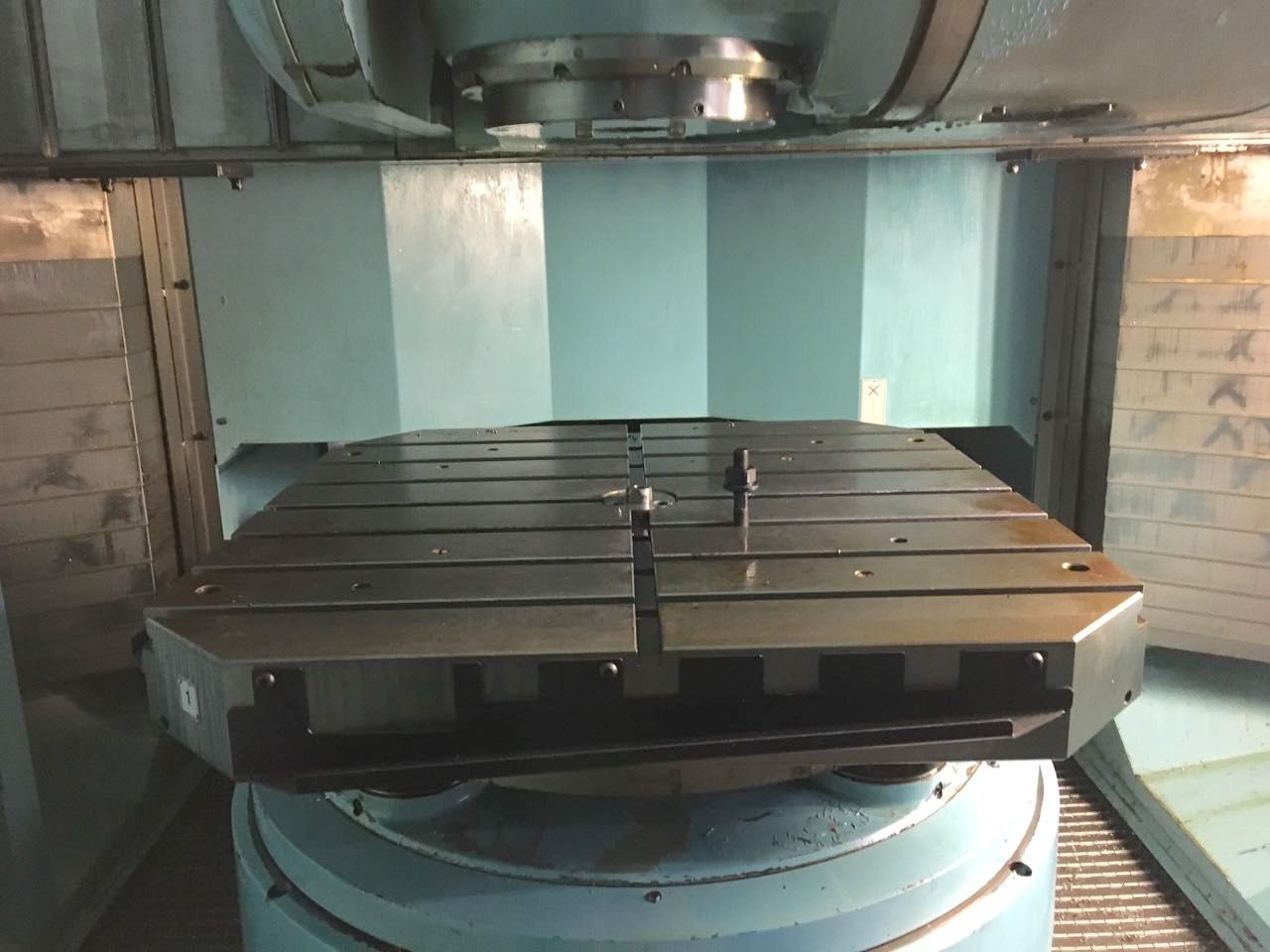

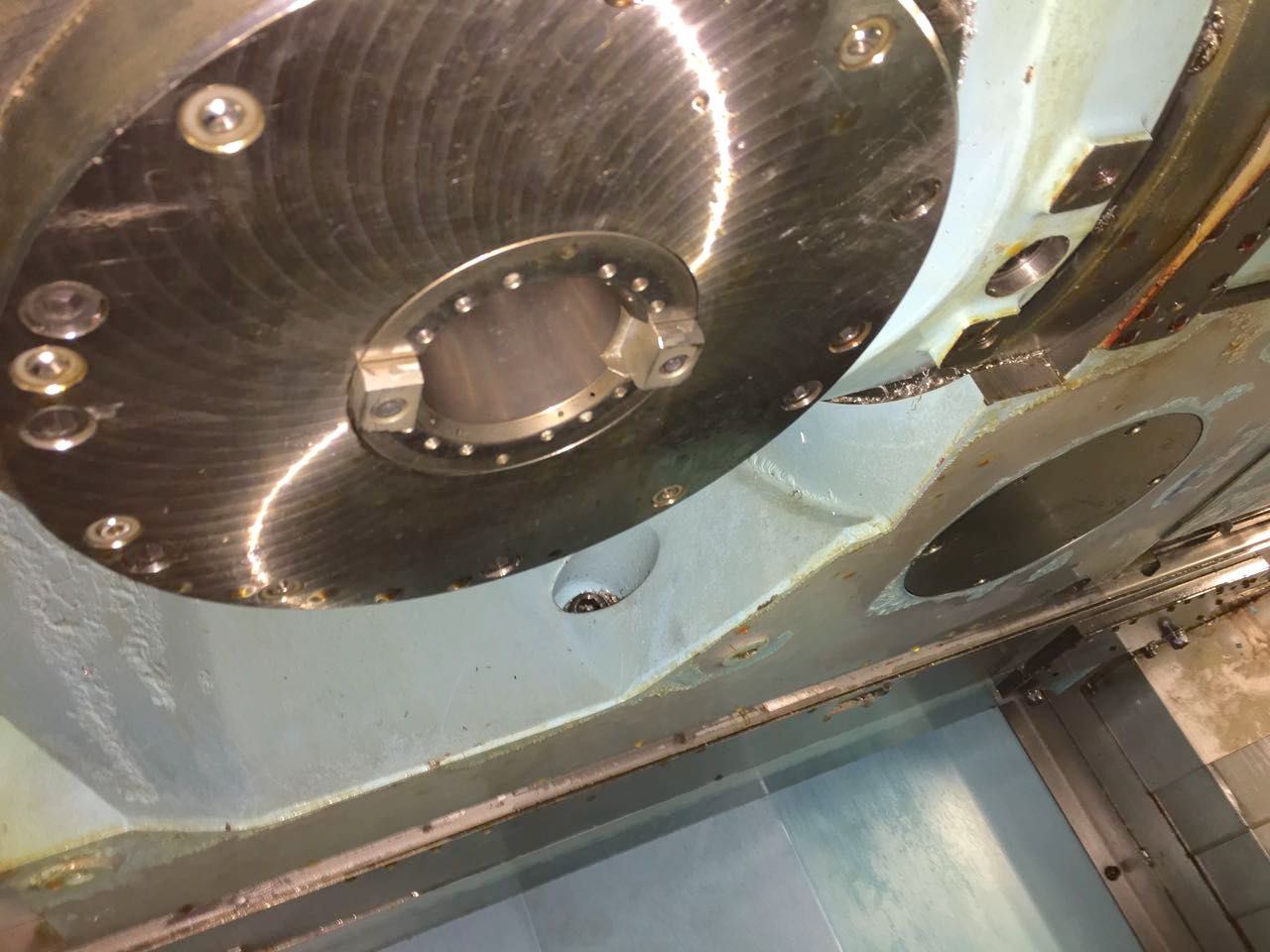

TABLE
Floorspace (LxWxH)
800x800 mm31,50x31,50 in
Capacity
2200 Kg
Accuracy (B axis)
0,001 °

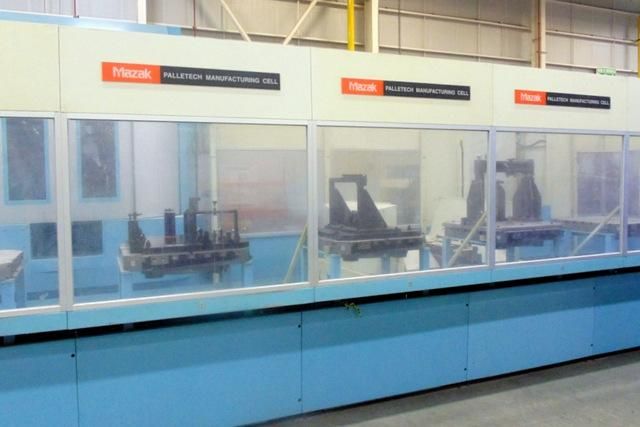

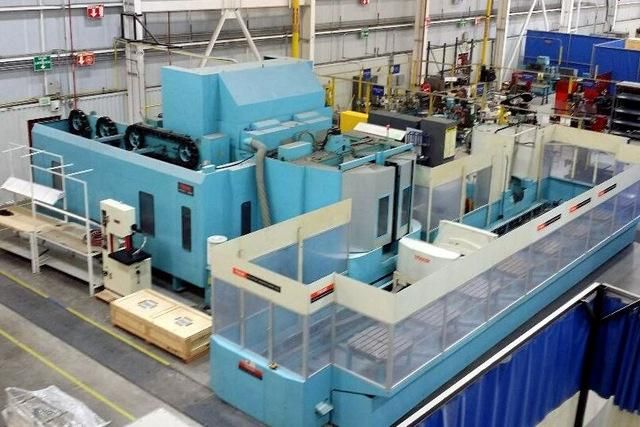

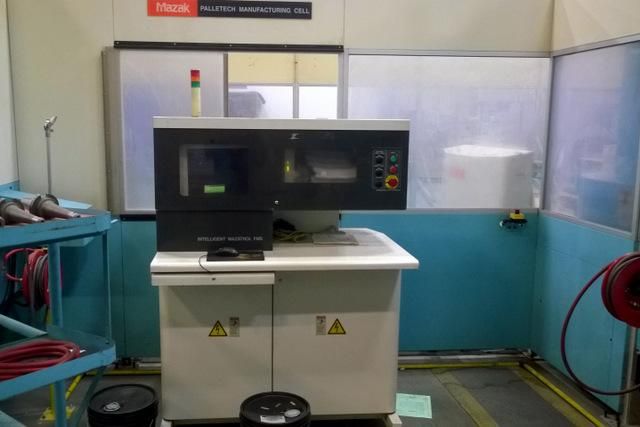

AUTO PALLET CHANGER (APC)
Pallet number
10
Pallet surface
800x800 mm31,50x31,50 in
Capacity
2200 Kg
ATC
Positions
160
Max tool diameter
135 mm5,31 in
Max diam with free adiacent space
262 mm10,31 in
Max tool lenght
500 mm19,69 in
Max tool weight
30 Kg
Tool taper
ISO50 BIG PLUS
Tool changing time
(T/T) 1.8 sec.
EXTRA
Total power supply
(30 Min/Cont) 108/99 Kw
Machine total weight
38000 (escluso cambio pallet esterno) Kg

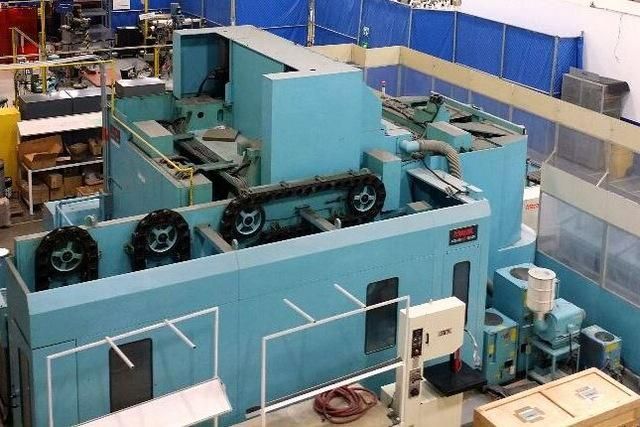

Floor space
5320x8242x4400 (12828x11915x4400 con Palletech) mm209,45x324,49x173,23 (505,04x469,09x173,23 con Palletech) in

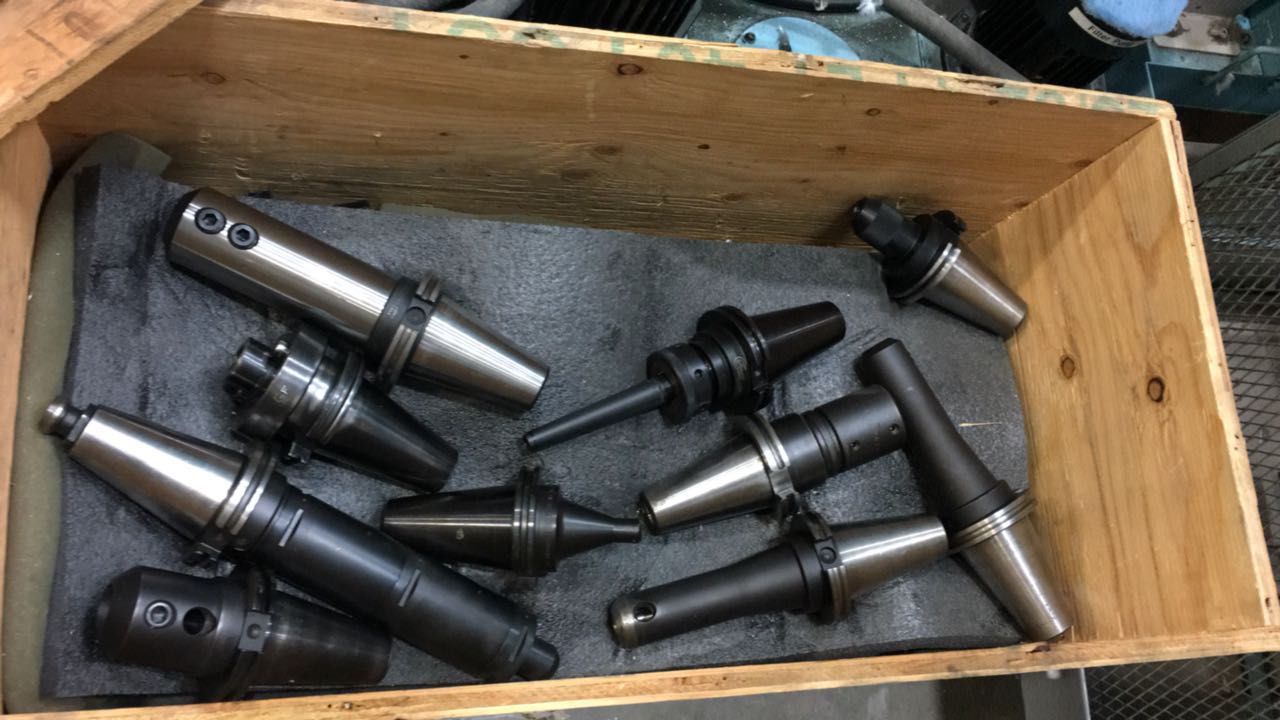

Tooling included
list available upon request
Workpiece touch probe
Renishaw RMP10
Relevant updates made on the machine
new milling spindle 10/2015

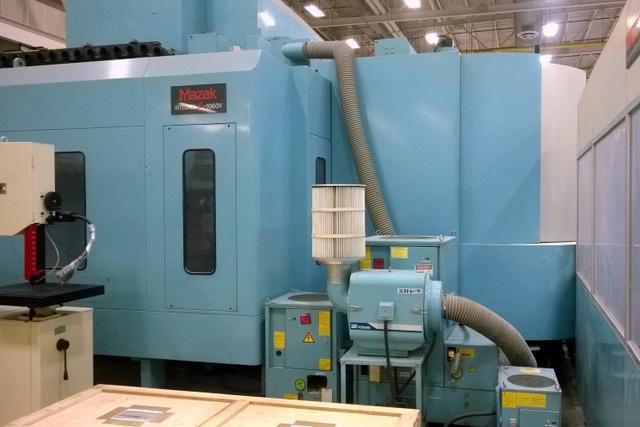

Mist extractor
si

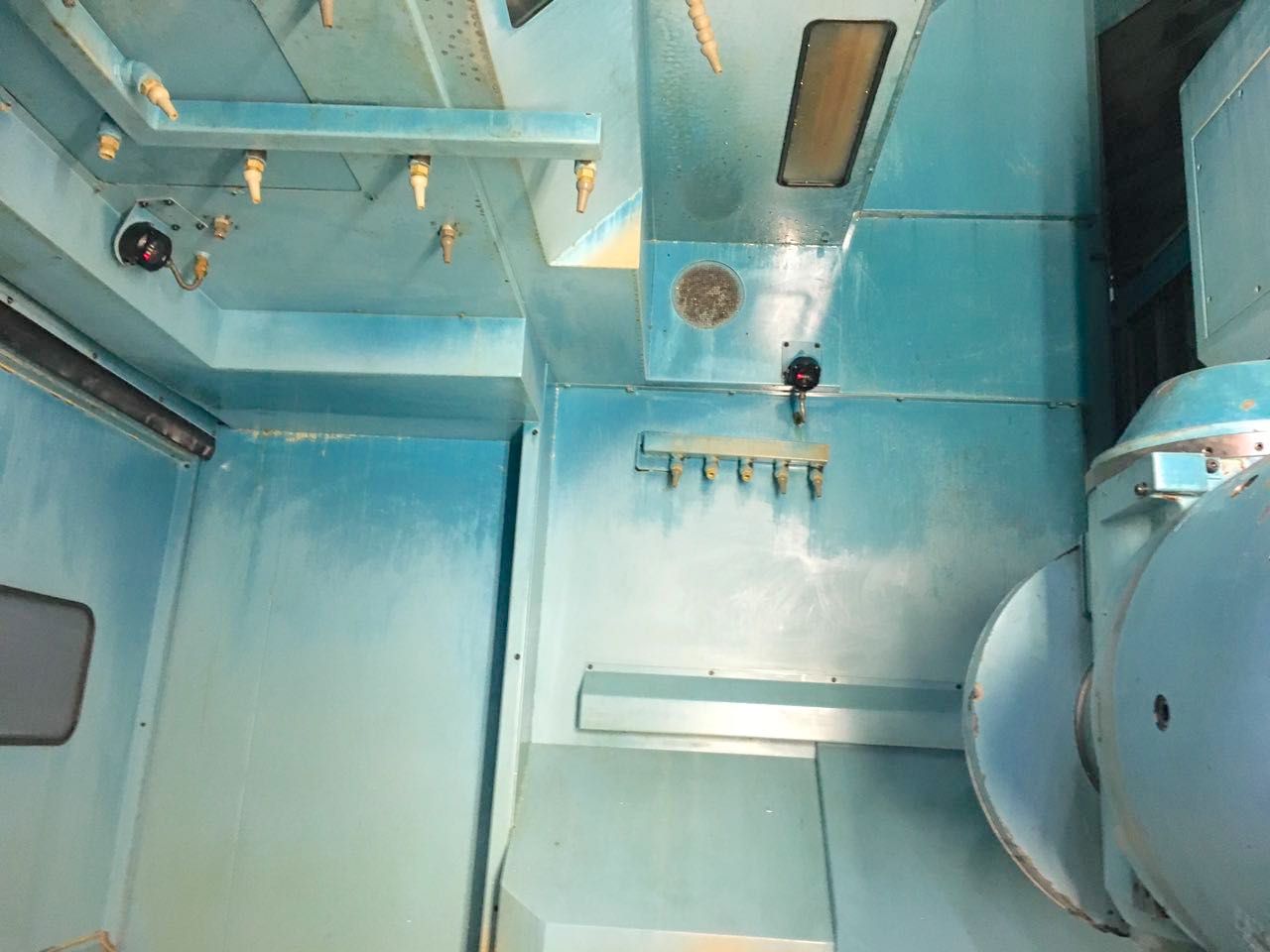

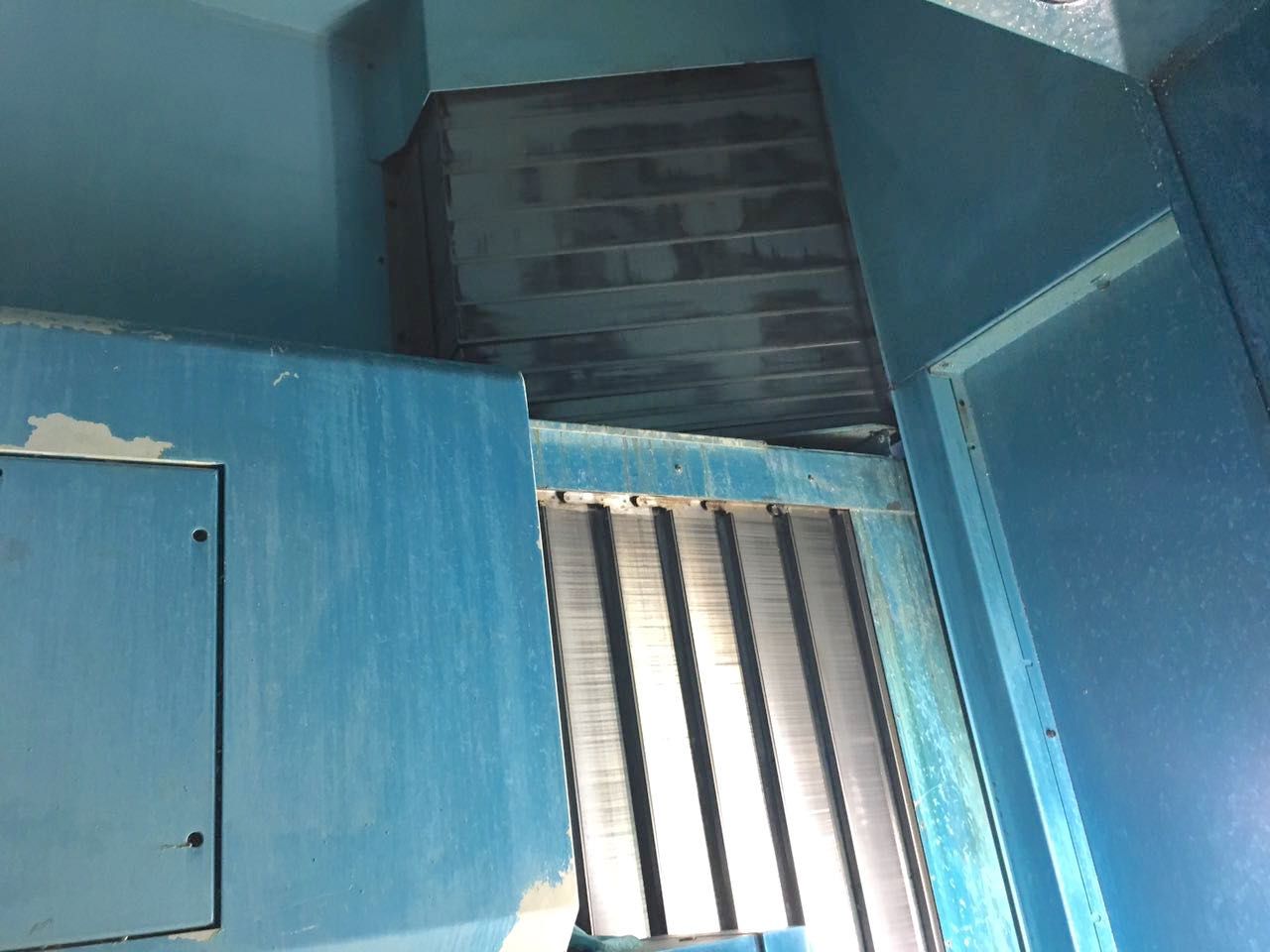

Housing
integrale
CE Certification
Yes
Electrical drawings
Yes
Maintenance & Use books
Yes
Tool presetter
si

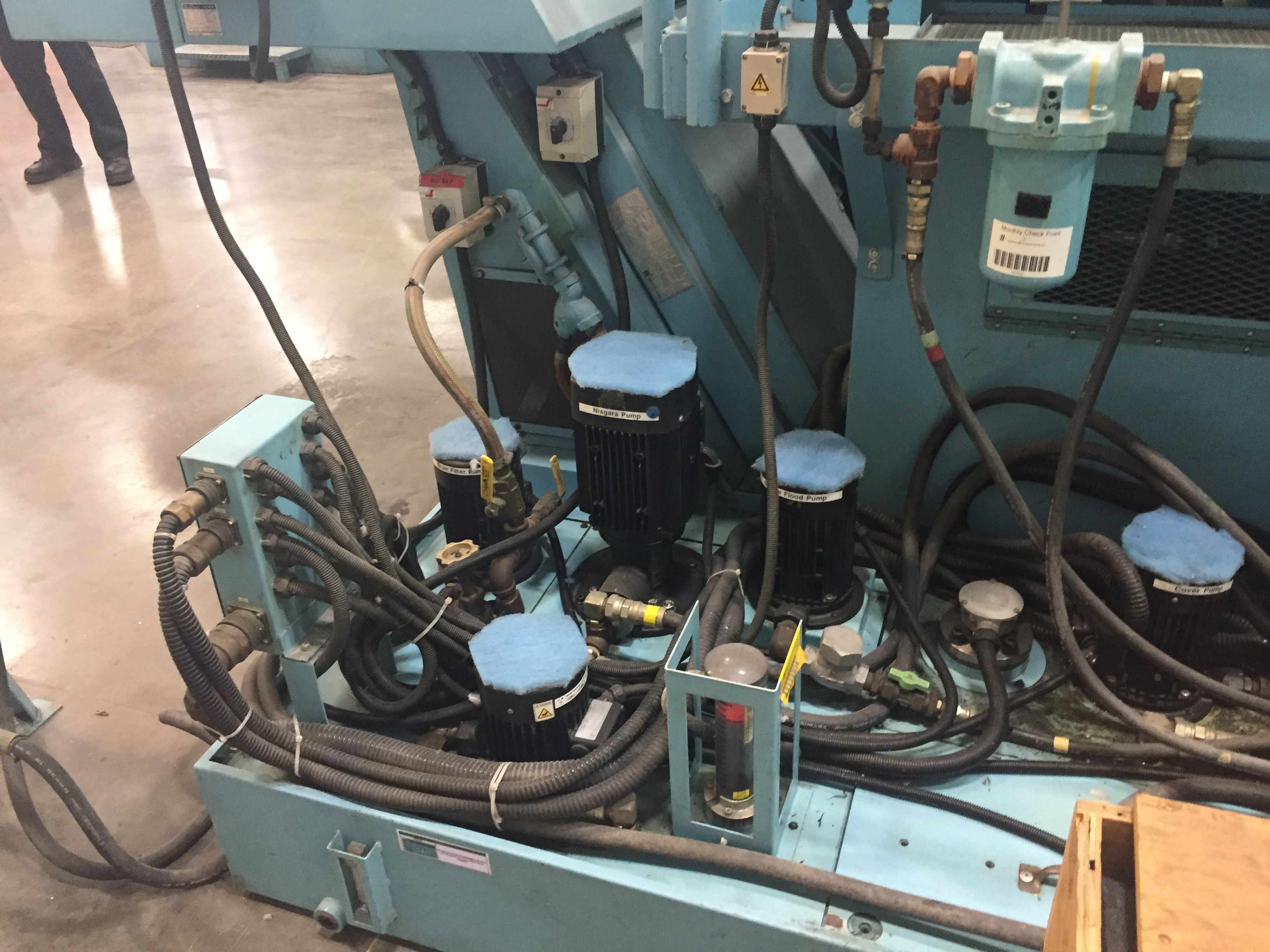

Filtration unit
si
High Pressure
si
