Category
Machining Centre
Type
5-Axis or more
Made
Model

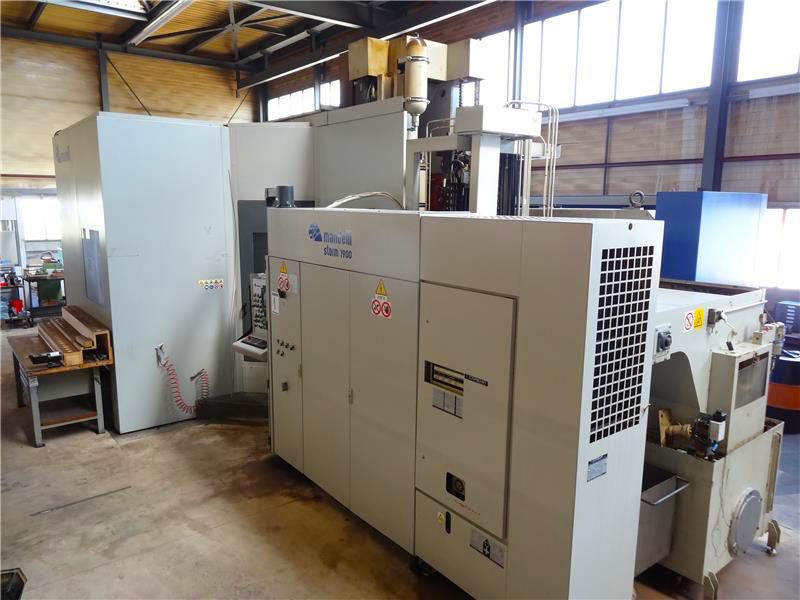

STORM 1900
Capacity
2100x1800x1500 mm82,68x70,87x59,06 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
2100 mm82,68 in
Vertical (Z)
1800 mm70,87 in
Cross (Y)
1500 mm59,06 in
Head rotation (C )
180 °
Table rotation (B)
360000 °
Swing capacity
1900 mm74,80 in
Axes support
guide prismatiche/turcite
CNC
CNC

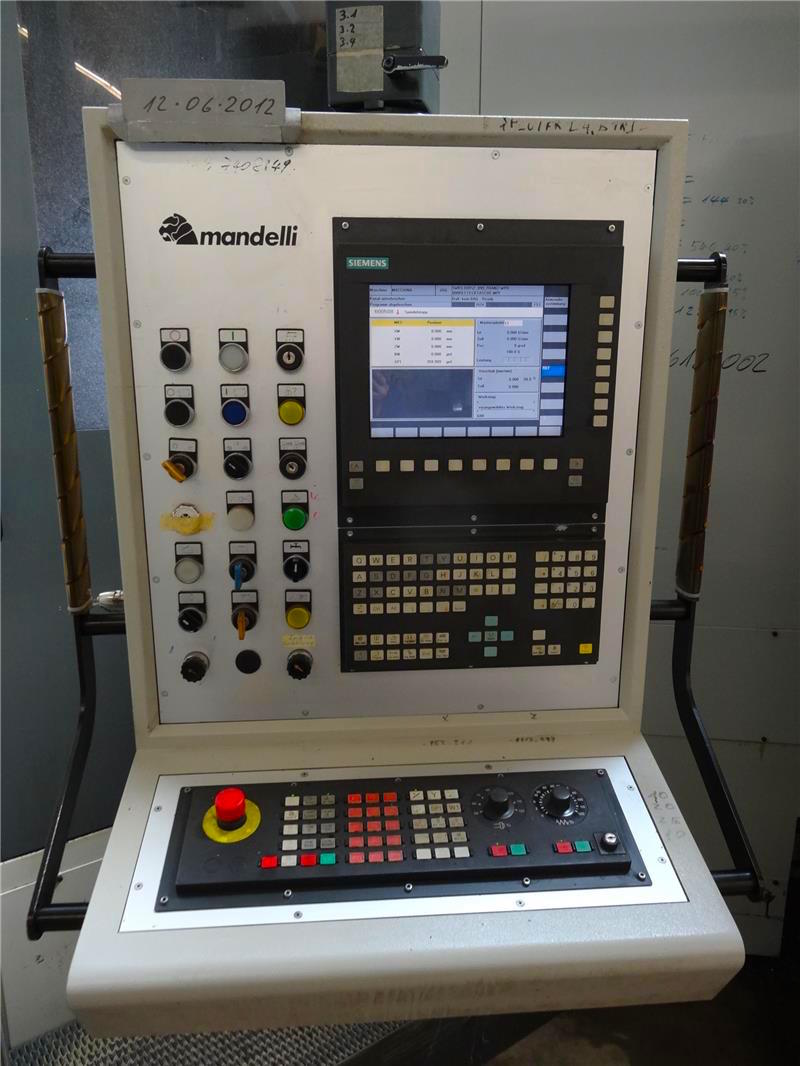

SIEMENS SINUMERIK 840D

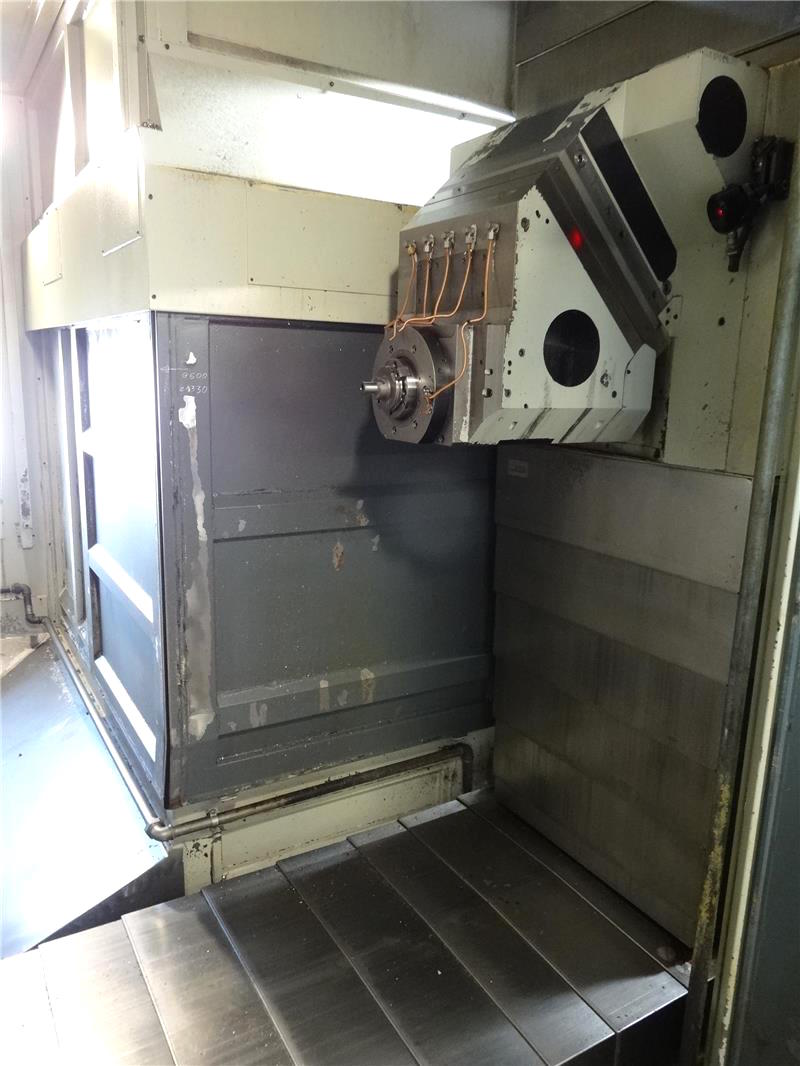

SPINDLE
Spindle power
44 Kw
Rotating speed
6000 Rpm
Torque
706 Nm
Taper
ISO50
FEEDS
Rapid X
40 m/min1.574,80 ipm
Rapid Y
40 m/min1.574,80 ipm
Rapid Z
40 m/min1.574,80 ipm
TABLE
Floorspace (LxWxH)
1250x1000 mm49,21x39,37 in
Capacity
4500 Kg
Accuracy (B axis)
360000 °

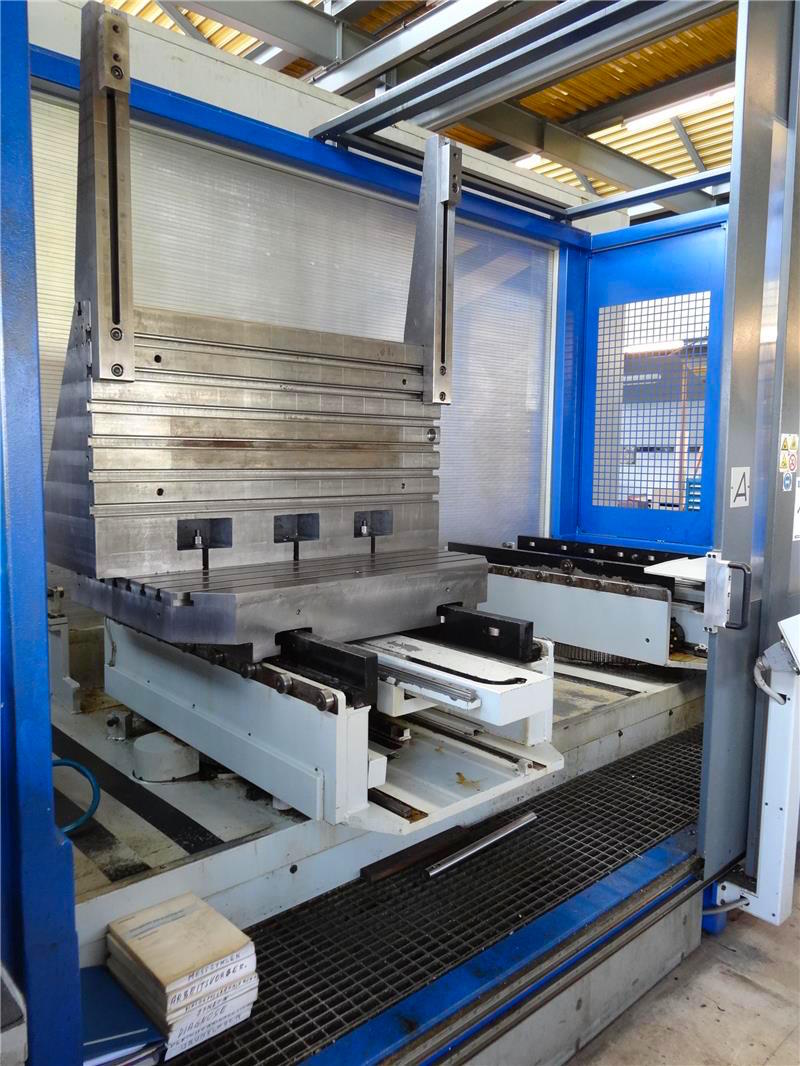

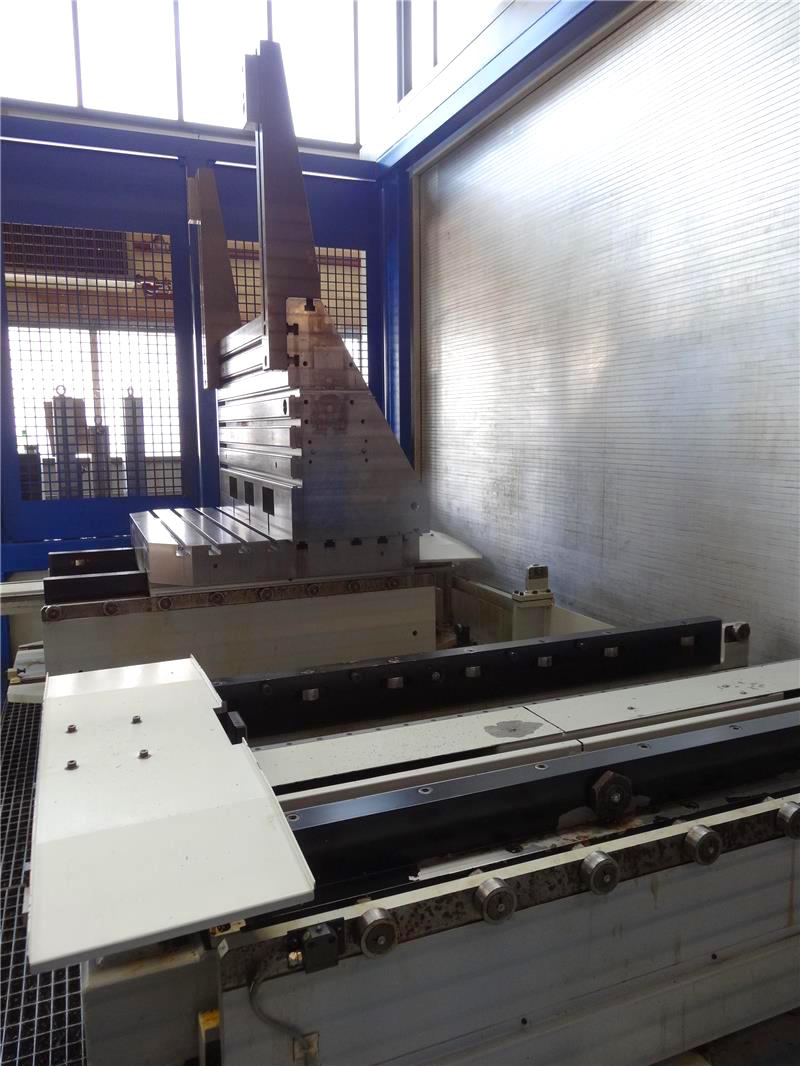

AUTO PALLET CHANGER (APC)
Pallet number
2
Pallet surface
1250x1000 mm49,21x39,37 in
Capacity
4500 Kg

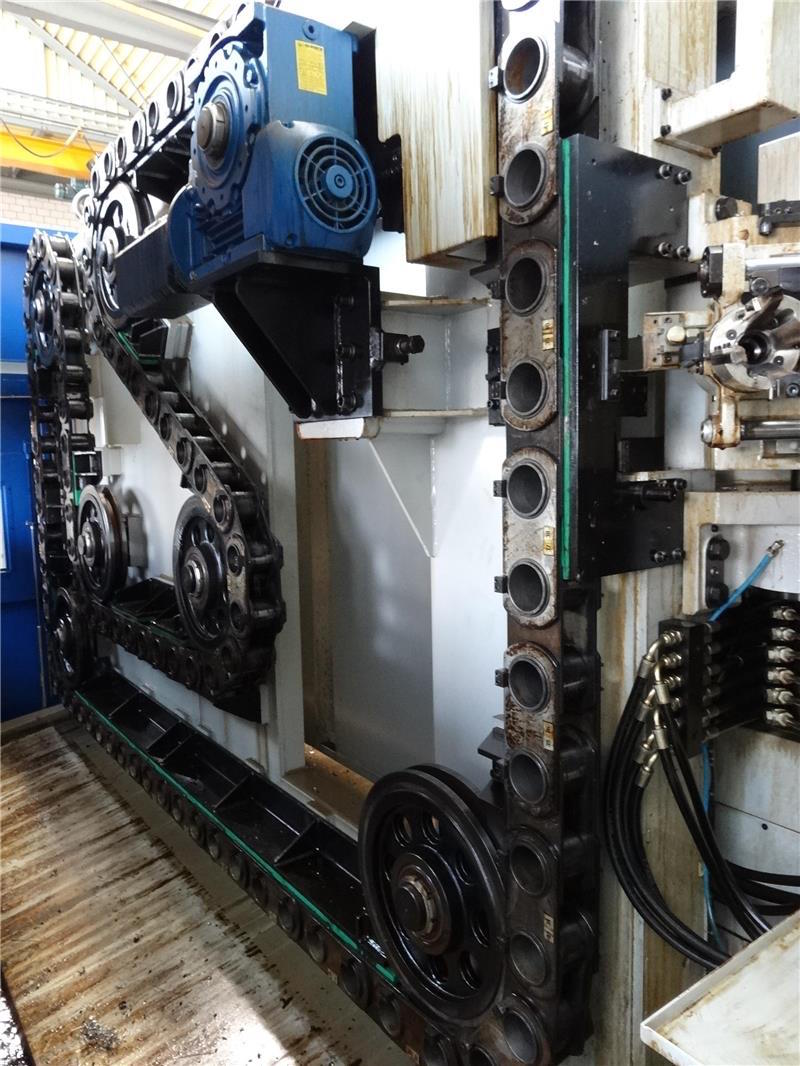

ATC
Positions
100
Tool changing time
8 sec.
Max tool diameter
450 mm17,72 in
Max tool lenght
600 mm23,62 in
Max tool weight
35 Kg
EXTRA
Machine total weight
36000 Kg
Floor space
8175x10860x4560 mm321,85x427,56x179,53 in
High Pressure
60Bar
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes
Workpiece touch probe
Renishaw RMP10
Mist extractor
si
Housing
intergrale

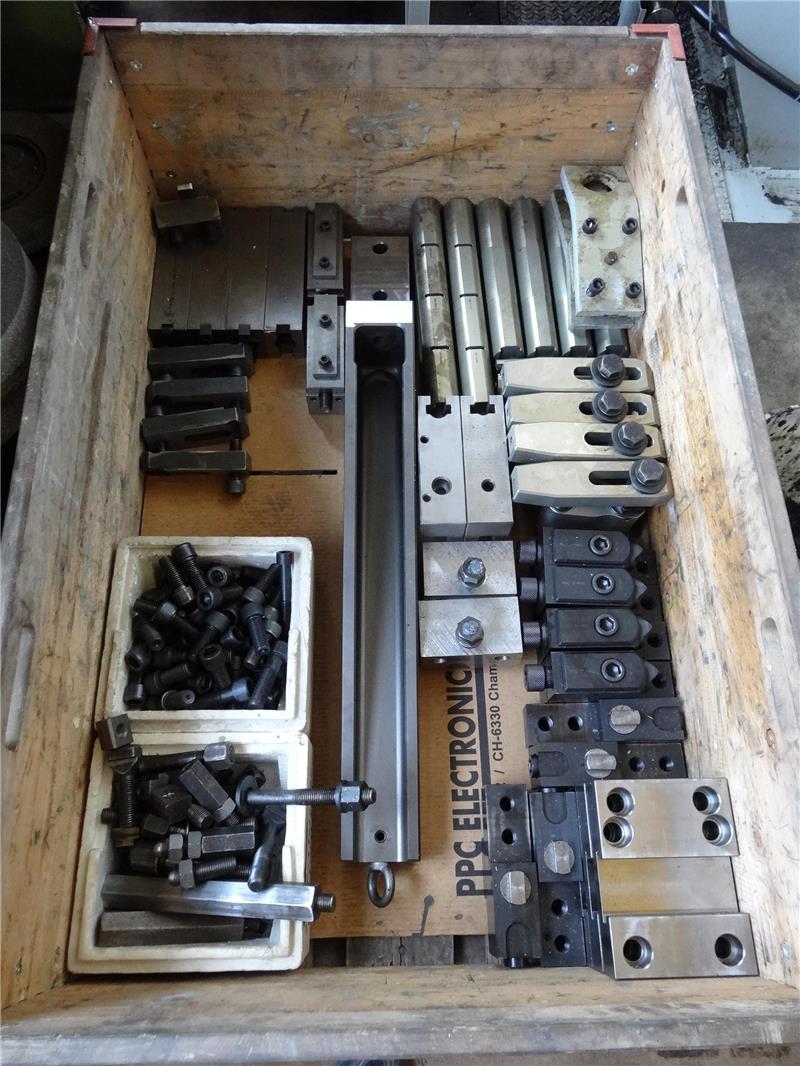

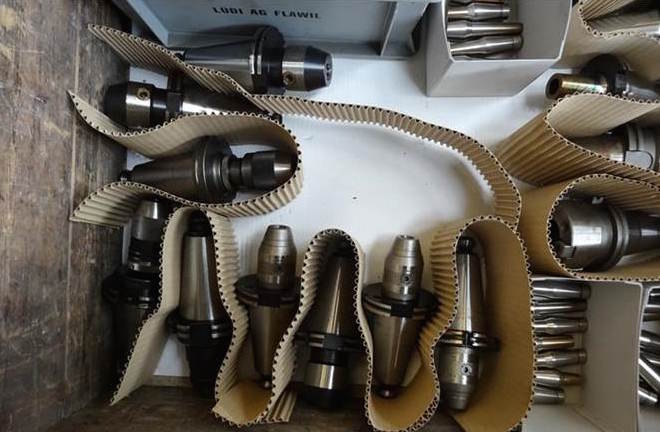

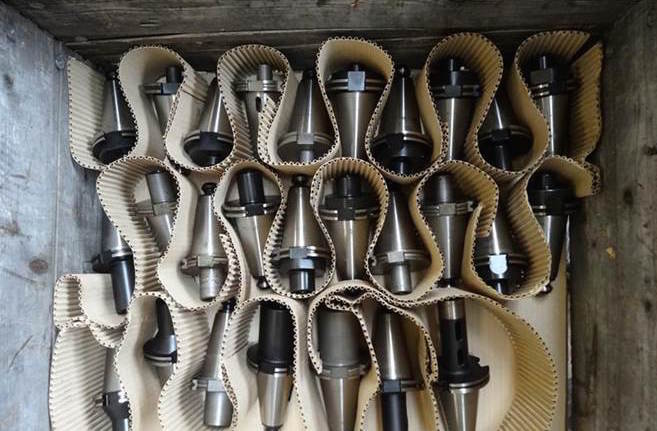

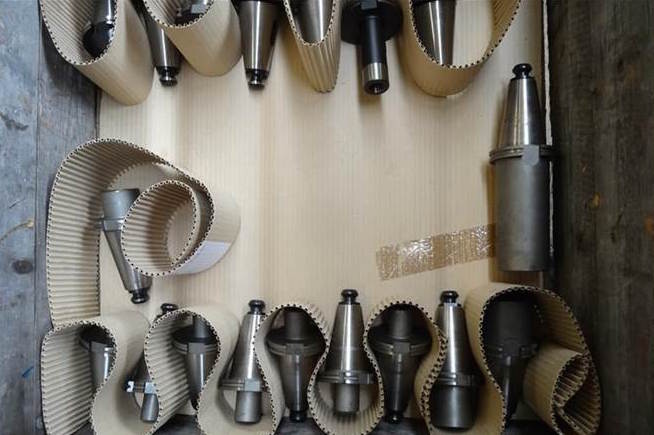

Tooling included
ca. 80 coni ISO50, adattatore ISO40, moltiplicatore giri 30.000Rpm ISO40

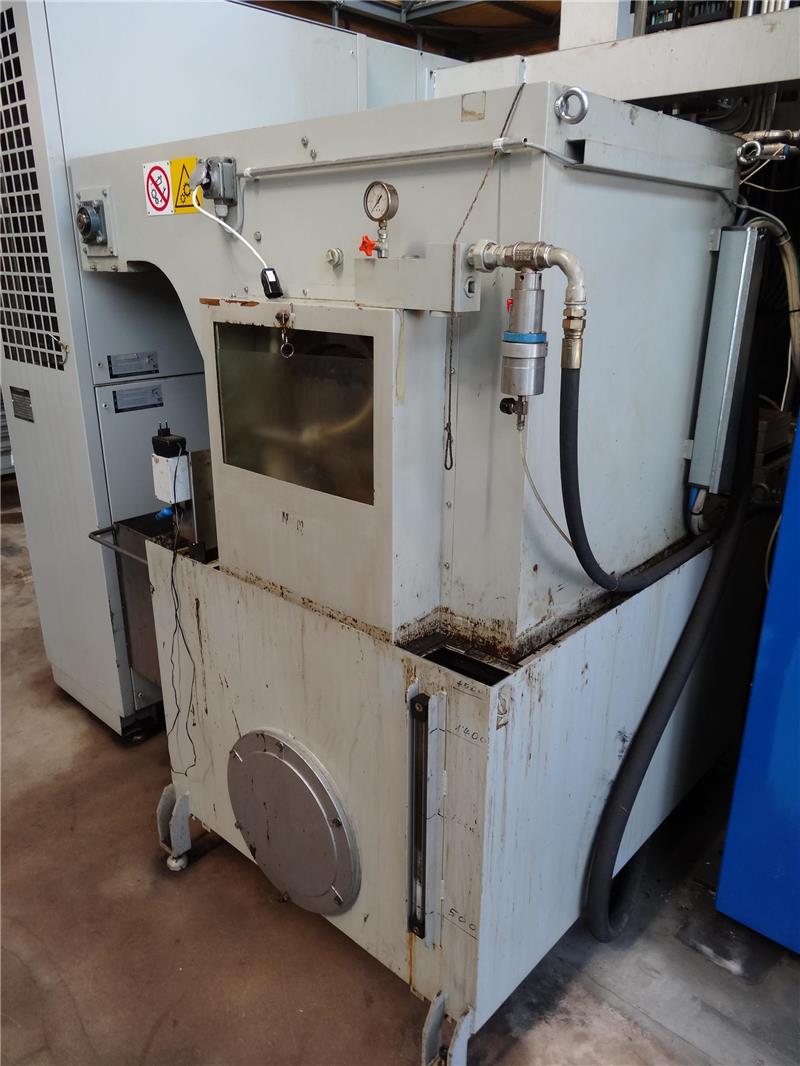

Filtration unit
filtro + centrifuga
