Category
Machining Centre
Type
5-Axis or more
Made
Model

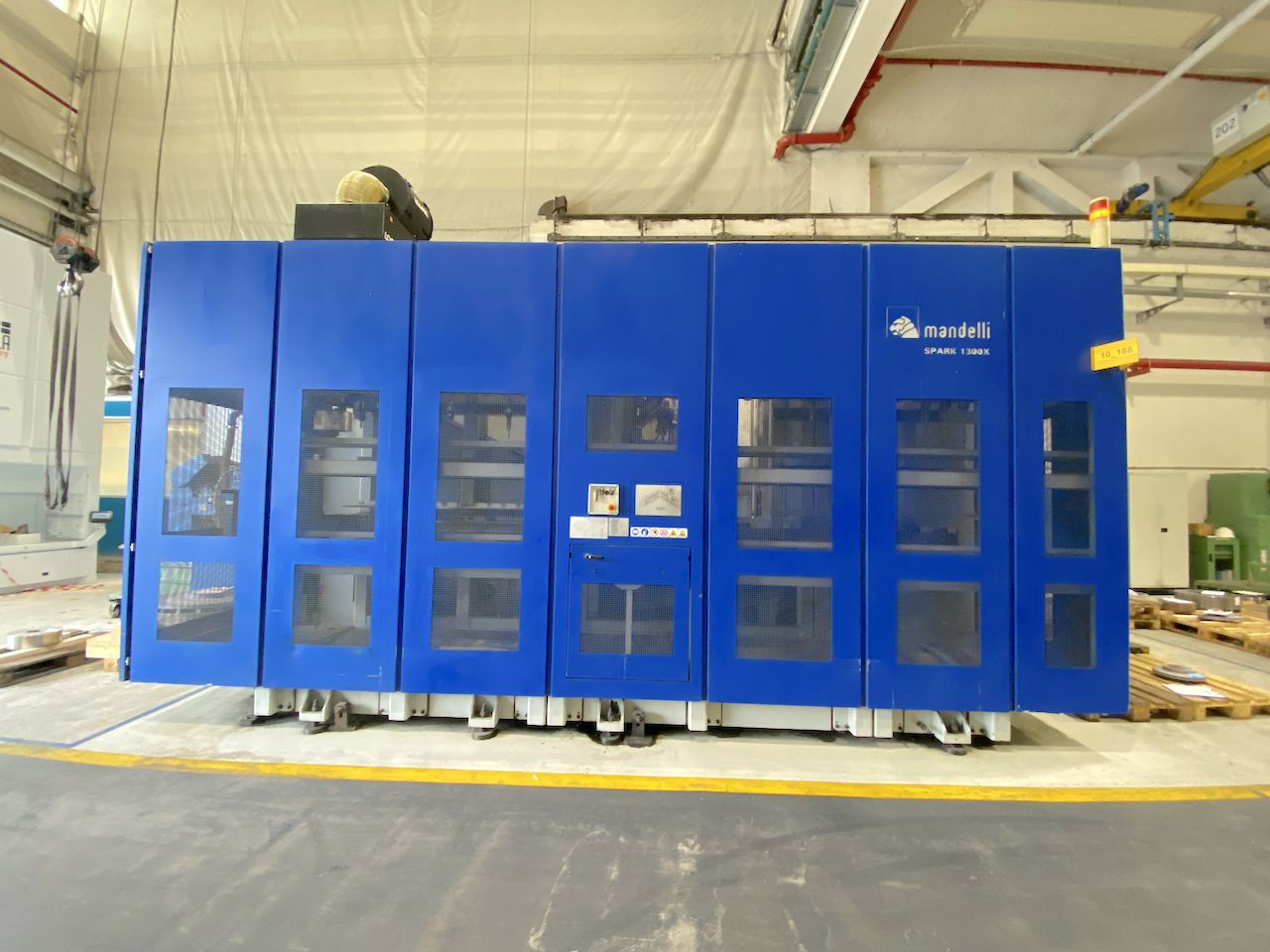

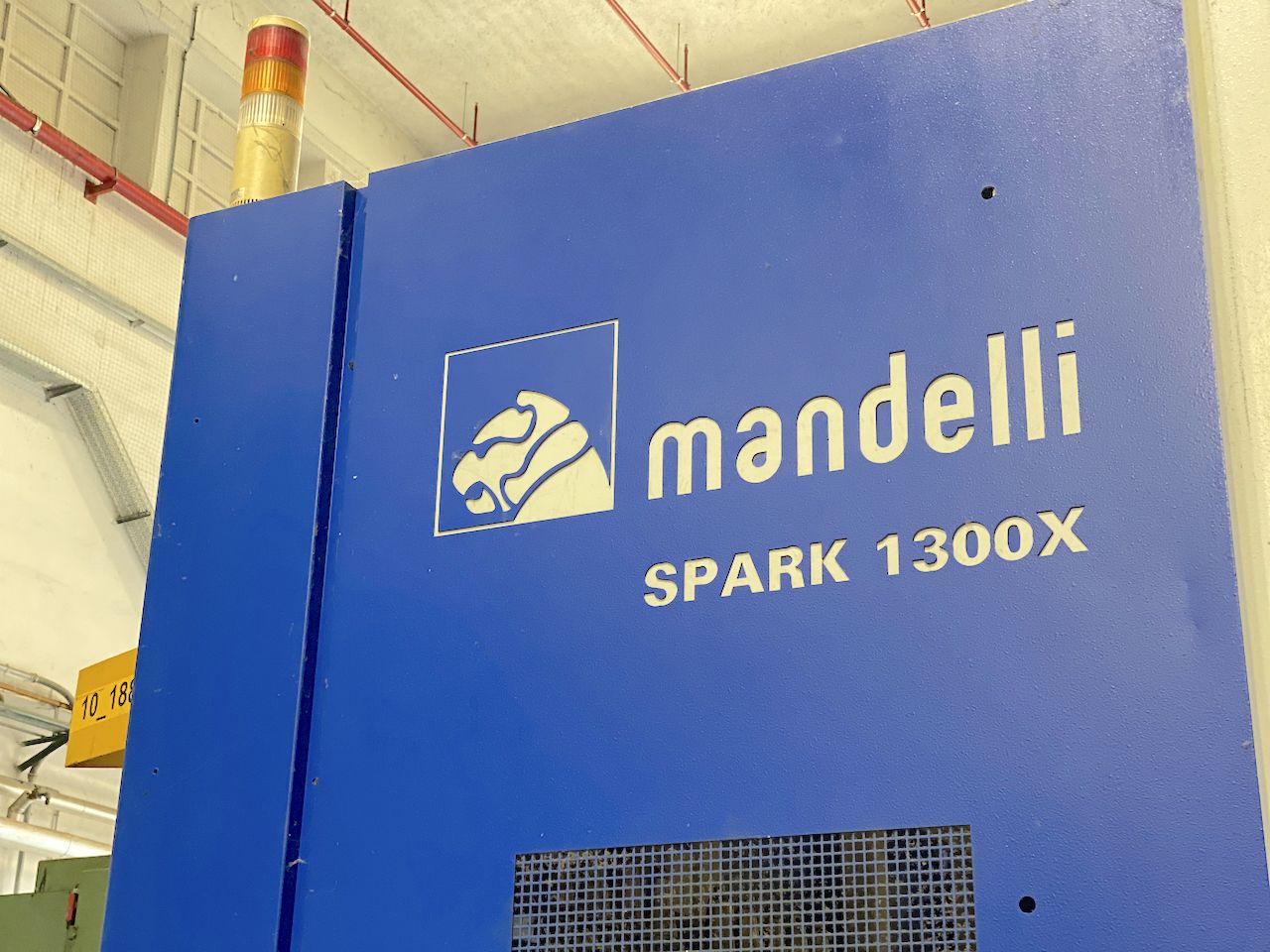

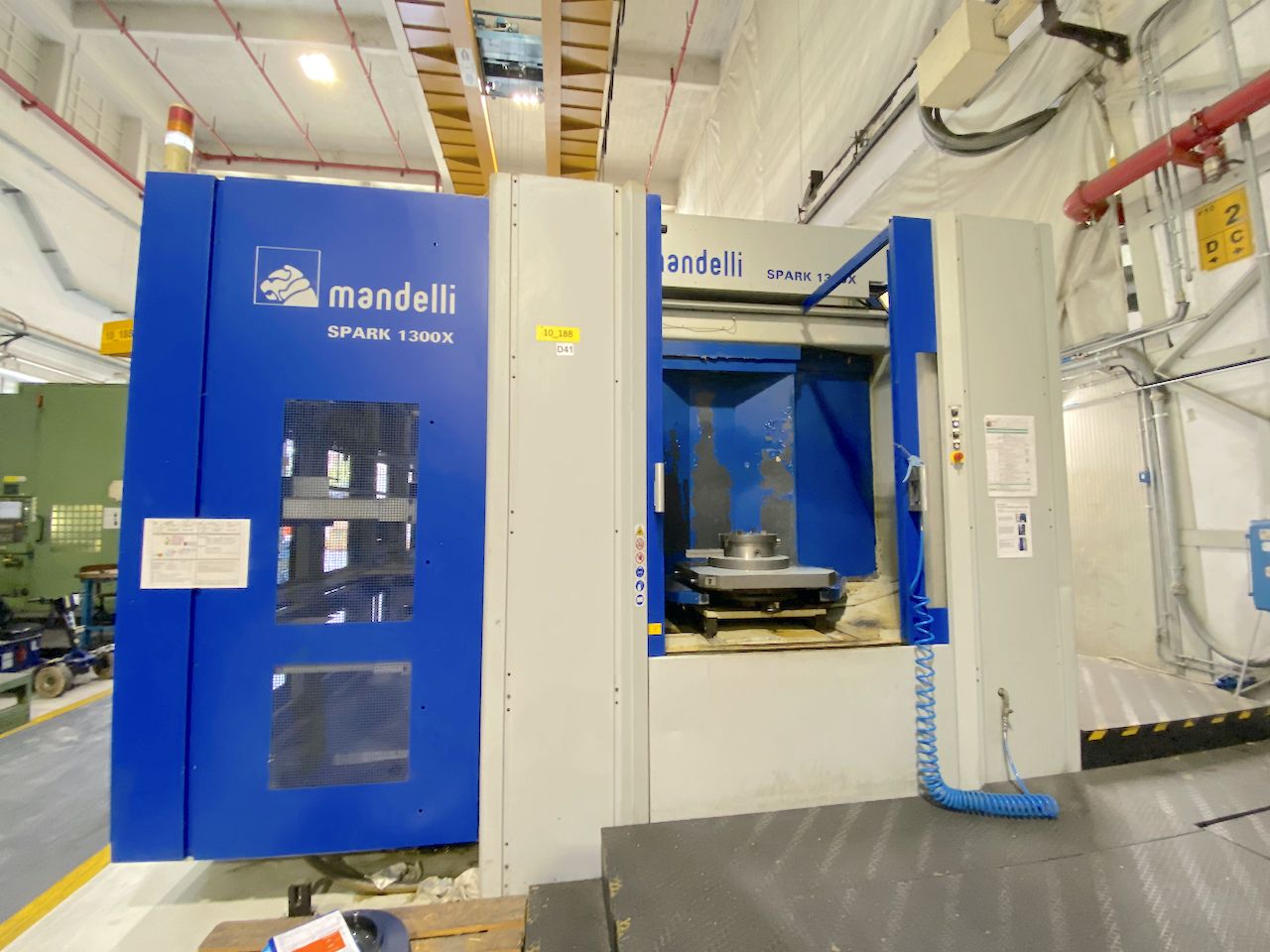

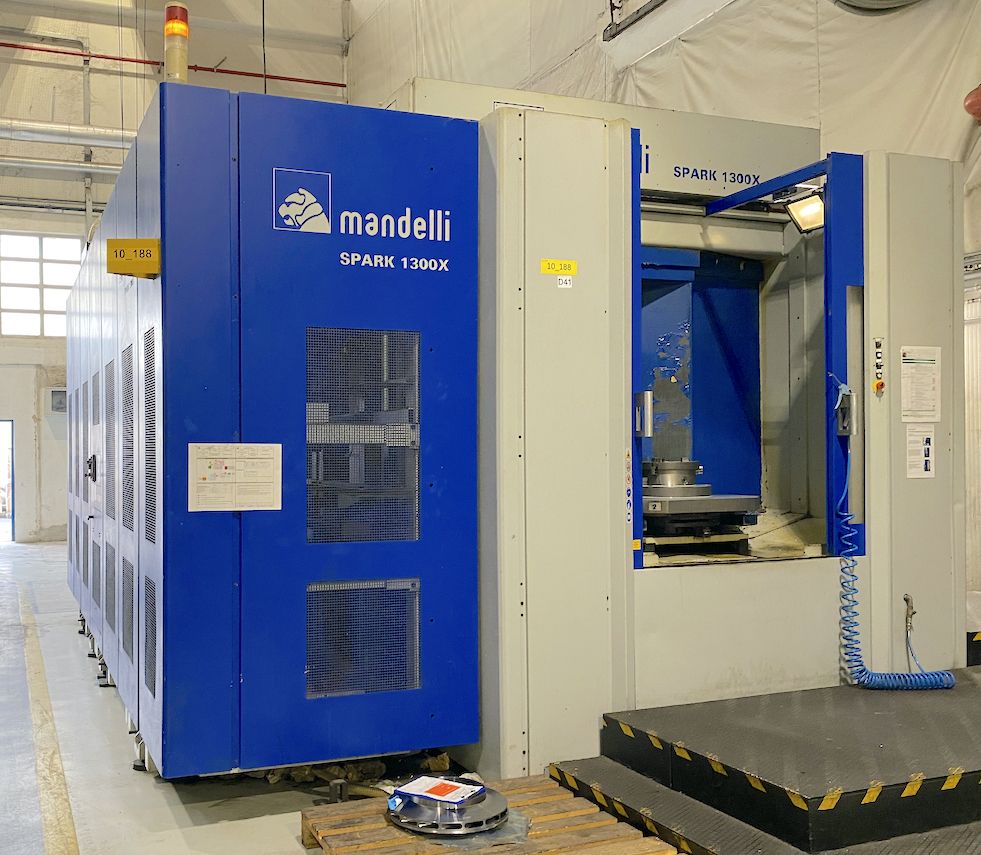

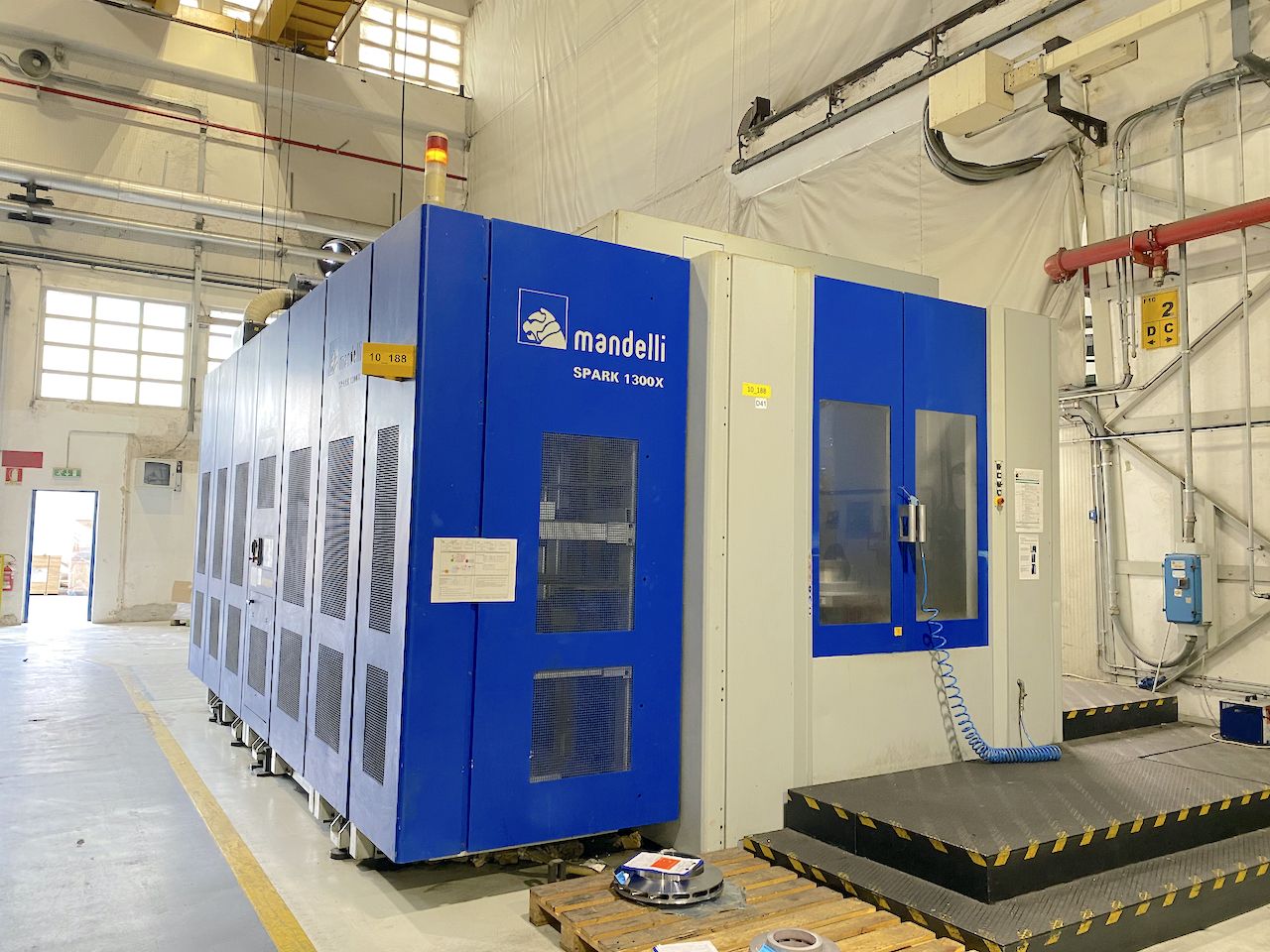

SPARK 1300X
Capacity
1300x1100x1050 [ø1300x1100] mm51,18x43,31x41,34 [ø51,18x43,31] in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
1300 mm51,18 in
Vertical (Z)
1100 mm43,31 in
Cross (Y)
1050 mm41,34 in
Table rotation (B)
360.000 °
Head tilting (A)
180 posizioni (2° indexing) °
Swing capacity
ø1300 mmø51,18 in
CNC
CNC

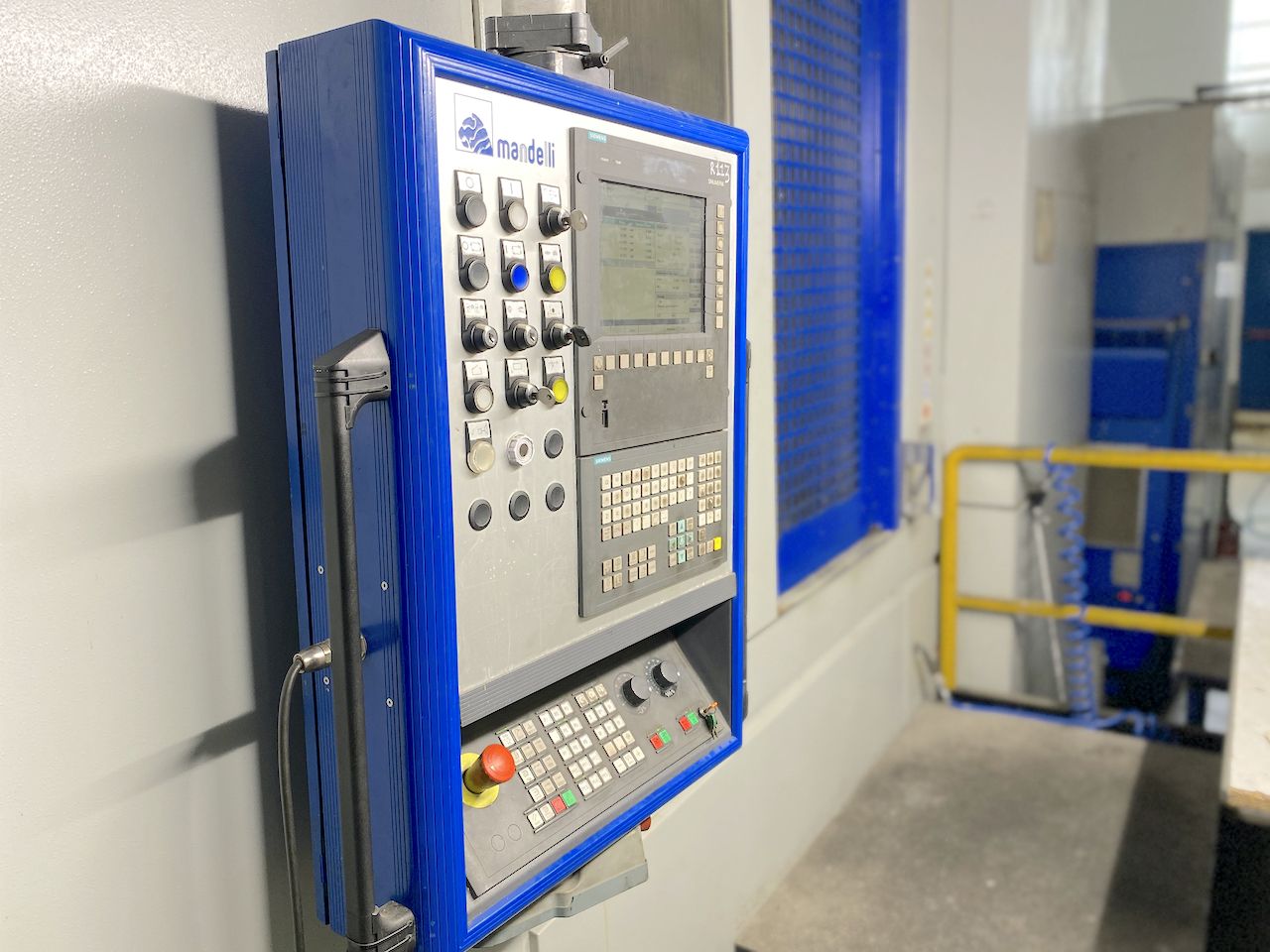

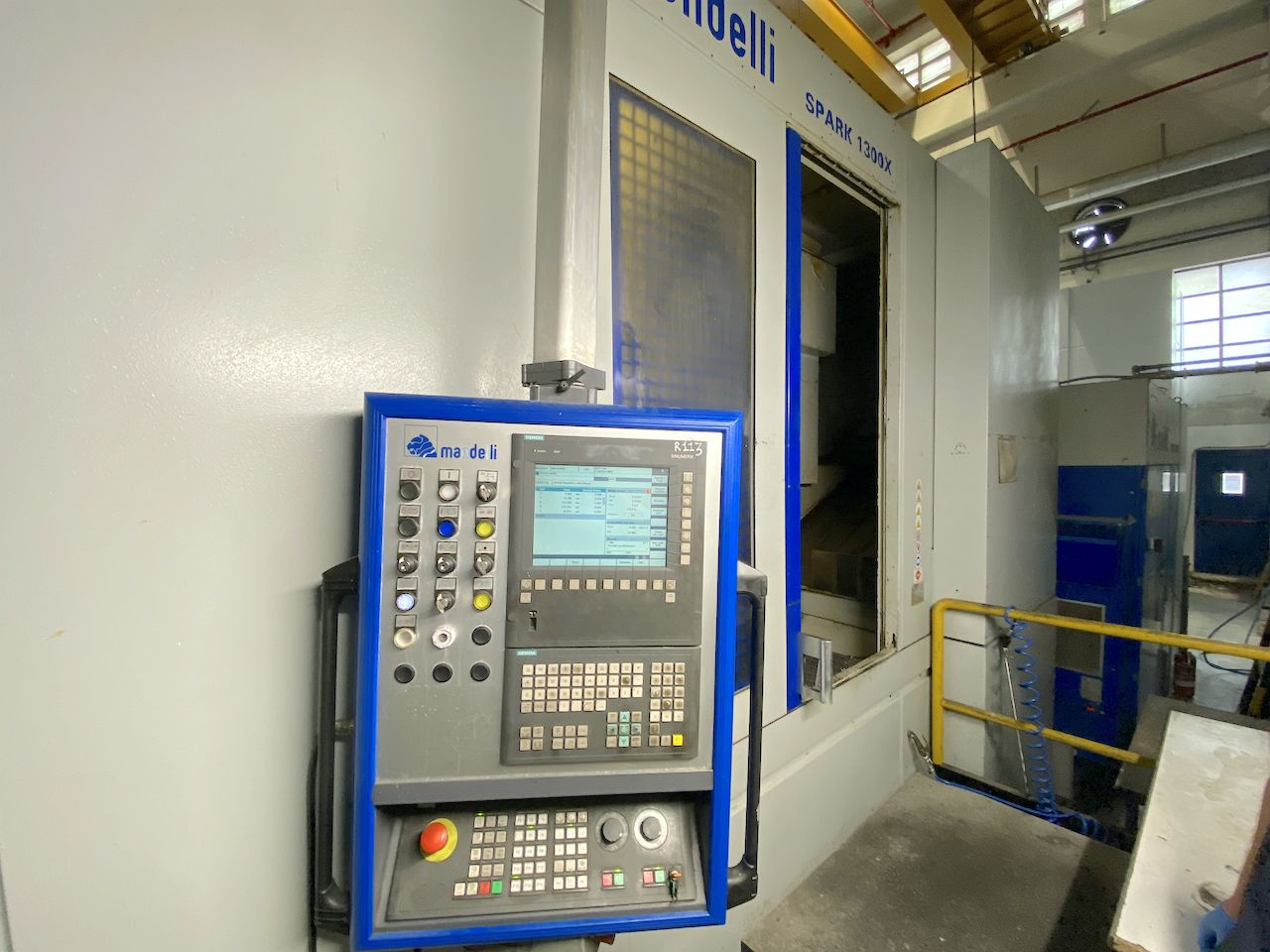

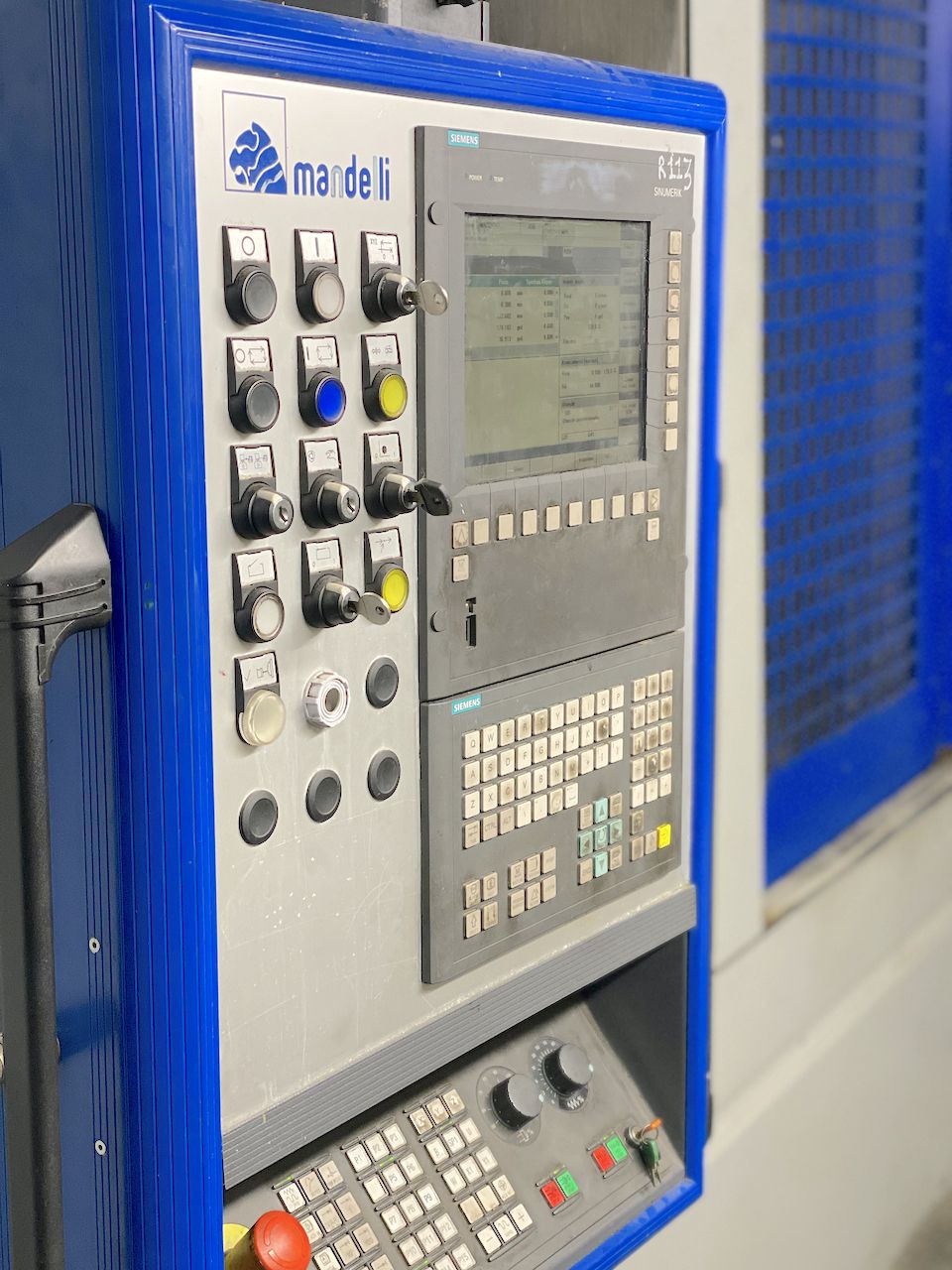

SIEMENS 840DSL
AUTO PALLET CHANGER (APC)
Pallet surface
630x800 mm24,80x31,50 in
Capacity
1500 Kg
Pallet number
2

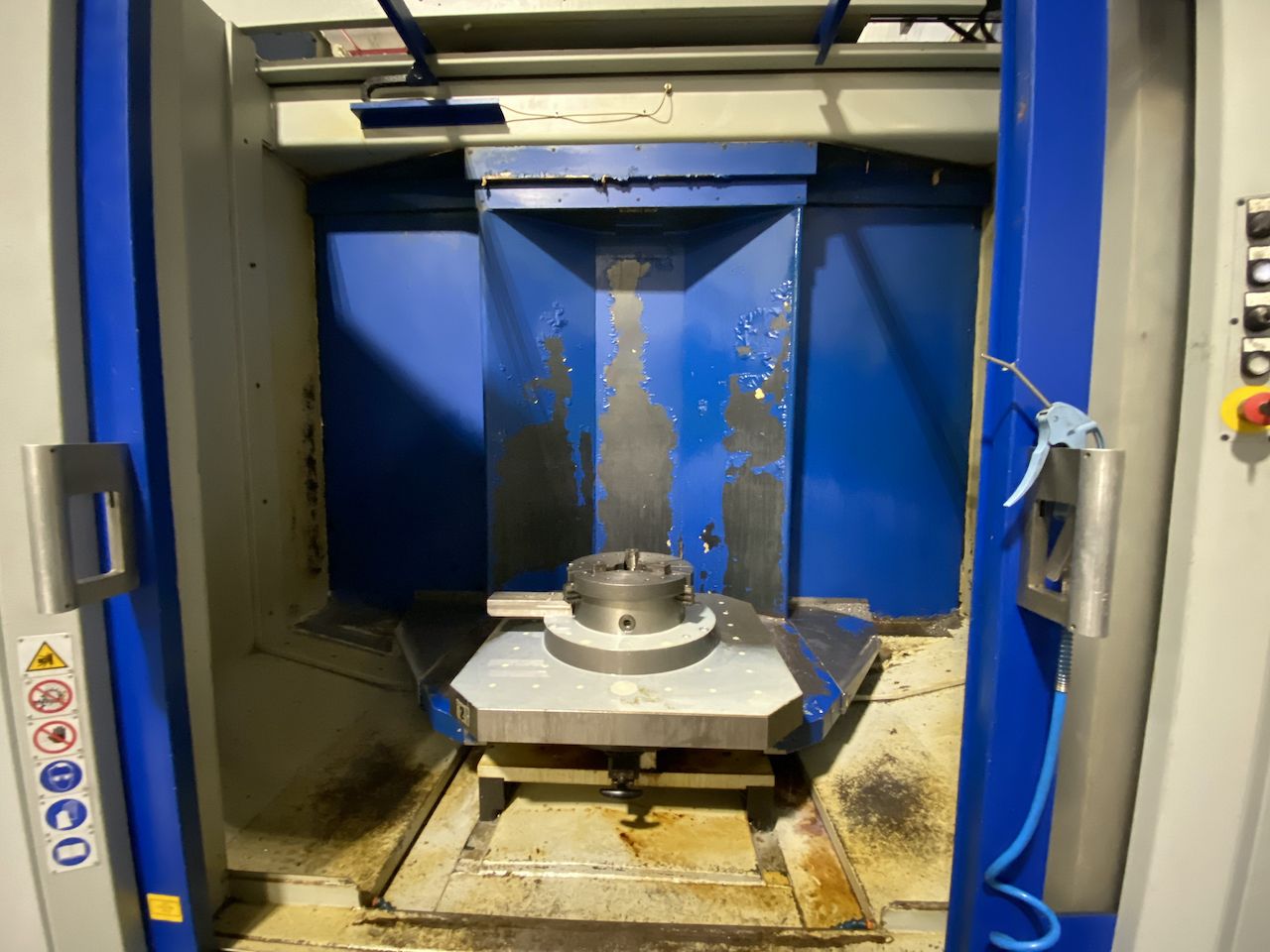

TABLE
Accuracy (B axis)
0,001 °
Capacity
1500 Kg
Floorspace (LxWxH)
800x630 mm31,50x24,80 in

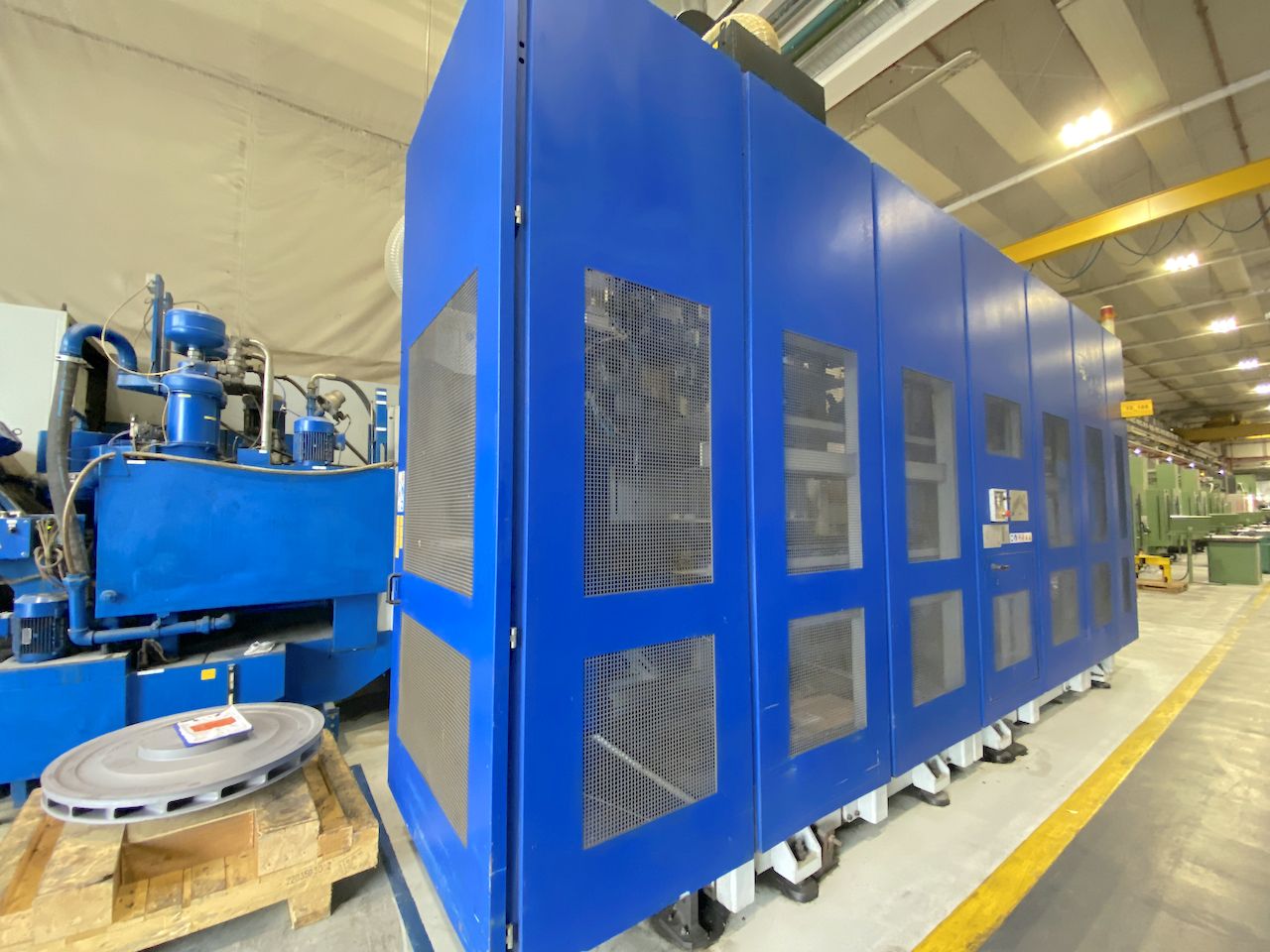

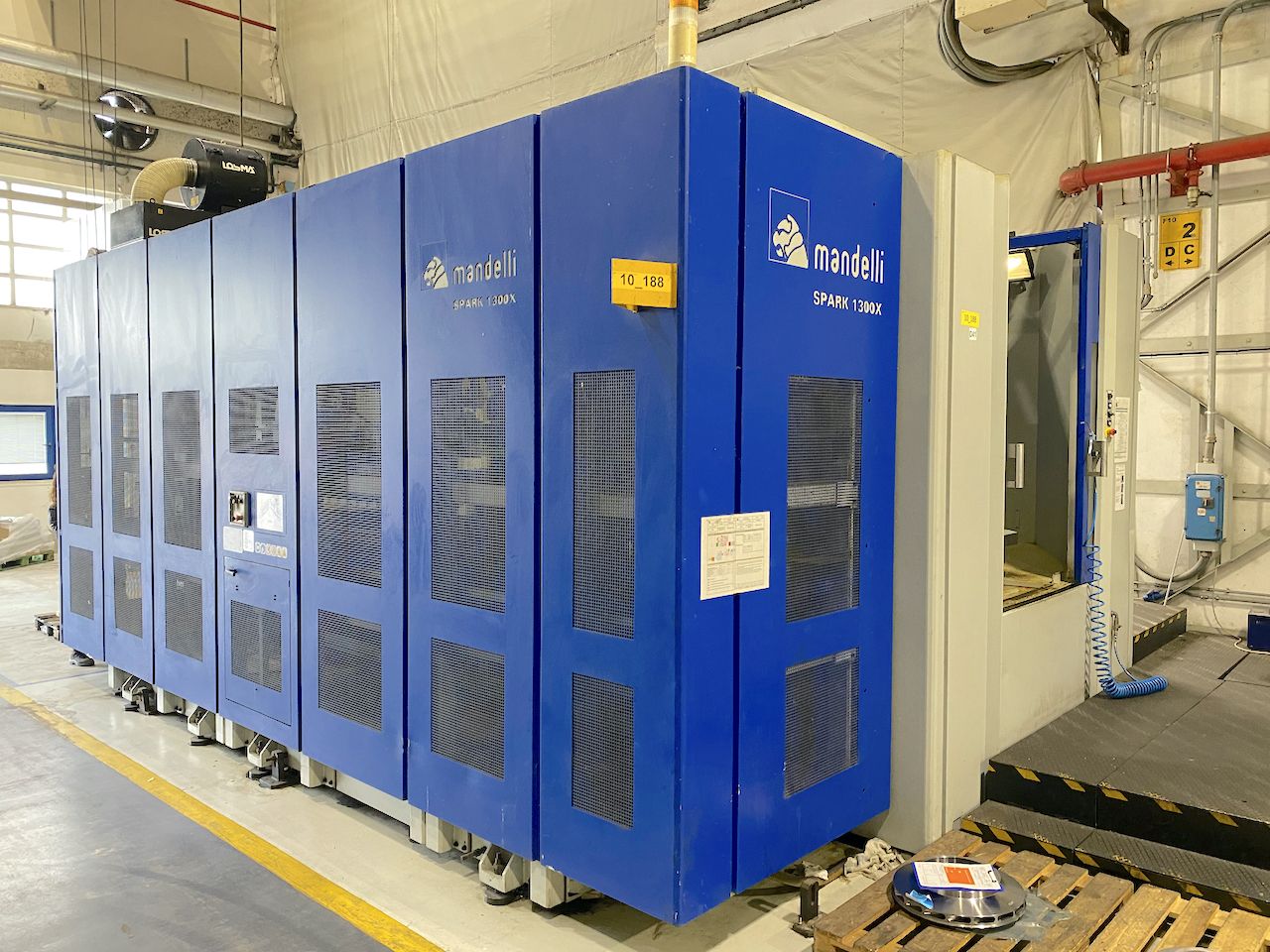

ATC
Positions
252
Max tool lenght
300/400/600 mm11,81/15,75/23,62 in
Max tool weight
30 Kg
Tool taper
ISO50
Max tool diameter
425 mm16,73 in

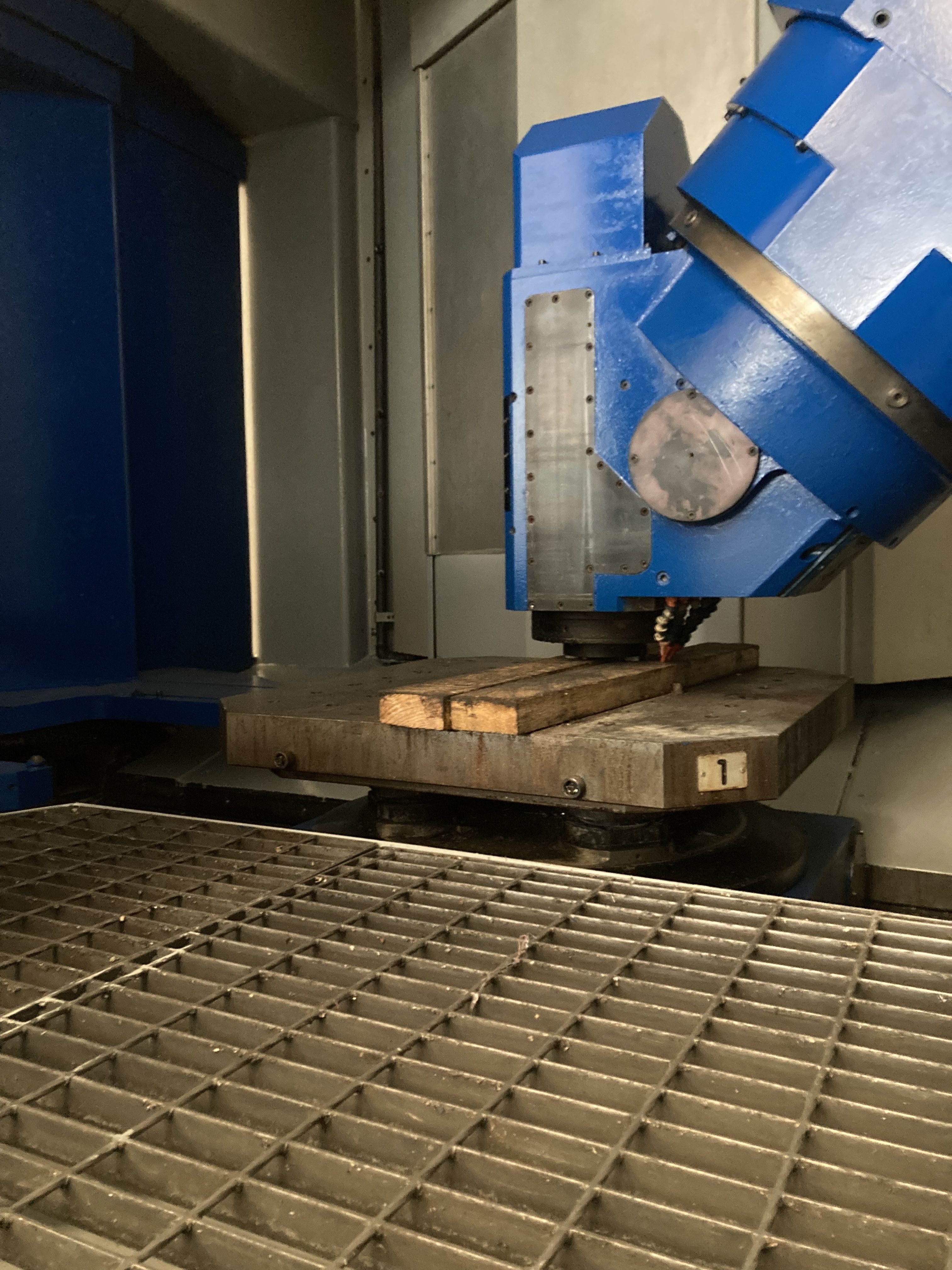

HEAD 1
Type
U63/7000
Spindle taper
ISo50
A axis
2 °
Max torque
779,4 Nm
Max speed
7000 Rpm
Max power
62 Kw
Coolant
in/out 60Bar
FEEDS
Rapid X
50 m/min1.968,50 ipm
Rapid Y
50 m/min1.968,50 ipm
Rapid Z
50 m/min1.968,50 ipm
X
50 m/min1.968,50 ipm
Y
50 m/min1.968,50 ipm
Z
50 m/min1.968,50 ipm
Axes acceleration
4 m/s2
EXTRA

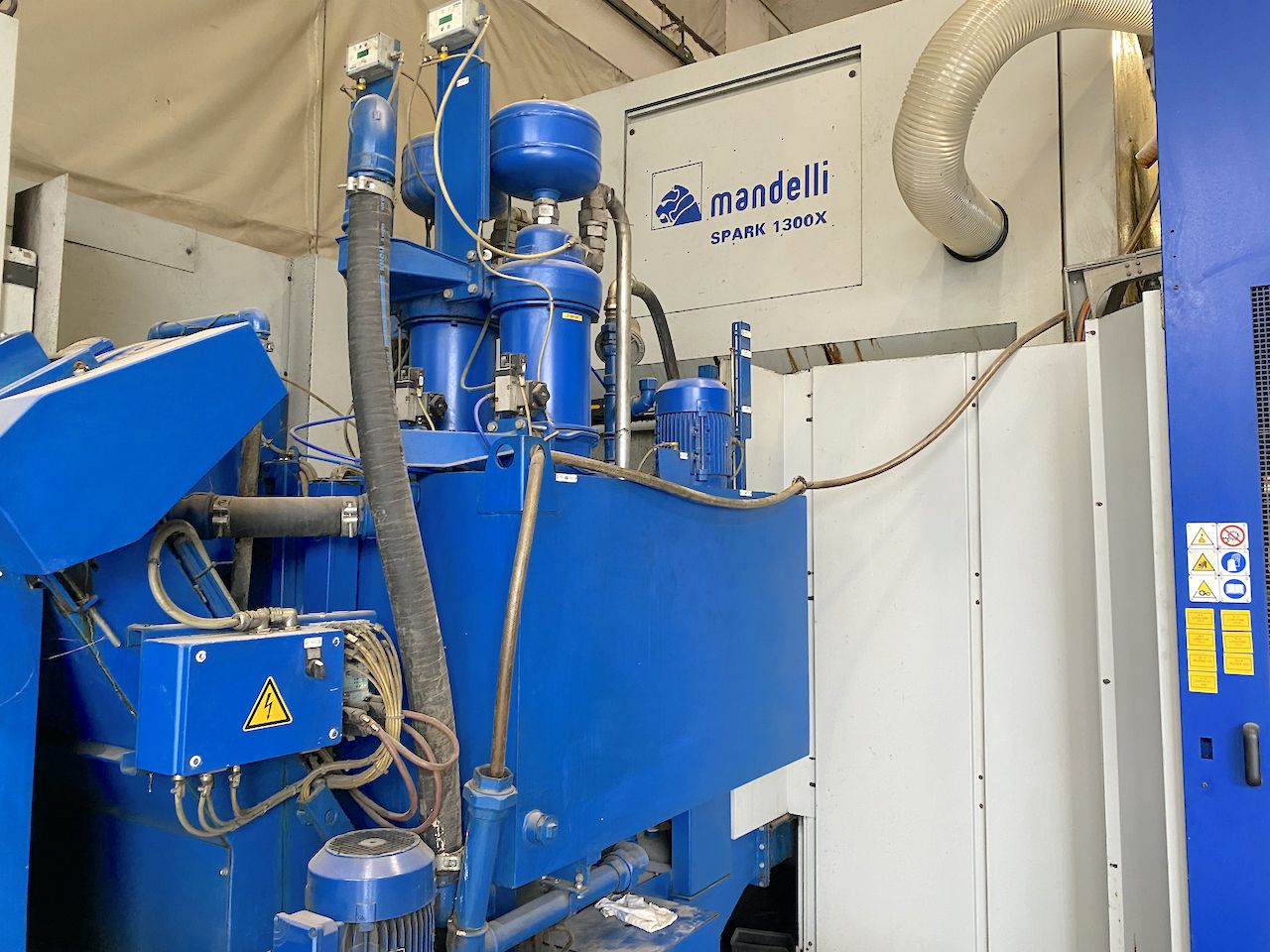

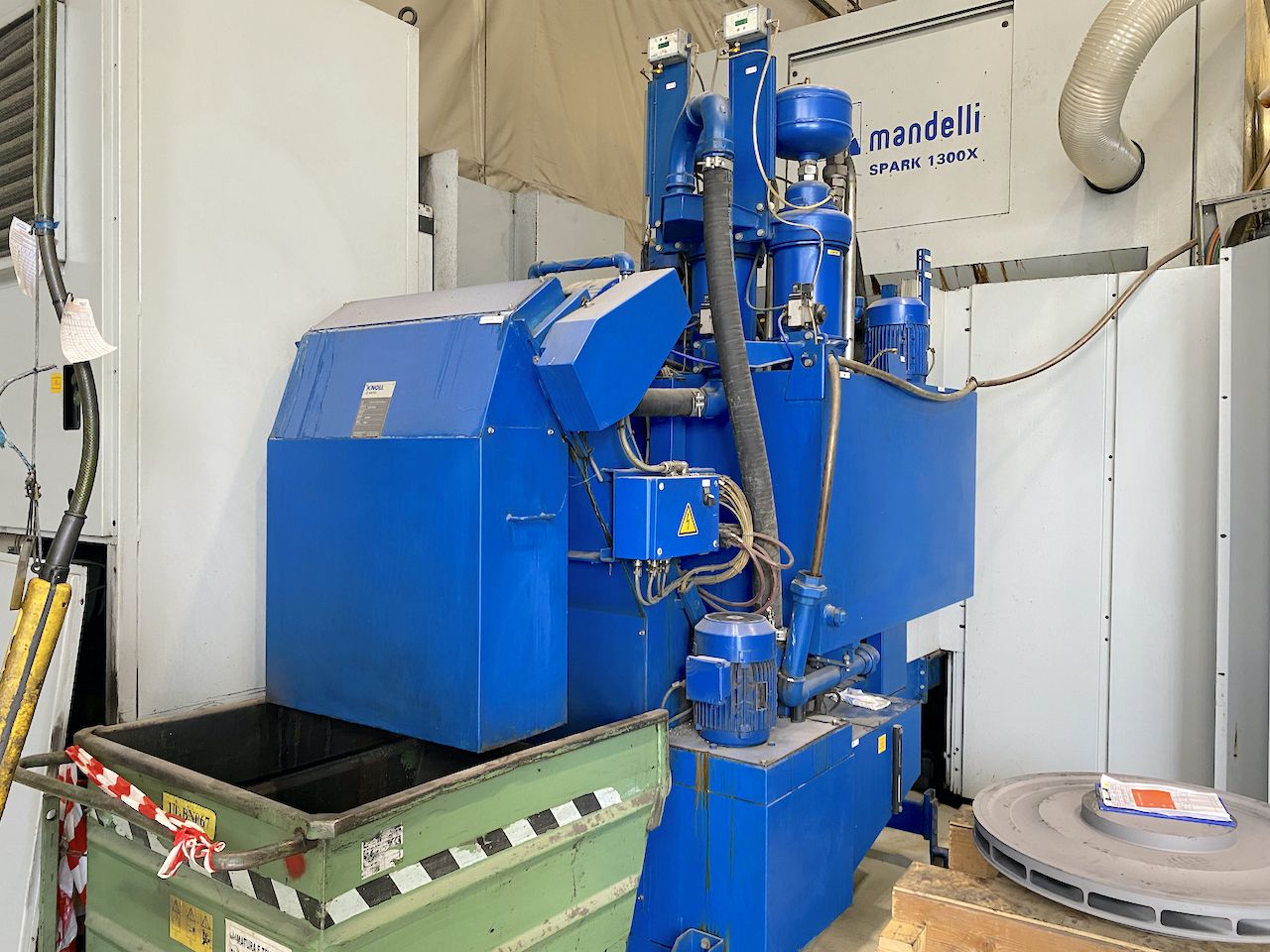

Filtration unit
si
High Pressure
60bar
Machine total weight
40000 Kg
Floor space
4200x7600x3700 mm165,35x299,21x145,67 in
