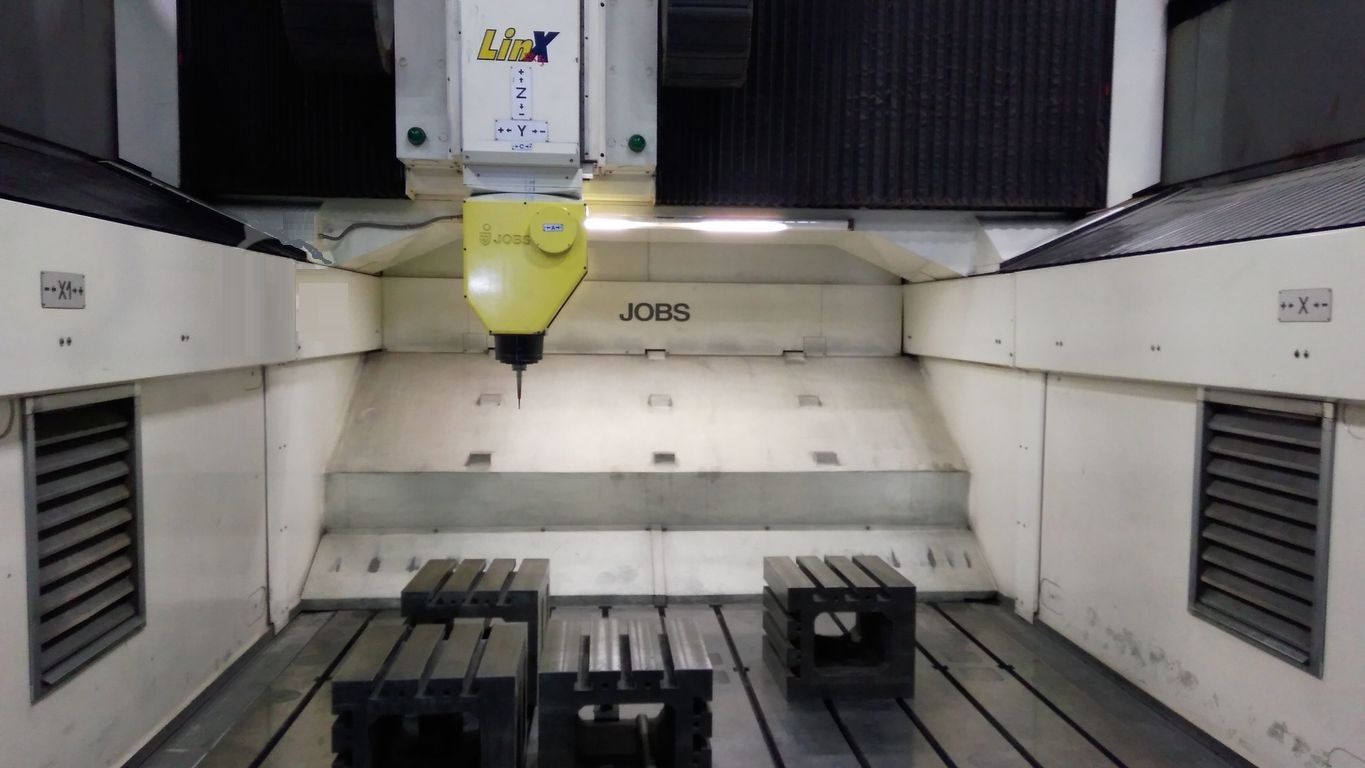

Category
Machining Centre
Type
5-Axis or more
Made
Model
LINX Blitz
Capacity
2600x2200x900 mm102,36x86,61x35,43 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
2600 mm102,36 in
Vertical (Z)
900 mm35,43 in
Cross (Y)
2200 mm86,61 in
Head rotation (C )
continua 400.000x0,001 (+/-200) °
Head tilting (A)
continua 210.000x0,001 (+90/-120) °
Axes support
Linear Motors
Distance between columns
3010 mm118,50 in
Notes
Automatic grease lubrification of linear guides, hydraulical balancing of vertical stroke
CNC
CNC

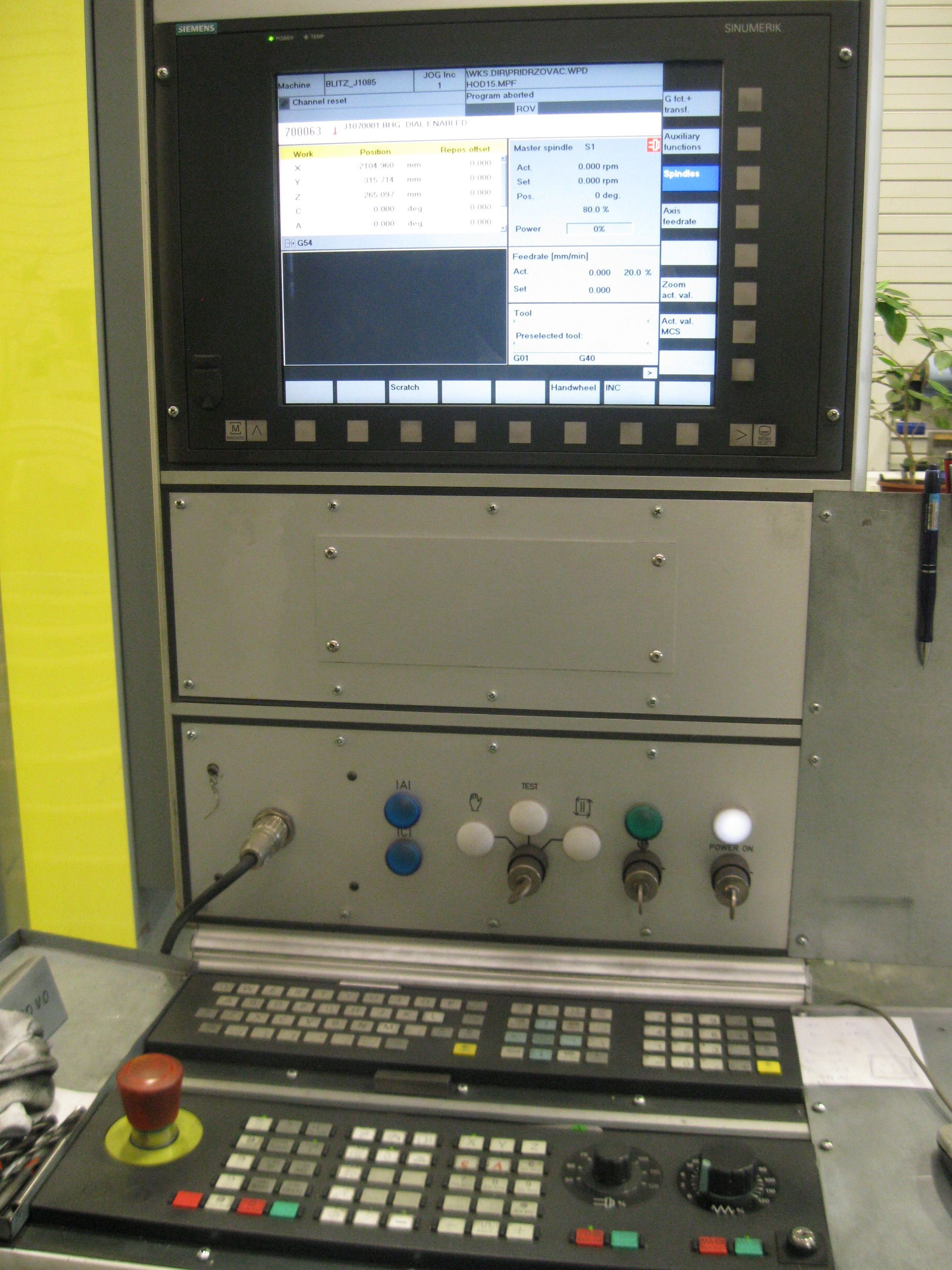

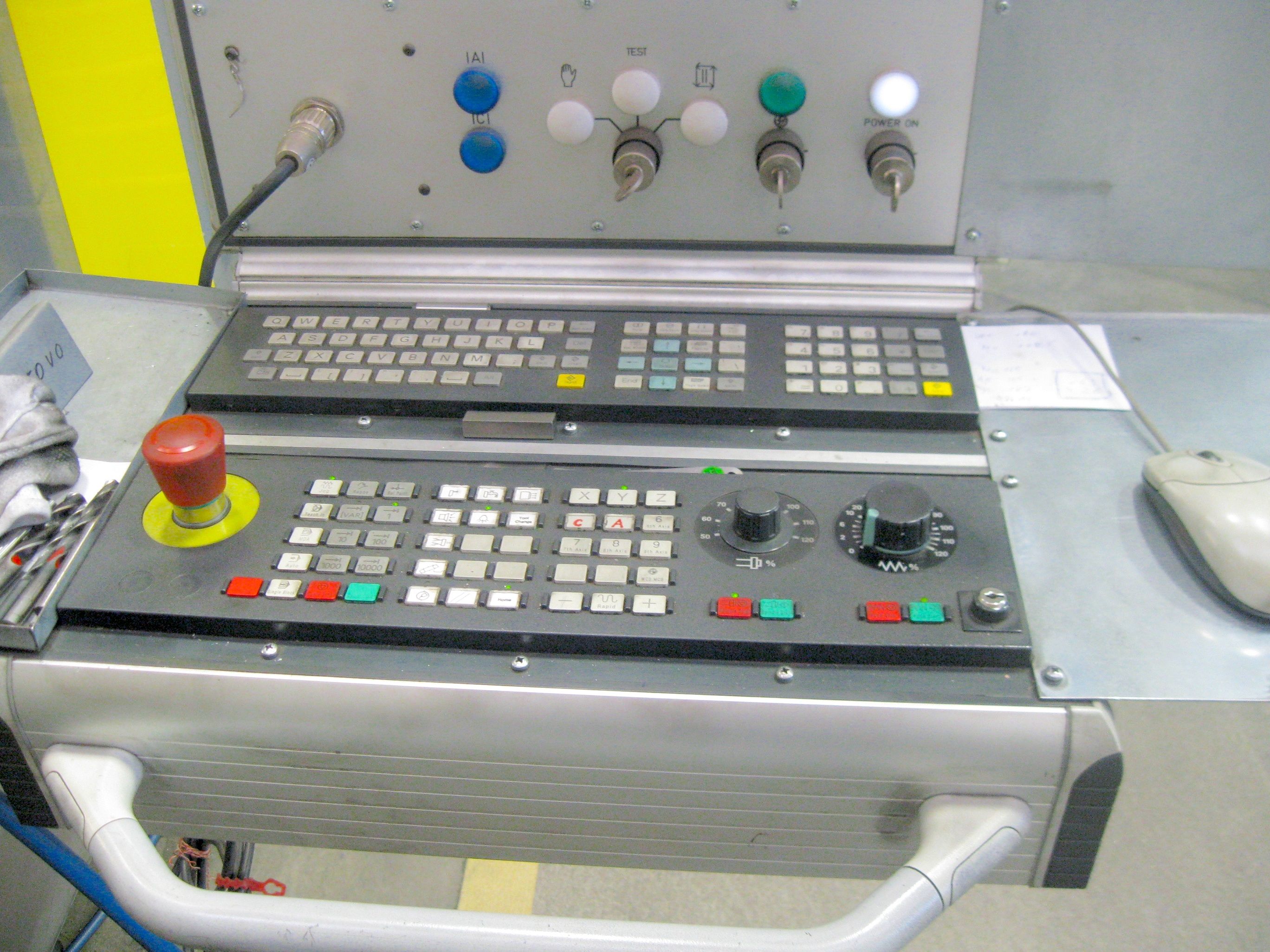

Siemens Sinumerik 810D
Drives
Siemens
Measuring system
Pressurized linear scales
SPINDLE
Spindle power
29 Kw
Rotating speed
24.000 Rpm
Torque
42 Nm
Taper
HSK63A
Spindle transmission
Electrospindle
Notes

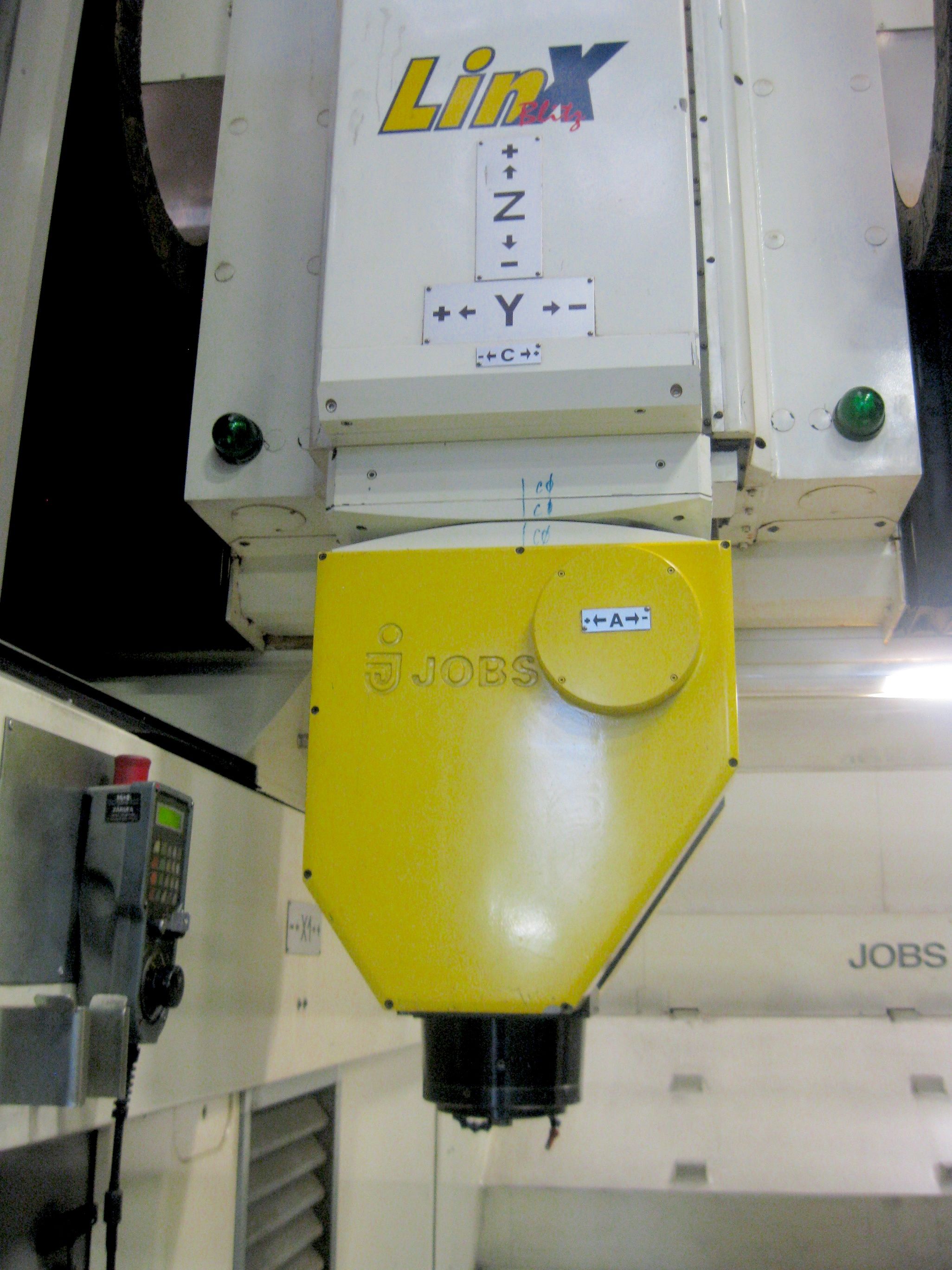

T3B head
FEEDS
Rapid X
70 m/min2.755,90 ipm
Rapid Y
70 m/min2.755,90 ipm
Rapid Z
70 m/min2.755,90 ipm
A
180 °/sec
C
180 °/sec
Axes acceleration
7 m/s2

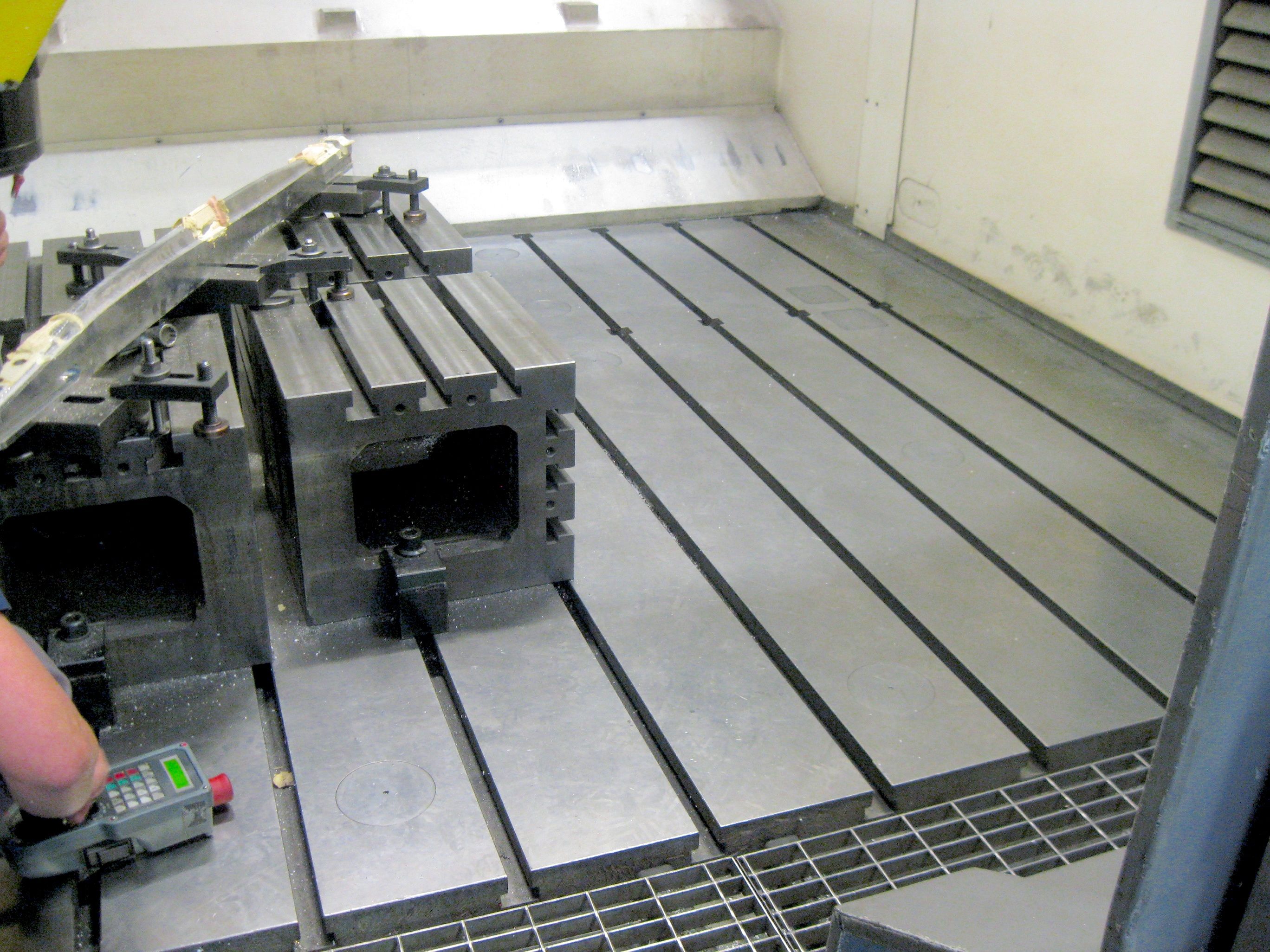

TABLE
Floorspace (LxWxH)
2680x2830x300 mm105,51x111,42x11,81 in
Capacity
5.000 kg/mq - 37.000 Kg
EXTRA
Machine total weight
33600 Kg
Tooling included
25 hot clamps (different sizes), 1 weldon size 25, 3 HSK various, 2 for modular, 1 for drilling head, 4 for collet head, clamps for toroids, clamps for milling cutters
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes
Housing
full housing
Availability
immediate
Available under power
yes
Relevant updates made on the machine
new spindle in 2017, standard mantainance
Floor space
8170x8220x3900 mm321,65x323,62x153,54 in
Total power supply
180KVA / 400V (+/-10%) Kw
