Category
Machining Centre
Type
5-Axis or more
Made
Model

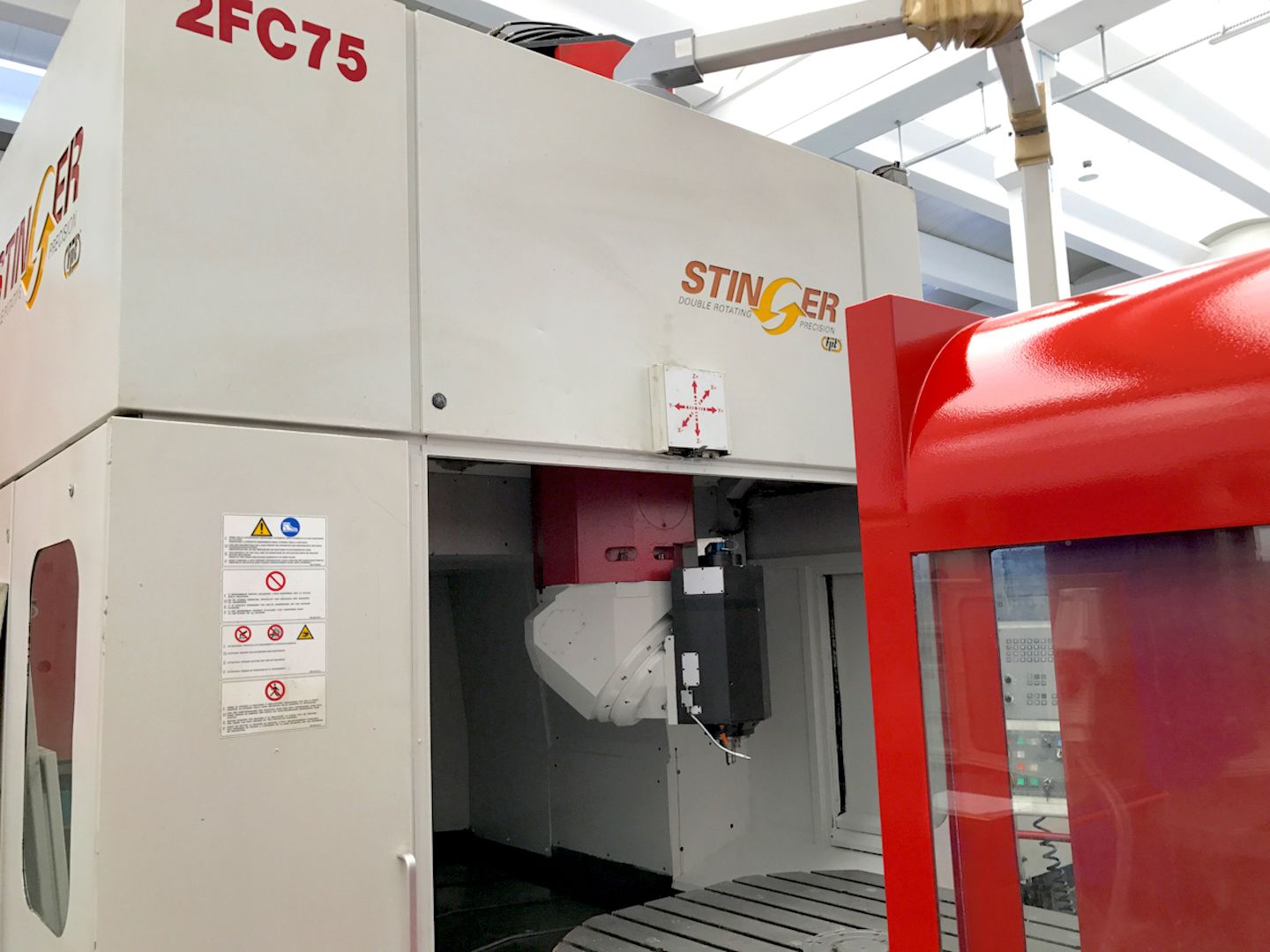

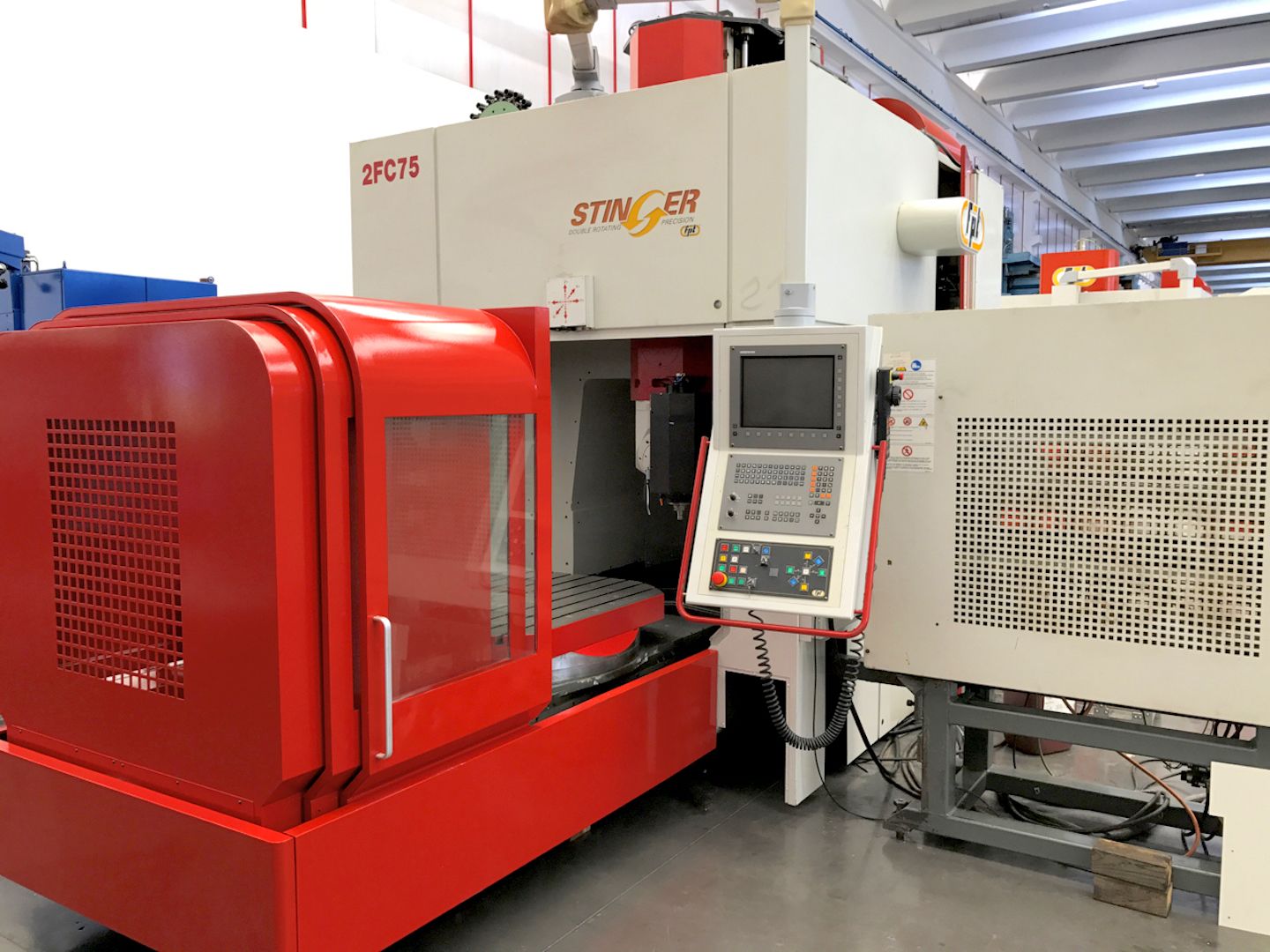

STINGER
Capacity
1750x1400x600 mm68,90x55,12x23,62 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
1750 mm68,90 in
Vertical (Z)
600 mm23,62 in
Cross (Y)
1400 mm55,12 in
Head tilting (A)
0,001 °
Swing capacity
ø1430 mmø56,30 in
Table rotation (B)
360.000x0,001 °

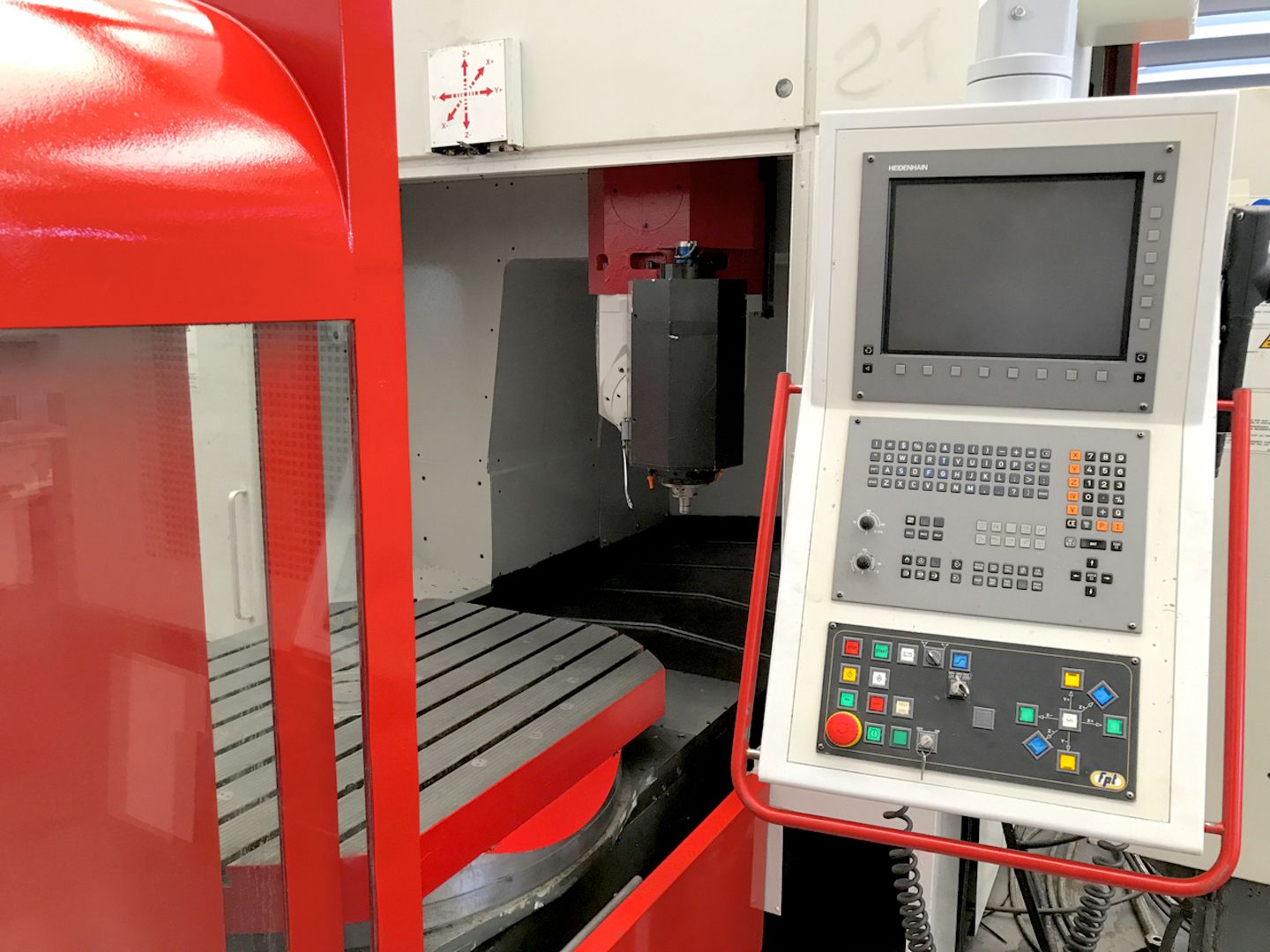

CNC
CNC
Heidenhain iTNC530
Drives
Siemens
Measuring system
Righe Ottiche

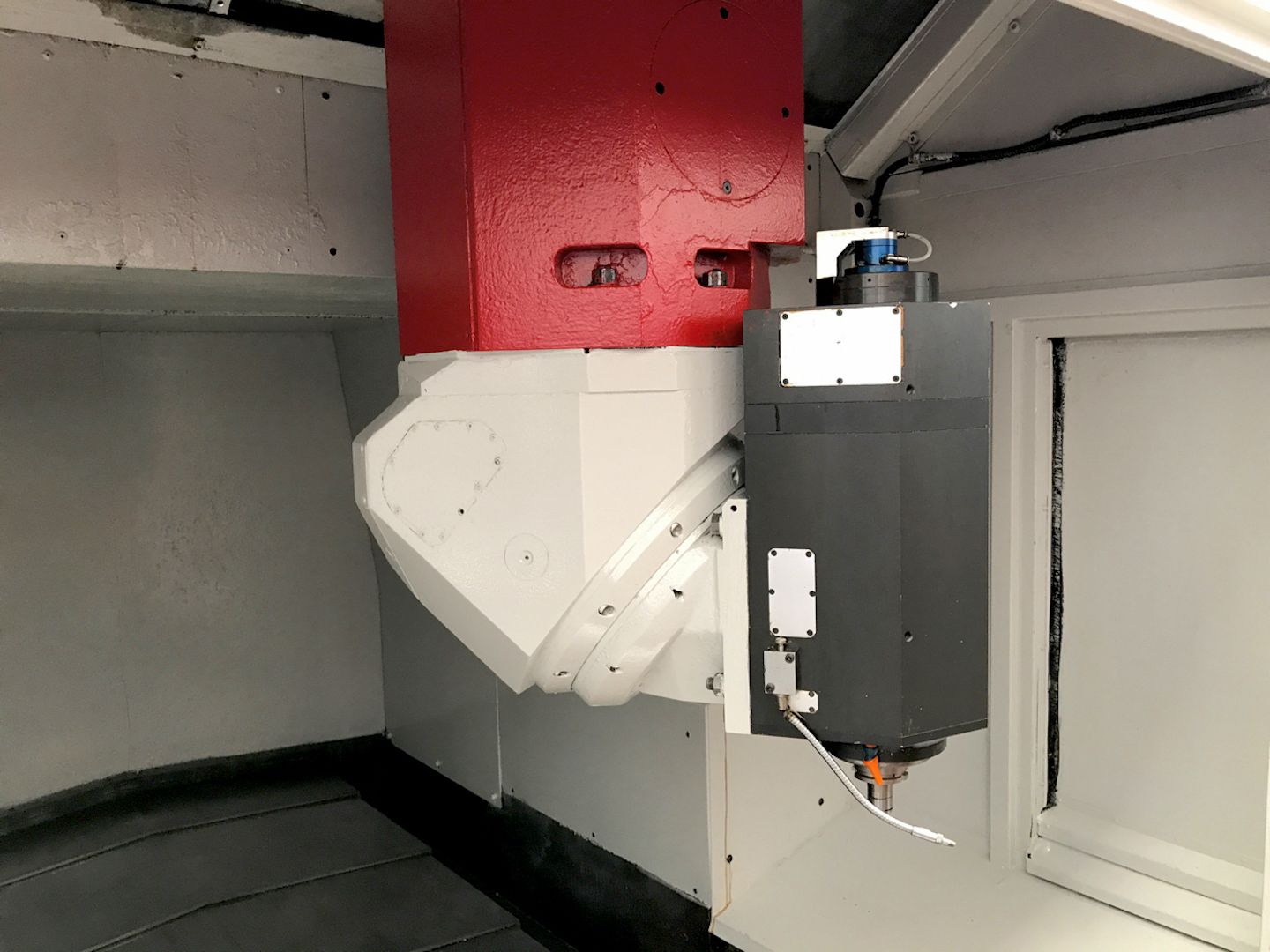

SPINDLE
Spindle power
18,5/26 Kw
Rotating speed
18000 Rpm
Torque
105 Nm
Taper
HSK A63
Internal coolant
20 Bar
Spindle transmission
Elettromandrino
FEEDS
Rapid X
35 m/min1.377,95 ipm
Rapid Y
35 m/min1.377,95 ipm
Rapid Z
35 m/min1.377,95 ipm
Notes
accelerazione 6m/sec^2
Axes acceleration
6 m/s2

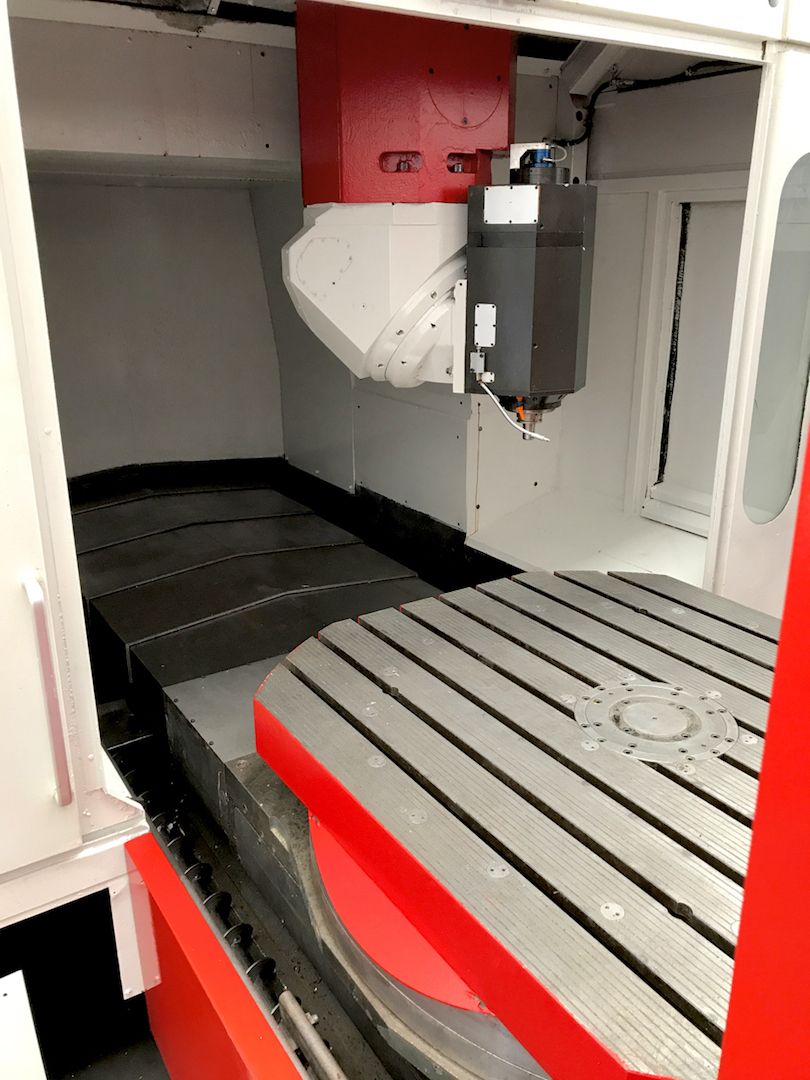

TABLE
Floorspace (LxWxH)
1200x1000 mm47,24x39,37 in
Capacity
5000 Kg
Accuracy (B axis)
0,001 °

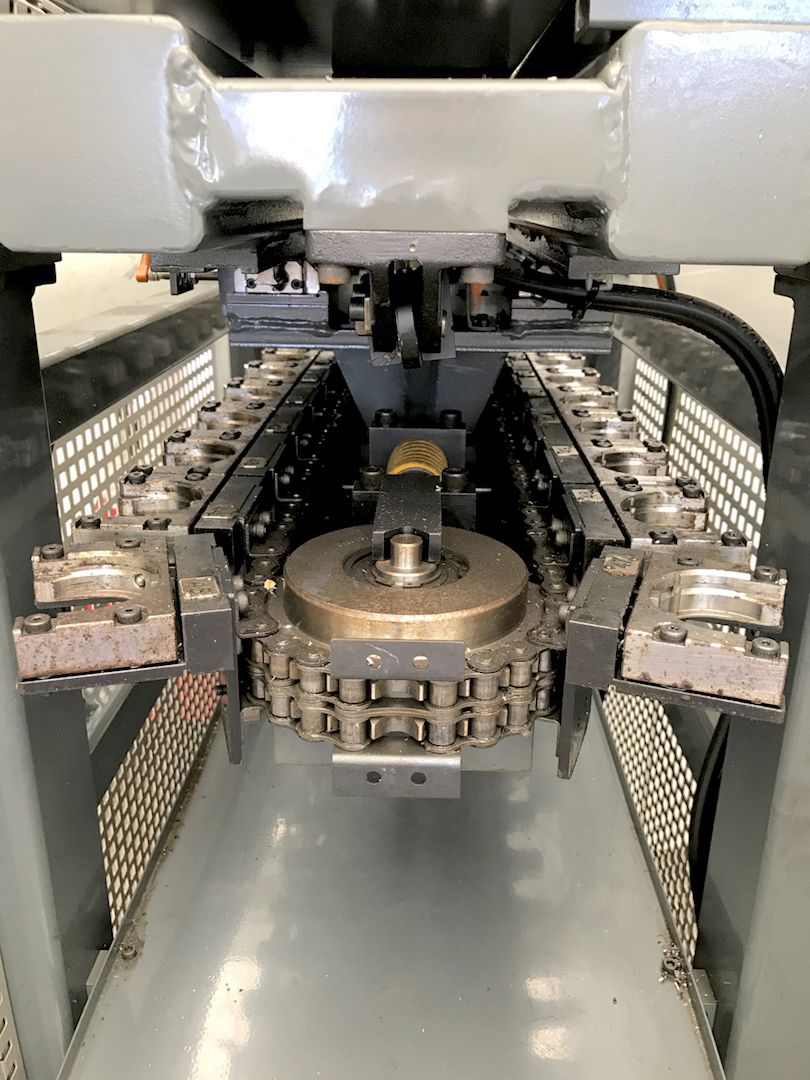

ATC
Positions
60
Tool taper
30 HSK63 + 30 HSK40
Max tool diameter
70 mm2,76 in
Max tool lenght
300 mm11,81 in
Max tool weight
10 Kg
EXTRA
Floor space
6000x4000x3850 mm236,22x157,48x151,57 in
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes
Housing
integrale

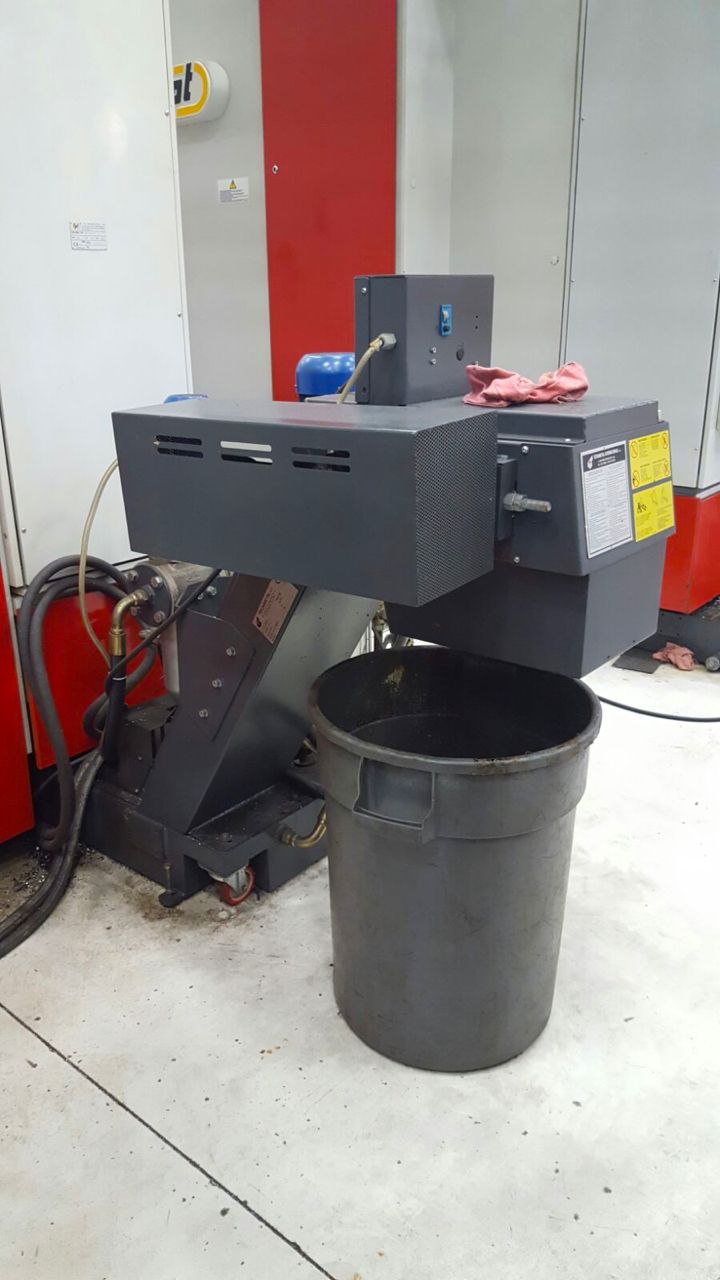

Filtration unit
si
Tool presetter
si
Availability
pronta
Available in stock
si
High Pressure
si
Total power supply
67 Kw
Machine total weight
≈21.000 Kg
Tooling included
Evacuatore truciolo, alta pressione 20Bar, presetting laser
Available under power
si
