Category
Machining Centre
Type
5-Axis or more
Made
Model

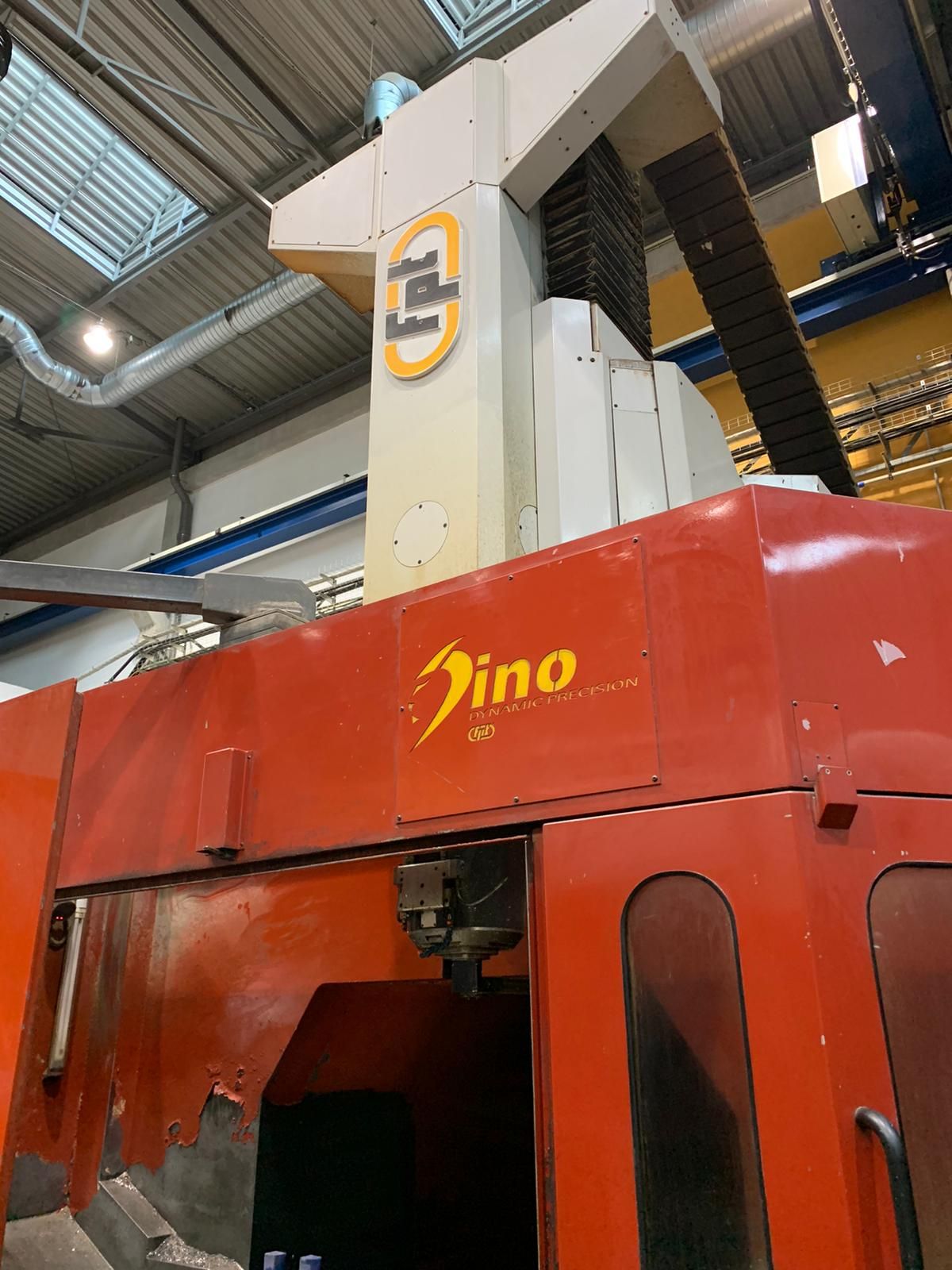

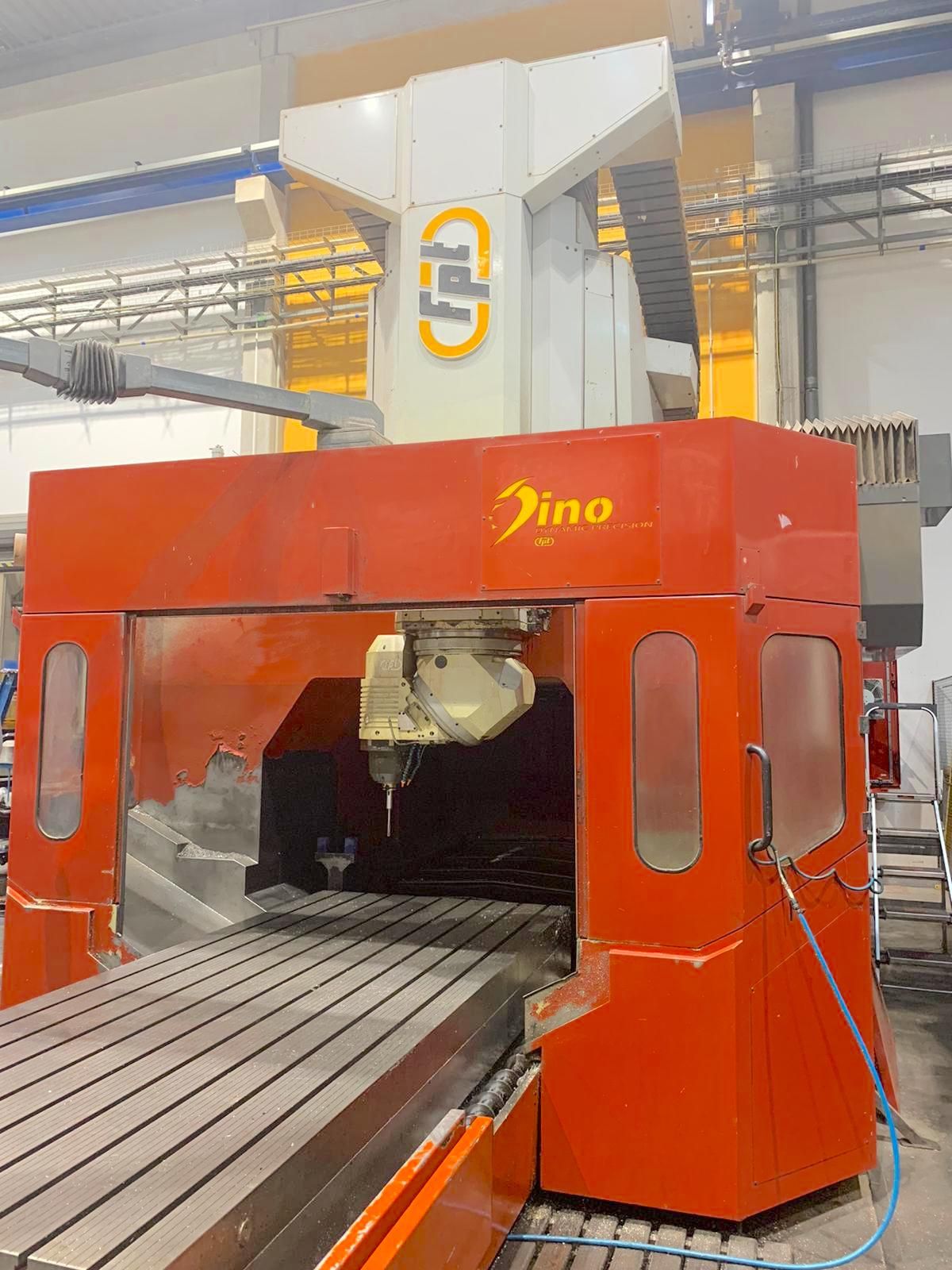

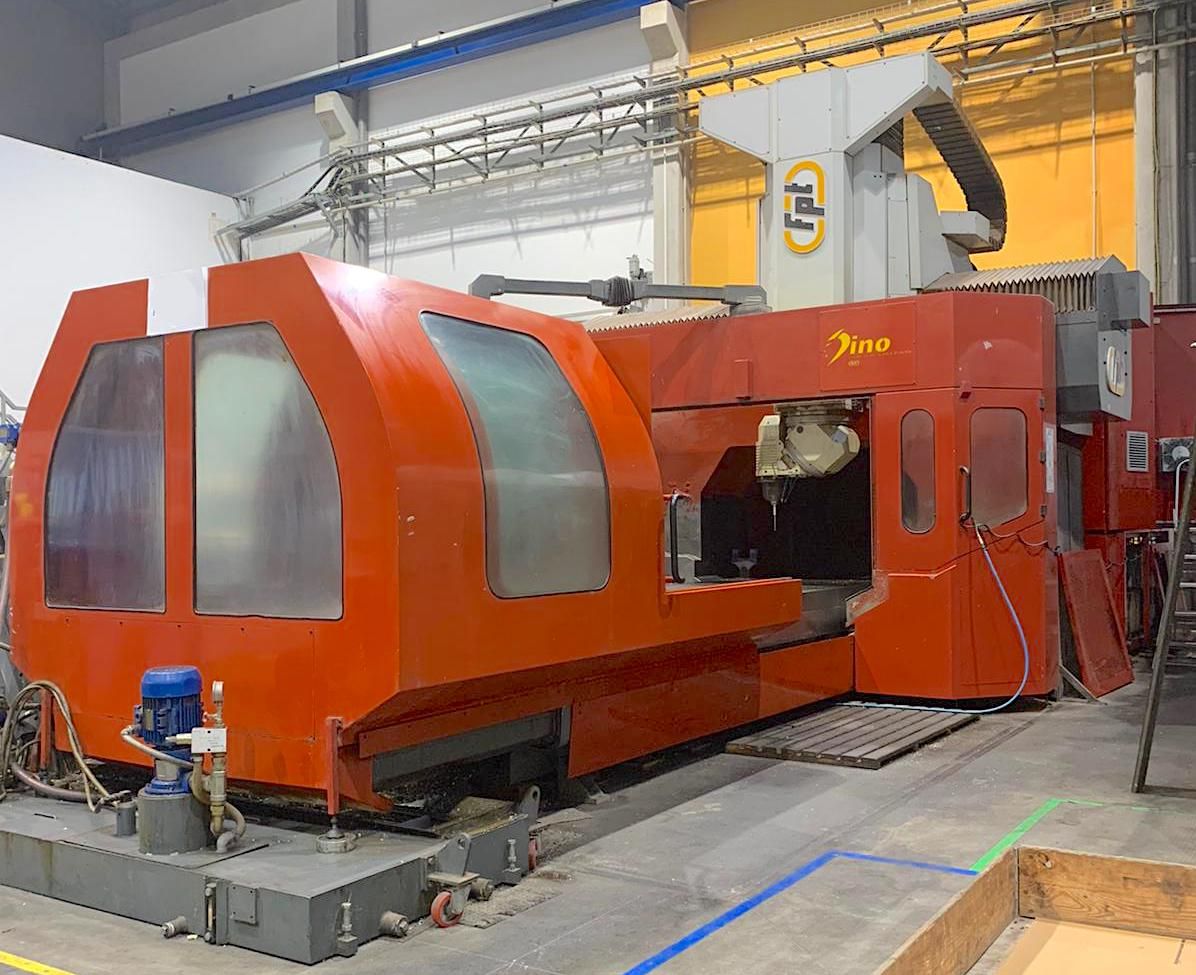

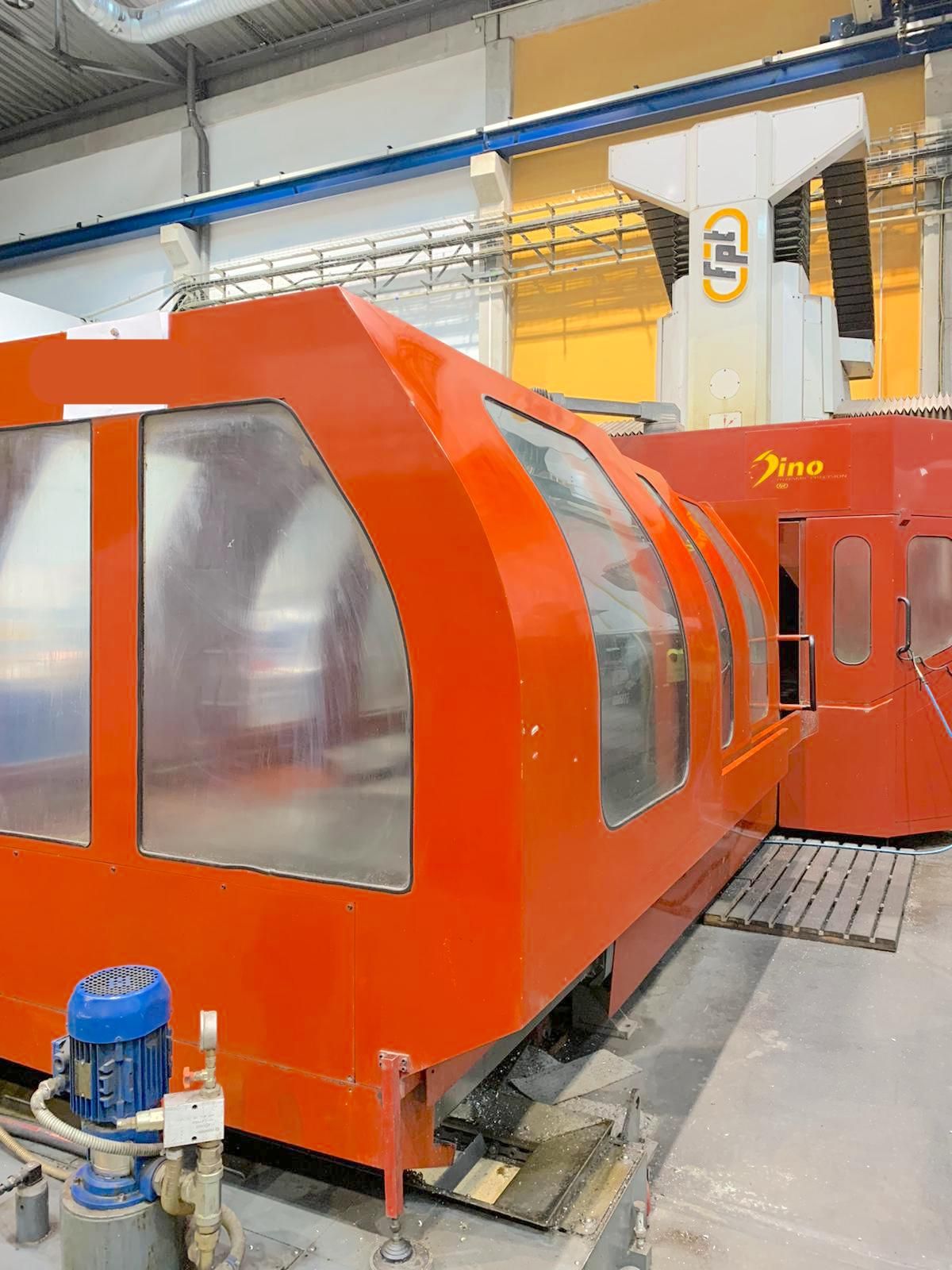

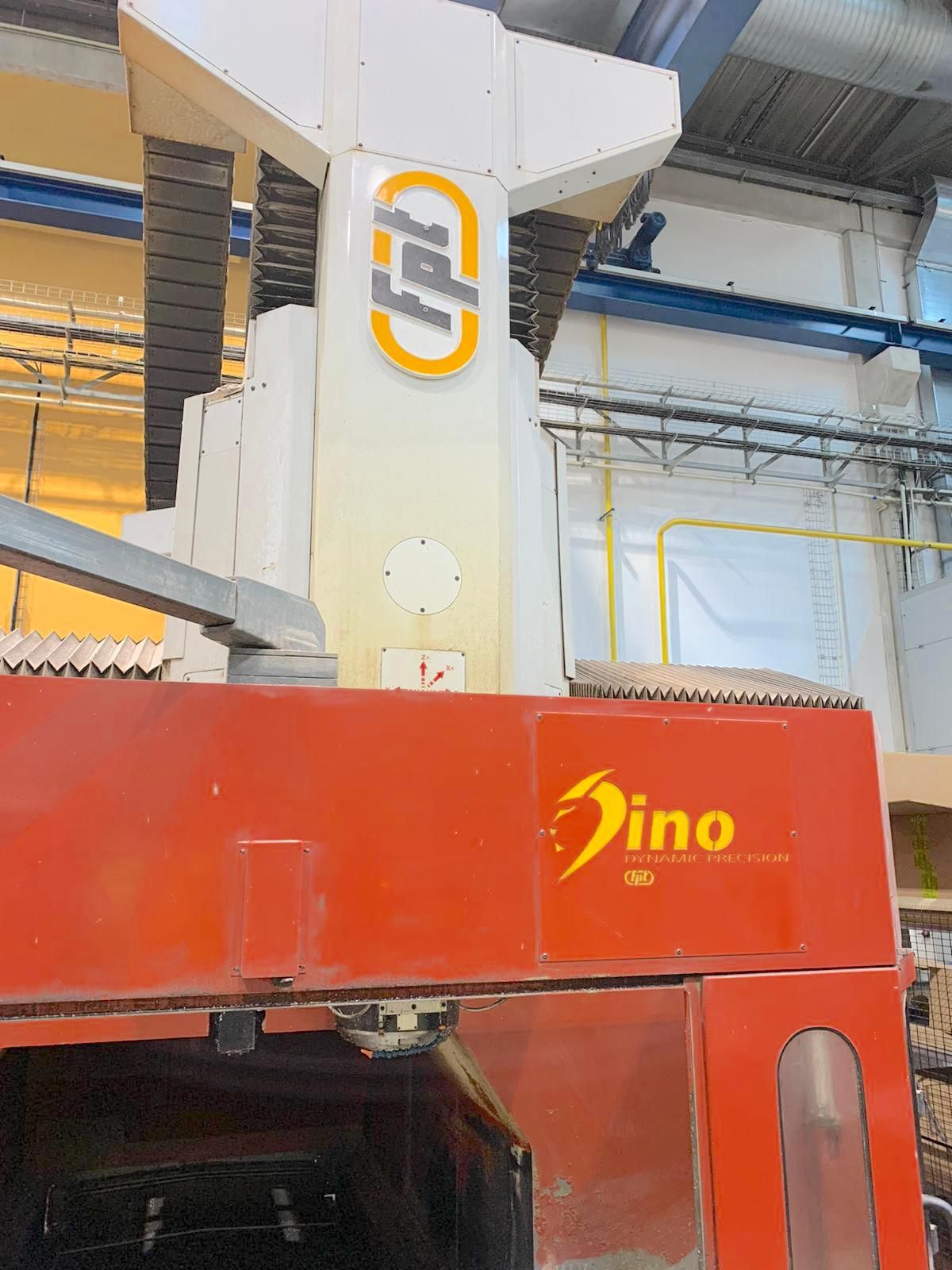

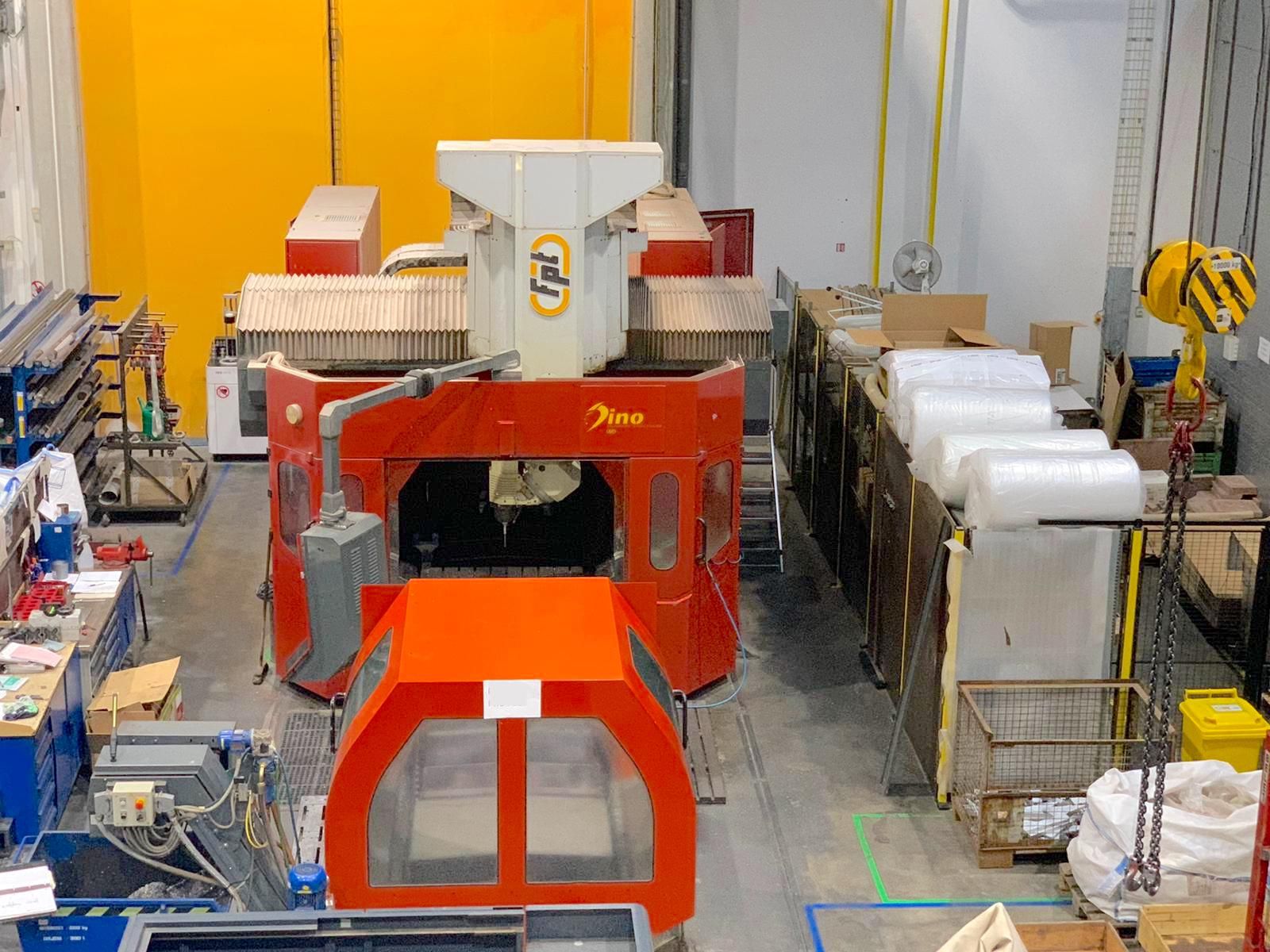

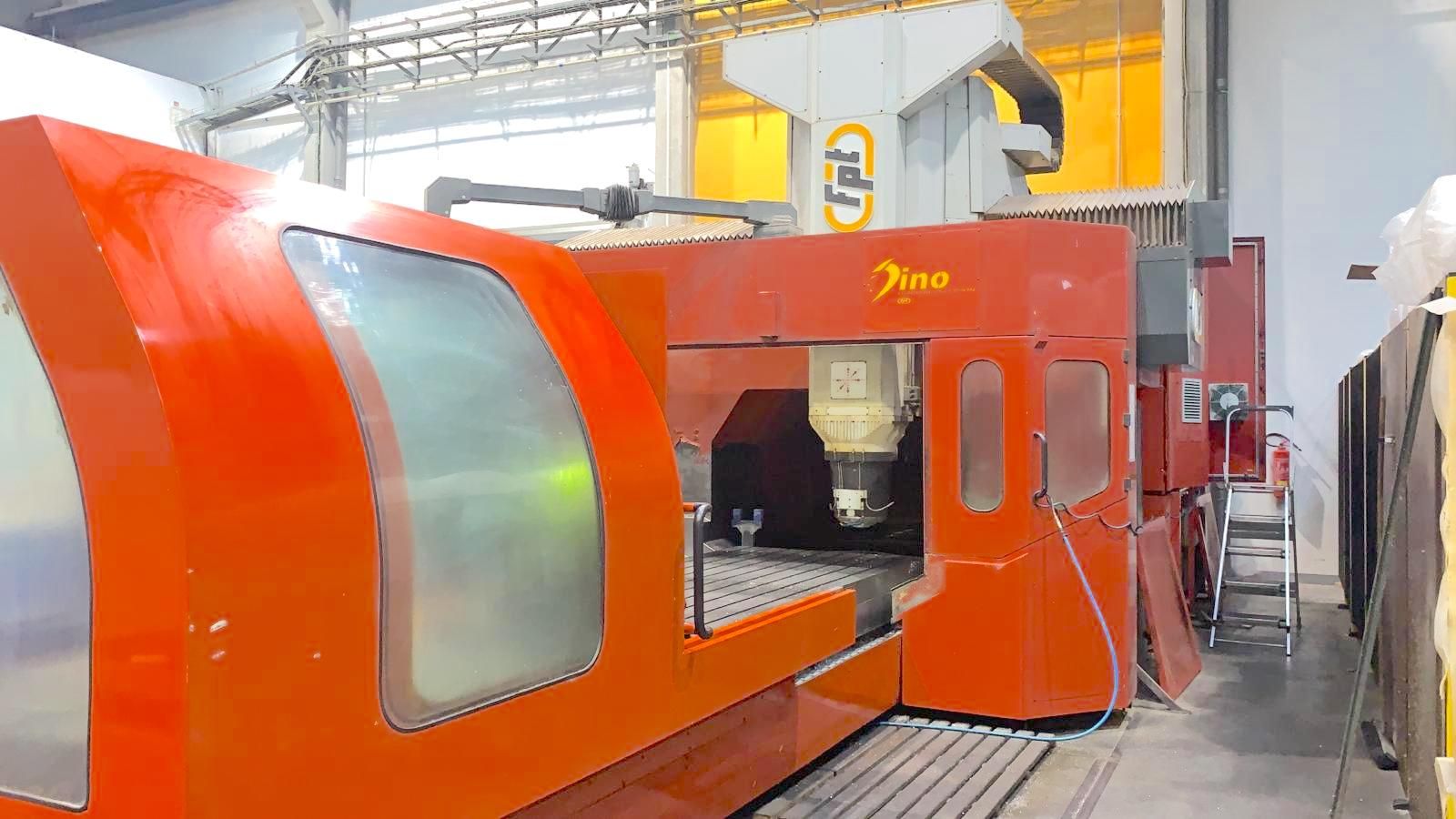

DINO
Capacity
2800x2200x800 mm110,24x86,61x31,50 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
2800 mm110,24 in
Vertical (Z)
800 mm31,50 in
Cross (Y)
2200 mm86,61 in
Distance between columns
1672 mm65,83 in

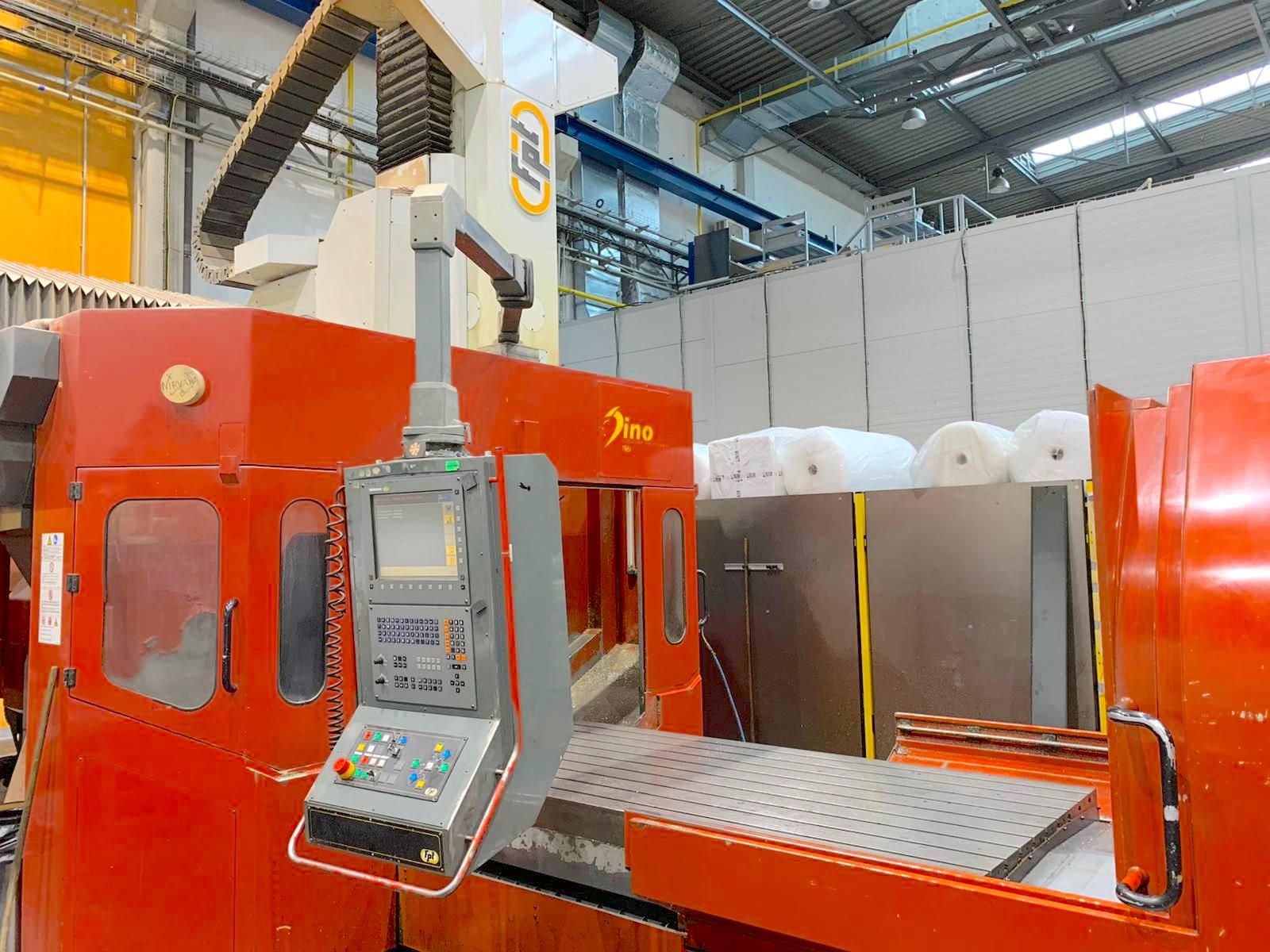

CNC
CNC
Heidenhain 530
FEEDS
Rapid X
35 m/min1.377,95 ipm
Rapid Y
35 m/min1.377,95 ipm
Rapid Z
35 m/min1.377,95 ipm

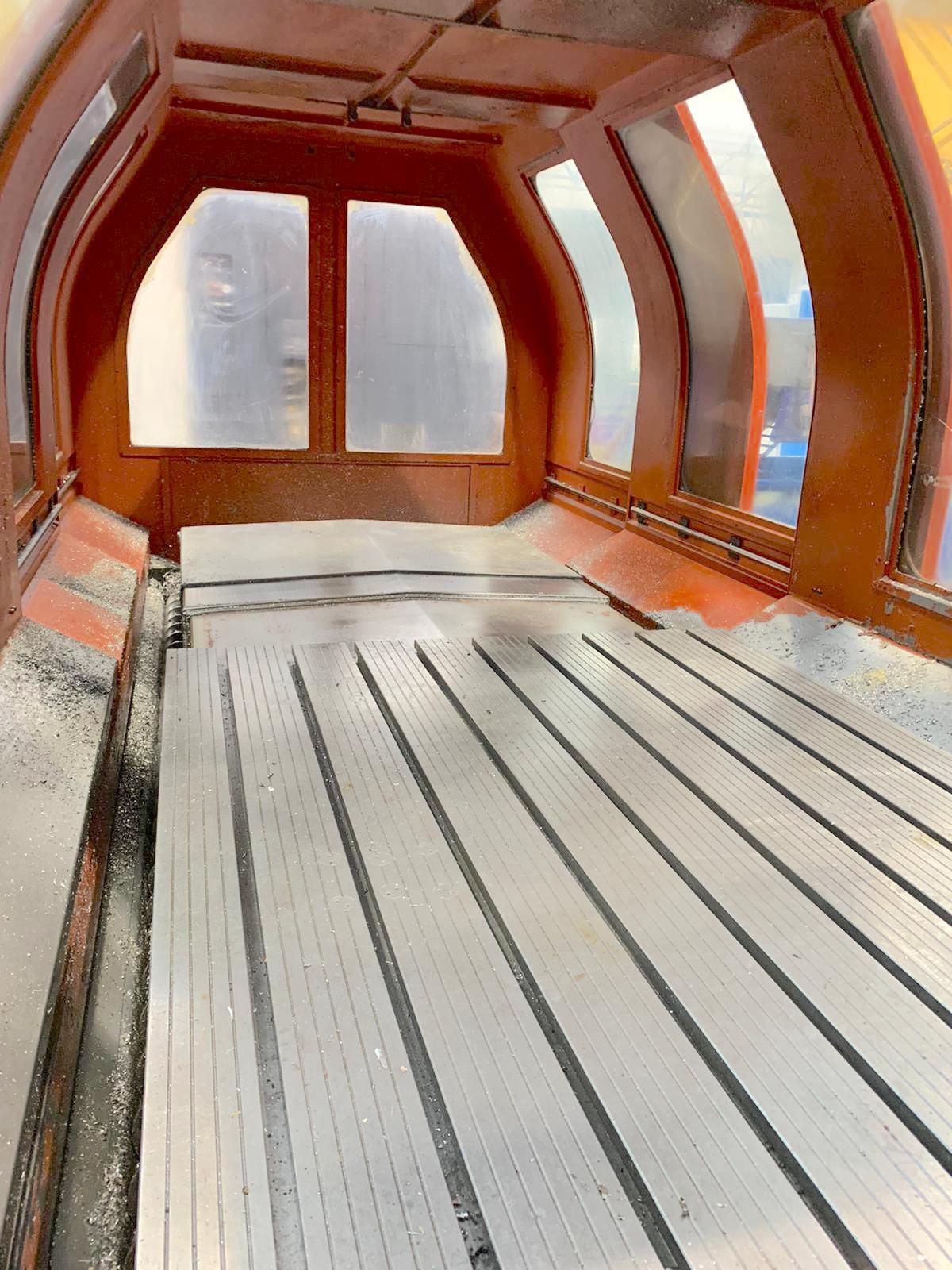

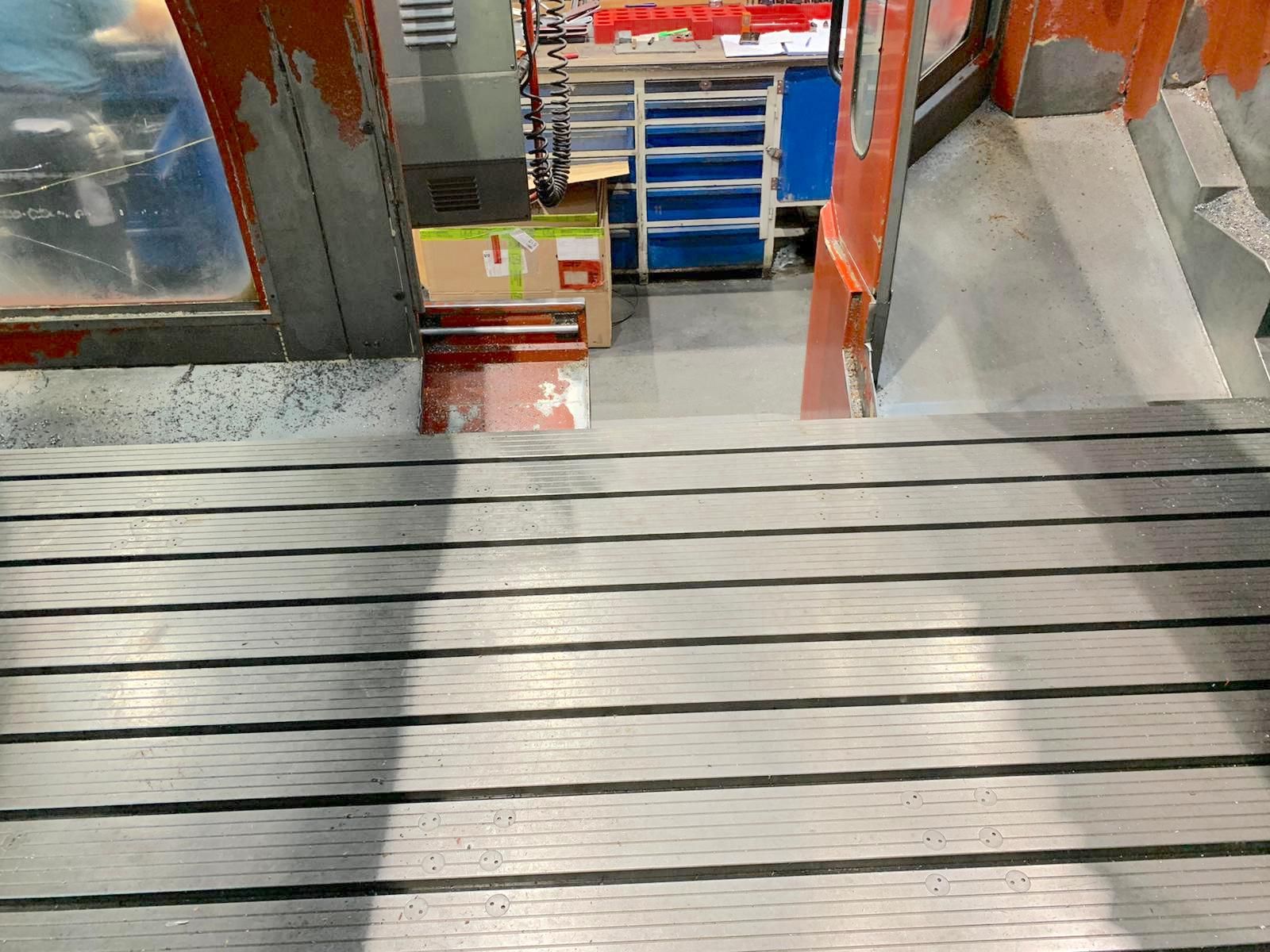

TABLE
Floorspace (LxWxH)
3000x1200 mm118,11x47,24 in
Capacity
8000 Kg
ATC
Positions
40

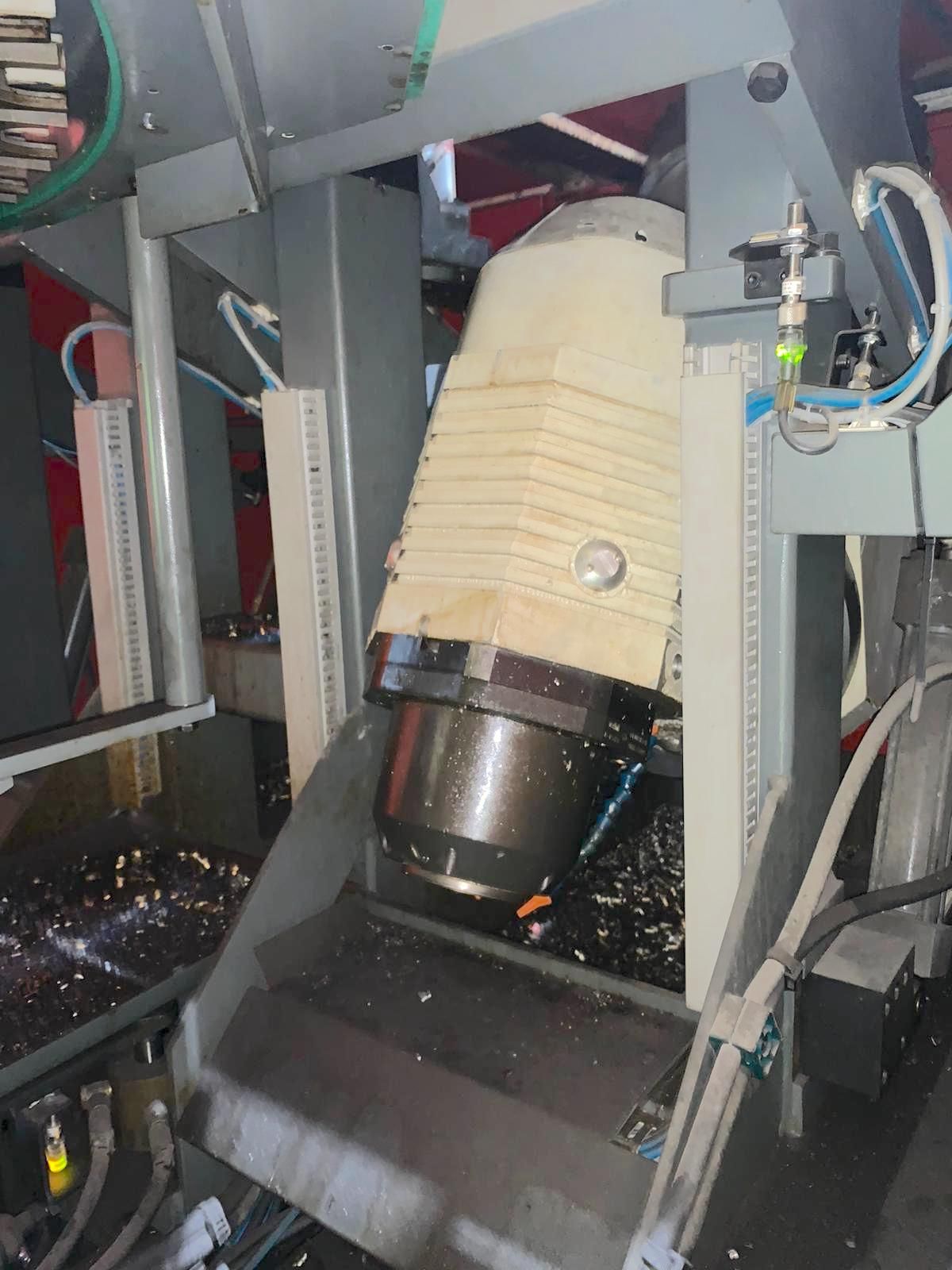

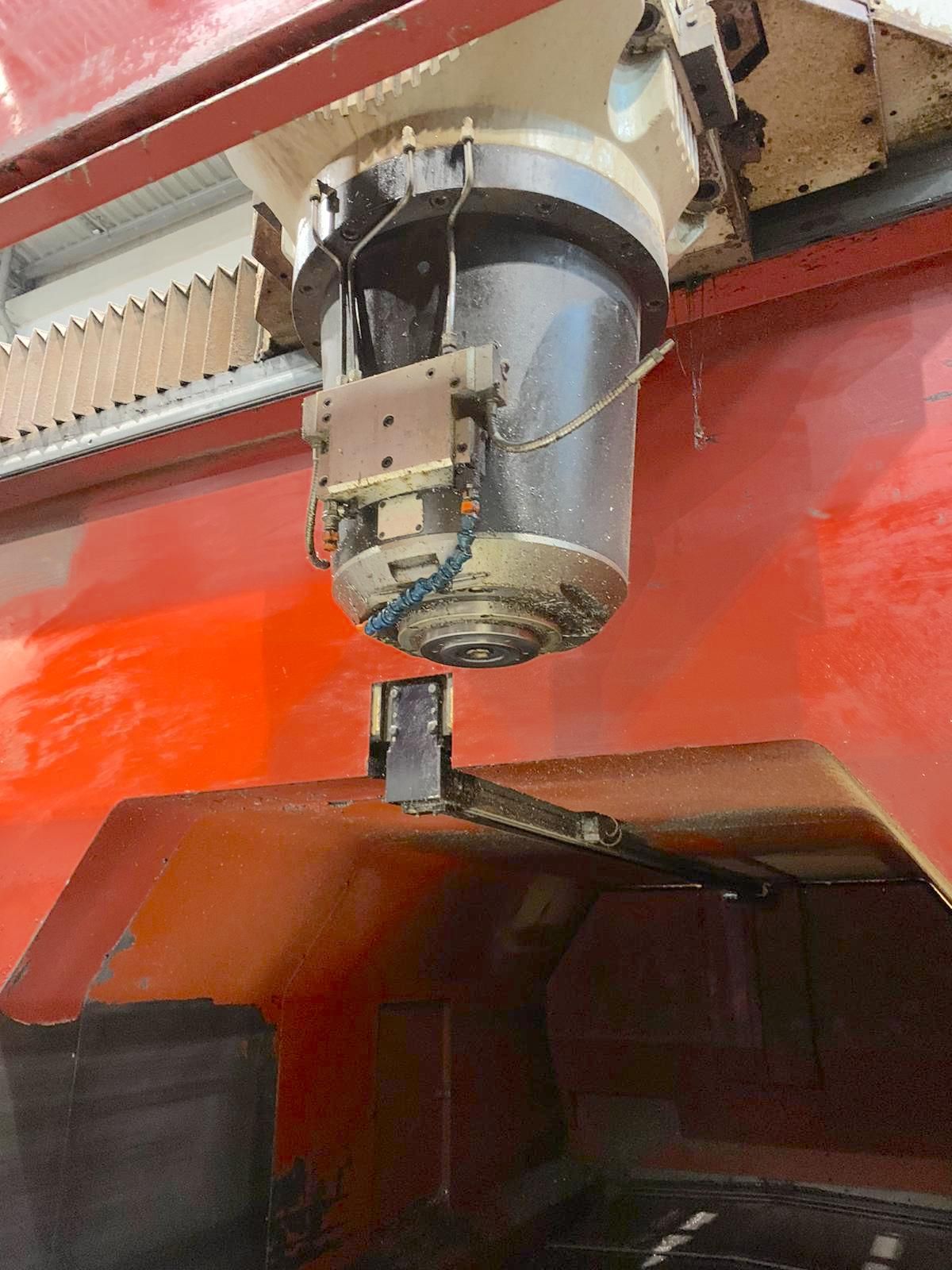

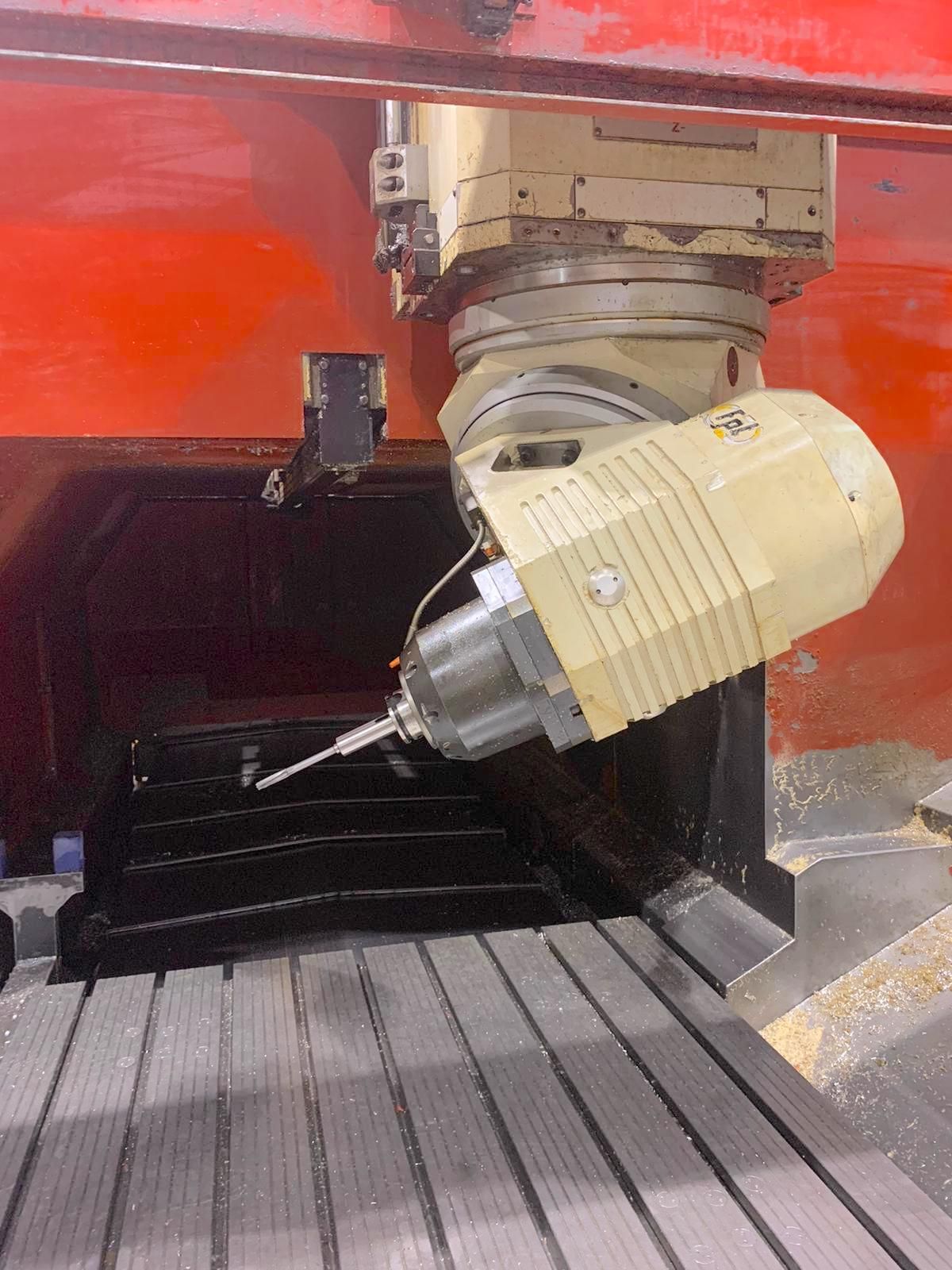

HEAD 1
Type
TULCE
Spindle taper
HSK63A
A axis
360.000x0,001 °
C axis
360.000x0,001 °
Max speed
18000 Rpm
Max power
20 Kw

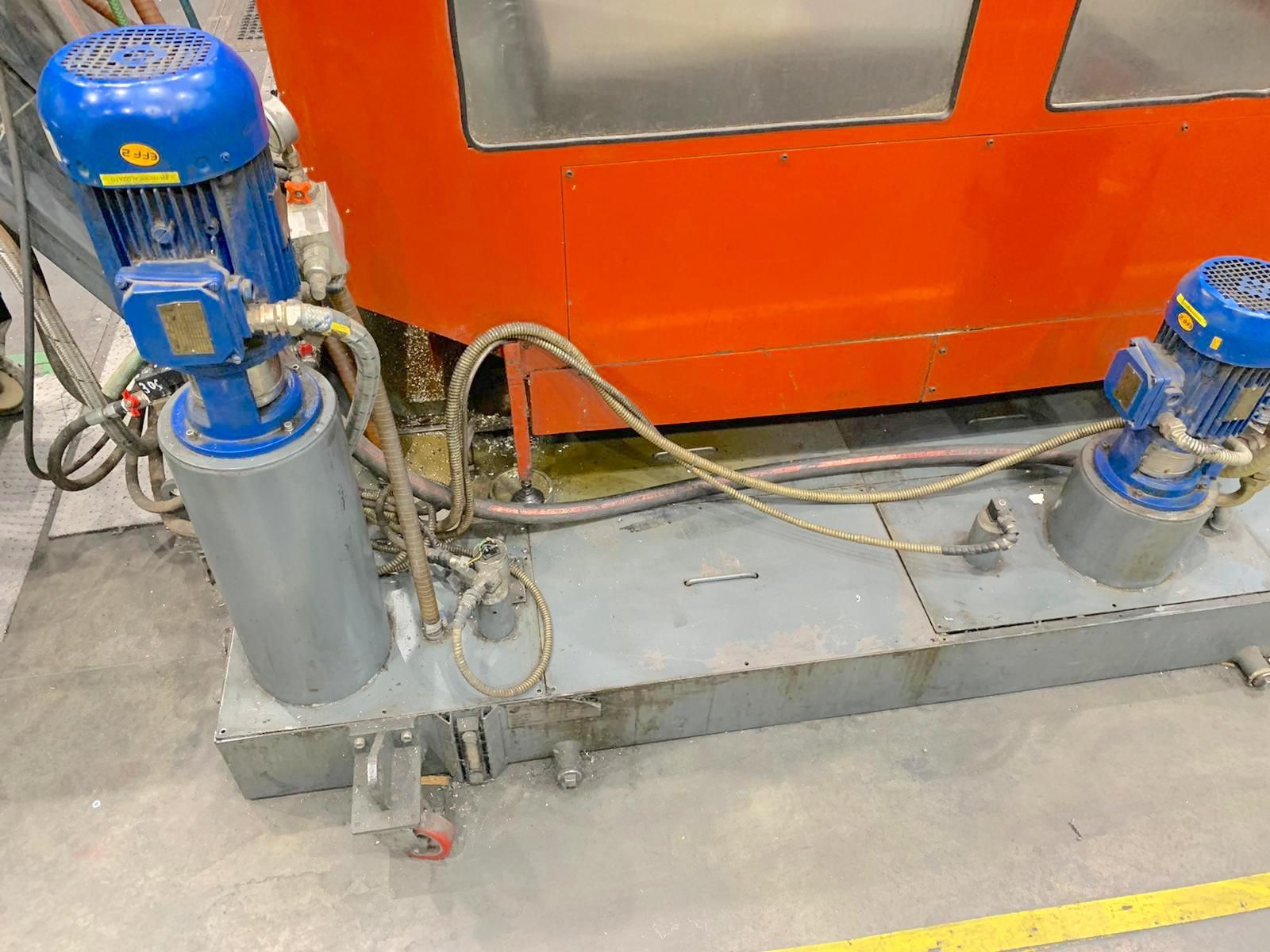

Coolant
CTS 20Bar
HEAD 2
Max speed
10000 Rpm
Max power
44 Kw
EXTRA
Total power supply
63,2 Kw
Machine total weight
41300 Kg
High Pressure
20Bar
