Category
Machining Centre
Type
5-Axis or more
Made
Model

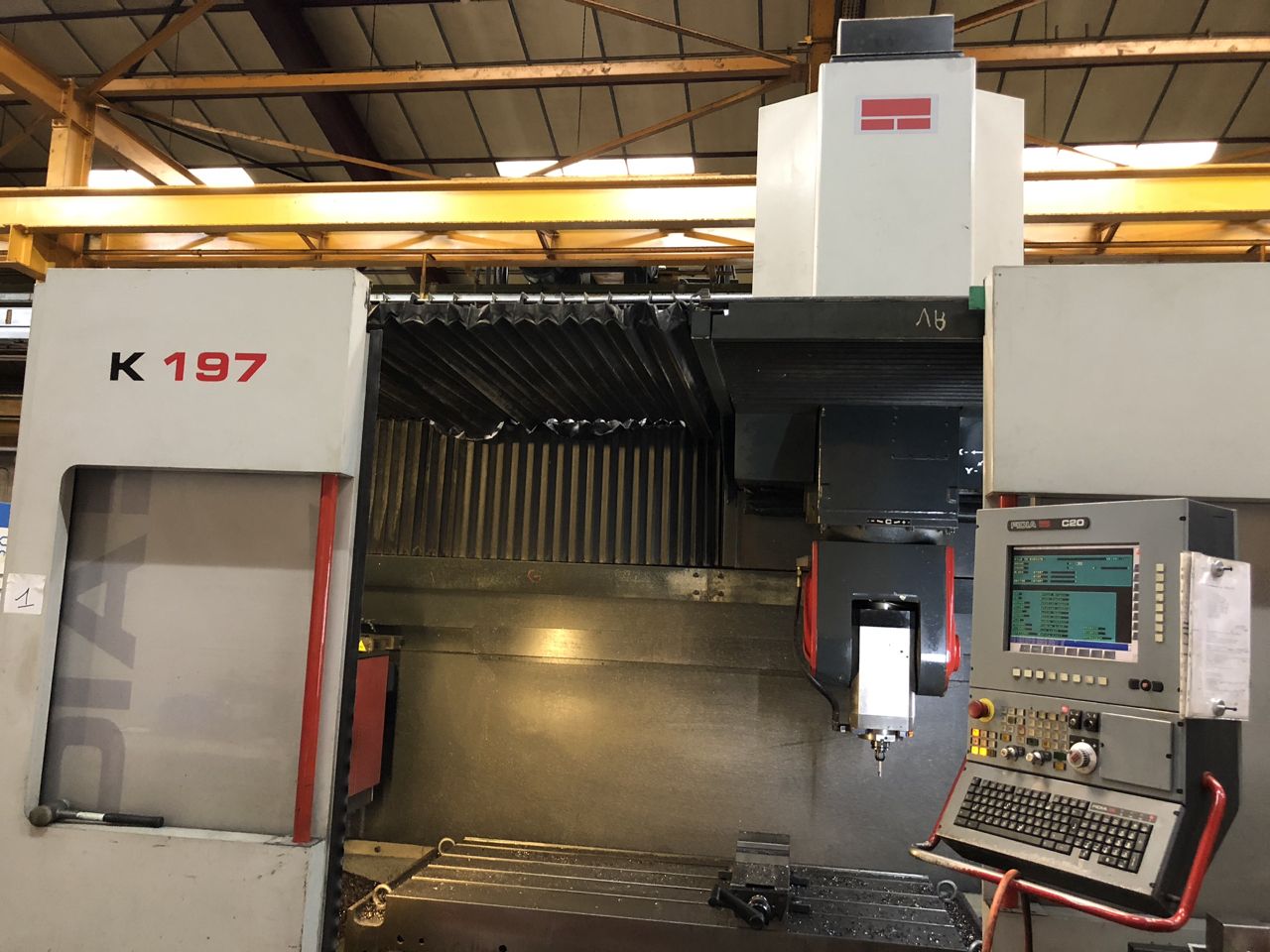

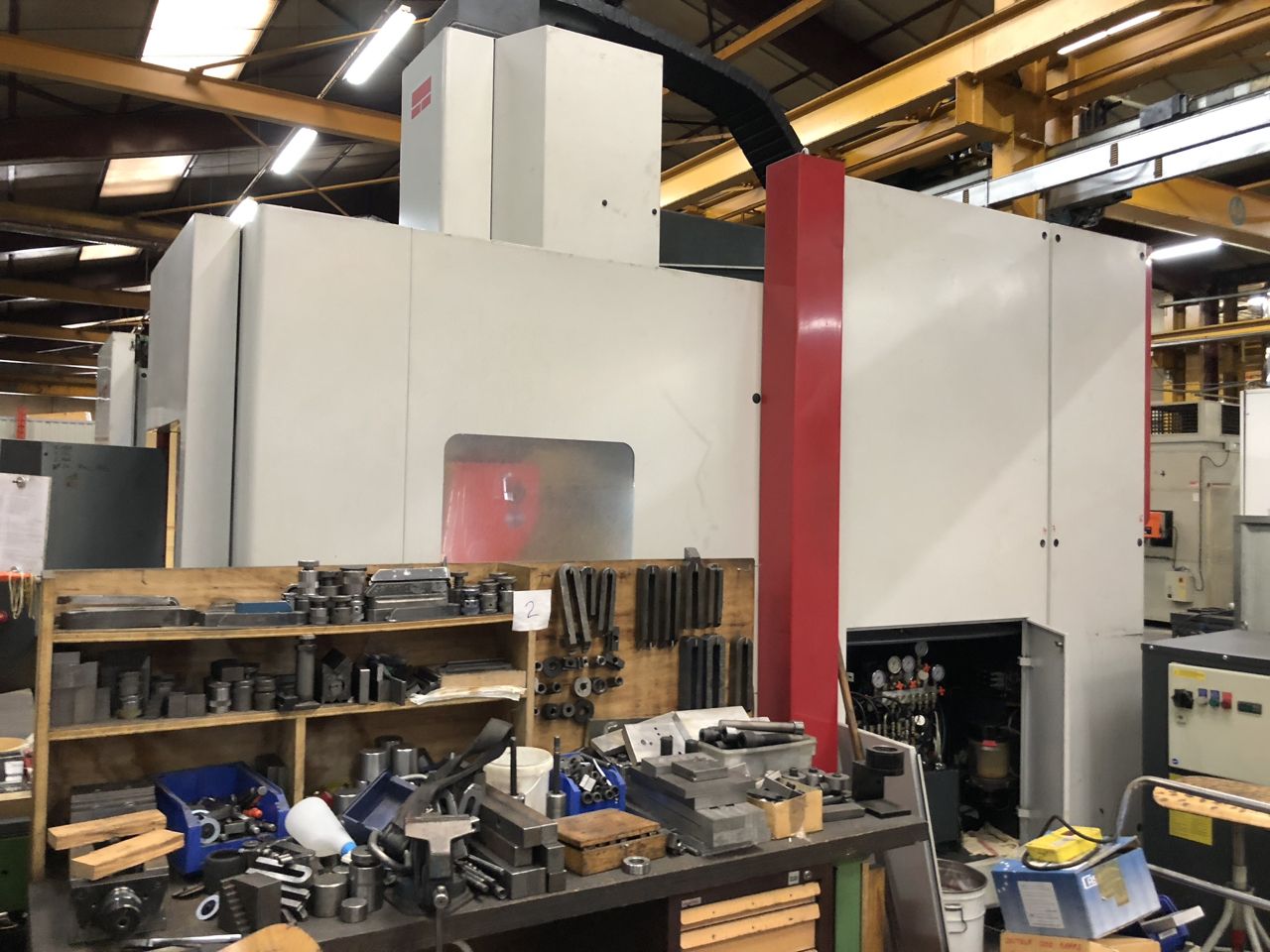

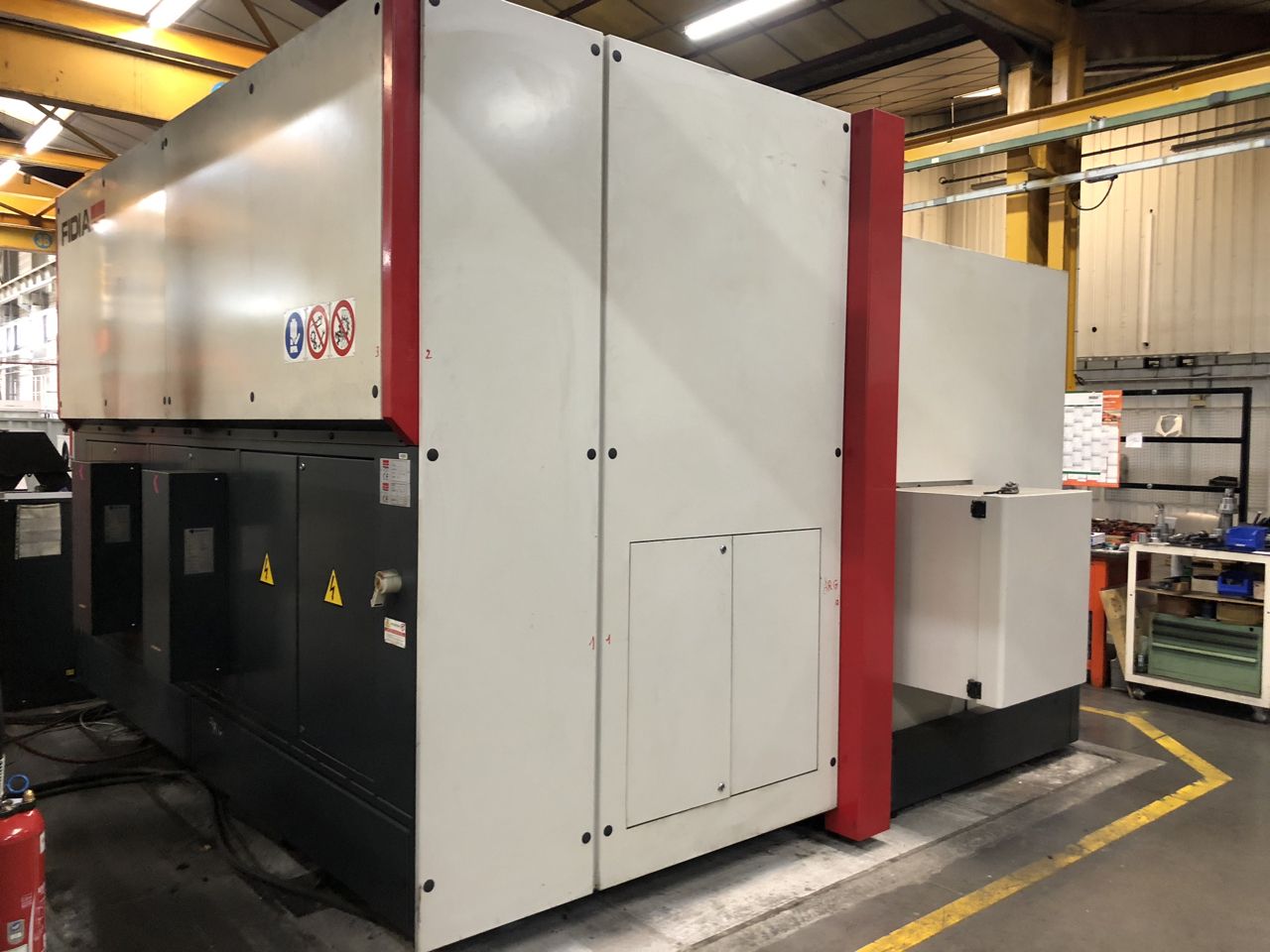

UGV K 197/5
Capacity
1650x150/750x150/700 mm64,96x5,91/29,53x5,91/27,56 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Head rotation (C )
continuo +/- 200 °
Longitudinal (X)
1650+150 mm64,96+5,91 in
Vertical (Z)
700 mm27,56 in
Cross (Y)
750+150 mm29,53+5,91 in
Head tilting (A)
continuo +95°/-110 °
TABLE
Floorspace (LxWxH)
2000x1250 mm78,74x49,21 in
Capacity
7000 Kg
Notes
DISTANZA NASO /TAVOLA 912mmMANDRINO

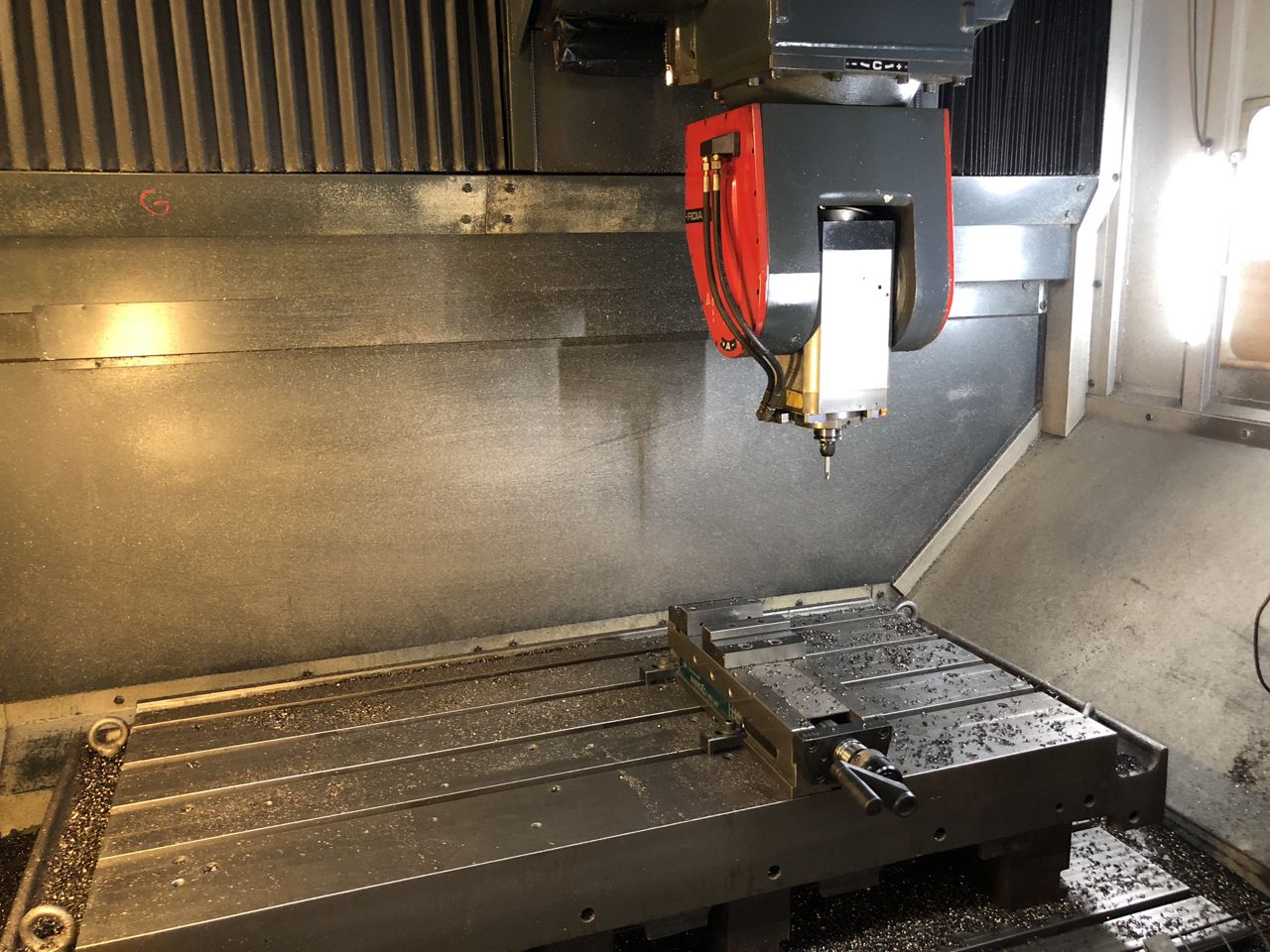

SPINDLE
Spindle power
27/32 Kw
Rotating speed
240-24.000 Rpm
Taper
HSK63A
Internal coolant
50 Bar
FEEDS
Axes acceleration
4 m/s2
Rapid X
30 m/min1.181,10 ipm
Rapid Y
30 m/min1.181,10 ipm
Rapid Z
30 m/min1.181,10 ipm
ATC
Positions
40
CNC
CNC
FIDIA C 20
EXTRA
Floor space
4000x3900-3940 mm157,48x153,54-155,12 in
High Pressure
50Bar - 29Lit/min
Filtration unit
30µm
Machine total weight
21500 Kg
Mist extractor
si
