Category
Machining Centre
Type
5-Axis or more
Made

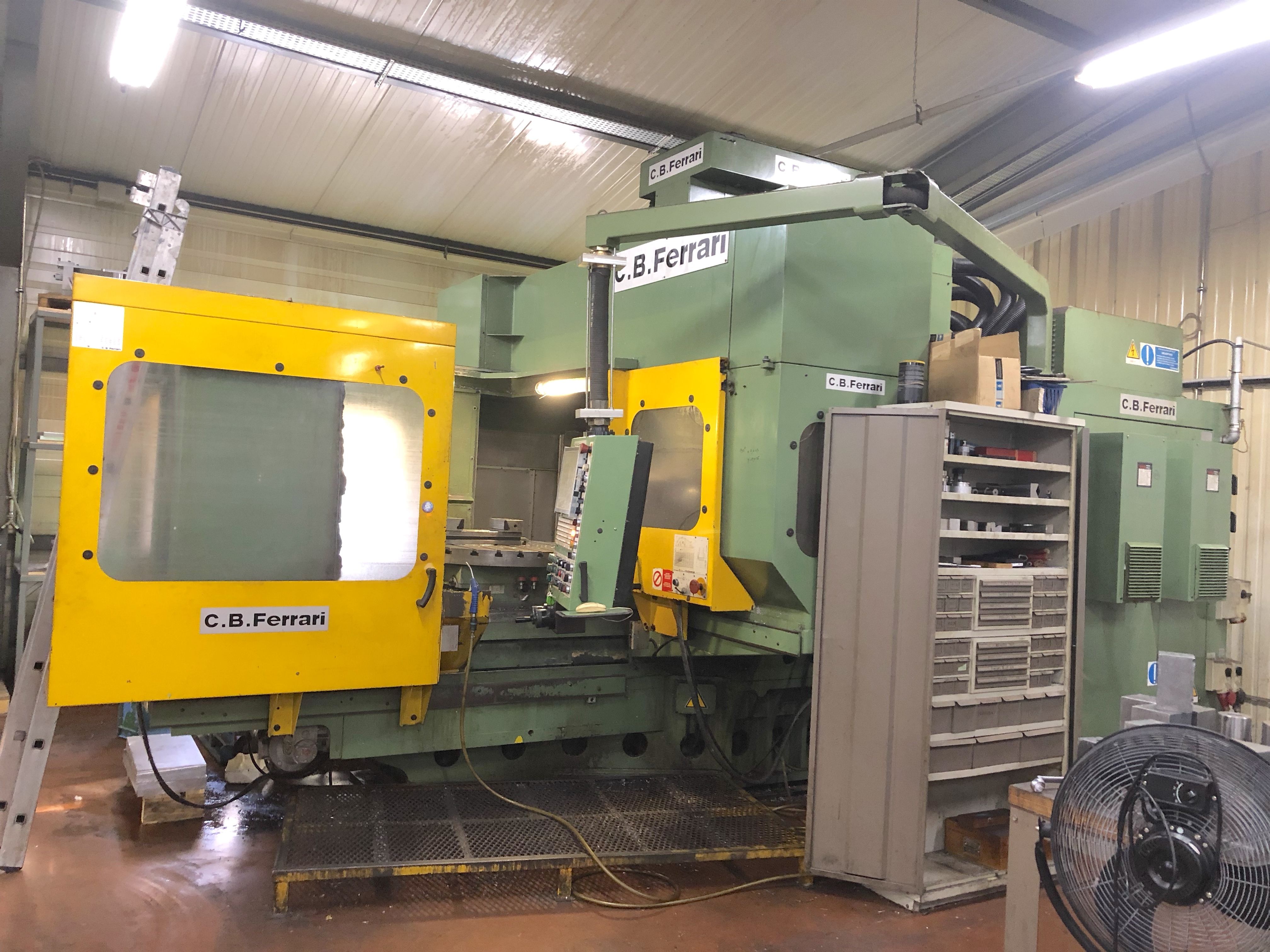

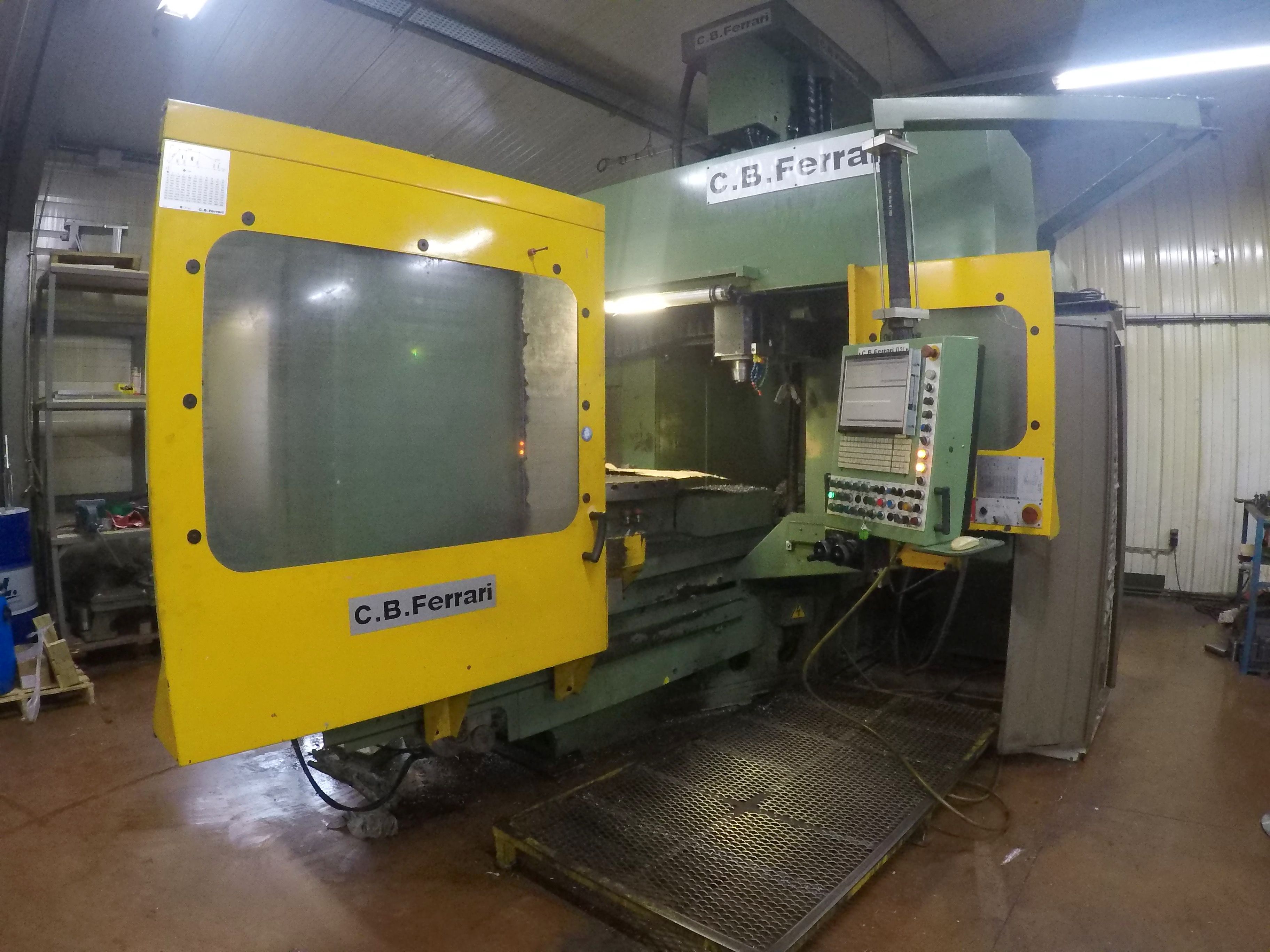

Model
D21
Capacity
1600x1600x630 mm62,99x62,99x24,80 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
1600 mm62,99 in
Vertical (Z)
630 mm24,80 in
Cross (Y)
1600 mm62,99 in
Table rotation (B)
0,001 °
Head tilting (A)
+/-90 °

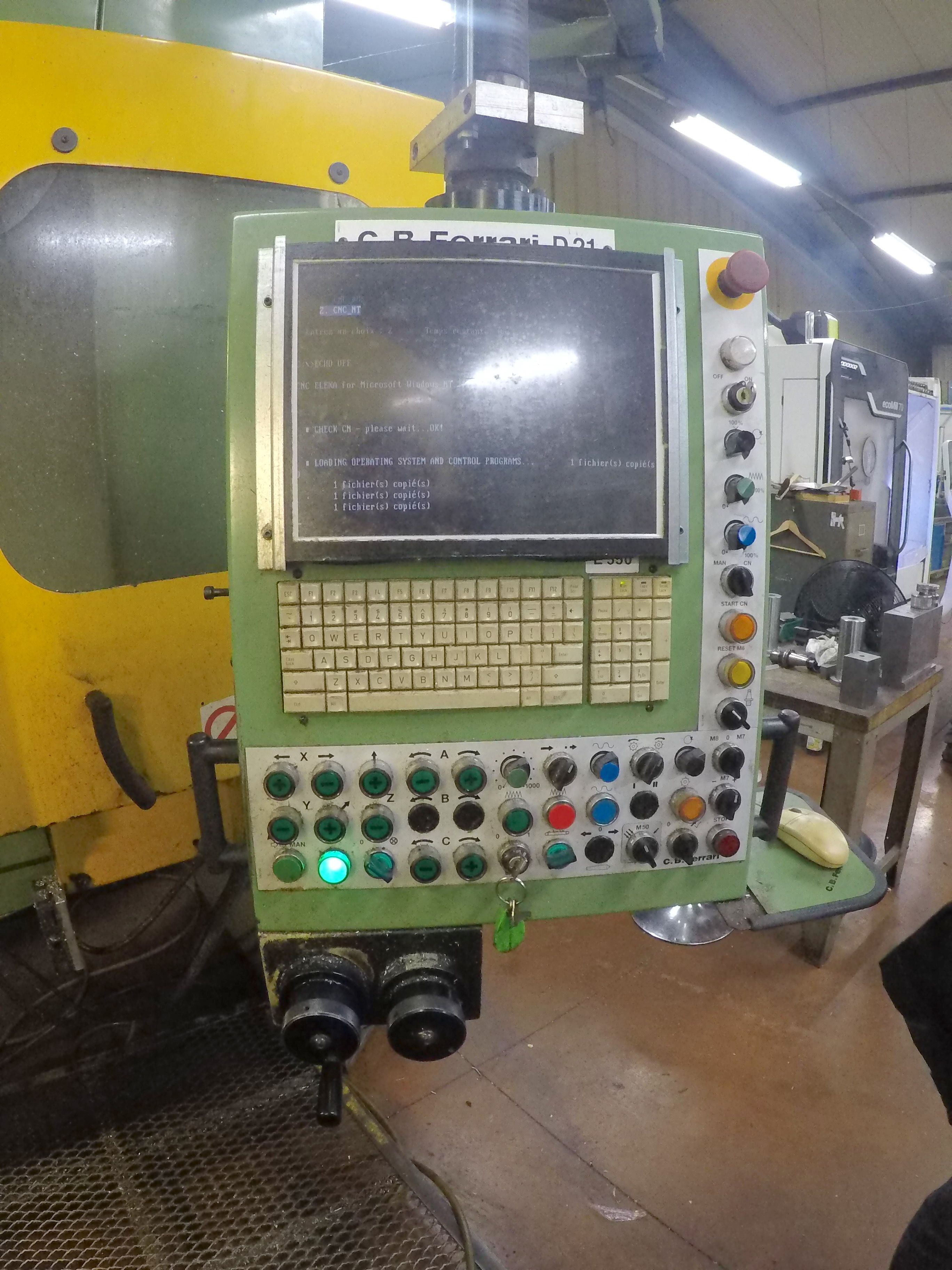

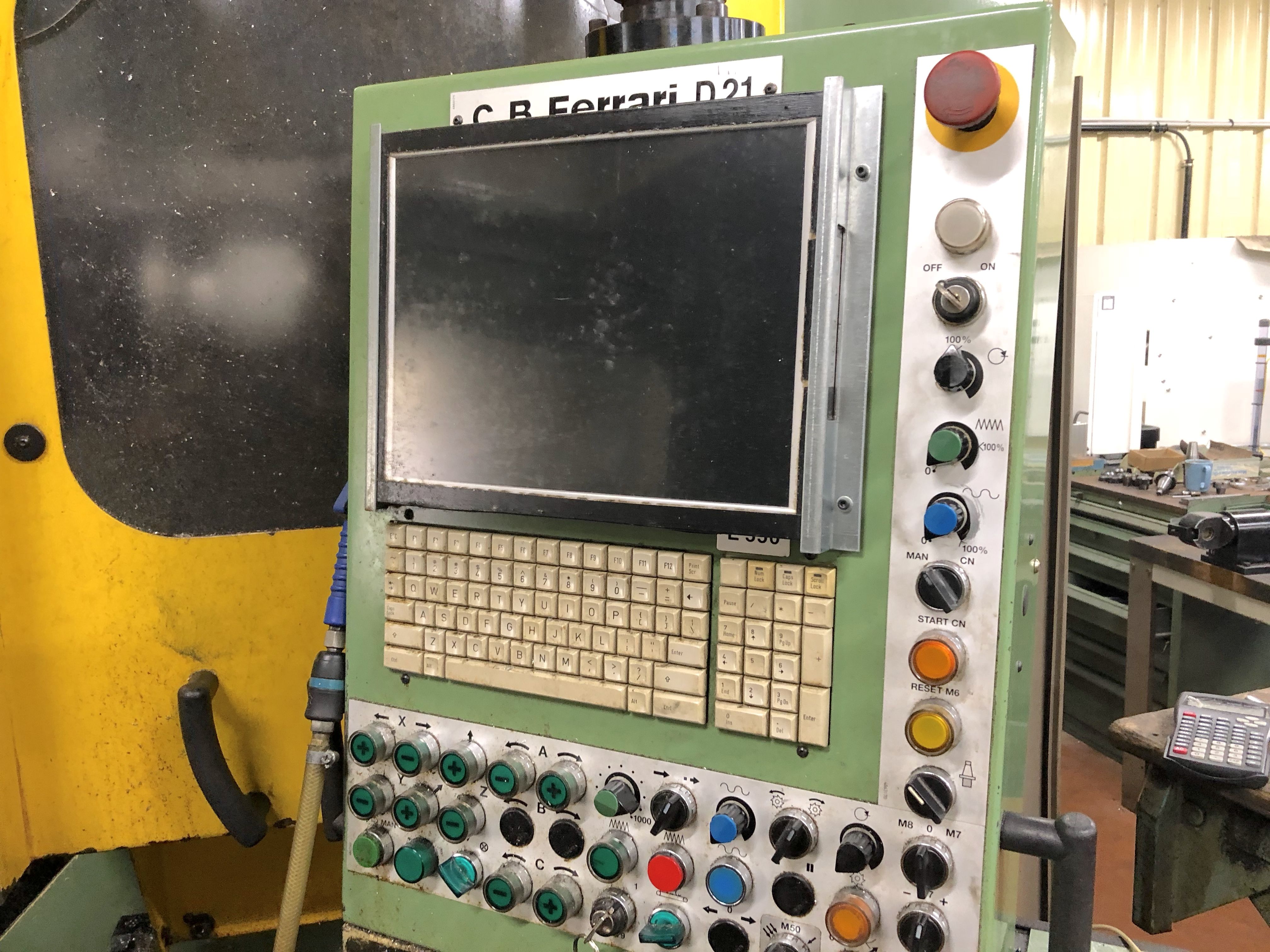

CNC
CNC
ELEXA E550
SPINDLE
Spindle power
26/36KW Kw
Rotating speed
18000 Rpm
Taper
ISO40
Internal coolant
10 Bar

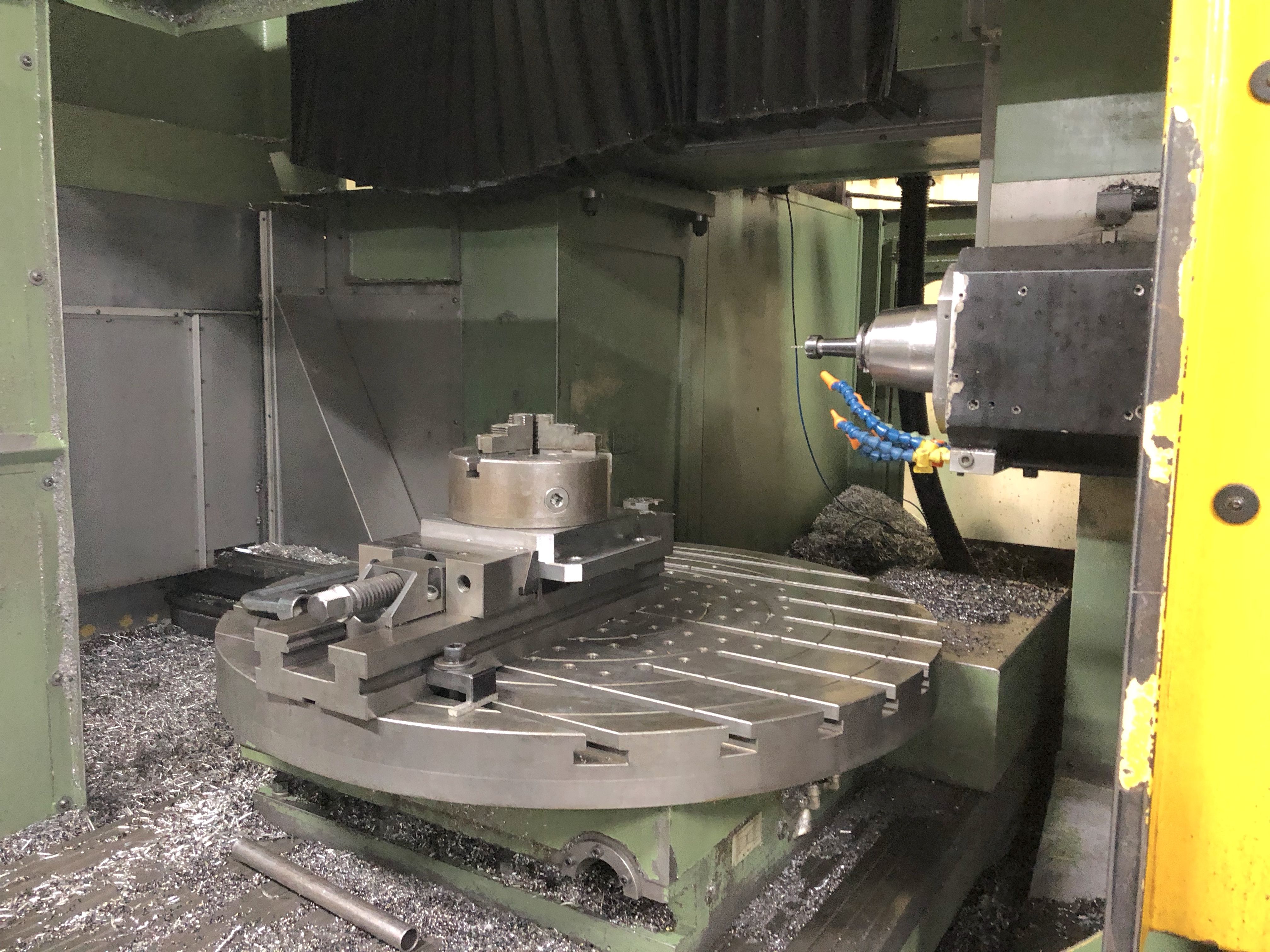

TABLE
Floorspace (LxWxH)
2000x1000 + tavola girevole ø1000 mm78,74x39,37 + tavola girevole ø39,37 in
Accuracy (B axis)
0,001 °

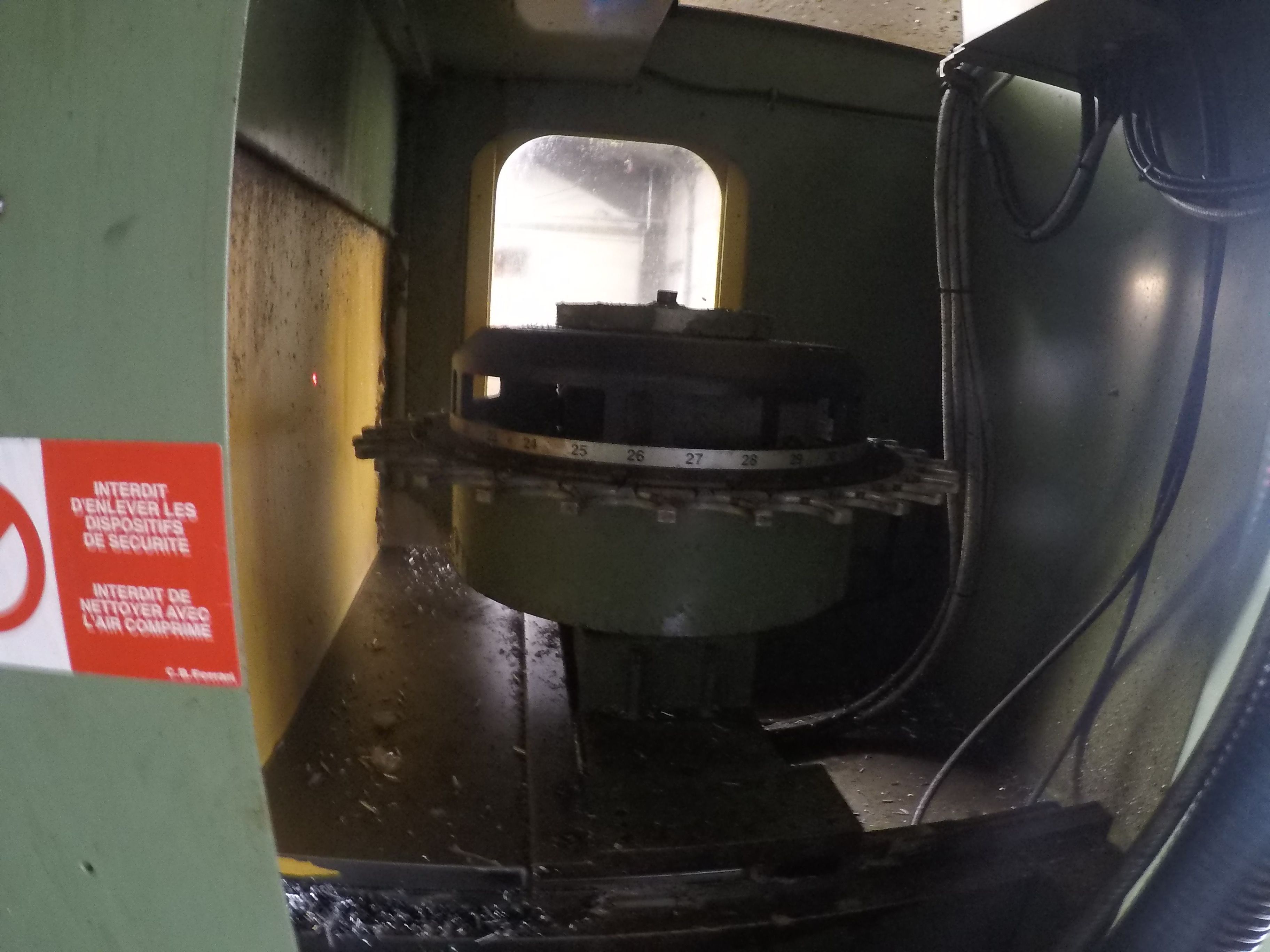

ATC
Positions
30
FEEDS
X
20 m/min787,40 ipm
Y
20 m/min787,40 ipm
Z
20 m/min787,40 ipm
EXTRA
Floor space
6510x5580x3950(max) mm256,30x219,68x155,51(max) in
Filtration unit
si
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes
Housing
SI
Availability
PRONTA
Available in stock
SI
Tooling included
Evacuatore truciolo
Mist extractor
SI
Machine total weight
13000 Kg
