Category
Machining Centre
Type
5-Axis or more
Made
Model
A17
Capacity
1050x520x420 mm41,34x20,47x16,54 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
1050 mm41,34 in
Vertical (Z)
420 mm16,54 in
Cross (Y)
520 mm20,47 in
Head tilting (A)
+/- 90 °

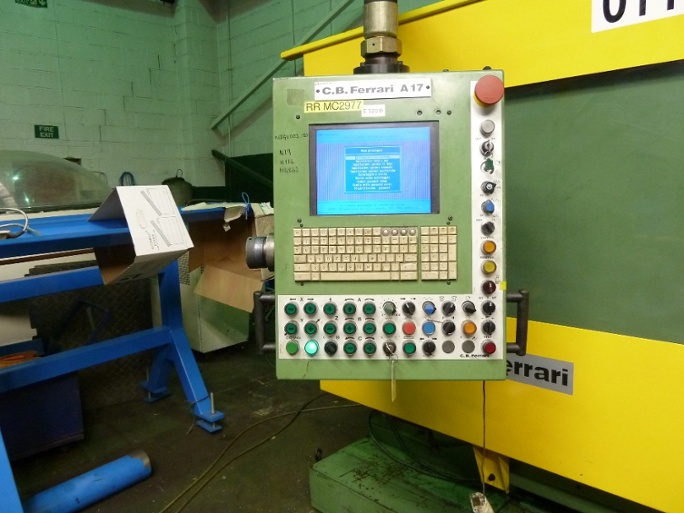

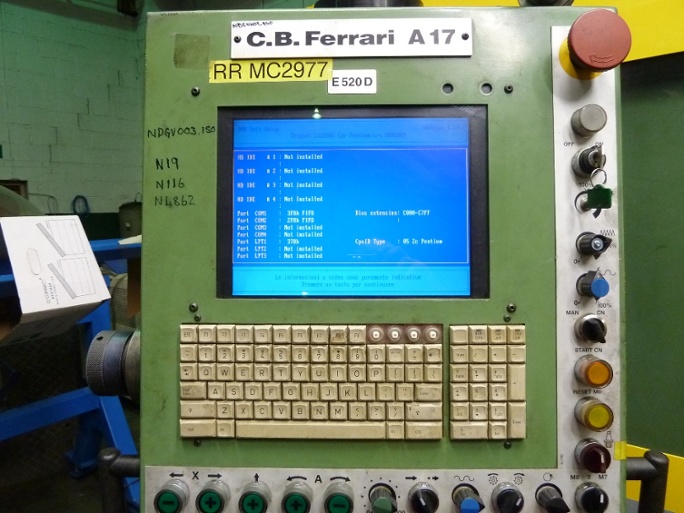

CNC
CNC
ELEXA E520D

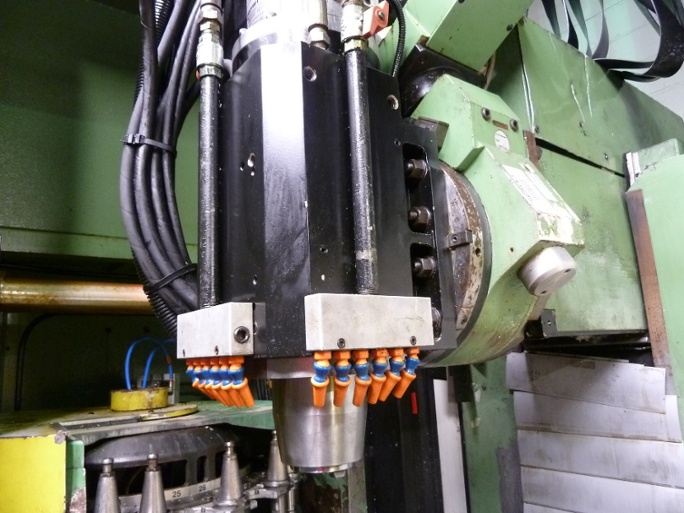

SPINDLE
Spindle power
24 Kw
Rotating speed
18.000 Rpm
Torque
80 Nm
Taper
ISO40
Notes
Cuscinetti a sfere ceramiche, lubrificazione a grasso, refrigerazione a liquido
Internal coolant
20 Bar
FEEDS
Rapid X
25 m/min984,25 ipm
Rapid Y
25 m/min984,25 ipm
Rapid Z
25 m/min984,25 ipm

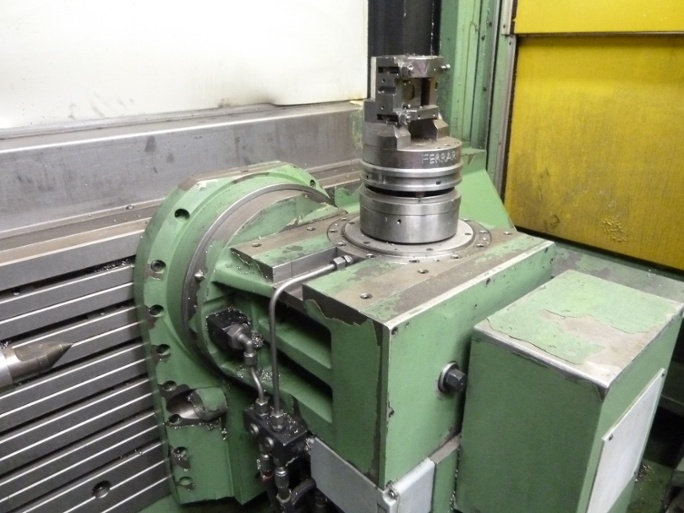

TABLE
Accuracy (B axis)
0,001 °
Tilting (A axis)
+/- 90 °
Notes
divisore 2 assi
Floorspace (LxWxH)
piano ancoraggio vertilale 2000x515 mmpiano ancoraggio vertilale 78,74x20,28 in
ATC
Positions
ATC30
AUTO PALLET CHANGER (APC)
Pallet number
30 APC
Notes

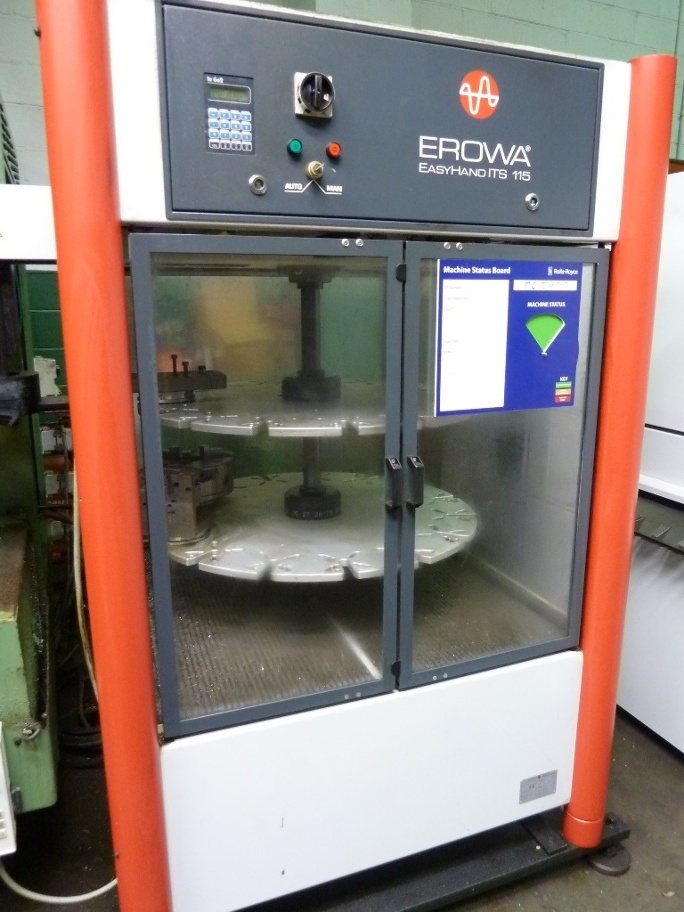

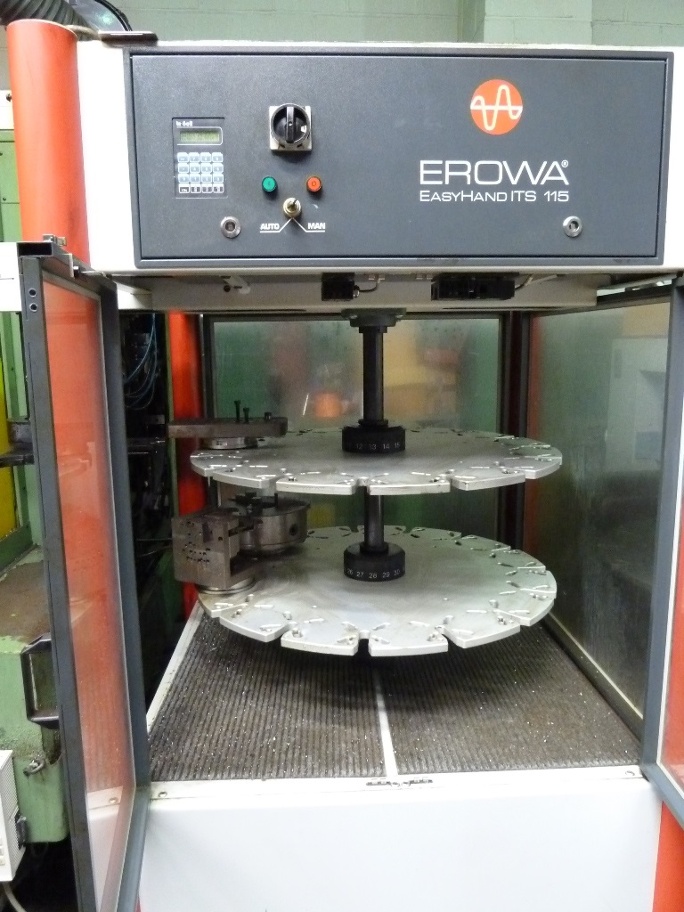

Erowa Easy Heind ITS 116 Loading System a 30 posizioni
EXTRA
Machine total weight
7400 Kg
Floor space
4500x2800x2450 mm177,17x110,24x96,46 in
Tooling included
Erowa Easy Heind ITS 116 Loading System a 30 posizioni
High Pressure
20Bar
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes
Housing
integrale
Availability
pronta
Available in stock
si
