Category

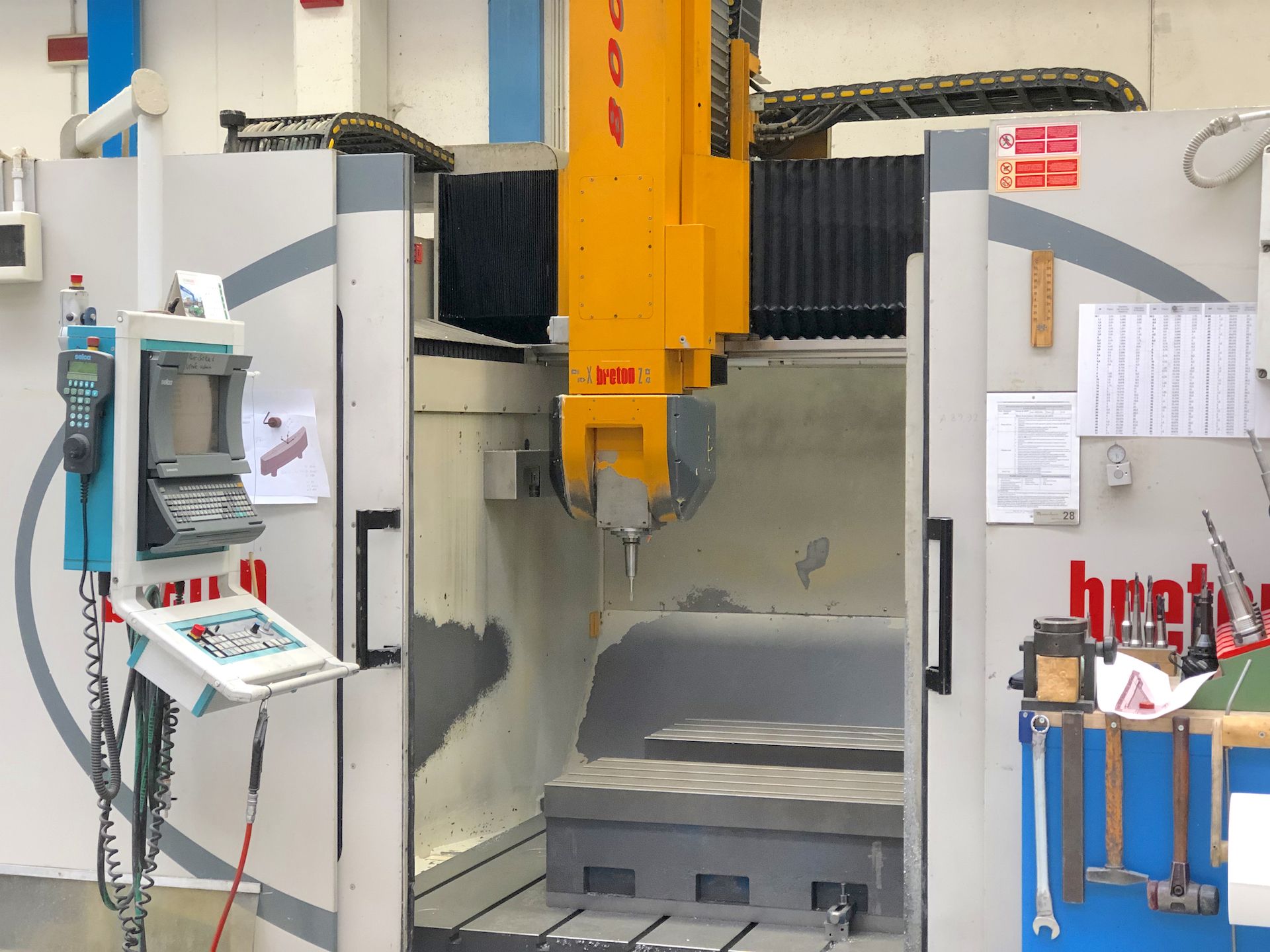

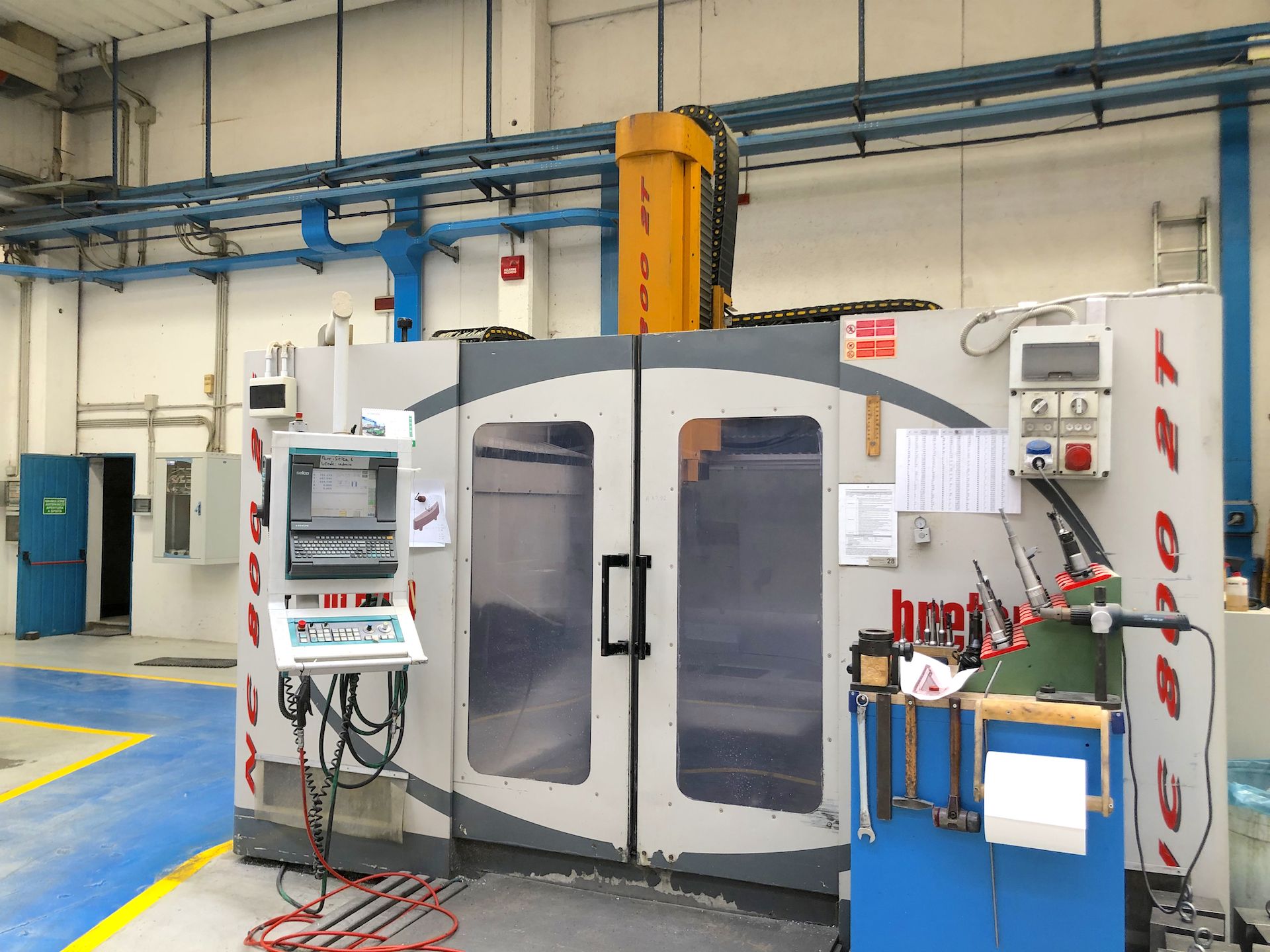

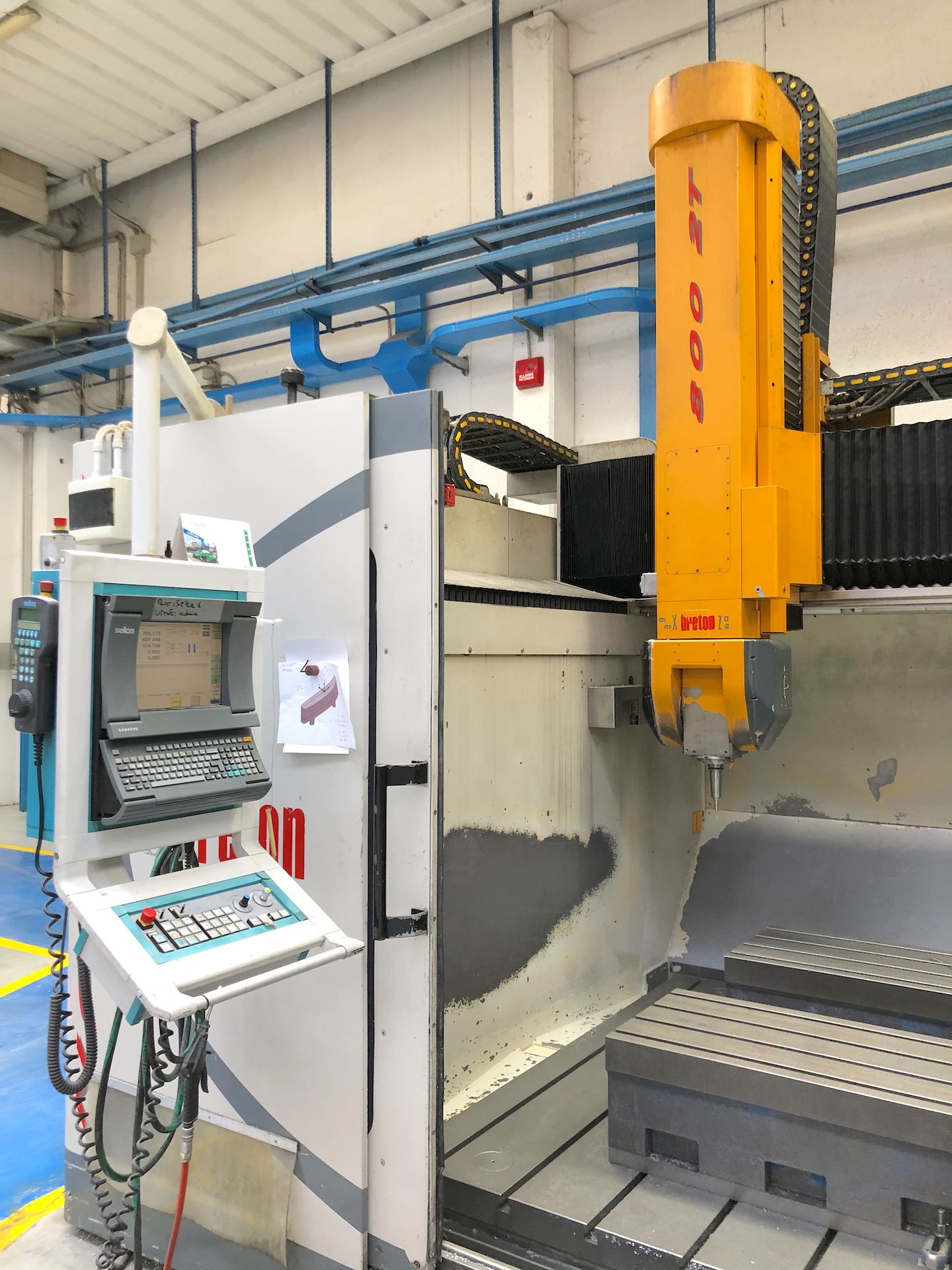

Machining Centre
Type
5-Axis or more
Made
Model
NC800/2T
Capacity
1600x1600x800 mm62,99x62,99x31,50 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
1600 mm62,99 in
Vertical (Z)
800 mm31,50 in
Cross (Y)
1600 mm62,99 in

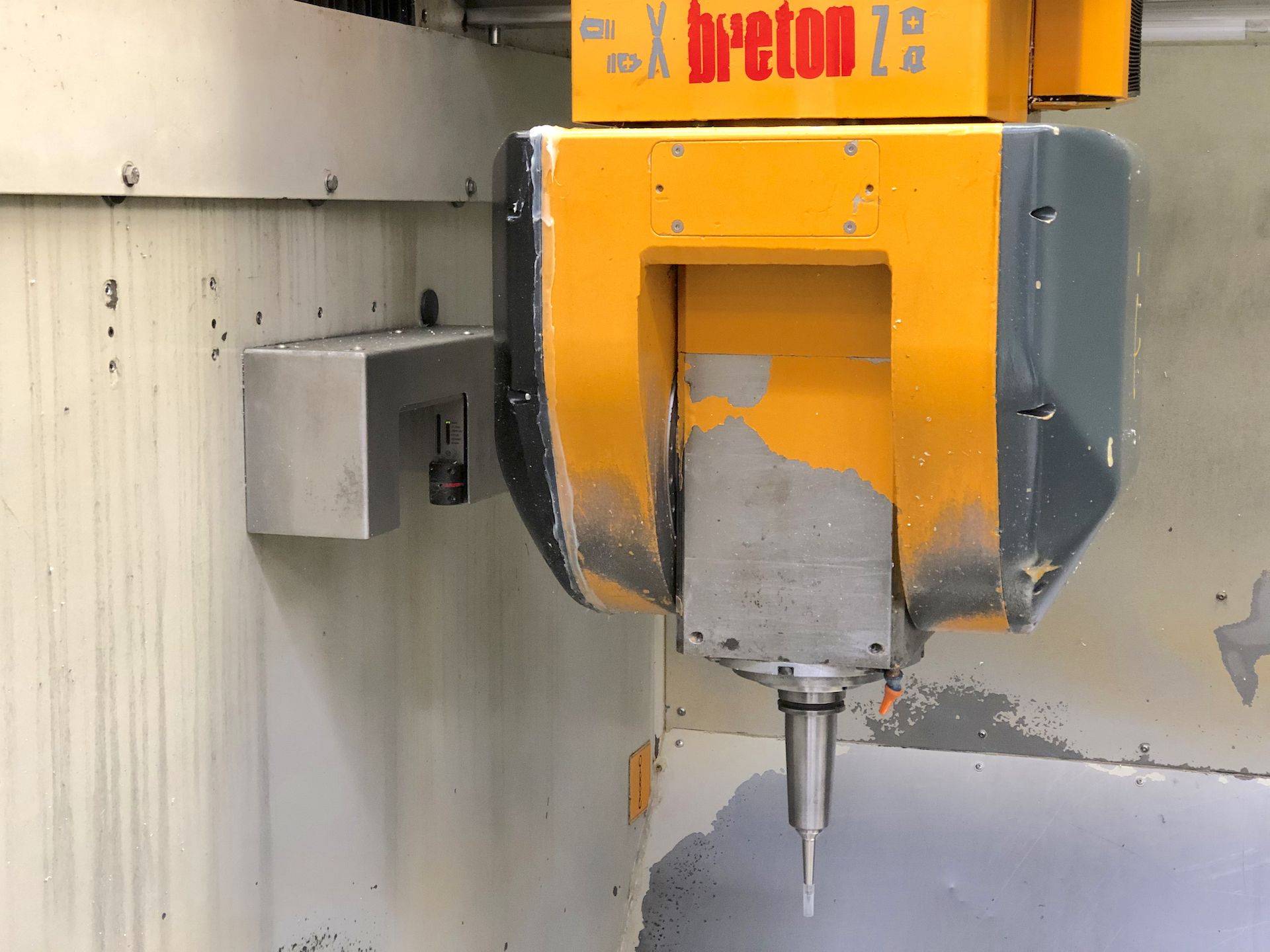

Head rotation (C )
+/-195 °

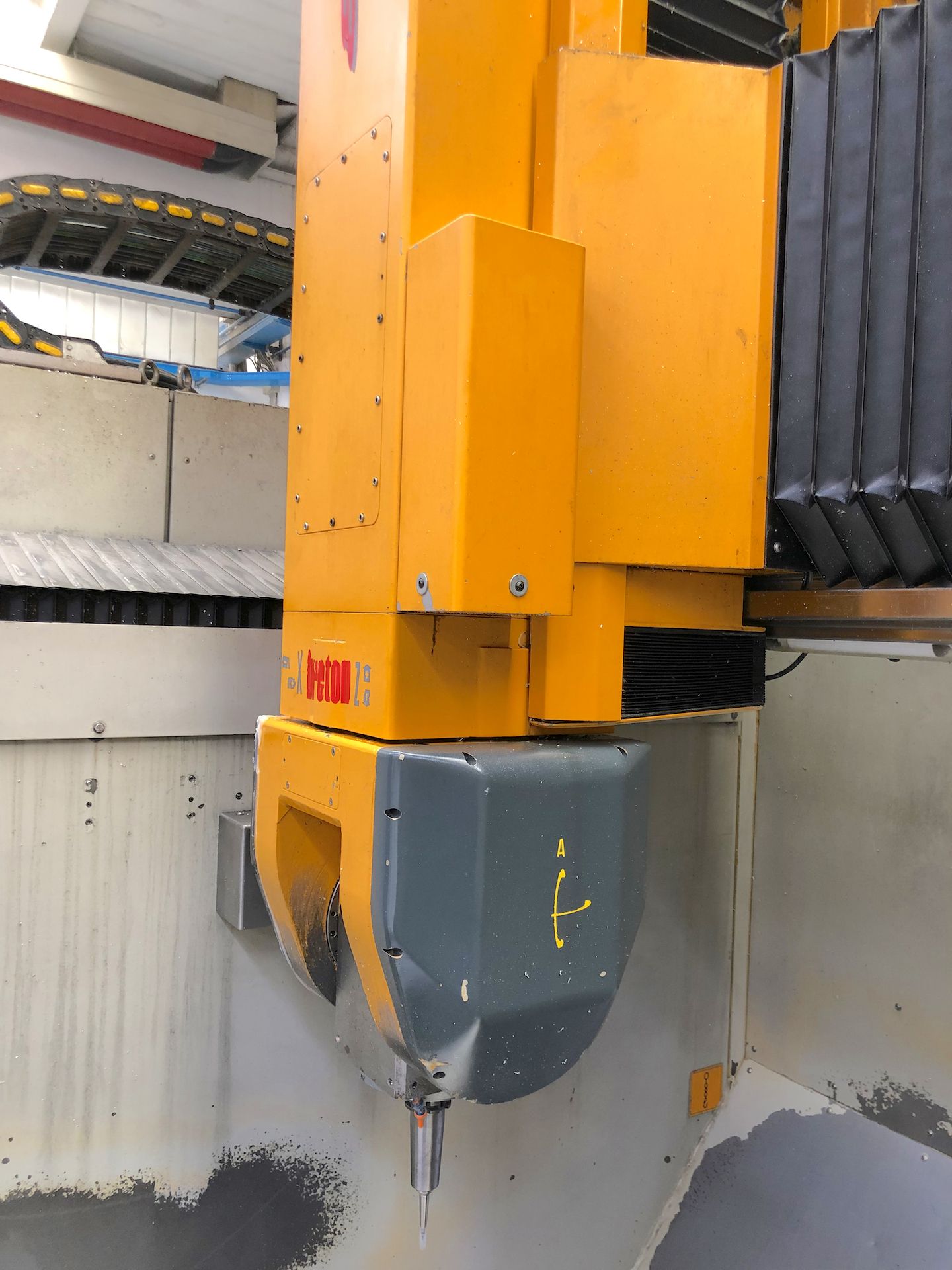

Head tilting (A)
+/-95 °
Notes
distanza tavola-naso mandrino: 1000mm
CNC
CNC

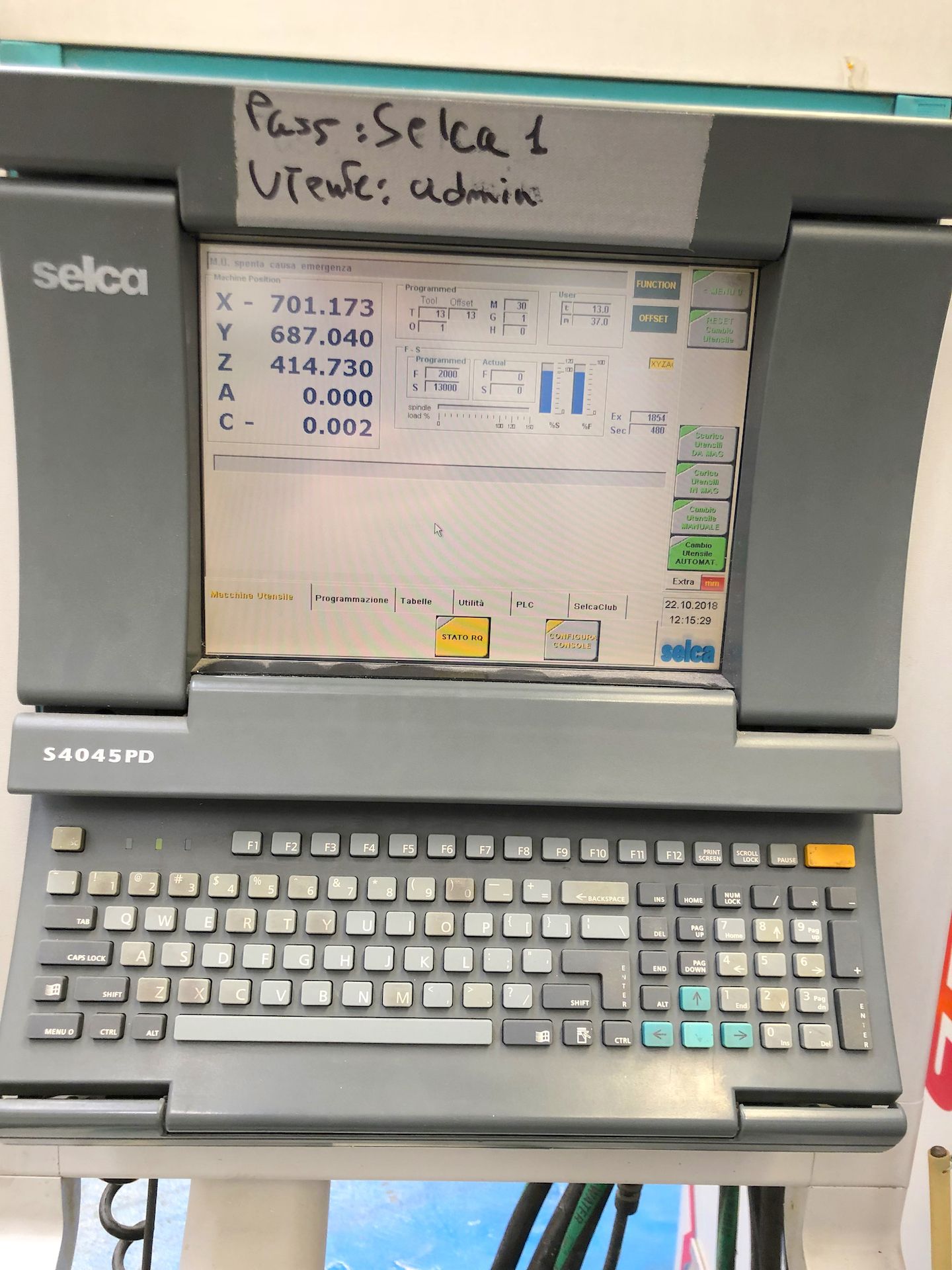

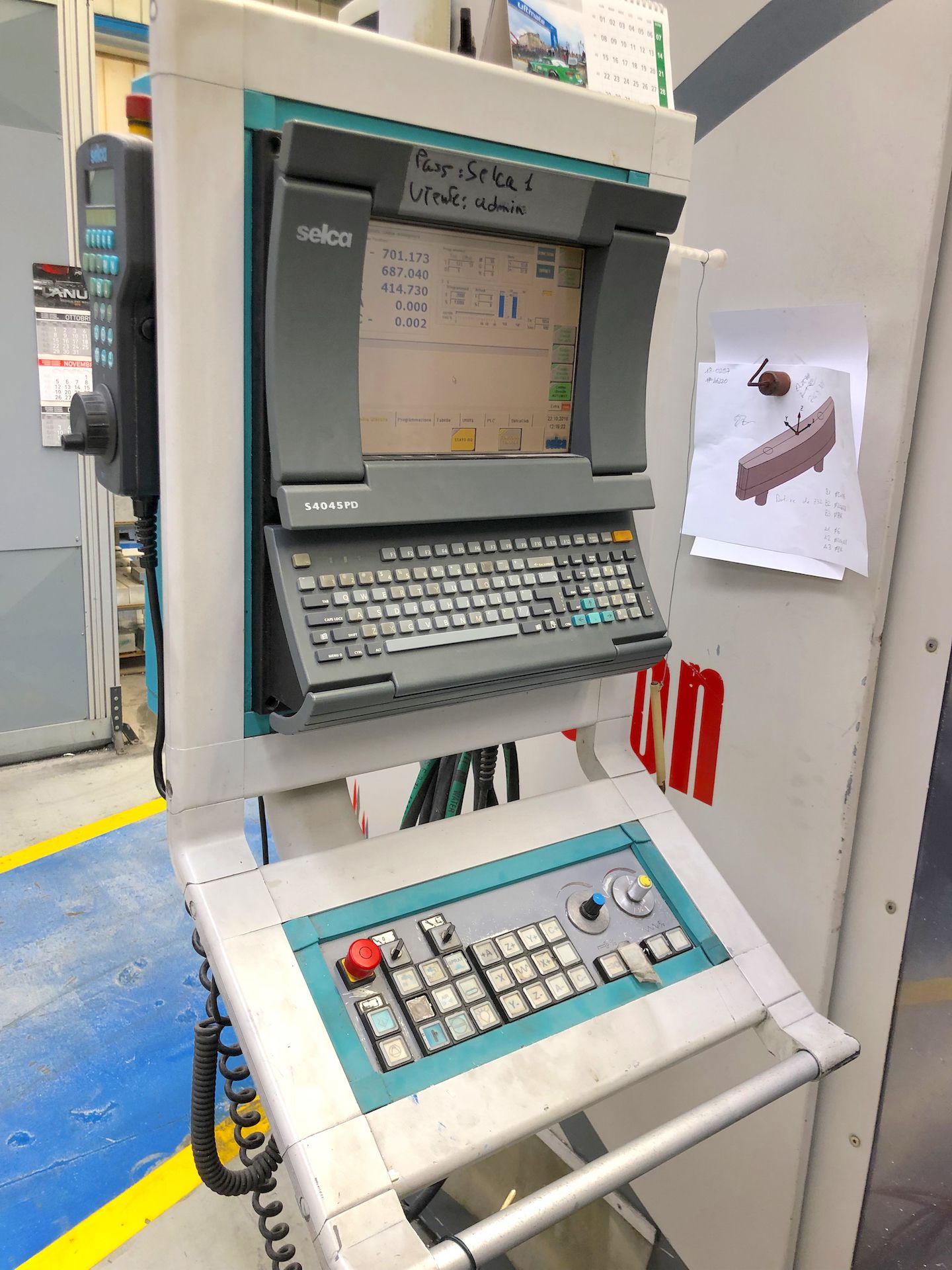

SELCA 4045PD
Measuring system
Righe ottiche Heidenhain

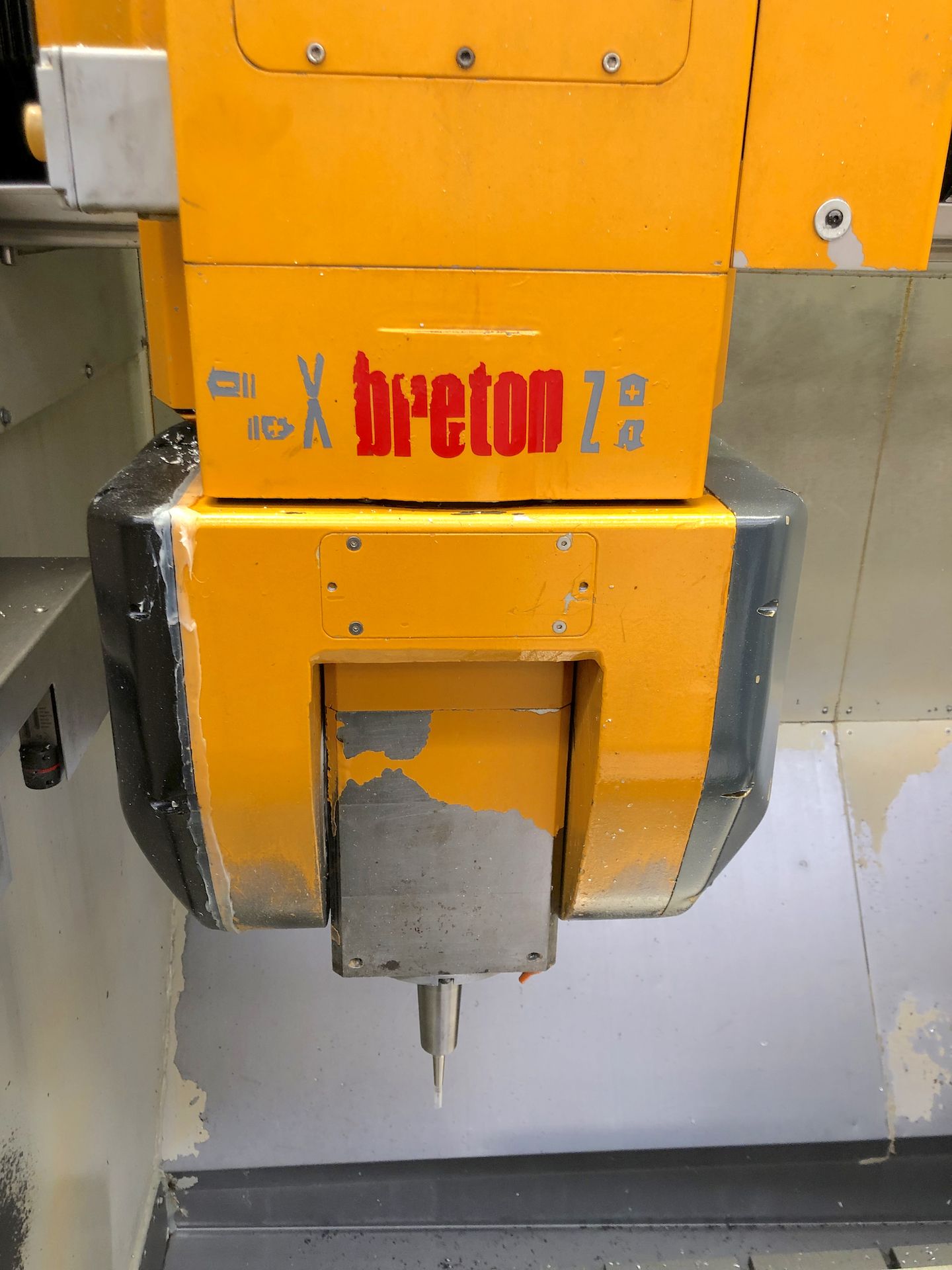

SPINDLE
Spindle power
20 Kw
Rotating speed
16000 Rpm
Torque
38 Nm
Taper
HSK63A
Spindle transmission
Elettromandrino
FEEDS
Rapid X
40 m/min1.574,80 ipm
Rapid Y
40 m/min1.574,80 ipm
Rapid Z
40 m/min1.574,80 ipm
A
5 Rpm °/sec
C
9 Rpm °/sec
TABLE
Floorspace (LxWxH)
2000x2000 mm78,74x78,74 in
Capacity
20.000 Kg

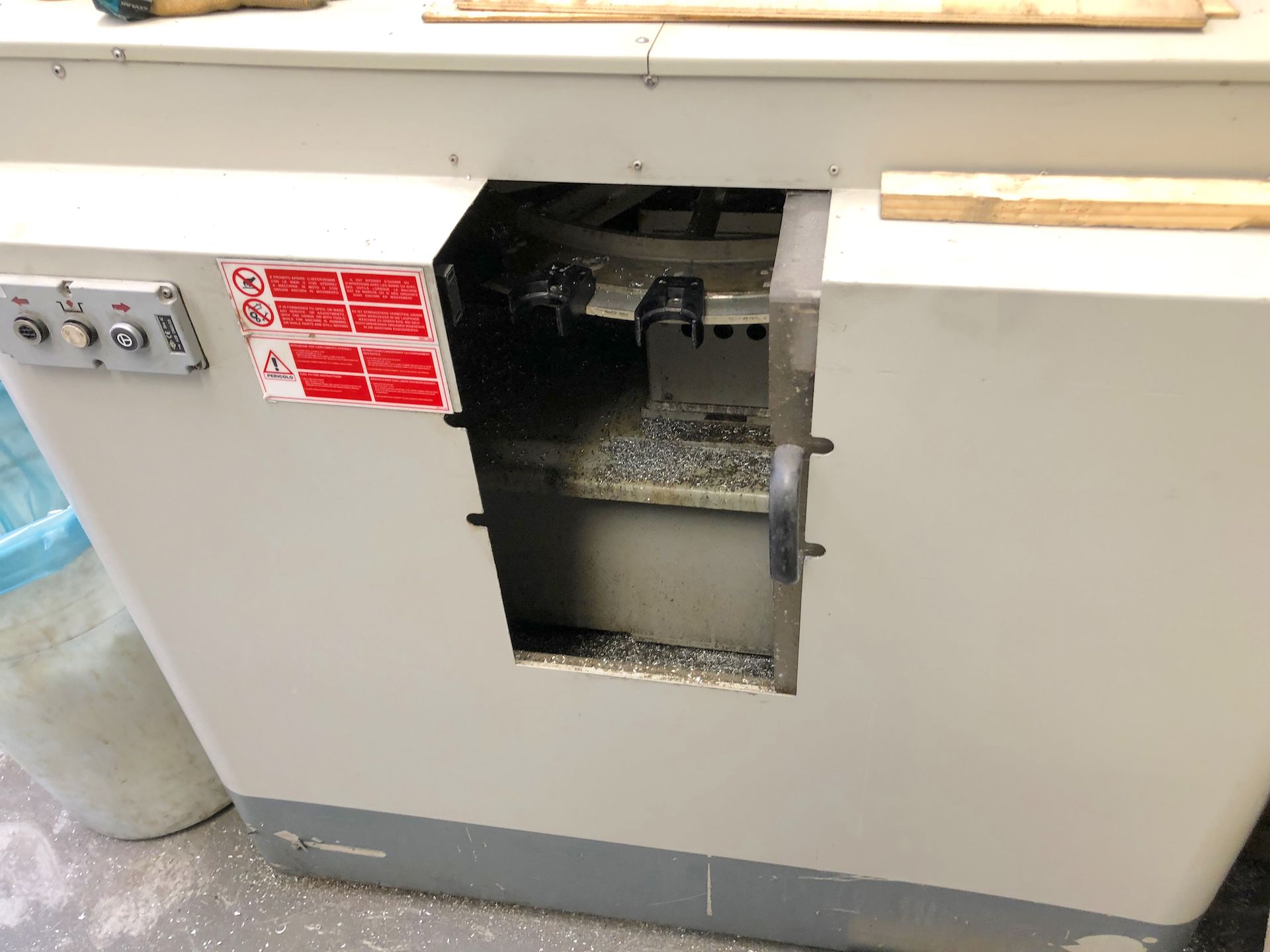

ATC
Positions
24
Tool taper
HSK63A
EXTRA
Machine total weight
≈18.000 Kg
Floor space
4600x3200x4300 mm181,10x125,98x169,29 in

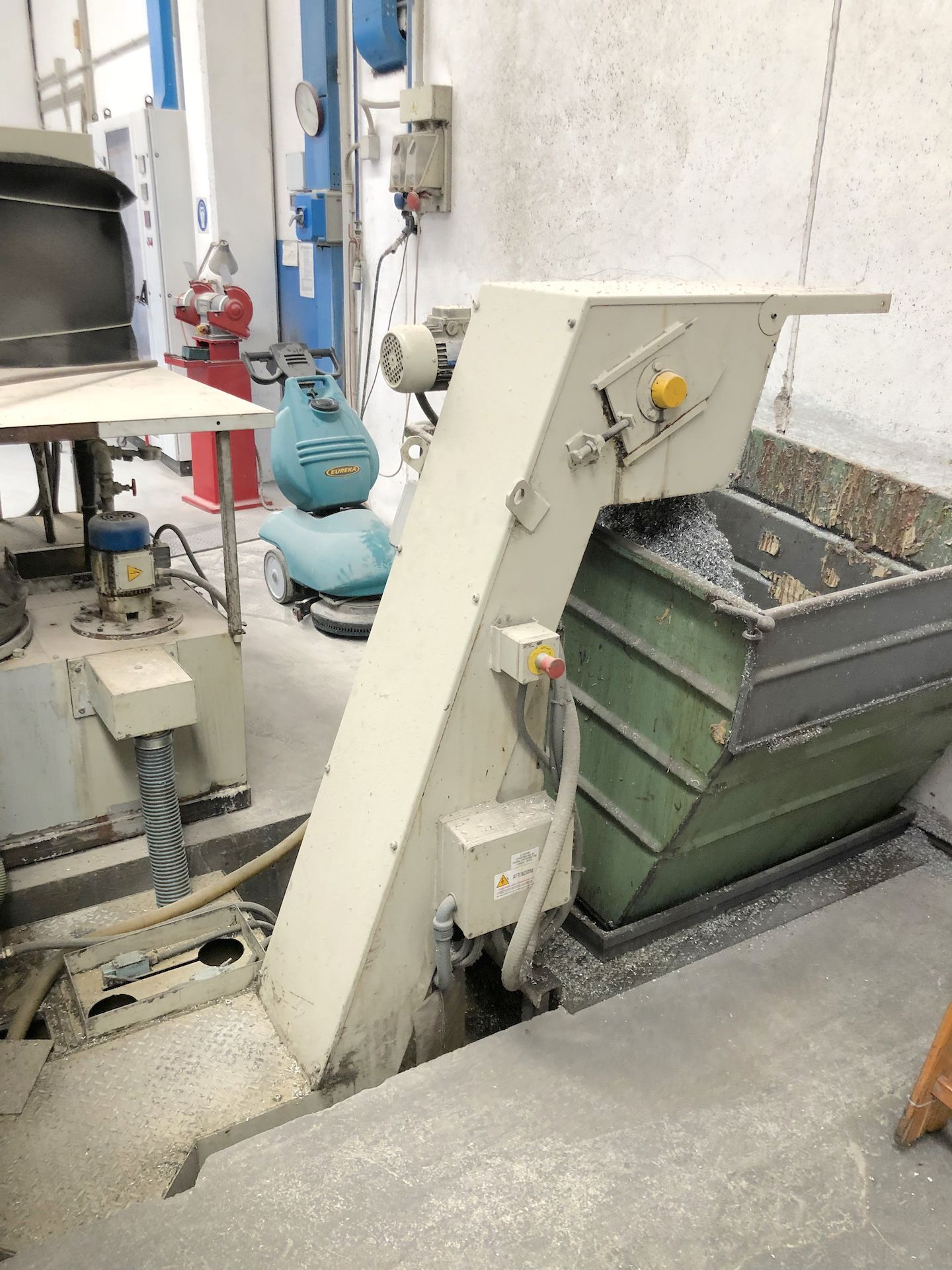

Filtration unit
vasca 700lt
Tool presetter
si
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes
Housing
completa
Availability
pronta
