Category
Grinding Machine
Type
Surface
Made
Model

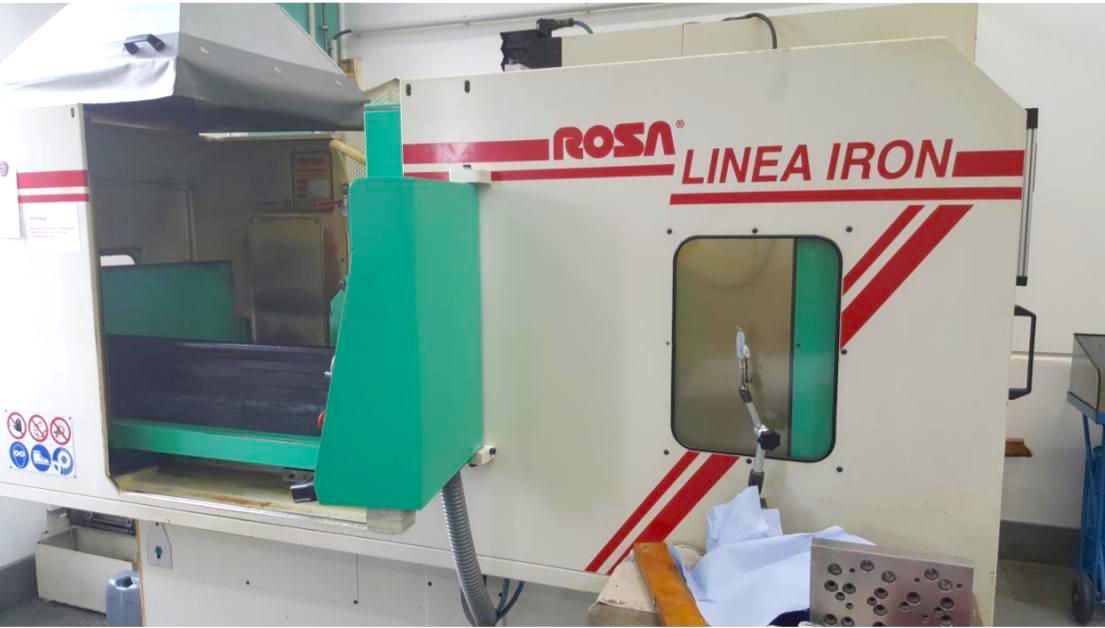

IRON 08.6 CN
Capacity
950 X 630 mm37,40 X 24,80 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
950 mm37,40 in
Vertical (Z)
480 mm18,90 in
Max grinding lenght
950 mm37,40 in
Max grinding width
630 mm24,80 in
Max grinding thickness
480 mm18,90 in
Spindle nose axis - table distance
680 mm26,77 in
Cross RAM (Y)
550 mm21,65 in
TABLE
Cross speed
0-8 M/MIN
Surface
800x400 mm31,50x15,75 in
Stroke
950 mm37,40 in
Capacity
1000 Kg
MAGNETIC TABLE
Available upon request
Yes
Surface
800x500 mm31,50x19,69 in

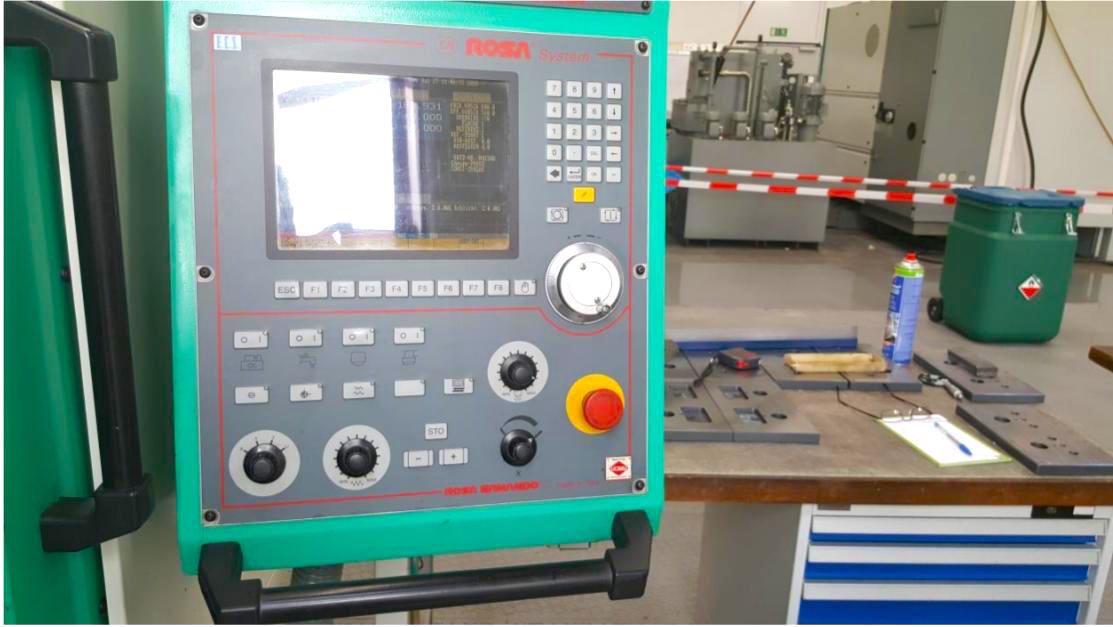

CNC
CNC
SI
WHEEL SPINDLE
Spindle power
11 (S6) Kw
Rotating speed
1500 Rpm
WHEEL
Wheel band thickness
80 mm3,15 in
Max wheel diameter
400 mm15,75 in
Hole diameter
127 mm5,00 in
FEEDS
Cross
0-8000 mm/min0,0000-314,9600 ipm
Automatic Vertical
0-8000 mm/min0,0000-314,9600 ipm
EXTRA
Total power supply
16 Kw
Machine total weight
6000 Kg
Floor space
3250x2150x2380 mm127,95x84,65x93,70 in
Automatic dresser
Yes
Filtration unit
FILTRO
Housing
TOTALE
Available in stock
SI
Availability
PRONTA
Tooling included
flange, mole, piano magnetico
