Category
Grinding Machine
Type
Surface
Made
Model

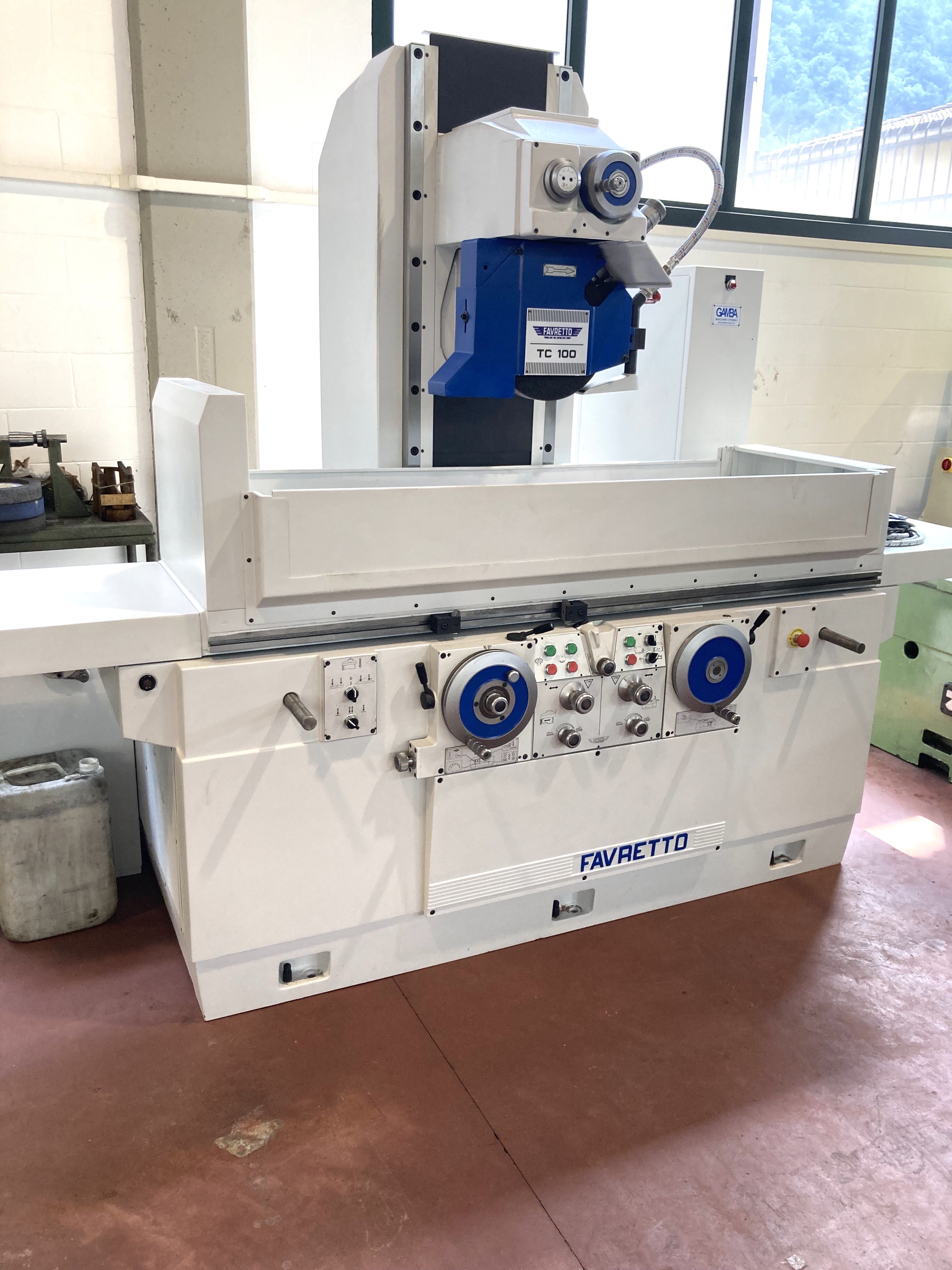

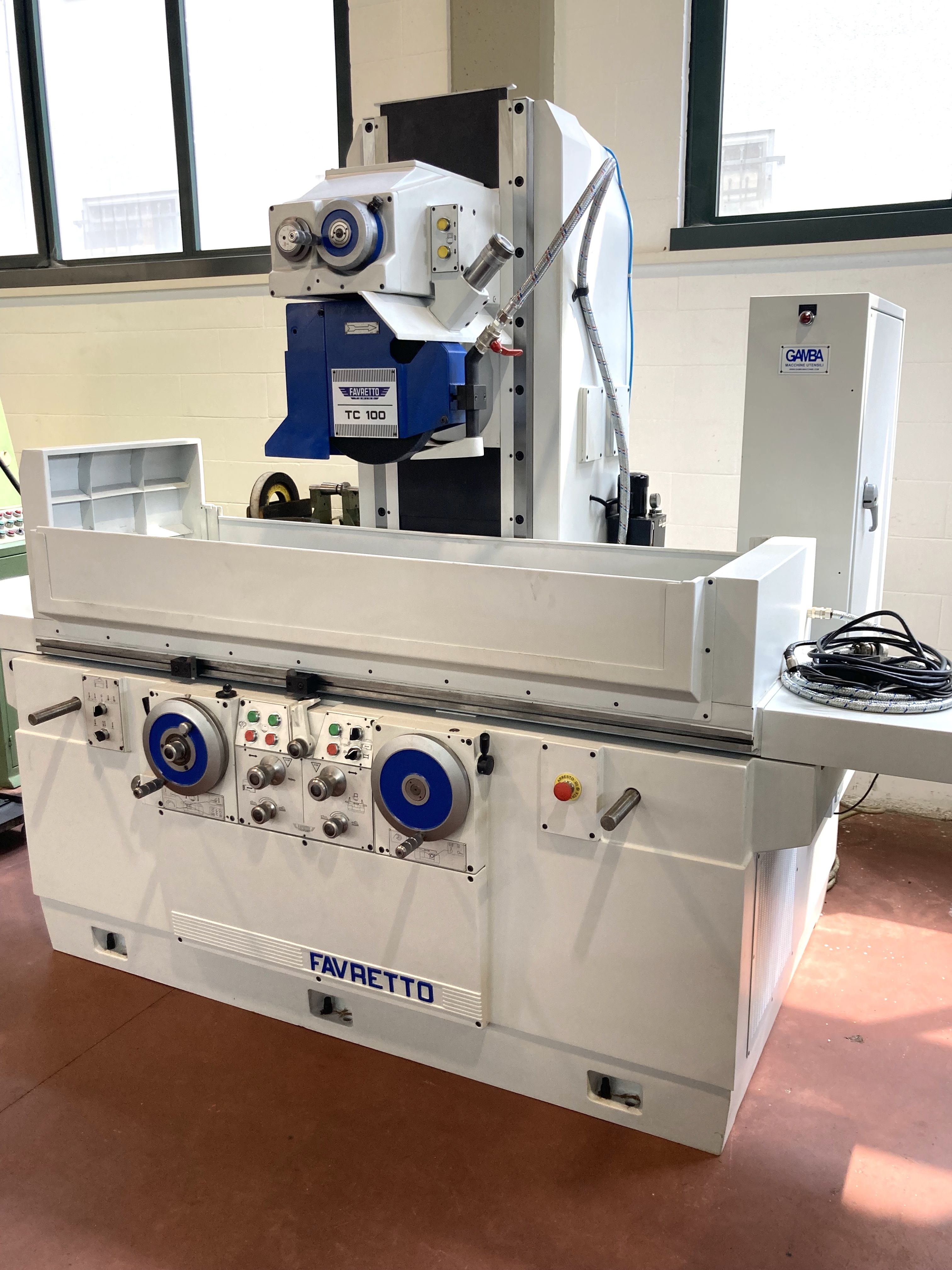

TC 100
Capacity
1000X575 mm39,37X22,64 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
1000 mm39,37 in
Cross Table (Y)
575 mm22,64 in
Max grinding lenght
1000 mm39,37 in
Max grinding width
575 mm22,64 in
Max grinding thickness
400 mm15,75 in

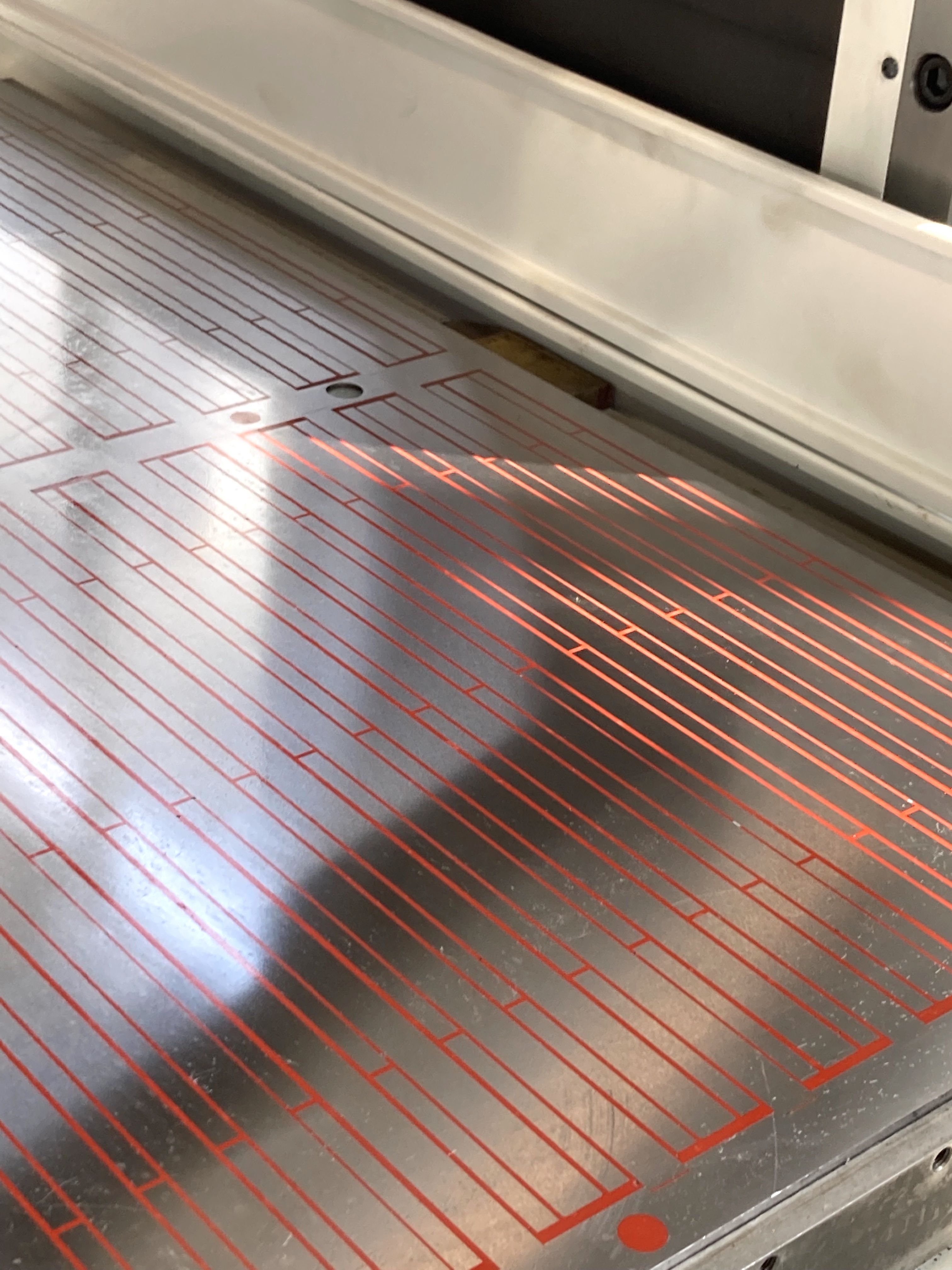

MAGNETIC TABLE
Surface
1000X500 mm39,37X19,69 in
Notes
TECNO-MAGNETE ELTTROPERMANENTE
FEEDS
Automatic Vertical
0,005-0,05 mm/min0,0002-0,0020 ipm
Cross
AUTOMATICI mm/minAUTOMATICI ipm
WHEEL SPINDLE
Spindle power
12 Kw
Rotating speed
1450 Rpm
WHEEL
Wheel band thickness
75 mm2,95 in
Max wheel diameter
406 mm15,98 in
Hole diameter
127 mm5,00 in
EXTRA
Total power supply
18 Kw
Machine total weight
5000 Kg
Floor space
1500X2900 mm59,06X114,17 in
Tooling included
BILANCIATORE MOLA -FLANGE PORTAMOLA
Manual dresser
Yes
Maintenance & Use books
Yes
Electrical drawings
Yes
Availability
PRONTA
Available in stock
SI
Available under power
SI
