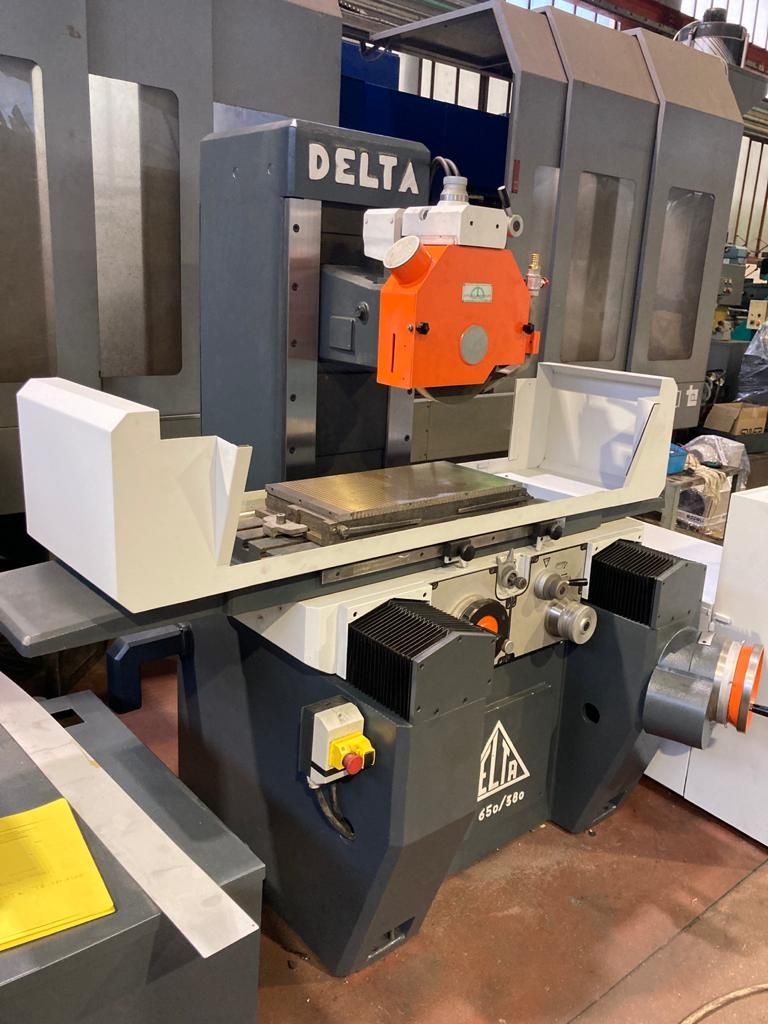

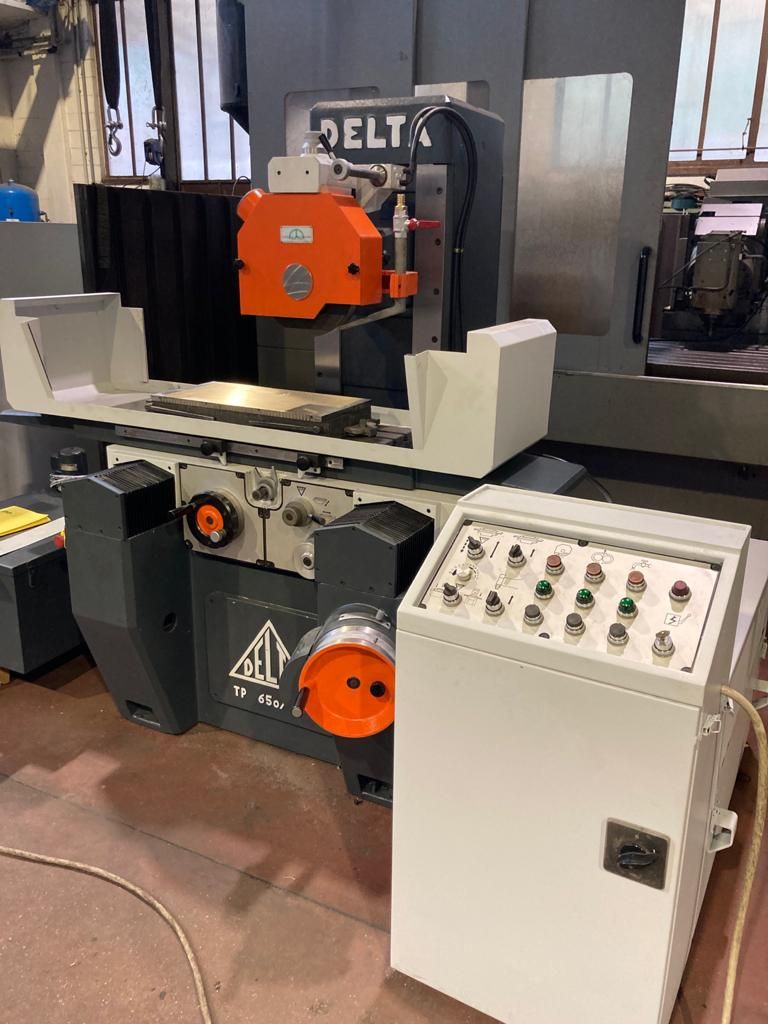

Category
Grinding Machine
Type
Surface
Made
Model
TP 650/380
Capacity
650x380x375 mm25,59x14,96x14,76 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
700 mm27,56 in
Vertical (Z)
375 mm14,76 in
Cross Table (Y)
380 mm14,96 in
Max grinding lenght
700 mm27,56 in
Max grinding width
380 mm14,96 in
Max grinding thickness
375 mm14,76 in
Spindle nose axis - table distance
550 mm21,65 in
TABLE
Surface
600x300 mm23,62x11,81 in
Stroke
700 mm27,56 in
Cross speed
0-30
MAGNETIC TABLE
Surface
600x300 mm23,62x11,81 in
Notes
manuale
FEEDS
Automatic Vertical
0,005 - 0,03 mm/min0,0002 - 0,0012 ipm
WHEEL SPINDLE
Spindle power
5,5 Kw
Rotating speed
1400 Rpm
WHEEL
Wheel band thickness
40 mm1,57 in
Max wheel diameter
350 mm13,78 in
Hole diameter
127 mm5,00 in
EXTRA
Machine total weight
2500 Kg
Tooling included
piano magnetico, vasca refrigerante
Availability
pront
Available in stock
si
Available under power
si
Manual dresser
Yes
Maintenance & Use books
Yes
Electrical drawings
Yes
Floor space
2500x1800x1950 mm98,43x70,87x76,77 in
