Technical specifications
Metric
Imperial
WORKING CAPACITY
Spindle nose axis - table distance
322 - 495 (senza piano magnetico) mm12,68 - 19,49 (senza piano magnetico) in
Table tilt (C )
+7/-7 °
Cross RAM (Y)
350 mm13,78 in
Notes
max spessore con piano magnetico 150mm/senza piano magnetico 250mm
WHEEL SPINDLE
Spindle power
7,5 Kw
Rotating speed
1500 Rpm
TABLE
Diameter
600 mm23,62 in
Notes
+7° / -4°
Rotating speed
10-160 Rpm
WHEEL
Max wheel diameter
350 mm13,78 in
Wheel band thickness
51 mm2,01 in
Hole diameter
127 mm5,00 in

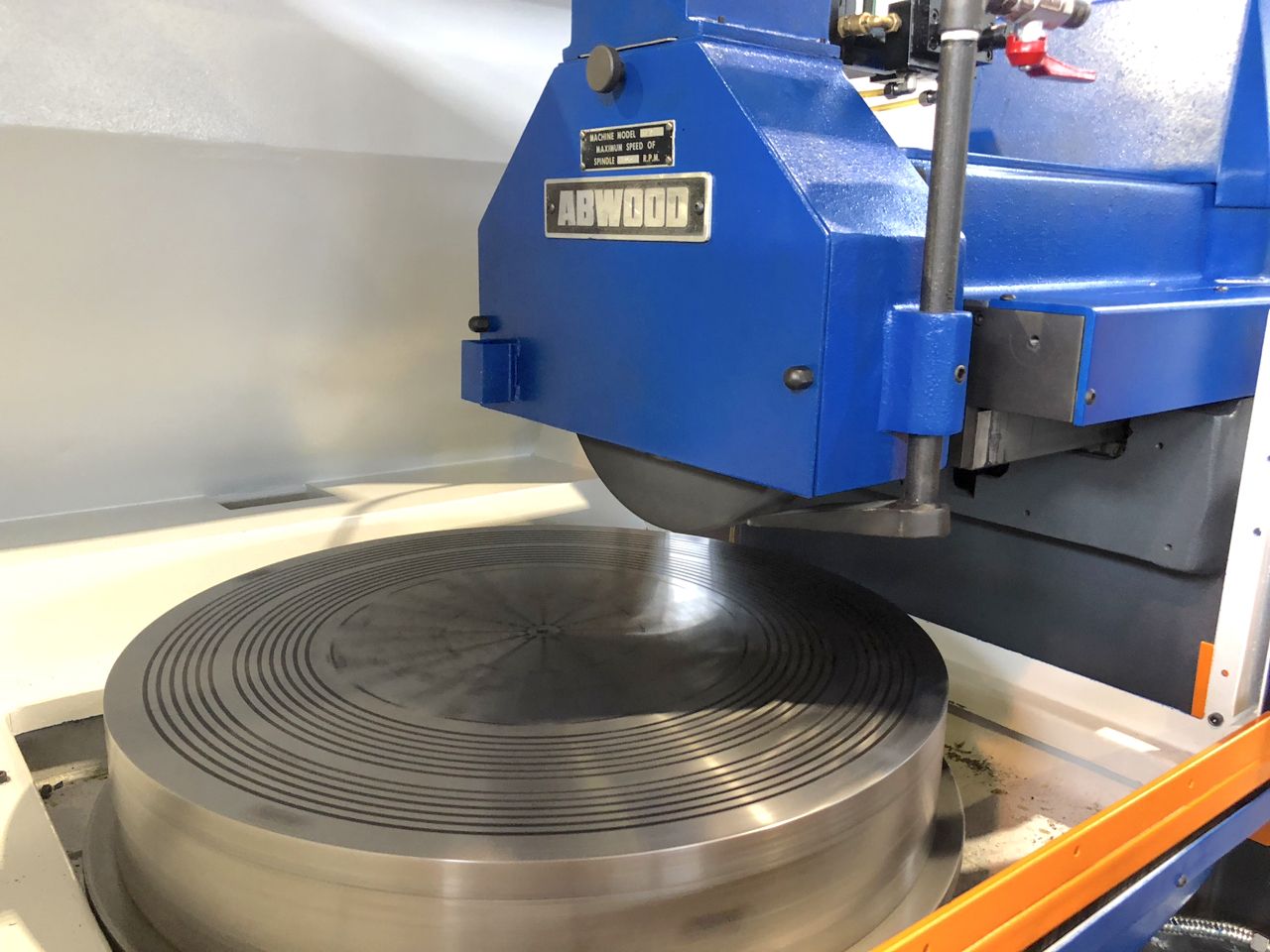

MAGNETIC TABLE
Surface
600 mm23,62 in
EXTRA
Machine total weight
3650 Kg
Floor space
2692x1320 mm105,98x51,97 in
Total power supply
13,5 Kw
Housing
area di lavoro
Tooling included
diamantatore
