Category
Grinding Machine
Type
ID/OD
Made
Model
718 UM
Capacity
700 X 360 mm27,56 X 14,17 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Centres distance
700 mm27,56 in
Centres height
180 mm7,09 in
Longitudinal (Z)
700 mm27,56 in
Max grinding diameter
360 mm14,17 in
Max internal diameter
140 mm5,51 in
Max internal depth
100 mm3,94 in
TABLE
Stroke
700 mm27,56 in
TAILSTOCK
Drive
IDRAULICO
Quill stroke
20 mm0,79 in
Taper
MORSE 3

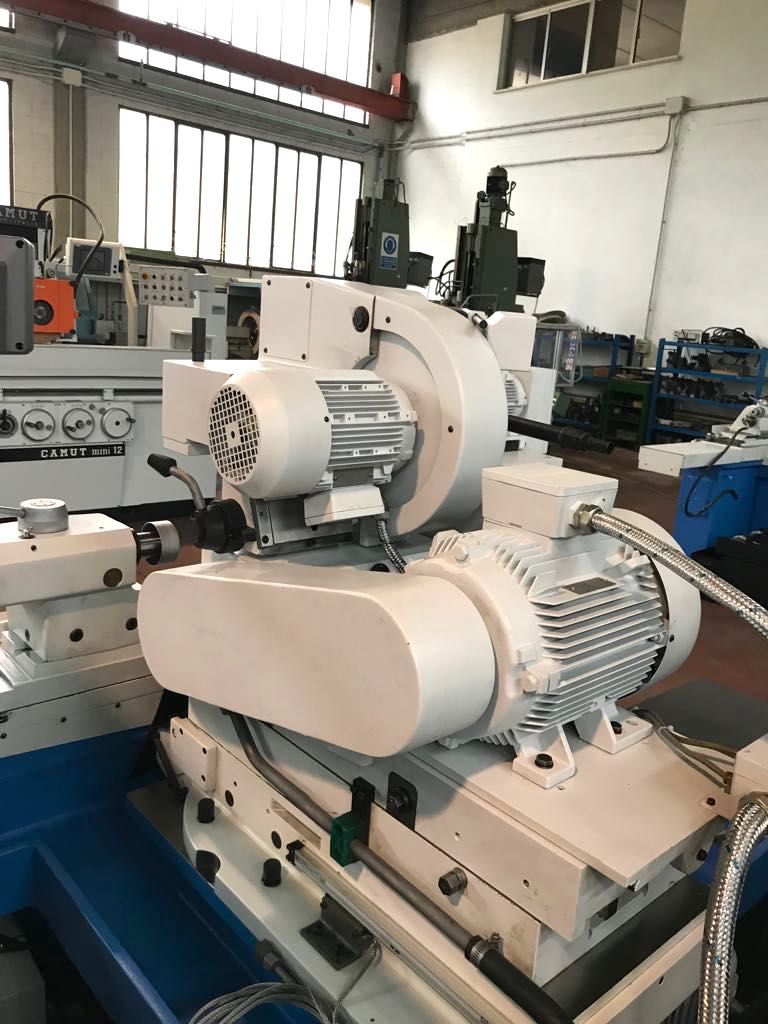

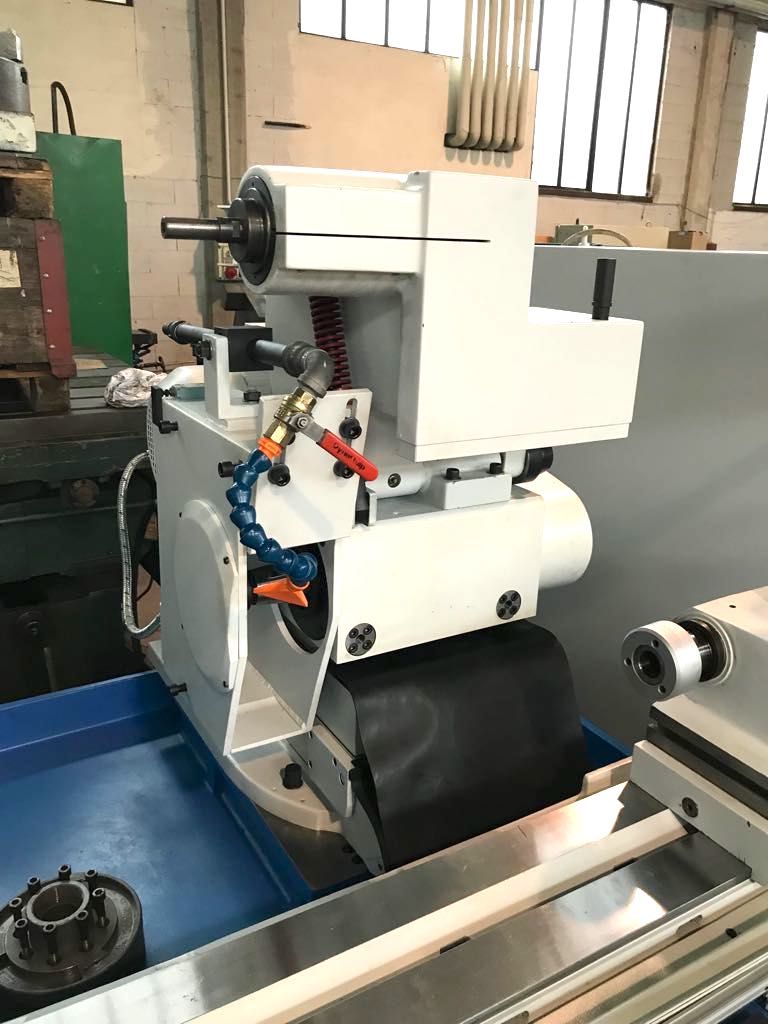

WHEELHEAD
Support
HYDRODINAMICO
External spindle power
4 Kw
External spindle speed
166/1800 Rpm
Internal spindle power
1,10 Kw
FEEDS
Cross
0,005/0,0005 mm/min0,0002/0,0000 ipm
LEFT WHEEL
Wheel band thickness
75 mm2,95 in
Max wheel diameter
400 mm15,75 in
Hole diameter
127 mm5,00 in
WORKPIECE HEAD
Spindle power
0,37 Kw
Rotating speed
50/400 Rpm
Speed regulation
CONTINUA
Tilt
+90 ° °
Taper
MORSE 3
EXTRA
Digital read out (DRO)
SI -MILLESIMALE(NUOVO)
Manual dresser
Yes
Tooling included
INTERNI
Maintenance & Use books
Yes
Availability
PRONTA
Available in stock
SI
Available under power
SI
Electrical drawings
Yes
