Technical specifications
Metric
Imperial
WORKING CAPACITY
Centres distance
600 mm23,62 in
Centres height
130 mm5,12 in
Longitudinal (Z)
600 mm23,62 in
Cross (X)
250 mm9,84 in
Max grinding lenght
600 mm23,62 in
Max grinding diameter
255 mm10,04 in
TABLE
Stroke
4-600 mm0,16-23,62 in
Cross speed
100-7000 mm/min3,9370-275,5900 ipm
Max workpiece weight
100 Kg
Tilt
10 °

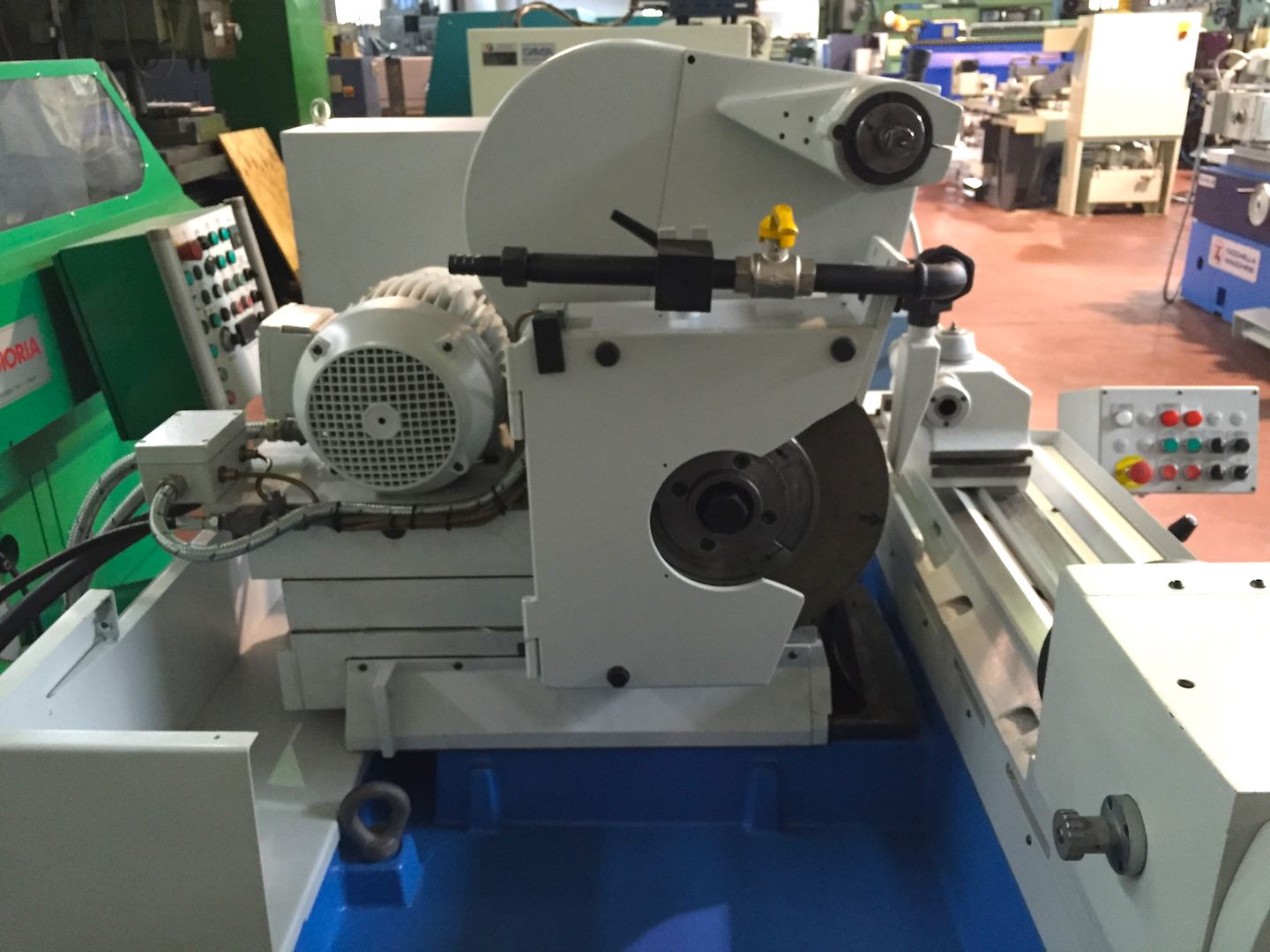

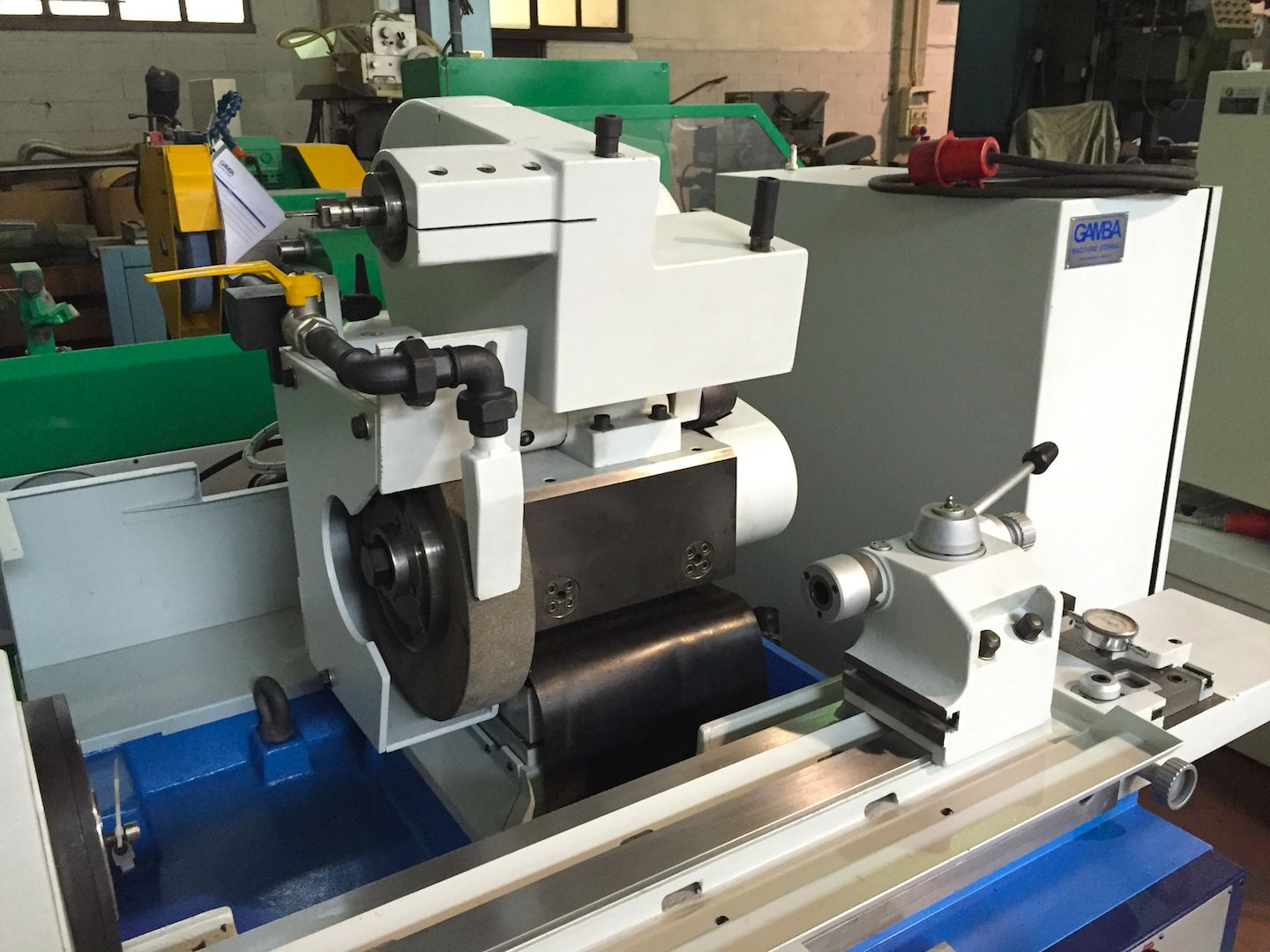

WHEELHEAD
External spindle power
4 Kw
External spindle speed
1600/1800 Rpm
LEFT WHEEL
Wheel band thickness
70 mm2,76 in
Max wheel diameter
350/400 mm13,78/15,75 in
Hole diameter
127 mm5,00 in

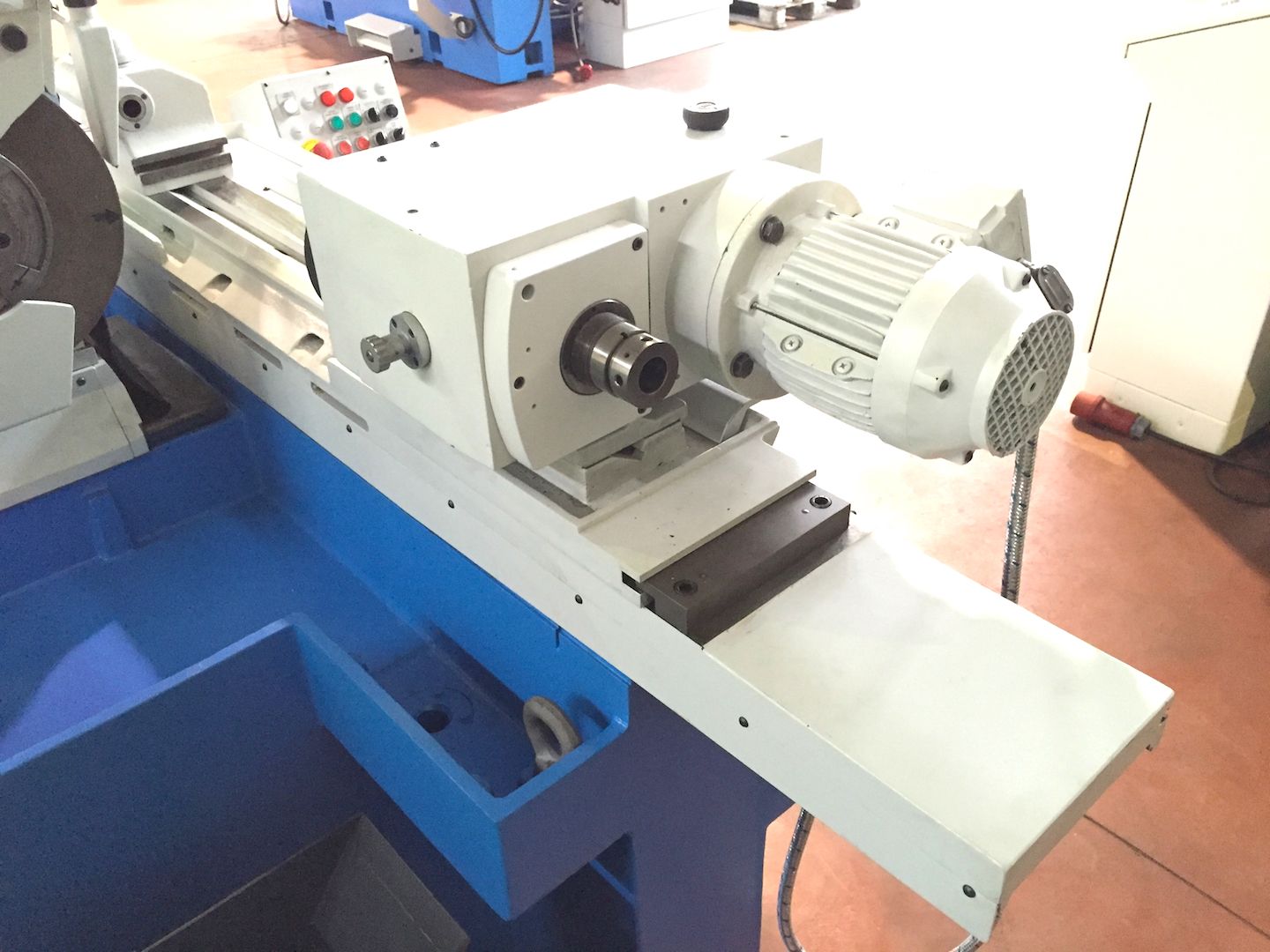

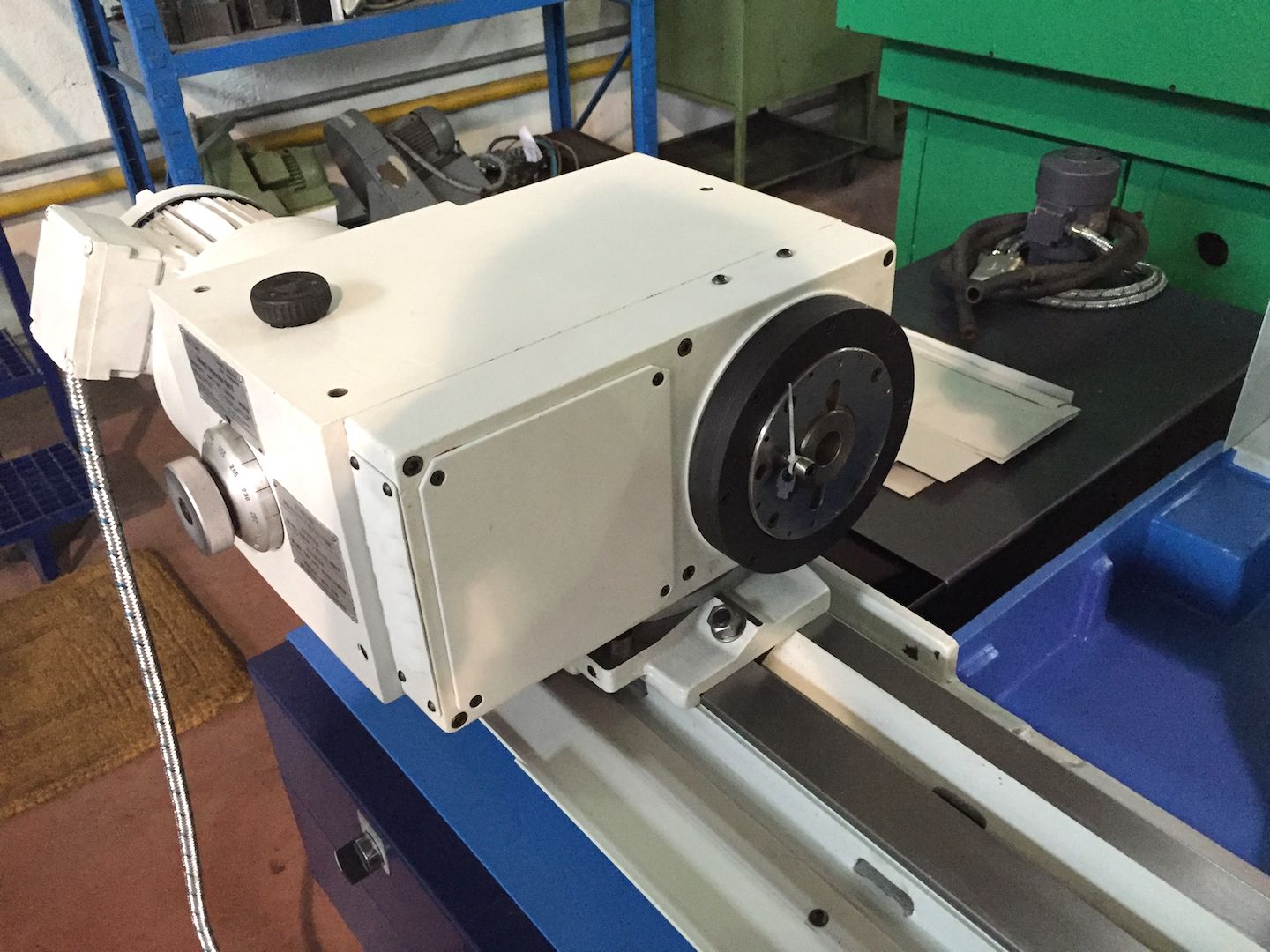

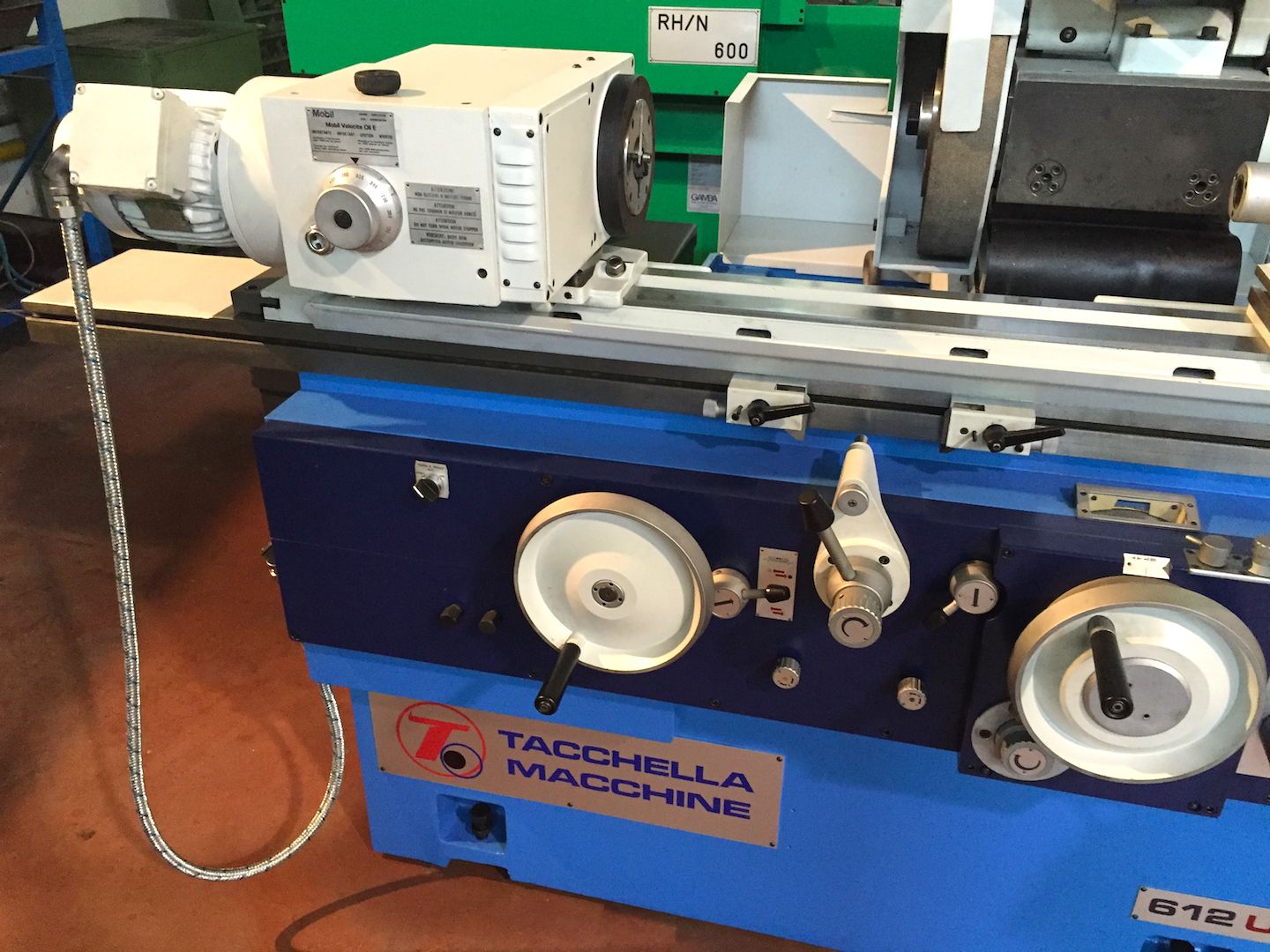

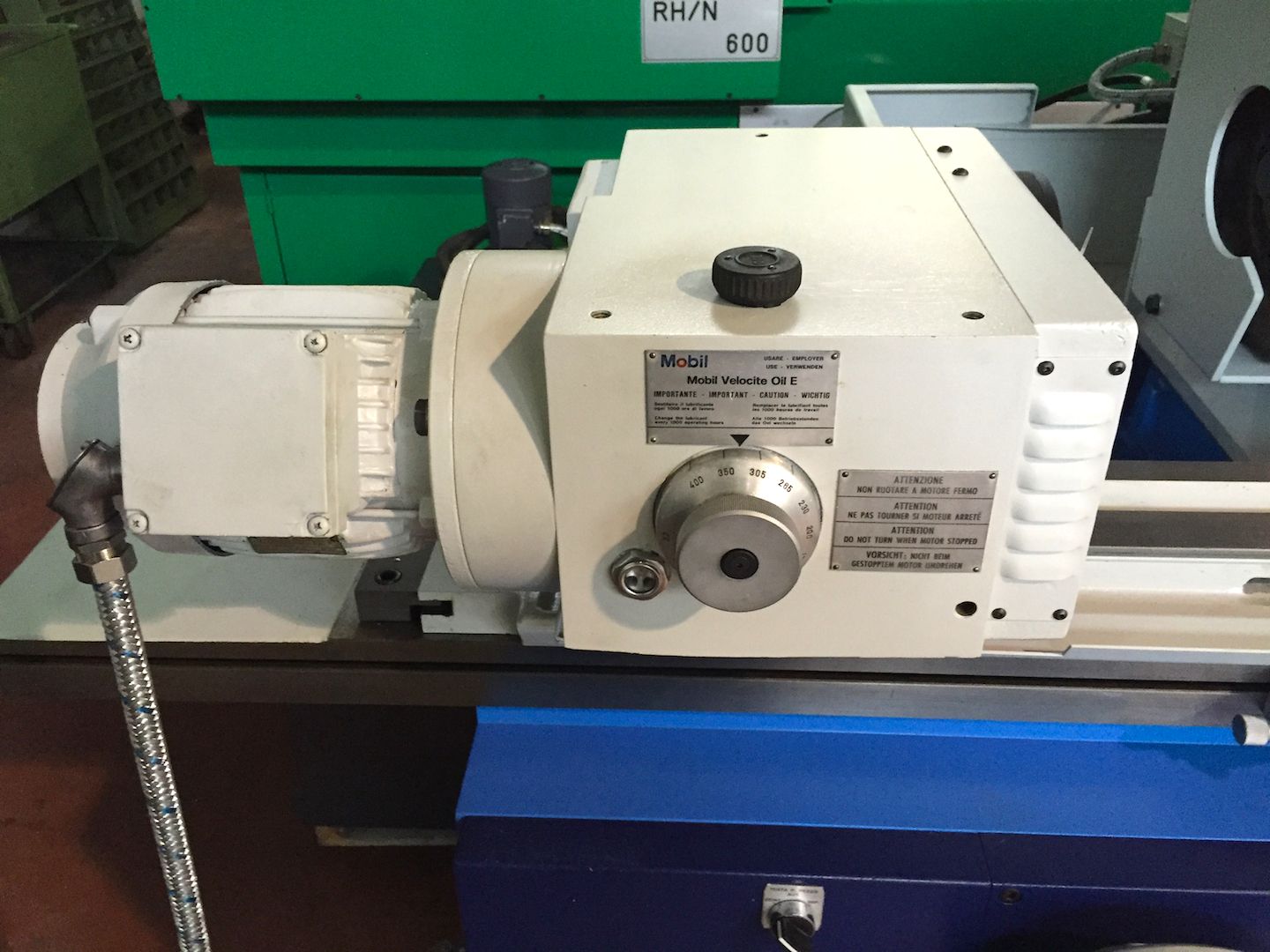

WORKPIECE HEAD
Spindle power
0,37 Kw
Rotating speed
50/400 Rpm
Speed regulation
progressiva manuale
Tilt
+90 °
Taper
MK3

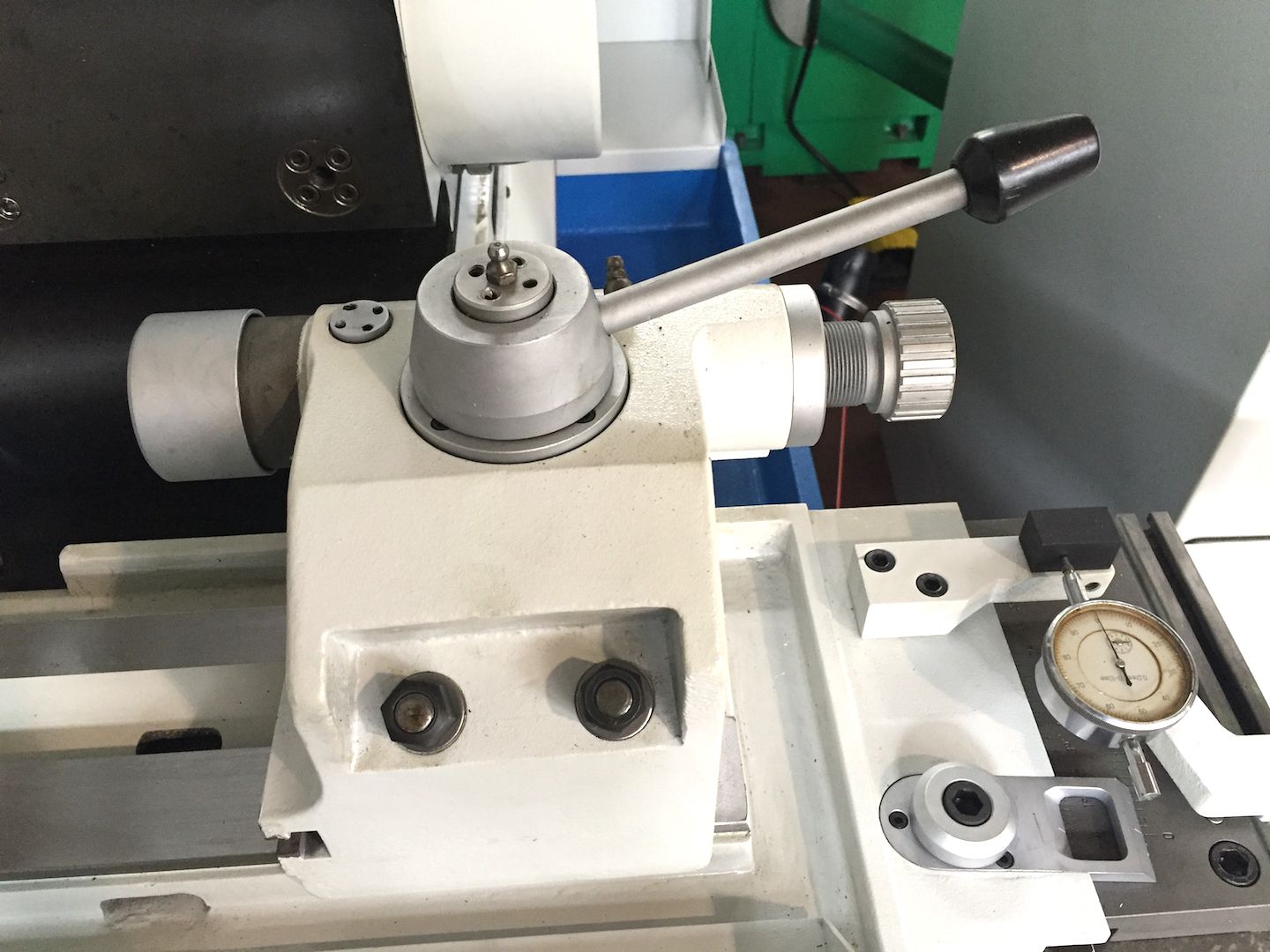

TAILSTOCK
Quill diameter
20 mm0,79 in
Taper
MK3
EXTRA
Relevant updates made on the machine
ricondizionamento completo macchina, ripristino quadro elettrico con ricablaggio, revisione meccanica e ripristino geometrie, riverniciatura completa
Total power supply
6,75 Kw
Machine total weight
2500 Kg
Floor space
2750x2100x1500 mm108,27x82,68x59,06 in
Manual dresser
Yes
Filtration unit
vasca filtro carta
Maintenance & Use books
Yes
Electrical drawings
Yes
Availability
pronta
Available in stock
si
Available under power
previo appuntamento
