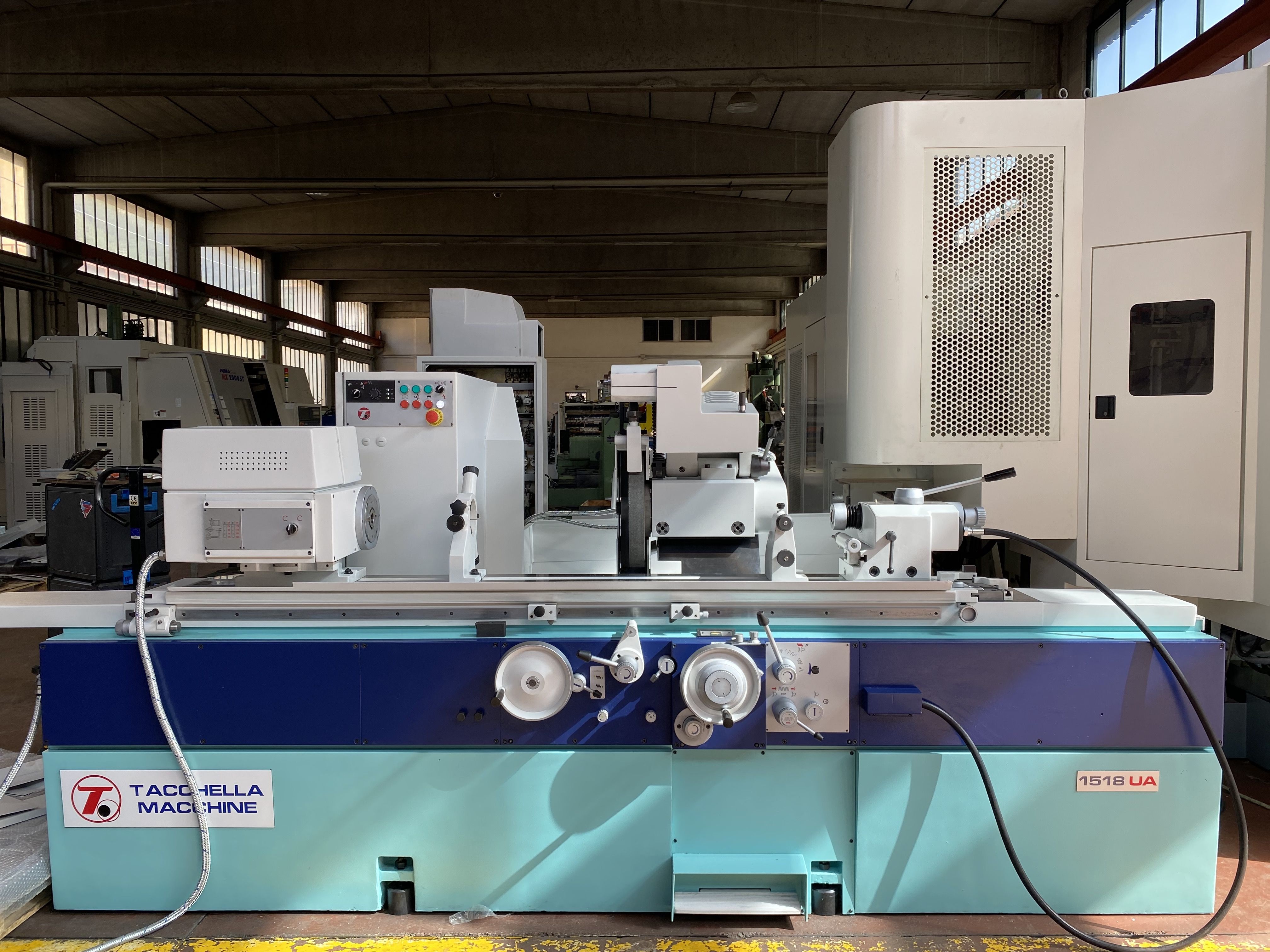

Category
Grinding Machine
Type
ID/OD
Made
Model

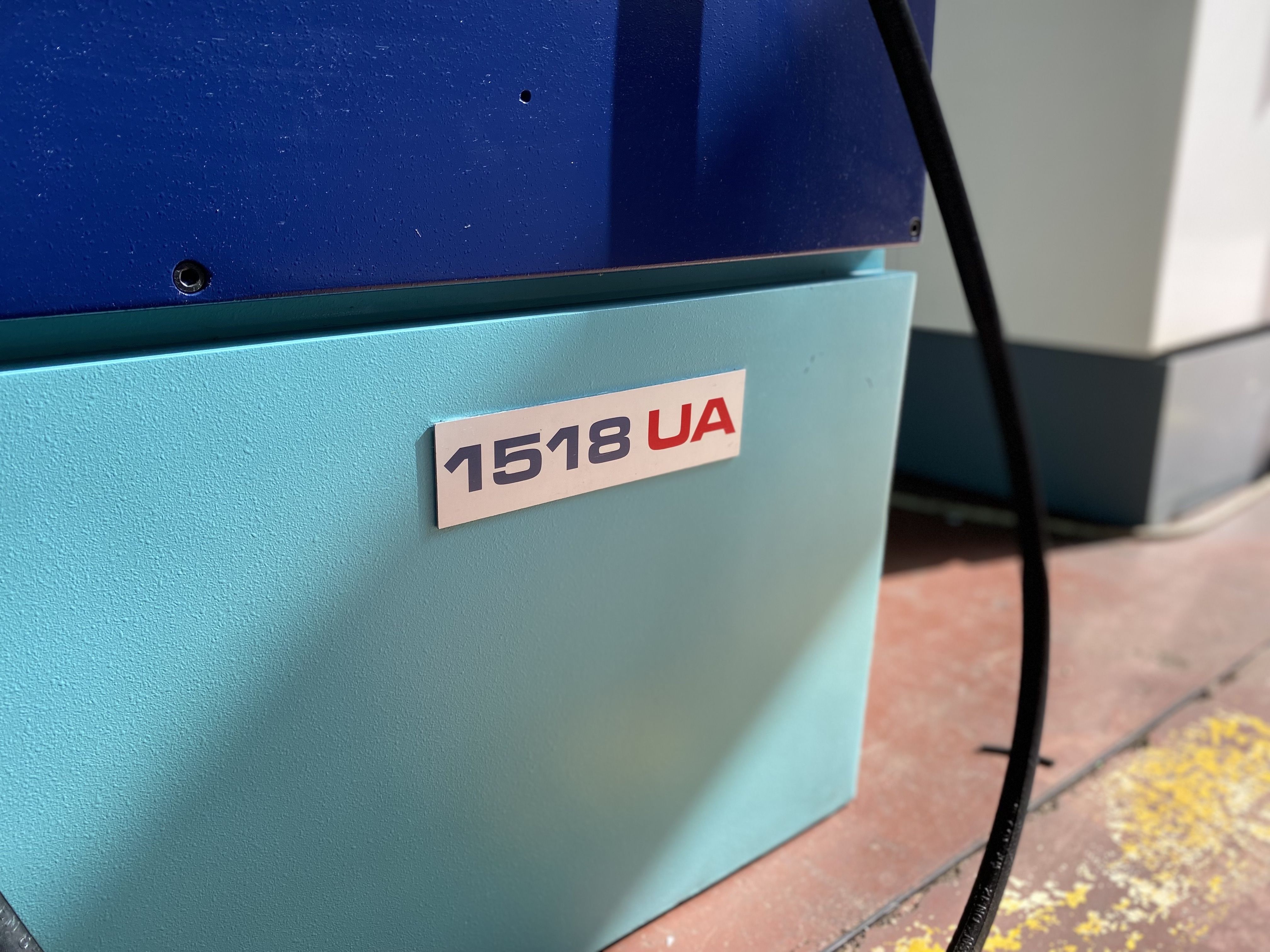

1518 UA
Capacity
360x1500 mm14,17x59,06 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Centres distance
1500 mm59,06 in
Centres height
180 mm7,09 in
Max grinding lenght
1500 mm59,06 in
Max grinding diameter
360 mm14,17 in
Max internal diameter
75-270 mm2,95-10,63 in
Max internal depth
380 mm14,96 in

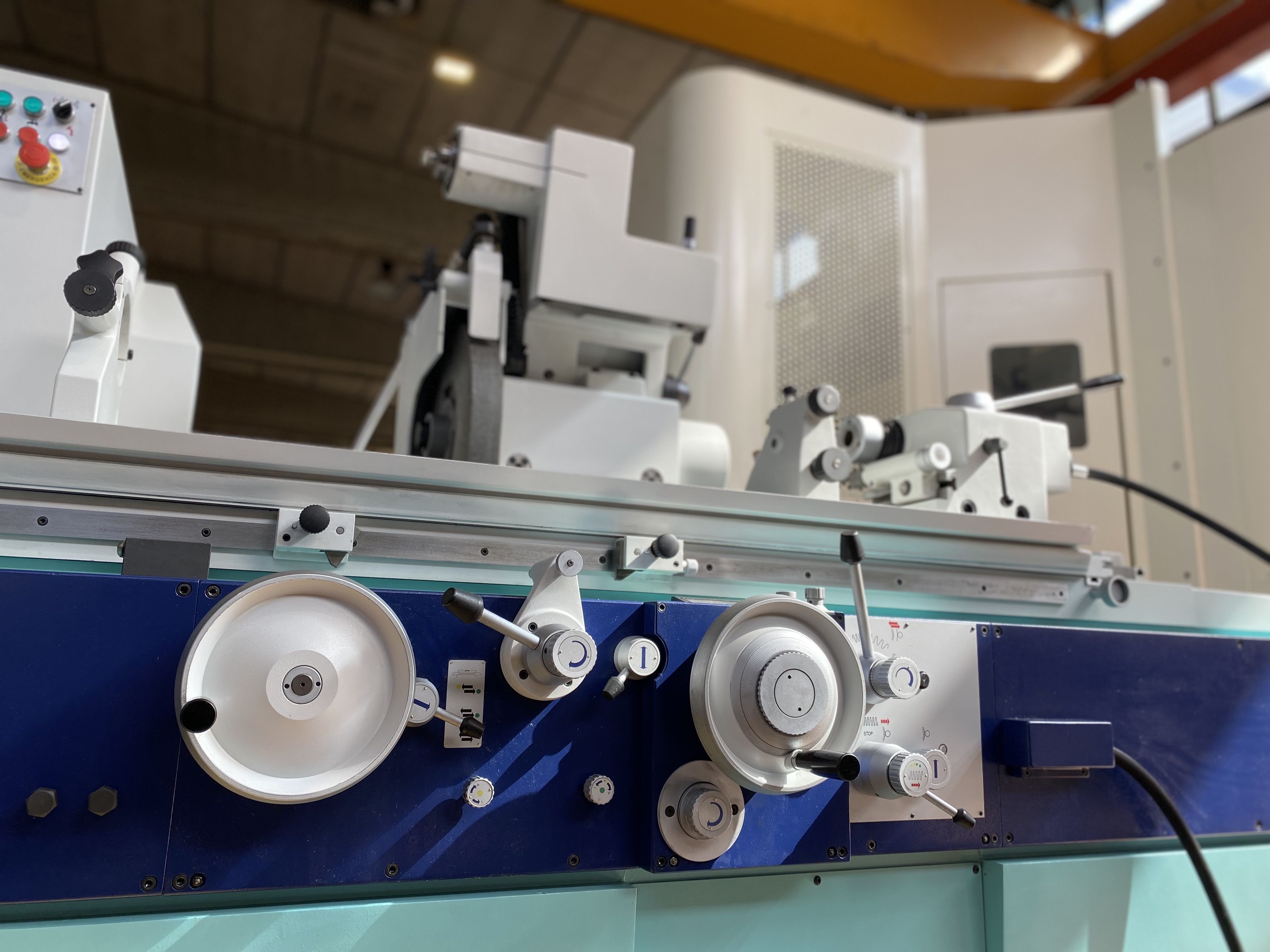

TABLE
Stroke
1500 mm59,06 in
Cross speed
0,1-5 mm/min0,0039-0,1969 ipm
Max workpiece weight
250 Kg
Tilt
0/7 °
FEEDS
Cross
automatici mm/minautomatici ipm

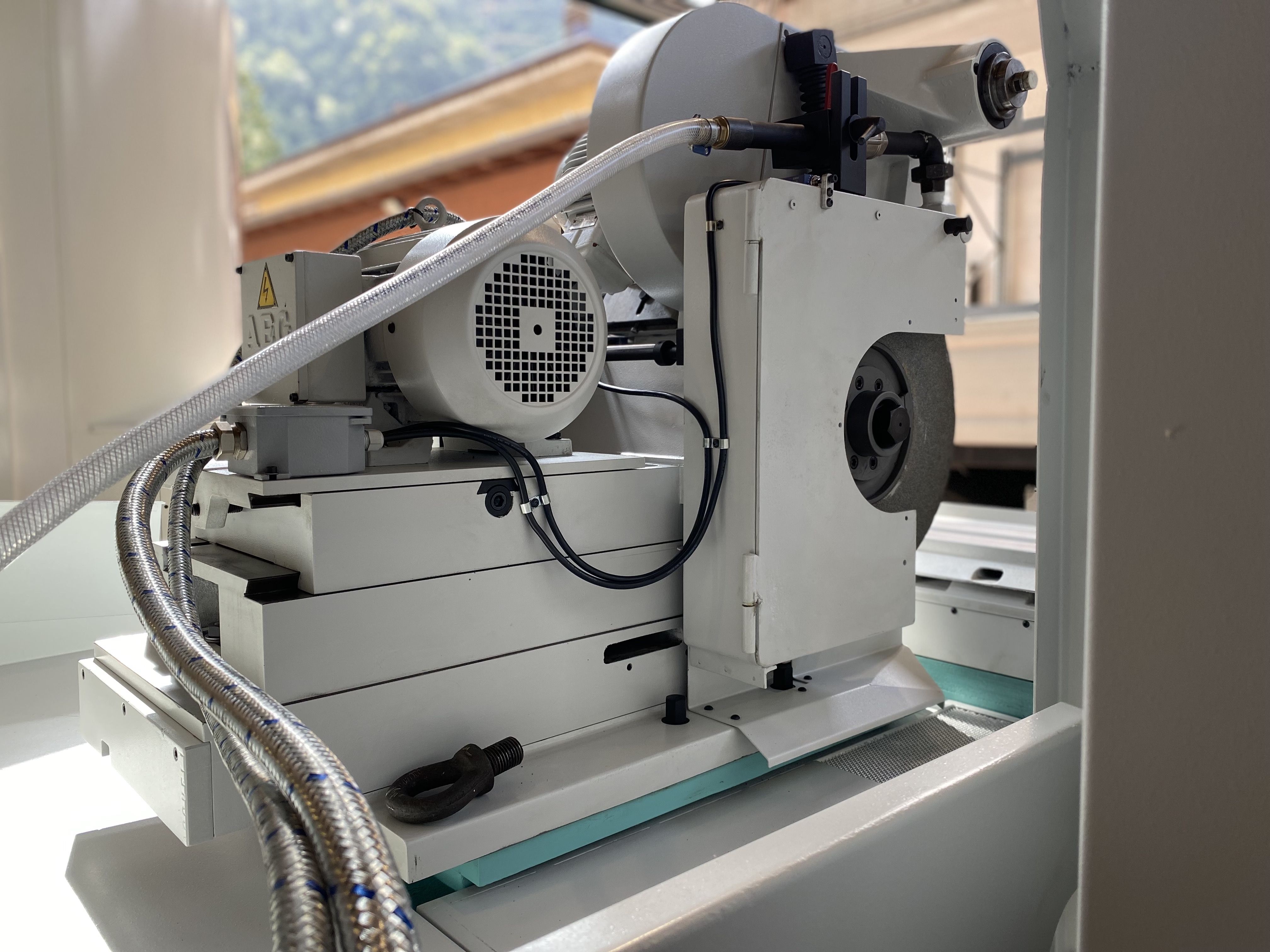

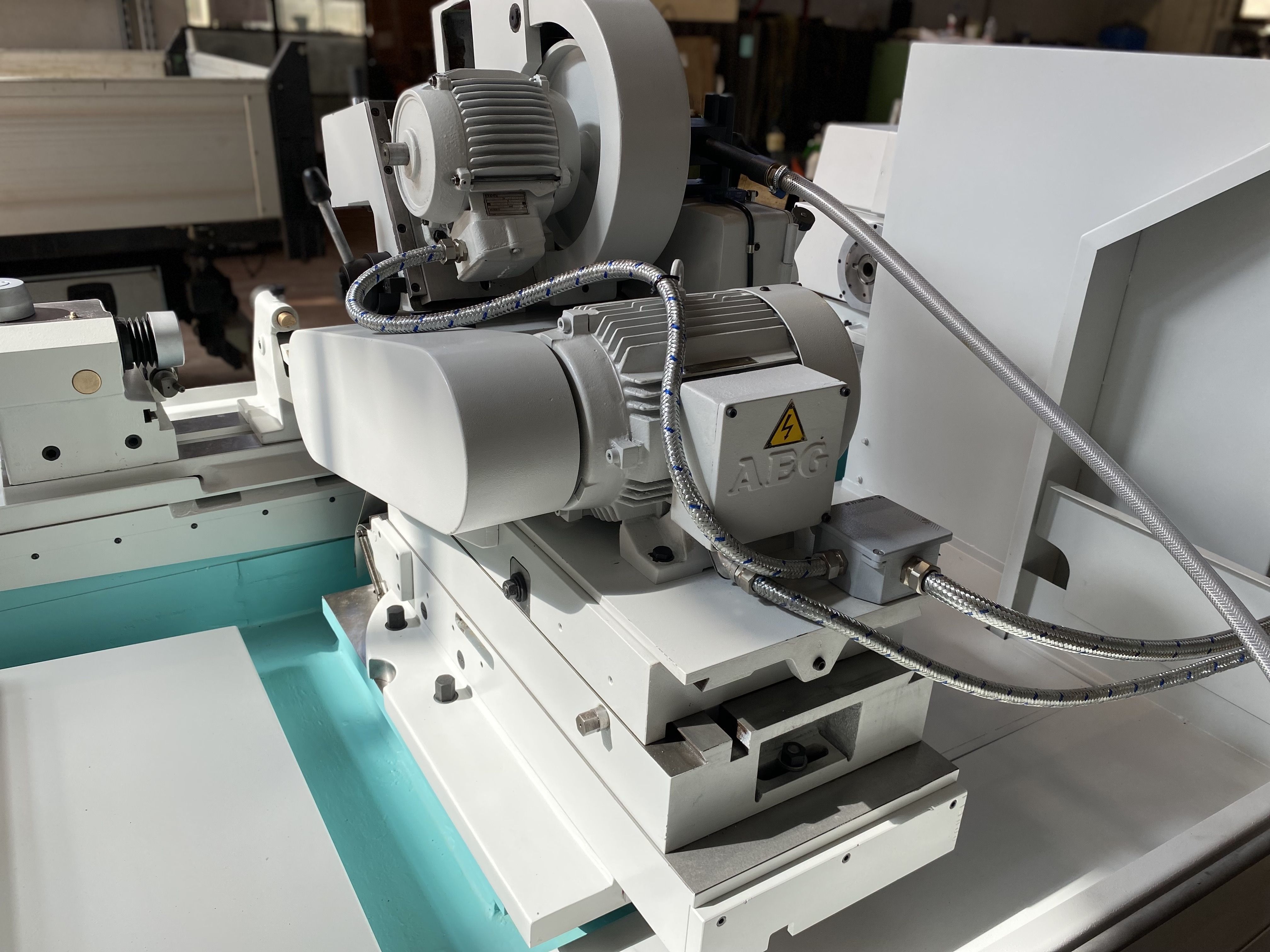

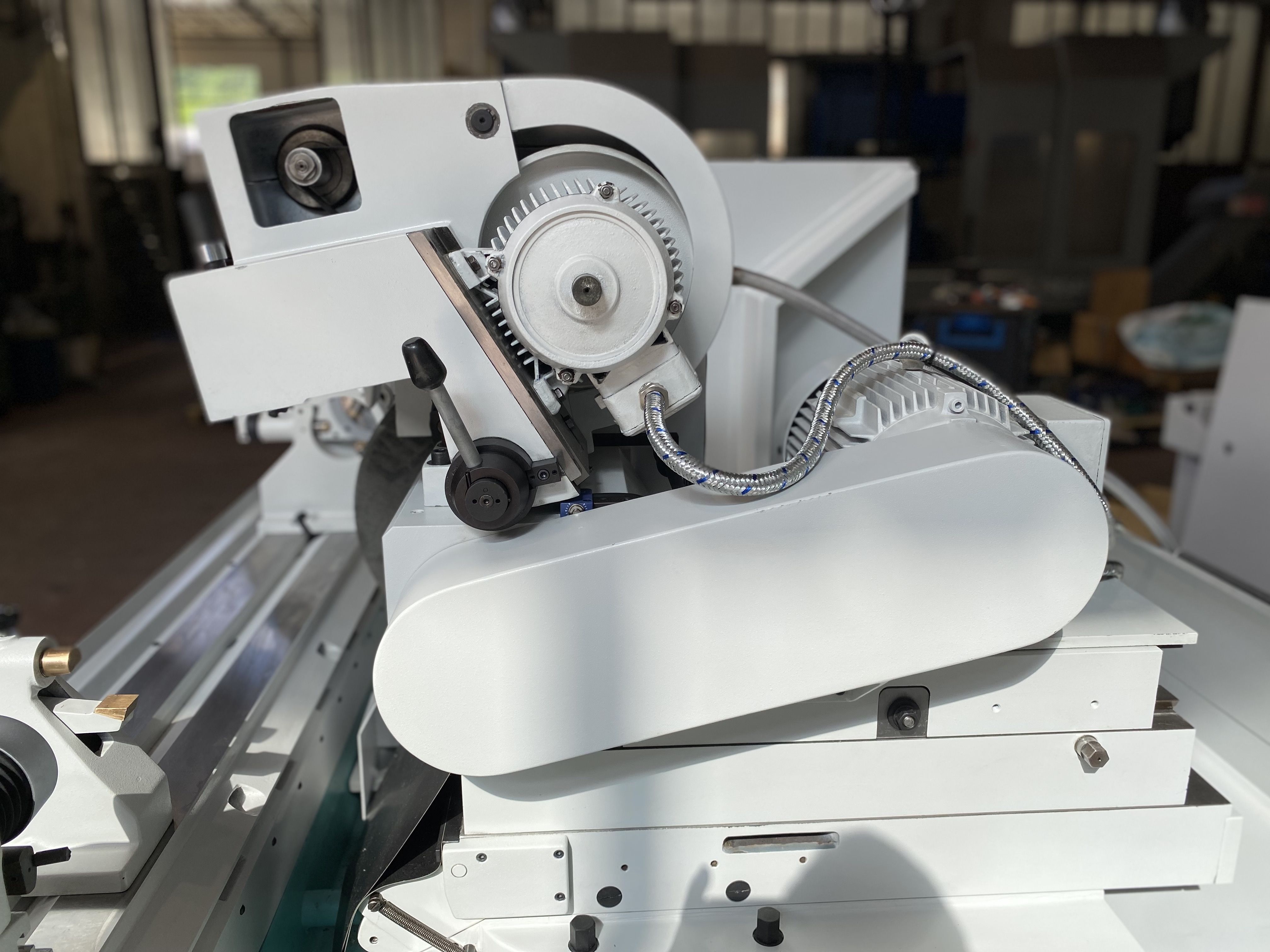

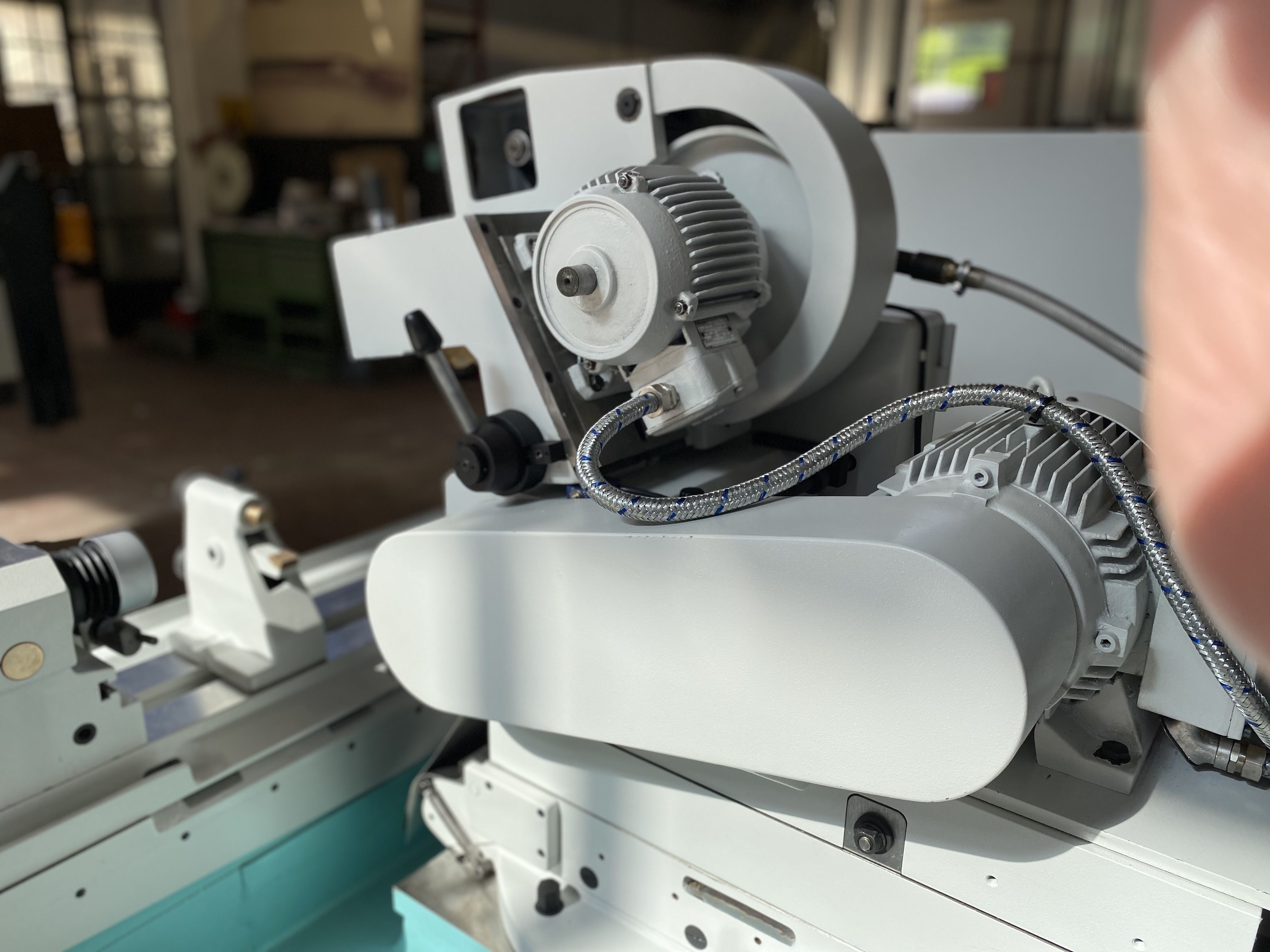

WHEELHEAD
External spindle power
5,5 Kw
External spindle speed
1275-1450 Rpm

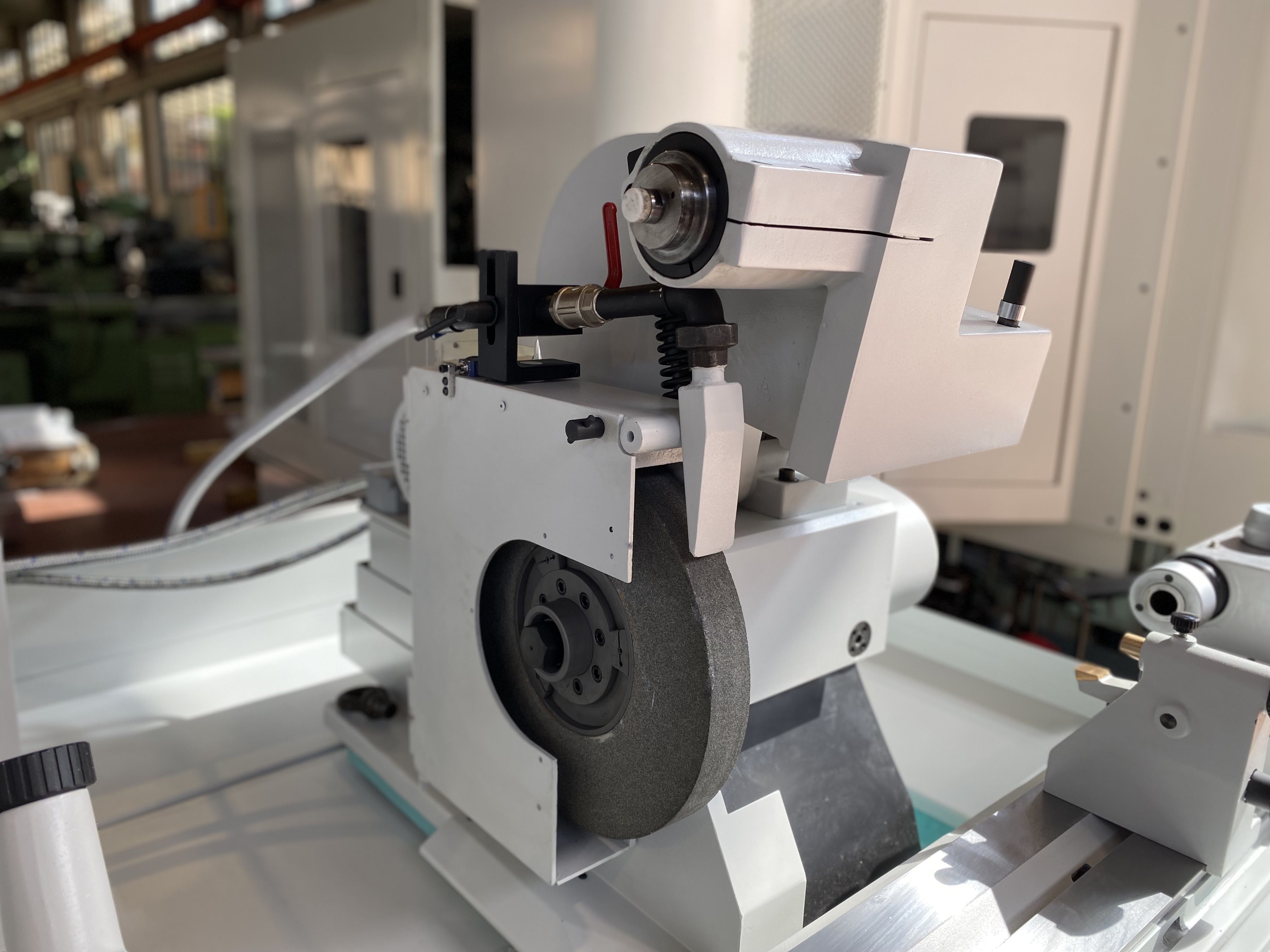

LEFT WHEEL
Wheel band thickness
80 mm3,15 in
Max wheel diameter
500 mm19,69 in
Hole diameter
127 mm5,00 in

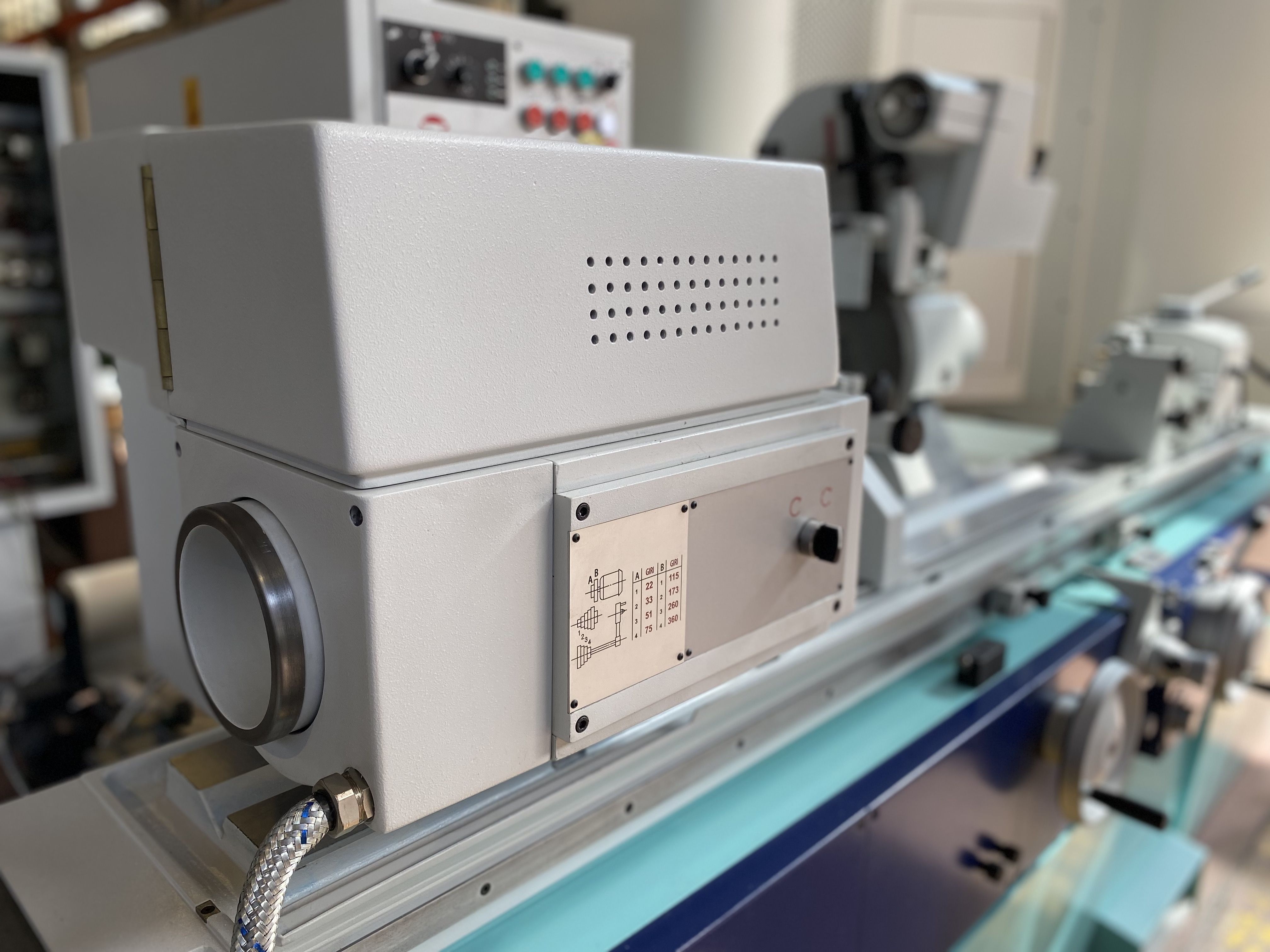

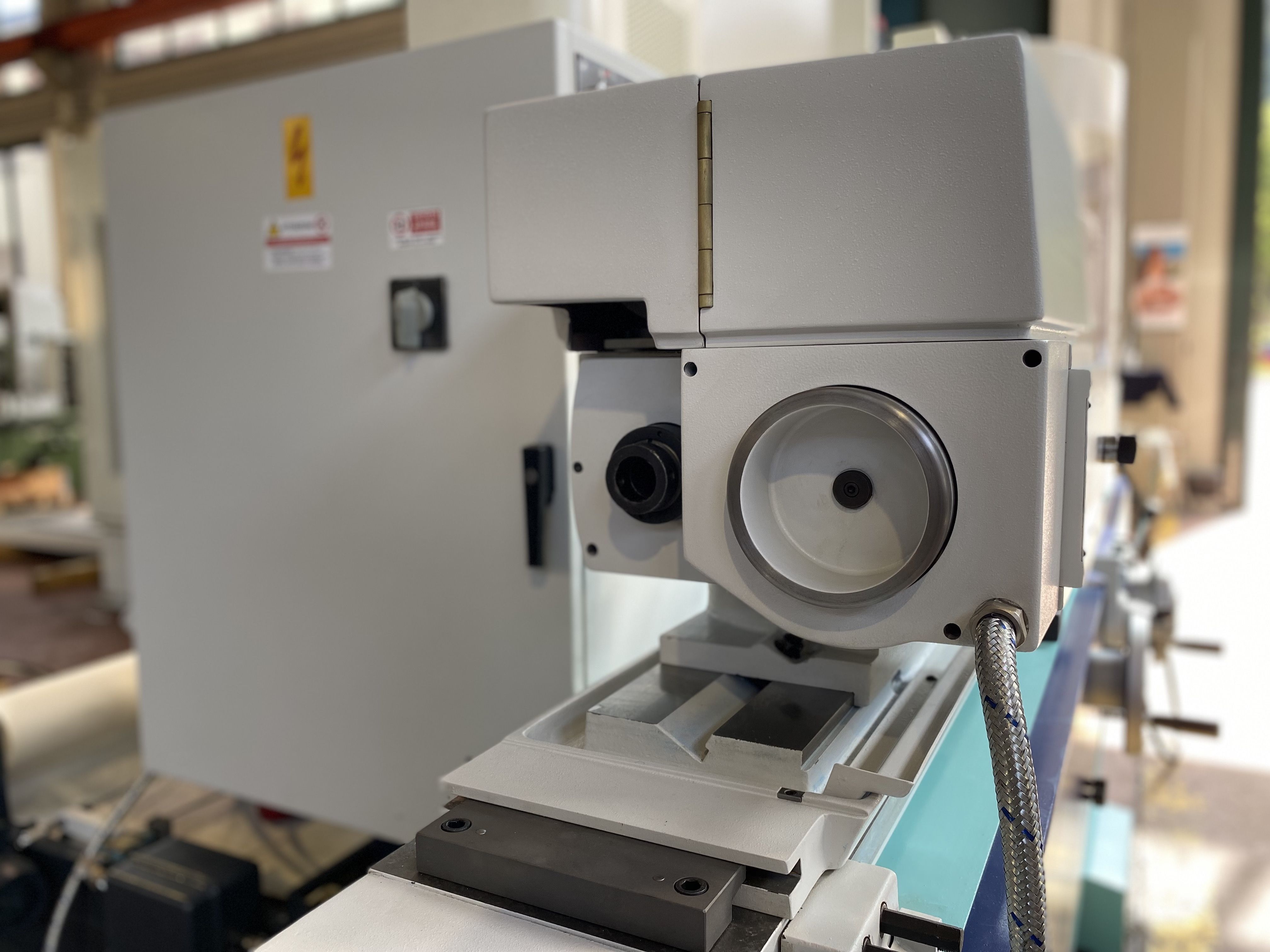

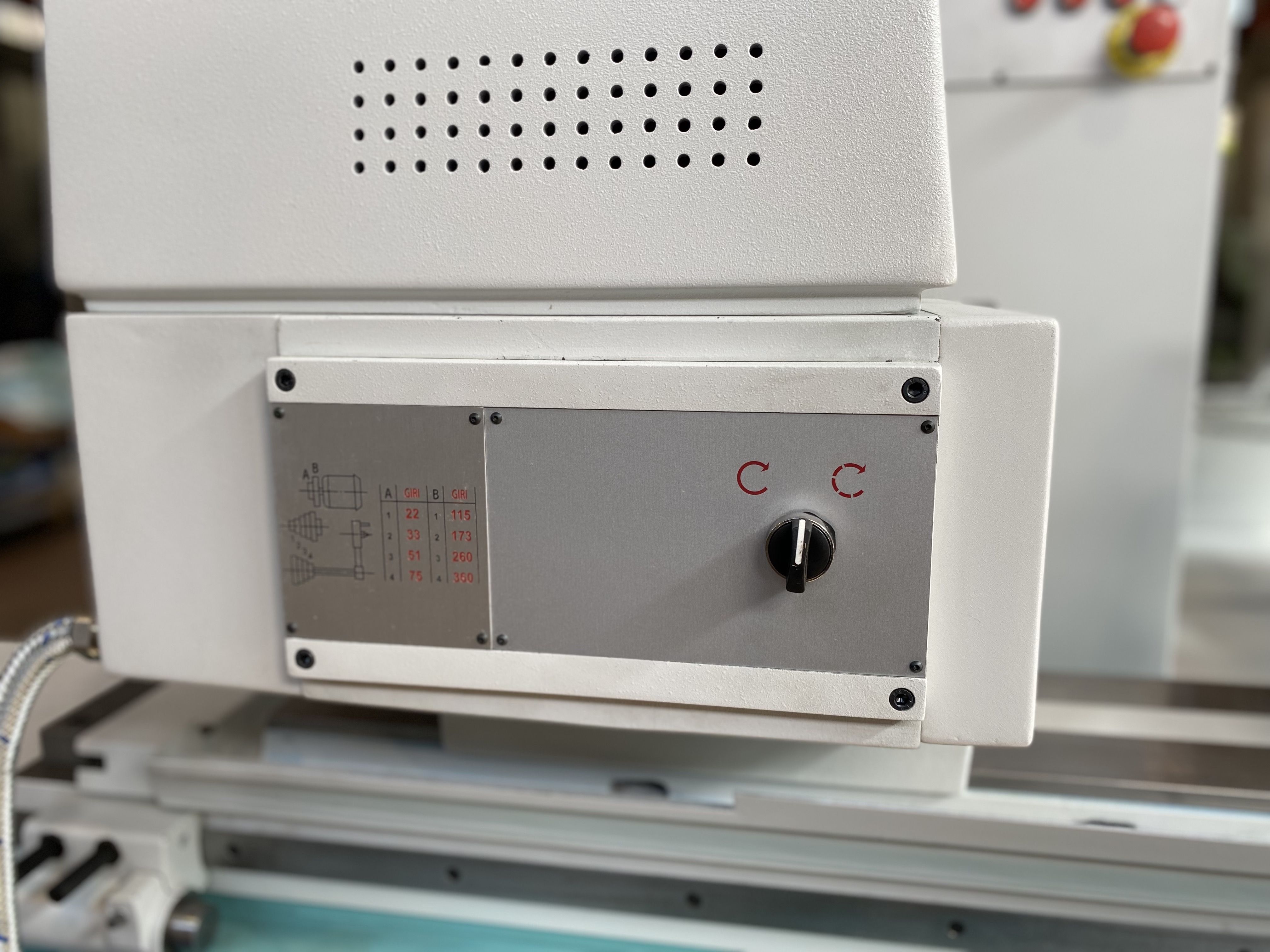

WORKPIECE HEAD
Rotating speed
28/550 Rpm
Tilt
90 °

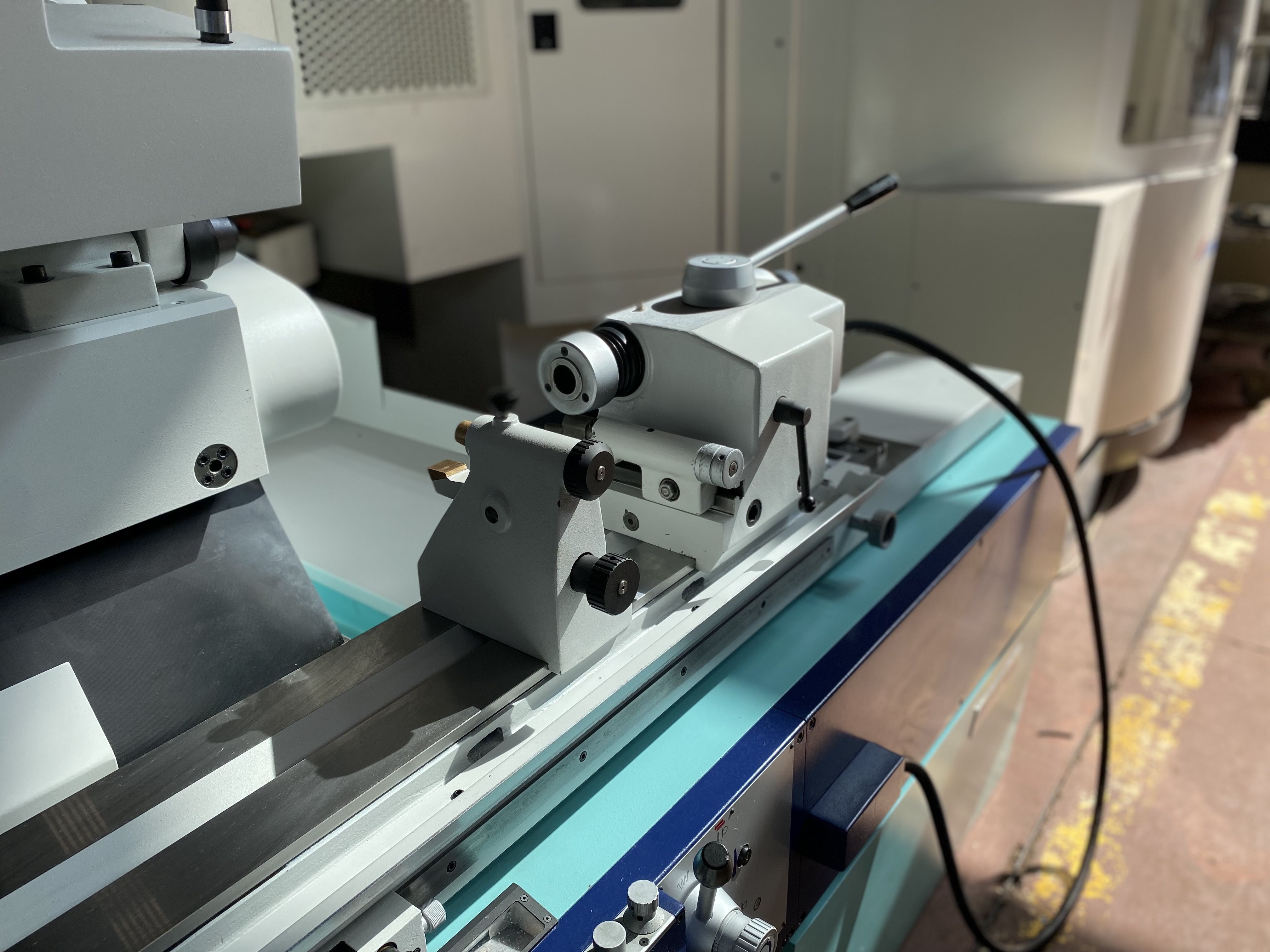

TAILSTOCK
Drive
idraulico
EXTRA
Total power supply
9,75 Kw
Machine total weight
4700 Kg
Floor space
5300x1850x1750 mm208,66x72,83x68,90 in
Tooling included
APPARECCHIO PER INTERNI

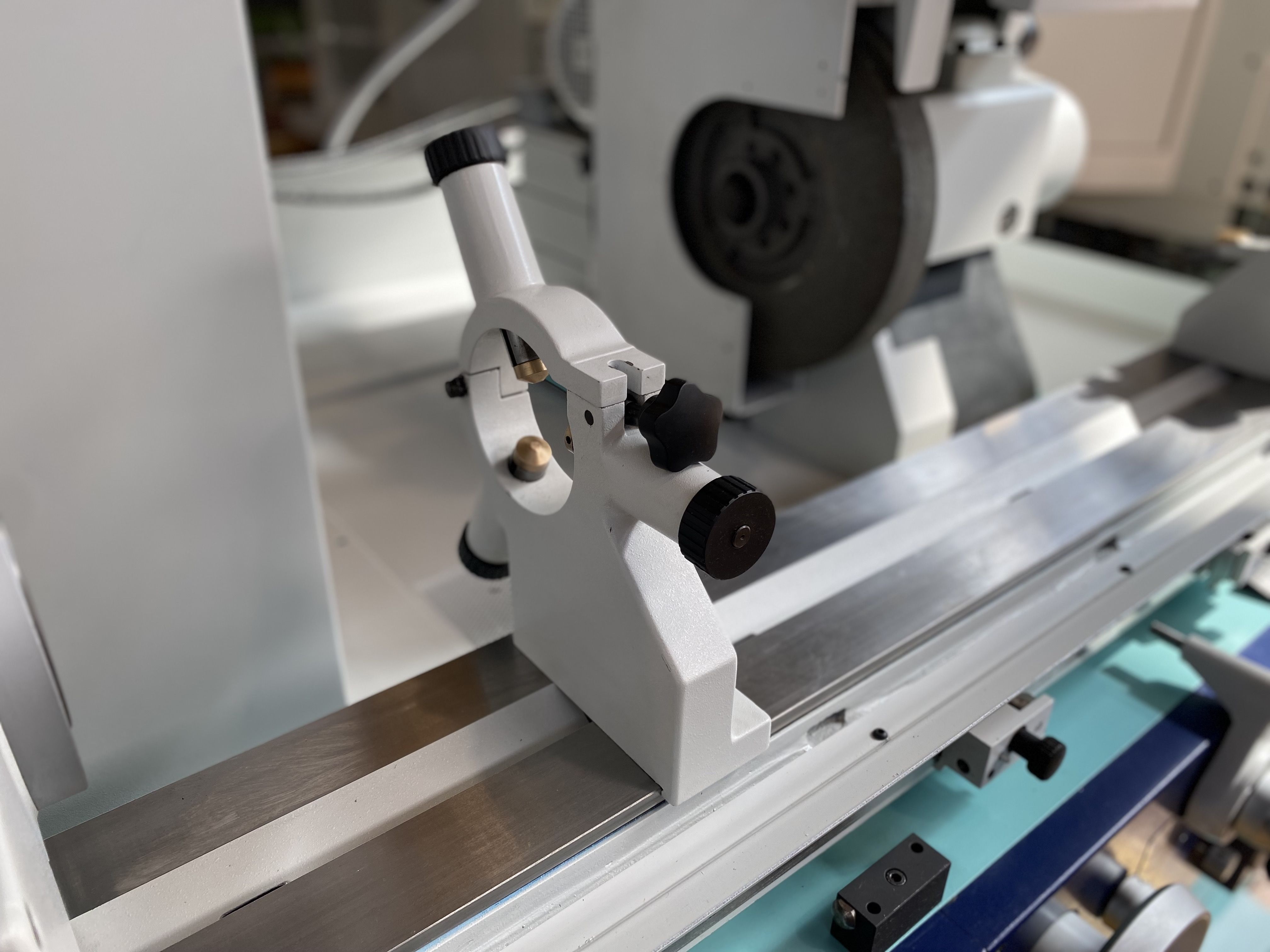

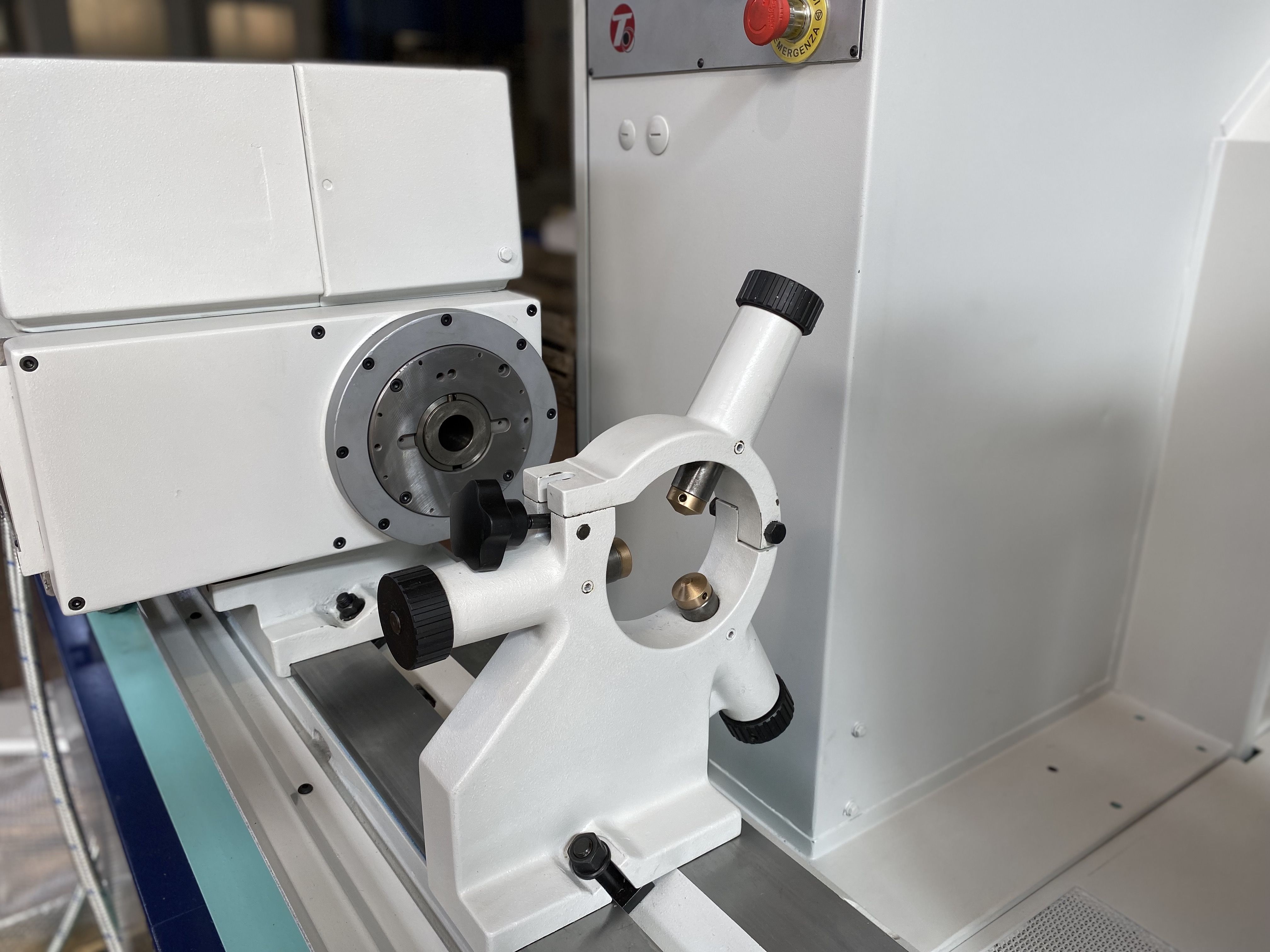

Open steadies
Sì
Closed steadies
Sì
Wheel balancer
No
Diametral probe
No

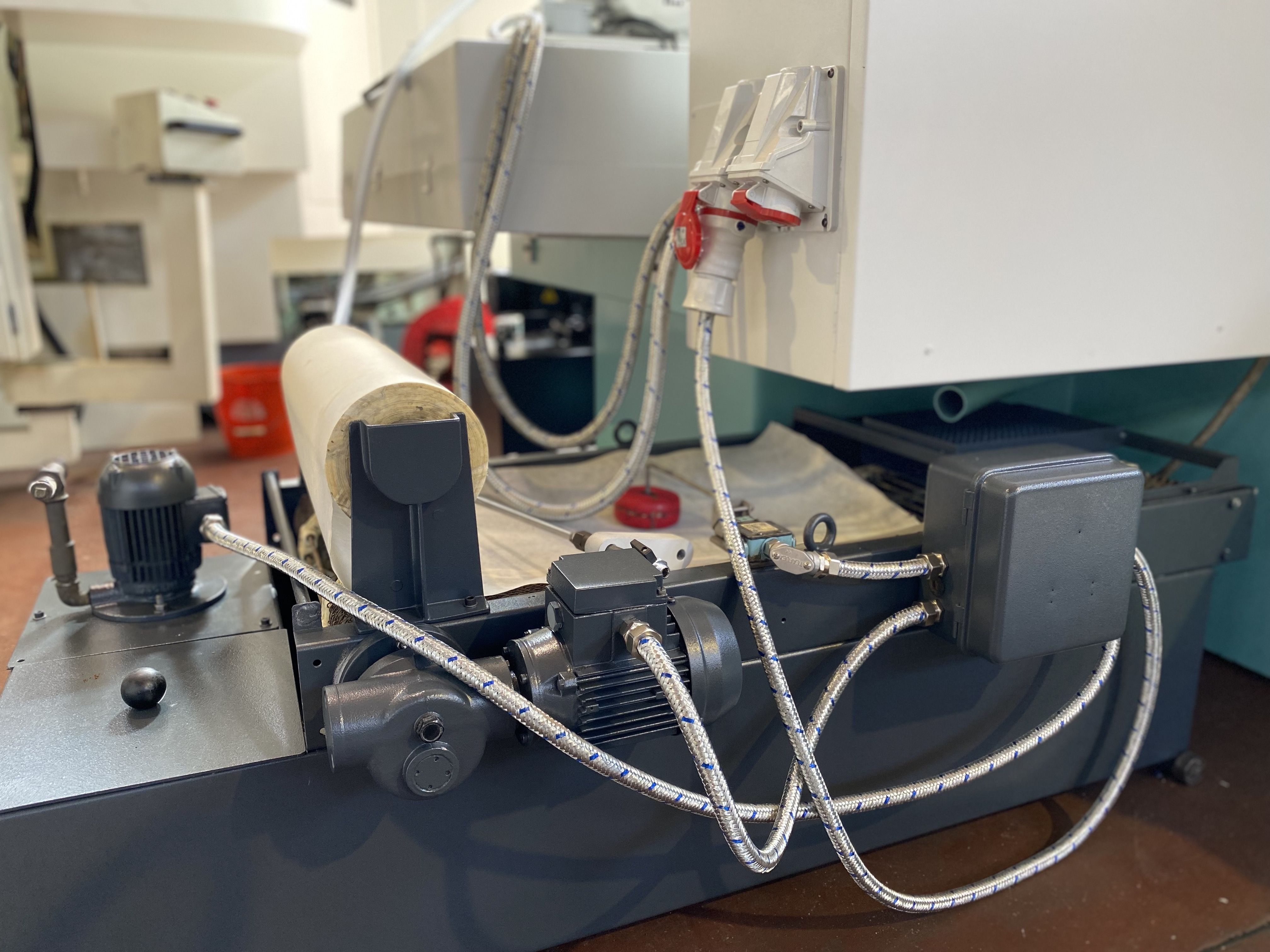

Filtration unit
Filtro a carta
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
No
Housing
Sì
Availability
Pronta
Available in stock
Sì
Available under power
Sì
Manual dresser
Yes
