Category

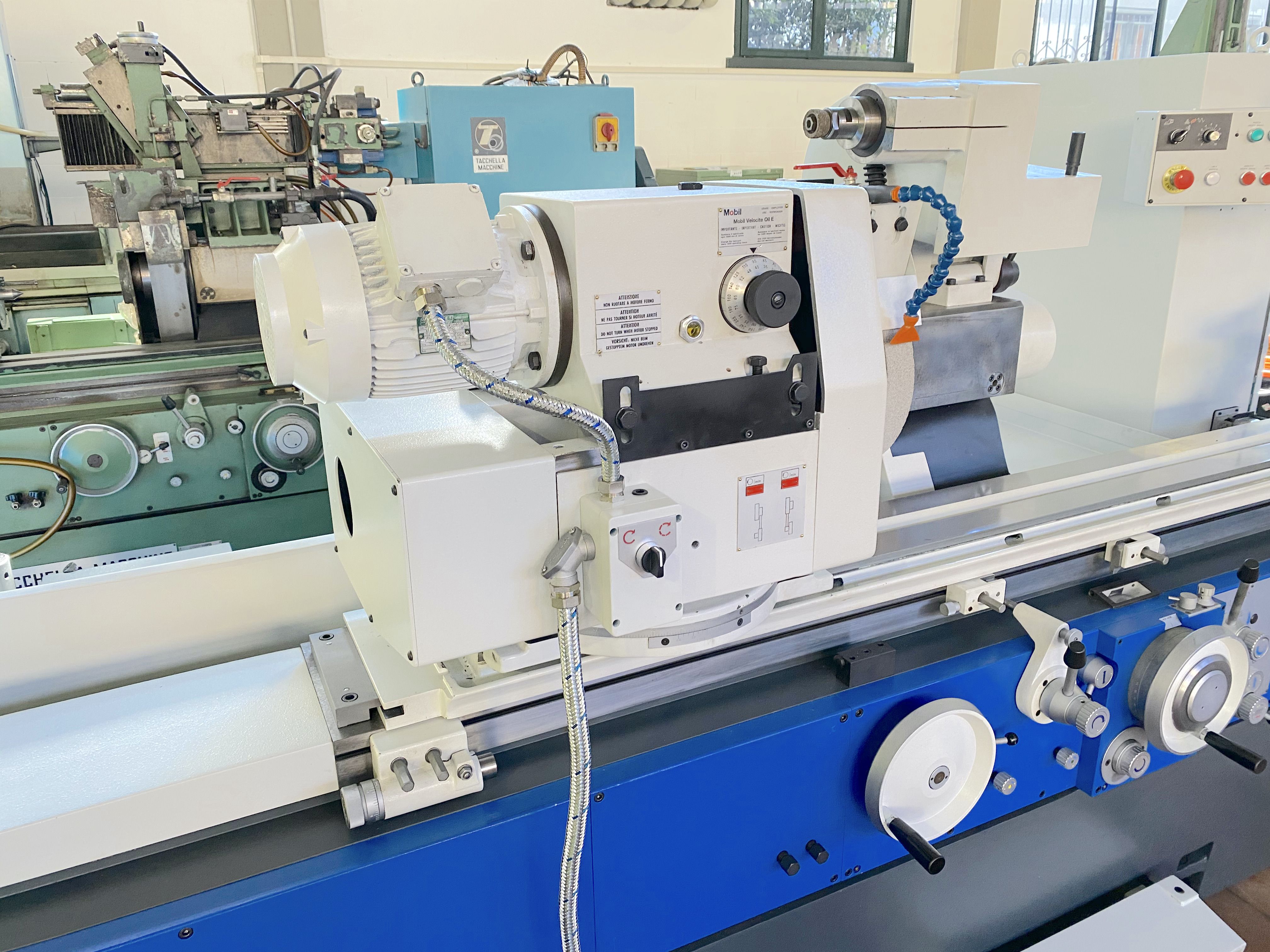

Grinding Machine
Type
ID/OD
Made
Model
1518 UA
Capacity
1500X360 mm59,06X14,17 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Centres distance
1500 mm59,06 in
Centres height
180 mm7,09 in
Max grinding lenght
1500 mm59,06 in
Max grinding diameter
360 mm14,17 in
Max internal diameter
75/270 mm2,95/10,63 in
Max internal depth
380 mm14,96 in
CNC
Measuring system
Visualizzatore Millesimale (nuovo)

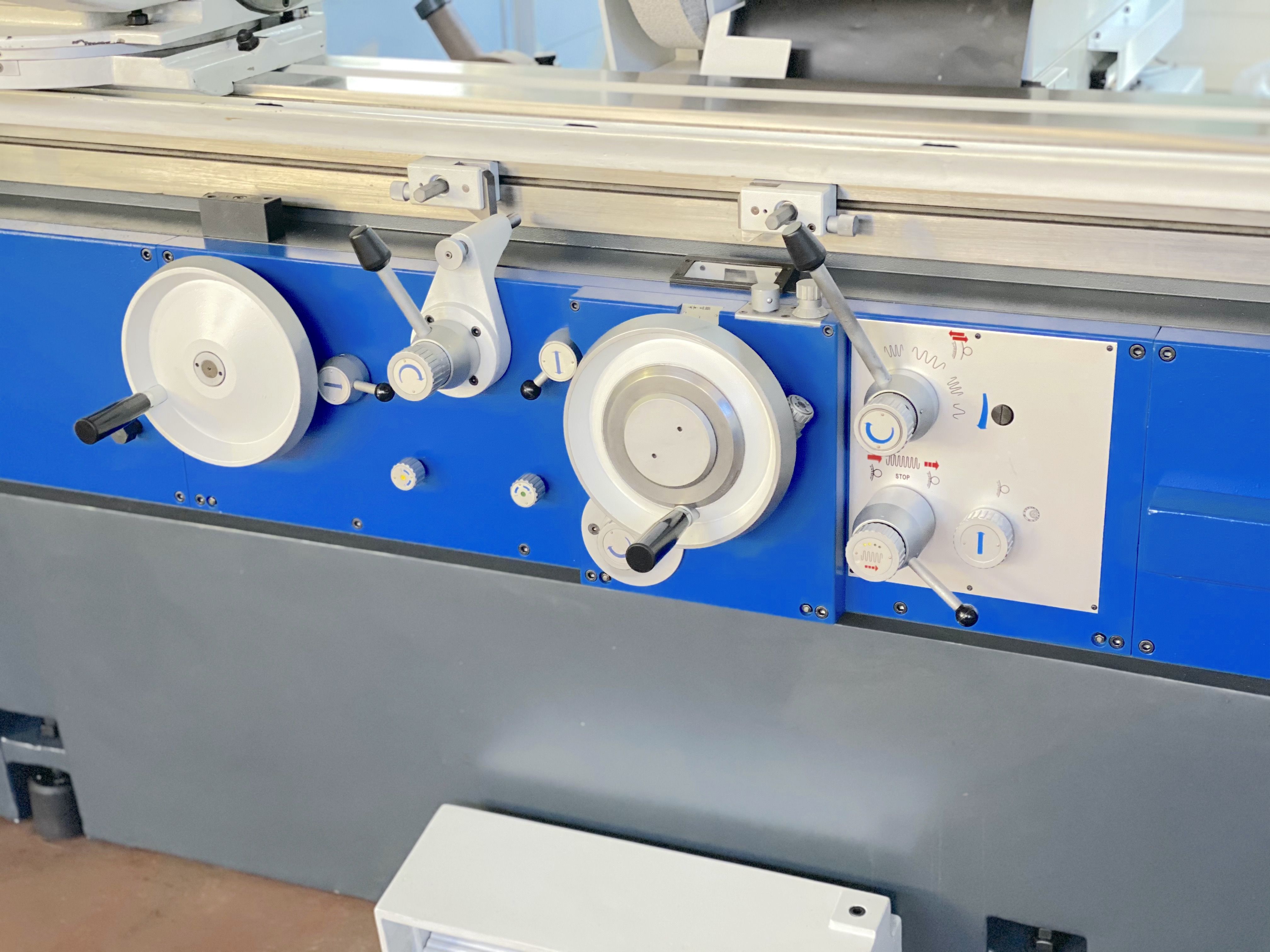

TABLE
Stroke
1500 mm59,06 in
Cross speed
0,1-5 mm/min0,0039-0,1969 ipm
Max workpiece weight
250 Kg
Tilt
0/7 °
FEEDS
Cross
AUTOMATICI mm/minAUTOMATICI ipm

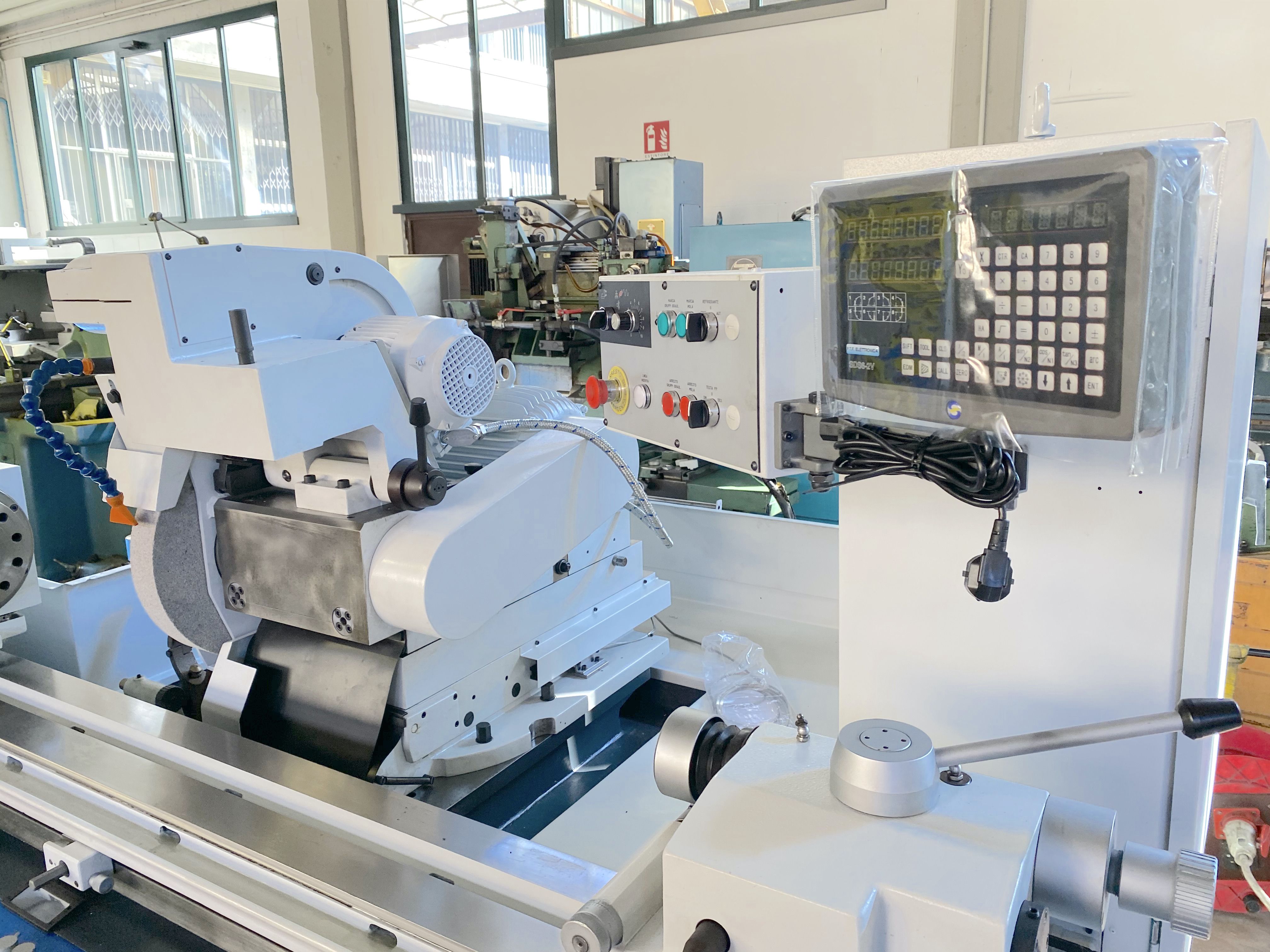

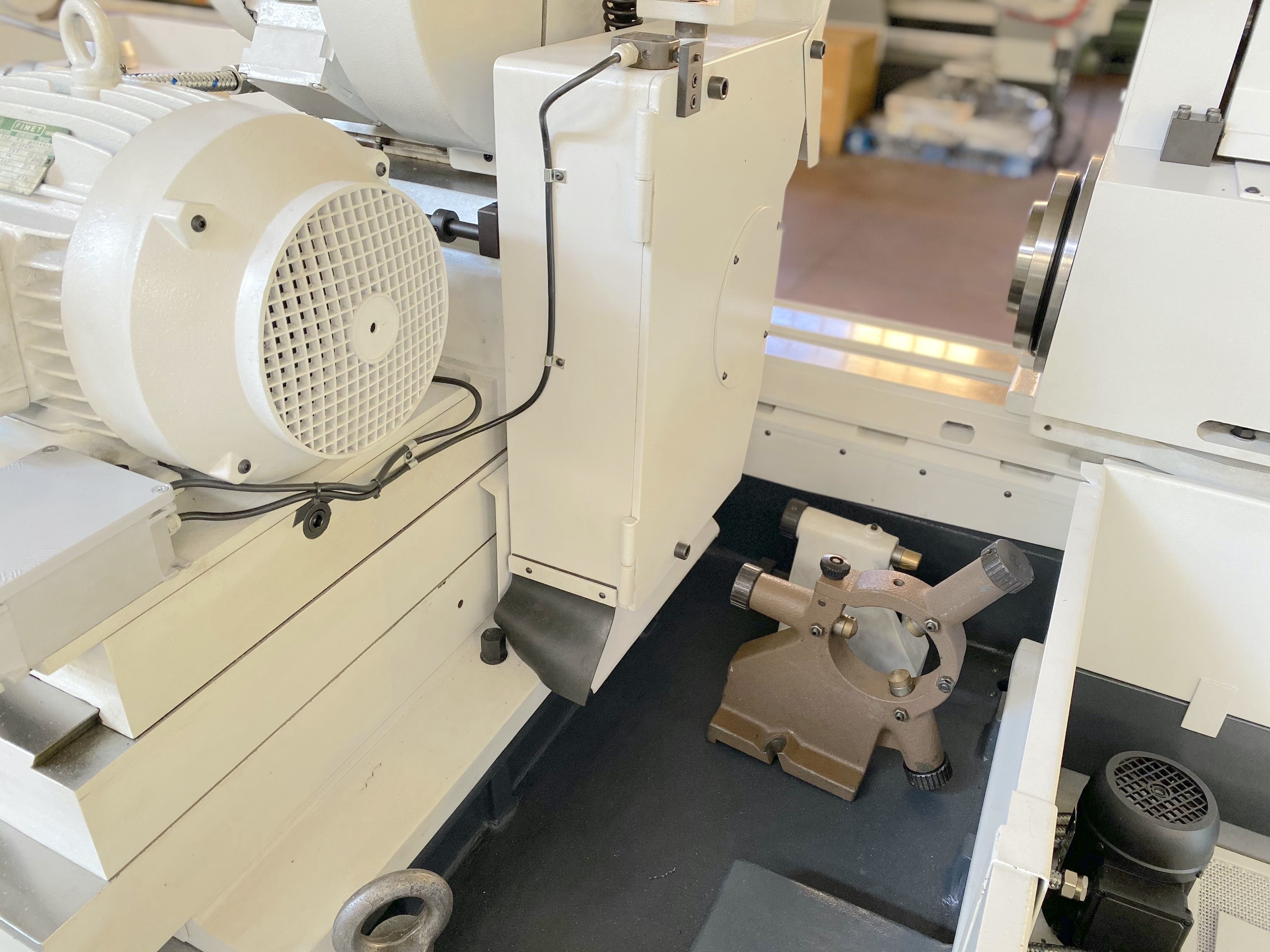

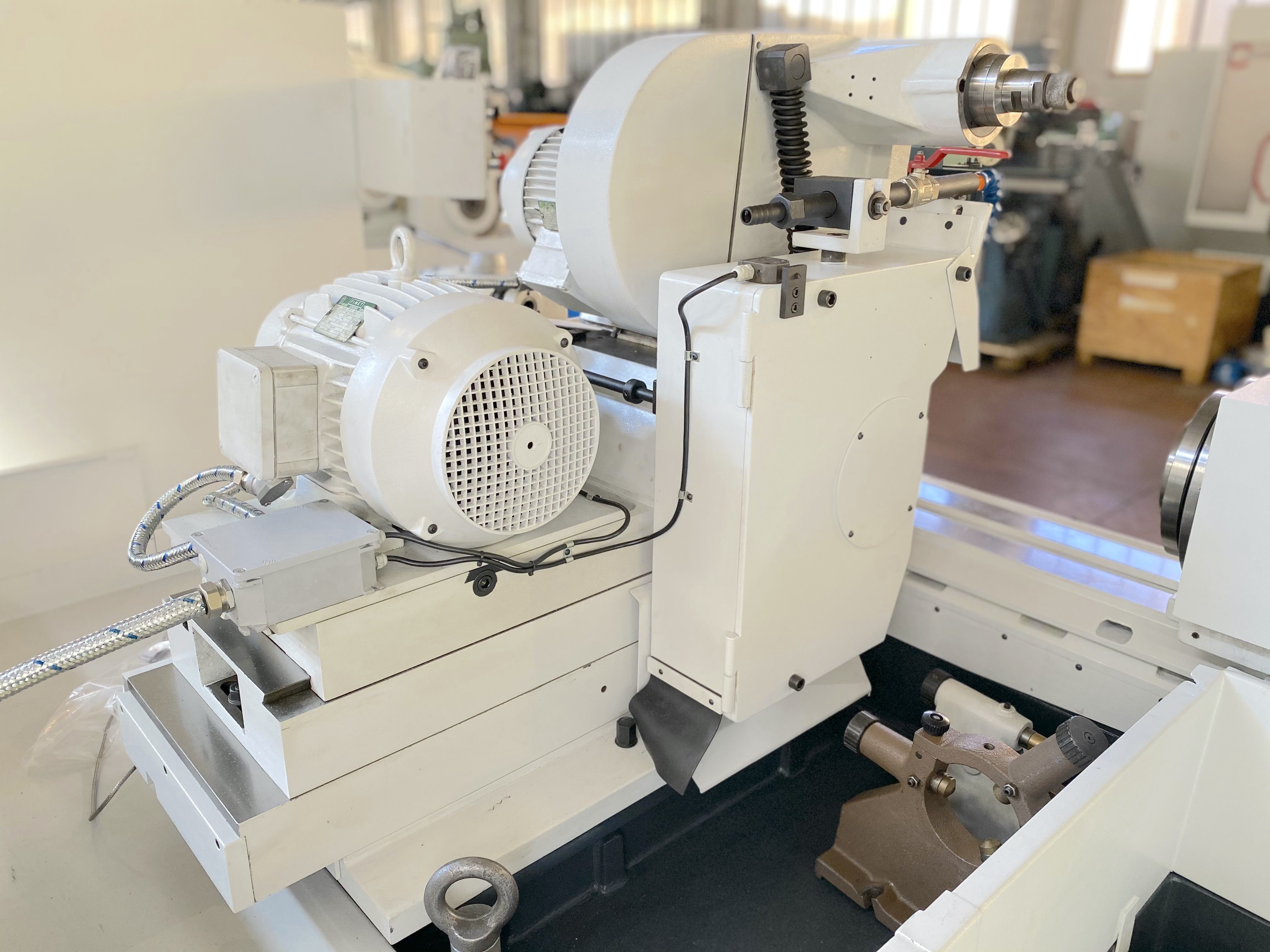

WHEELHEAD
External spindle power
5,5 Kw
External spindle speed
1275-1450 Rpm
Accuracy (B axis)
+/-90 °
LEFT WHEEL
Wheel band thickness
80 mm3,15 in
Max wheel diameter
500 mm19,69 in
Hole diameter
127 mm5,00 in

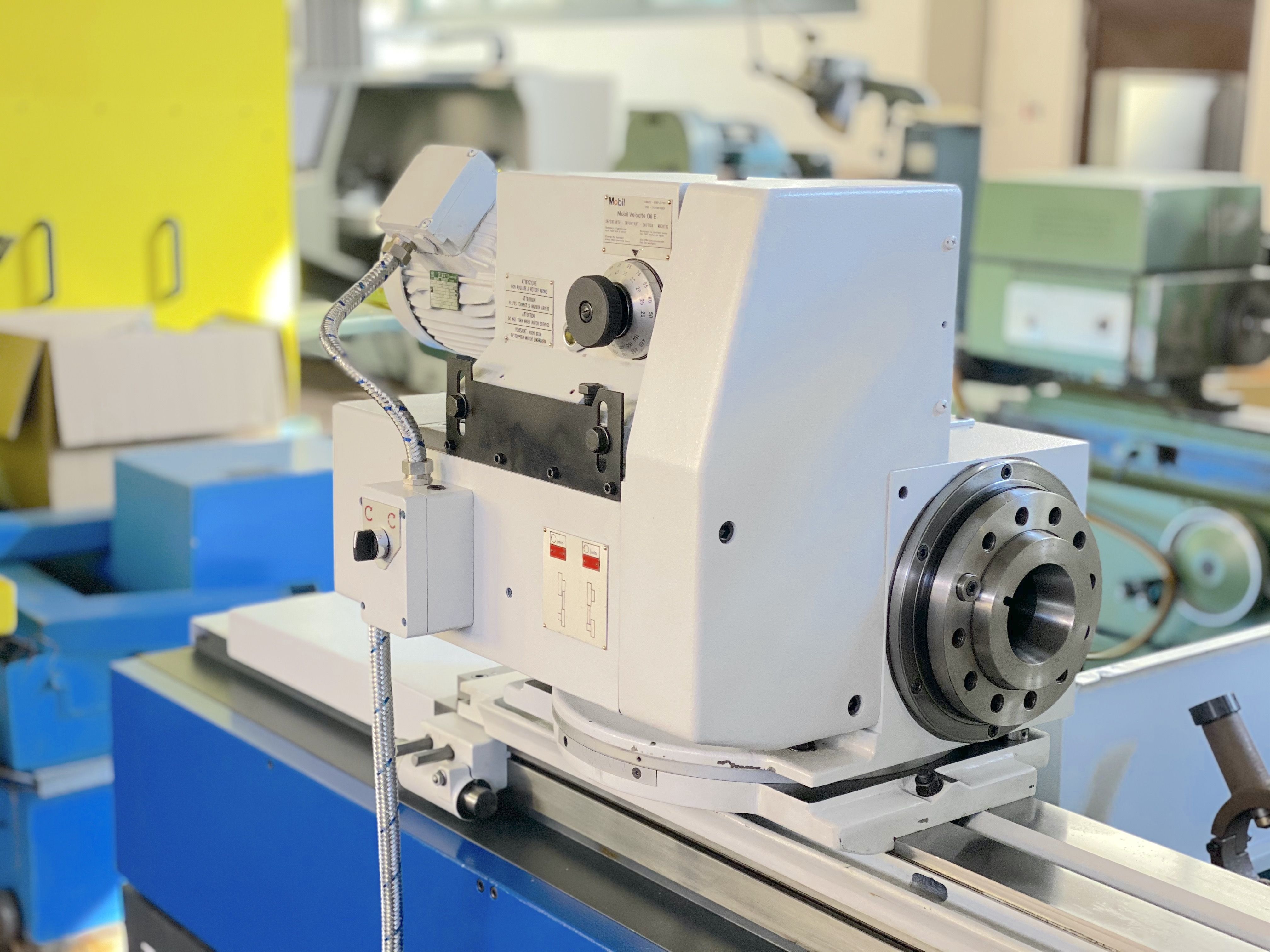

WORKPIECE HEAD
Rotating speed
28/550 Rpm
Tilt
+/-90 °
Taper
MT4

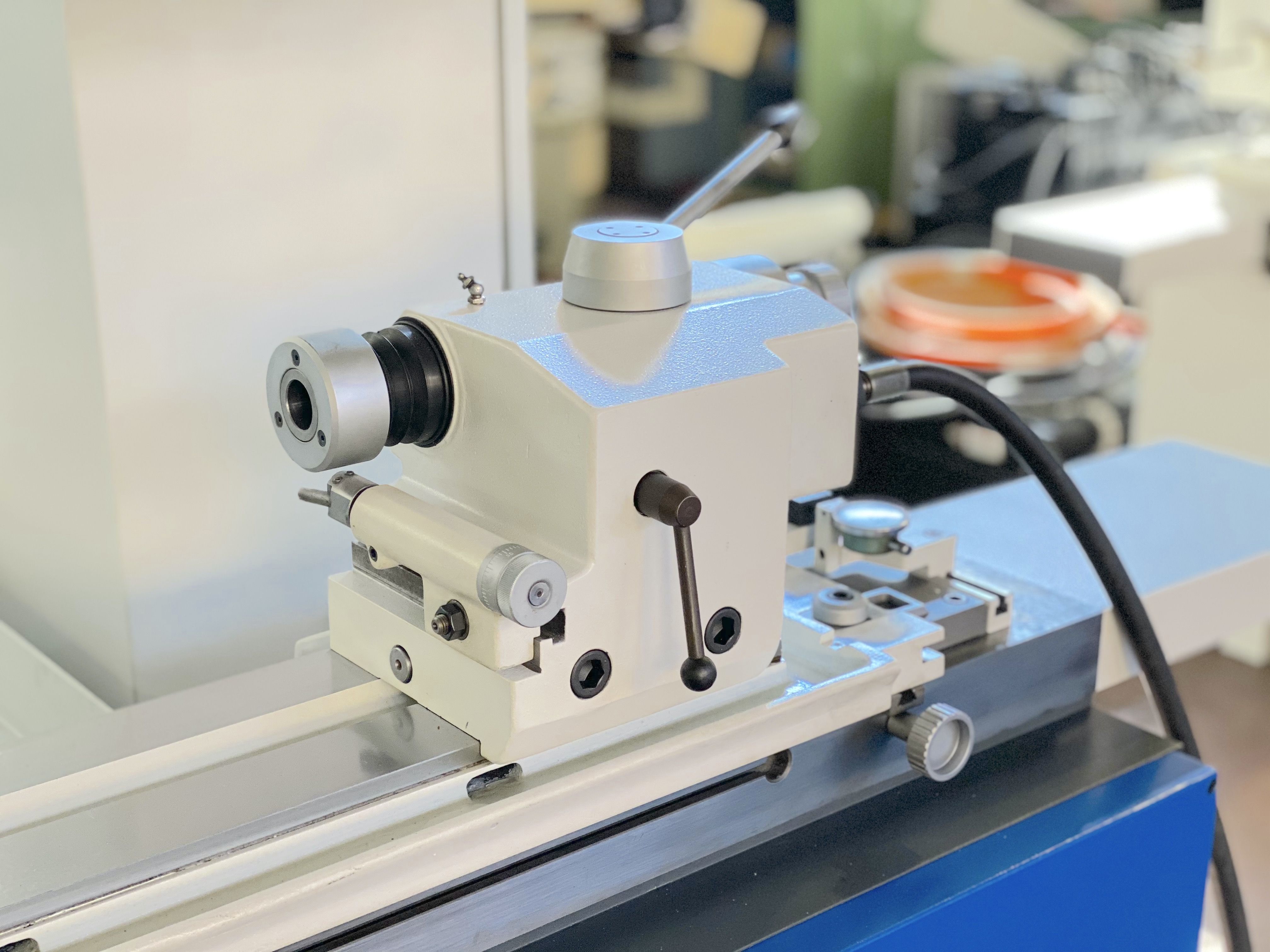

TAILSTOCK
Drive
IDRAULICO
EXTRA
Total power supply
10KW Kw
Machine total weight
4700 Kg
Floor space
5300X1850X1750 mm208,66X72,83X68,90 in
Tooling included

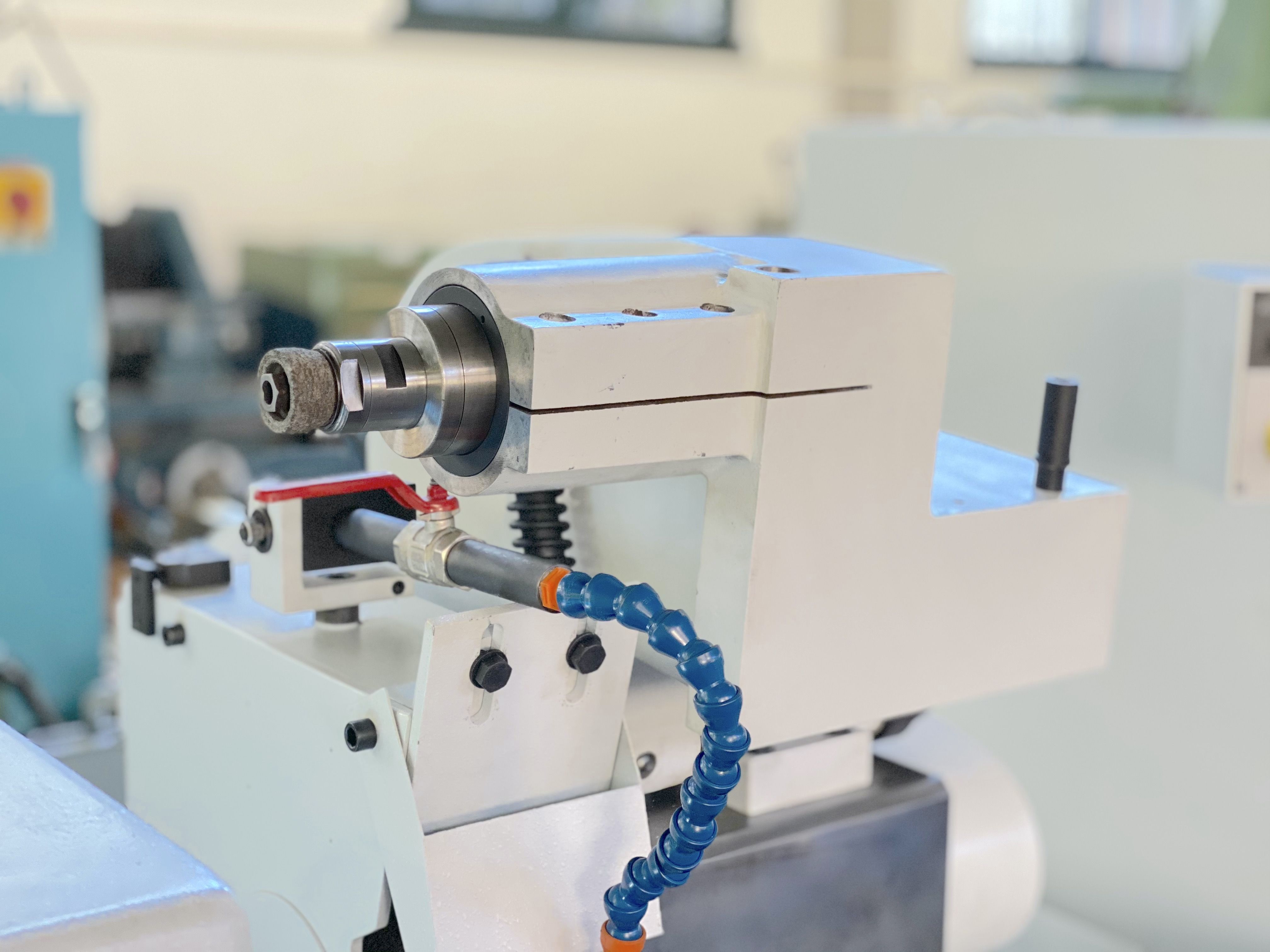

APPARECCHIO PER INTERNI

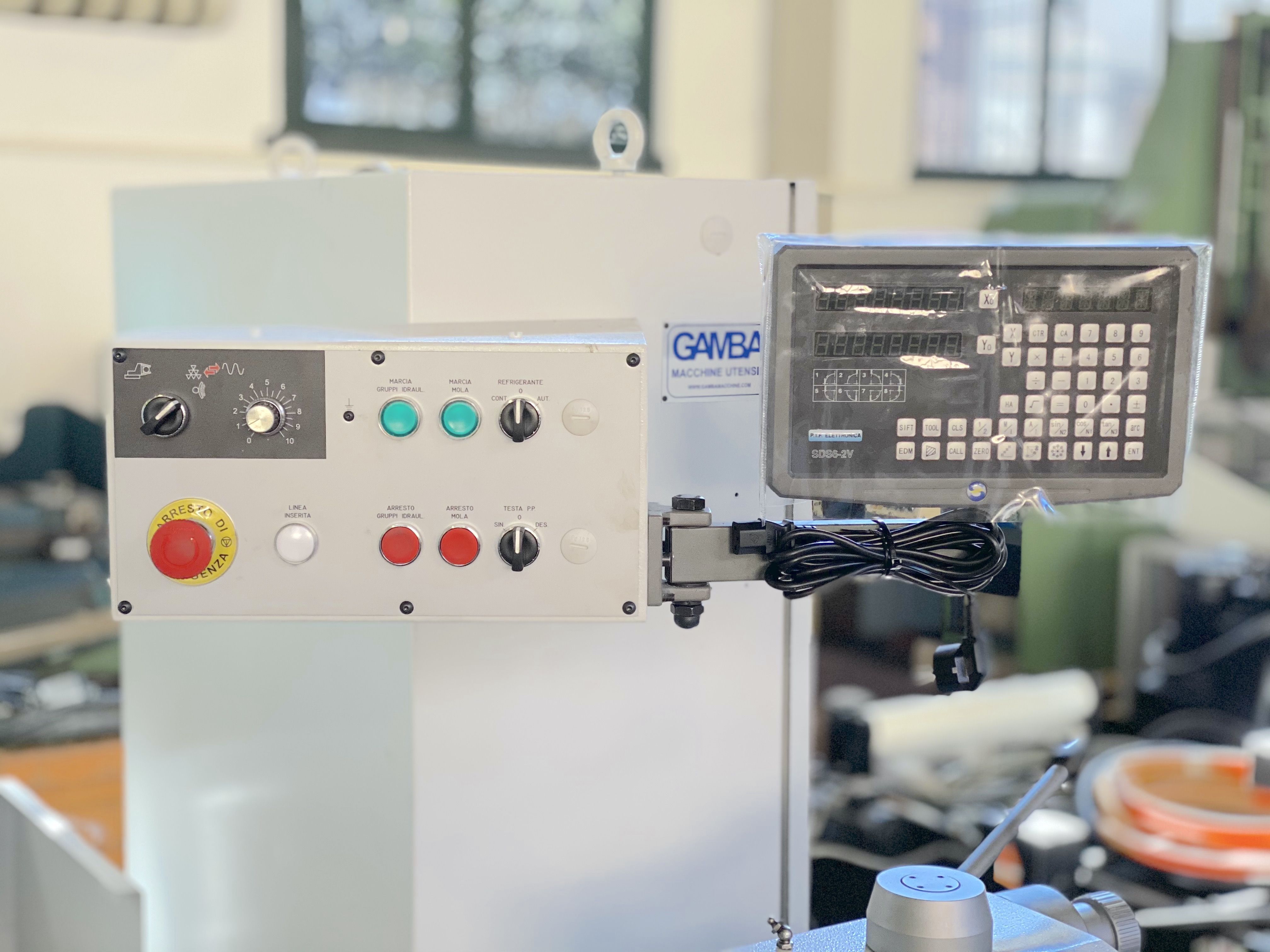

Digital read out (DRO)
SI
Wheel balancer
Yes
Manual dresser
Yes
Filtration unit
MAGNETICO
Availability
PRONTA
Available in stock
SI
Available under power
SI
