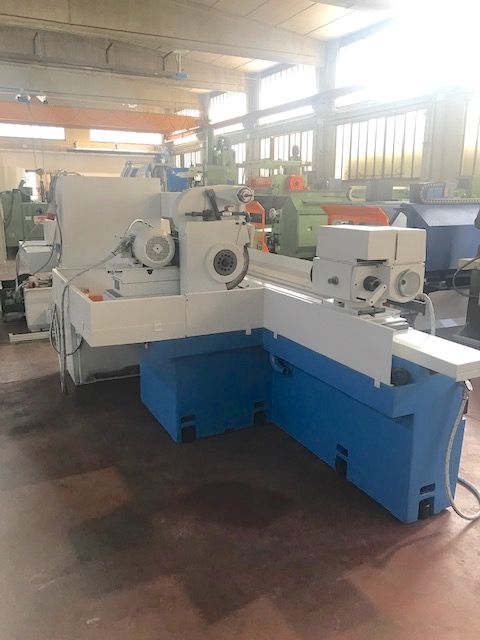

Category
Grinding Machine
Type
ID/OD
Made
Model

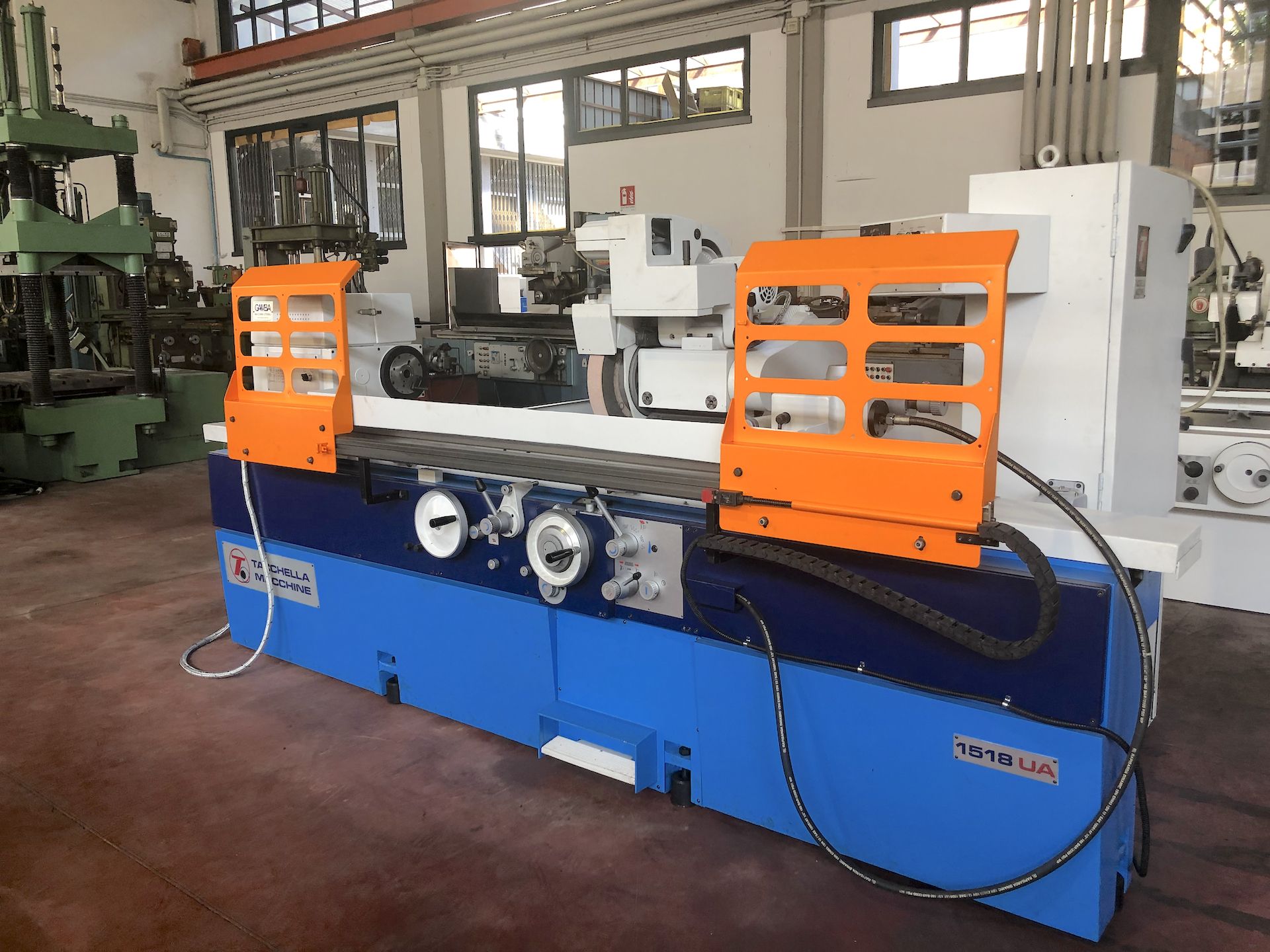

1518 UA
Capacity
360 X 1500 mm14,17 X 59,06 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Centres distance
1500 mm59,06 in
Centres height
180 mm7,09 in
Max grinding lenght
1500 mm59,06 in
Max grinding diameter
360 mm14,17 in

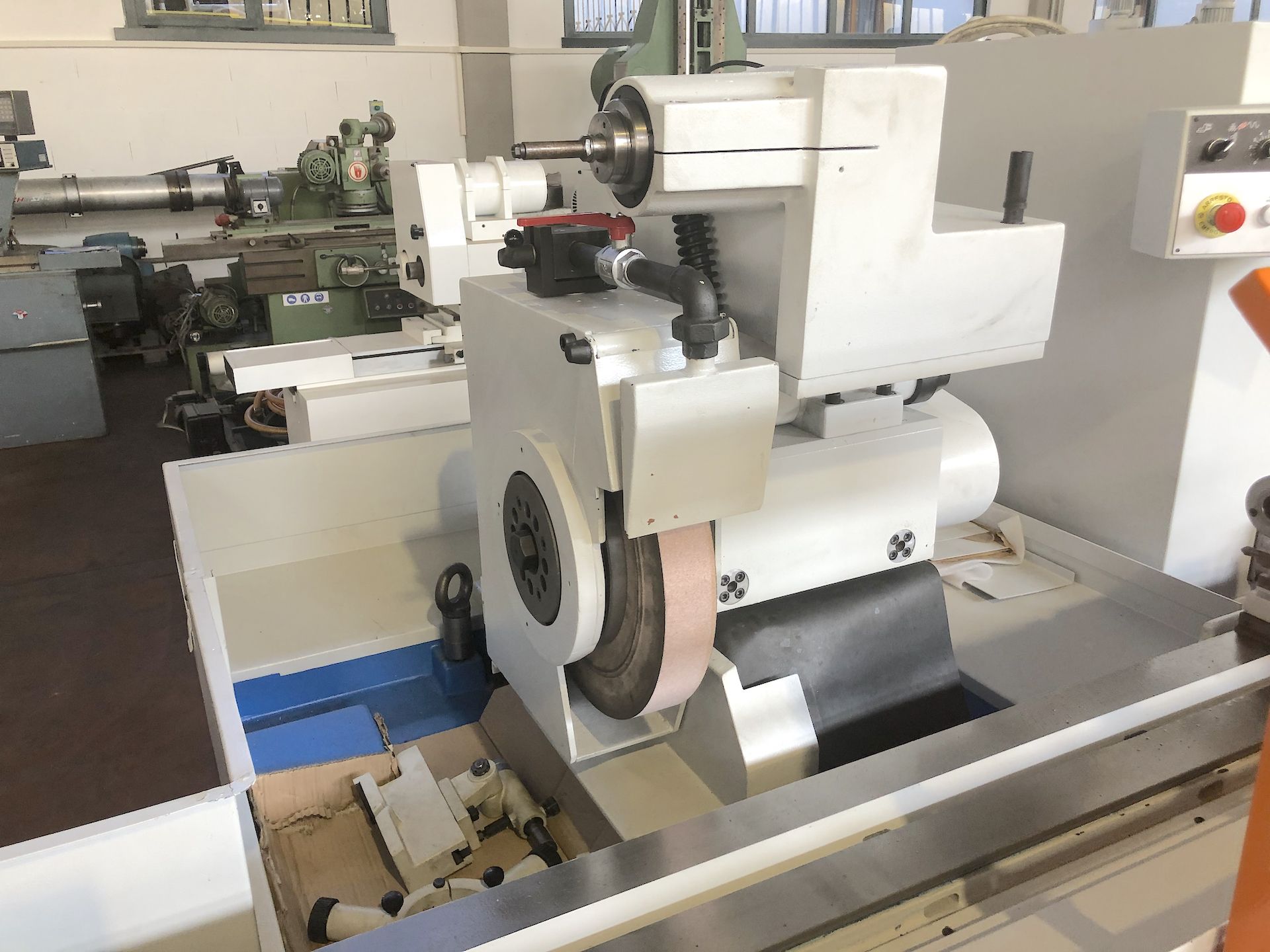

Max internal diameter
75-270 mm2,95-10,63 in
Max internal depth
380 mm14,96 in
TABLE
Cross speed
0,1-5 M/MIN mm/min0,0039-0,1969 M/MIN ipm
Max workpiece weight
250 Kg
Tilt
0/7° °
Stroke
1500 mm59,06 in
LEFT WHEEL
Wheel band thickness
80 mm3,15 in
Max wheel diameter
500 mm19,69 in
Hole diameter
127 mm5,00 in
WORKPIECE HEAD
Rotating speed
28/550 Rpm
Tilt
90 °

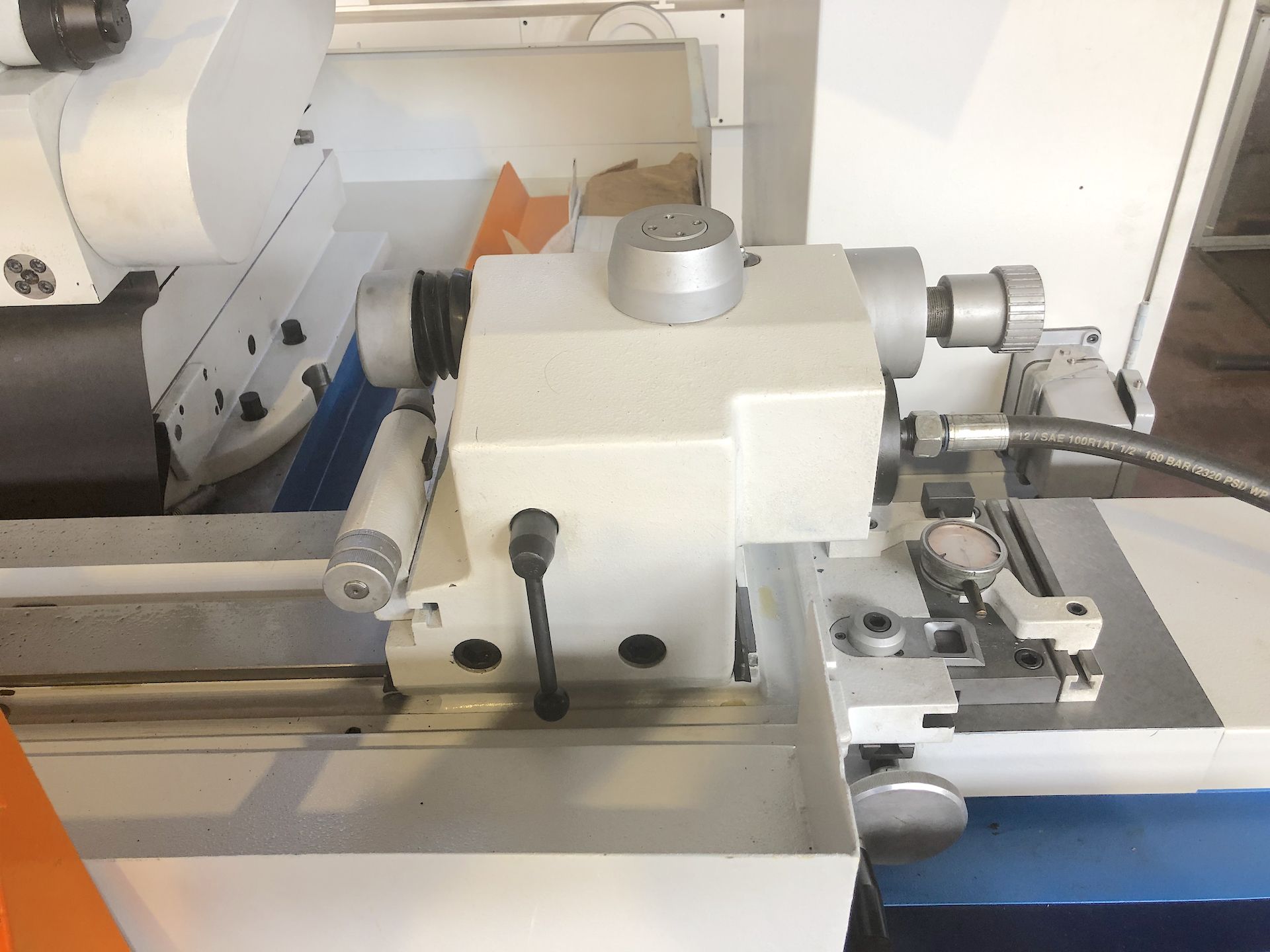

TAILSTOCK
Drive
idraulico

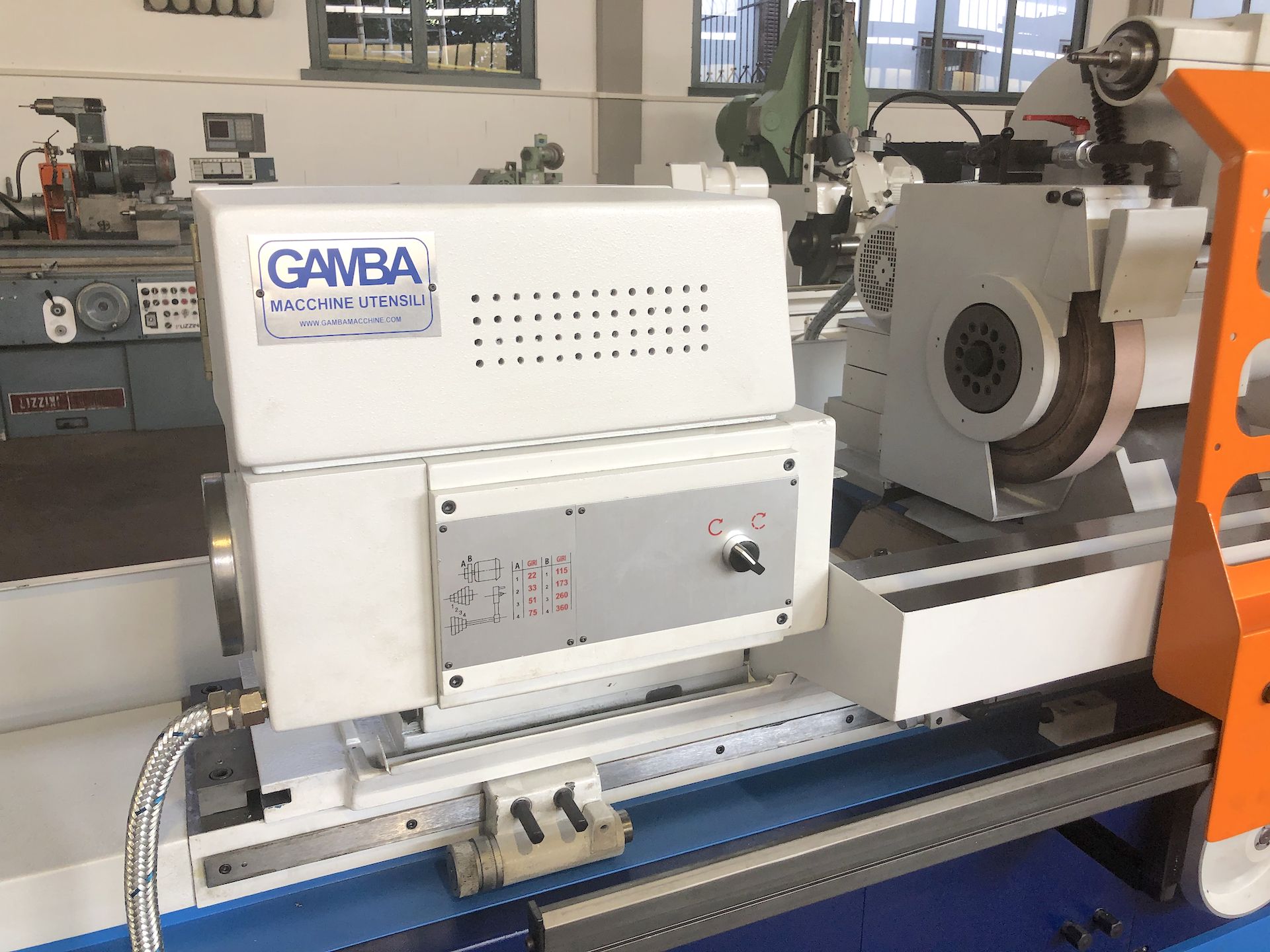

WHEELHEAD
External spindle power
5,5 Kw
External spindle speed
1275-1450 Rpm
FEEDS
Cross
AUTOMATICI mm/minAUTOMATICI ipm
EXTRA
Total power supply
9,75 Kw
Machine total weight
4700 Kg
Floor space
5300X1850X1750 mm208,66X72,83X68,90 in

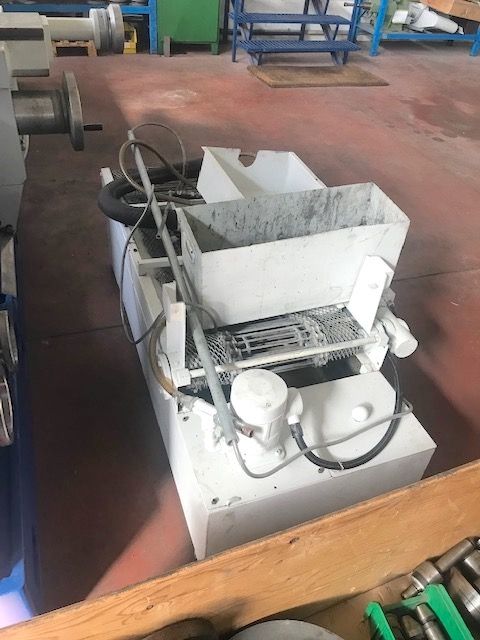

Filtration unit
filtro a carta
Diametral probe
Yes

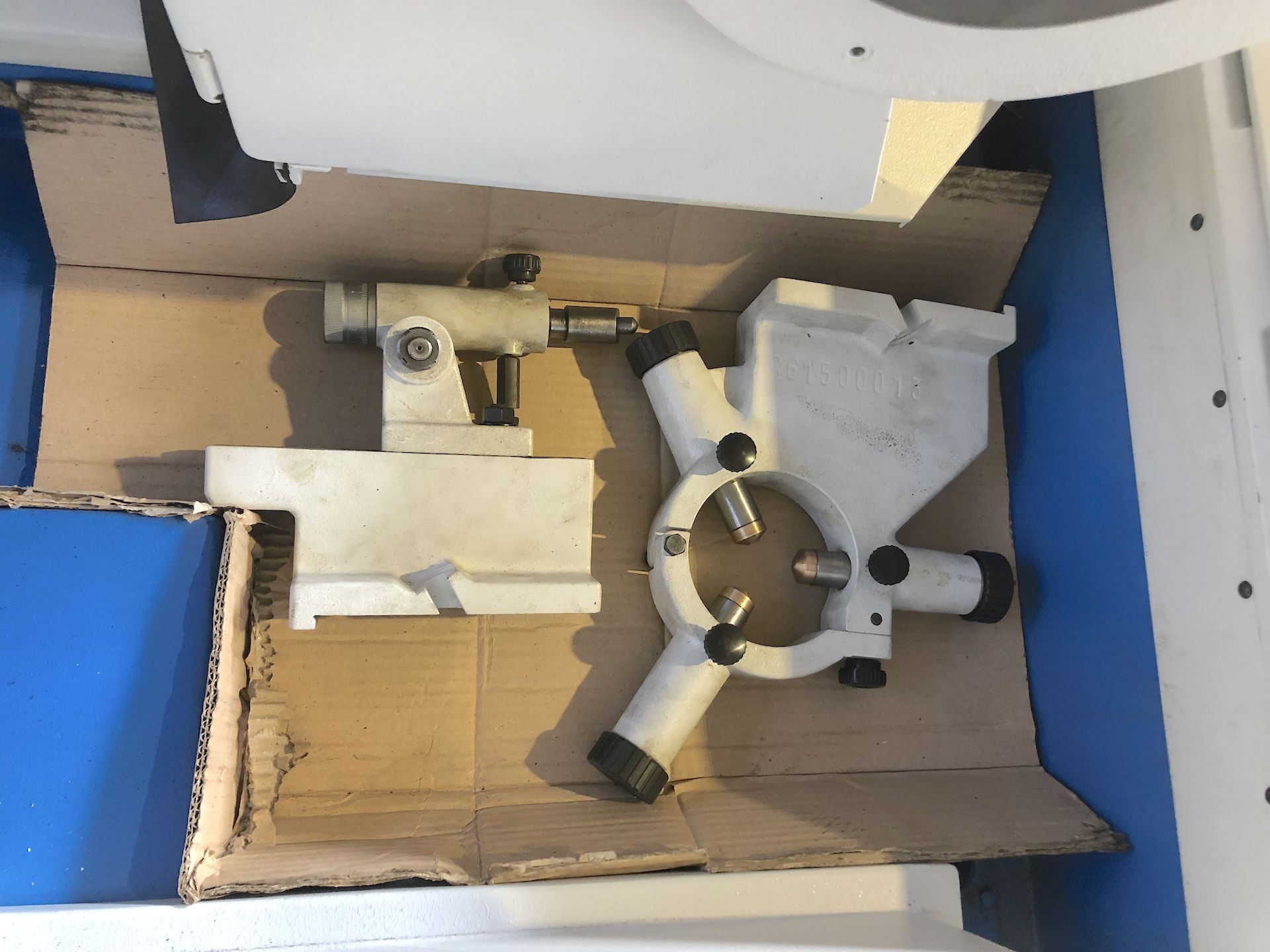

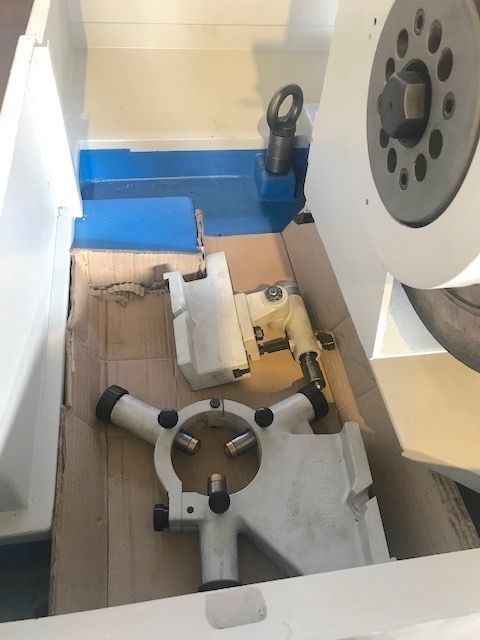

Open steadies
SI
Closed steadies
SI
Wheel balancer
Yes
Maintenance & Use books
Yes

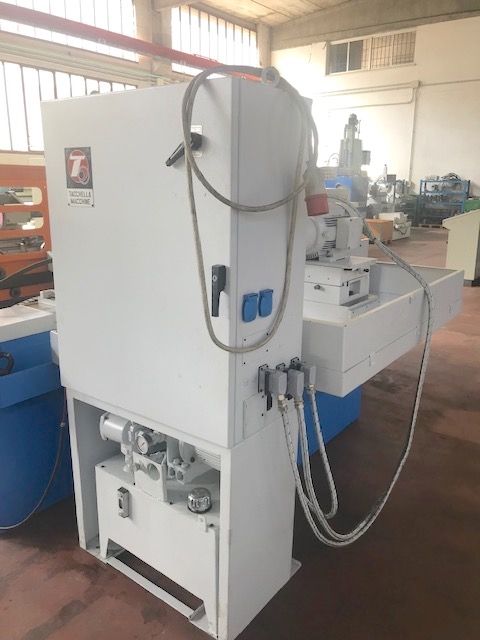

Electrical drawings
Yes
Housing
SI
Availability
PRONTA
Available in stock
SI
Available under power
SI

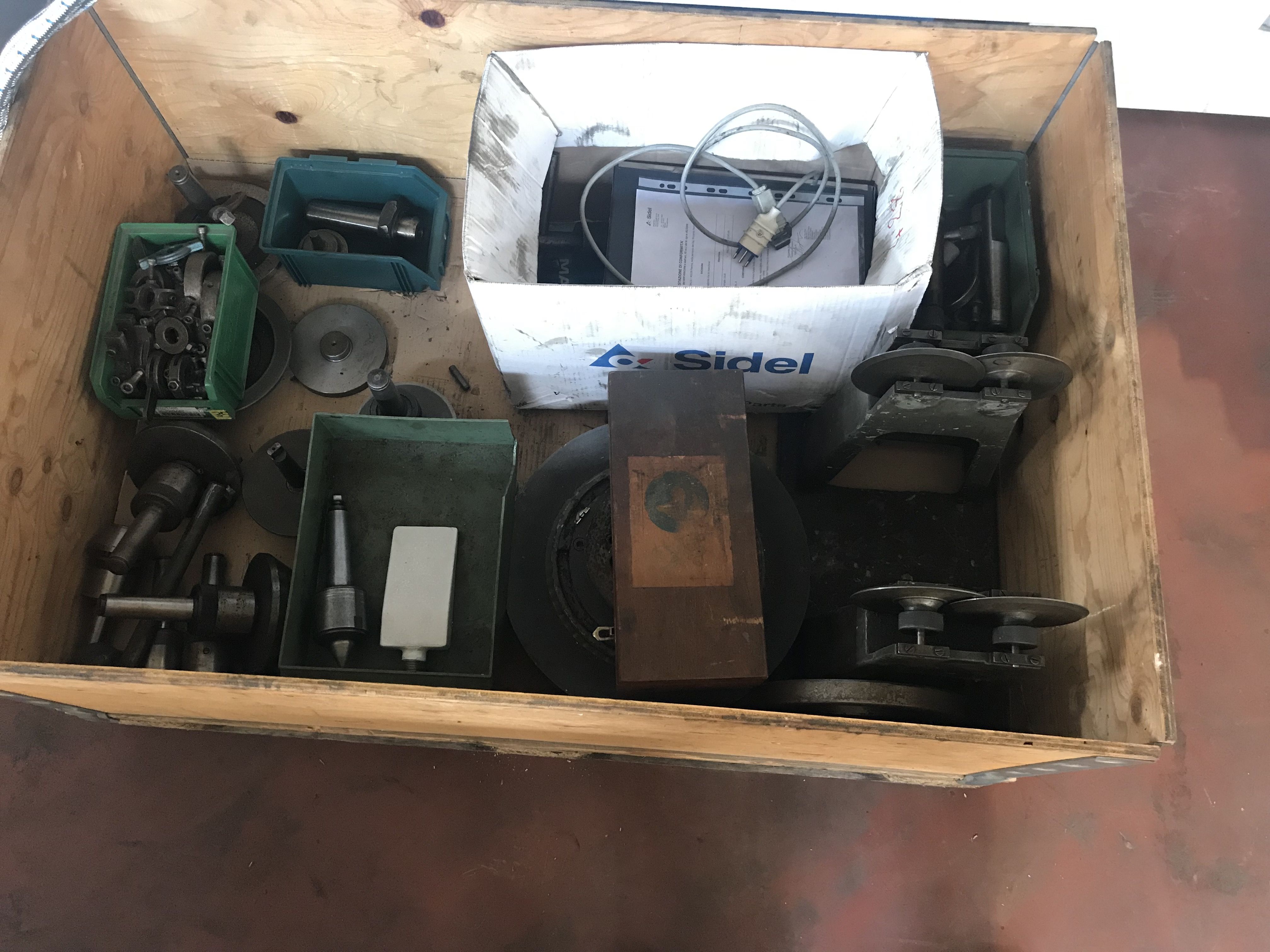

Tooling included
Misuratore Marposs diametrale
