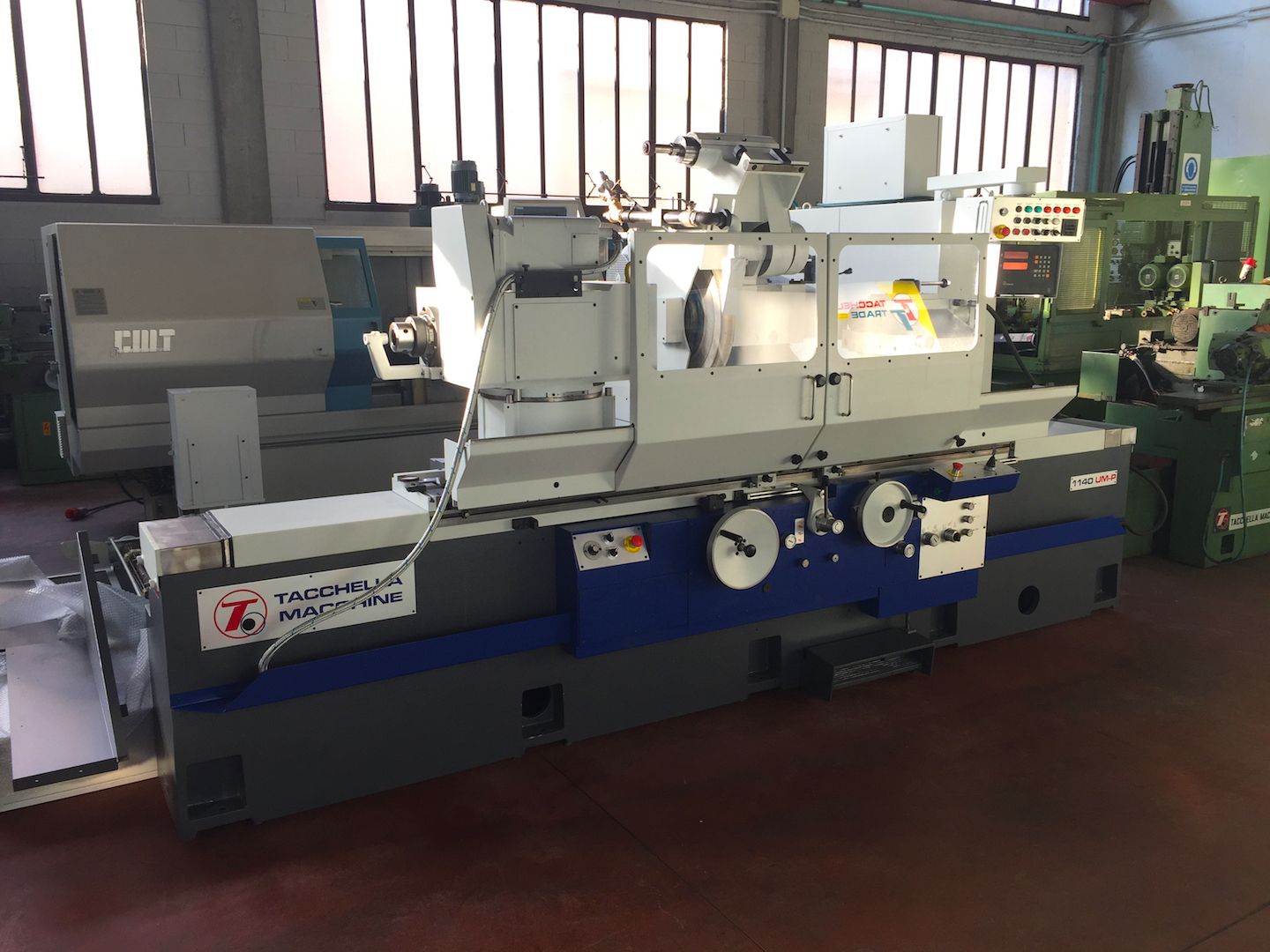

Category
Grinding Machine
Type
ID/OD
Made
Model

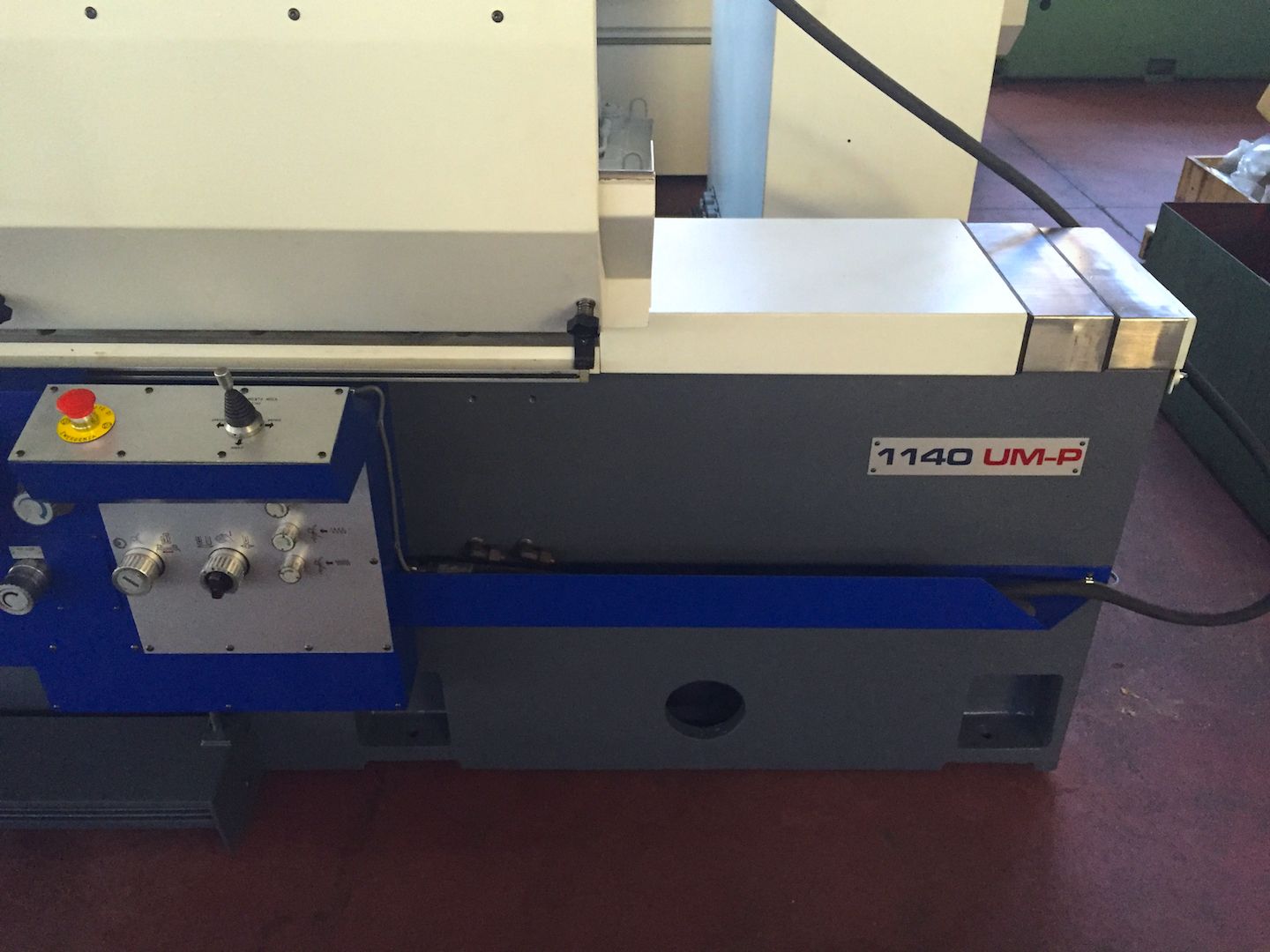

1140 UMP
Capacity
800x1100 mm31,50x43,31 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Centres distance
1100 mm43,31 in
Centres height
400 mm15,75 in
Longitudinal (Z)
1100 mm43,31 in
Cross (X)
300 mm11,81 in
Max grinding lenght
1100 mm43,31 in
Max grinding diameter
800 mm31,50 in
Max internal diameter
870 mm34,25 in
Max internal depth
870 mm34,25 in

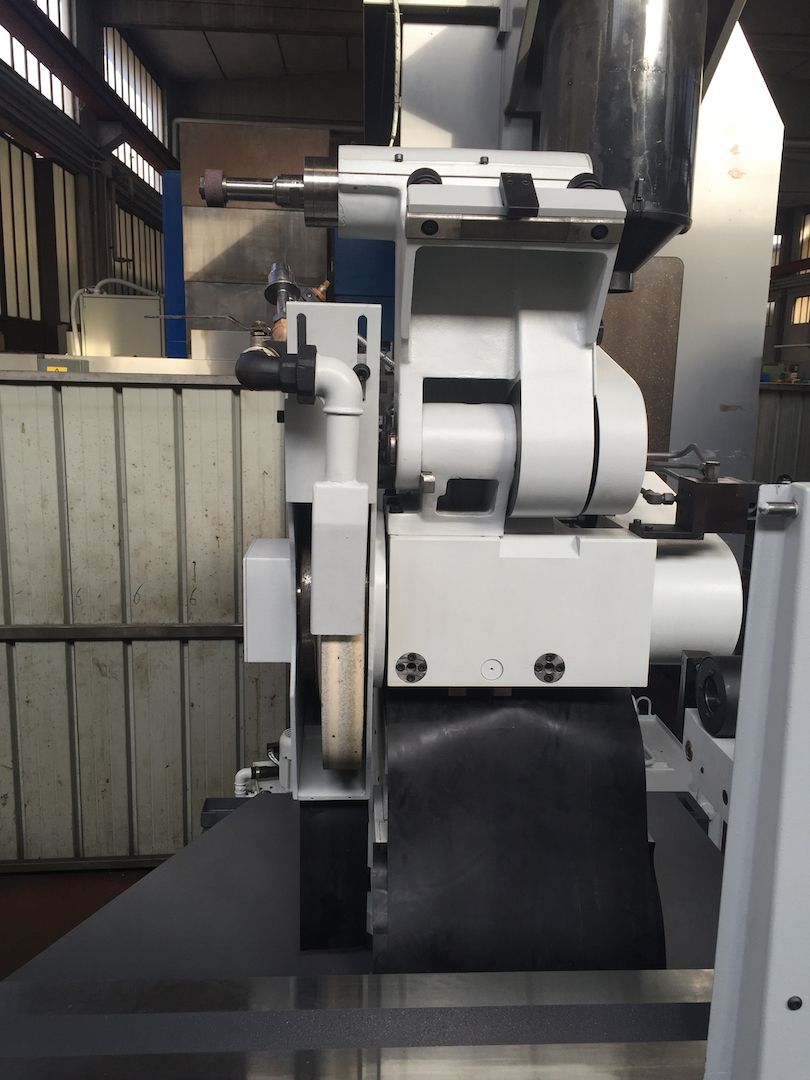

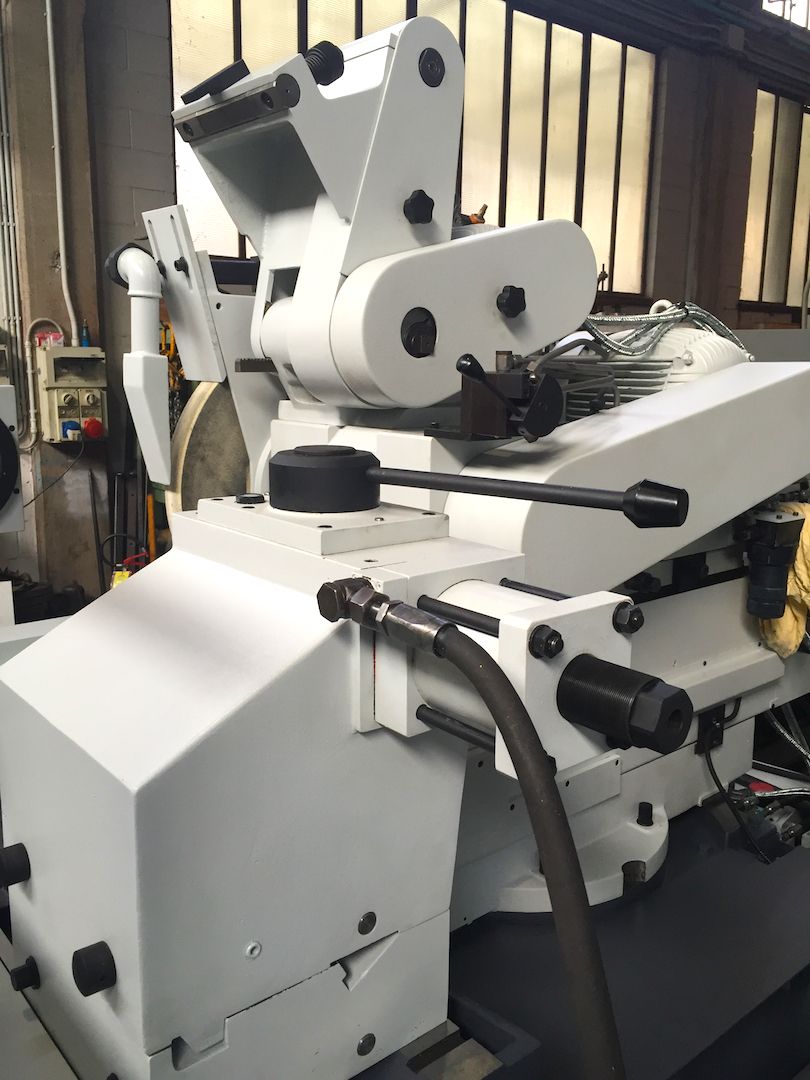

WHEELHEAD
Support
idrodinamico
External spindle power
11,03 Kw
External spindle speed
1030/1260 Rpm

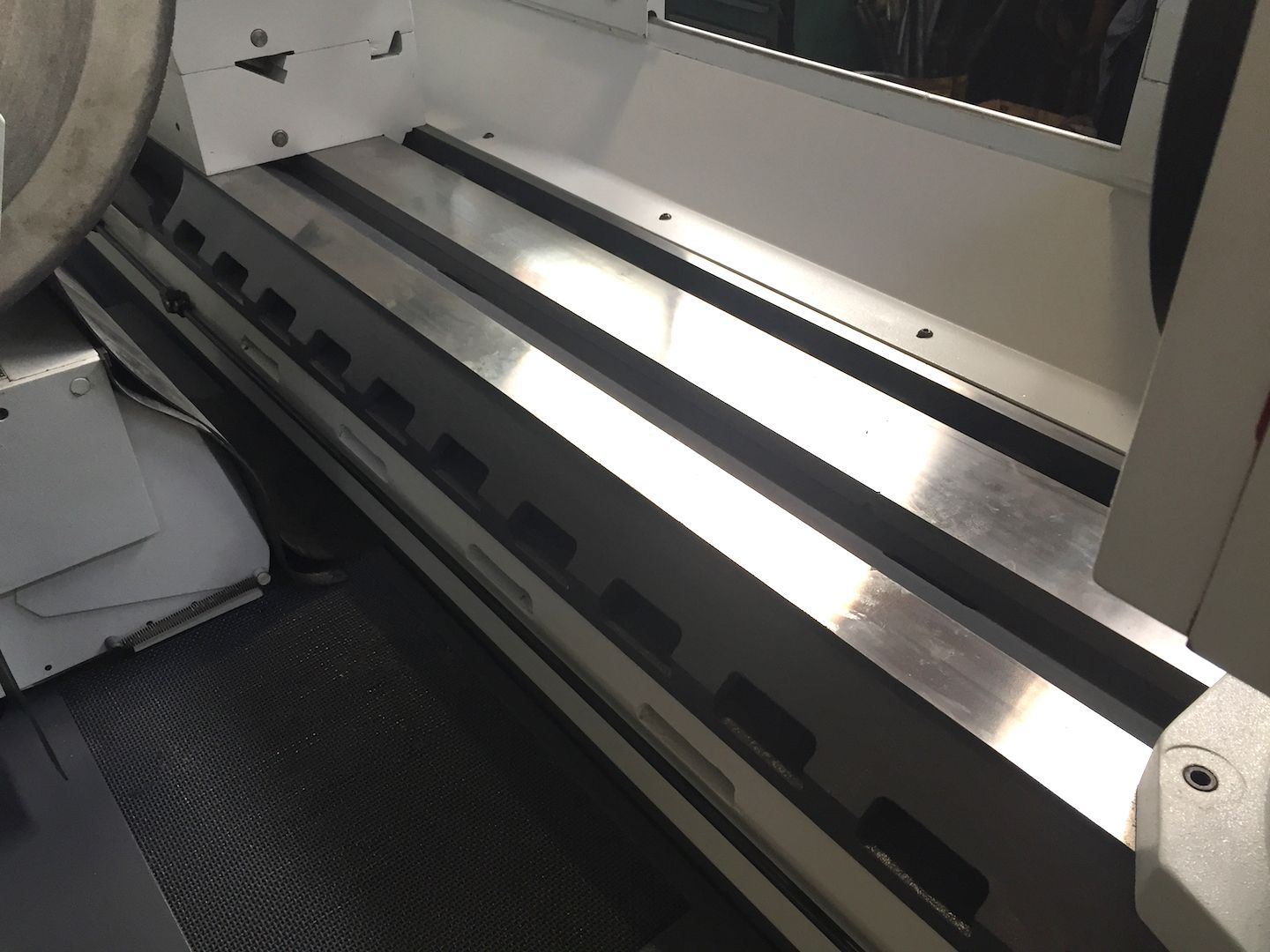

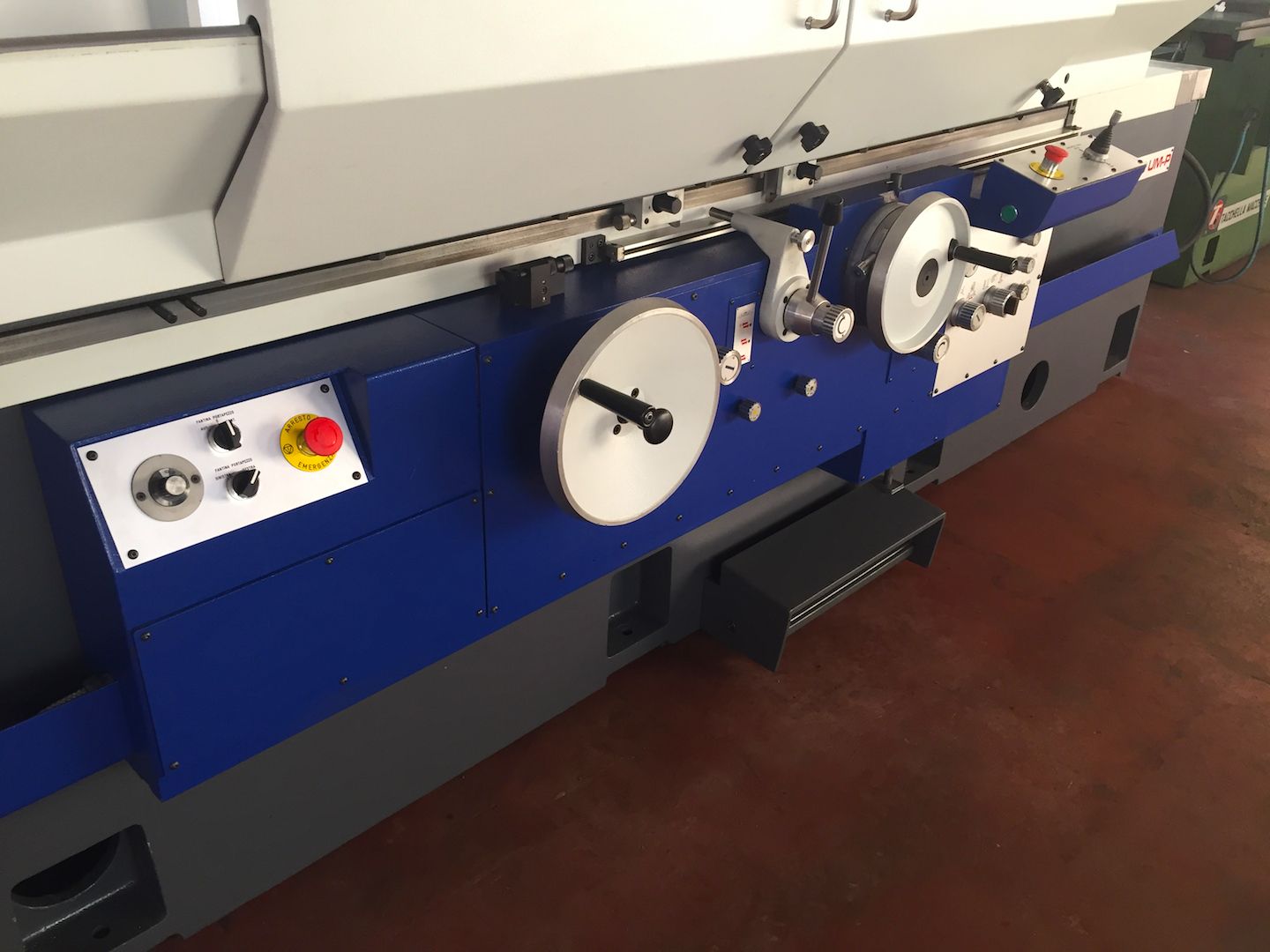

TABLE
Stroke
4-1100 mm0,16-43,31 in
Cross speed
100-4000 mm/min3,9370-157,4800 ipm
Max workpiece weight
700 Kg
Tilt
+9/-3 °
LEFT WHEEL
Wheel band thickness
100 mm3,94 in
Max wheel diameter
610 mm24,02 in
Hole diameter
203,2 mm8,00 in

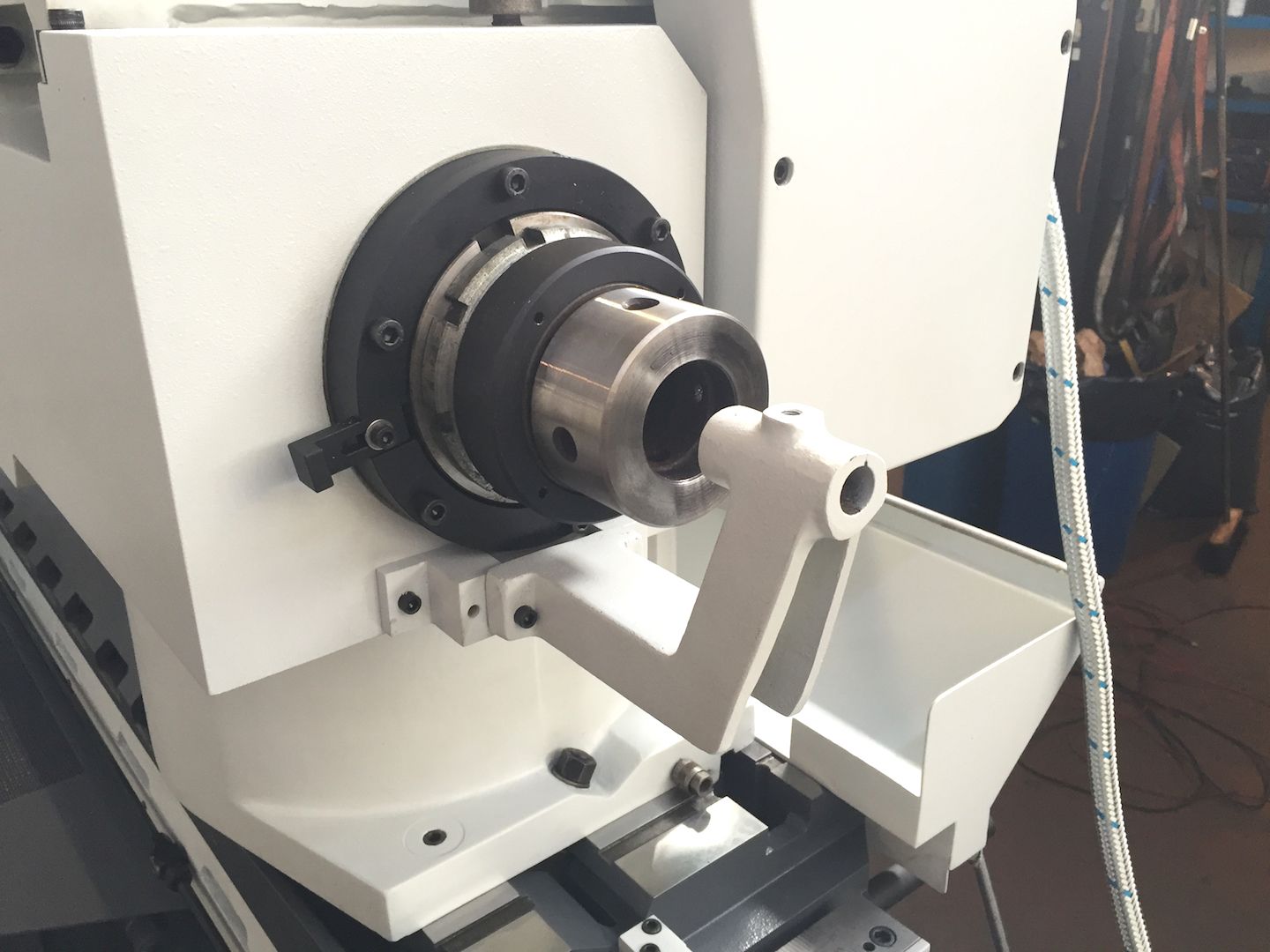

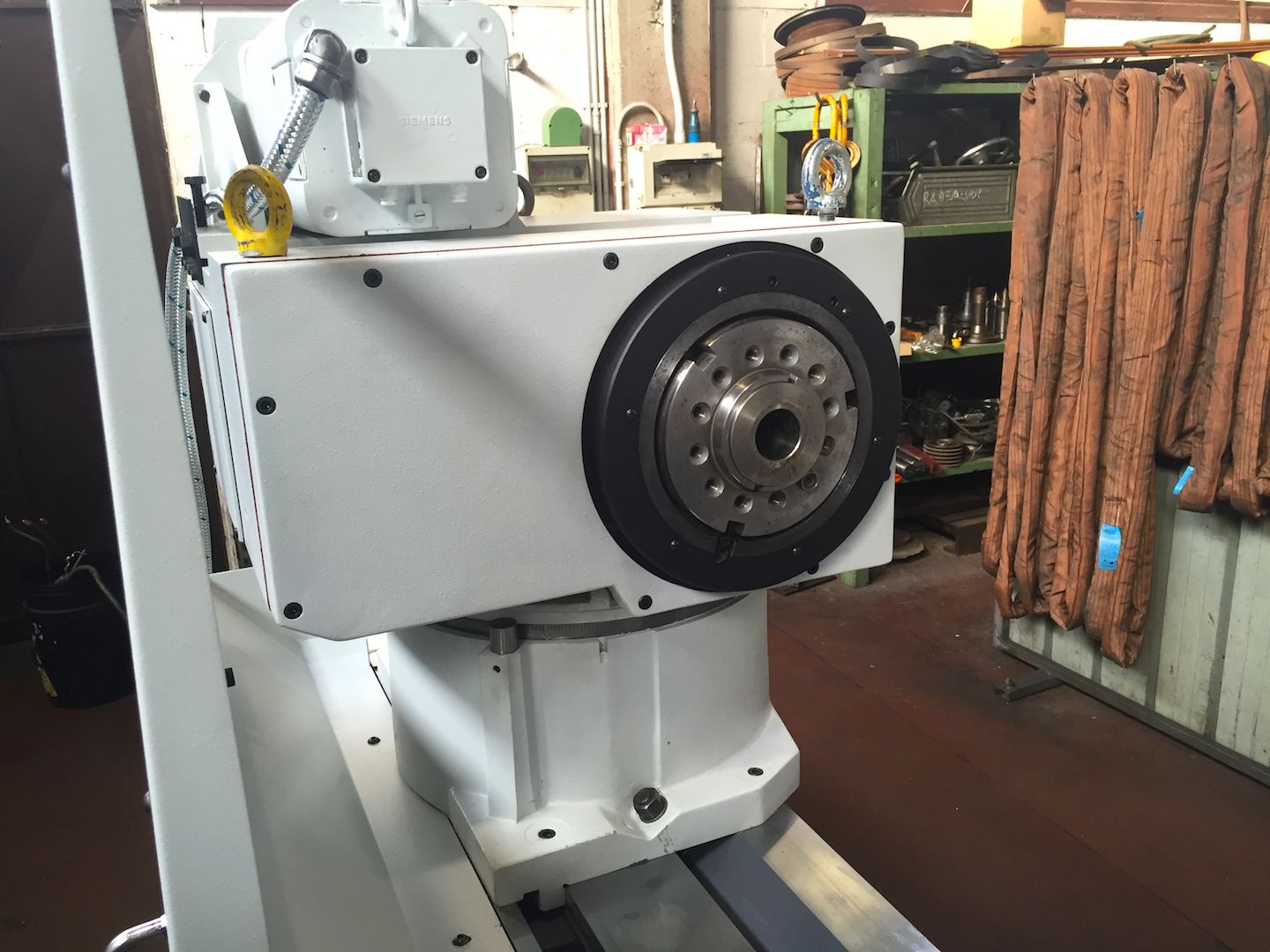

WORKPIECE HEAD
Rotating speed
10-500 Rpm
Tilt
0-90 °
Taper
MK4
TAILSTOCK
Quill stroke
40 mm1,57 in
Taper
MK5
EXTRA
Total power supply
14,5 Kw
Machine total weight
7000 Kg
Floor space
5000x2300x1900 mm196,85x90,55x74,80 in
Tooling included

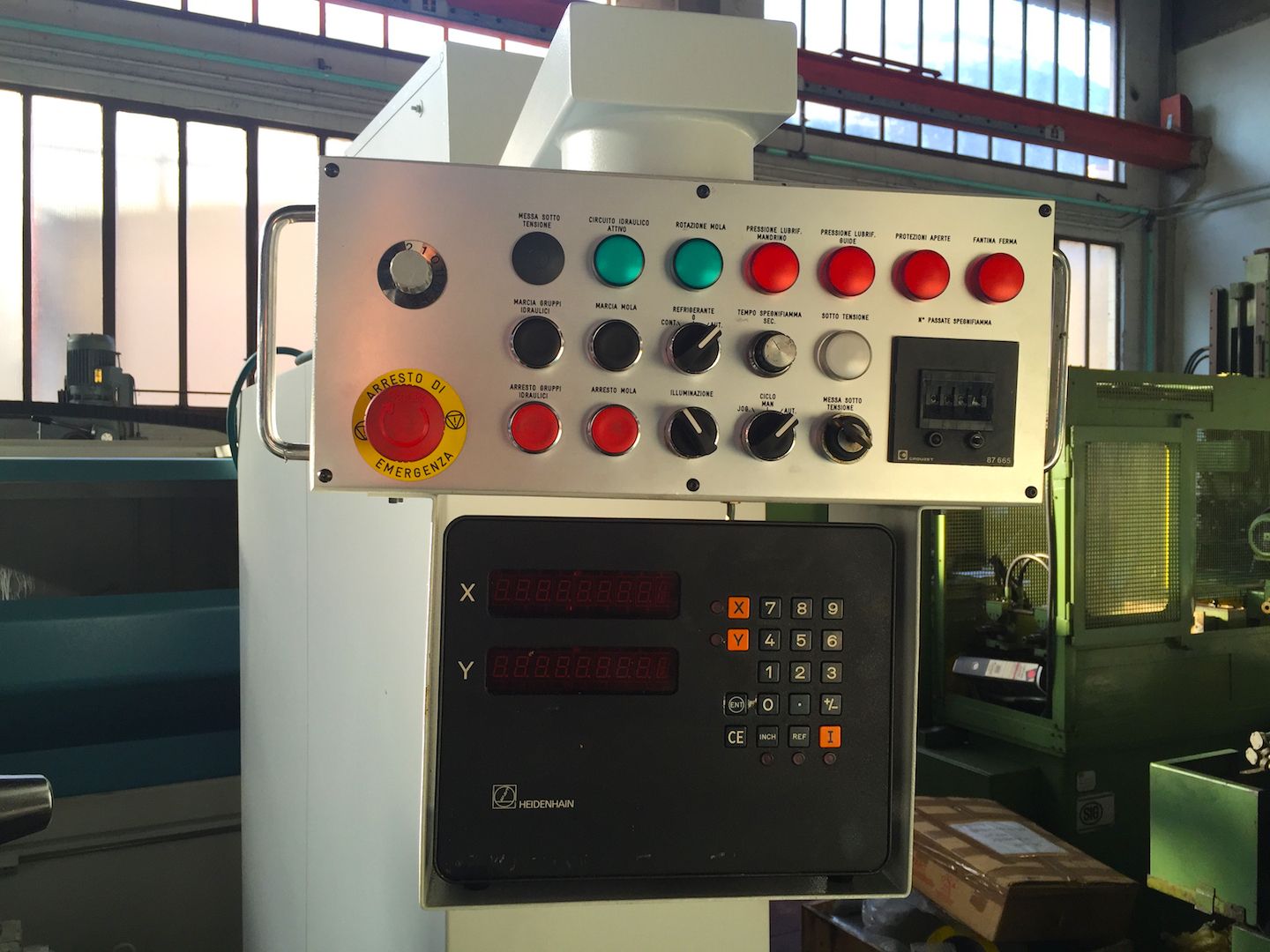

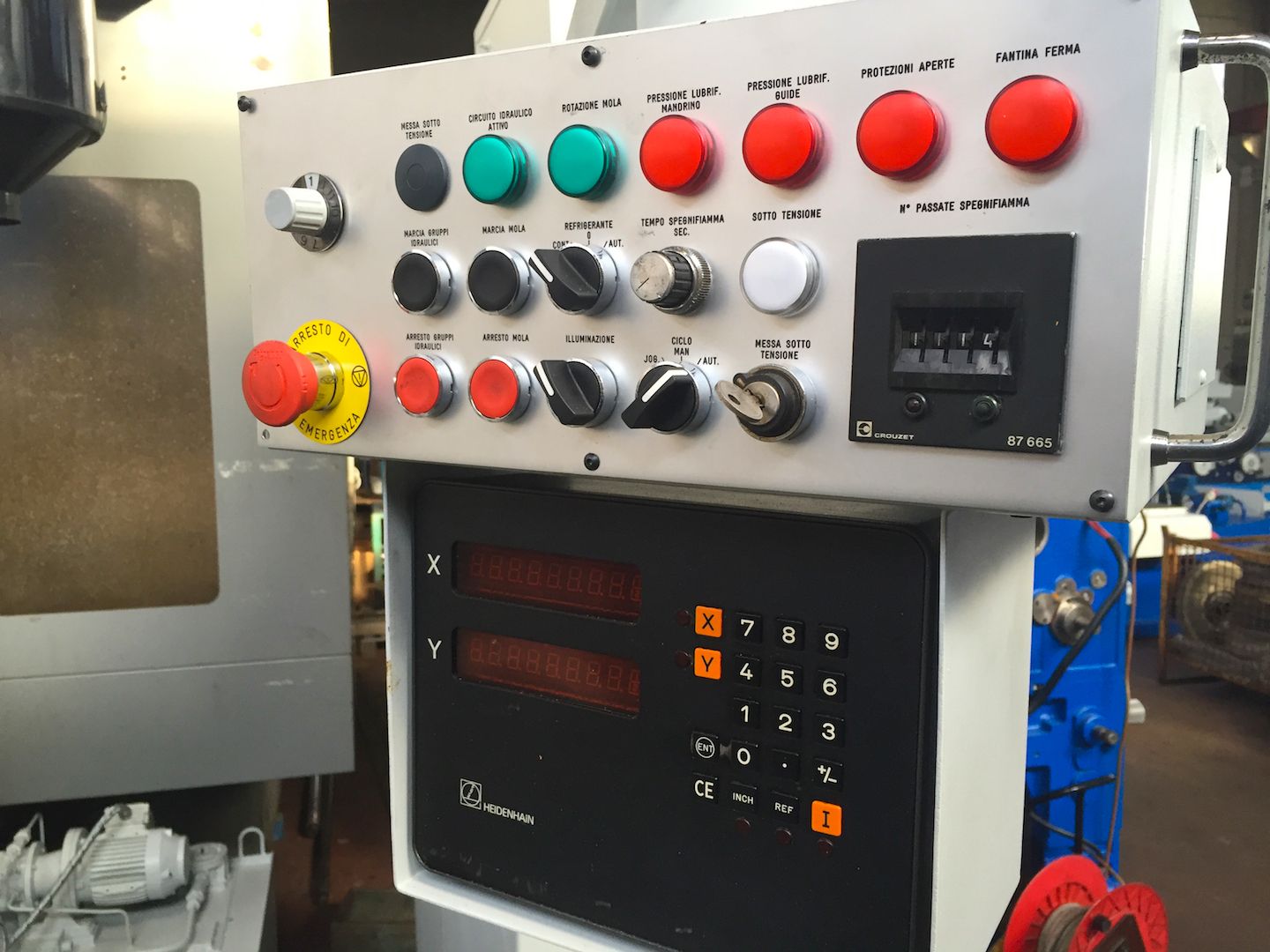

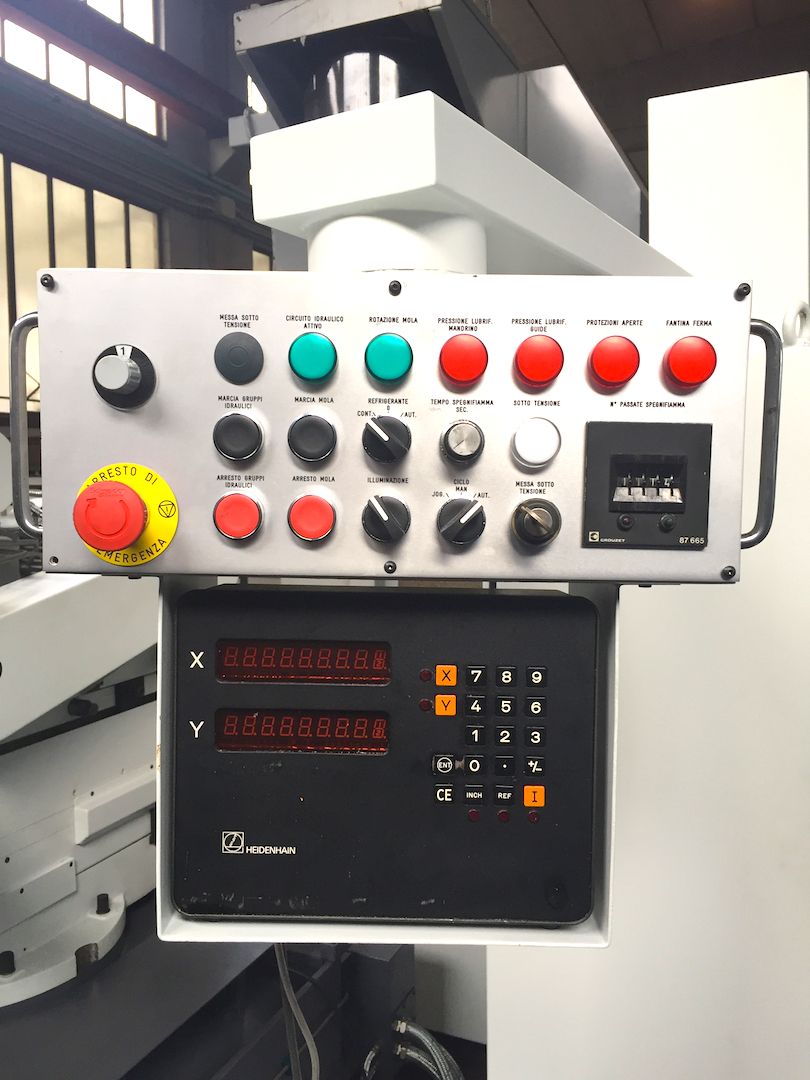

apparecchio per interni, vasca filtro a carta, DRO Heidenhain, equilibratore manuale
Wheel balancer
Yes
Manual dresser
Yes

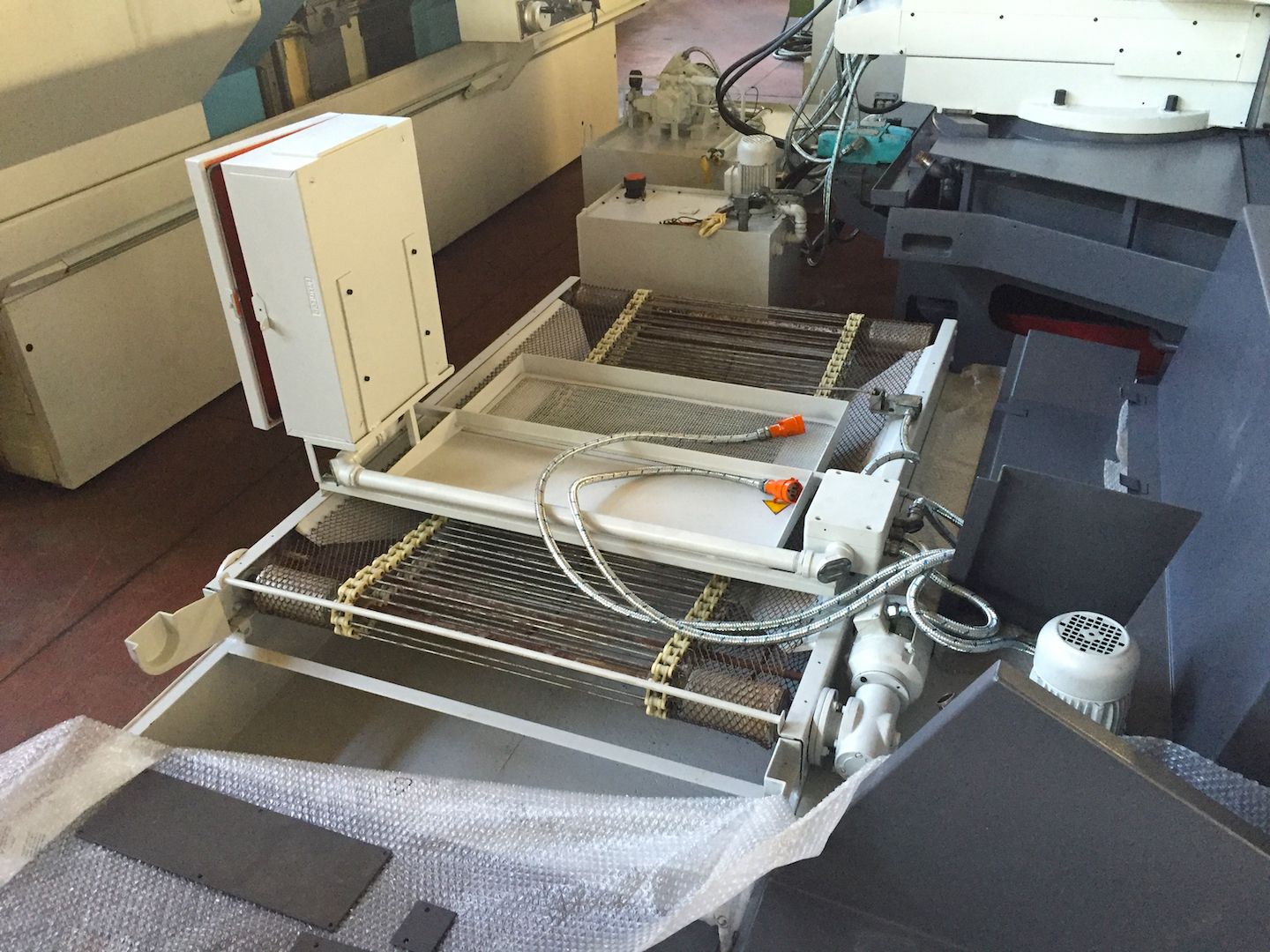

Filtration unit
Vasca filtro a carta
Maintenance & Use books
Yes
Electrical drawings
Yes
Housing
ripari anteriori
Available in stock
si
Available under power
previo appuntamento
