Category

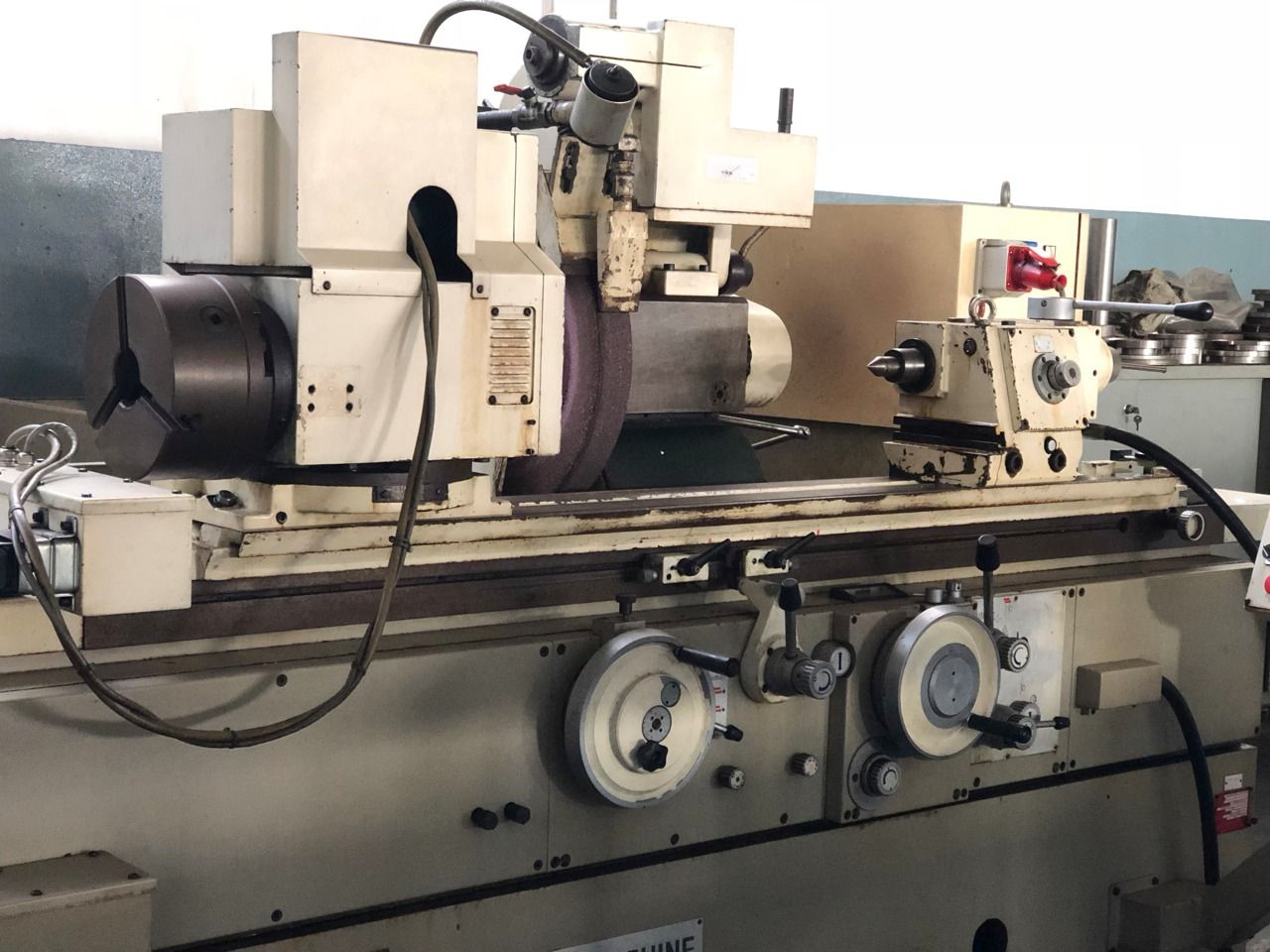

Grinding Machine
Type
ID/OD
Made
Model
1018 UM
Capacity
355x1000 mm13,98x39,37 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Centres height
180 mm7,09 in
Centres distance
1000 mm39,37 in
Max grinding diameter
355 mm13,98 in
Notes
foro mandrino/testa 45 mm
Longitudinal (Z)
1000 mm39,37 in
Cross (X)
310 mm12,20 in
Max internal depth
870 mm34,25 in
WORKPIECE HEAD
Tilt
+/-90° °
Spindle power
1,1 Kw
Rotating speed
16-500 Rpm
Speed regulation
a variazione progressiva
Taper
MK4
Notes
girevole 2 posizioni
TABLE
Stroke
4-1000 mm0,16-39,37 in
Cross speed
0,1-5 mm/min0,0039-0,1969 ipm
Max workpiece weight
250 Kg
Tilt
+/- 9° °
WHEELHEAD
External spindle power
5,5 Kw
External spindle speed
1235/1450 Rpm
Internal spindle power
1,5 Kw
Transmission
cinghia
LEFT WHEEL
Wheel band thickness
80 mm3,15 in
Max wheel diameter
500 mm19,69 in
Hole diameter
127 mm5,00 in
TAILSTOCK
Quill diameter
35 mm1,38 in
Taper
MK4
Drive
idraulico
EXTRA
Machine total weight
4100 Kg
Floor space
3750 x 2150 x 1600 mm mm147,64 x 84,65 x 62,99 mm in
Total power supply
9,75 Kw
Tooling included
Bilanciatore automatico mola, Mandrino idrodinamico su bronzine, contropunta con regolazione micrometrica, mandrino per interni, flange, mole
Open steadies
2
Closed steadies
1
Diametral probe
Yes
Manual dresser
Yes
Filtration unit
vasca filtro a carta
Electrical drawings
Yes
Availability
pronta
Available in stock
si
Available under power
si
