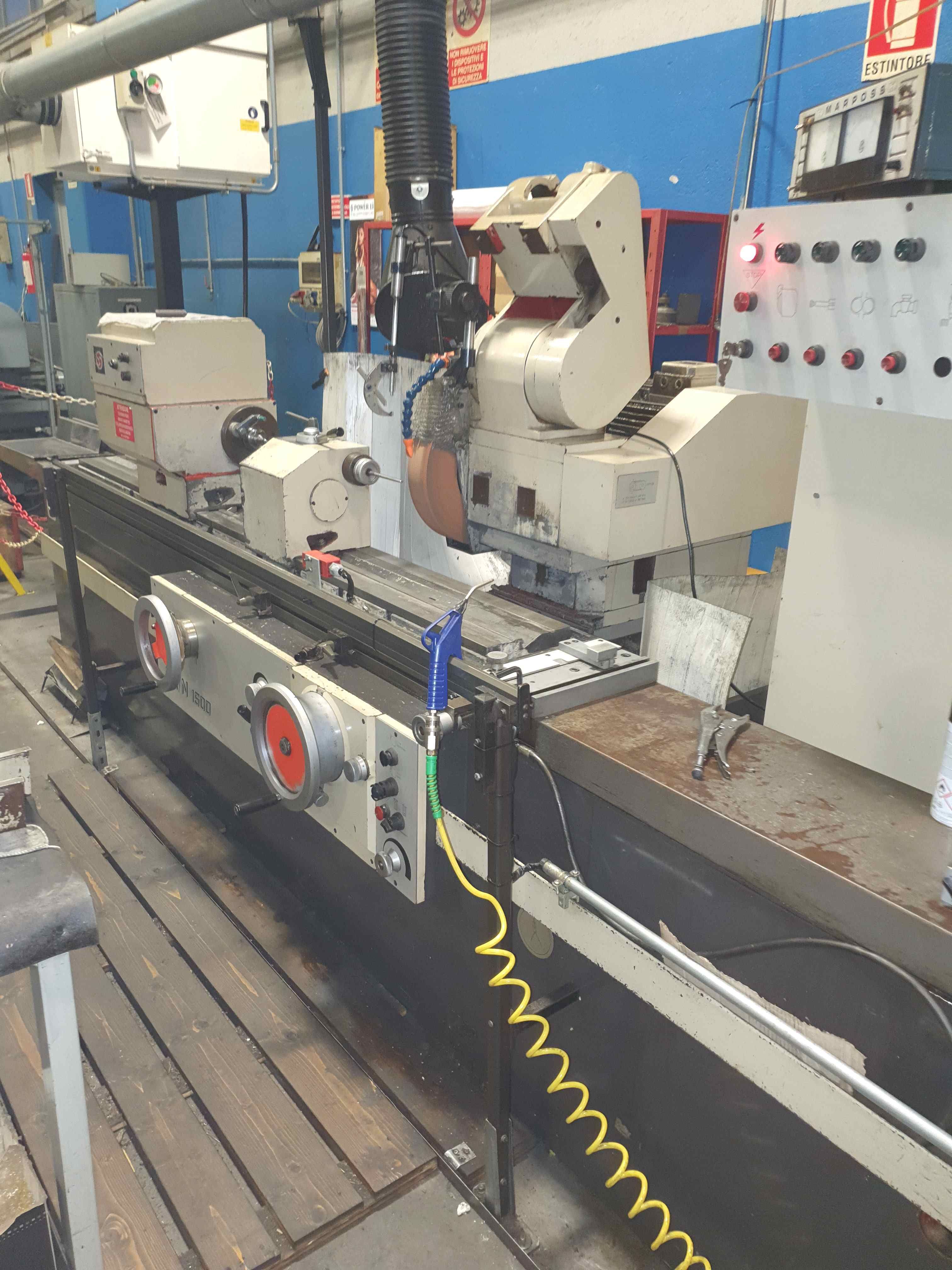

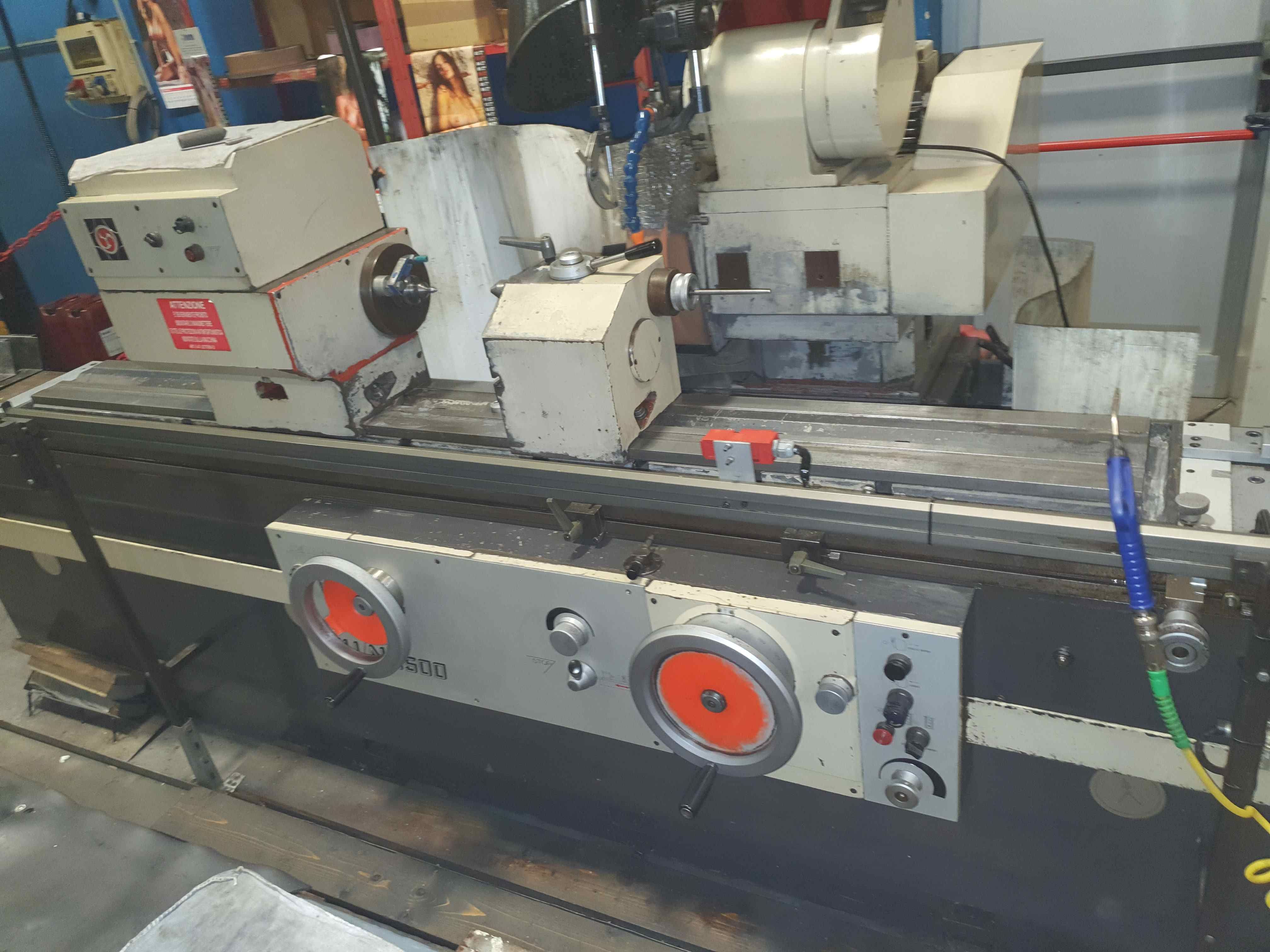

Category
Grinding Machine
Type
ID/OD
Made
Model

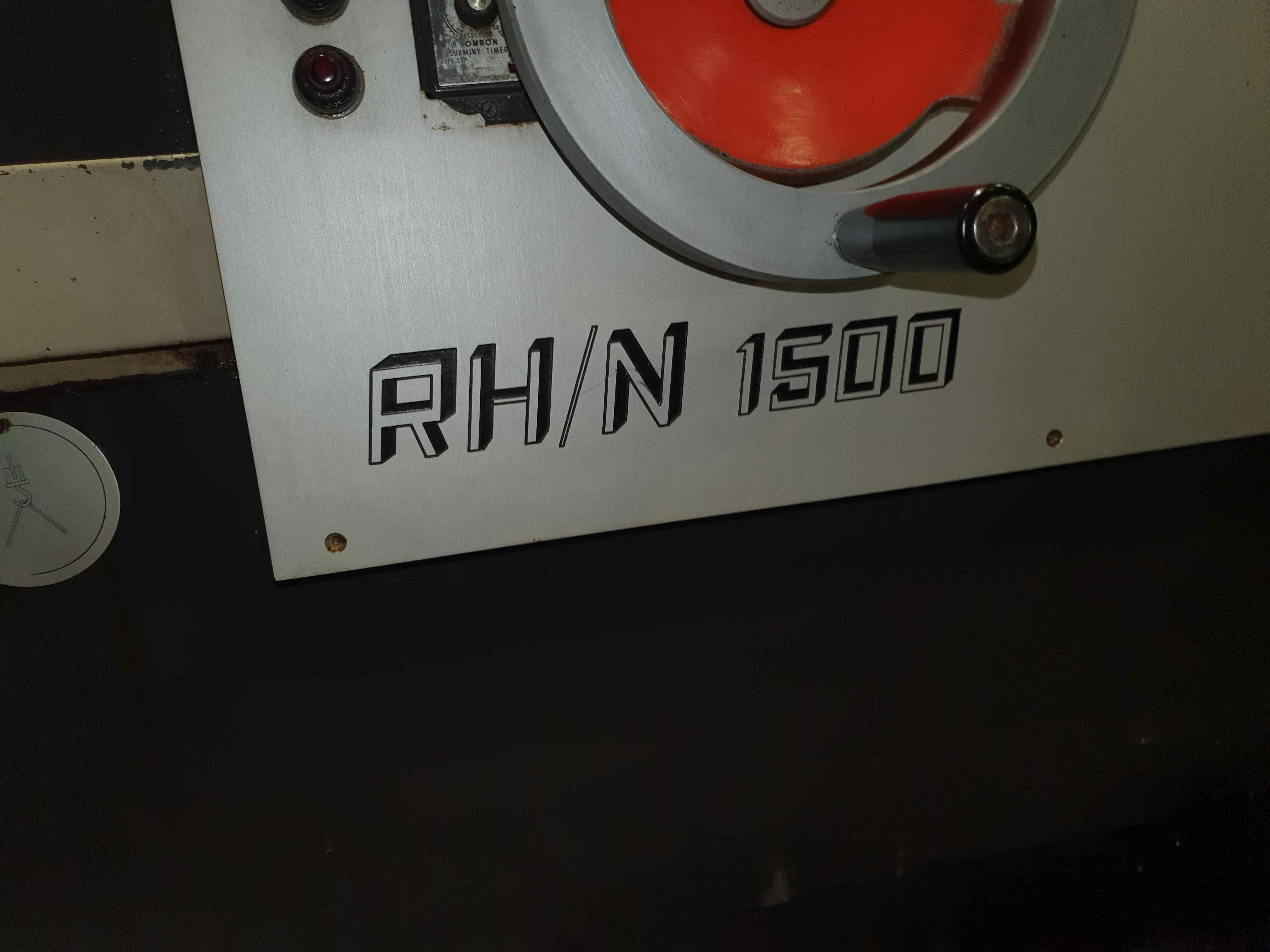

RH/N 1500
Capacity
ø400x1500 mmø15,75x59,06 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Centres distance
1500 mm59,06 in
Centres height
200 mm7,87 in
Max grinding diameter
400 mm15,75 in
Max grinding lenght
1500 mm59,06 in
Longitudinal (Z)
1500 mm59,06 in
TABLE
Max workpiece weight
350 Kg
WHEELHEAD
External spindle speed
30-410 Rpm
External spindle power
5,5 Kw
LEFT WHEEL
Wheel band thickness
60 mm2,36 in
Max wheel diameter
410 mm16,14 in
Hole diameter
127 mm5,00 in
EXTRA
Tooling included
apparecchio per interni
Filtration unit
filtro a carta
Electrical drawings
Yes
Available in stock
si
Available under power
si
Machine total weight
4500 Kg
