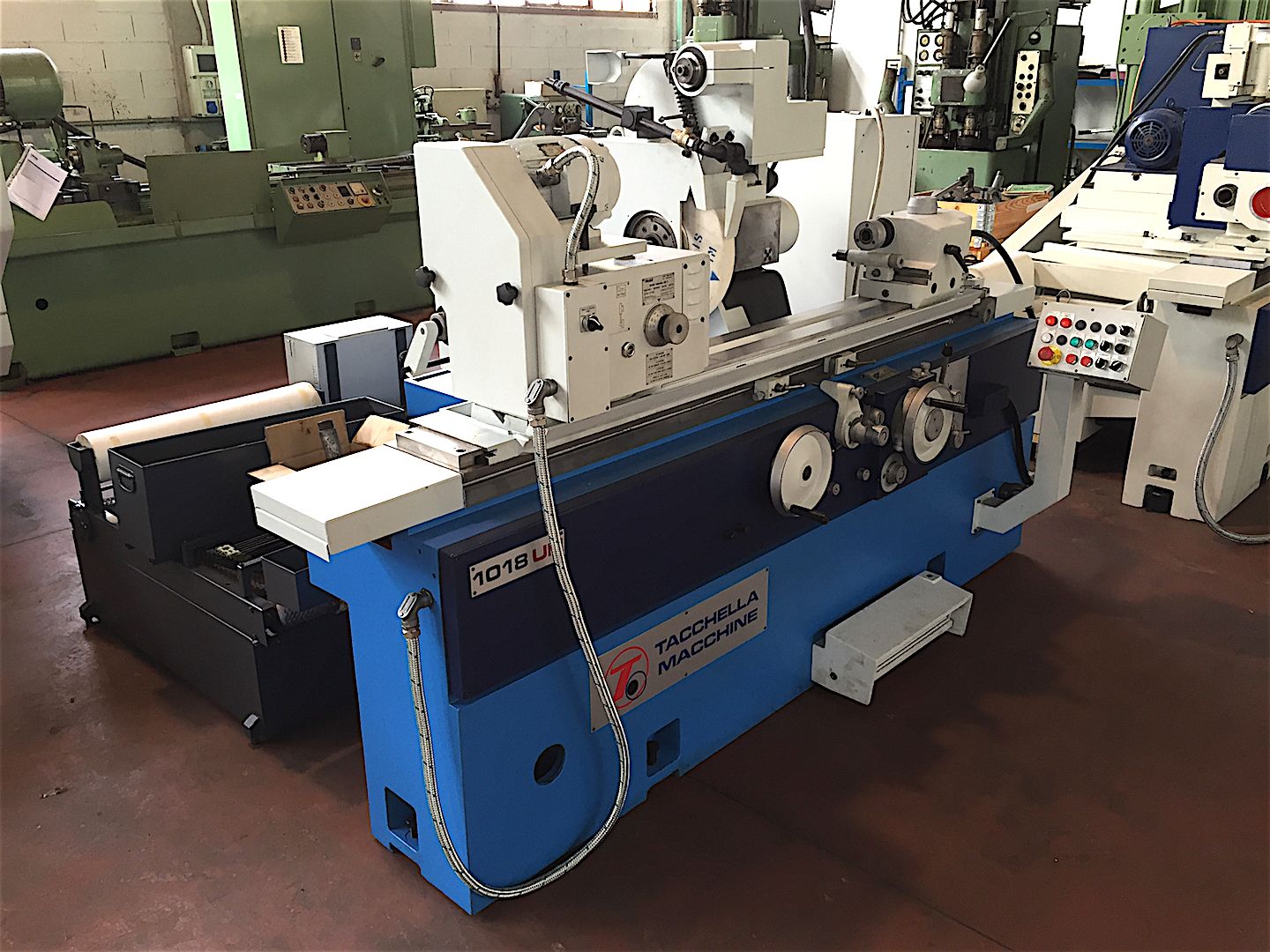

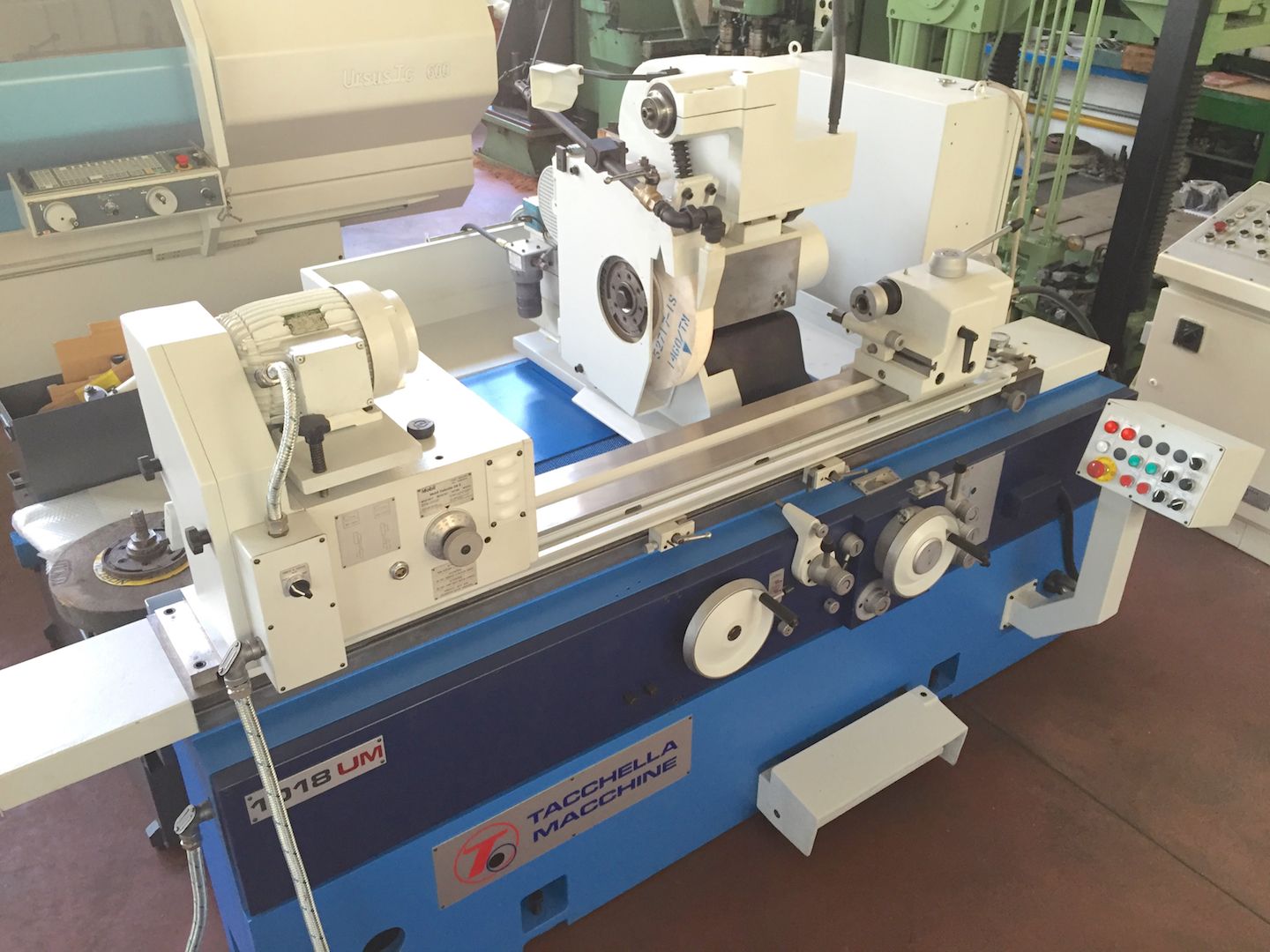

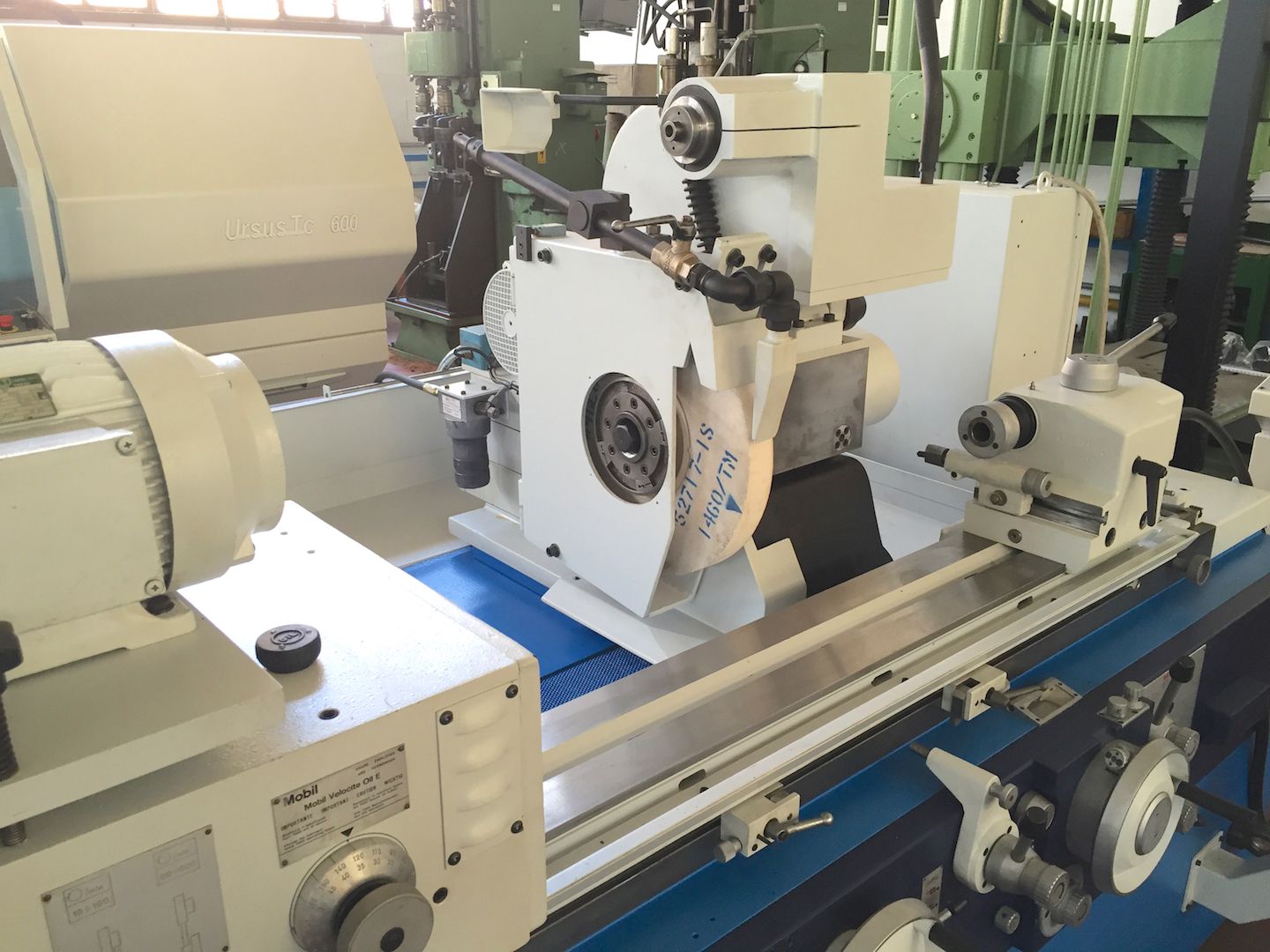

Category
Grinding Machine
Type
ID/OD
Made
Model

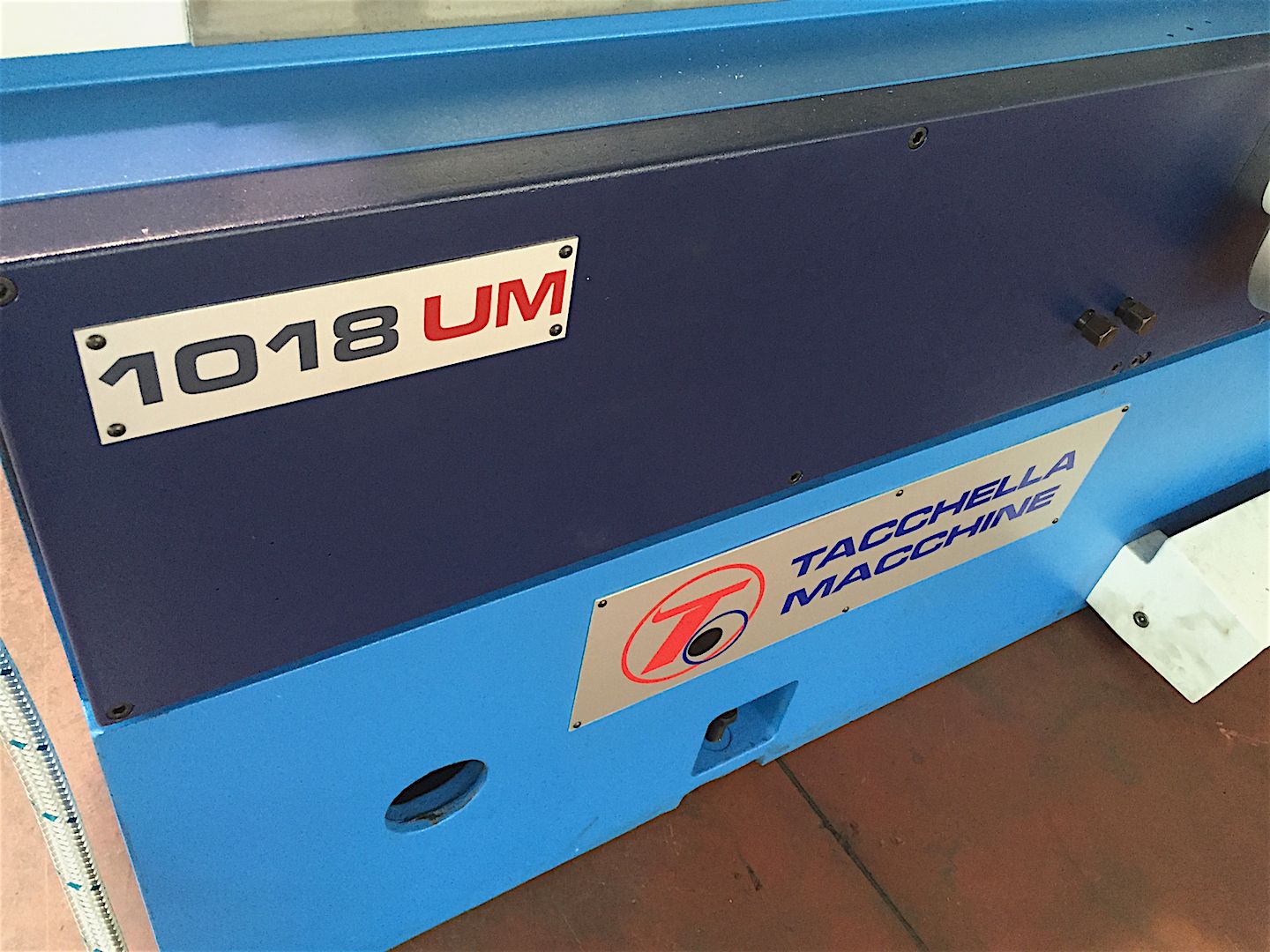

1018 UM
Capacity
355x1000 mm13,98x39,37 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Cross (X)
310 mm12,20 in
Max internal diameter
870 mm34,25 in
Max internal depth
870 mm34,25 in
Centres distance
1000 mm39,37 in
Centres height
180 mm7,09 in
Longitudinal (Z)
1000 mm39,37 in
Max grinding diameter
355 mm13,98 in

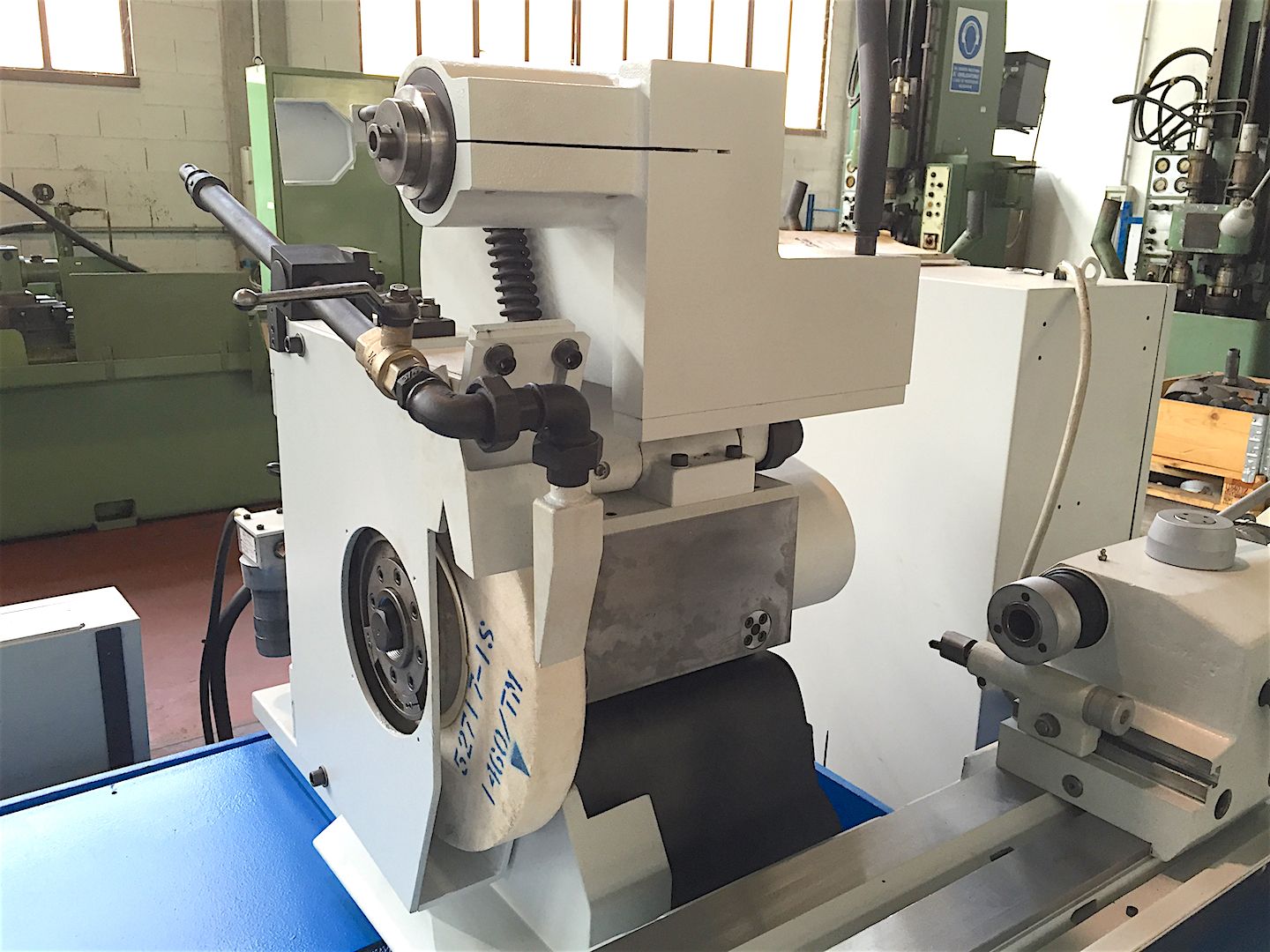

WHEELHEAD
Internal spindle power
1,5 Kw
External spindle power
5,5 Kw
External spindle speed
1235/1450 Rpm
Transmission
chinghia
WORKPIECE HEAD
Spindle power
1,1 Kw
Rotating speed
16-500 Rpm
Tilt
0+90 °
Taper
MK4
Speed regulation
a variazione progressiva

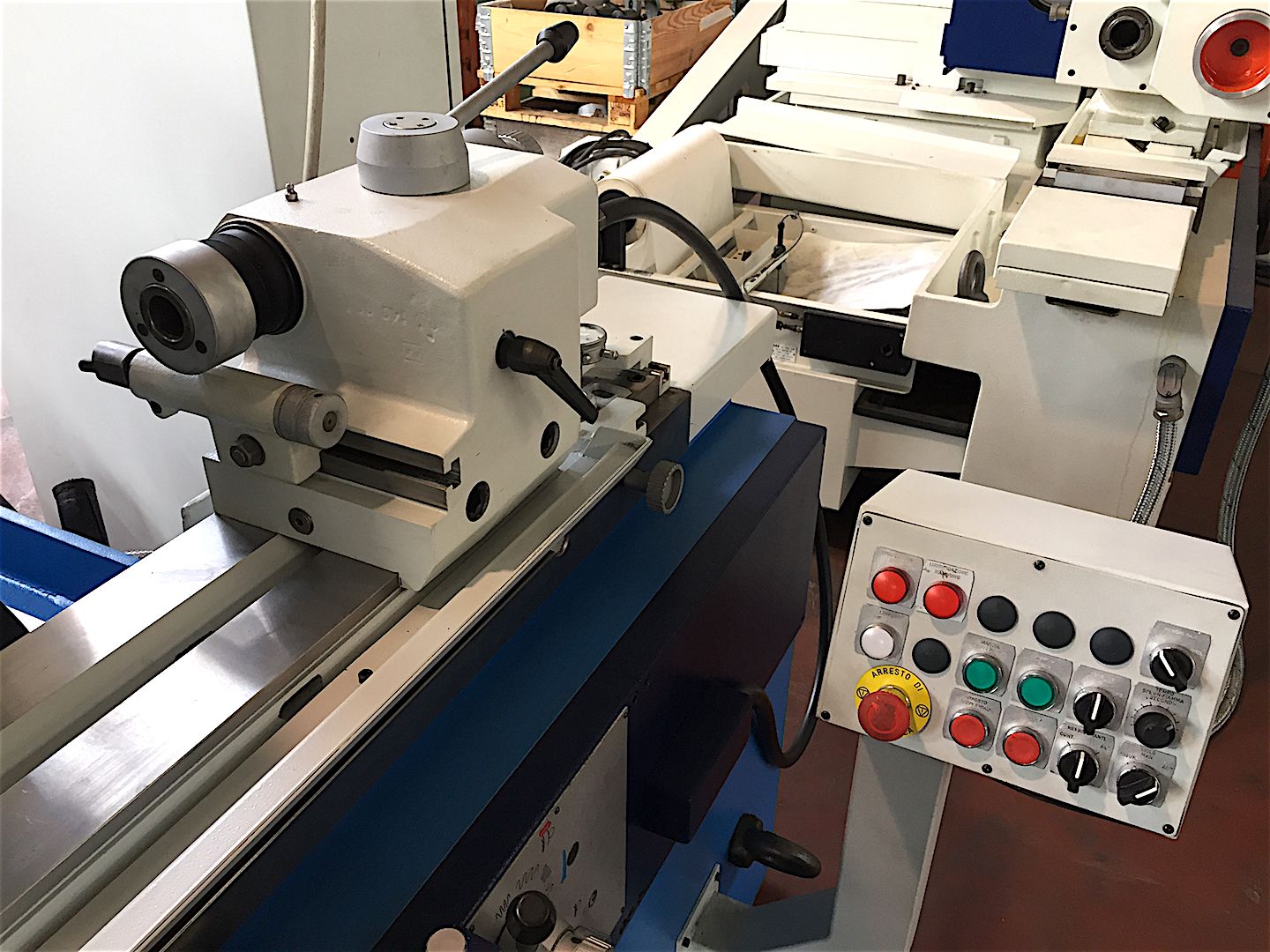

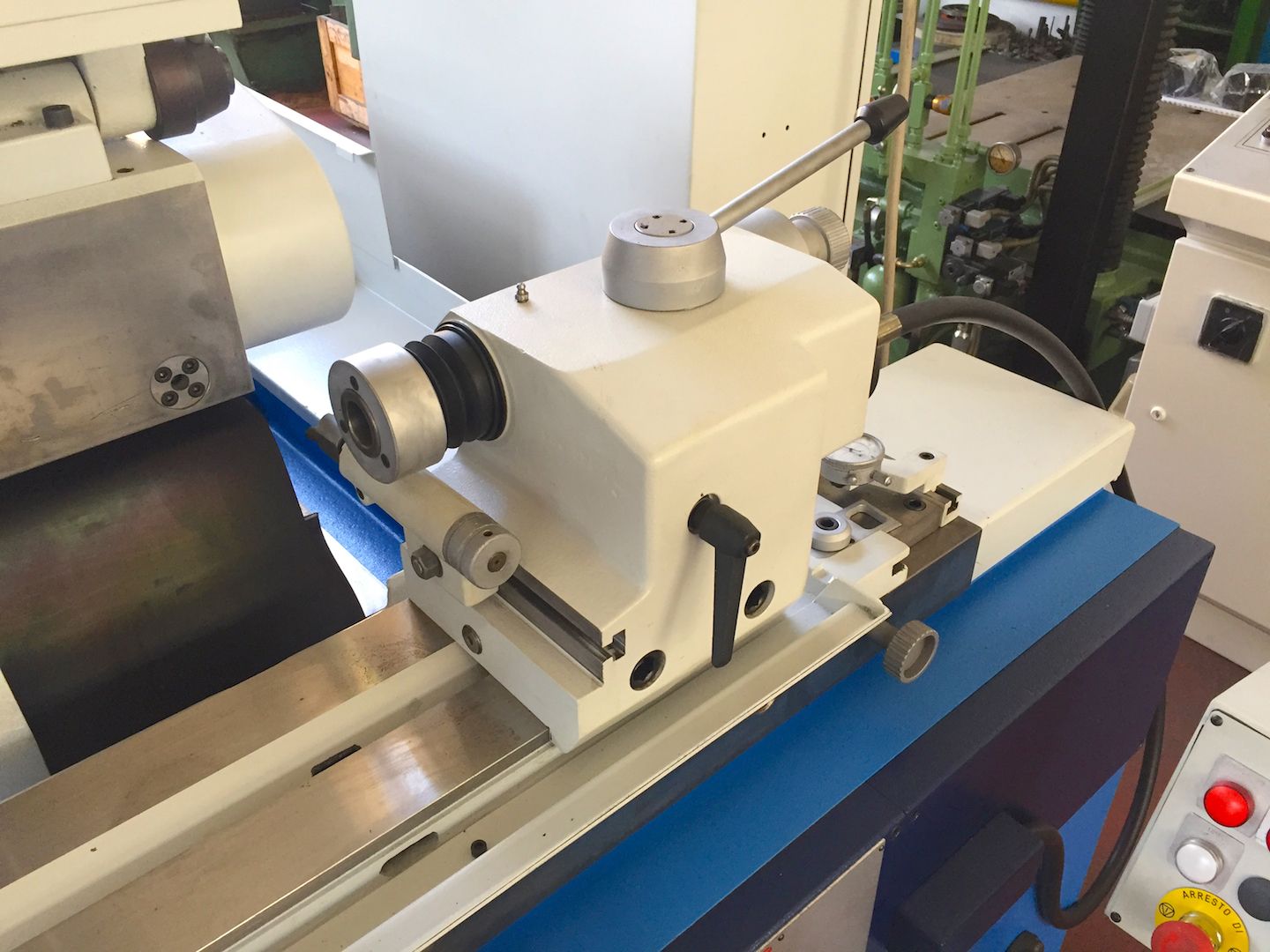

TAILSTOCK
Quill diameter
35 mm1,38 in
Taper
MK4
TABLE
Stroke
4-1000 mm0,16-39,37 in
Cross speed
0,1-5 mm/min0,0039-0,1969 ipm
Max workpiece weight
250 Kg
Tilt
+/- 9 °
LEFT WHEEL
Wheel band thickness
80 mm3,15 in
Max wheel diameter
500 mm19,69 in
Hole diameter
127 mm5,00 in
EXTRA
Tooling included
mandrino per interni, flange, mole
Open steadies
2
Closed steadies
1
Housing
carter antinfortunistica frontali
Electrical drawings
Yes
Manual dresser
Yes
Diametral probe
Yes
Total power supply
9,75 Kw
Machine total weight
4100 Kg
Floor space
3750x2150x1600 mm147,64x84,65x62,99 in

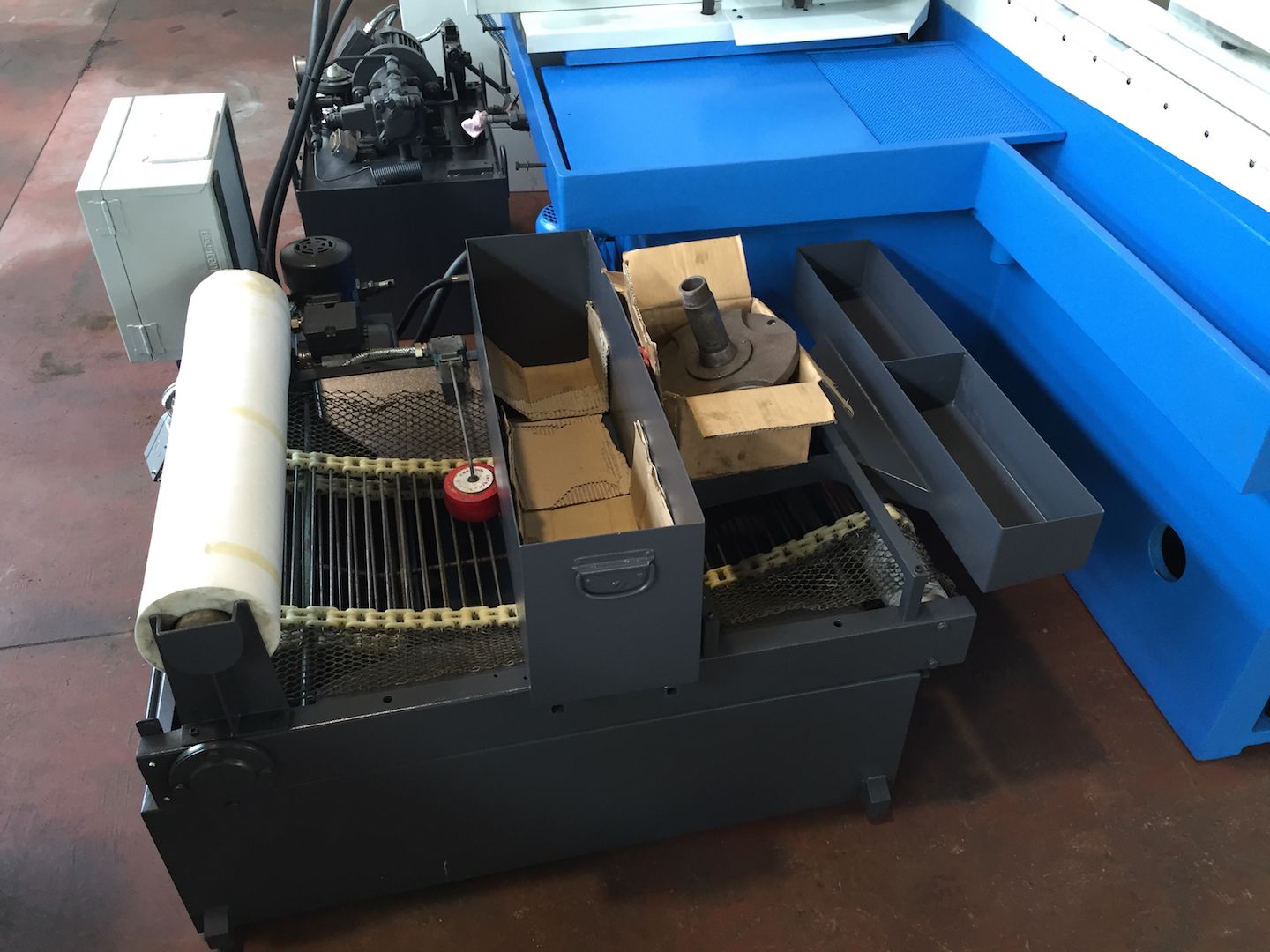

Filtration unit
vasca filtro a carta
Availability
pronta
Available in stock
si
Available under power
si
Relevant updates made on the machine
revisione completa
