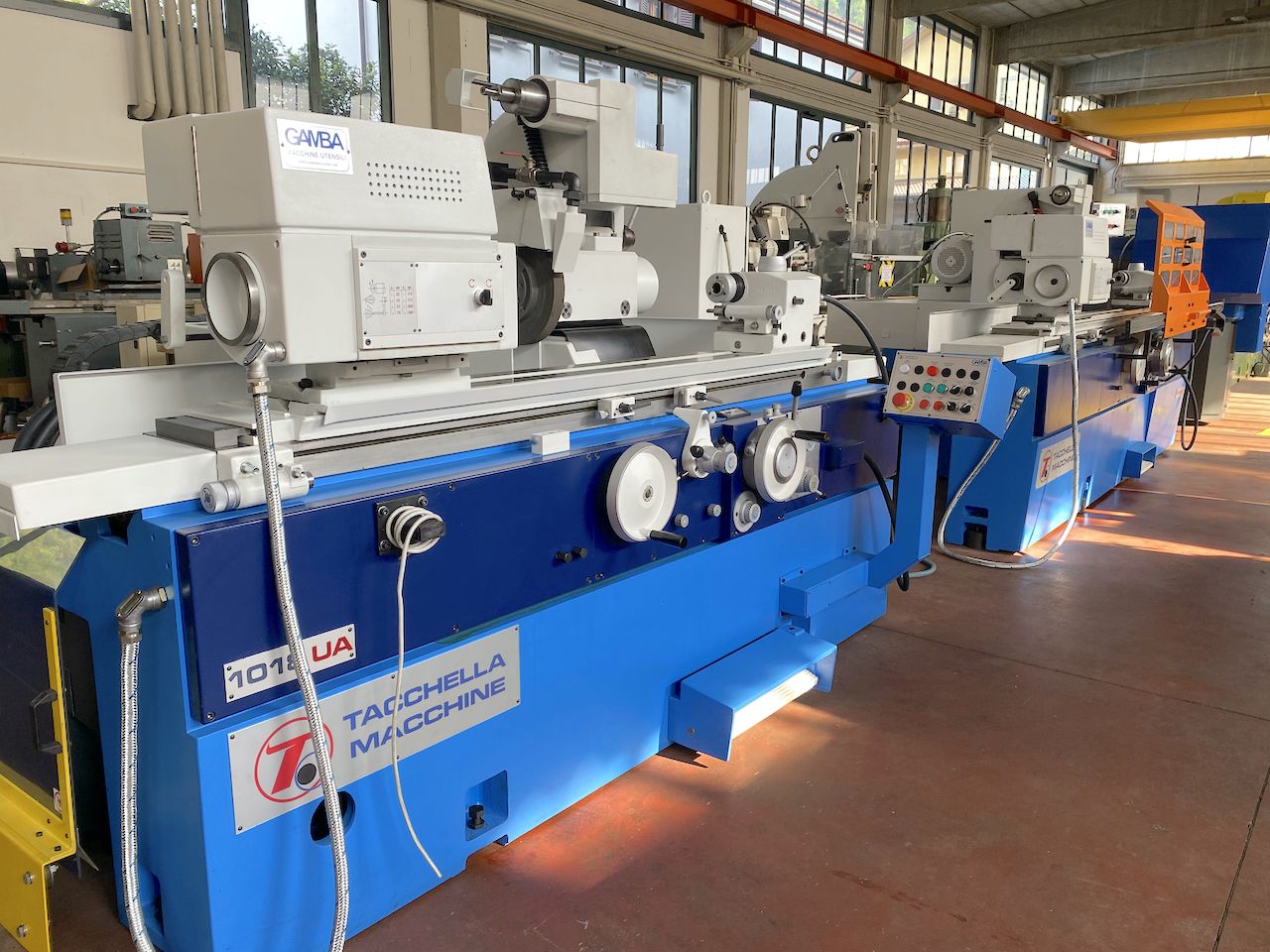

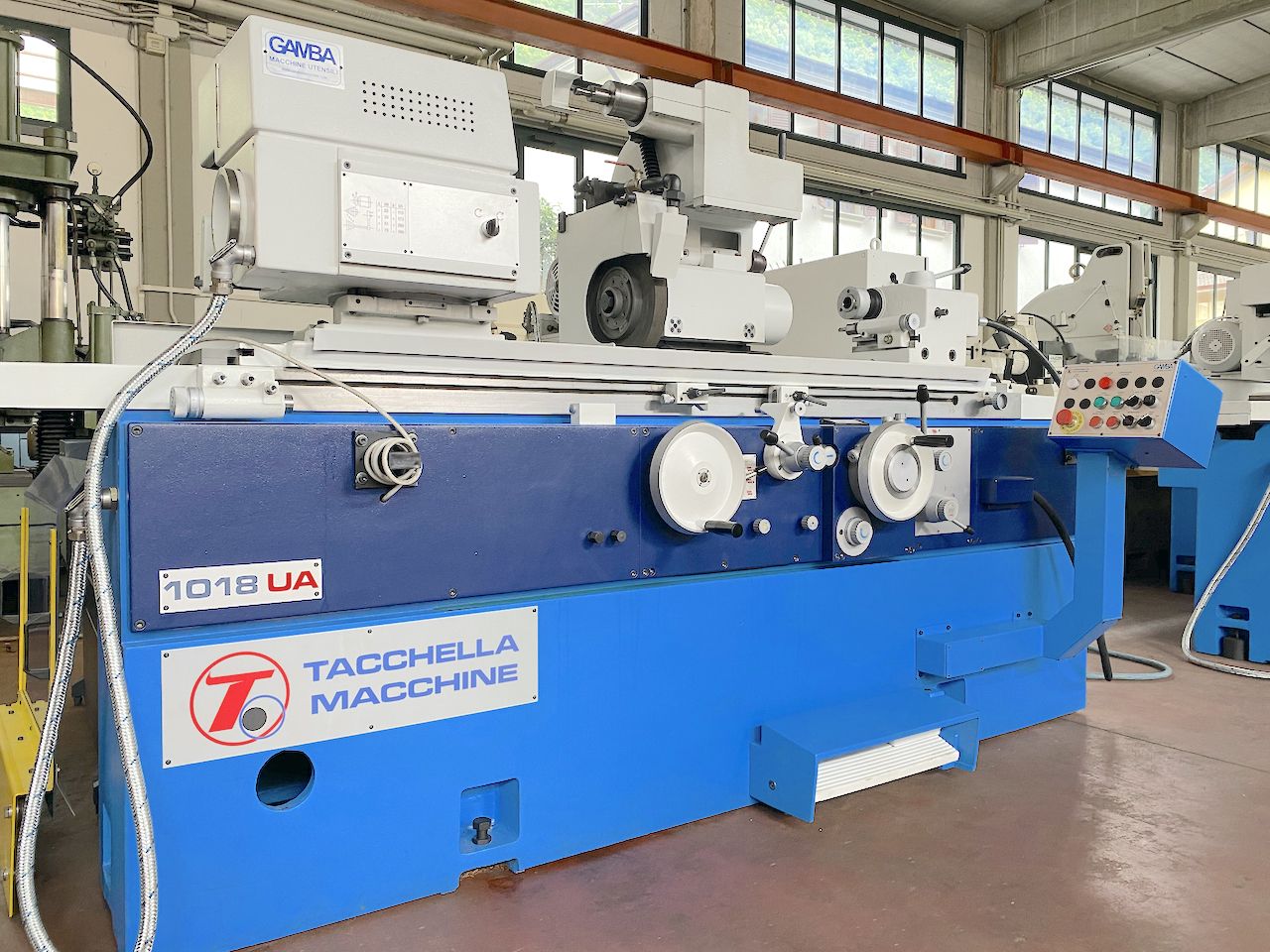

Category

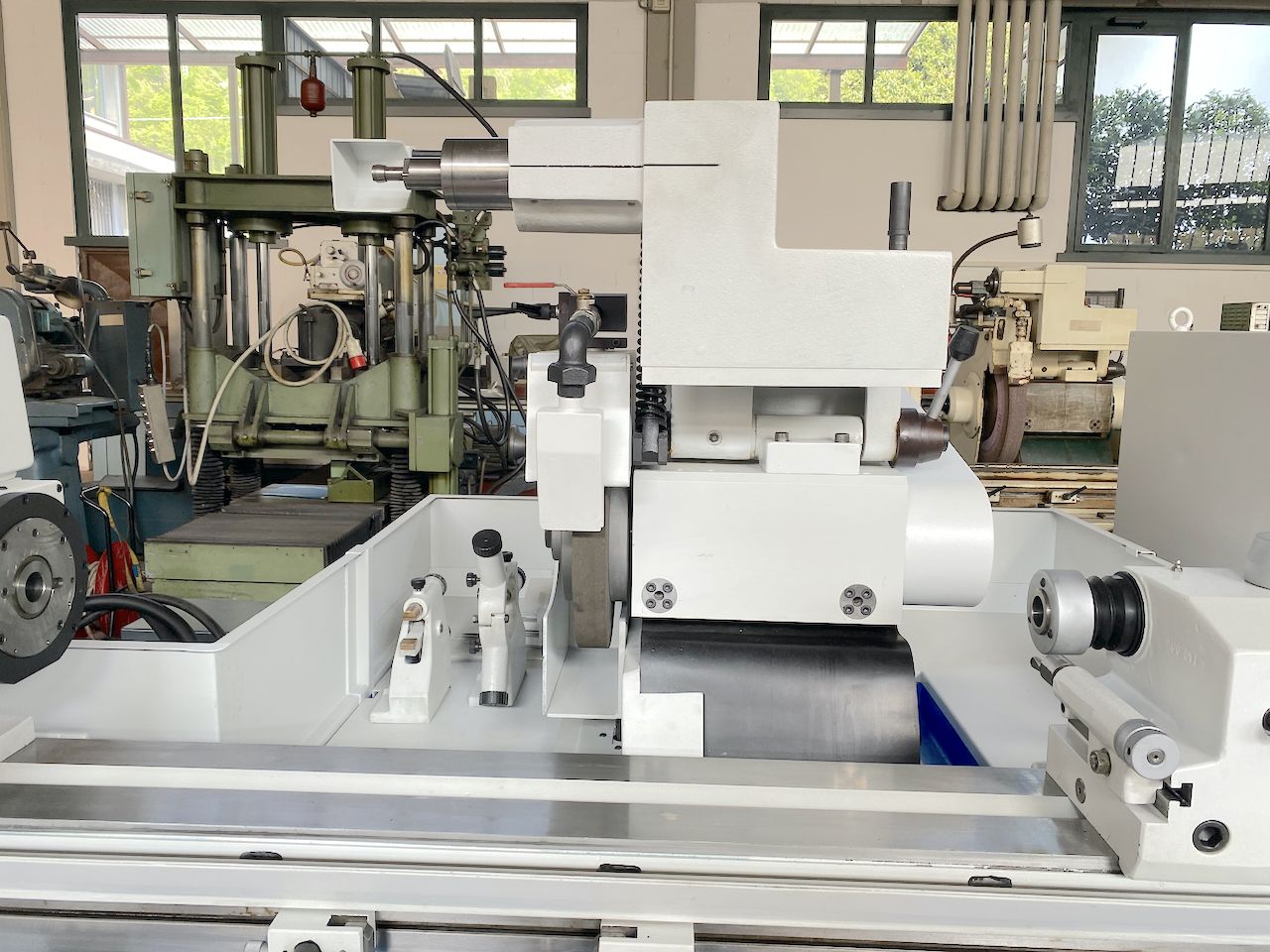

Grinding Machine
Type
ID/OD
Made
Model
1018 UA
Capacity
1000X360 mm39,37X14,17 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Centres distance
1000 mm39,37 in
Centres height
180 mm7,09 in
Max grinding lenght
1000 mm39,37 in
Max grinding diameter
360 mm14,17 in
Max internal diameter
75-270 mm2,95-10,63 in
Max internal depth
380 mm14,96 in
TABLE
Cross speed
0,1-5 mm/min0,0039-0,1969 ipm
Max workpiece weight
250 Kg
Tilt
0-7 °
FEEDS
Cross
AUTOMATICI mm/minAUTOMATICI ipm

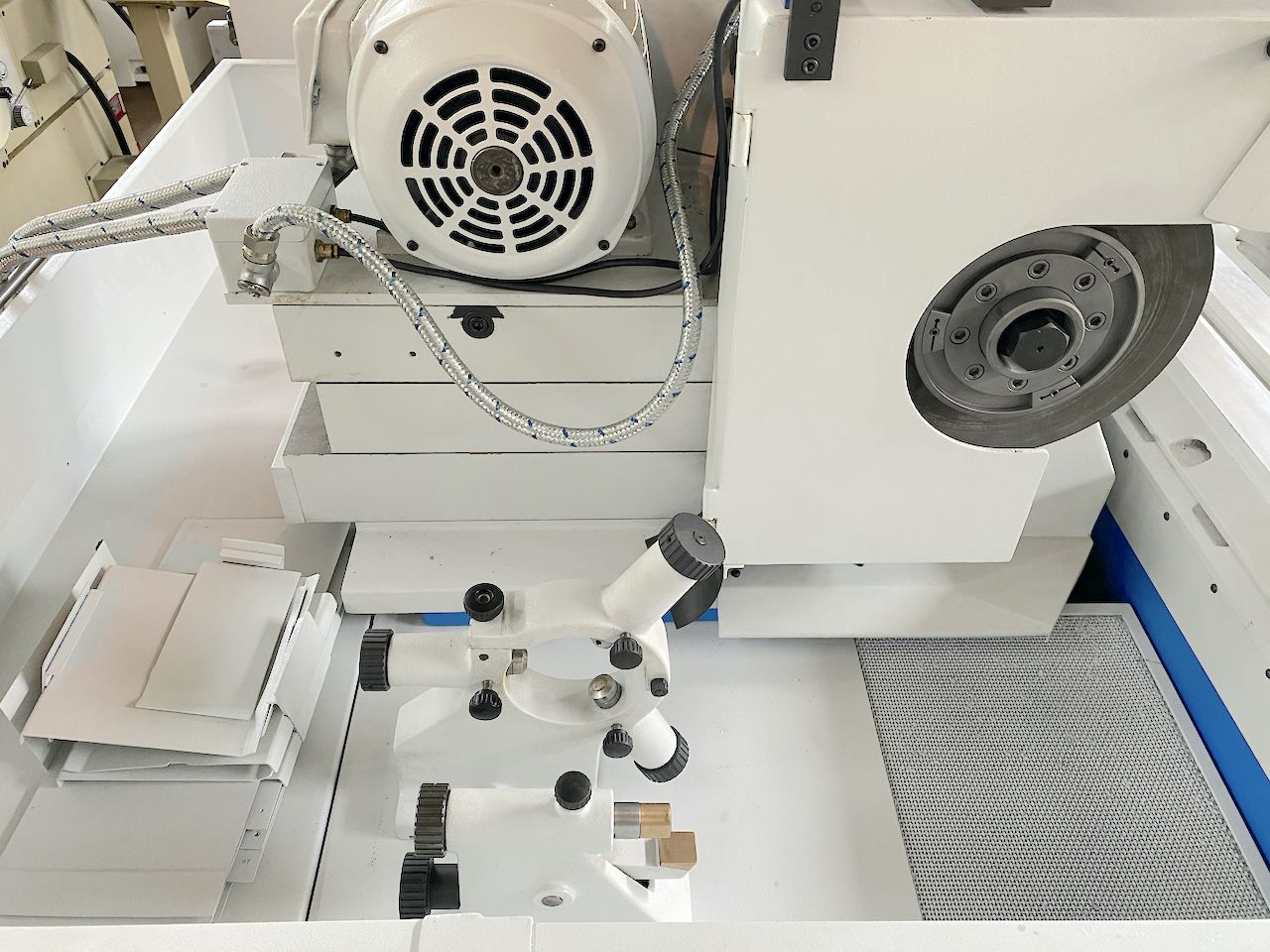

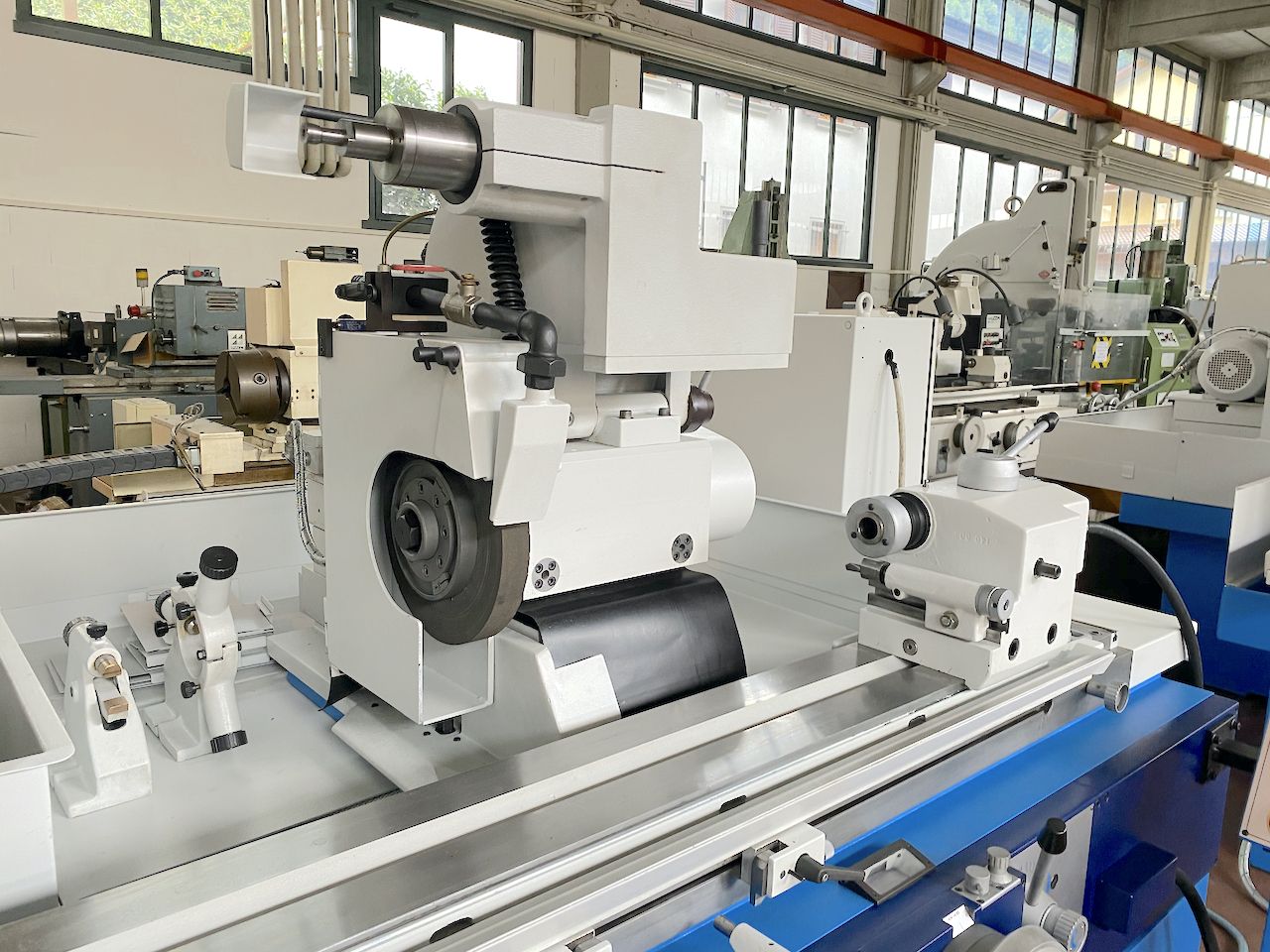

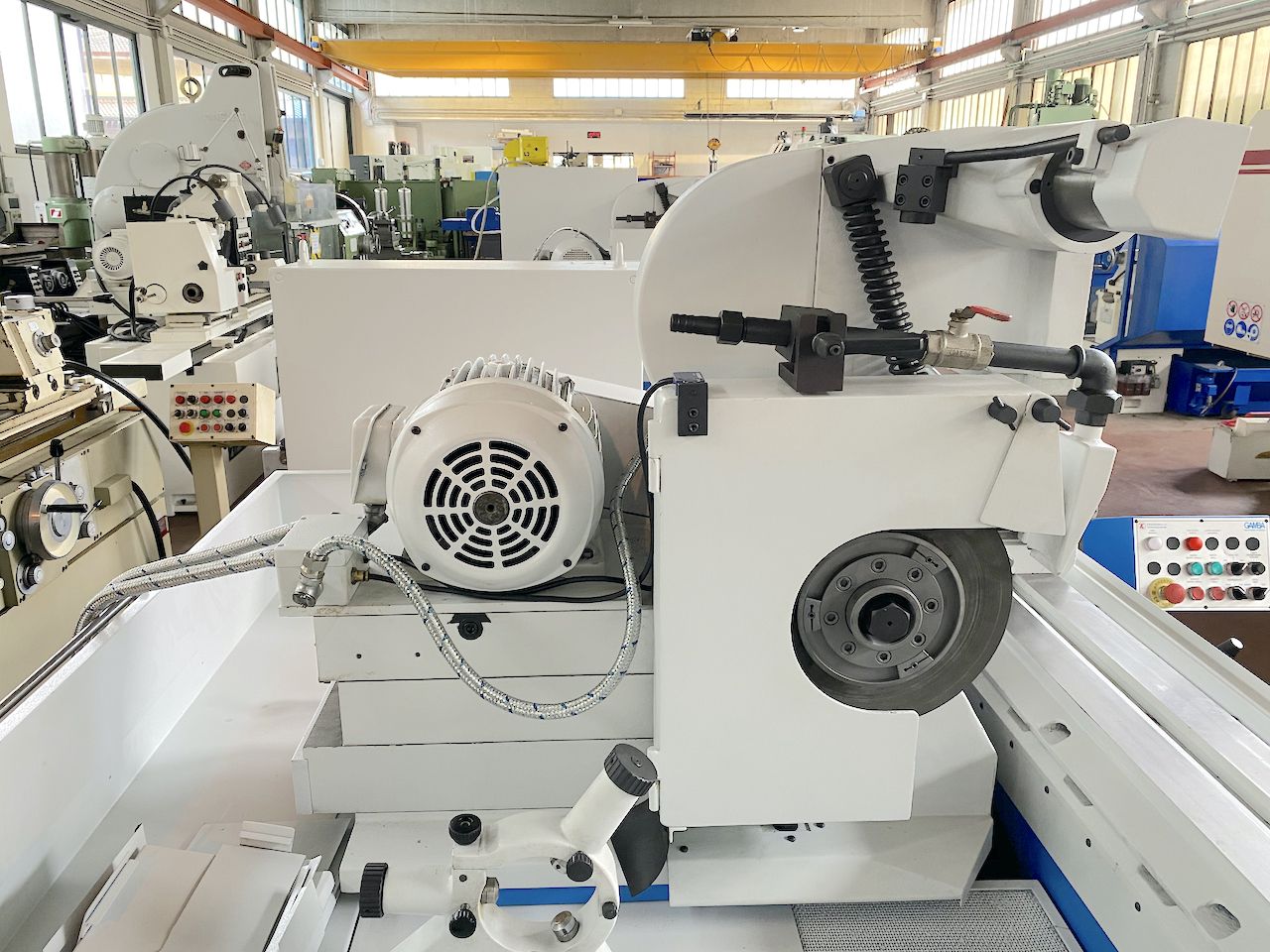

WHEELHEAD
External spindle power
5,5 Kw
External spindle speed
1275-1450 Rpm
LEFT WHEEL
Wheel band thickness
80 mm3,15 in
Max wheel diameter
450 mm17,72 in
Hole diameter
127 mm5,00 in
WORKPIECE HEAD
Rotating speed
28-550 Rpm
Tilt
90 °
Taper
CM5
TAILSTOCK
Drive
IDRAULICO
EXTRA
Total power supply
9,75 Kw
Machine total weight
4000 Kg
Filtration unit
FILTRO CARTA
Maintenance & Use books
Yes
Electrical drawings
Yes
Housing
RIPARO ANTINFORTUNISTICO
Availability
PRONTA
Available in stock
SI
Available under power
SI
Closed steadies
SI
Open steadies
SI
