Category
Grinding Machine
Type
ID/OD
Made
Model

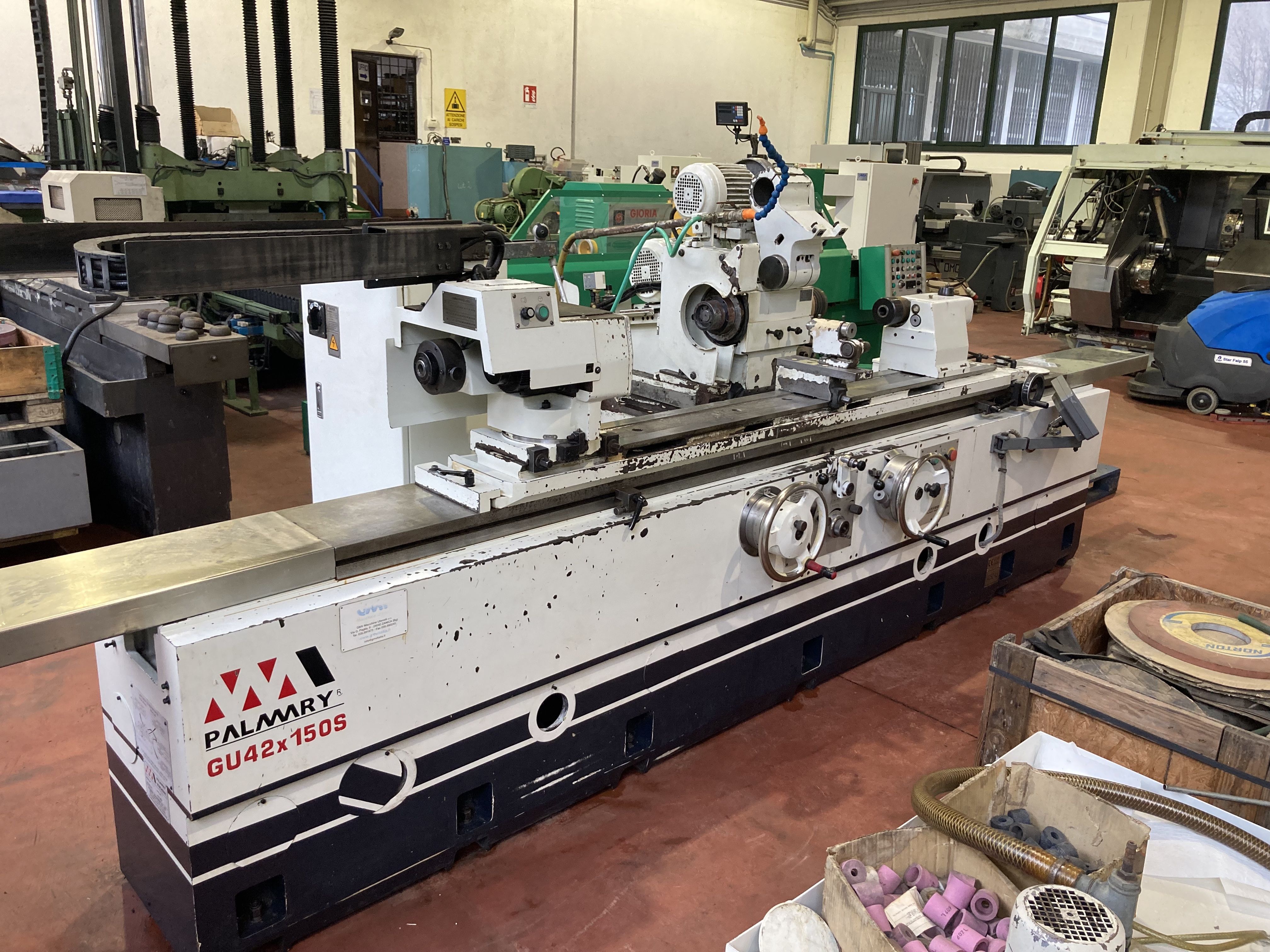

GU 42X150 S
Capacity
ø420x1500 mmø16,54x59,06 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Centres distance
1500 mm59,06 in
Centres height
210 mm8,27 in
Max grinding diameter
400 mm15,75 in
LEFT WHEEL
Wheel band thickness
60 mm2,36 in
Max wheel diameter
405 mm15,94 in
Hole diameter
127 mm5,00 in

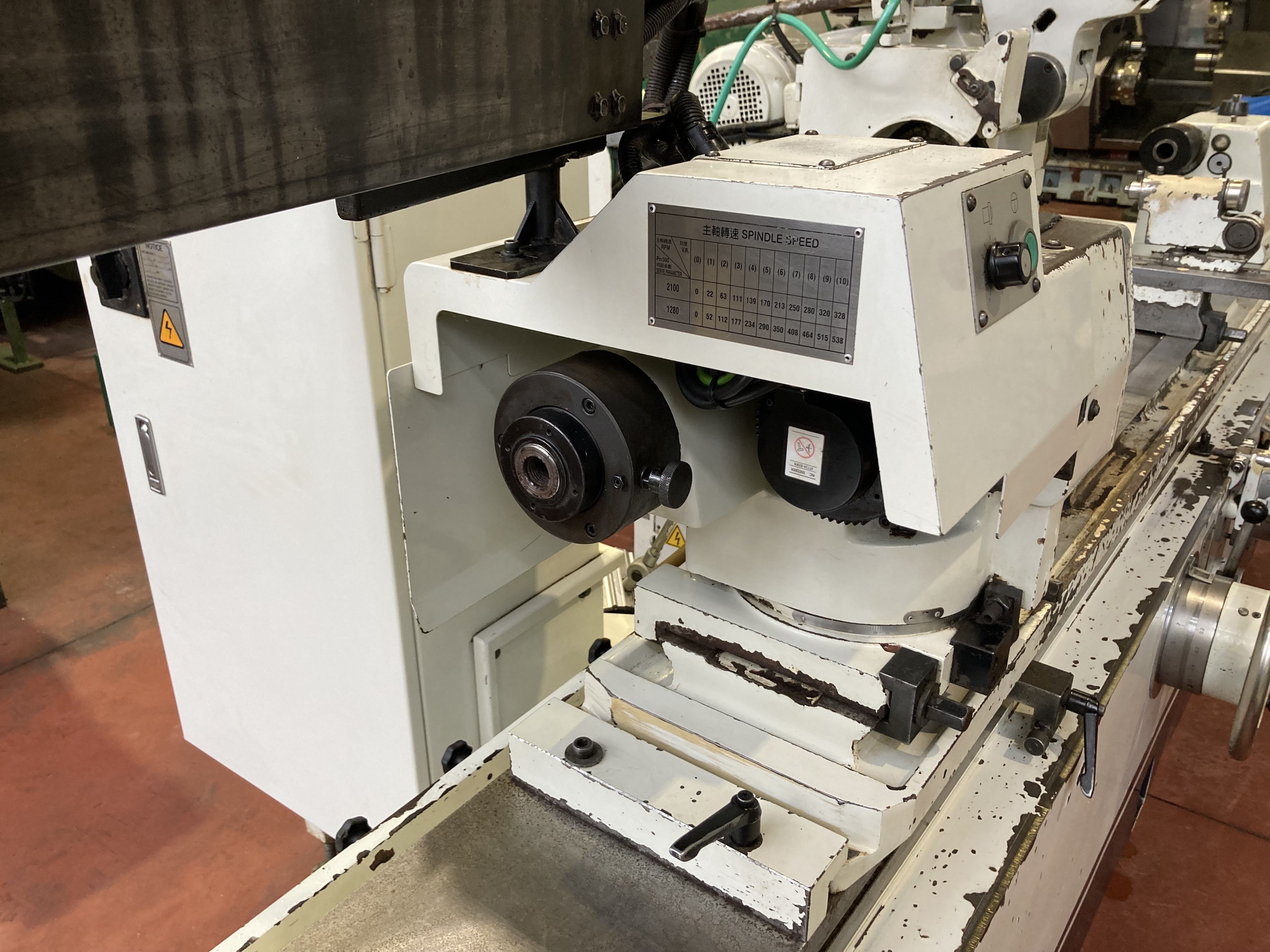

WORKPIECE HEAD
Taper
MT4
Rotating speed
10/300 Rpm
Spindle power
1,3 Kw
Tilt
120° (+90/-30) °
WHEELHEAD
Accuracy (B axis)
+/-30 °
External spindle power
3,75 Kw
External spindle speed
1940 Rpm
Internal spindle power
0,75 Kw
TABLE
Cross speed
50-4000 mm/min1,9685-157,4800 ipm
Max workpiece weight
150 Kg
Tilt
-3/+7 °

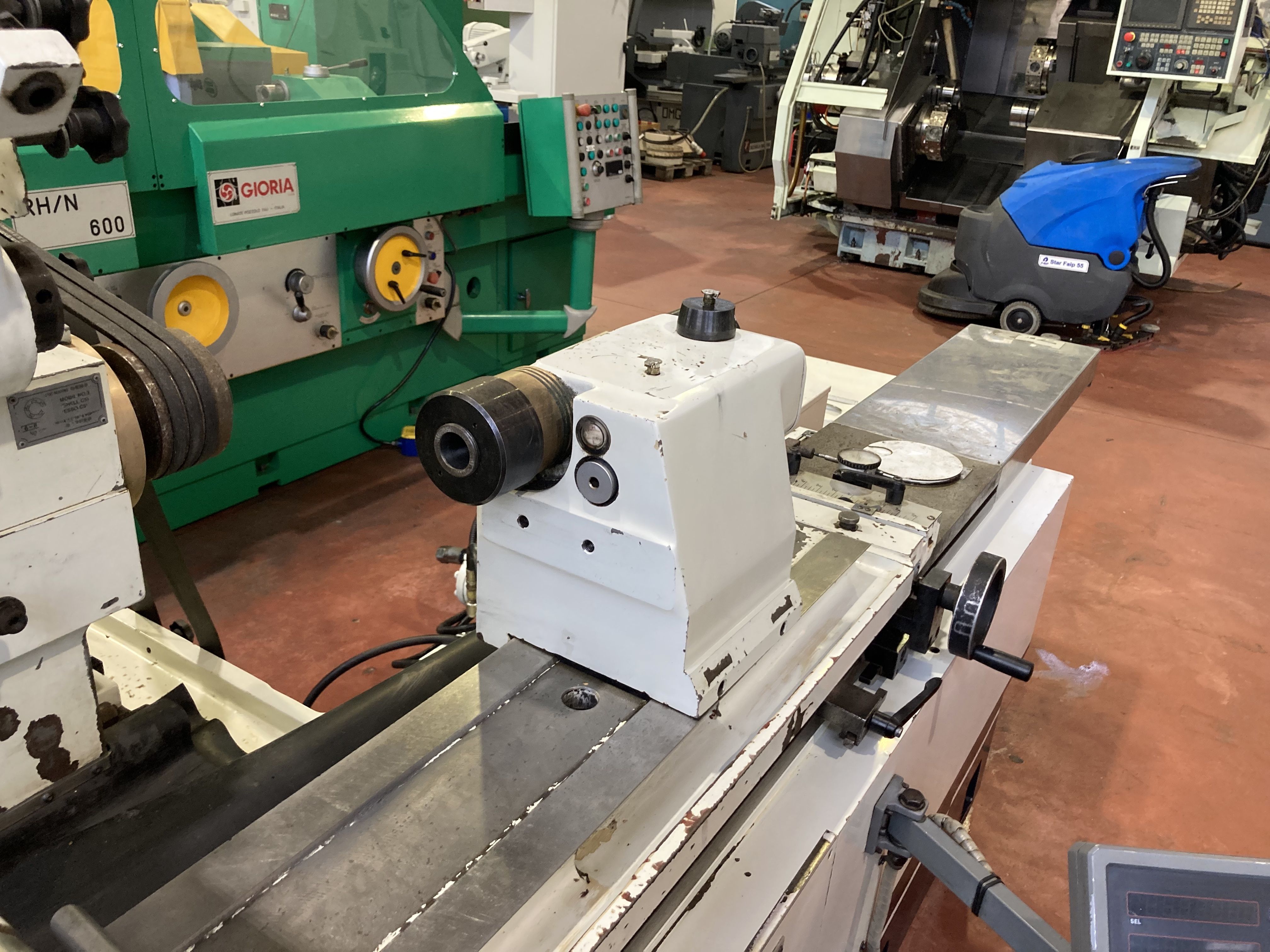

TAILSTOCK
Taper
MT4
Quill stroke
25 mm0,98 in
EXTRA
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes

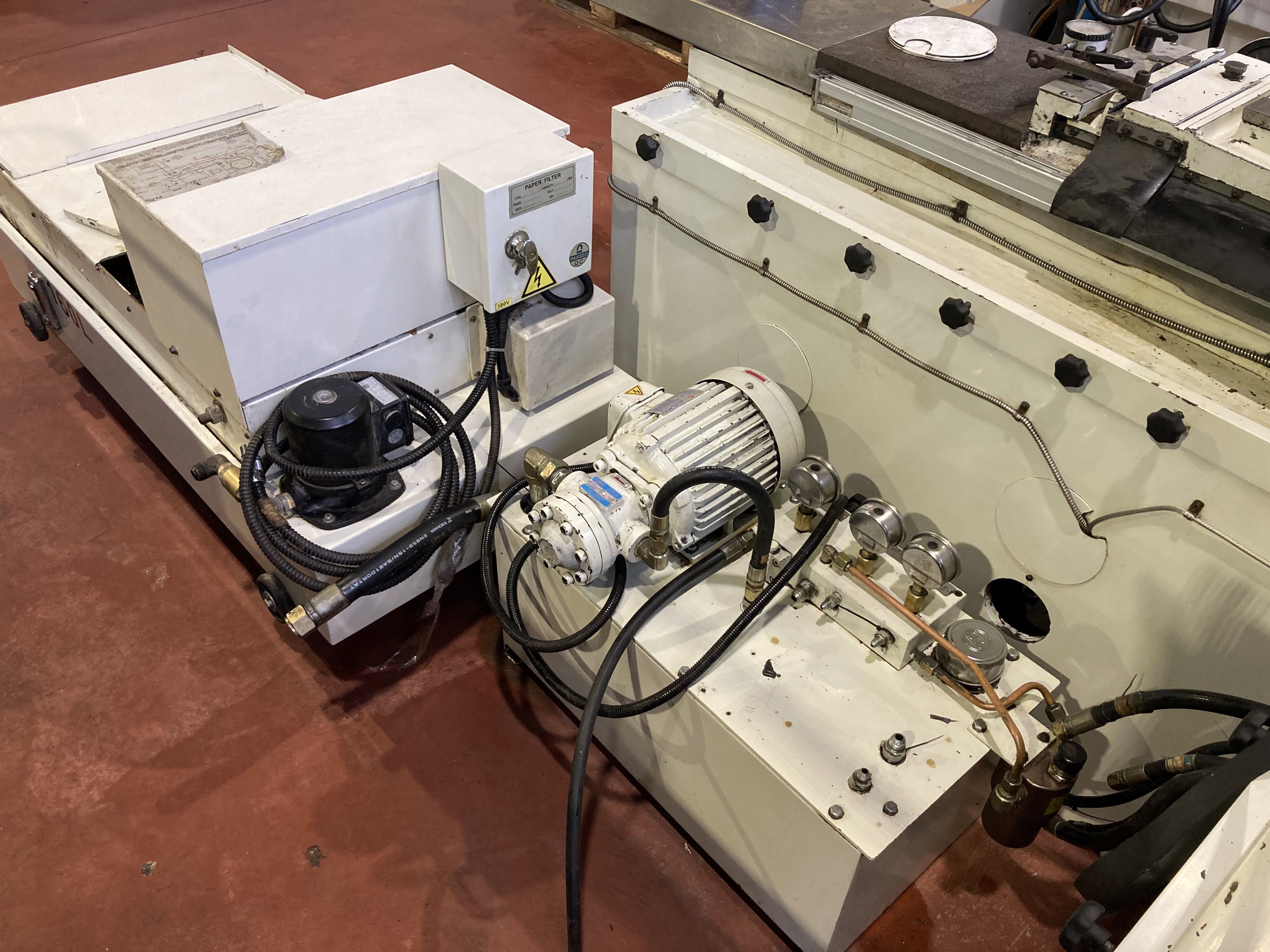

Filtration unit
SI

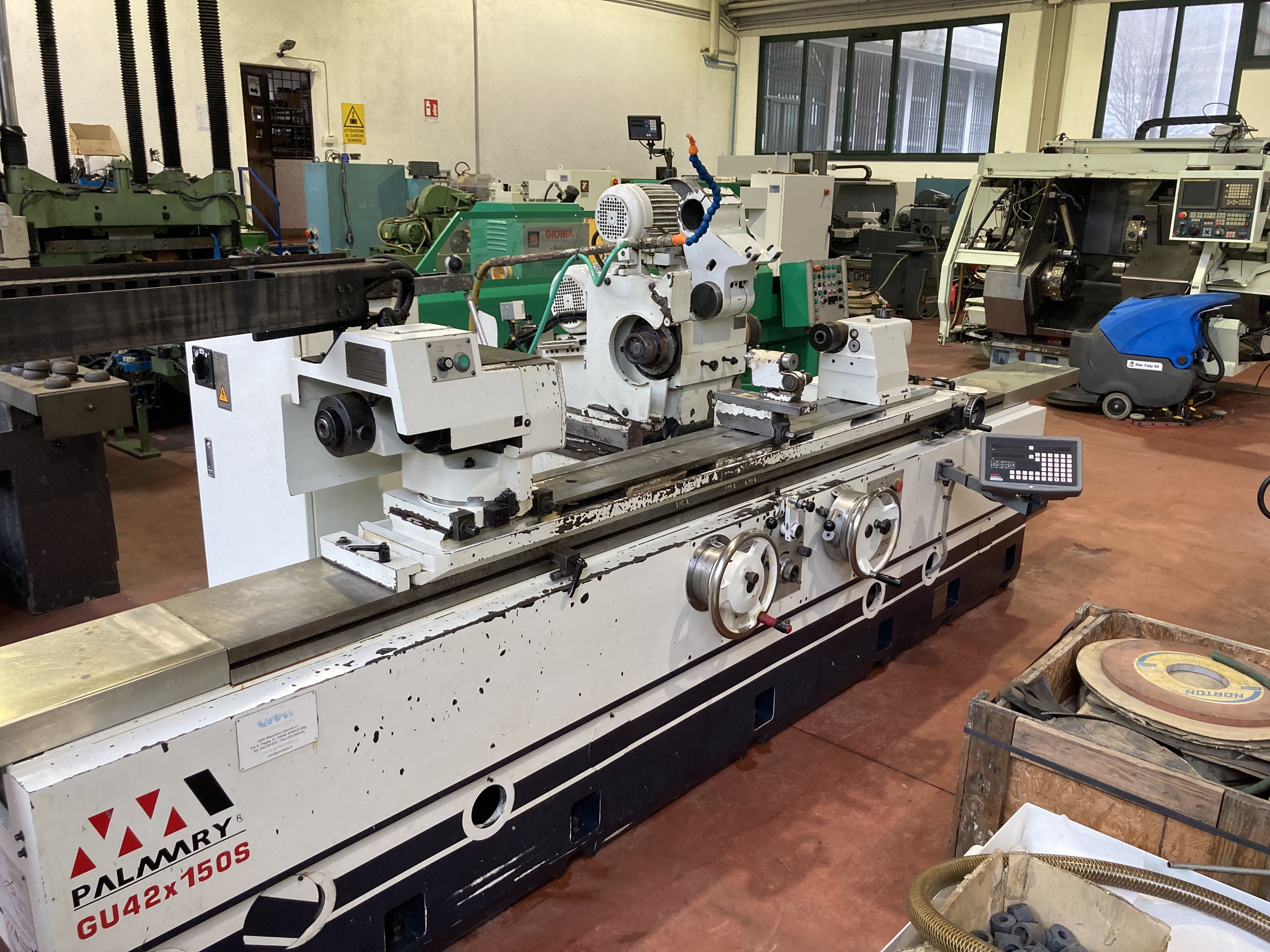

Digital read out (DRO)
VISUALIZZATORE
Machine total weight
4100 Kg
Floor space
6354x1620x1900 mm250,16x63,78x74,80 in

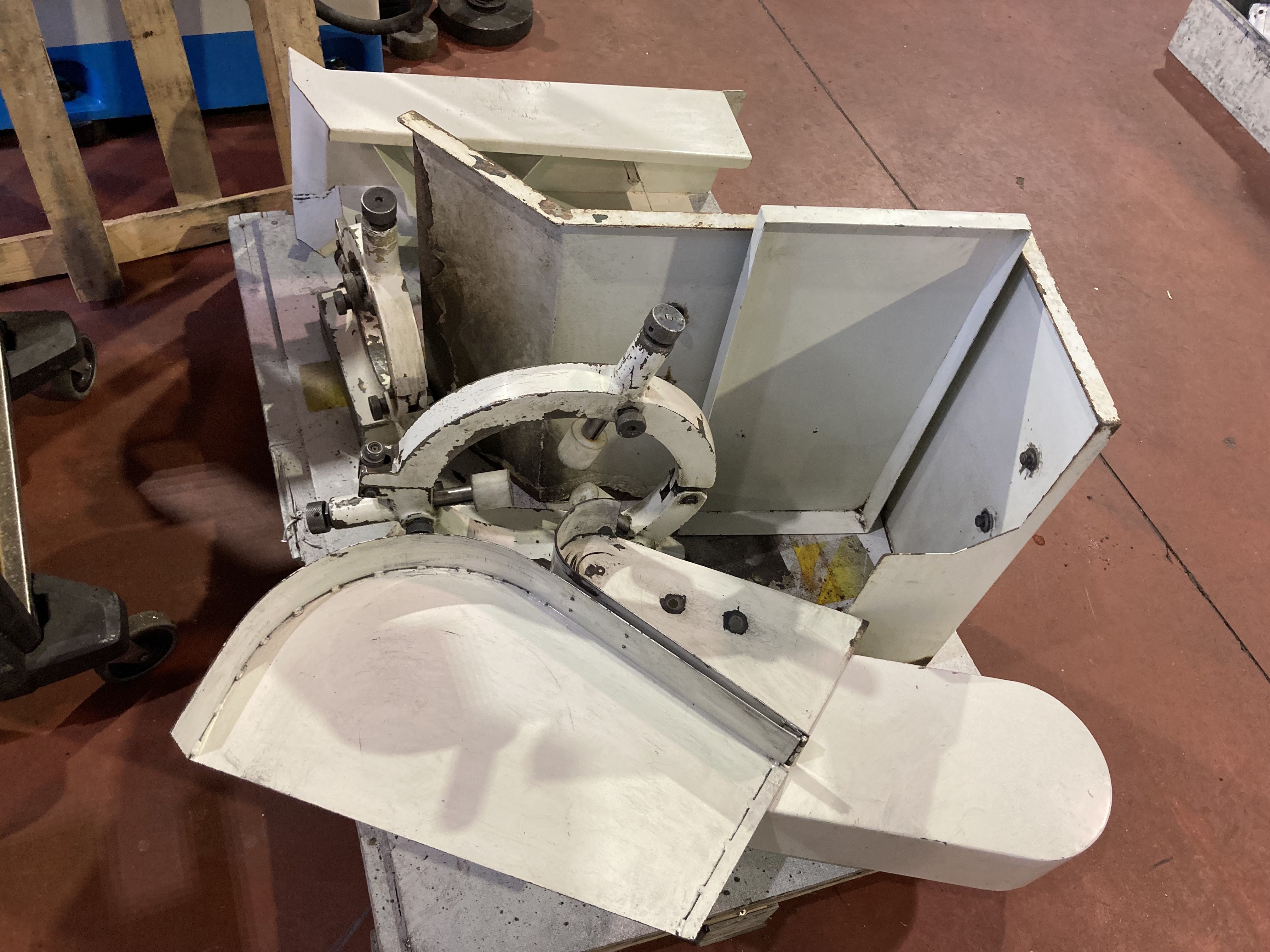

Open steadies
Lunetta a 3 puntali Ø 45 – 135 mm), Lunetta a 3 puntali Ø130- 250 mm
