Category
Grinding Machine
Type
ID/OD
Made
Model
RUL 100 M2
Capacity
1000 X 320 mm39,37 X 12,60 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Centres distance
1000 mm39,37 in
Centres height
160 mm6,30 in
Max grinding diameter
320 mm12,60 in
TABLE
Tilt
7° °
FEEDS
Cross
SI mm/minSI ipm
CNC
Measuring system
VISUALIZZATORE 2 ASSI
LEFT WHEEL
Wheel band thickness
450 mm17,72 in
Max wheel diameter
100 mm3,94 in
Hole diameter
127 mm5,00 in
EXTRA
Machine total weight
4000 Kg

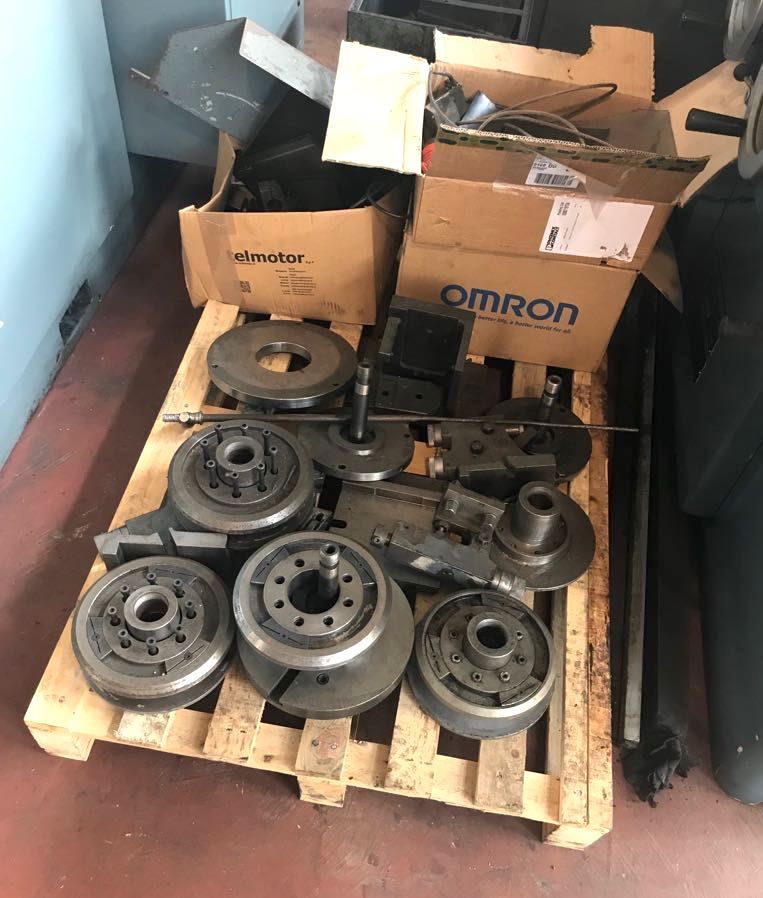

Tooling included
INTERNI

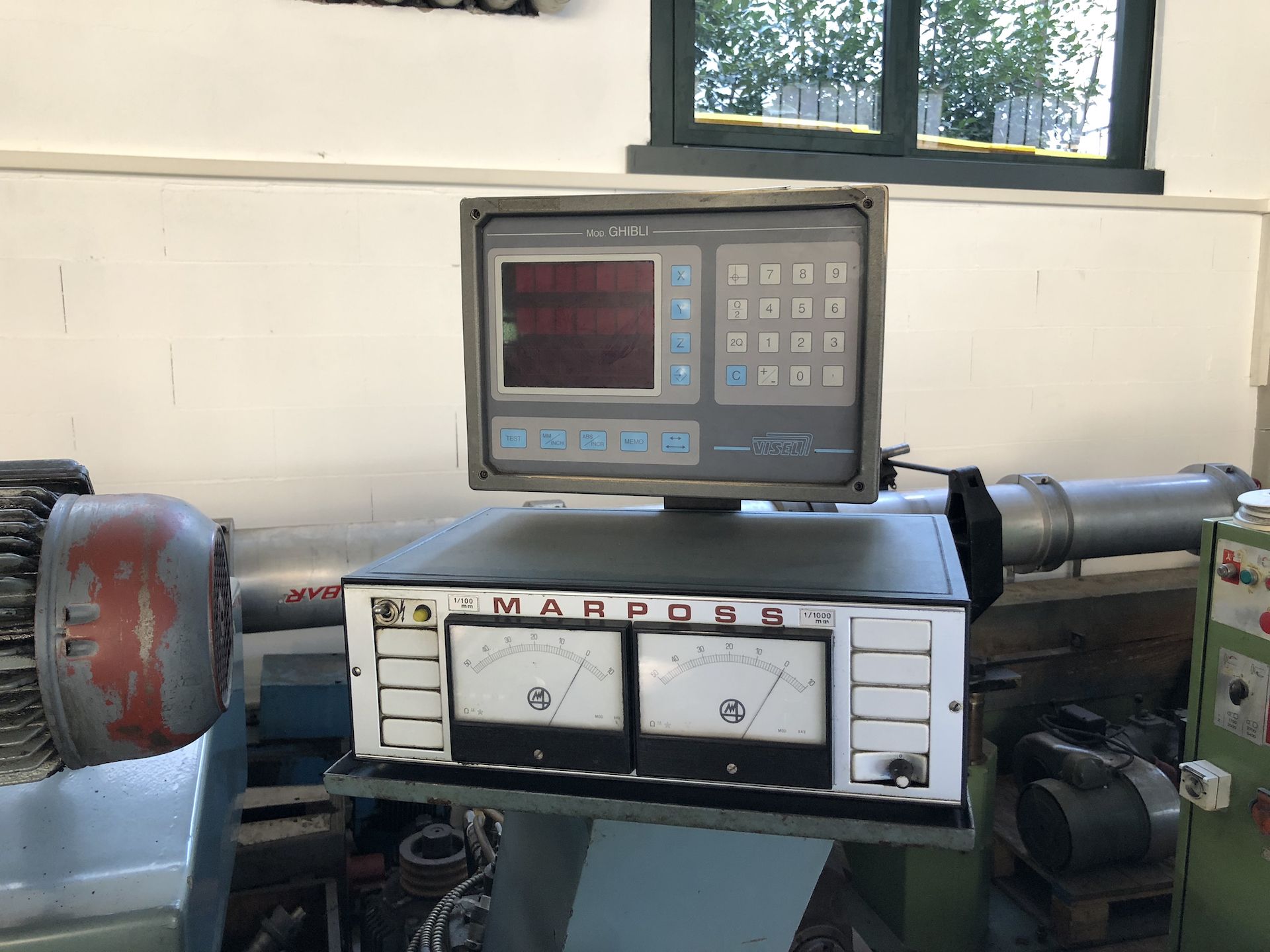

Digital read out (DRO)
SI
Wheel balancer
Yes
Manual dresser
Yes
Filtration unit
SI
Maintenance & Use books
Yes
Electrical drawings
Yes
Availability
PRONTA
Available in stock
SI
Available under power
SI
