Category
Grinding Machine
Type
ID/OD
Made
Model

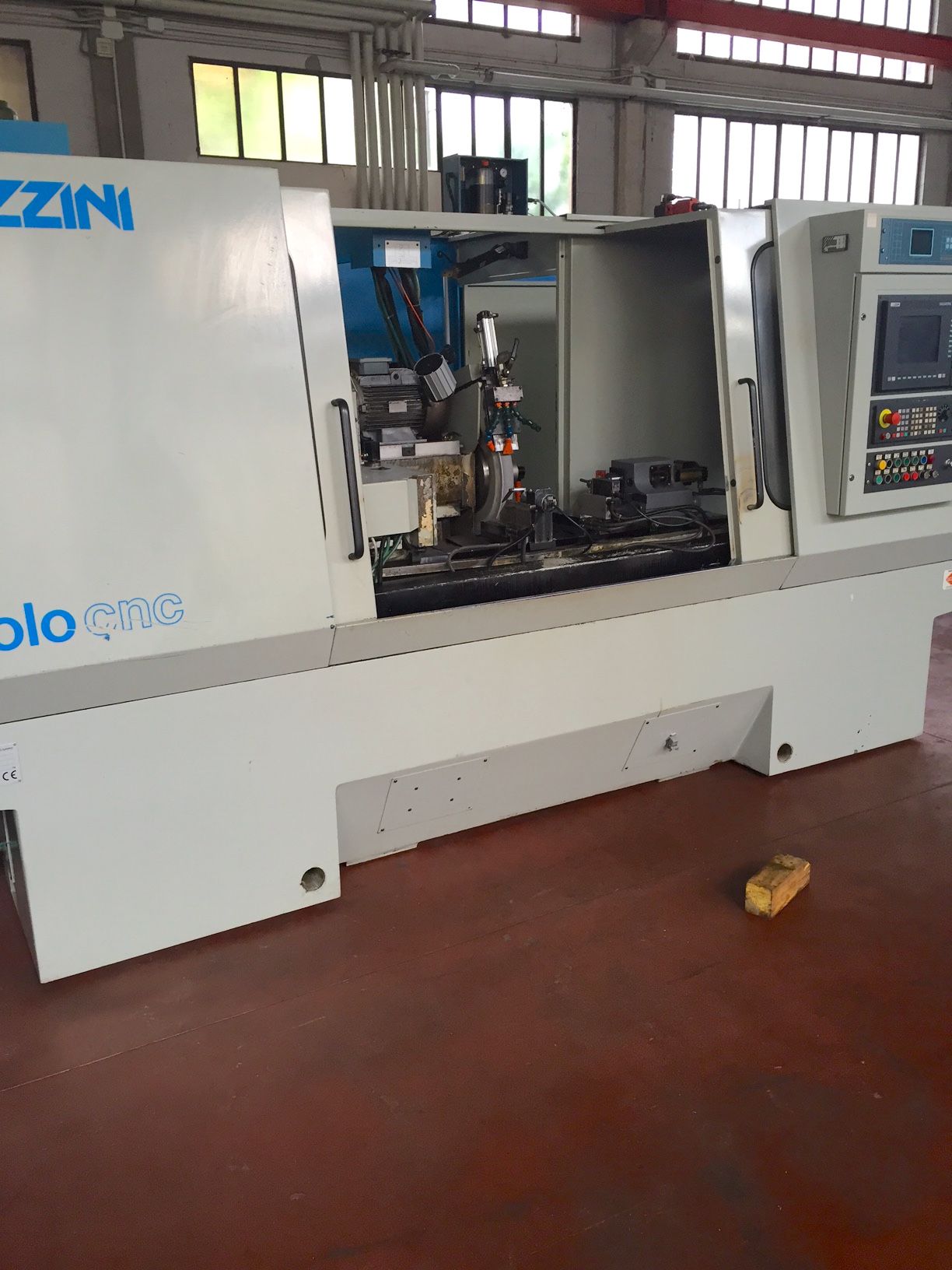

POLO 10 CNC
Capacity
300x1000 mm11,81x39,37 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Centres distance
1000 mm39,37 in
Centres height
150 mm5,91 in
Longitudinal (Z)
1150 mm45,28 in
Cross (X)
330 mm12,99 in
Max grinding lenght
1000 mm39,37 in
Max grinding diameter
300 mm11,81 in
TABLE
Stroke
1150 mm45,28 in
Cross speed
12000 mm/min472,4400 ipm
Max workpiece weight
100 Kg
CNC
CNC

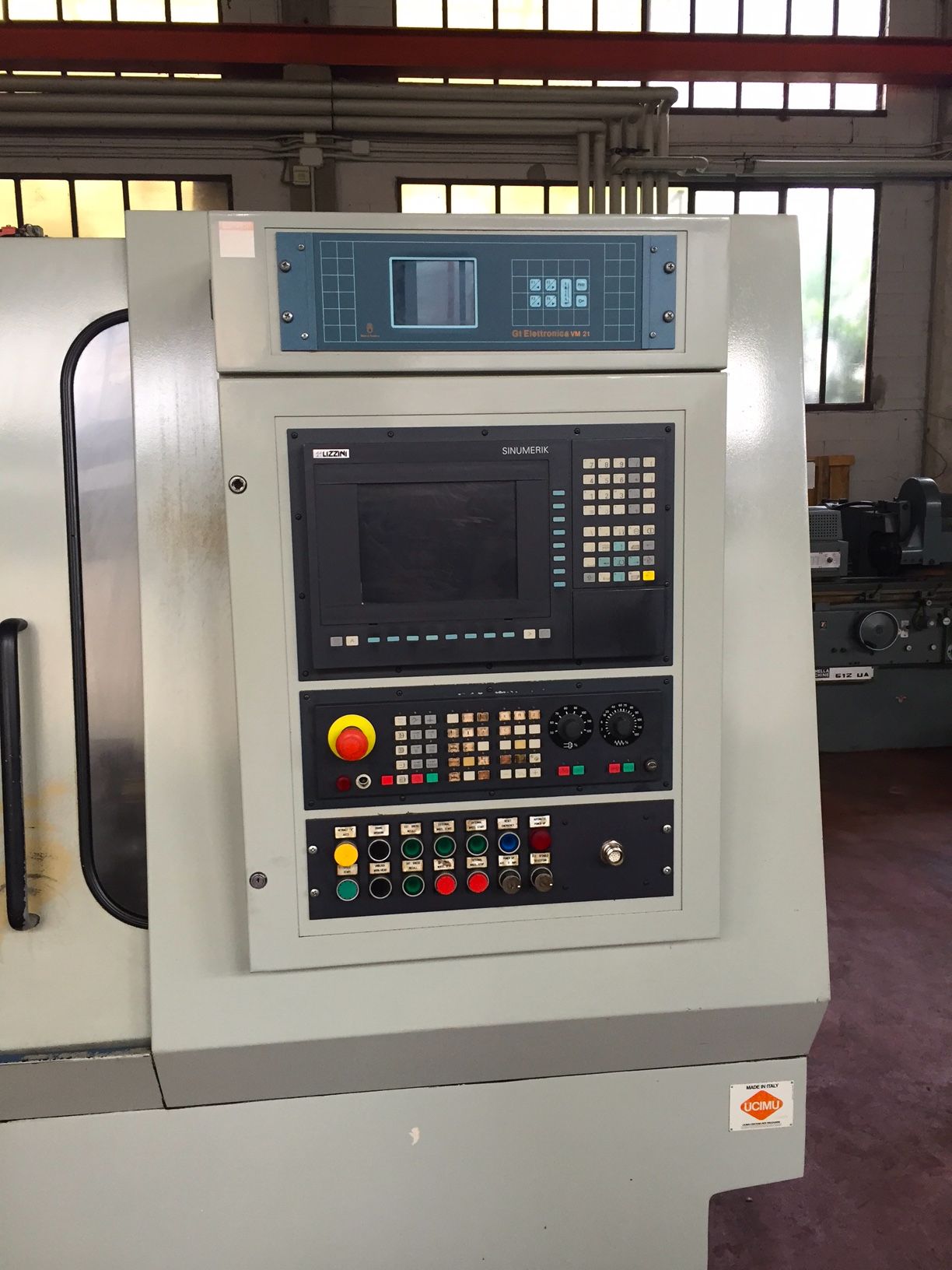

SIEMENS SINUMERIK 840D
Measuring system
righe ottiche

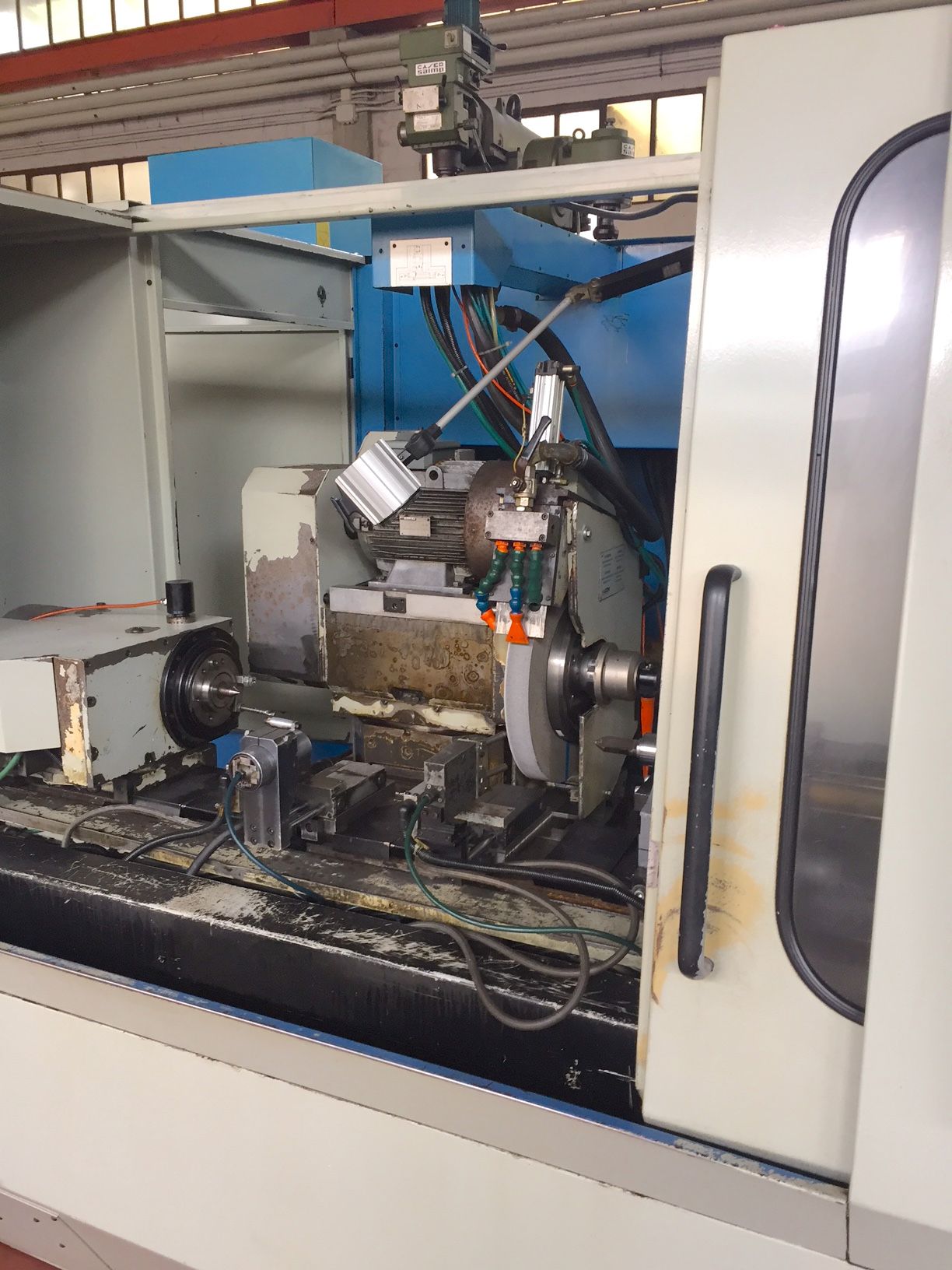

WHEELHEAD
External spindle power
7,5 Kw
Accuracy (B axis)
0,0001 °
RIGHT WHEEL
Wheel band thickness
80 mm3,15 in
Max wheel diameter
508 mm20,00 in
Hole diameter
203 mm7,99 in
WORKPIECE HEAD
Rotating speed
10-650 Rpm
Taper
MK4
EXTRA
Total power supply
40 Kw
Wheel balancer
Yes
Diametral probe
Yes
Axial probe
Yes
Filtration unit
si
Maintenance & Use books
Yes

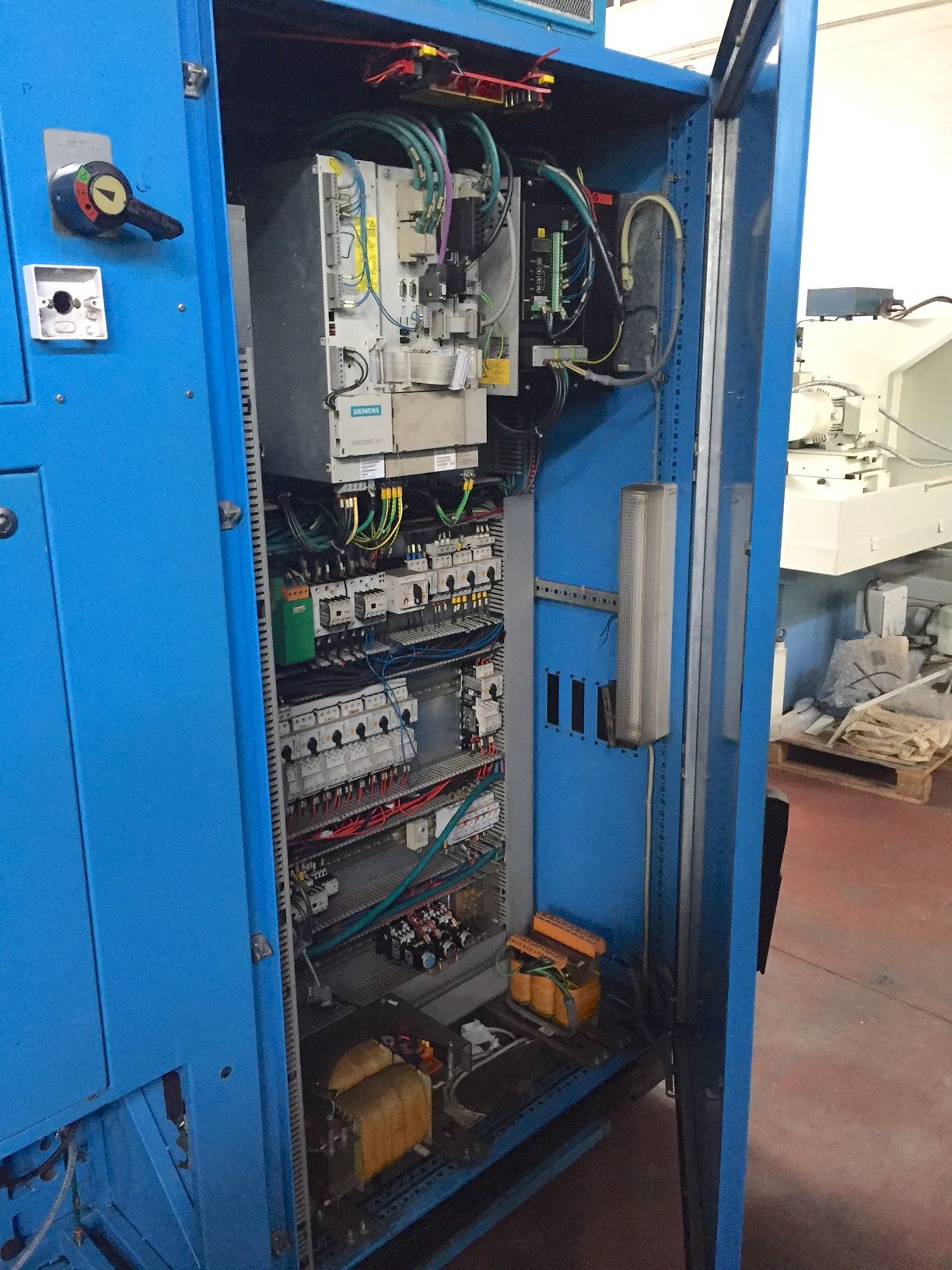

Electrical drawings
Yes
CE Certification
Yes
Housing
integrale
