Category

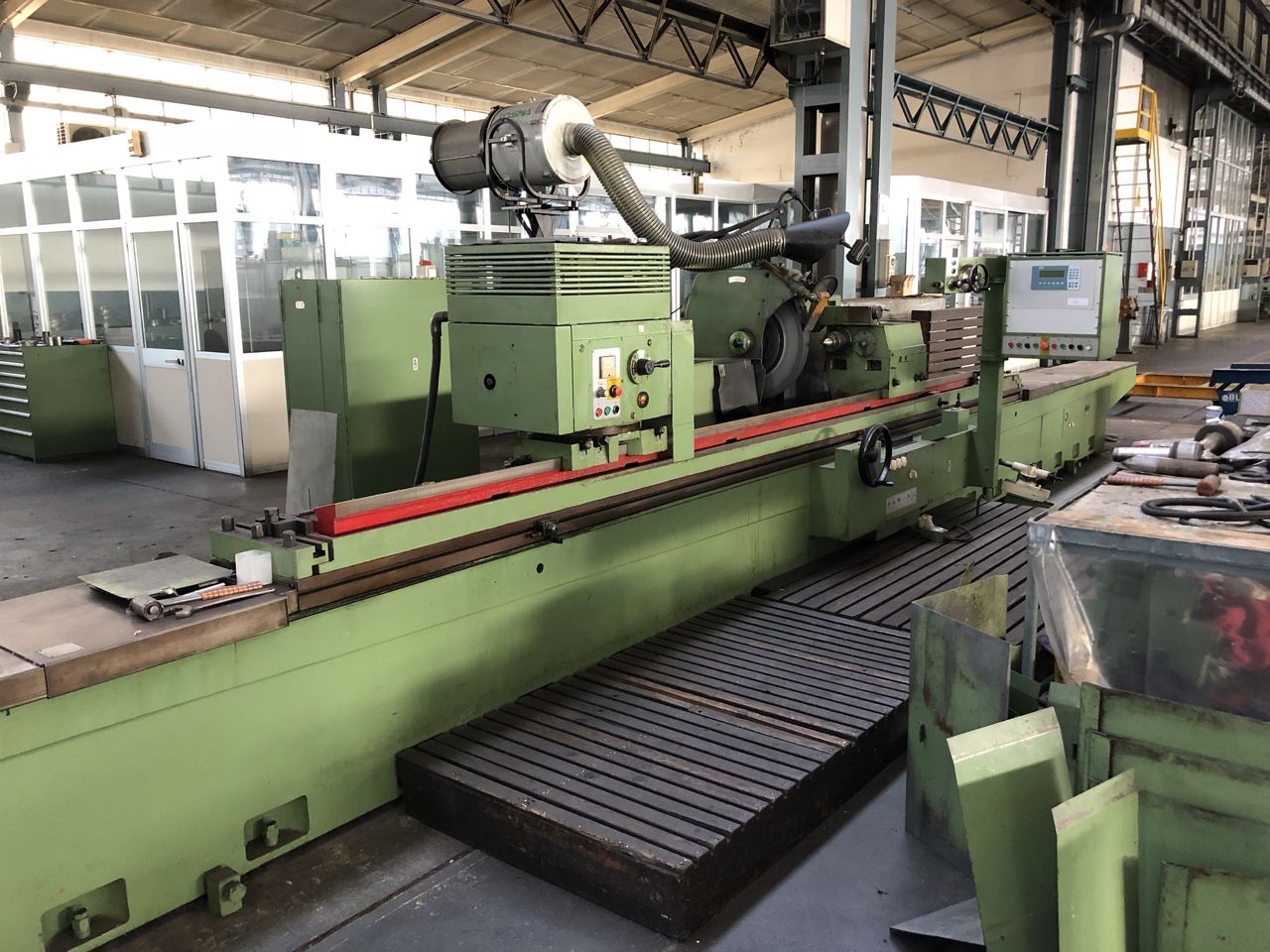

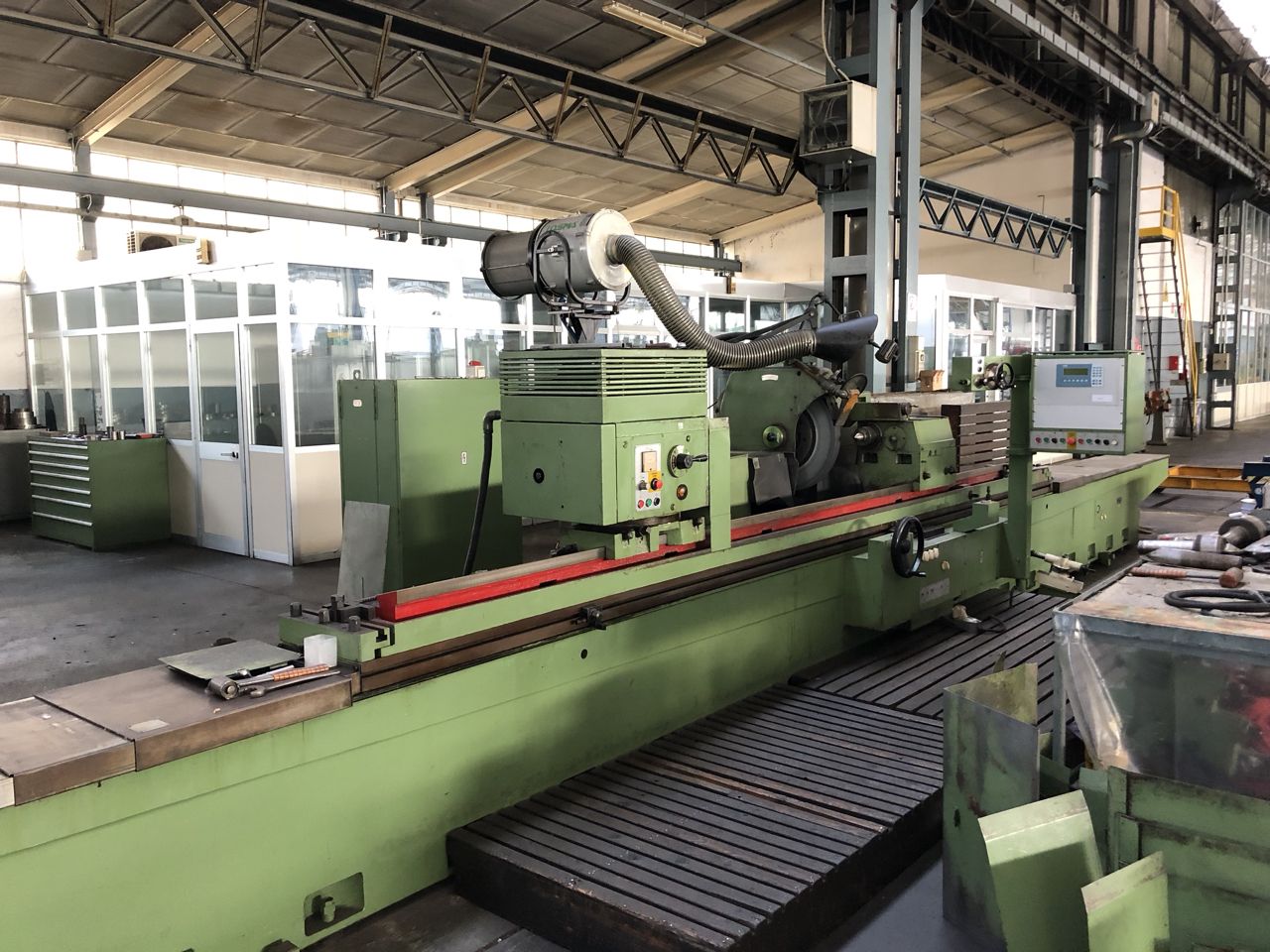

Grinding Machine
Type
Cylindrical
Made
Model

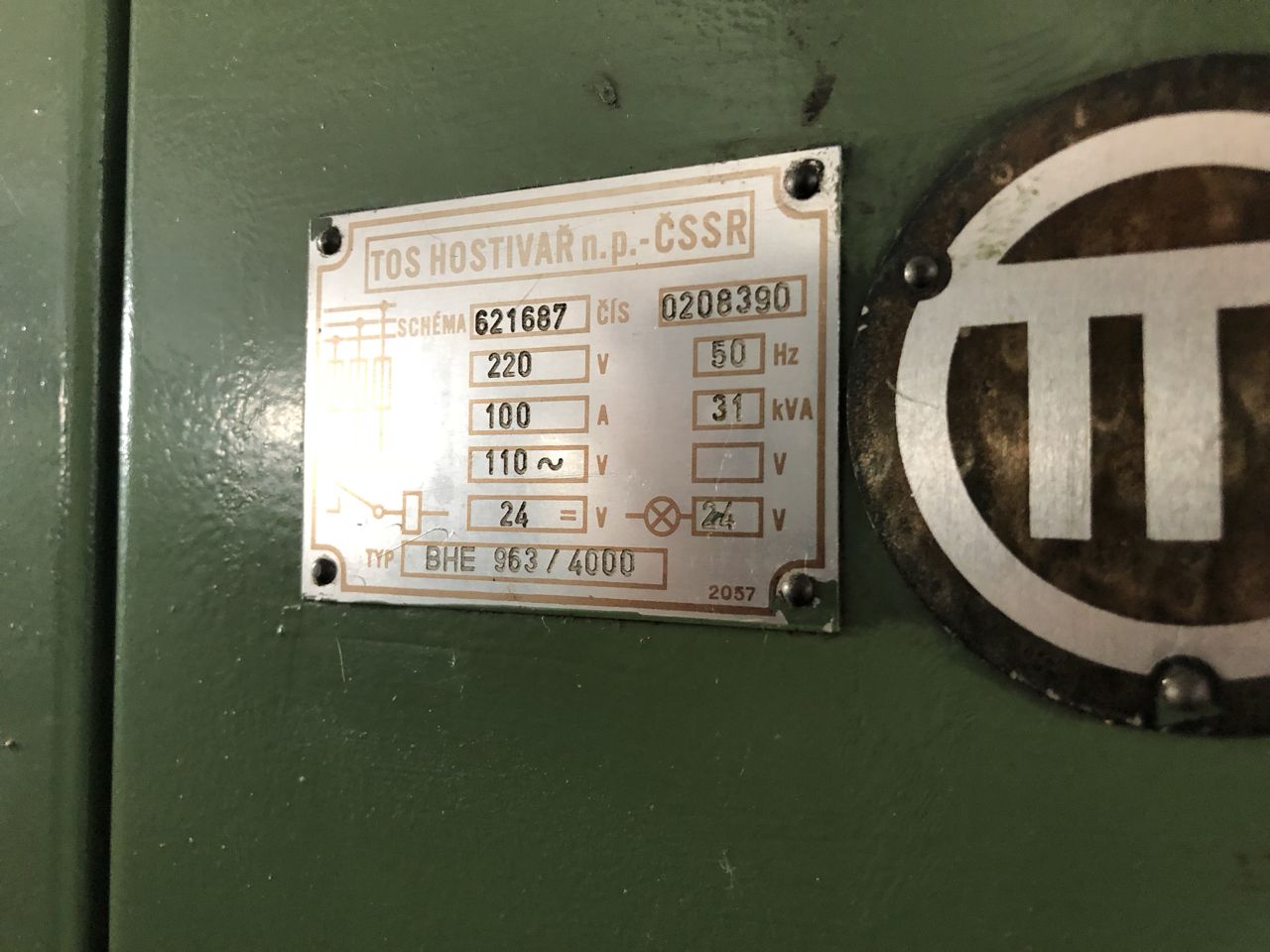

BHE963/4000
Capacity
ø630x4000 mmø24,80x157,48 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Centres height
315 mm12,40 in
Centres distance
4000 mm157,48 in
Max grinding diameter
630 mm24,80 in
Notes
apparecchio per interni: si

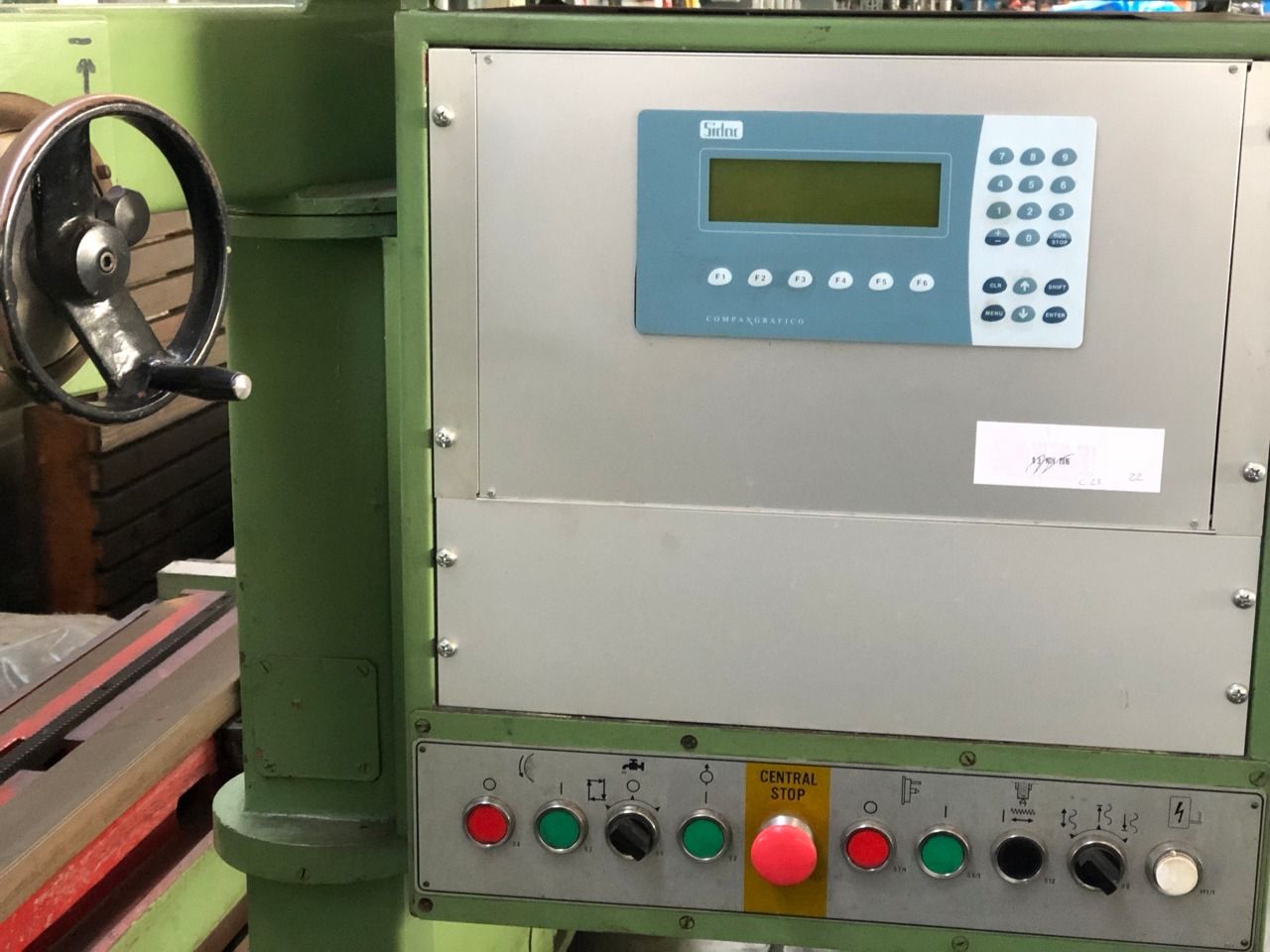

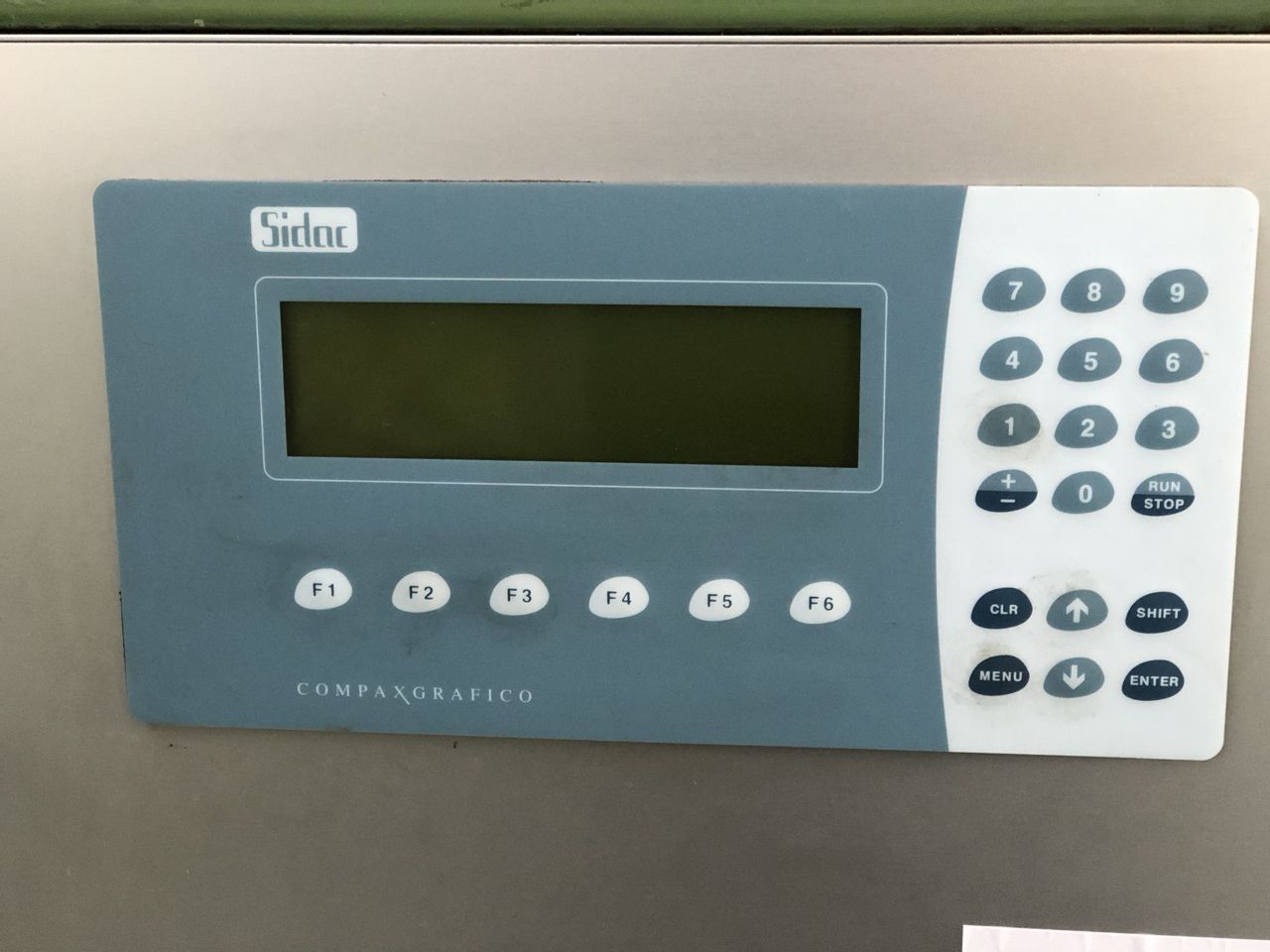

CNC
CNC
SIDAC

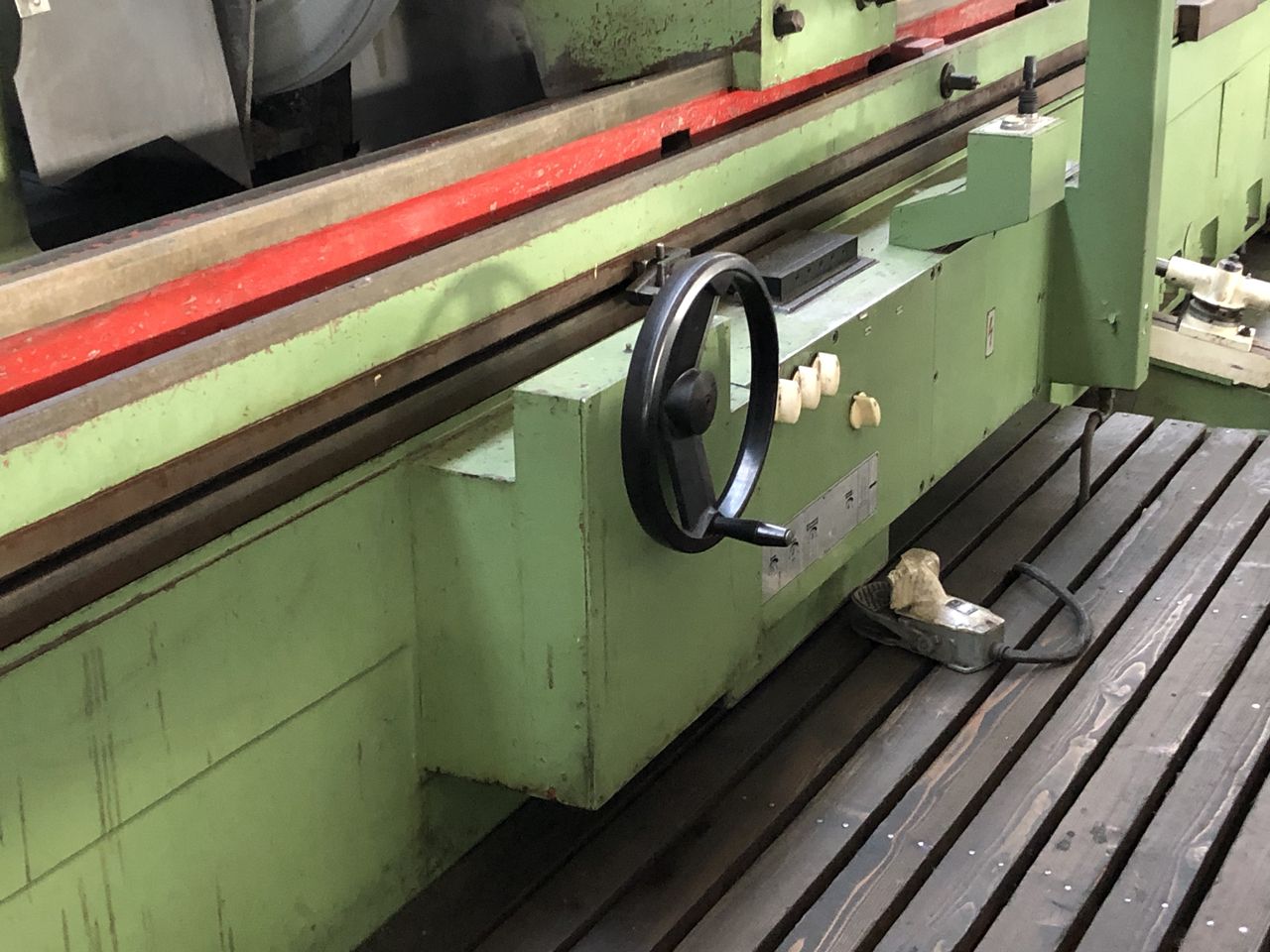

TABLE
Stroke
1-4450 mm0,04-175,20 in
Max workpiece weight
2500 Kg
Tilt
+/-4 °

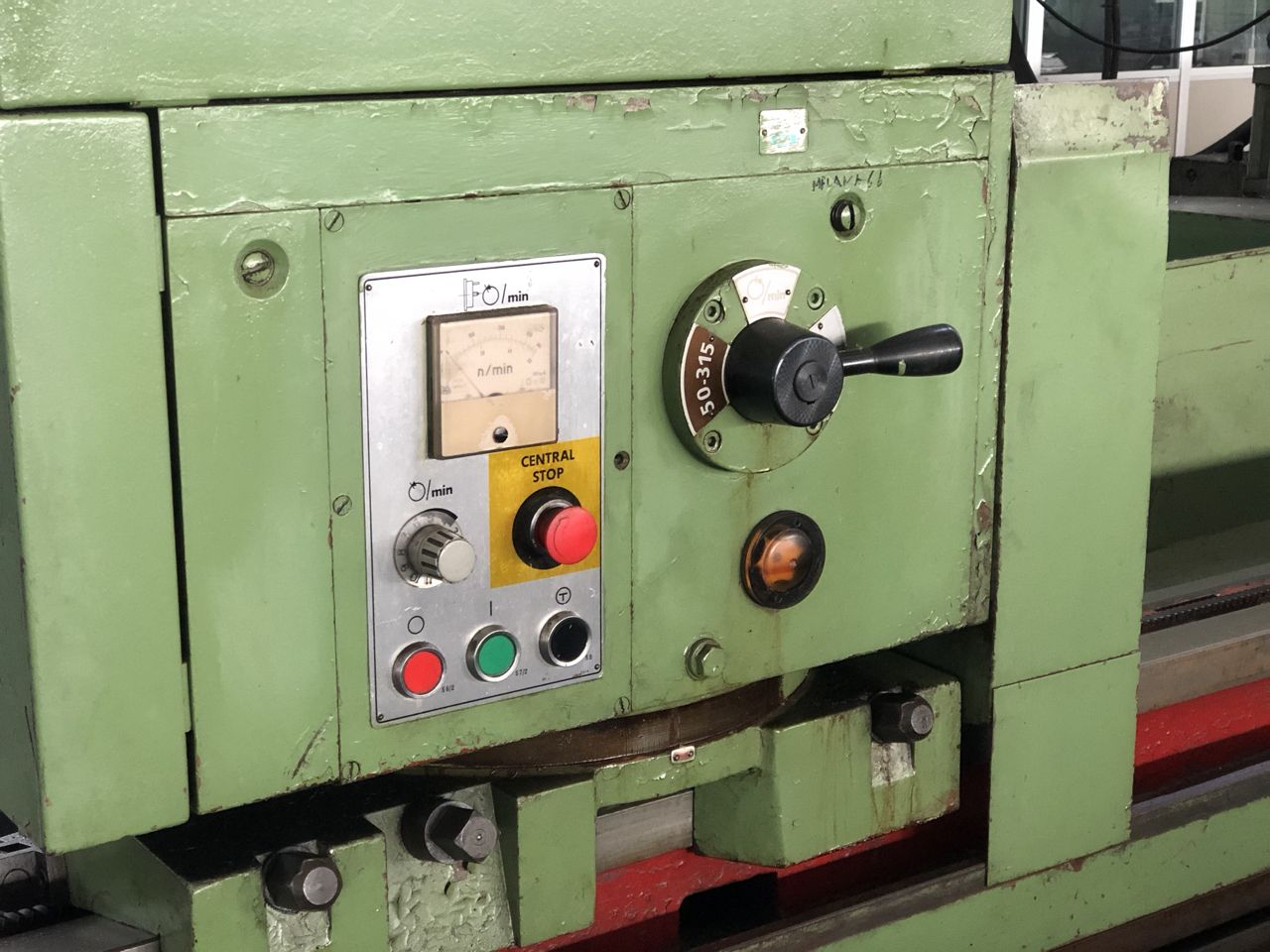

WORKPIECE HEAD
Spindle power
3 Kw
Rotating speed
435-2800 Rpm
Tilt
90 °
Taper
CM6
LEFT WHEEL
Wheel band thickness
125 mm4,92 in
Max wheel diameter
750 mm29,53 in
Hole diameter
305 mm12,01 in

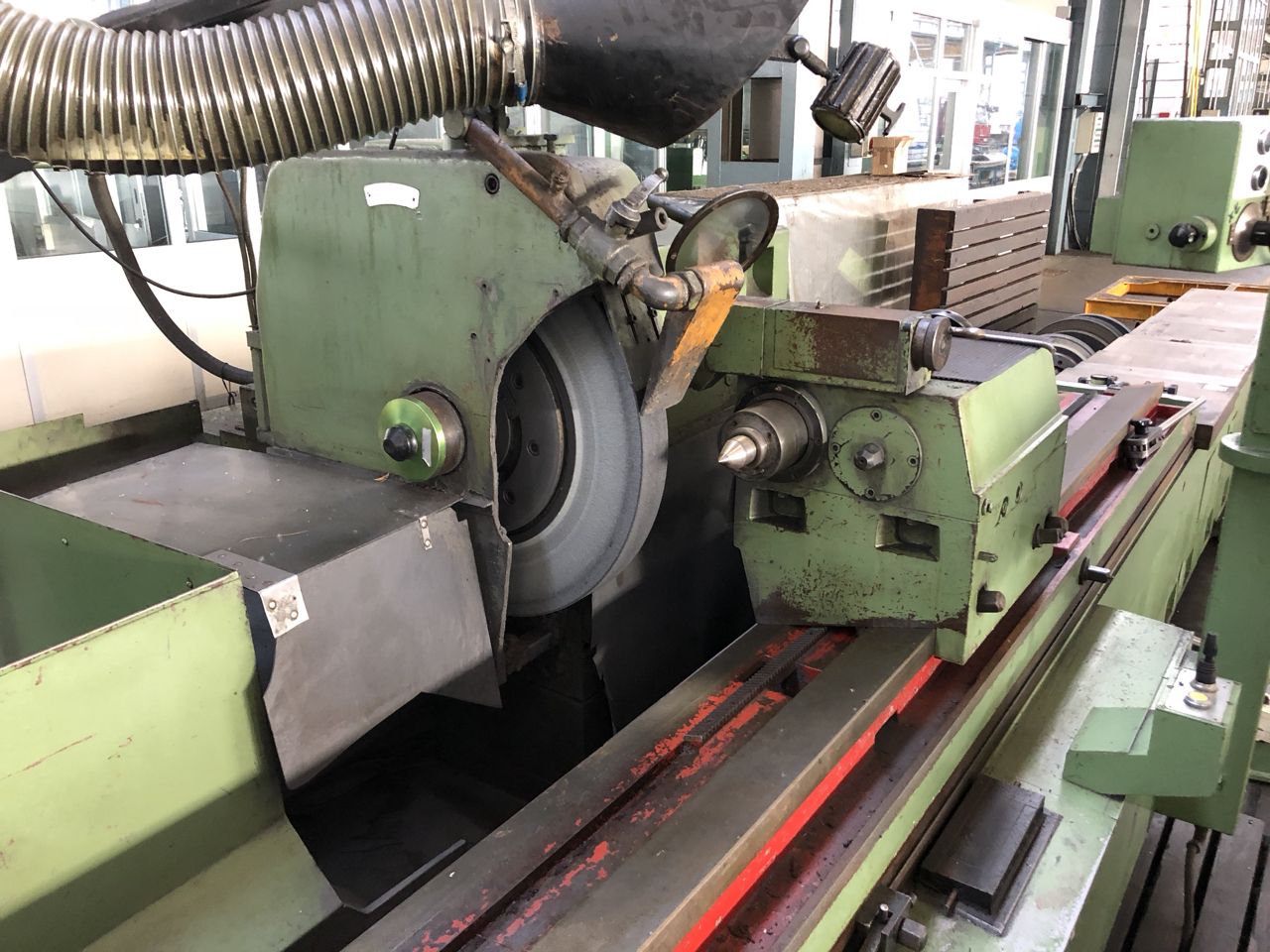

WHEELHEAD
External spindle power
15 Kw
External spindle speed
970 Rpm
Accuracy (B axis)
-10/+30 °

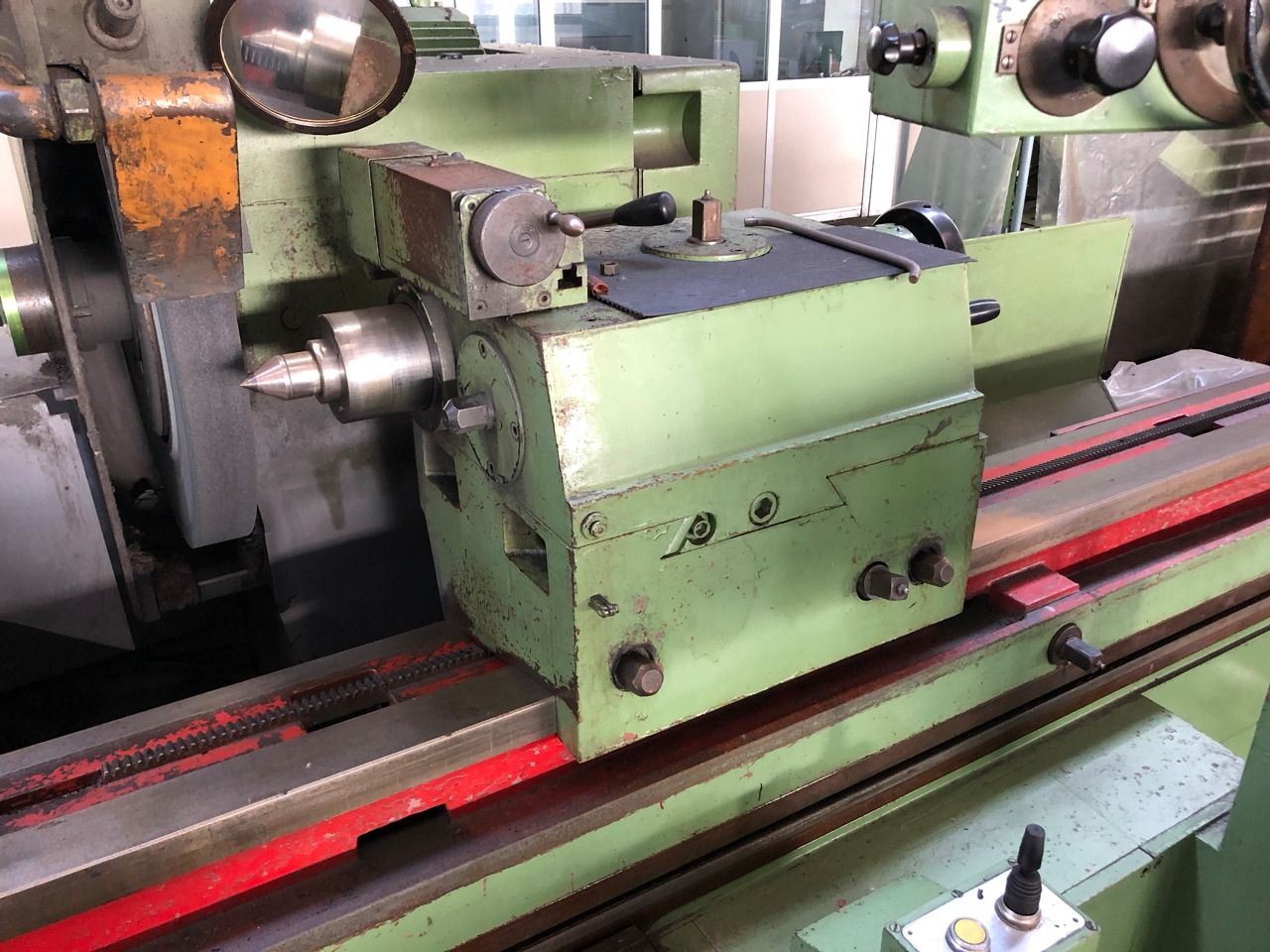

TAILSTOCK
Quill stroke
70 mm2,76 in
Taper
CM6
EXTRA
Machine total weight
17.400 Kg
Mist extractor
SI
Floor space
12000x3360 mm472,44x132,28 in
Wheel balancer
Yes
The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy cannot be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
