Category

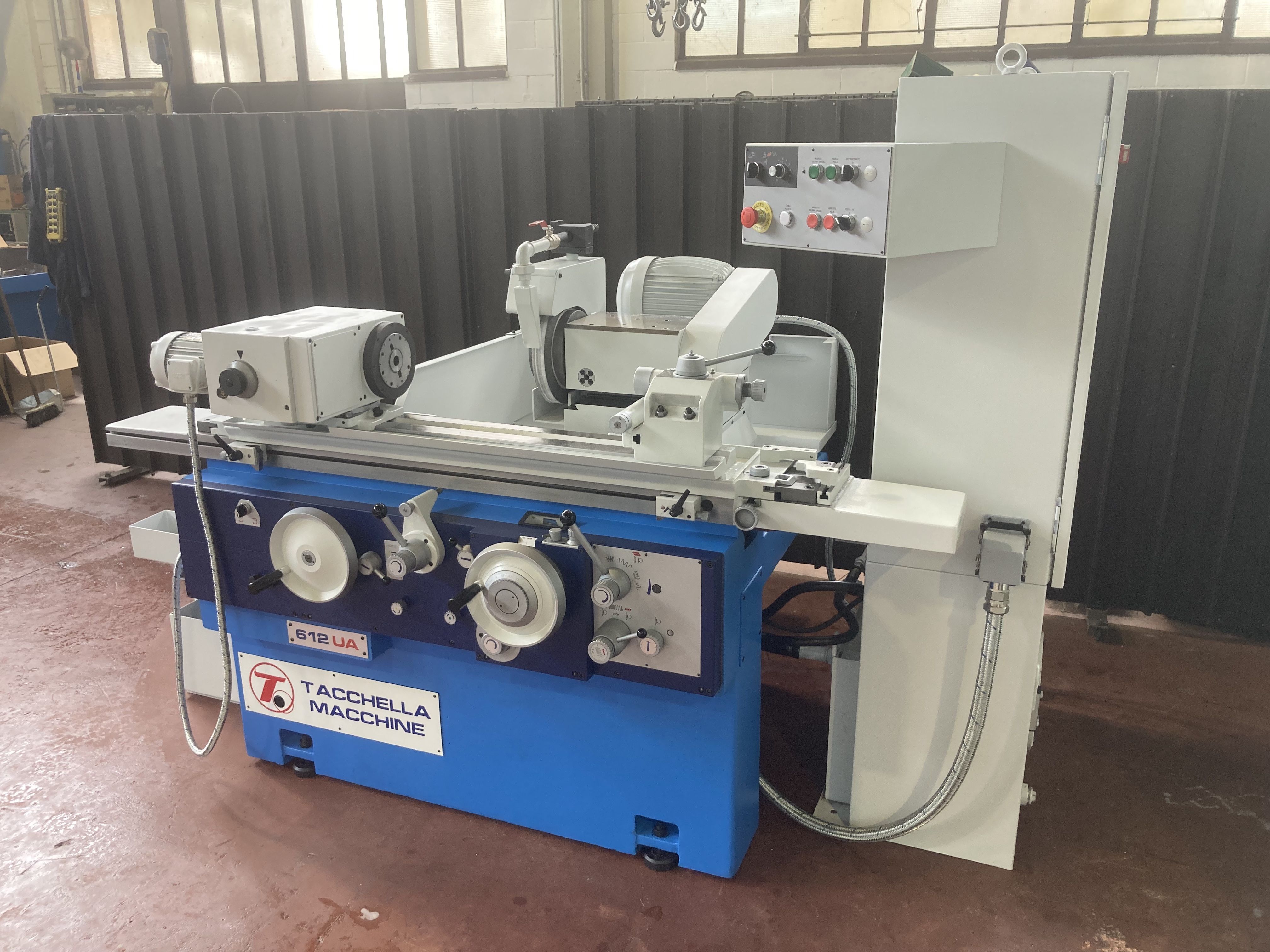

Grinding Machine
Type
Cylindrical
Made

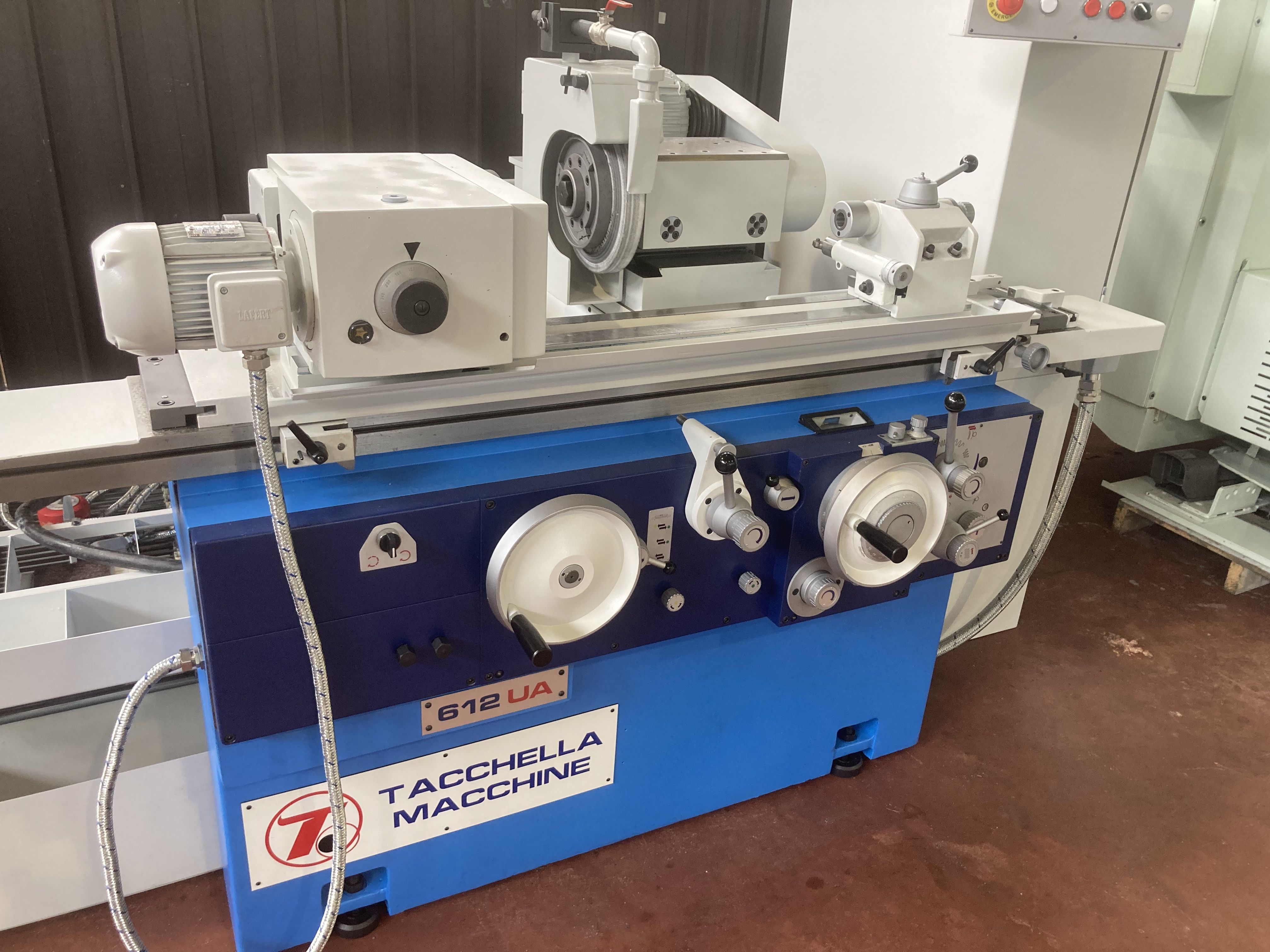

Model
612 UA
Capacity
600X240 mm23,62X9,45 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Centres distance
600 mm23,62 in
Centres height
120 mm4,72 in
Max grinding diameter
240 mm9,45 in
TABLE
Cross speed
100/700 mm/min3,9370/27,5590 ipm
Max workpiece weight
100 Kg

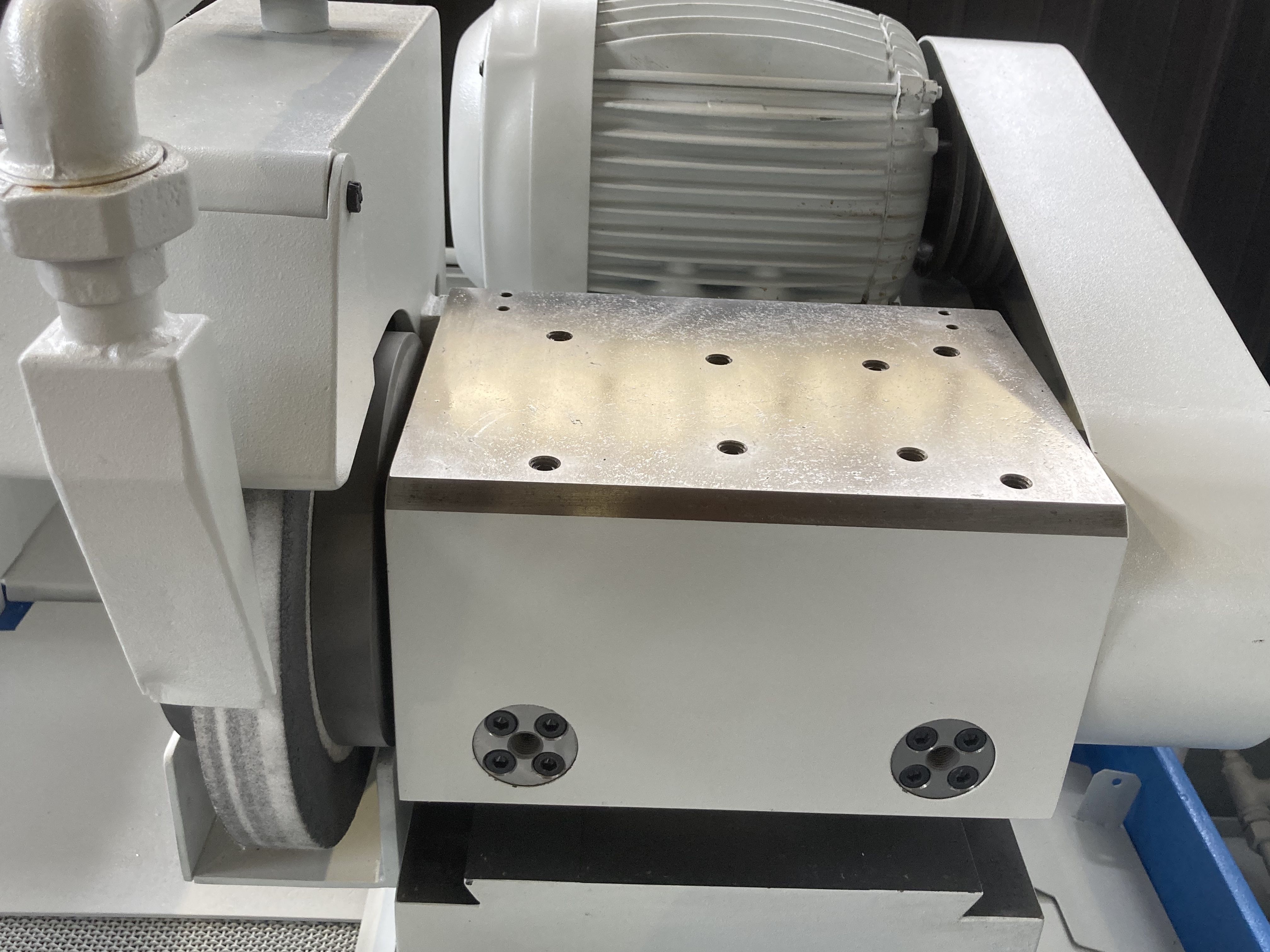

WHEELHEAD
External spindle power
4 Kw
External spindle speed
1640/1900 Rpm
LEFT WHEEL
Wheel band thickness
70 mm2,76 in
Max wheel diameter
355 mm13,98 in
Hole diameter
127 mm5,00 in

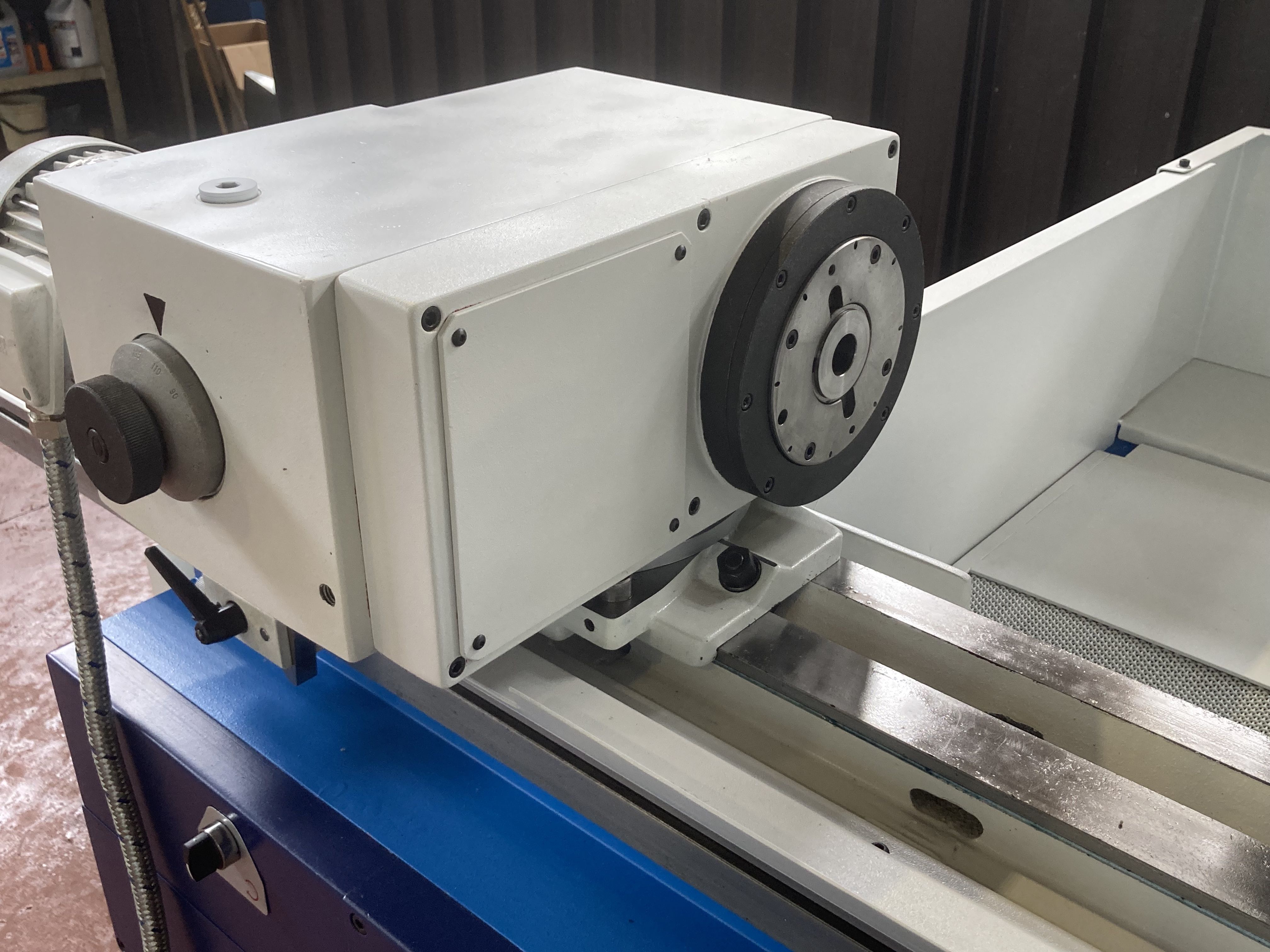

WORKPIECE HEAD
Rotating speed
22/580 Rpm
Speed regulation
CONTINUA
Tilt
90 °
Taper
CM 3
EXTRA

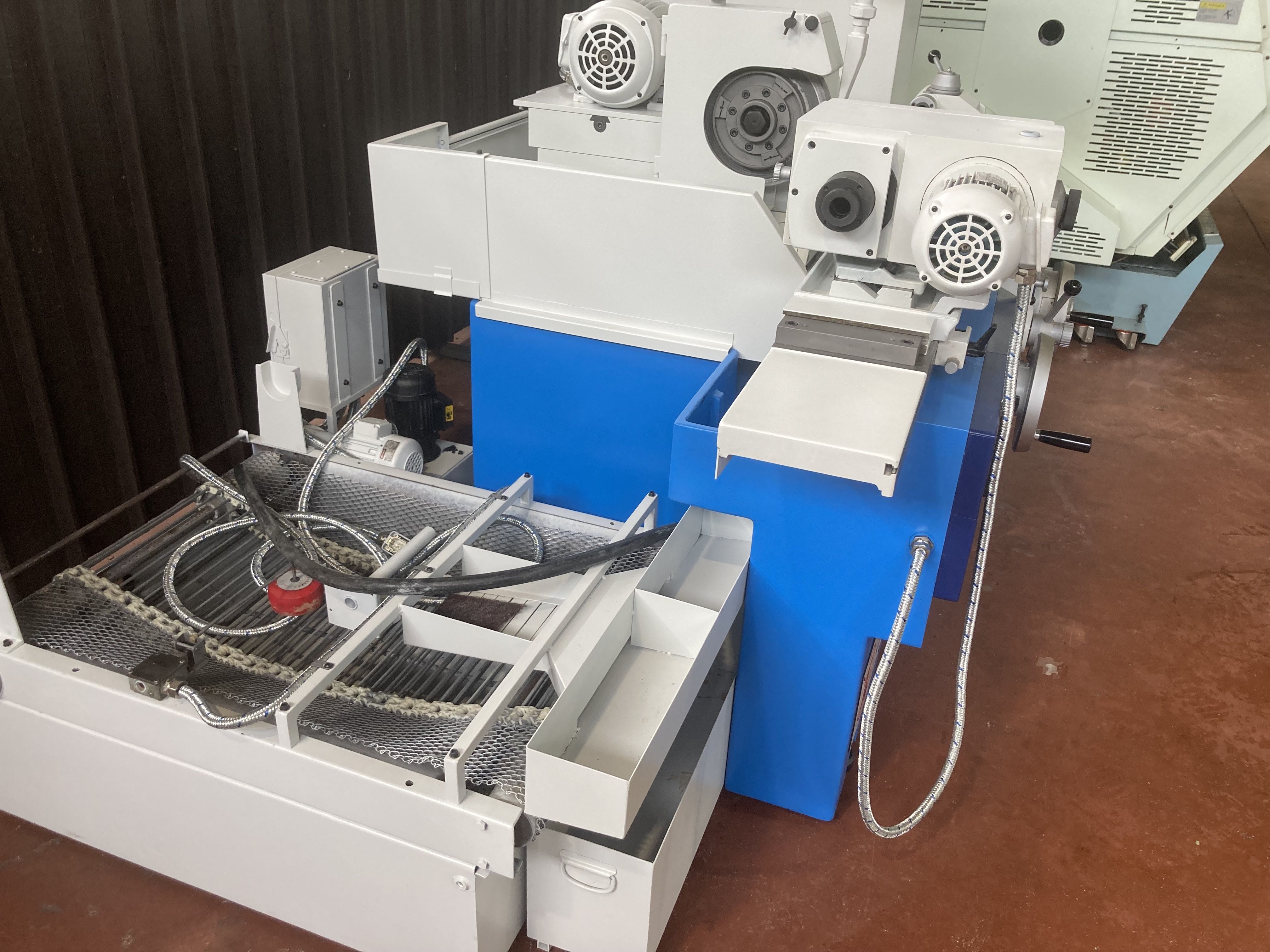

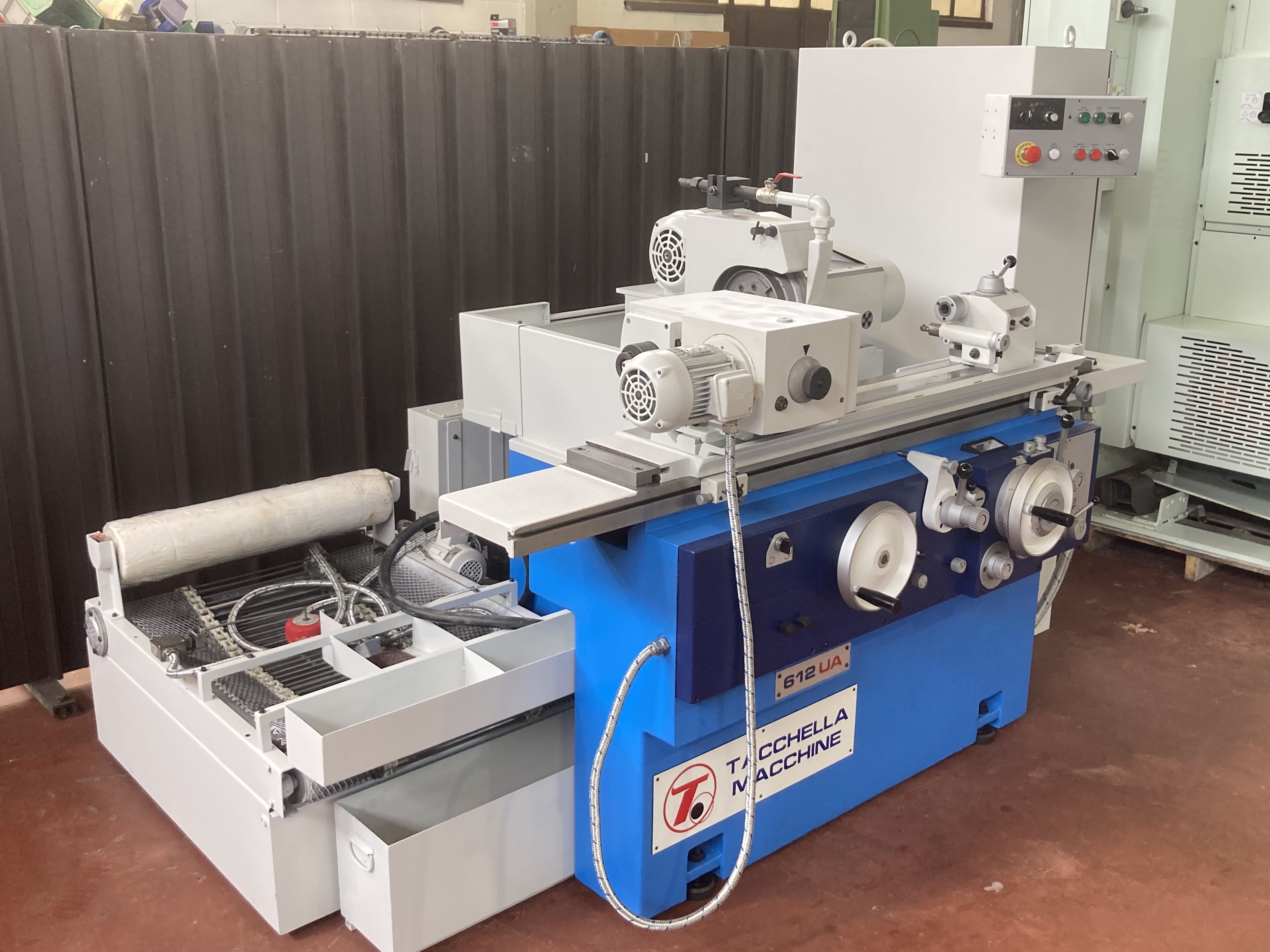

Filtration unit
FILTRO A CARTA
Maintenance & Use books
Yes

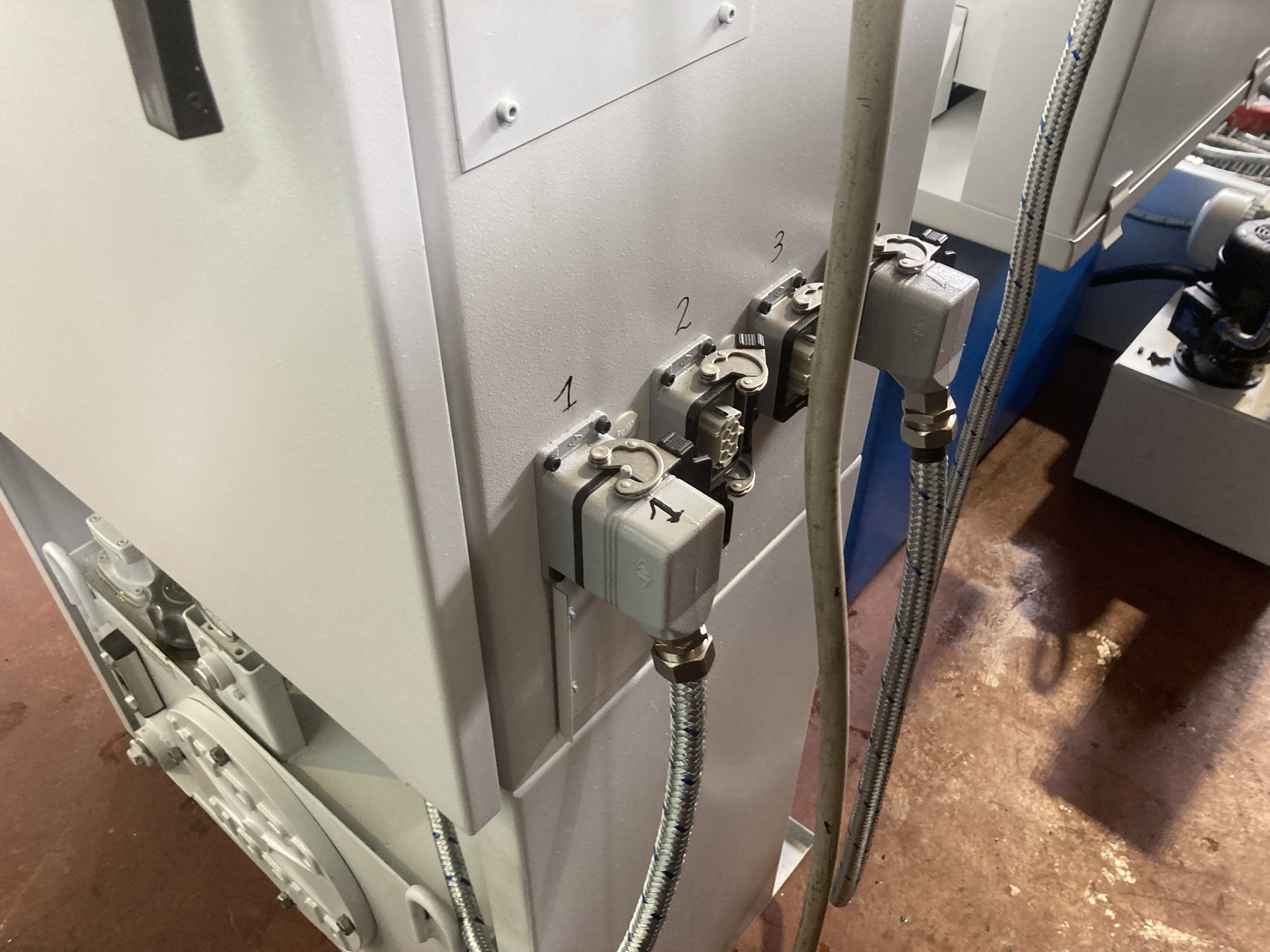

Electrical drawings
Yes
Availability
PRONTA
Open steadies
SI
Closed steadies
SI

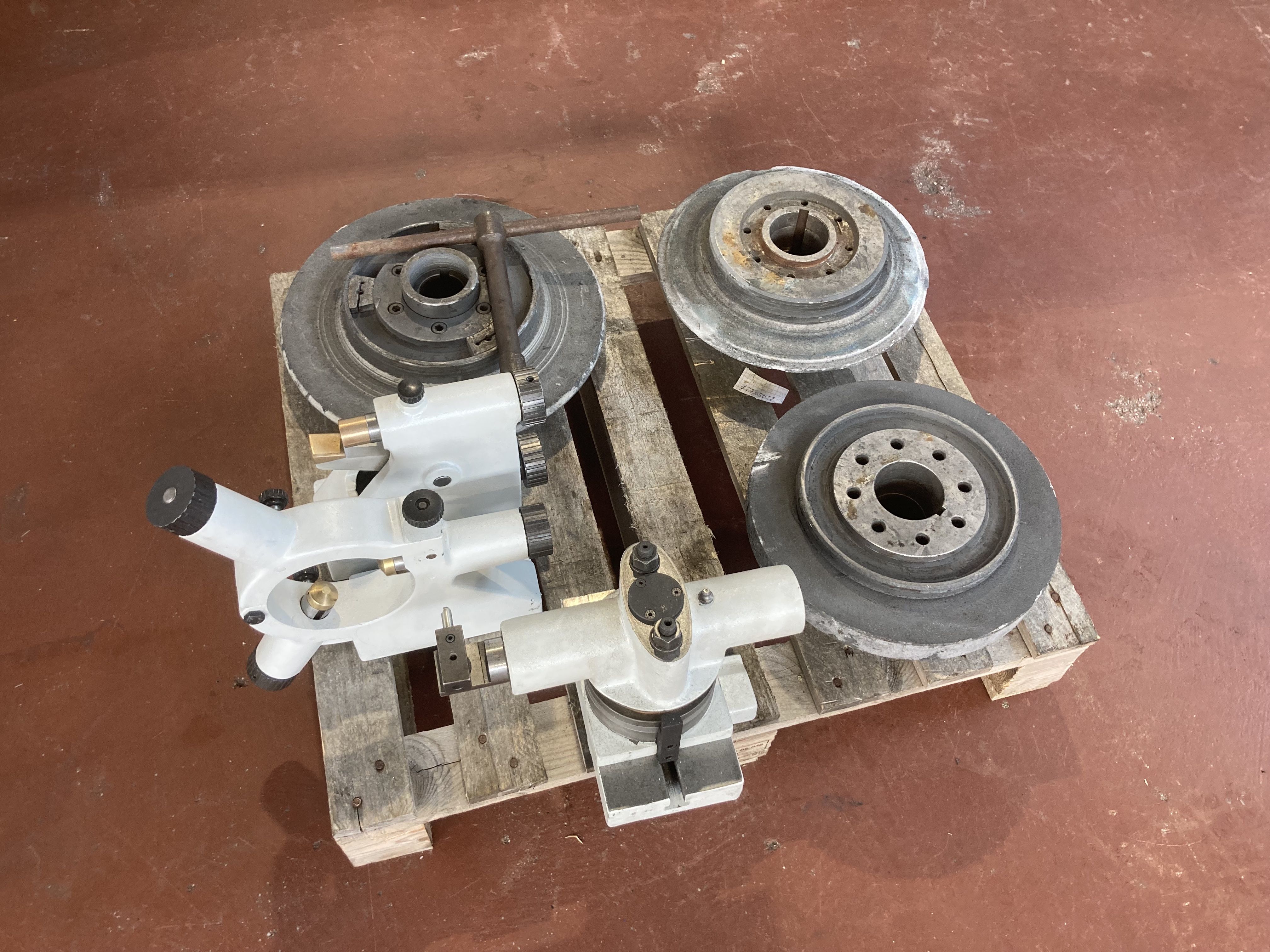

Tooling included
FLANGE
