Category
Grinding Machine
Type
Cylindrical
Made
Model
515 UA
Capacity
ø310x500 mmø12,20x19,69 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (Z)
500 mm19,69 in
Max grinding diameter
310 mm12,20 in
Centres distance
500 mm19,69 in
Centres height
155 mm6,10 in
TABLE
Stroke
500 mm19,69 in
Cross speed
100-5000 mm/min3,9370-196,8500 ipm
Tilt
10 °
FEEDS
Cross
0,01-1,8 mm/min0,0004-0,0709 ipm

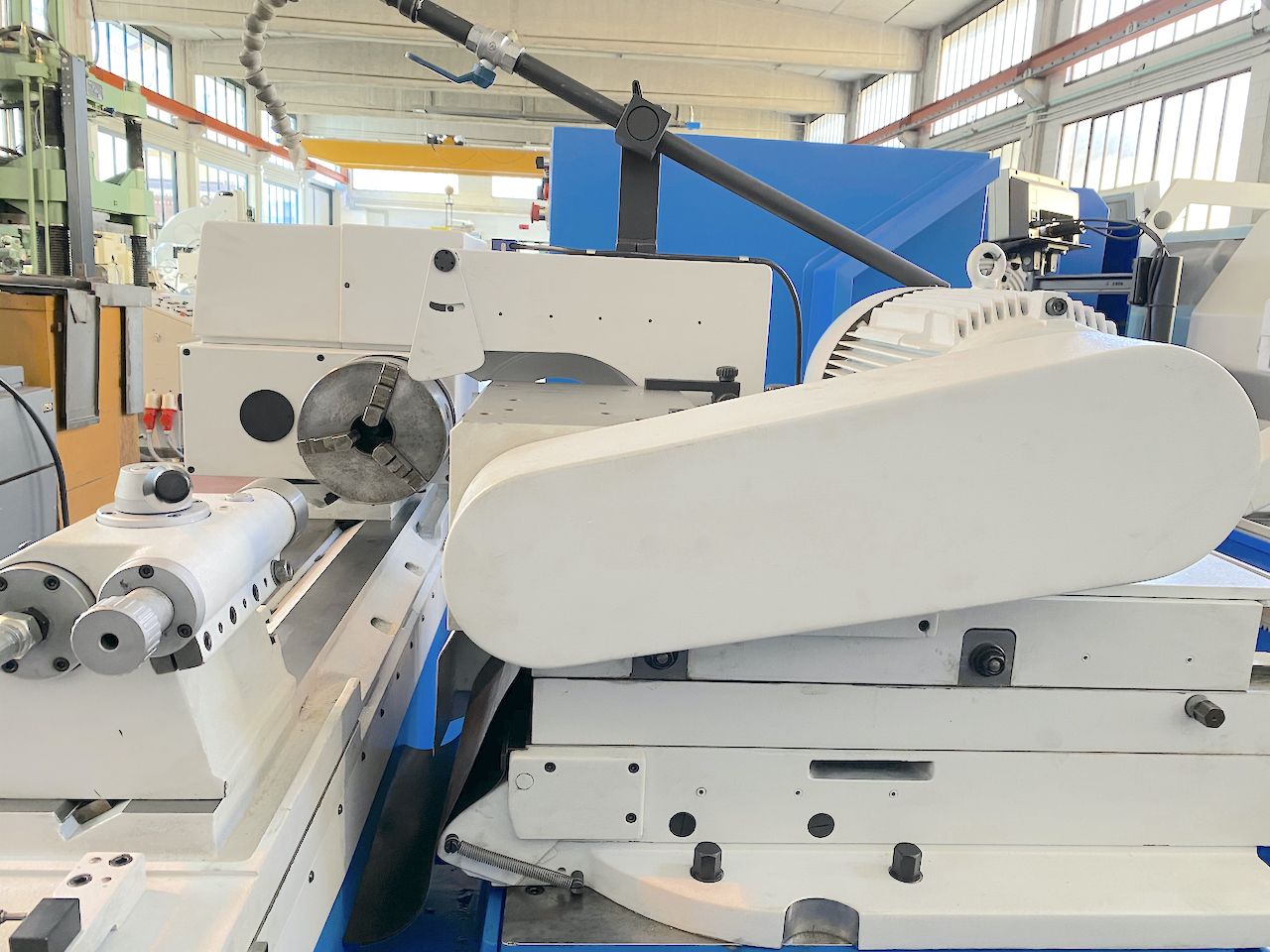

WHEELHEAD
External spindle power
5,5 Kw
External spindle speed
1275/1450 Rpm
Support
cuscinetti
LEFT WHEEL
Wheel band thickness
150 mm5,91 in
Max wheel diameter
450 mm17,72 in
Hole diameter
127 mm5,00 in

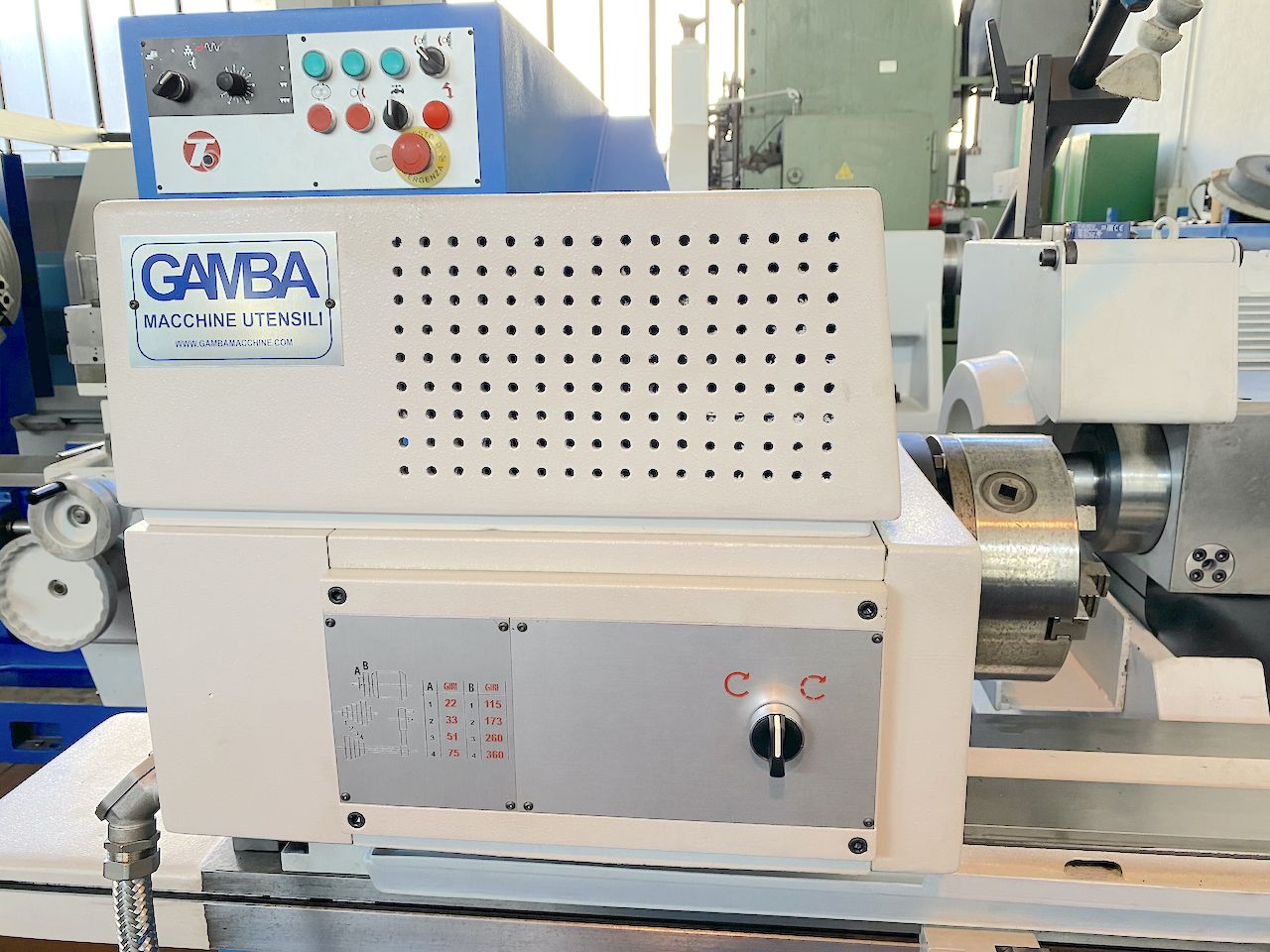

WORKPIECE HEAD
Spindle power
1 Kw
Speed regulation
manuale
Rotating speed
20-360 Rpm
Tilt
+/-90 °
Taper
MK3
TAILSTOCK
Quill diameter
20 mm0,79 in
Taper
MK3
EXTRA
Wheel balancer
Yes
Diametral probe
Yes
Manual dresser
Yes
Total power supply
6,75 Kw
Machine total weight
2500 Kg
Floor space
3050x2000x2000 mm120,08x78,74x78,74 in
Maintenance & Use books
Yes
Electrical drawings
Yes
Availability
pronta
Available under power
previo appuntamento

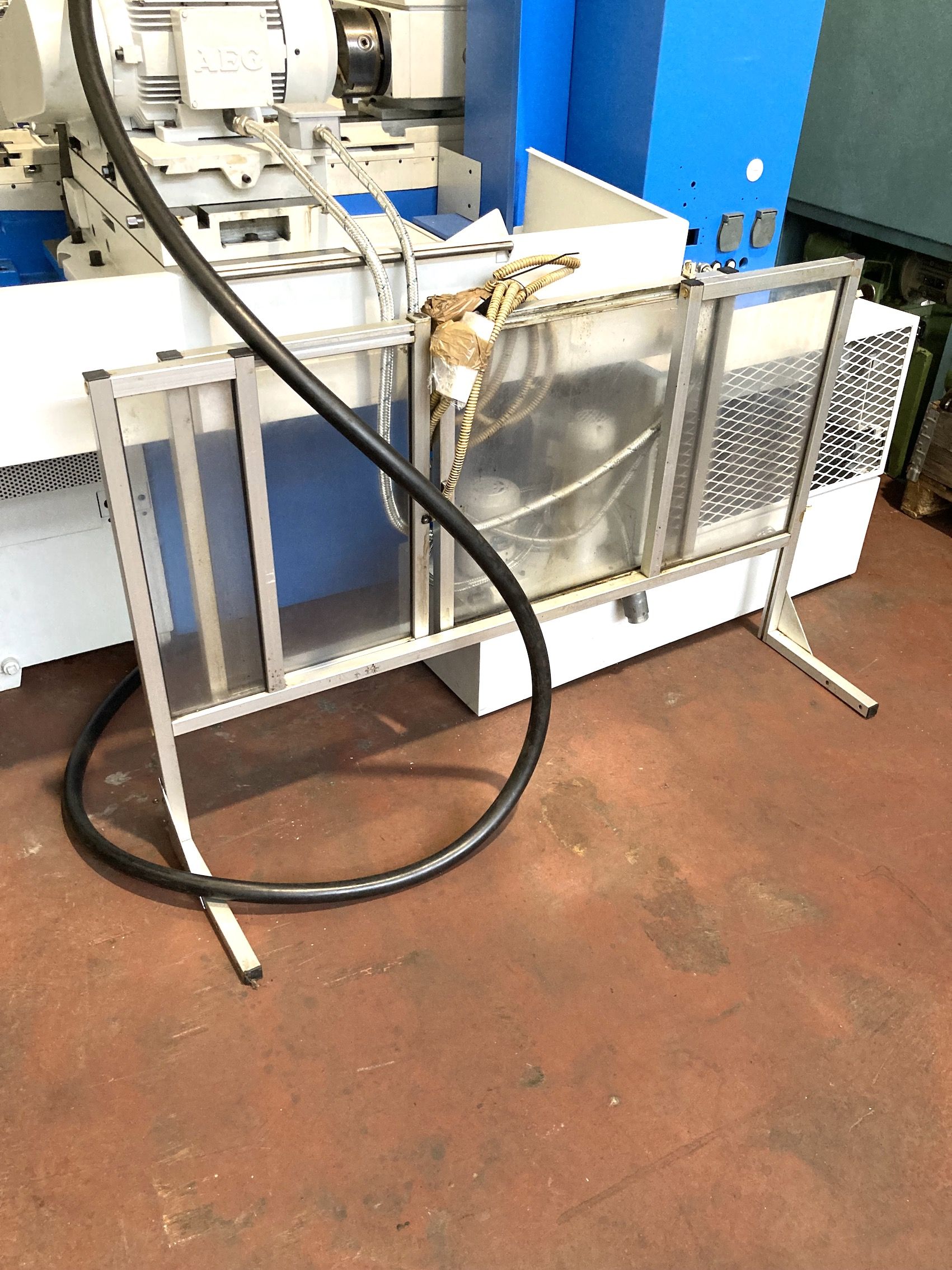

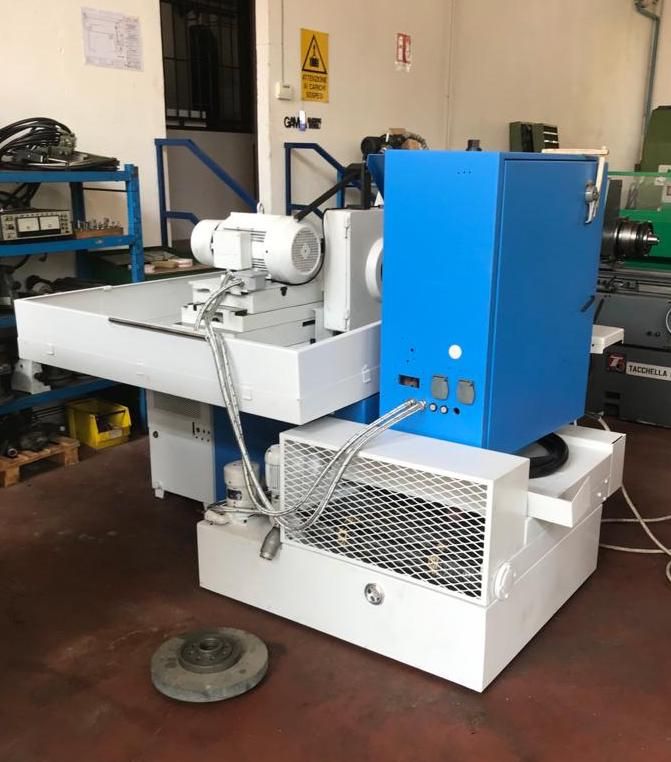

Filtration unit
SI
Available in stock
SI
