Category
Grinding Machine
Type
Cylindrical
Made
Model

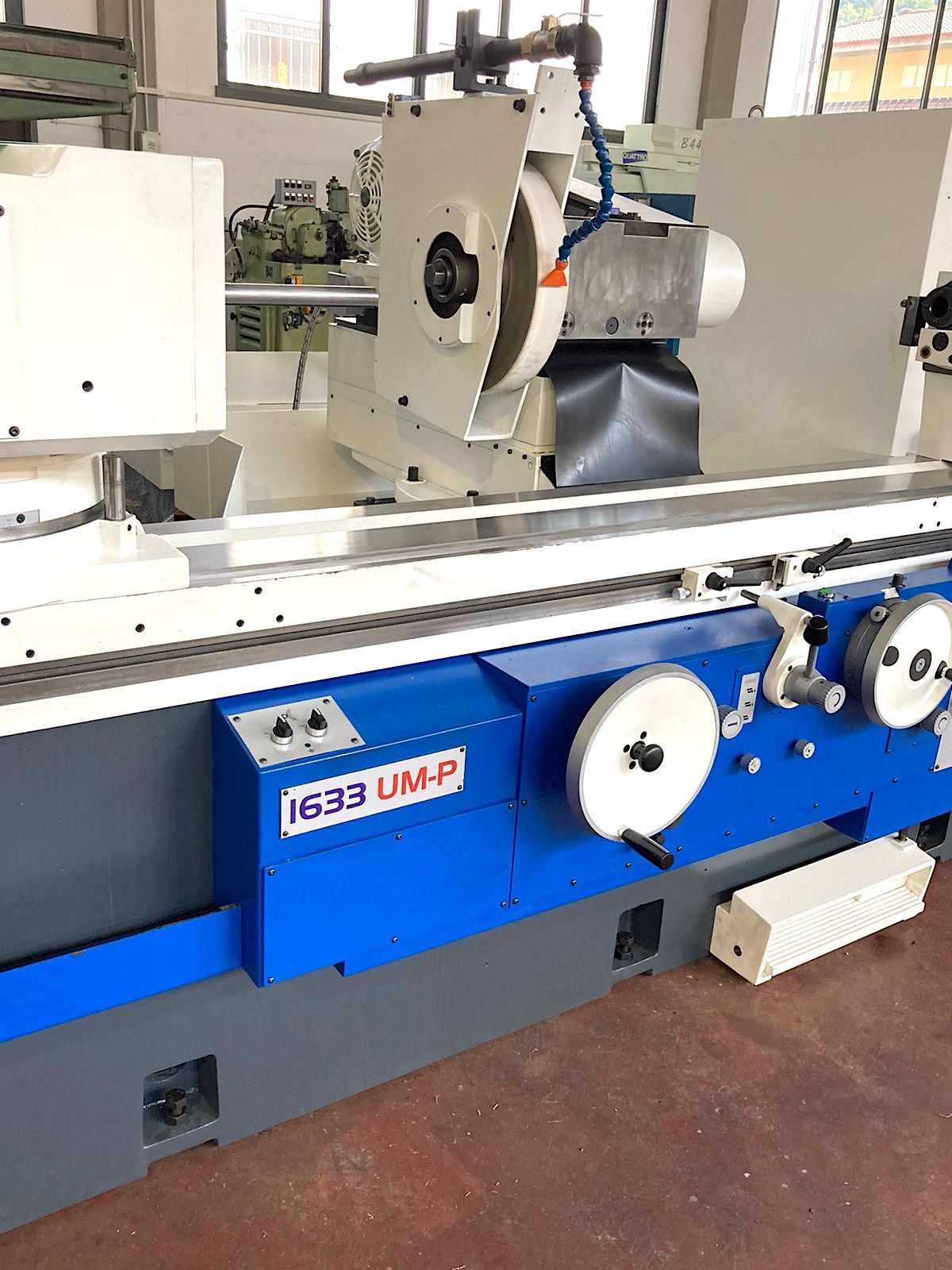

1633 U-MP
Capacity
ø655x1600 mmø25,79x62,99 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Centres distance
1600 mm62,99 in
Centres height
330 mm12,99 in
Max grinding lenght
1600 mm62,99 in
Max grinding diameter
655 mm25,79 in

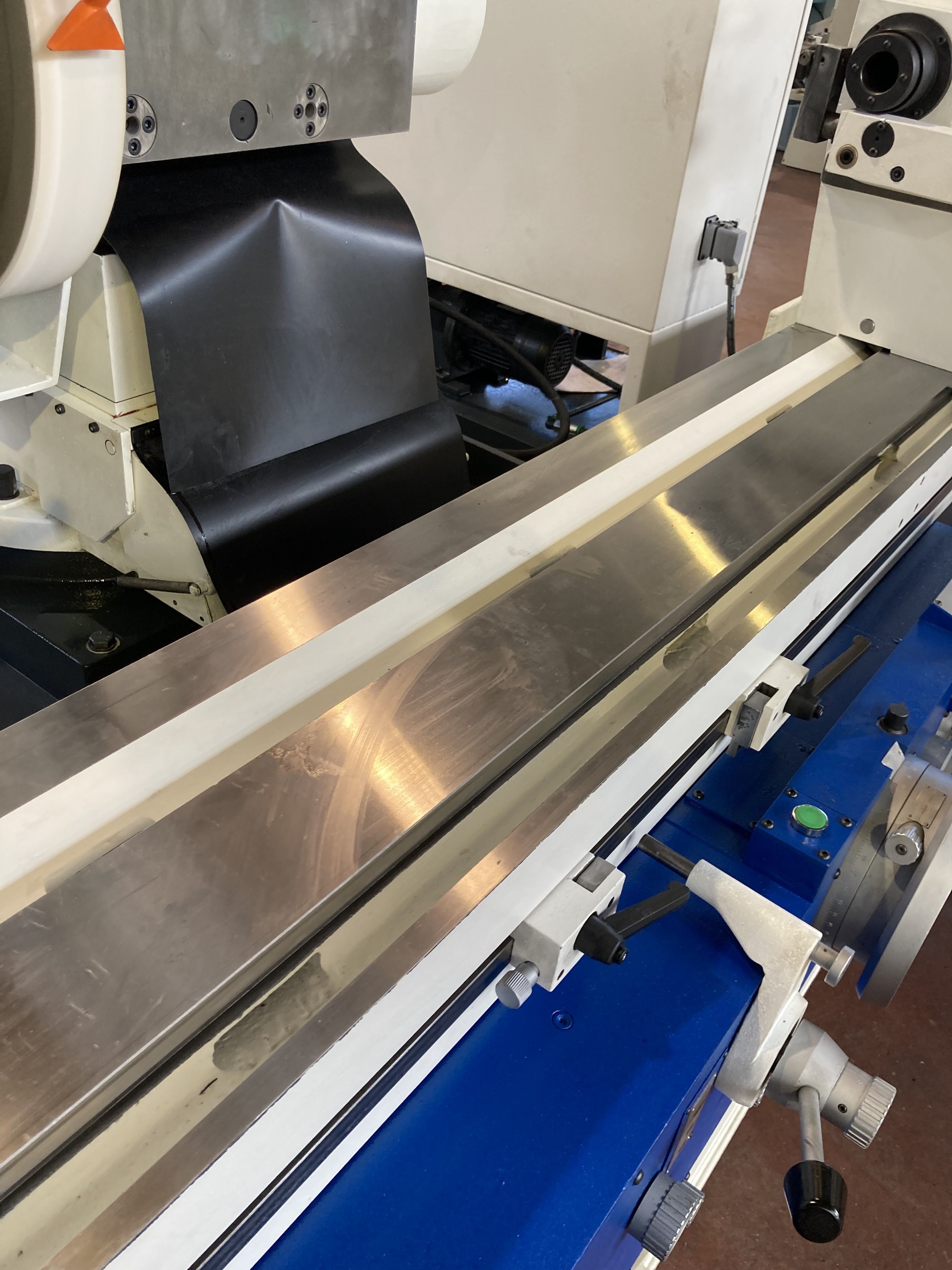

TABLE
Max workpiece weight
900 Kg
Tilt
+8/-2 °

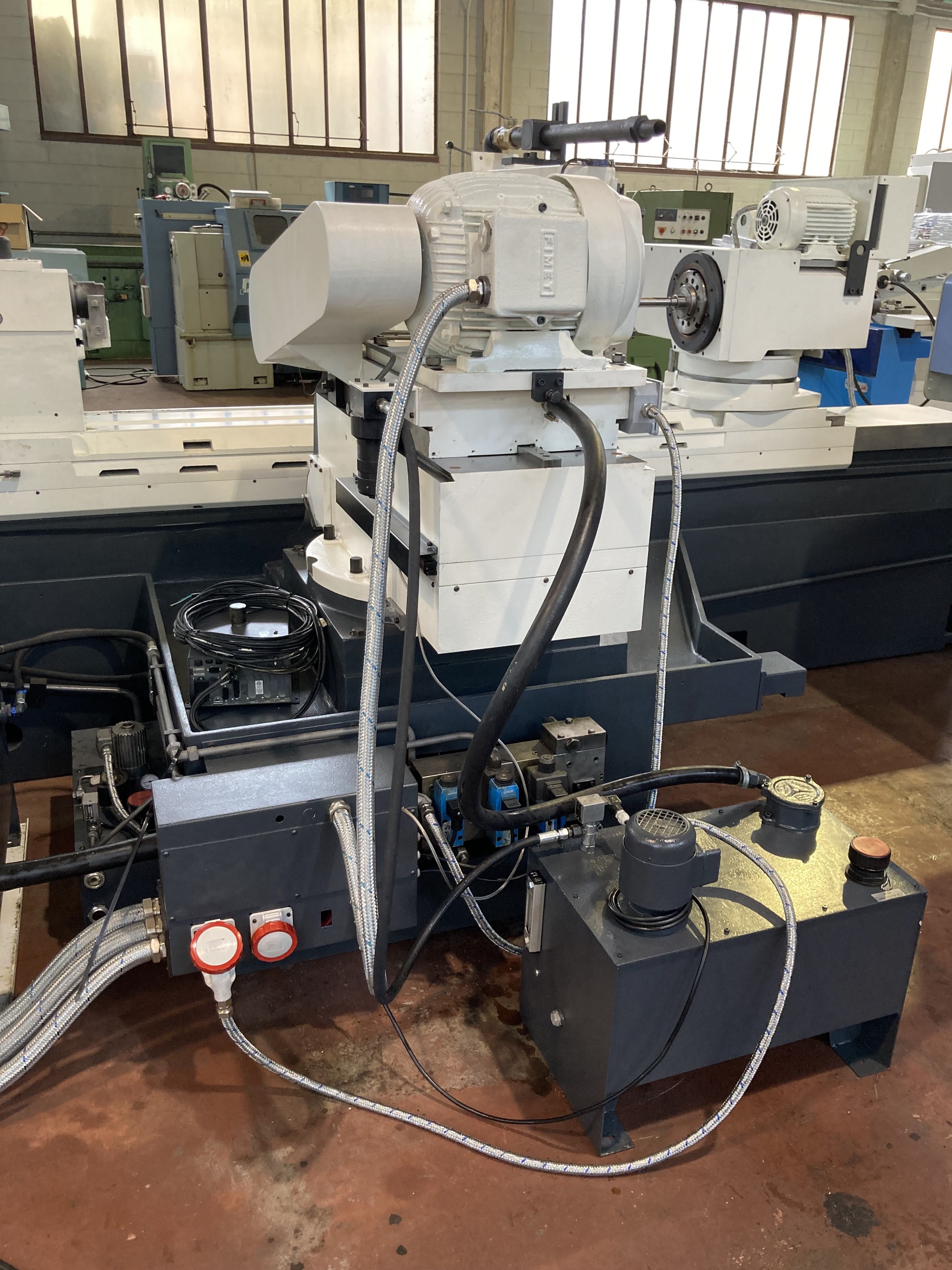

WHEELHEAD
External spindle power
14,5 Kw
External spindle speed
1020/1250 Rpm
Accuracy (B axis)
+/- 90 °
Notes
MANDRINO PORTAMOLA A SOSTENTAMENTO OLEODINAMICO
LEFT WHEEL
Wheel band thickness
150 mm5,91 in
Max wheel diameter
610 mm24,02 in
Hole diameter
203 mm7,99 in

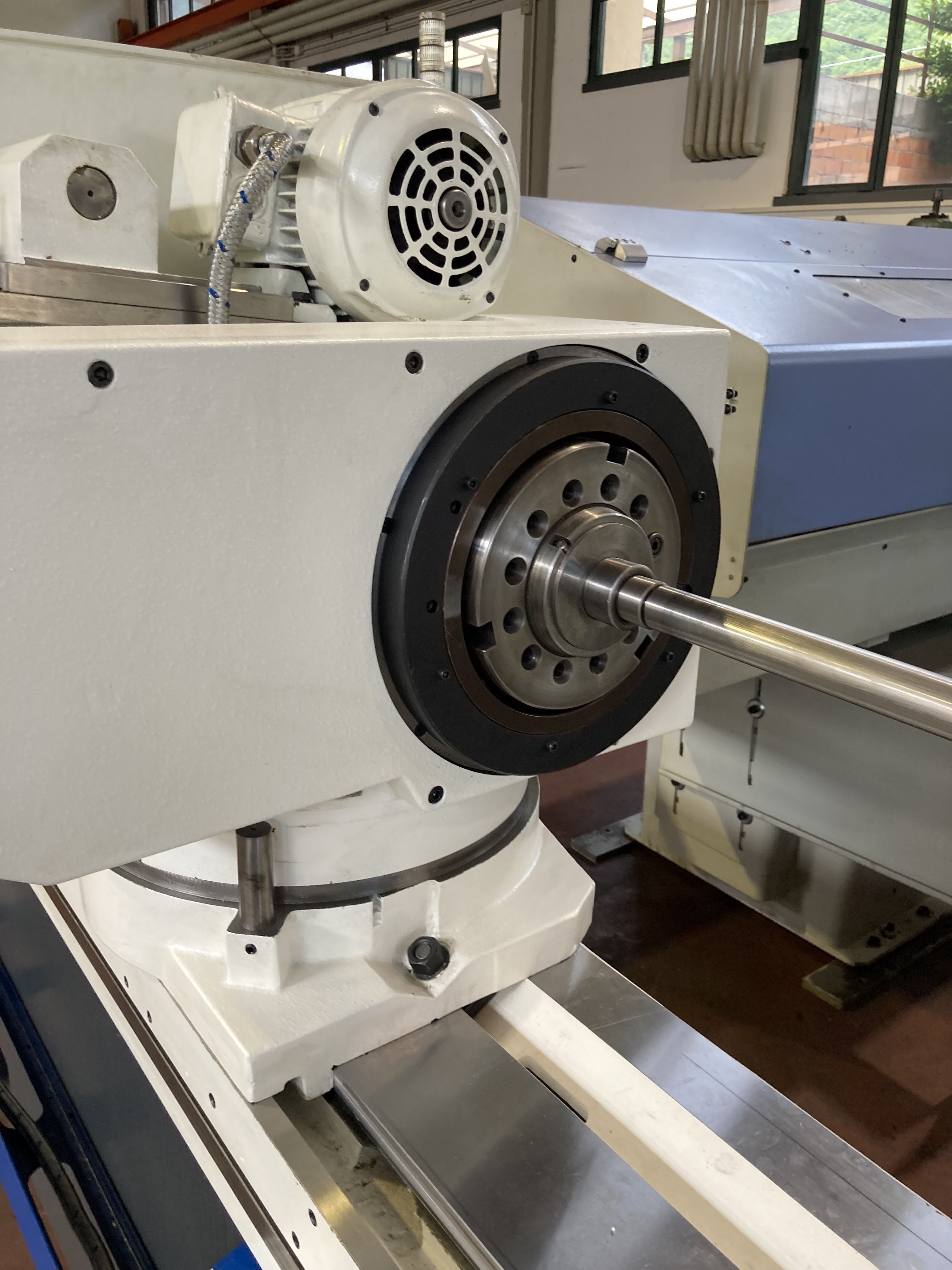

WORKPIECE HEAD
Rotating speed
10/500 Rpm
Tilt
0-90 °
Taper
MORSE 5

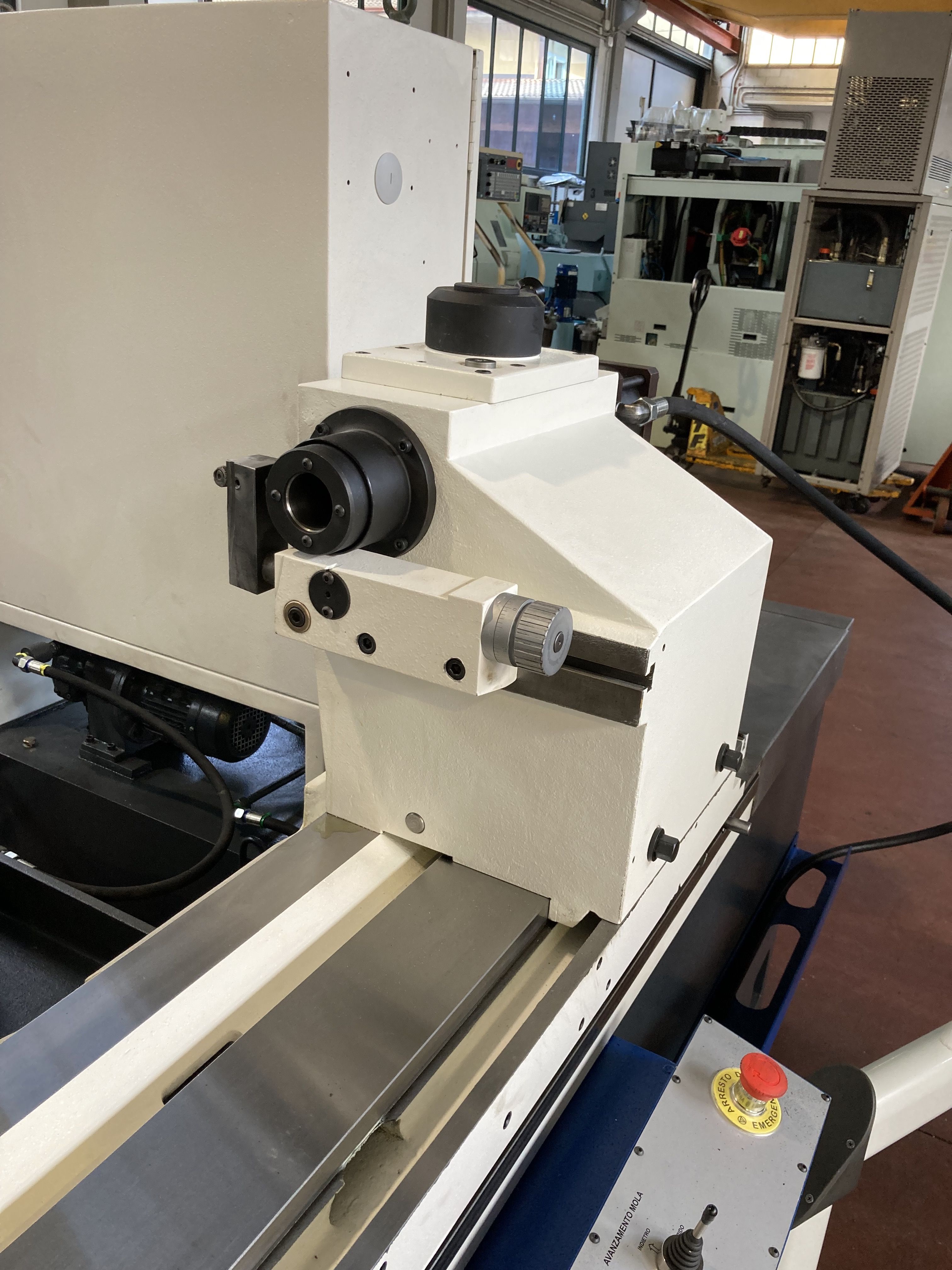

TAILSTOCK
Quill stroke
40 mm1,57 in
Taper
MORSE 5
FEEDS
Cross
0,005/0,01 mm/min0,0002/0,0004 ipm
EXTRA
Floor space
4000X2000 mm157,48X78,74 in
Maintenance & Use books
Yes
The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy cannot be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
