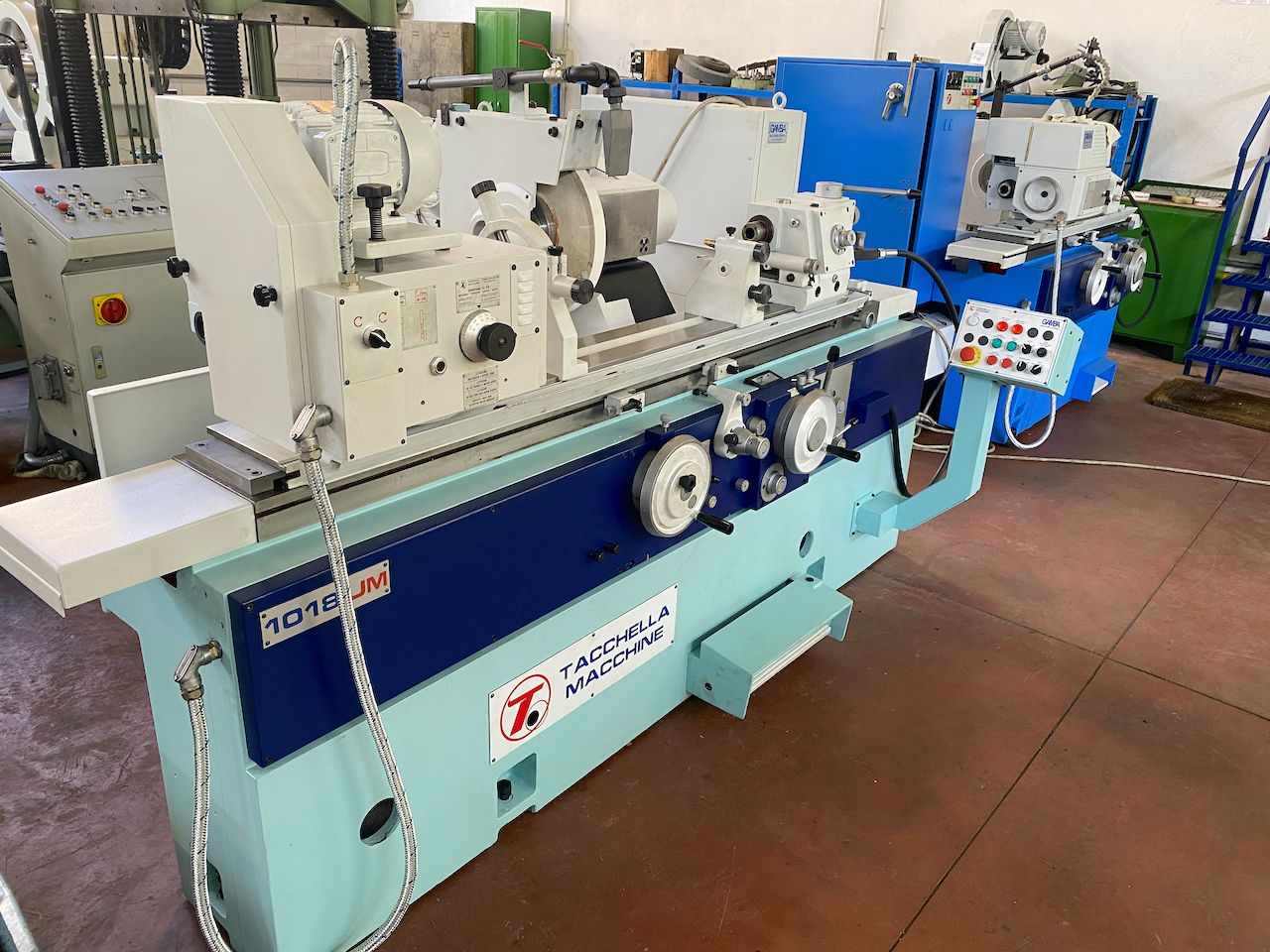

Category
Grinding Machine
Type
Cylindrical
Made
Model
1018 UM
Capacity
355x1000 mm13,98x39,37 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Centres distance
1000 mm39,37 in
Centres height
180 mm7,09 in
Longitudinal (Z)
1000 mm39,37 in
Cross (X)
310 mm12,20 in
Max grinding lenght
1000 mm39,37 in
Max grinding diameter
355 mm13,98 in
Notes
Possibilità lavorazione per interni
TABLE
Stroke
4-1000 mm0,16-39,37 in
Cross speed
0.1-5 mm/min0,0039-0,1969 ipm
Max workpiece weight
250 Kg
Tilt
+/-9 °
FEEDS
Cross
0,1/4 mm/min0,0039/0,1575 ipm

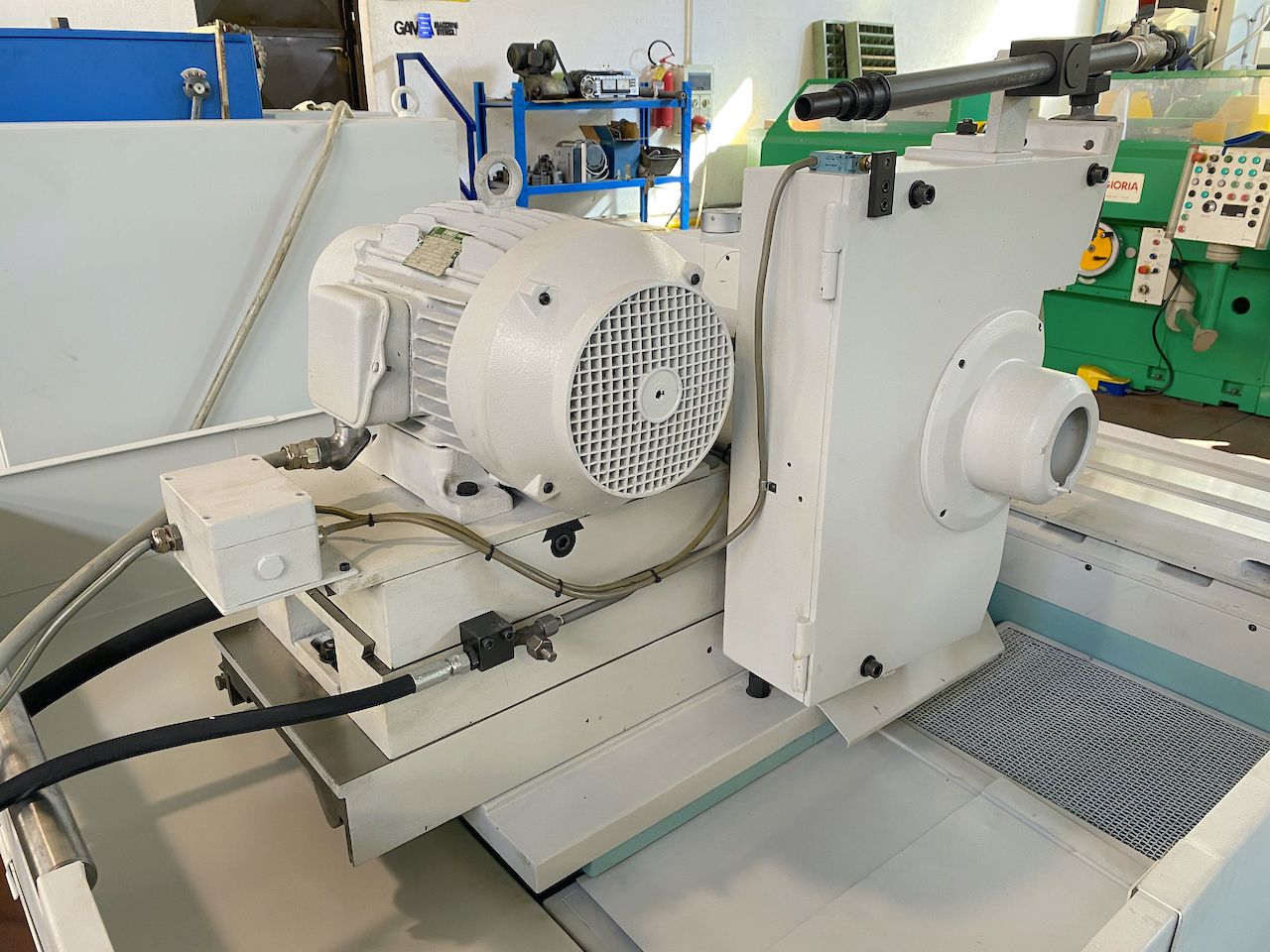

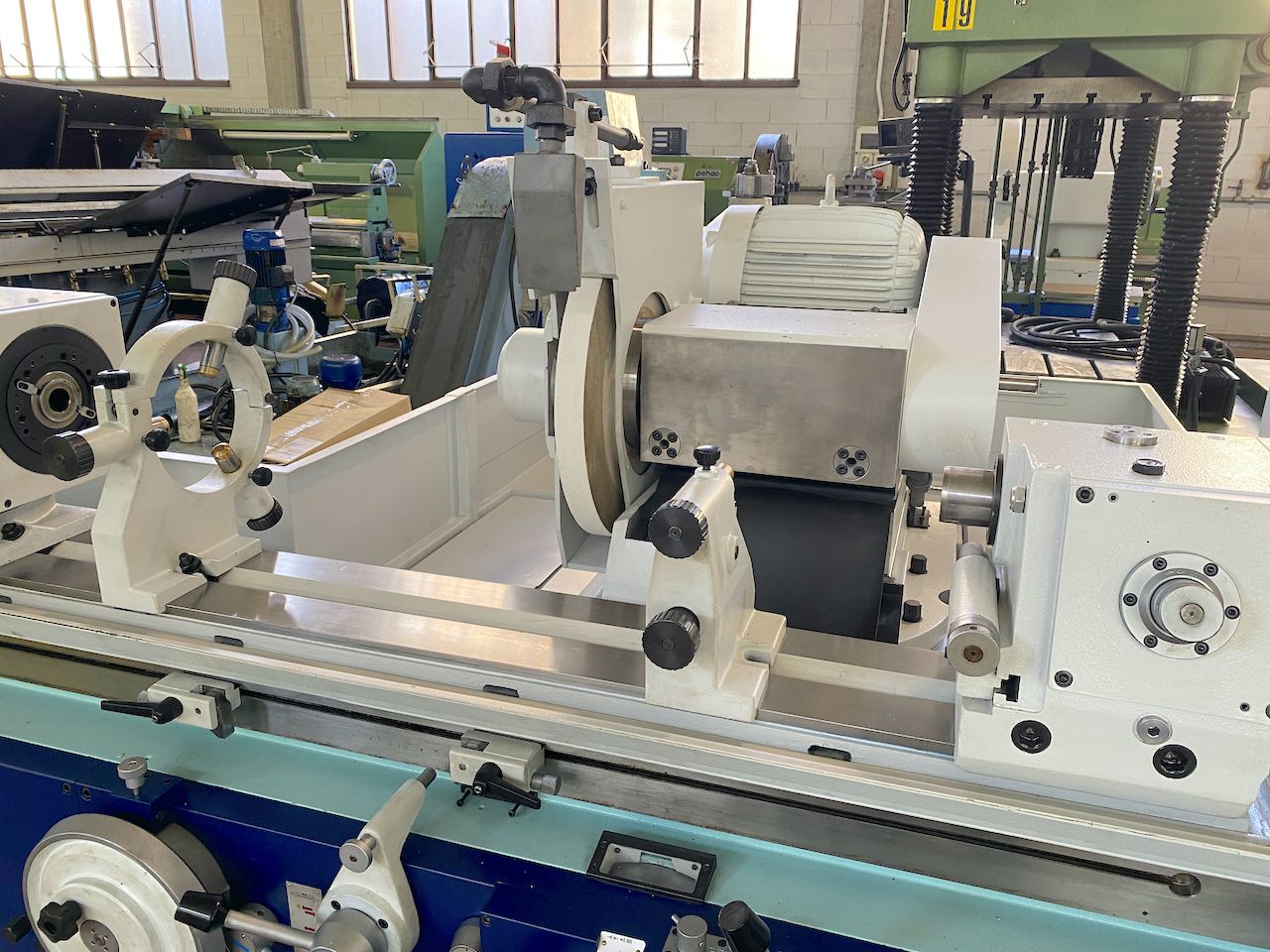

WHEELHEAD
External spindle power
5,5 Kw
External spindle speed
1235/1450 Rpm

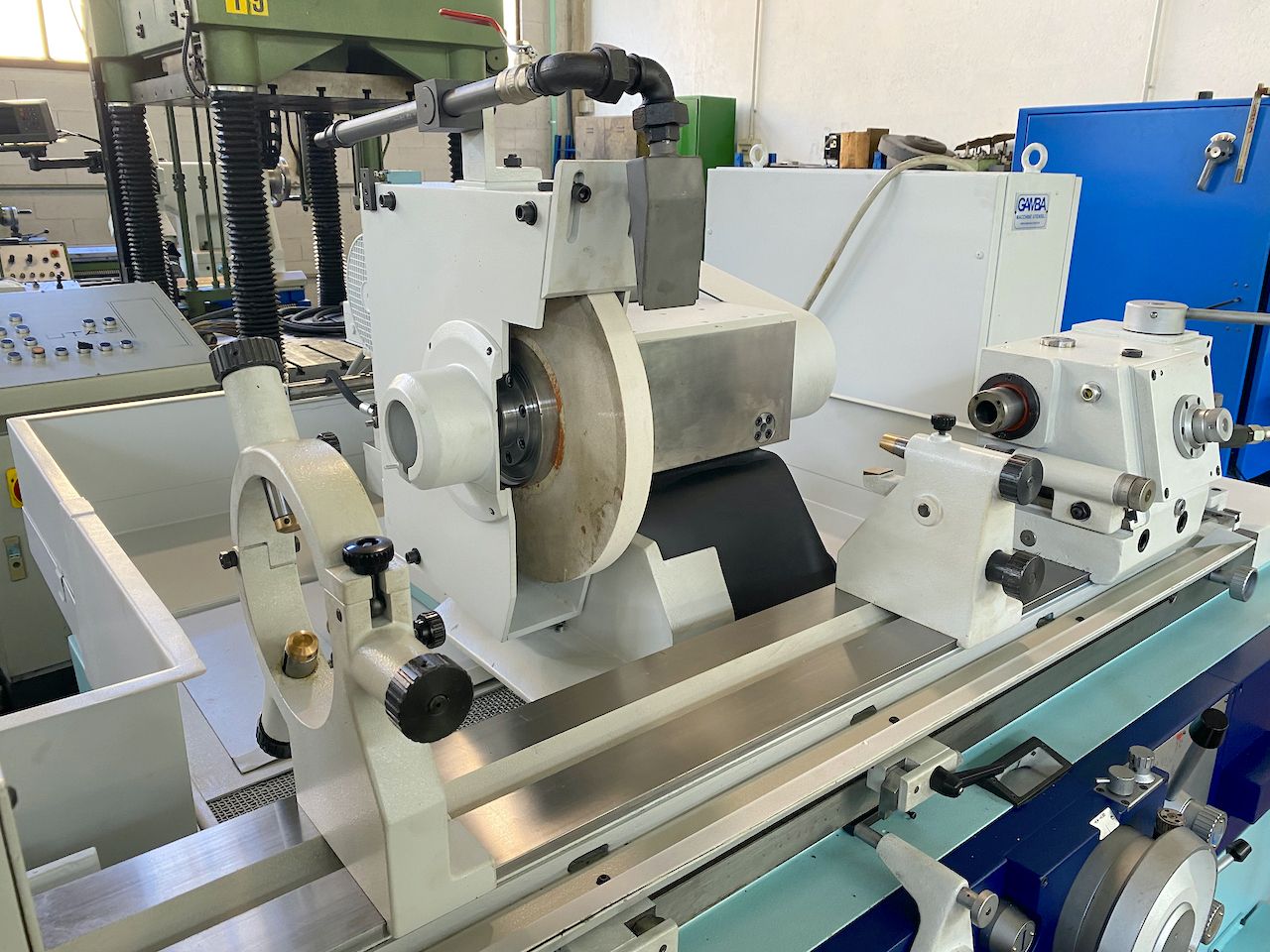

LEFT WHEEL
Wheel band thickness
80 mm3,15 in
Max wheel diameter
500 mm19,69 in
Hole diameter
127 mm5,00 in

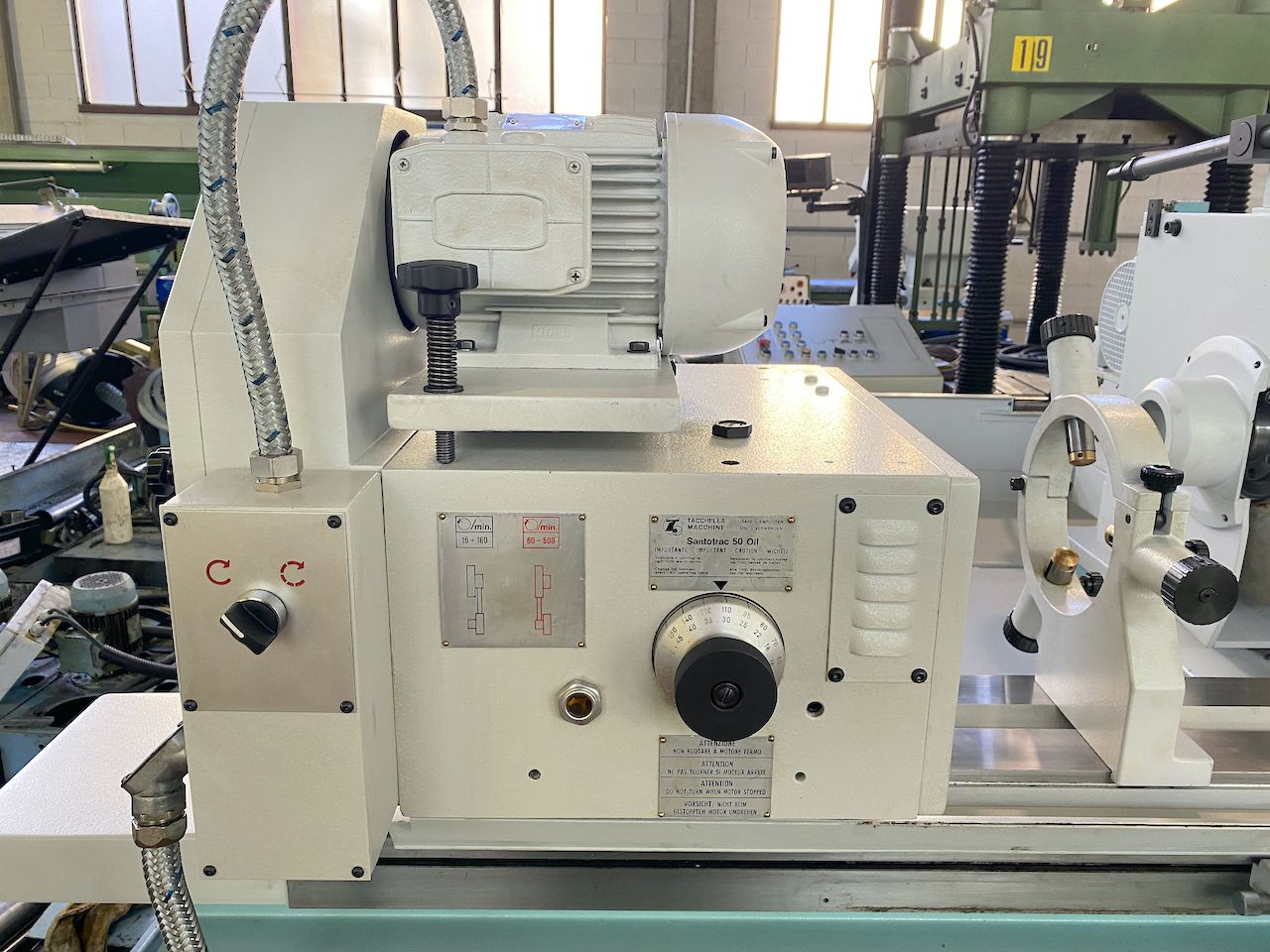

WORKPIECE HEAD
Spindle power
1,1 Kw
Rotating speed
16-500 Rpm
Speed regulation
variazione progressiva
Tilt
+/-90 °
Taper
MK4

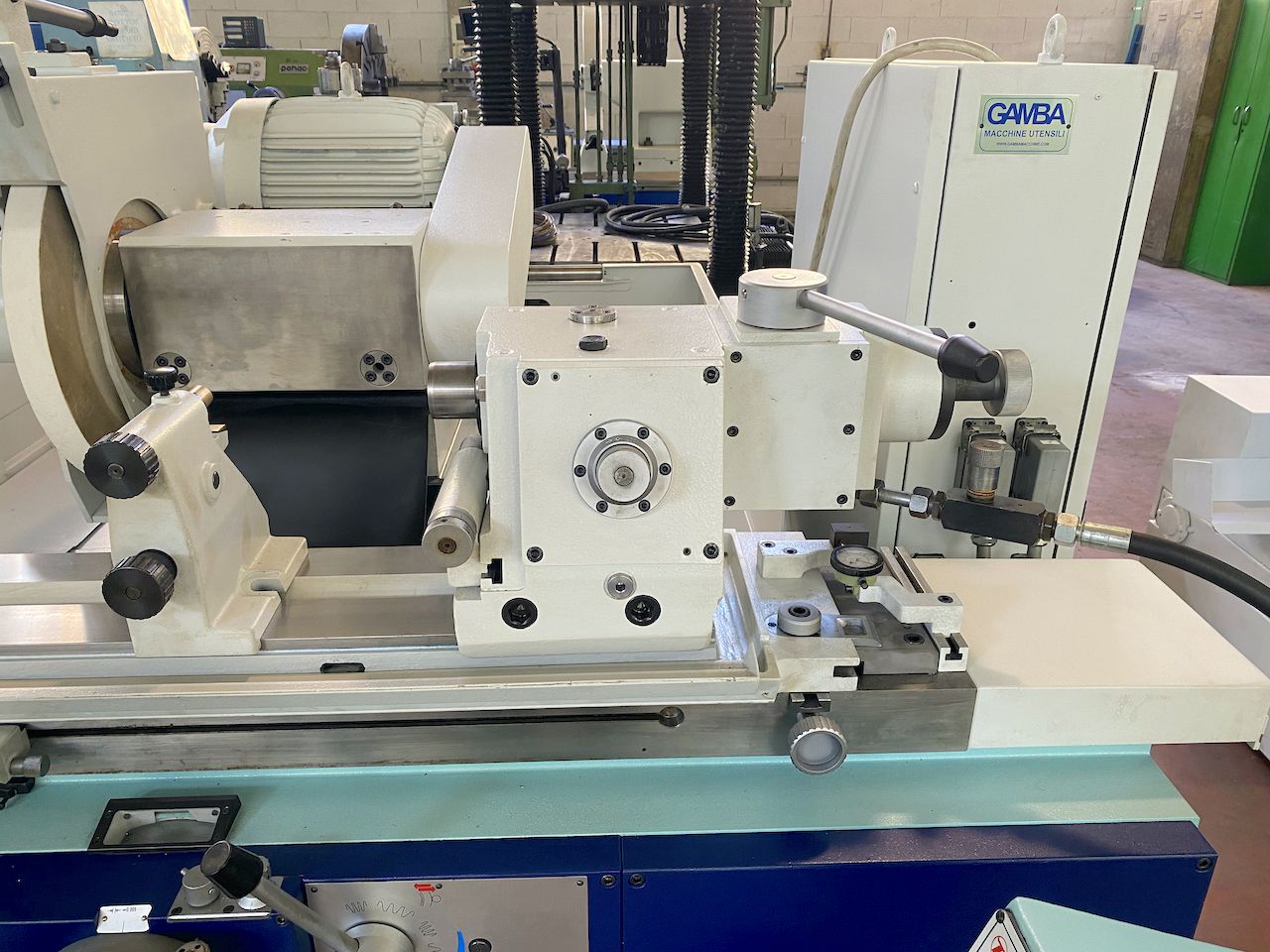

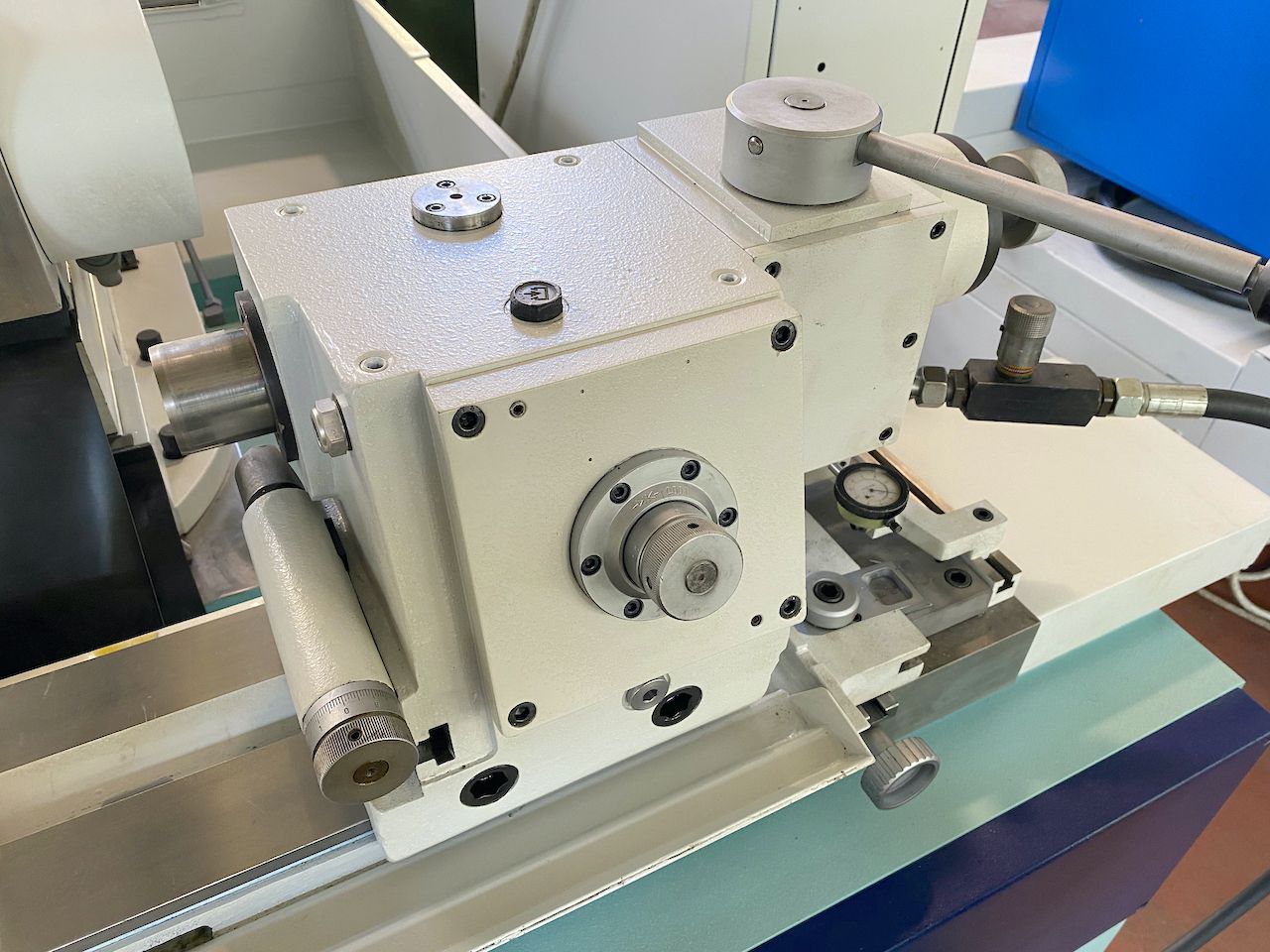

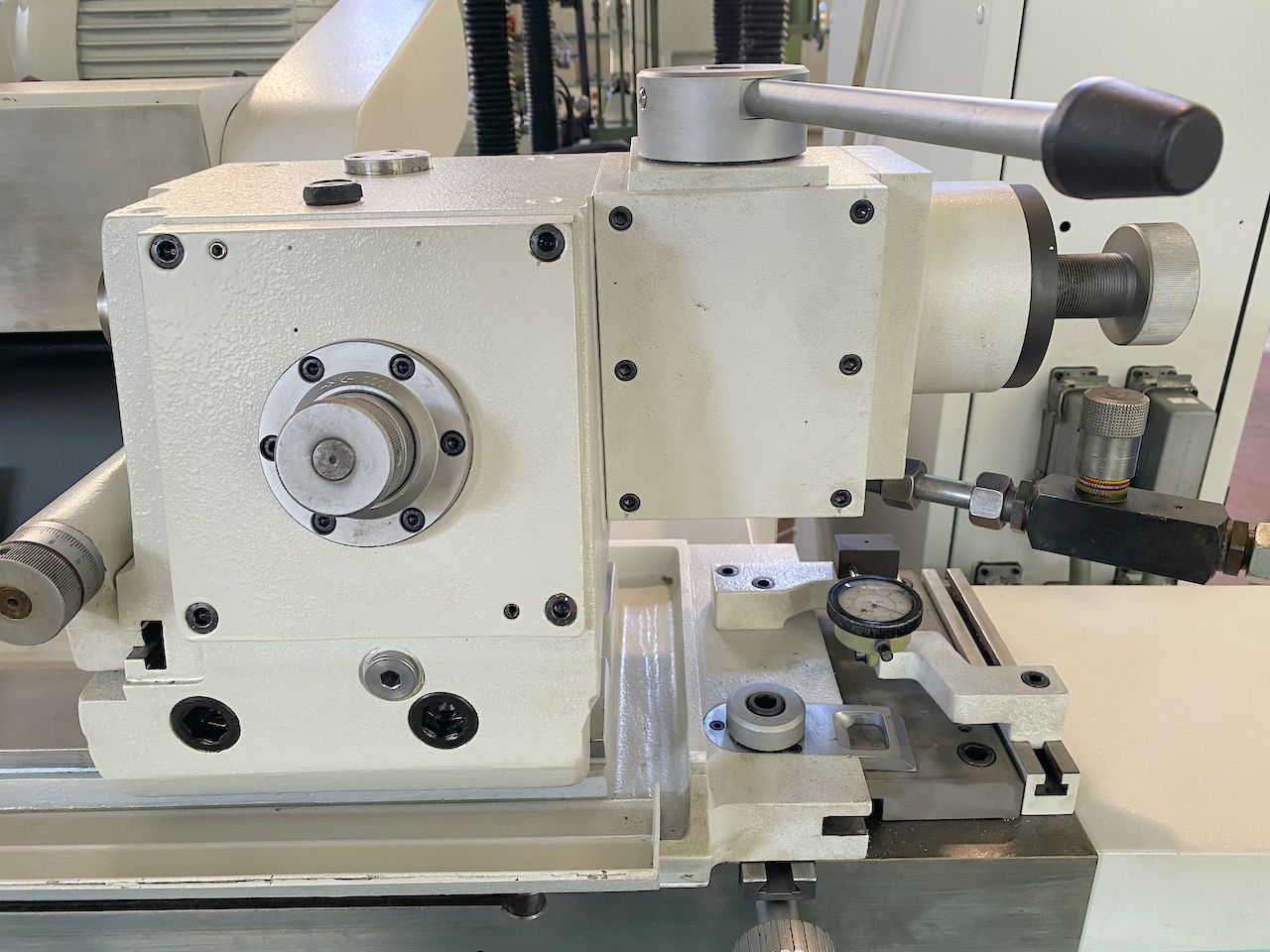

TAILSTOCK
Quill diameter
35 mm1,38 in
Taper
MK4
Drive
Idraulico a pedale + leva manuale
EXTRA
Machine total weight
4100 Kg
Floor space
3750x2150x1600 mm147,64x84,65x62,99 in
Tooling included
varie lunette, diamanti flange
Open steadies
sì
Closed steadies
sì
Manual dresser
Yes
Filtration unit
Sì
Maintenance & Use books
Yes
Electrical drawings
Yes
Housing
Sì
Available in stock
Sì
Availability
Sì
Available under power
Sì
Digital read out (DRO)
si
