Category
Grinding Machine
Type
Cylindrical
Made
Model
1018 UA
Capacity
1000x180 mm39,37x7,09 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Centres distance
1000 mm39,37 in
Centres height
180 mm7,09 in
Max grinding diameter
360 mm14,17 in
TABLE
Cross speed
0,1-5 mm/min0,0039-0,1969 ipm
Max workpiece weight
250 Kg
Tilt
0/7 °
WHEELHEAD
External spindle power
5,5 Kw
External spindle speed
1275-1450 Rpm
LEFT WHEEL
Wheel band thickness
120 mm4,72 in
Max wheel diameter
450 mm17,72 in
Hole diameter
127 mm5,00 in

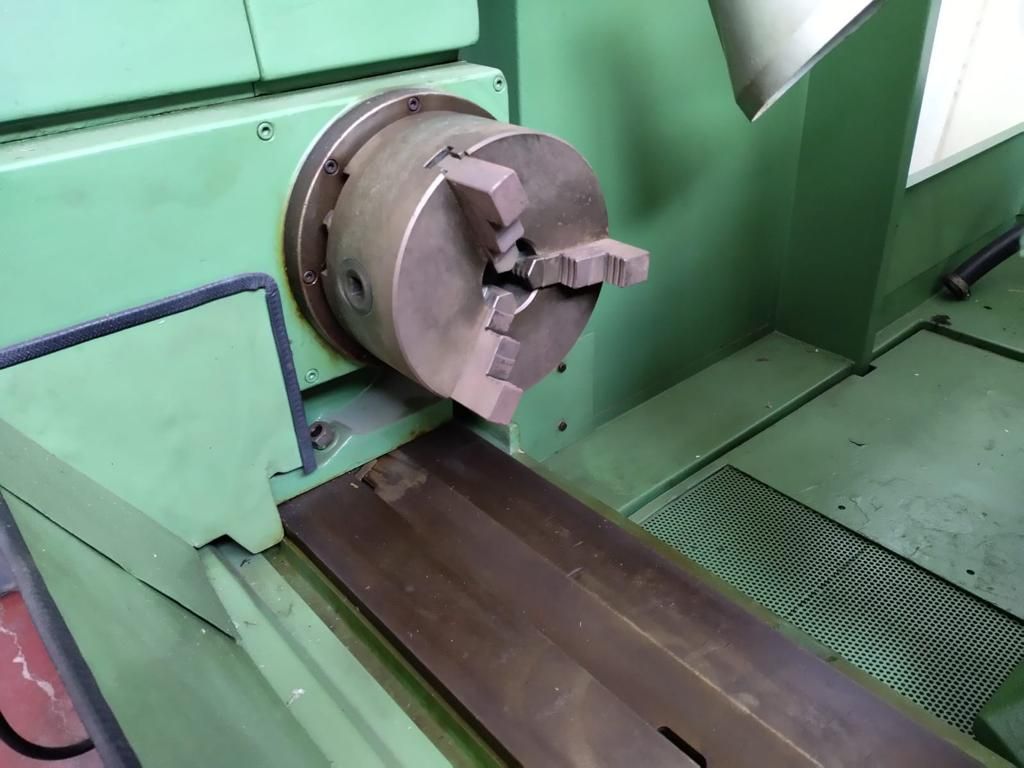

WORKPIECE HEAD
Rotating speed
28/550 Rpm
Tilt
90 °
Taper
cm5
EXTRA
Maintenance & Use books
Yes
Electrical drawings
Yes
Availability
Pronta
Available in stock
Si
