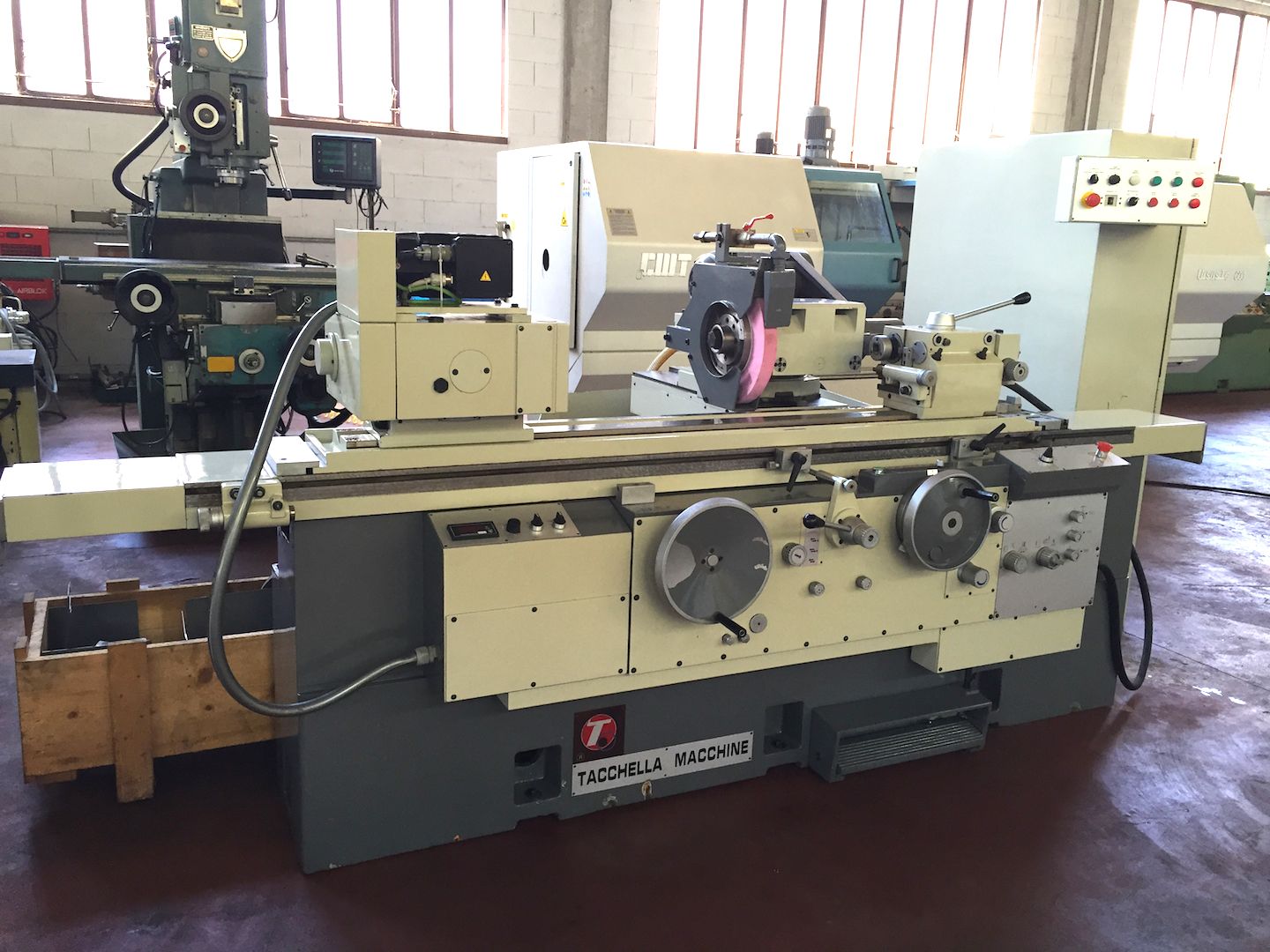

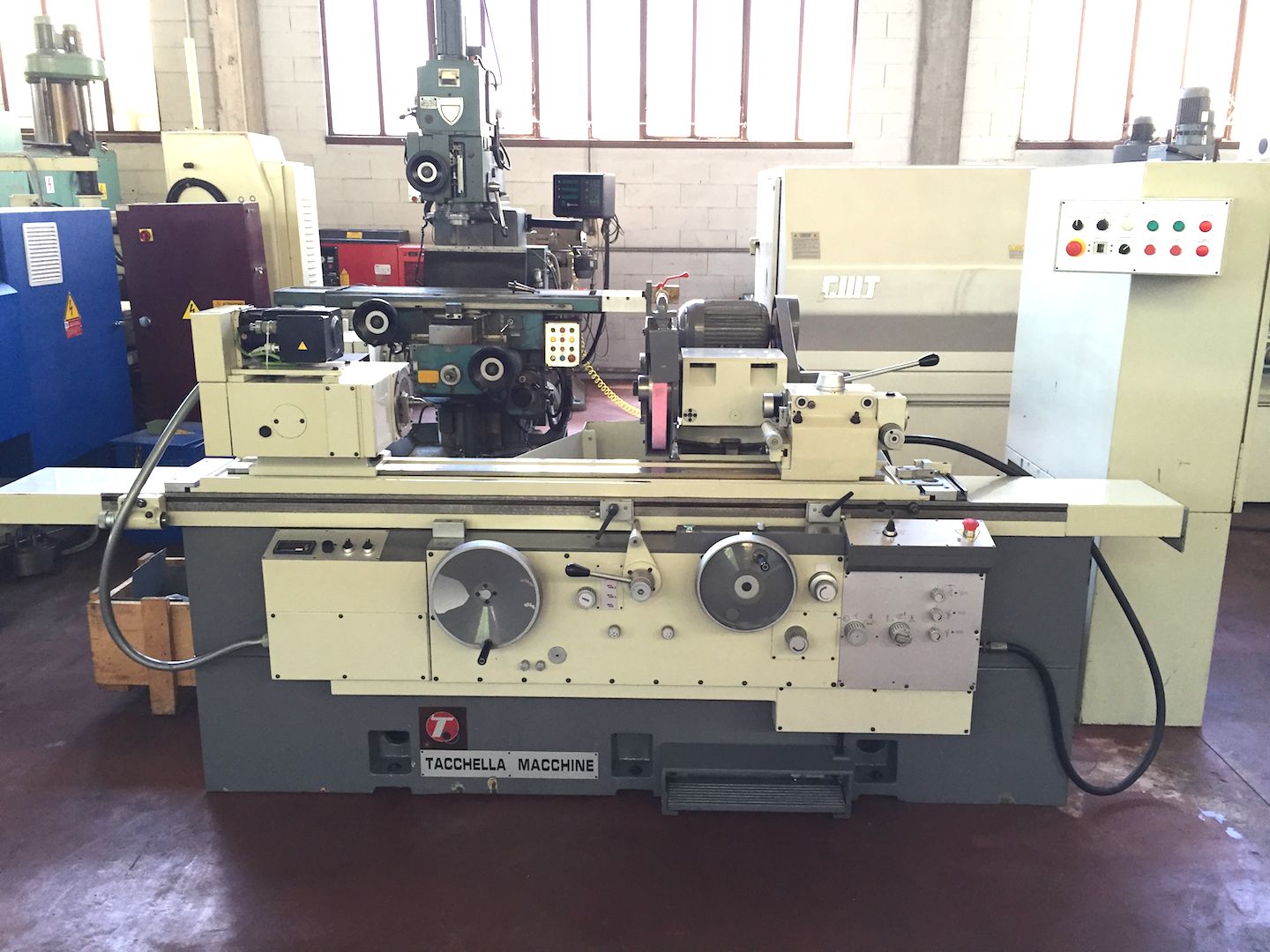

Category
Grinding Machine
Type
Cylindrical
Made
Model
1015 UMP
Capacity
1000 x 300 mm39,37 x 11,81 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Centres height
150 mm5,91 in
Centres distance
1000 mm39,37 in
Max grinding diameter
300 mm11,81 in
Max grinding lenght
1000 mm39,37 in
FEEDS
Cross
0,01-5 mm/min0,0004-0,1969 ipm

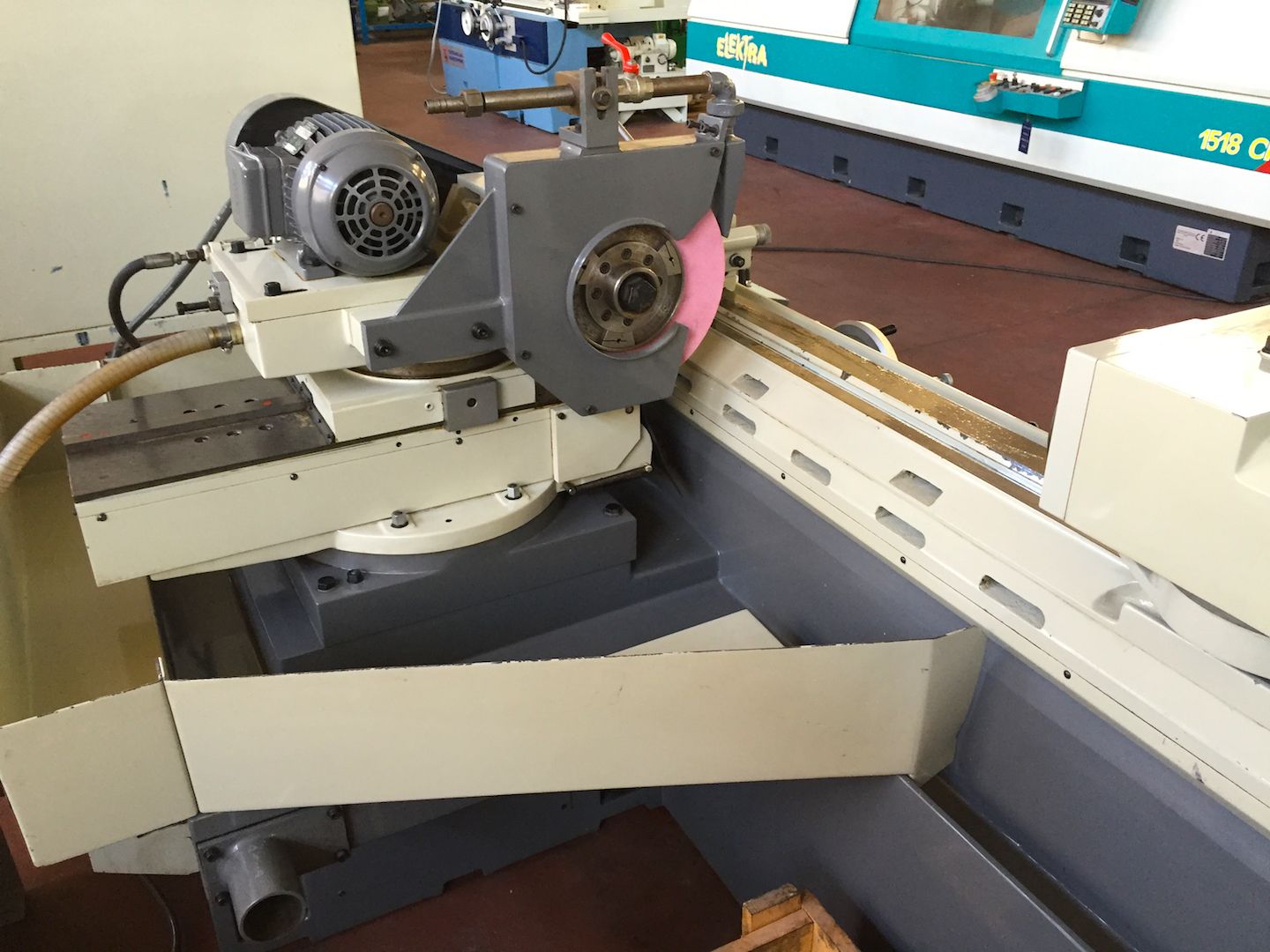

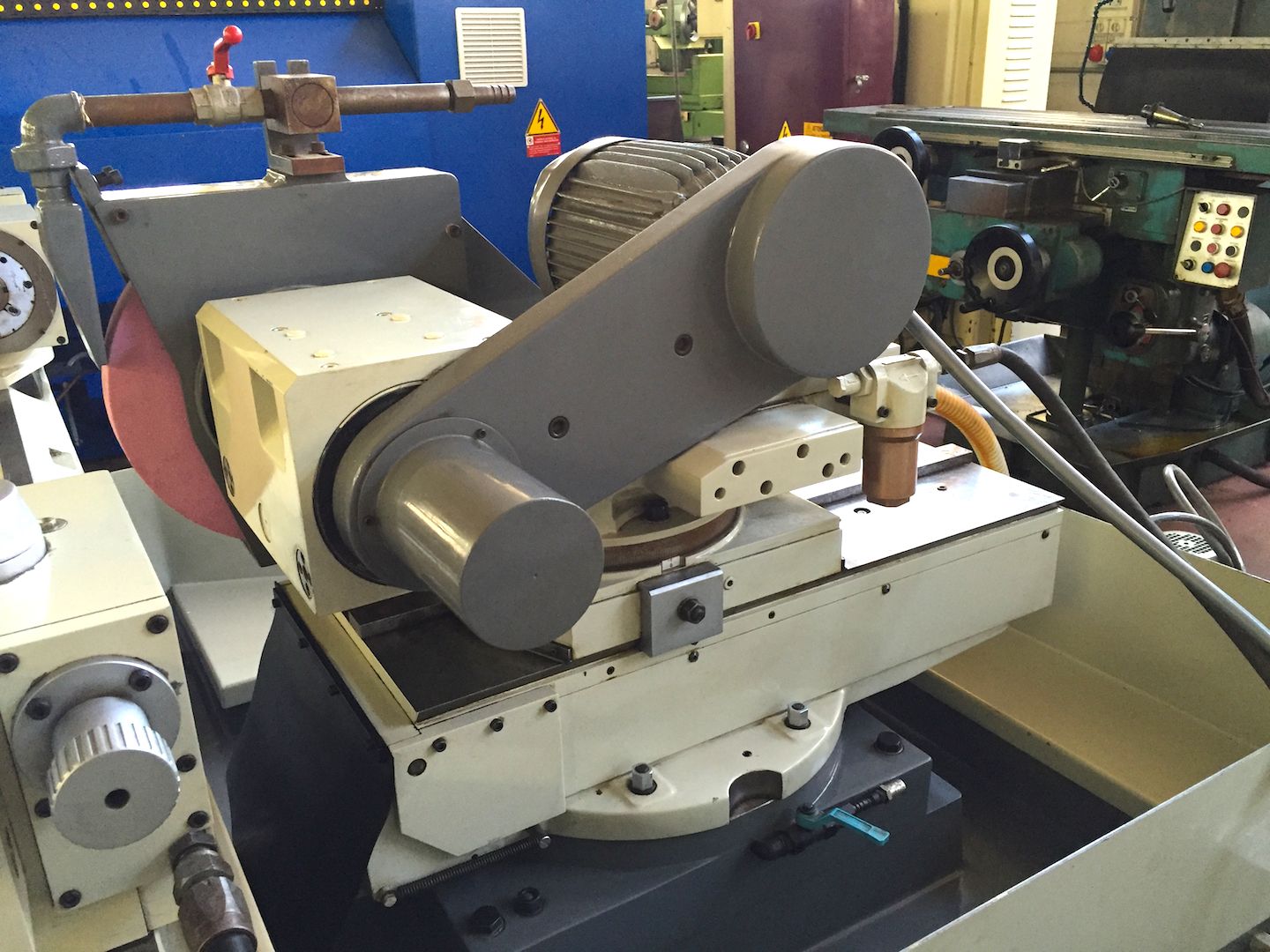

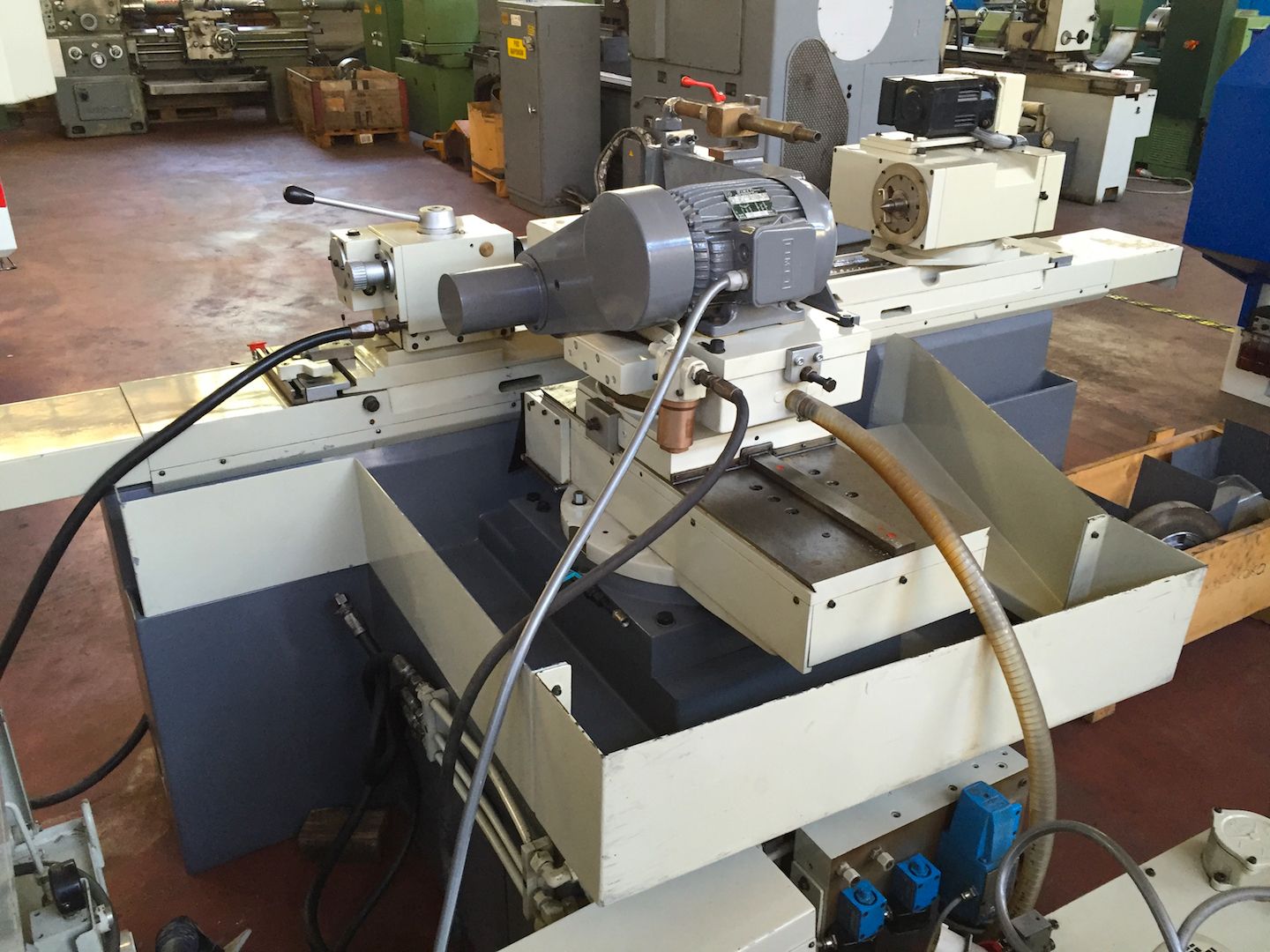

WHEELHEAD
Support
idrodinamico
External spindle power
11 Kw
External spindle speed
1030-1260 Rpm

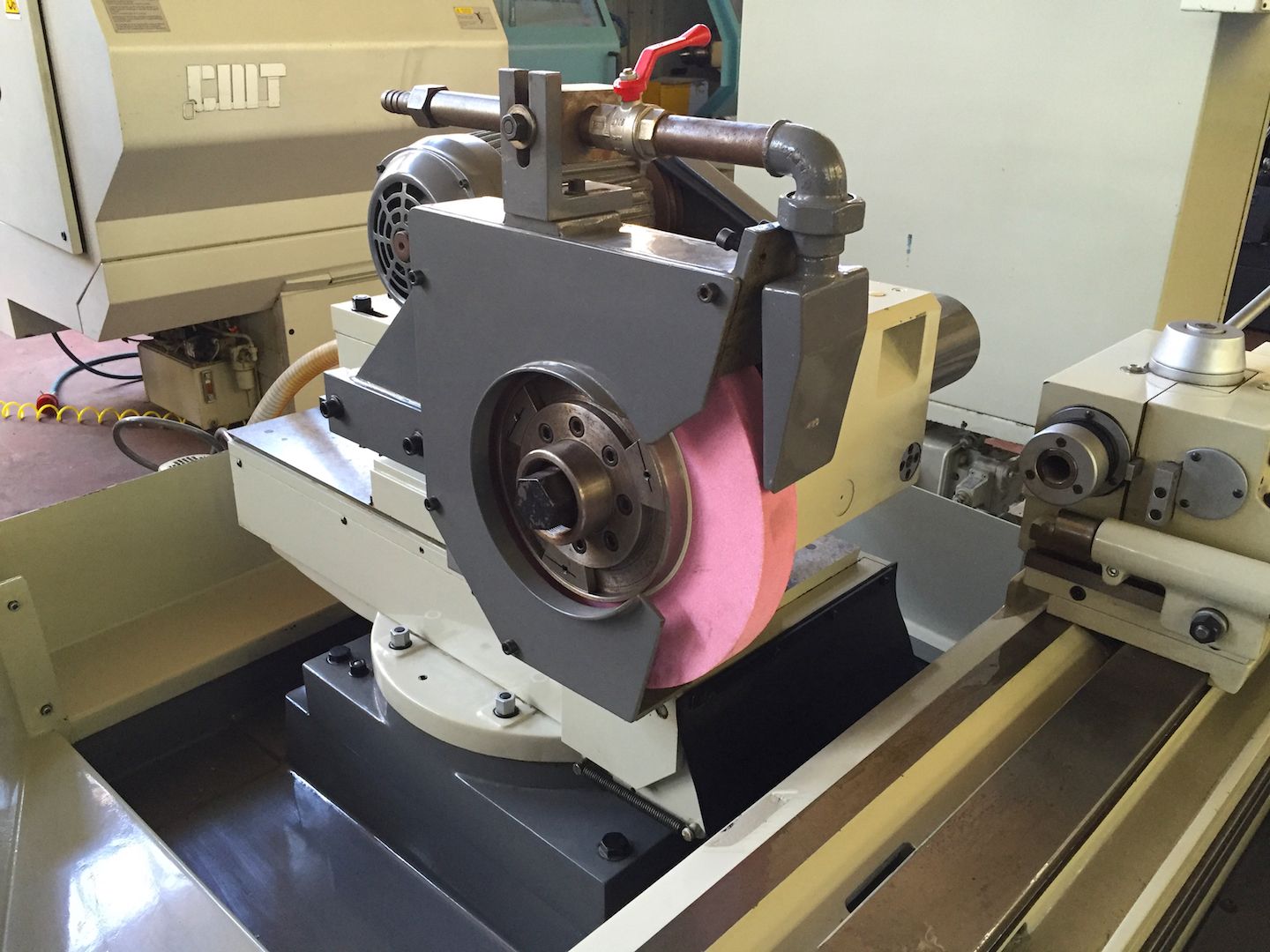

LEFT WHEEL
Wheel band thickness
70 mm2,76 in
Max wheel diameter
450 mm17,72 in
Hole diameter
127 mm5,00 in

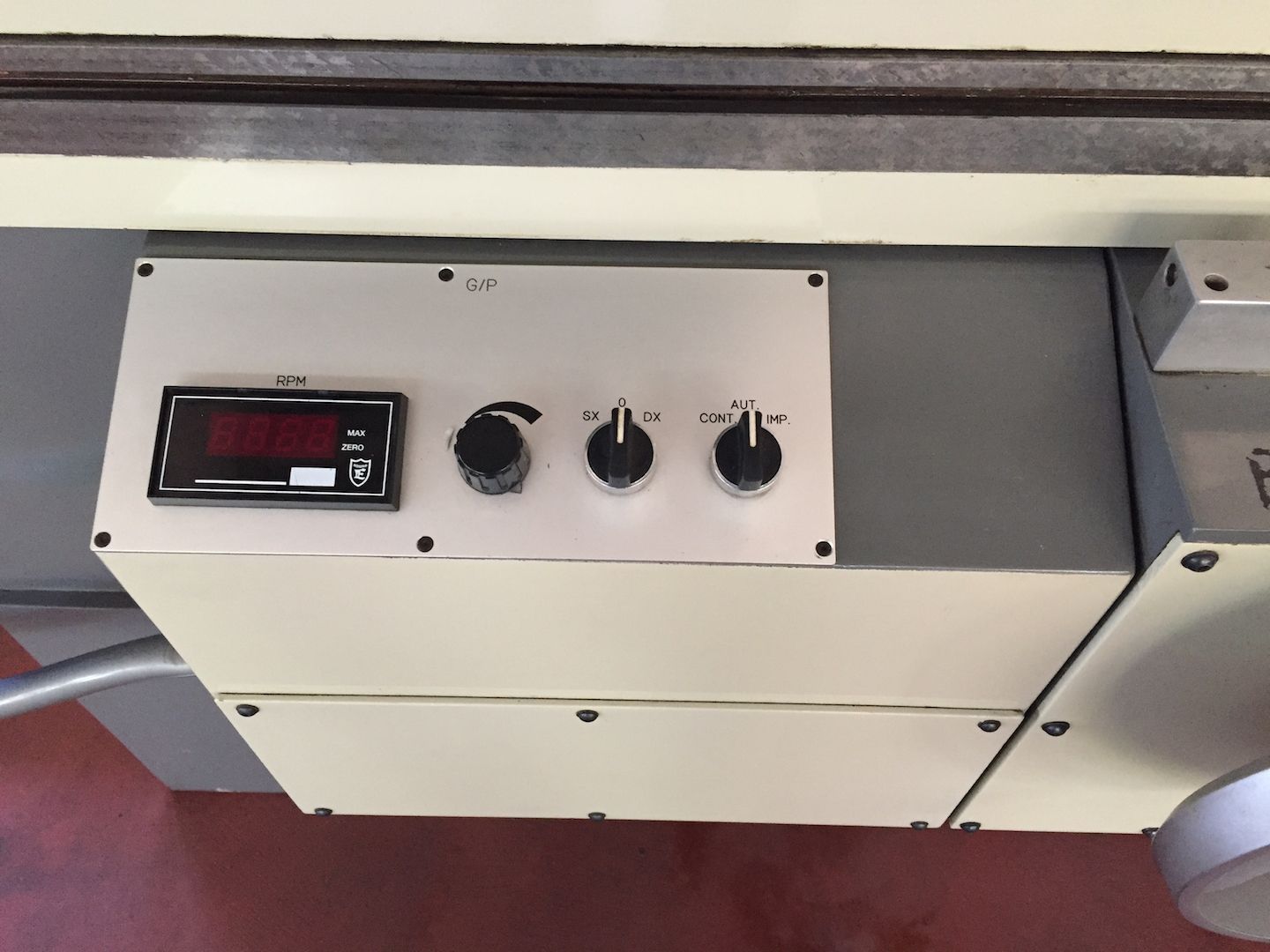

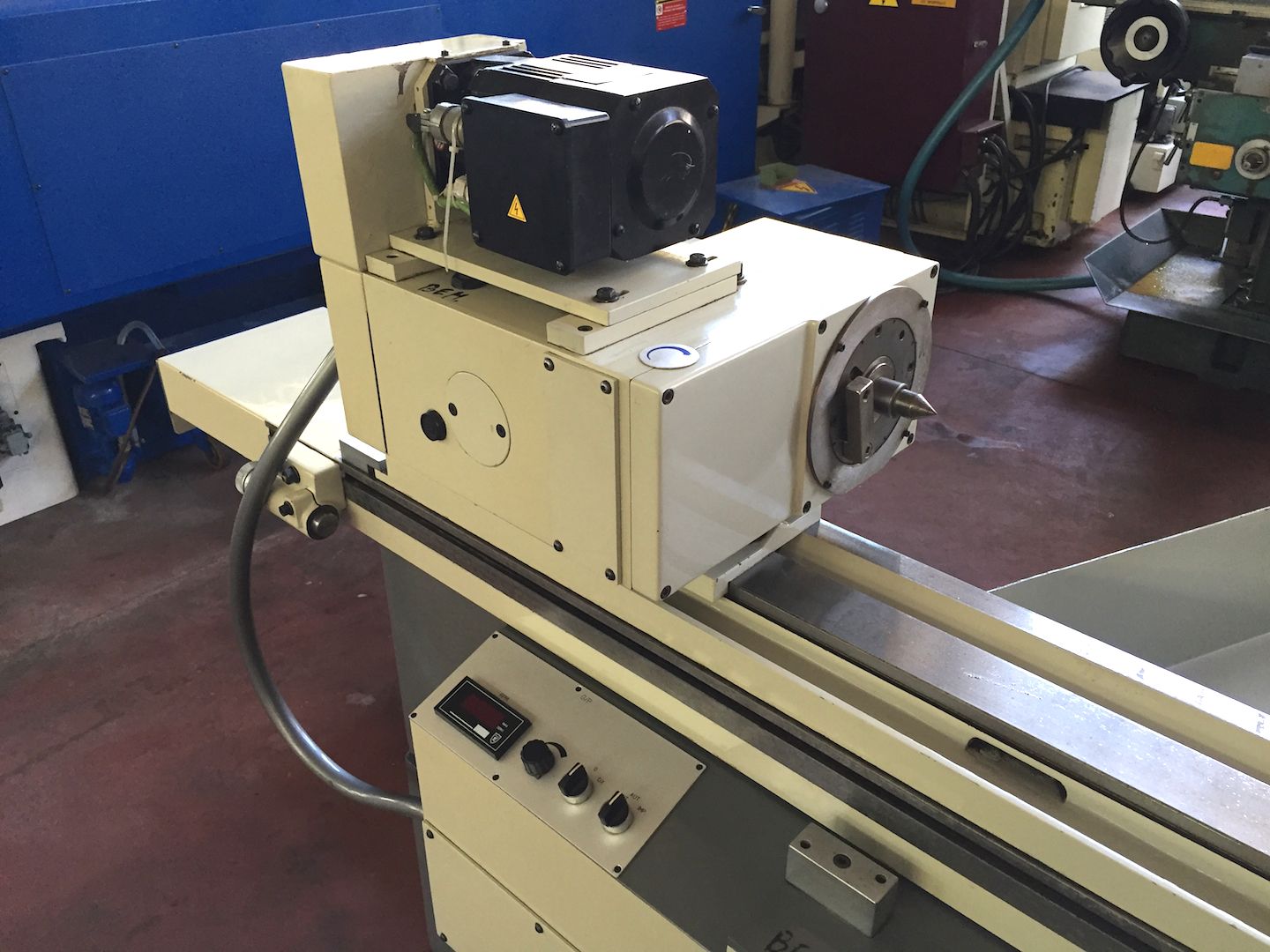

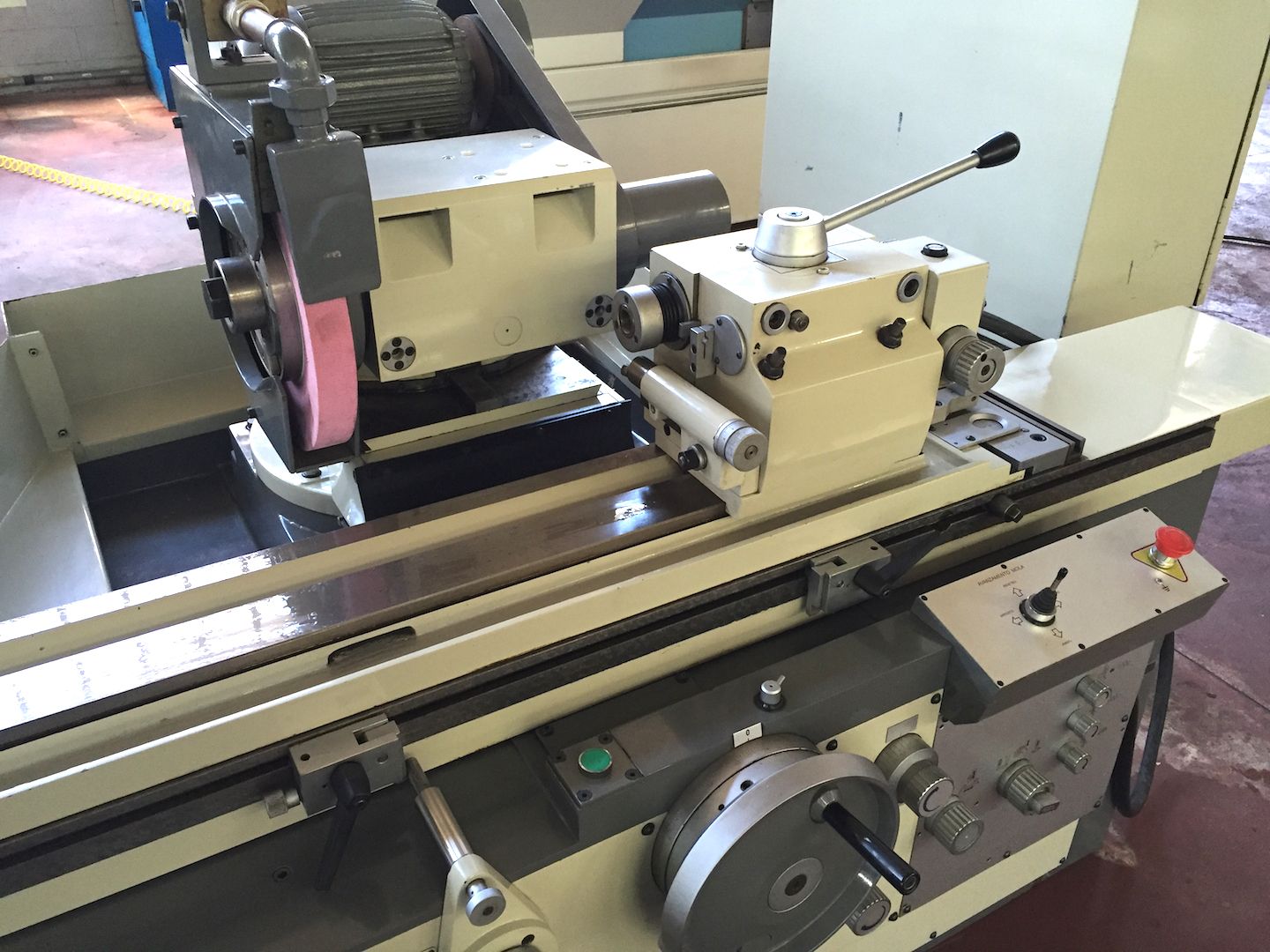

WORKPIECE HEAD
Speed regulation
motore brushless
Tilt
0-90 °
Taper
MK5
TABLE
Stroke
1000 mm39,37 in
Tilt
+9/-3 °
Cross speed
100-4000 mm/min3,9370-157,4800 ipm
Max workpiece weight
350 Kg
TAILSTOCK
Drive
idraulico
Taper
MK3
Quill diameter
80 mm3,15 in
EXTRA
Maintenance & Use books
Yes

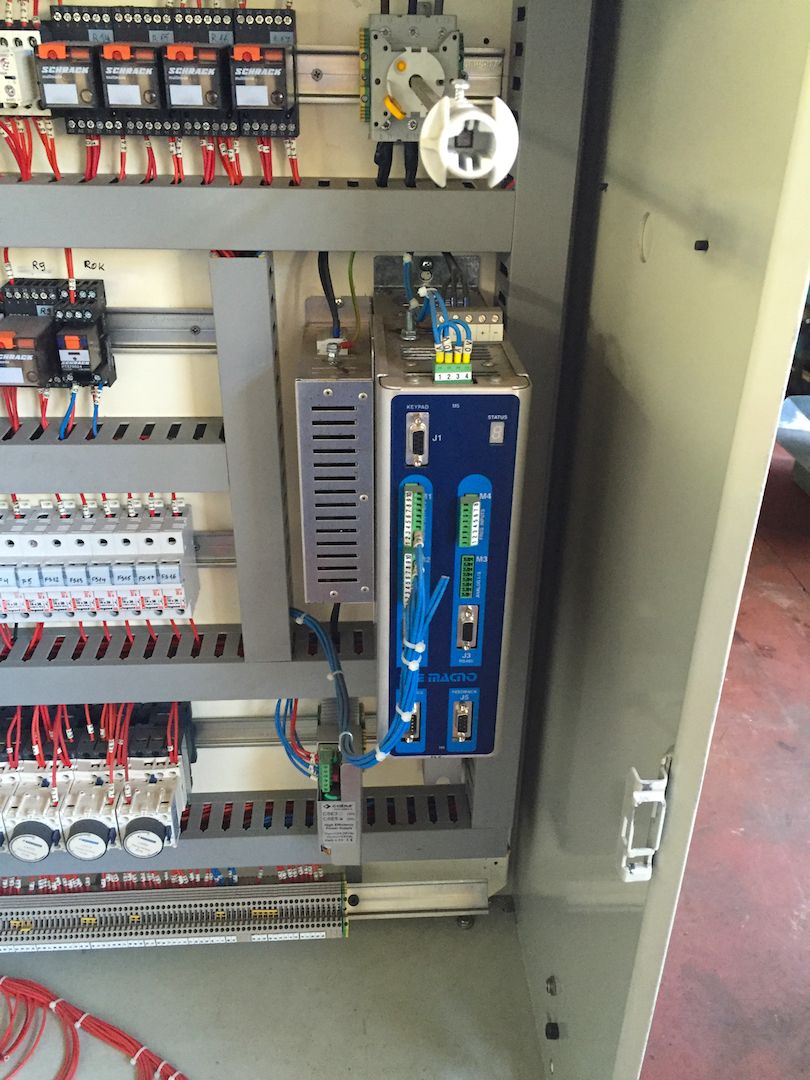

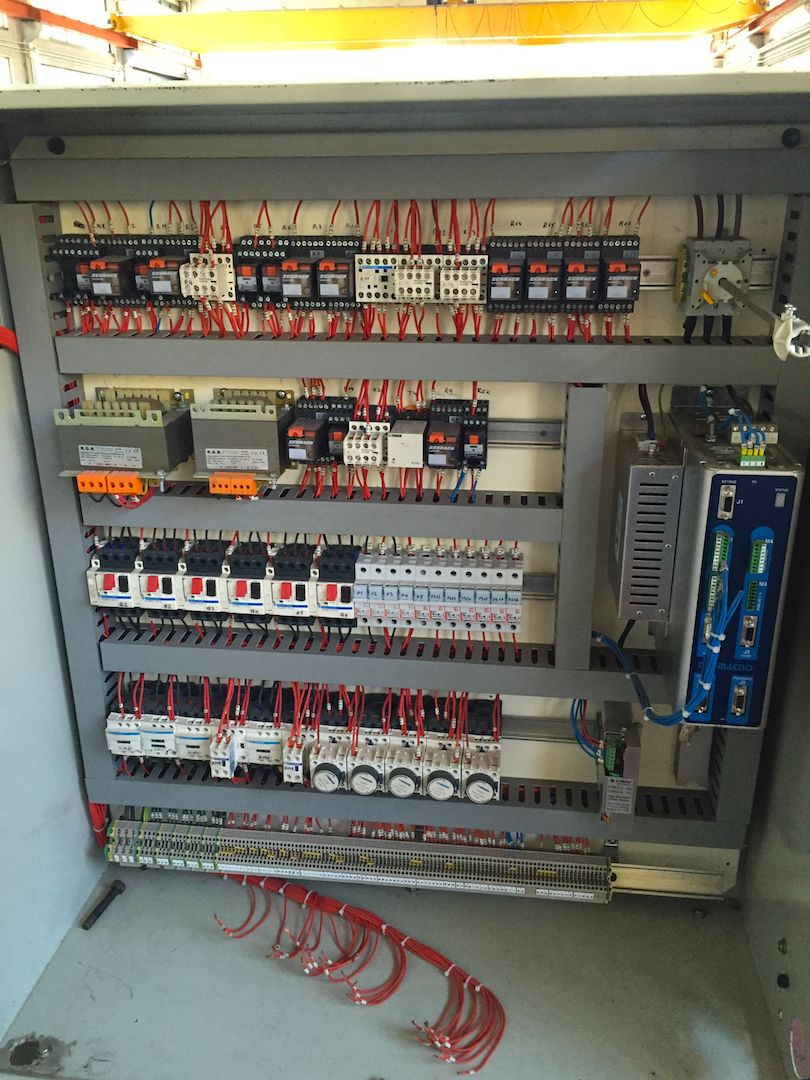

Electrical drawings
Yes
Availability
pronta
Available in stock
si
Available under power
si
Relevant updates made on the machine
revisione totale
